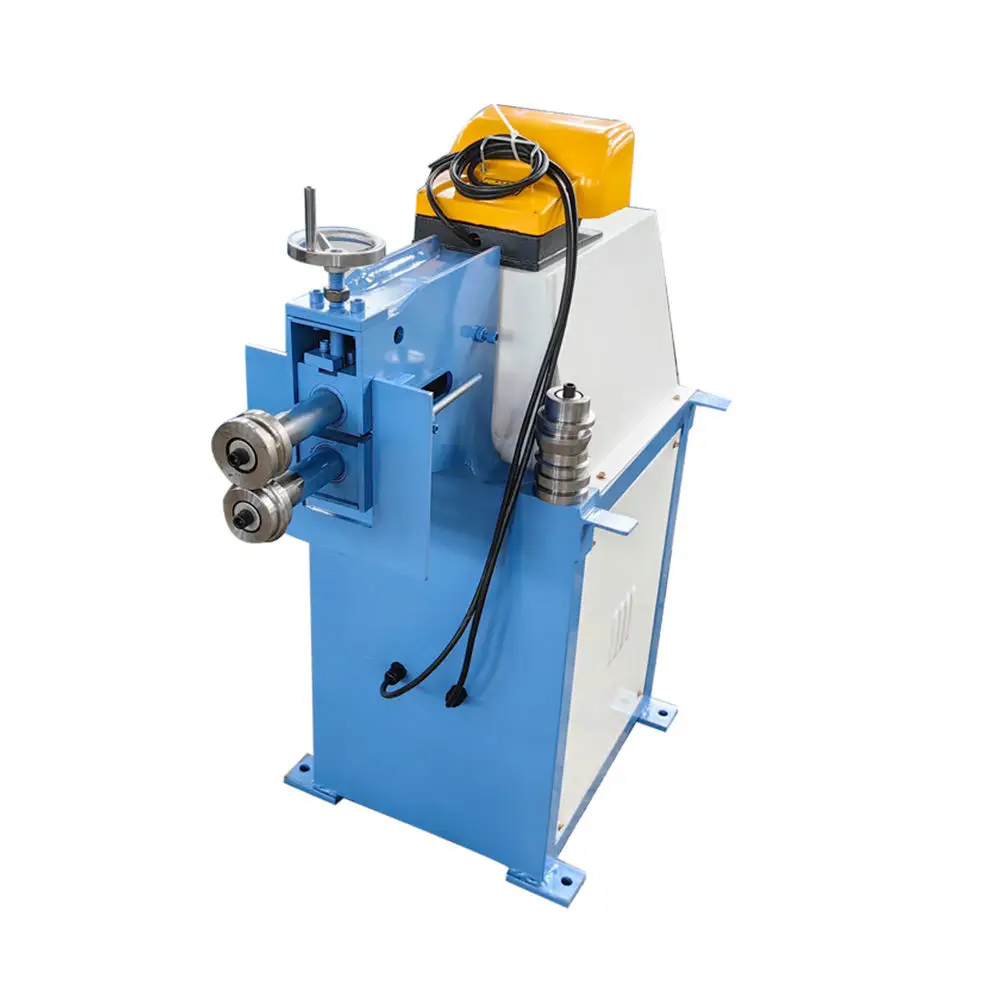

Metal Round Pipe Beading Machine Electric Wire Reeling Machine

 Metal Round Pipe Beading Machine and Electric Wire Reeling Machine

The Metal Round Pipe Beading Machine Electric Wire Reeling Machine is designed for industrial applications involving round metal tube beading and controlled wire or cable reeling. Depending on the machine configuration,the equipment can be used for forming a bead or raised edge on suitable round pipes and tubes,as well as winding electrical wire,cable,or similar flexible materials onto reels.

These two functions address different production requirements. Pipe beading is a metal forming operation used to create a raised rib,edge,or bead around a round tube. Electric wire reeling involves controlled winding of wire or cable onto a reel or spool for storage,transport,assembly,or subsequent processing.

The actual configuration can vary depending on the intended application. Customers should provide tube dimensions,material specifications,wire or cable type,reel dimensions,and production requirements when selecting the appropriate machine.

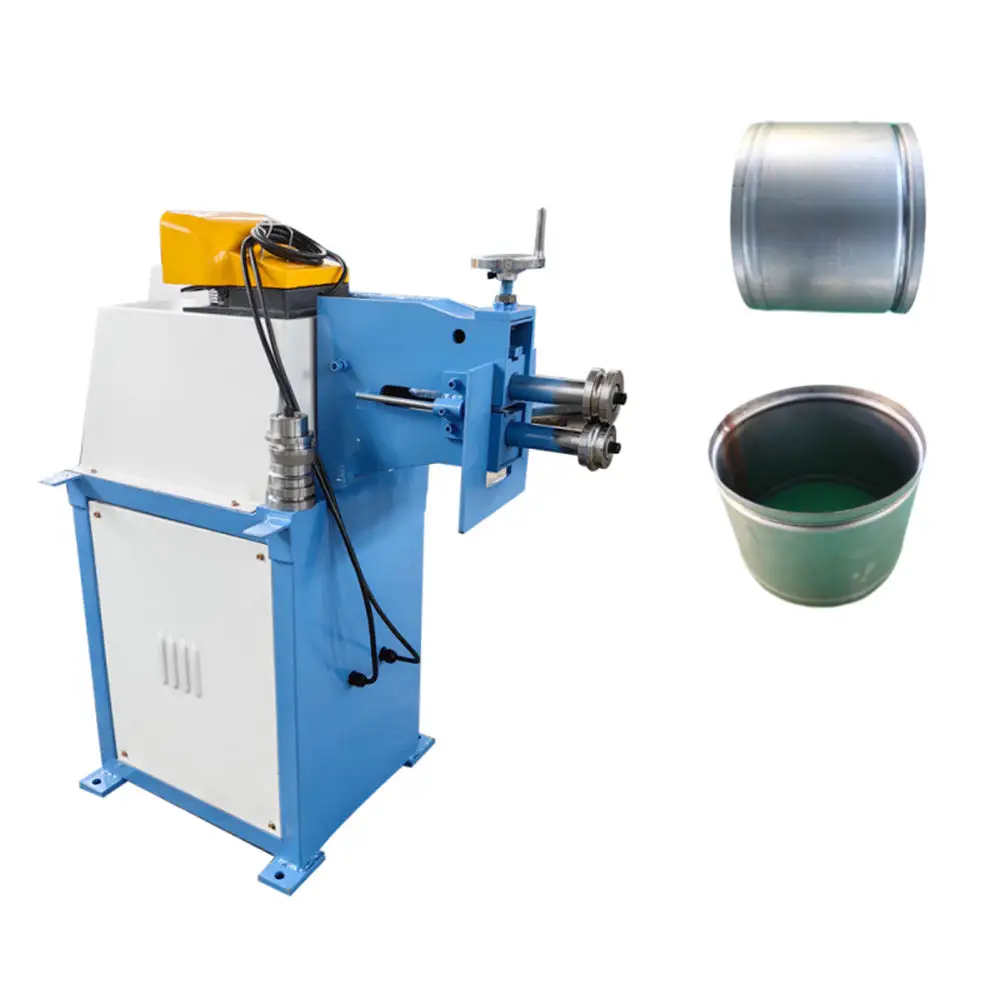

Round Pipe Beading Process

Beading is a common tube-forming process used to create a raised circular profile around a pipe or tube. The formed bead can improve structural rigidity,provide a locating feature,or create an interface for joining another component.

A round pipe beading machine uses forming tooling to apply controlled pressure to the tube surface. Depending on the design,the operation may be performed near the tube end or at a specified position along the tube.

Typical applications can include:

Metal Pipe Beading

Round Tube Edge Forming

Tube Rib Forming

Pipe Reinforcement Beading

HVAC Tube Processing

Automotive Tube Components

Exhaust Tube Processing

Metal Container Components

Furniture Tube Components

General Tube Fabrication

The finished bead profile depends on tube diameter,wall thickness,material properties,tool geometry,and forming parameters.

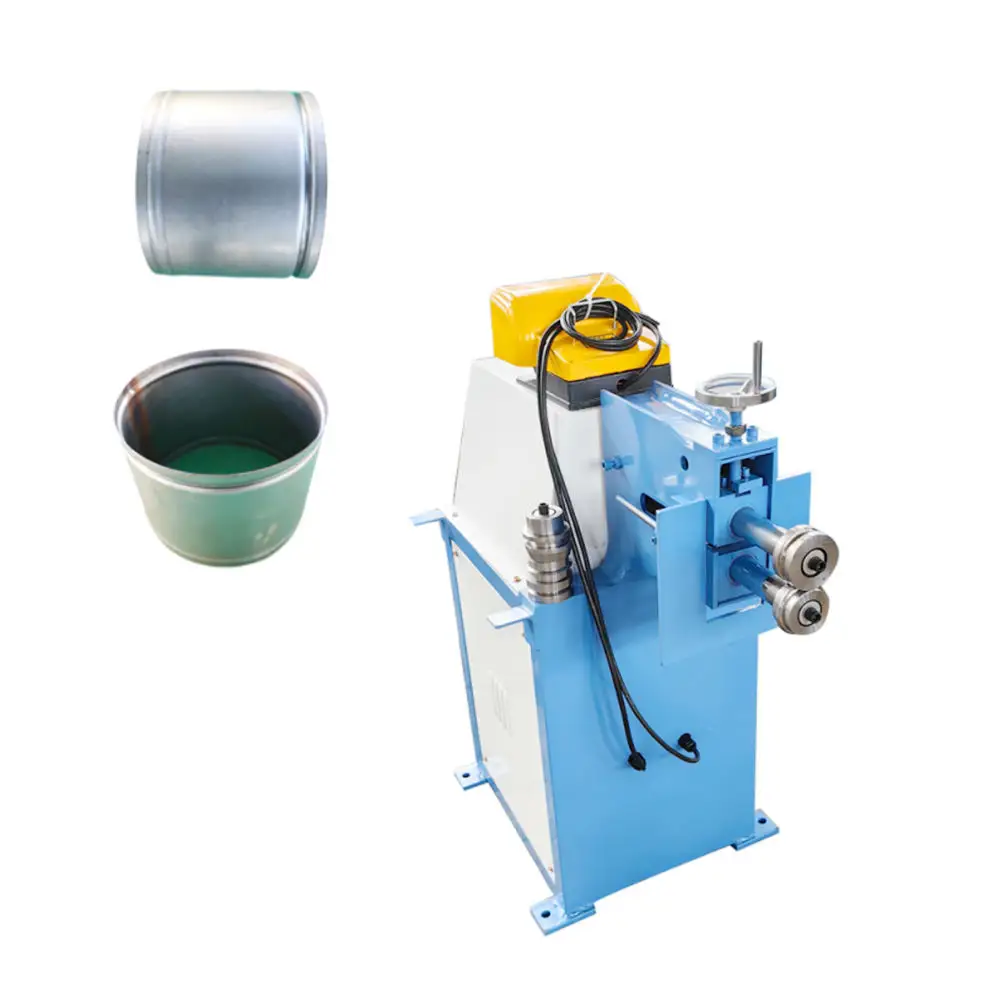

Metal Tube Beading Applications

Metal tube beading can be used for a variety of industrial components. A raised bead may provide additional rigidity or help locate a mating part during assembly.

Suitable applications may include steel tubes,stainless steel pipes,aluminum tubes,and other compatible round metal workpieces,subject to machine capacity and tooling.

In automotive and exhaust applications,beading may be used on suitable tubes where a defined raised profile is required for connection or component positioning.

In HVAC and duct-related applications,formed tube edges can assist with component assembly and connection.

For furniture and general fabrication,the process can also be used for decorative or functional tube profiles.

Beading Tooling and Forming Dies

Tooling plays an important role in determining the final bead geometry. Different tube diameters and bead profiles generally require corresponding forming tools.

Custom tooling can be developed for specific applications. Customers may provide tube drawings,diameter,wall thickness,bead position,bead height,and required finished profile.

For production involving multiple tube sizes,the machine may be configured with interchangeable tooling sets,depending on its mechanical design.

Correct tooling selection can help reduce unwanted deformation and improve consistency between processed tubes.

Electric Wire Reeling Function

The Electric Wire Reeling Machine is designed for controlled winding of wire,cable,and other suitable flexible materials onto reels or spools.

Controlled reeling can help organize long lengths of wire,reduce tangling,and prepare cable products for storage,transport,installation,or further manufacturing.

The machine can potentially be configured for different reel sizes and winding requirements. Depending on the design,functions may include electric drive,adjustable winding speed,reel support,tension control,and controlled winding.

Actual wire diameter,reel capacity,winding speed,and compatible materials depend on the specific machine configuration.

Wire and Cable Winding Applications

Electric wire reeling equipment can be useful for manufacturers and distributors handling various cable products.

Potential applications include:

Electrical Wire Winding

Power Cable Reeling

Control Cable Winding

Flexible Wire Winding

Industrial Cable Reeling

Welding Cable Winding

Extension Cable Reeling

Communication Cable Winding

Plastic Tube Winding

Flexible Hose Reeling

The appropriate winding method depends on the material flexibility,outer diameter,length,weight,and required winding pattern.

For delicate wires or cables,the winding tension should be controlled to prevent excessive compression or deformation.

Reel and Spool Compatibility

Reel dimensions are an important consideration when selecting an electric wire reeling machine.

The reel may have specific requirements for:

Reel Diameter

Reel Width

Center Bore

Maximum Reel Weight

Wire Diameter

Cable Length

Winding Direction

Customers should provide the reel drawing or dimensions when requesting a quotation.

For applications involving different reel sizes,the machine may be designed with adjustable reel supports or interchangeable components depending on the selected configuration.

Controlled Winding and Production Efficiency

An electric drive system can provide more consistent winding than purely manual operation. Controlled reel rotation can help maintain a more organized winding pattern while reducing operator effort.

For repetitive production,the operator can prepare the reel,load the wire or cable,and operate the winding system according to the selected settings.

Depending on the machine design,additional functions such as speed adjustment,tension control,guide mechanisms,and length counting may be available.

Actual production speed depends on cable diameter,reel dimensions,winding length,material properties,and machine configuration.

Combining Metal Tube and Wire Processing Requirements

The product concept can serve customers who work with both tubular metal components and electrical wire or cable products. However,the pipe beading system and wire reeling function may represent different machine configurations or application-specific equipment.

For B2B machinery projects,it is important to clarify whether the customer requires a combined machine,a dedicated pipe beading machine,or a separate electric wire reeling machine.

Providing photographs,drawings,and application details helps determine the most suitable equipment arrangement.

Material Compatibility

For pipe beading,the machine can be configured for suitable materials such as:

Carbon Steel

Mild Steel

Stainless Steel

Aluminum

Copper

Other Formable Metal Tubes

Material strength and wall thickness influence the required forming force and tooling design.

For wire reeling,the machine can handle suitable electrical wire,cable,and flexible materials according to the reel and winding system.

Copper conductors,insulated wires,and various cable constructions have different flexibility and handling characteristics,so the winding parameters should be matched to the actual product.

Quality Control

For pipe beading,quality inspection can include bead diameter,bead height,bead position,roundness,and surface condition.

For wire reeling,quality checks may include winding tightness,reel alignment,cable arrangement,length,and surface condition.

Sample testing is recommended when precise dimensions or special winding requirements are involved.

For production applications,the first processed workpiece or reel can be inspected before continuing with a larger batch.

Maintenance and Safety

Routine maintenance should include inspection of forming tools,reel supports,drive components,electrical connections,fasteners,and other wear components.

For pipe beading,the forming area should remain clear during operation. Operators should keep hands away from moving tooling.

For wire reeling,the rotating reel and winding mechanism can present entanglement hazards. Operators should keep loose clothing,hands,and other objects away from moving components.

Emergency stops,guards,electrical protection,and other safety features depend on the machine configuration. Operators should follow the manufacturer's instructions and applicable local safety requirements.

OEM and Custom Manufacturing Solutions

Different industries require different tube dimensions,bead profiles,reel sizes,and wire winding requirements. The equipment can therefore be customized according to the application.

Customers can provide:

Tube Diameter

Tube Wall Thickness

Tube Material

Bead Profile

Bead Position

Wire Diameter

Cable Type

Reel Diameter

Reel Width

Maximum Reel Weight

Required Winding Length

Production Volume

Based on these specifications,the machine configuration,tooling,reel support,and control system can be evaluated.

OEM and ODM solutions are available for manufacturers,distributors,wholesalers,and industrial equipment buyers.

Why Choose Us

Round Pipe Beading — Designed for controlled bead and edge forming on suitable round metal tubes.

Electric Wire Reeling — Supports controlled winding of suitable wires,cables,and flexible materials onto reels.

Flexible Industrial Applications — Suitable for tube fabrication,electrical products,automotive components,HVAC,and general manufacturing.

Custom Forming Tooling — Beading dies and forming tools can be developed for specific tube dimensions and profiles.

Controlled Winding — Electric drive systems can help provide consistent reel rotation and organized cable winding.

Multiple Material Options — Suitable machine configurations can be evaluated for steel,stainless steel,aluminum,copper,and compatible materials.

Production-Oriented Design — Suitable for repetitive manufacturing,assembly preparation,and industrial material handling.

OEM & ODM Support — Machine configurations can be developed according to tube specifications,reel dimensions,wire types,and production requirements.

FAQs

1. What is a metal round pipe beading machine?

It is a tube-forming machine that creates a raised bead,rib,or edge around a suitable round metal pipe or tube.

2. What is pipe beading used for?

Pipe beading can improve rigidity,create a locating feature,provide an assembly interface,or produce a specific tube profile.

3. What materials can be used for pipe beading?

Depending on the machine and tooling,suitable carbon steel,stainless steel,aluminum,copper,and other formable metal tubes may be processed.

4. Can the machine bead stainless steel tubes?

Yes,when the machine and tooling are correctly matched to the stainless steel grade,diameter,and wall thickness.

5. What is an electric wire reeling machine?

It is equipment that uses a controlled drive system to wind suitable wire,cable,or flexible material onto a reel or spool.

6. What types of wire can be reeled?

Depending on the configuration,the machine may handle electrical wire,power cable,control cable,welding cable,flexible wire,and other compatible materials.

7. Can different reel sizes be used?

This depends on the reel support and machine configuration. Customers should provide reel diameter,width,center bore,and weight requirements.

8. Can the winding speed be adjusted?

Depending on the model,the electric drive and control system may support adjustable winding speed.

9. Can the machine control wire tension?

Some configurations can incorporate tension-control or guiding functions. The actual capability should be confirmed according to the selected model.

10. Can pipe beading tools be customized?

Yes. Custom dies can be developed according to tube diameter,wall thickness,bead location,and required bead geometry.

11. Is this machine fully automatic?

The operating method depends on the configuration. Manual,semi-automatic,and automated functions may be available for different applications.

12. What information should I provide for a quotation?

For pipe beading,provide tube material,diameter,wall thickness,bead dimensions,and drawings. For wire reeling,provide wire diameter,cable type,length,reel dimensions,and maximum reel weight.
