GZ Vibrating Feeder, Vibrating Feeder Conveyor

GZ Series Vibrating Feeder absorbs the advanced technology and adopts the vibrating motor to produce vibration force. It is used to feed material into the primary crusher homogeneously, meanwhile because of the bar-shaped screen, it can screen away soil contained in the raw material, increase the capacity of the primary crushing. It is suitable for feeding material into the first crusher in hydroelectric field, building material and mining.

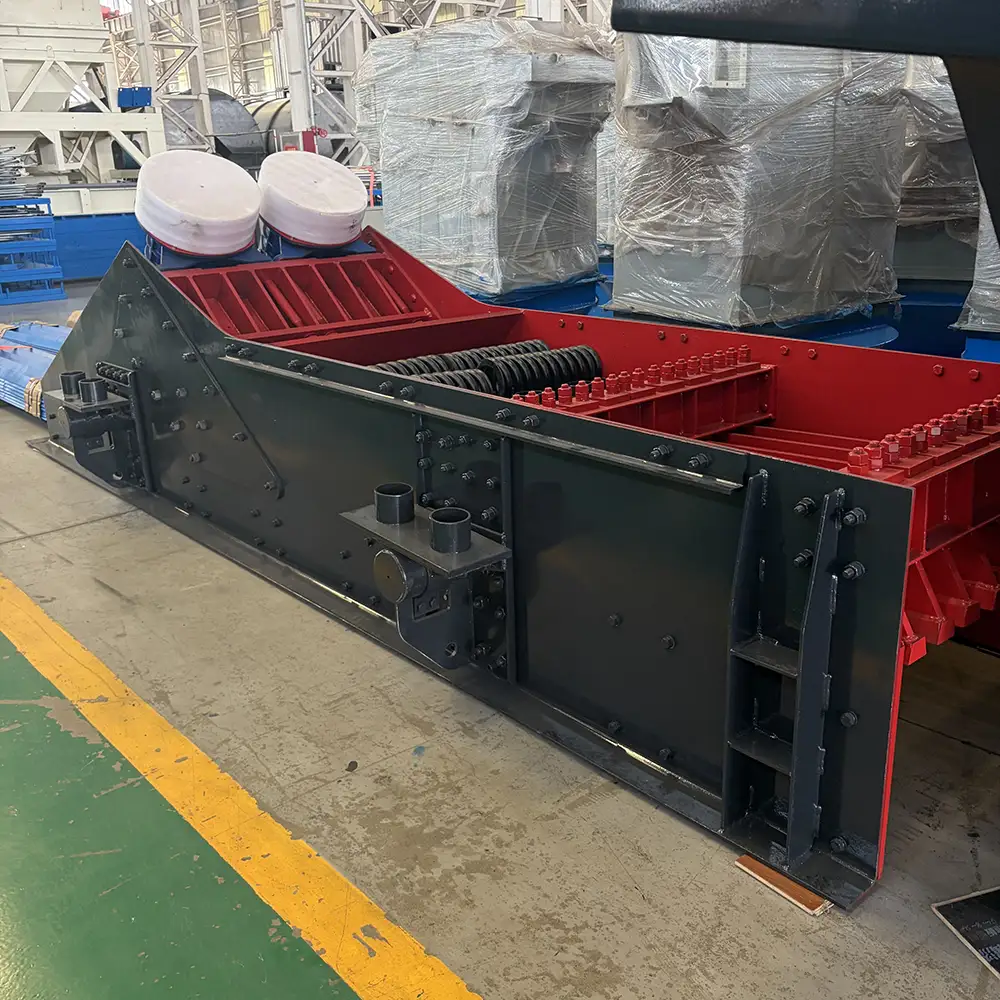

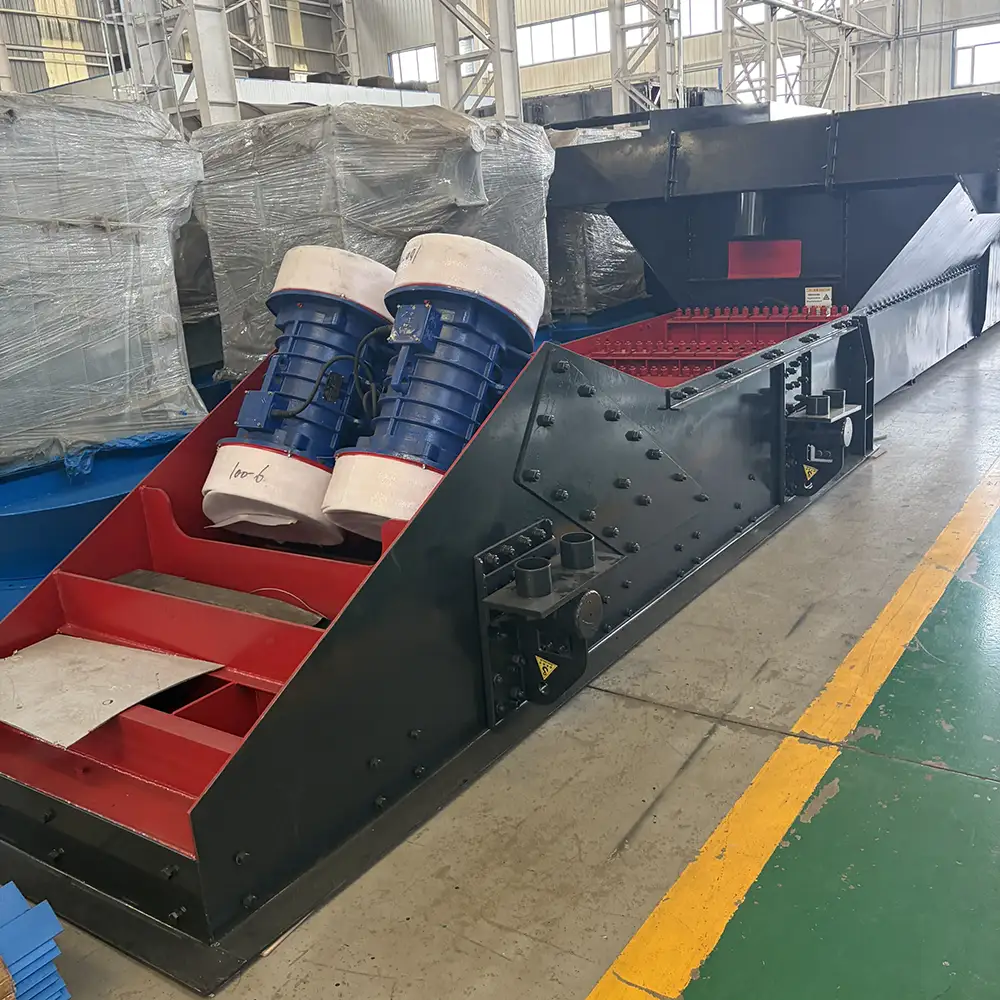

GZT Vibration Feeder mainly adopts a pair of motors as the vibration source, which have the completely same performance and parameters. When these two vibration motors rotate reversely at the same angular speed, the inertia forces produced by their eccentric blocks will overlap or counteract each other at a special phase. Thus, a huge resultant vibration exciting force will be generated so that the machine body will be forced to vibrate on the bearing spring. This vibration is used as the power to make the material slide on the material chute and drop so that the material moves forward continuously. As a result, material feeding purpose is realized. When the material passes the screen bars of the chute body, smaller pieces of material will drop from the gaps between the screen bars and not enter the next breaking procedure. In this way, material screening result is achieved.


Model	Max Feed Size (mm)	Capacity (t/h)	Motor Power (kw)	Installation Slope (° )	Weight (kg)
GZ-0724	450	30-80	2× 1.5	10	2936
GZ-0932	560	80-150	2× 2.4	10	3359
GZ-0940	560	80-180	2× 3.2	10	3608
GZ-1148	600	150-300	2× 5.5	10	4808
GZ-1256	800	180-400	2× 7.5	10	5994
GZ-1560	1000	400-600	2× 13	10	9896

The GZ Vibrating Feeder is an industrial feeding machine designed to deliver bulk materials from storage hoppers, bins, and silos to downstream processing equipment at a controlled and consistent rate. Using electromagnetic vibration, the feeder moves materials along a trough through repeated, short movements. Its feeding output can be adjusted to support continuous production, batching, weighing, and material handling operations.

A GZ Vibrating Feeder can be integrated with a Vibrating Feeder Conveyor system, belt conveyor, crusher, vibrating screen, bucket elevator, or other production equipment. It is commonly used in mining, metallurgy, coal processing, cement production, chemical manufacturing, and aggregate plants. citeturn240943search2turn240943search3

What Is a GZ Electromagnetic Vibrating Feeder?

A GZ Electromagnetic Vibrating Feeder is a compact material handling device that uses an electromagnetic exciter and spring system to generate controlled vibration. The vibration causes material to move forward along the feeder trough, creating a steady flow from the storage point to the receiving machine.

Unlike a long-distance belt conveyor, a vibrating feeder is generally installed at a hopper outlet or between two processing stages. Its primary function is to regulate material discharge and maintain a stable feed rate rather than transport material over long distances.

Depending on the application, the feeder can be supplied with an open or enclosed trough, a wear-resistant lining, and a control system suited to the material and operating environment.

Working Principle

The GZ Vibrating Feeder works through electromagnetic excitation and controlled vibration.

Electromagnetic Excitation: When powered, the electromagnetic coil generates a magnetic force that acts on the moving assembly.
Spring-Mounted Vibration: The exciter and spring system drive the trough in a repeated vibration pattern.
Forward Material Movement: Material inside the trough advances through a series of small slides or throws.
Feed Rate Adjustment: The controller regulates the vibration intensity to adjust the amount of material discharged.
Continuous Feeding: The feeder delivers material to downstream equipment at a controlled rate, helping reduce irregular loading.

The control system can support manual adjustment or integration with automated production controls, depending on the selected configuration. citeturn240943search0turn240943search7

Main Components

A typical GZ Vibrating Feeder includes:

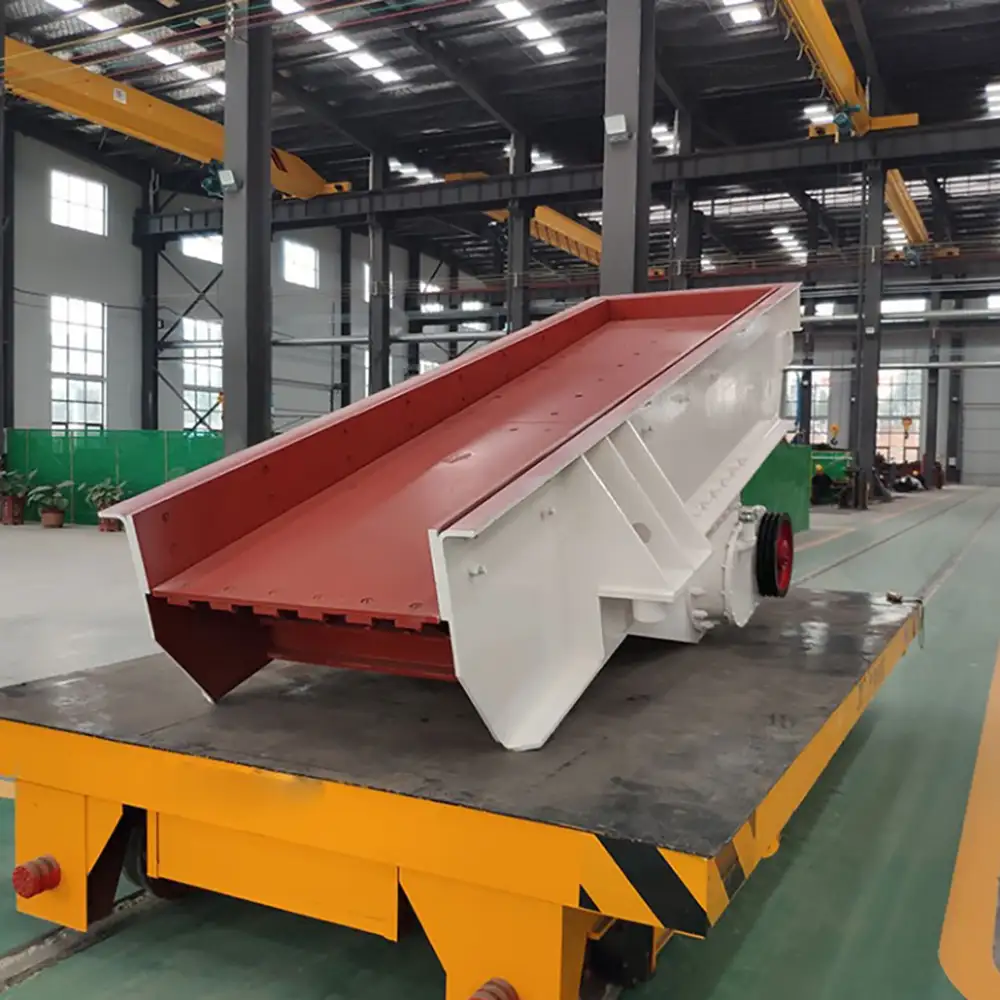

Feeding Trough: The material-contact surface that guides bulk material toward the discharge point.
Electromagnetic Exciter: Generates the vibration force required to move material.

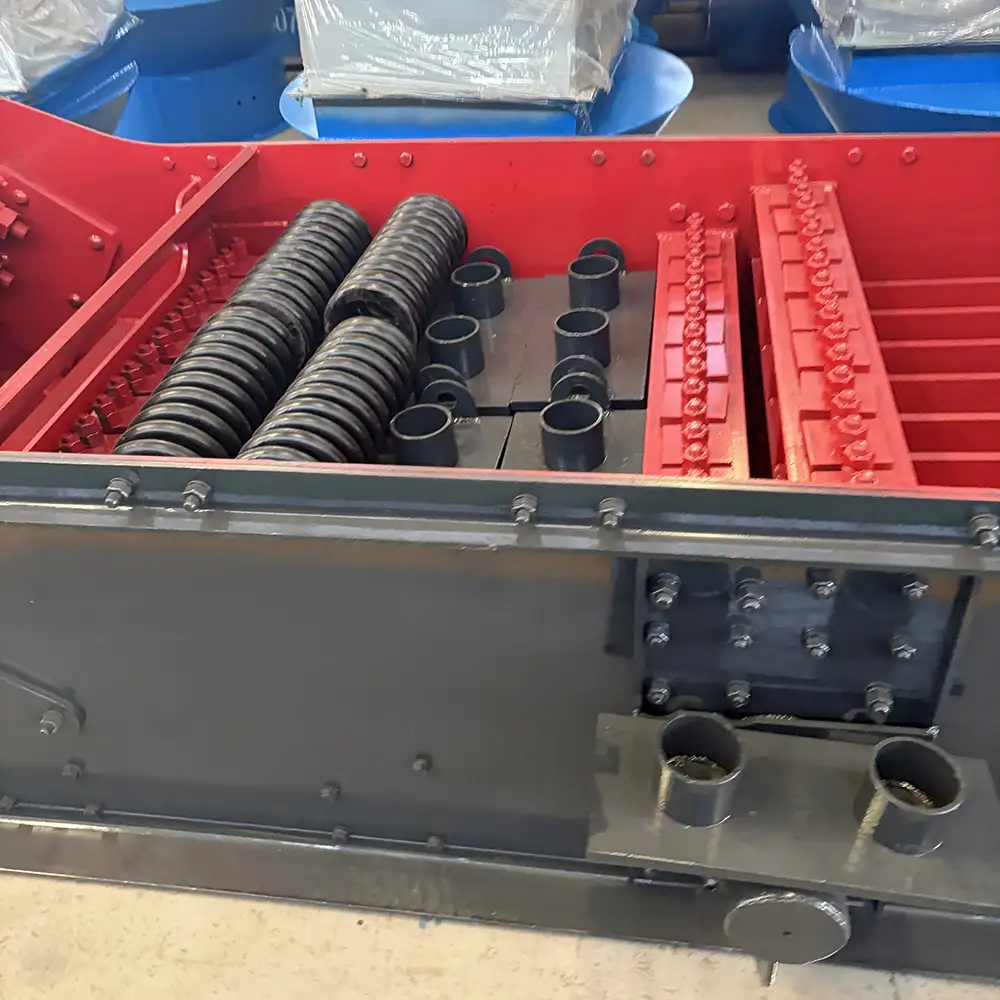

Vibration Springs: Support the vibrating assembly and help establish its operating motion.
Control Box: Adjusts the electrical input and vibration intensity to regulate feeding.
Support Frame: Holds the feeder in position and connects it to the hopper or production line.
Optional Protective Cover: Helps contain dust and reduce material spillage in suitable applications.

Component materials and dimensions can be selected according to throughput, particle size, abrasiveness, and site conditions.

Applications of Vibrating Feeder Conveyor Equipment

GZ Vibrating Feeders are used wherever bulk materials need controlled discharge and consistent transfer into another process.

Mining and Mineral Processing
Feed ore, crushed stone, mineral particles, and other bulk materials from storage bins to crushers, grinding mills, screens, and belt conveyors.

Quarry and Aggregate Plants
Regulate the flow of limestone, gravel, sand, and crushed rock between storage and screening or crushing equipment.

Coal and Power Plants
Control the discharge of coal and other suitable bulk materials into conveying, screening, and processing systems.

Cement and Building Materials
Feed cement-related raw materials, limestone, and granular materials into production equipment and batching systems.

Chemical and Fertilizer Production
Transfer suitable powders and granules to mixers, weighing equipment, packaging lines, and dosing systems. Enclosed designs can be considered where dust control is required.

Grain and Light Industry
Handle suitable dry granular products in storage, weighing, processing, and packaging operations.

Key Features and Benefits

1. Adjustable Feeding Rate
The control system allows operators to adjust vibration intensity and regulate material output. This is useful when production demand changes or downstream equipment requires a controlled feed.

2. Uniform Material Discharge
A stable feeding stream can help reduce sudden surges and uneven loading, supporting more consistent operation of crushers, screens, mills, and weighing systems.

3. Compact Installation
The feeder can be installed below a hopper or silo, making it suitable for equipment connections and production line layouts where floor space is limited.

4. Simple Mechanical Structure
Electromagnetic feeder designs typically have few rotating components. This can reduce routine lubrication requirements, although springs, electrical parts, fasteners, and the trough still require inspection.

5. Automation Compatibility
With a suitable controller and electrical interface, the feeder can be incorporated into automatic batching, dosing, and material handling systems.

6. Flexible Configuration
Trough dimensions, covers, liners, and control options can be selected to match the material and process requirements. citeturn240943search3turn240943search8

GZ Vibrating Feeder vs. Heavy-Duty Vibrating Feeder Conveyor

The terms are sometimes used interchangeably, but equipment selection should be based on the actual feeding duty.

A GZ electromagnetic feeder is commonly used for controlled, adjustable feeding of suitable powders, granules, and smaller bulk materials. A heavy-duty vibrating feeder conveyor may use a different drive arrangement and a more robust structure to handle larger feed sizes, higher impact loads, or demanding primary crushing applications.

When choosing equipment, consider whether the process needs accurate feed-rate control, heavy-duty bulk transfer, pre-screening, or a combination of these functions. For coarse, highly abrasive, or large-lump materials, confirm that the selected feeder is designed for the required impact and wear conditions.

How to Choose the Right Model

Before purchasing a GZ Vibrating Feeder, evaluate the following factors:

Required Capacity: Specify the target throughput in tons per hour or another suitable unit.
Material Characteristics: Provide bulk density, particle size distribution, moisture, abrasiveness, and flow behavior.
Feed Opening and Trough Size: Match the feeder dimensions to the hopper outlet and required material flow.
Installation Conditions: Confirm available space, mounting arrangement, inclination, and connection to downstream equipment.
Control Requirements: Determine whether manual adjustment, remote control, or automated operation is needed.
Operating Environment: Consider dust, temperature, corrosion, and any special electrical or safety requirements.

Actual capacity depends on the material and installation conditions. Request a model recommendation based on process data rather than selecting by model number alone.

Installation and Maintenance

Install the feeder on a suitable support structure and follow the manufacturer's mounting and alignment requirements. Check that the hopper outlet does not impose unintended loads on the vibrating trough. Electrical wiring, controller settings, and protective grounding should be completed by qualified personnel.

During routine maintenance, inspect springs, mounting bolts, the trough, electrical connections, and any wear liners. Keep the equipment clean and check for abnormal noise, overheating, loose components, or changes in feeding performance. Disconnect and isolate power before inspection or service.

For dusty, wet, sticky, or highly abrasive materials, discuss suitable covers, liners, and feeding arrangements before ordering.

Customization and OEM Supply

As an industrial Vibrating Feeder Conveyor supplier, we can discuss equipment configurations according to your production line requirements. Customization may include trough dimensions, open or enclosed construction, wear-resistant contact surfaces, support structures, control options, and connection details.

For an accurate quotation, provide your material type, required capacity, maximum particle size, moisture level, installation drawing, power supply, and the equipment receiving the material. These details help the engineering team assess the appropriate feeder arrangement and accessories.

Why Choose Us?
Application-Based Selection: We review material properties, capacity, and process conditions before recommending a configuration.
Flexible Equipment Options: Trough size, protection, wear treatment, and control arrangements can be discussed for different operating needs.
Production Line Integration: We consider the connection between the feeder, hopper, conveyor, crusher, screen, or weighing system.
B2B and OEM Support: We support project inquiries, equipment customization, and export-oriented supply requirements.
Technical Communication: We can work from process details and installation information to clarify model selection and configuration.

Our goal is to help buyers specify a feeder that fits their material handling process, operating environment, and downstream equipment.

Frequently Asked Questions

1. What is a GZ Vibrating Feeder used for?
It is used to discharge and feed suitable bulk materials from hoppers, bins, and silos at a controlled rate into downstream equipment.

2. Is the GZ Vibrating Feeder electromagnetic?
GZ commonly refers to an electromagnetic vibrating feeder series. Confirm the drive type and model configuration with the supplier before ordering.

3. What materials can it handle?
Depending on the configuration, it can handle dry powders, granules, and suitable lump materials such as ore, coal, limestone, and aggregates.

4. Can the feeding speed be adjusted?
Yes. A compatible controller adjusts vibration intensity to regulate the feeding rate. The achievable range depends on the feeder and material.

5. Can it feed a belt conveyor?
Yes. It is commonly installed at a hopper outlet to feed a belt conveyor or other receiving equipment.

6. Can it be used in a mining plant?
Yes, provided the selected model is suitable for the material size, abrasiveness, throughput, and impact conditions of the application.

7. Does the feeder require lubrication?
Electromagnetic designs generally have few rotating parts and may not require routine lubrication of a drive mechanism. Other components still need regular inspection and maintenance.

8. Can the feeder be enclosed for dust control?
Enclosed configurations or protective covers may be available. The appropriate design depends on the material, dust-control target, and process layout.

9. What information is needed for a quotation?
Provide the material name, capacity, particle size, moisture, bulk density if available, installation details, and electrical requirements.

10. Can the GZ Vibrating Feeder be customized?
Trough dimensions, liners, covers, support arrangements, and control options may be customized to suit the project. Confirm the available options with the manufacturer.
