Double Heads Hydraulic Pneumatic CNC PLC Full Automatic Pipe Tube Punching Hole Machine with Cutting Function 8H

1Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the dies easily without adjusting the dies to reduce mould damage rate , Skilled workers can change the mould within 10 minutes.
4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole punching; (4). none- Isometric hole punching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal two sides
5. Hydraulic ,pnaumatic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
7. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately


Model		8TA	8TB	15TA	15TB	20TA	20TB
Feed length		3000	6000	3000	6000	3000	6000
Nominal force		80kn		150kn		250kn
Stroke		100mm		120mm		150mm
Motor power		4kw		5.5kw		7.5kw
Punching capacity(metal thickness)		≤2mm		≤3mm		≤5mm
Fit to material		Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on
Fit to shape		Round, square, rectangle ,oval, angle steel
Tube and hole size		Moulds can be customized as different requirement Depend on tube material and thickness, also hole size,
Punching hole accuracy		0.01mm
Feed accuracy		0.1mm
Color		white , or customized
Feed way		Slideway and servo motor
Control way		PLC, 10 inch Touch Screen
Clamping way		Pneumatic(air compressor is with machine)
programs stored		200 sets, each program store different processing message
Operation language		Chinese and English, or customized
Voltage		220V,380V,415V,440v, customized as requirement
Cutting method(option )		Saw blade ,or hydraulic punch cutting
MeasureMeasure	Machine head	1500x100x1700mm
	Feed frame	3500x600x12500mm(single,3m feed) 3500x900x12500mm(double,3m feed) 6500x600x12500mm(single,6m feed) 6500x900x12500mm(double,6m feed)

please let us know. what is pipe size, material , and also hole size , in order to recommend suitable machine

The Double Heads Hydraulic Pneumatic CNC PLC Full Automatic Pipe Tube Punching Hole Machine with Cutting Function 8H is an automated industrial solution designed for efficient punching, hole processing, and cutting of compatible metal pipes and tubes. Combining CNC and PLC control with hydraulic and pneumatic mechanisms, the machine is designed to streamline repetitive tube processing operations and provide consistent production results.

Pipe and tube components are widely used in furniture, automotive parts, construction products, storage equipment, machinery frames, fitness equipment, agricultural machinery, and general metal fabrication. When production requires repeated holes at specific locations together with accurate tube cutting, conventional manual drilling and separate cutting operations can increase labor requirements and material handling. An integrated automatic punching and cutting system provides a more organized production workflow.

Double Head Punching Configuration

The double-head configuration is designed to improve the efficiency of pipe hole processing by providing two coordinated punching stations or punching heads. Depending on the machine configuration and processing requirements, the heads can operate simultaneously or according to a programmed sequence.

This configuration is particularly useful for tubular products requiring holes on different sides, multiple positions, or repeated processing operations. The exact punching arrangement depends on tube geometry, hole pattern, tooling, and machine design.

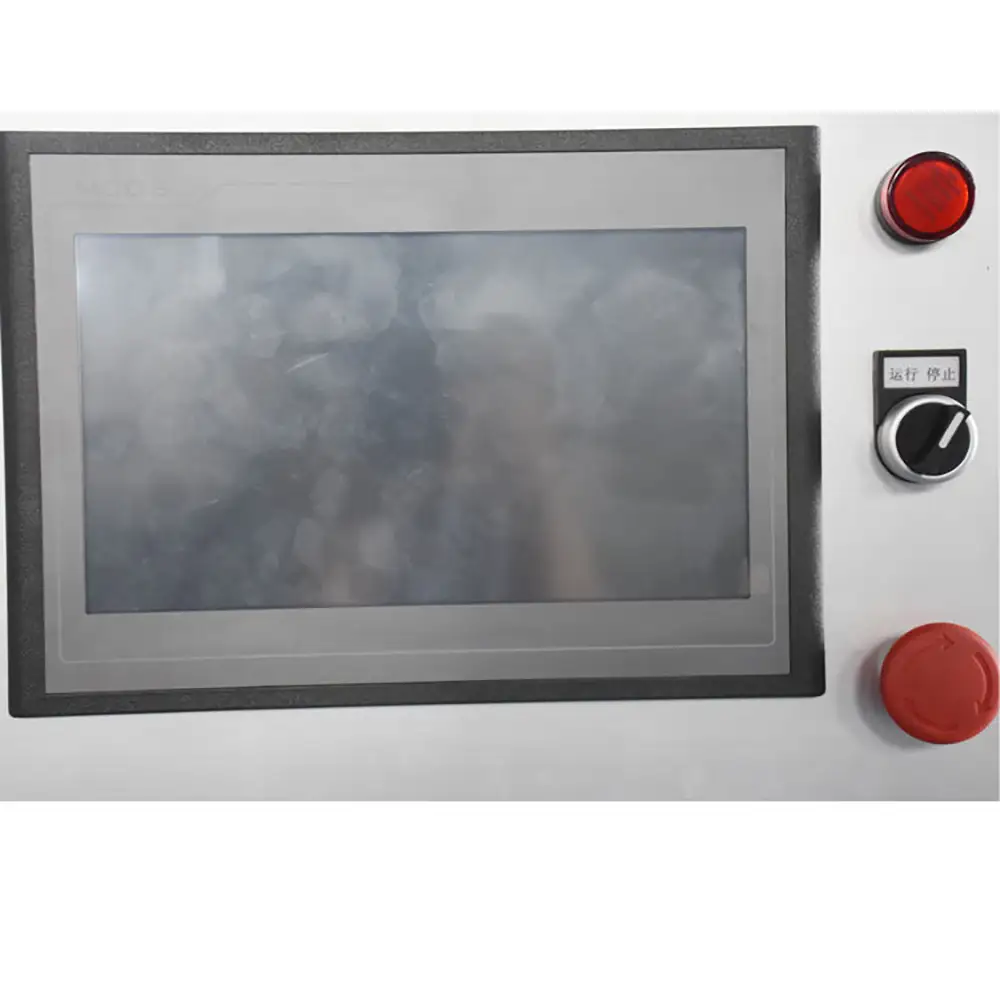

CNC And PLC Control

The CNC and PLC control system coordinates material positioning and the programmed processing cycle. Operators can set or manage suitable processing parameters according to the tube specifications and production requirements.

Programmable control helps reduce repetitive manual measurement and positioning. For batch production, processing programs can help maintain consistent hole locations and cutting operations between workpieces.

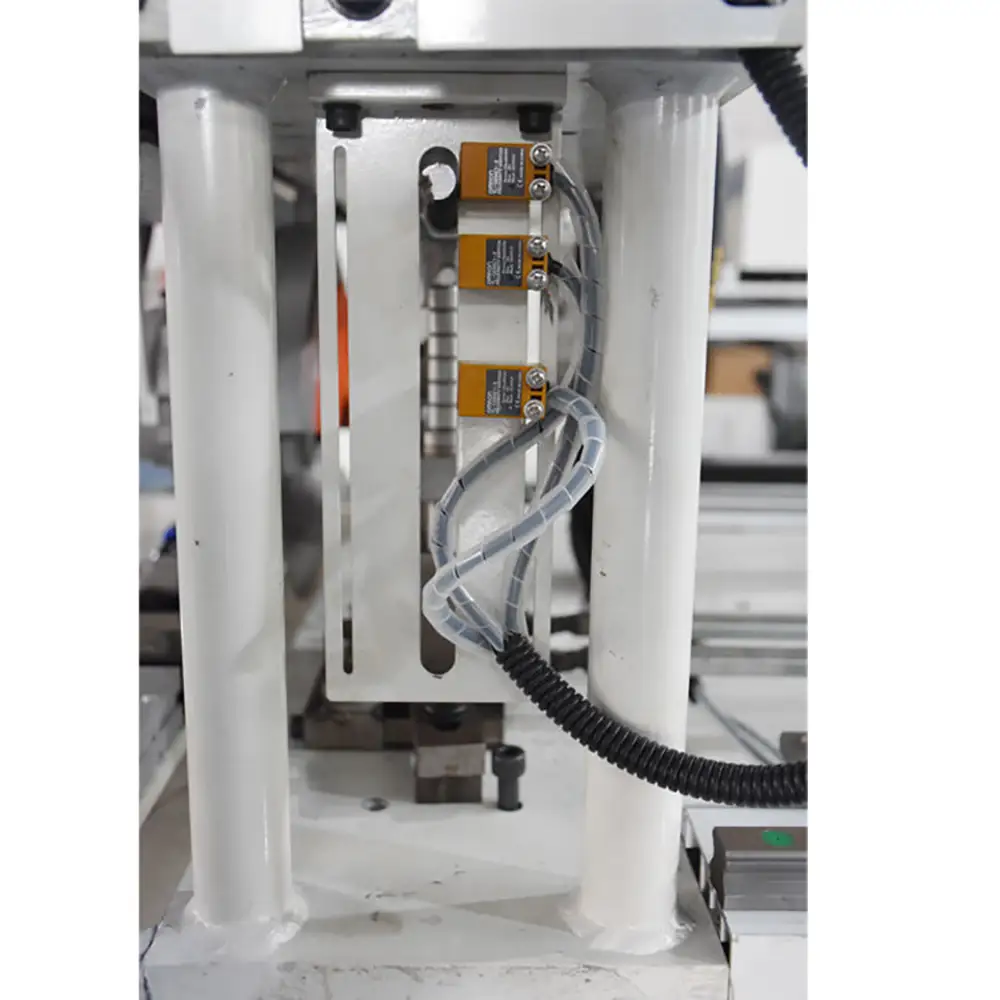

Hydraulic Punching System

The hydraulic system provides controlled punching force for compatible metal tube applications. Hydraulic punching is suitable for production environments where stable and repeatable force is required.

Punching force and tooling should be selected according to tube material, wall thickness, hole diameter, and workpiece geometry. Proper configuration helps achieve clean holes while reducing unnecessary deformation of the tube.

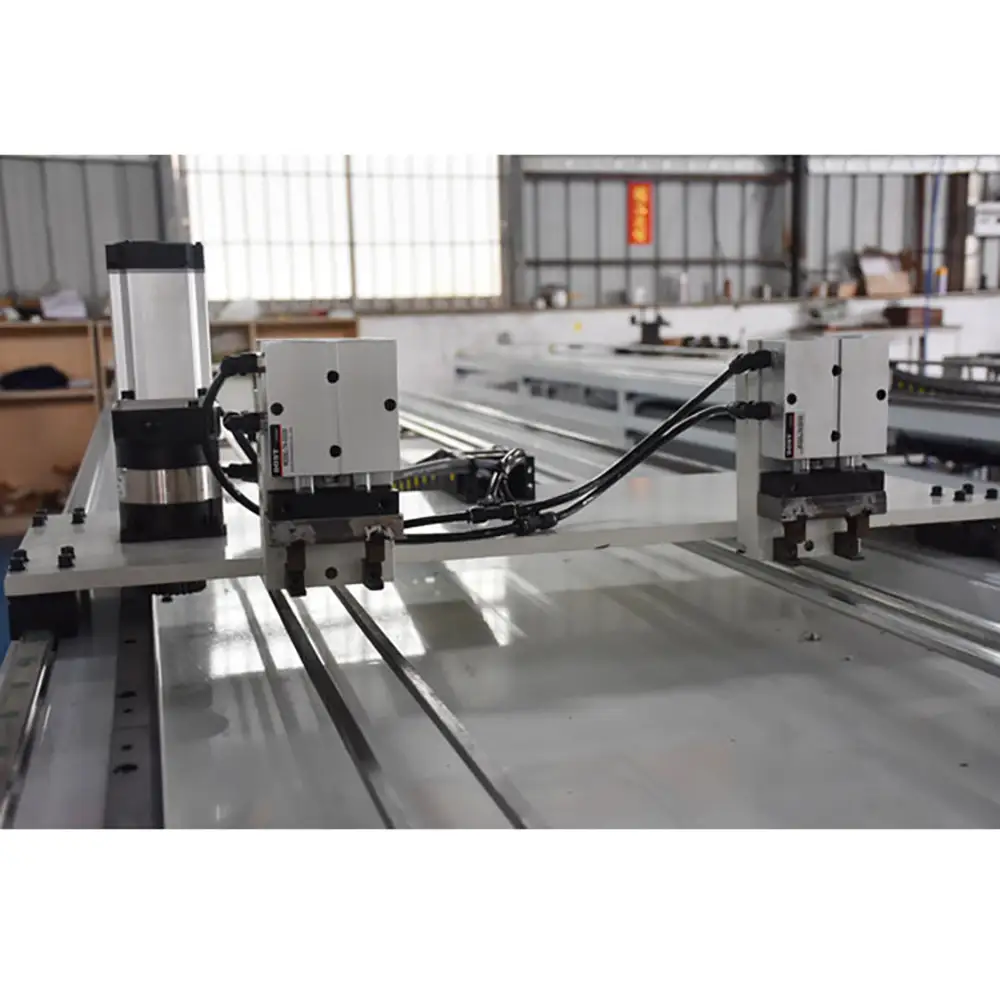

Pneumatic Operation

Pneumatic components can be used for clamping, positioning, feeding, or auxiliary machine movements, depending on the specific configuration.

Pneumatic control can provide quick and repeatable movement for supporting operations within the automatic production cycle. The combination of hydraulic and pneumatic functions can be configured according to the processing requirements.

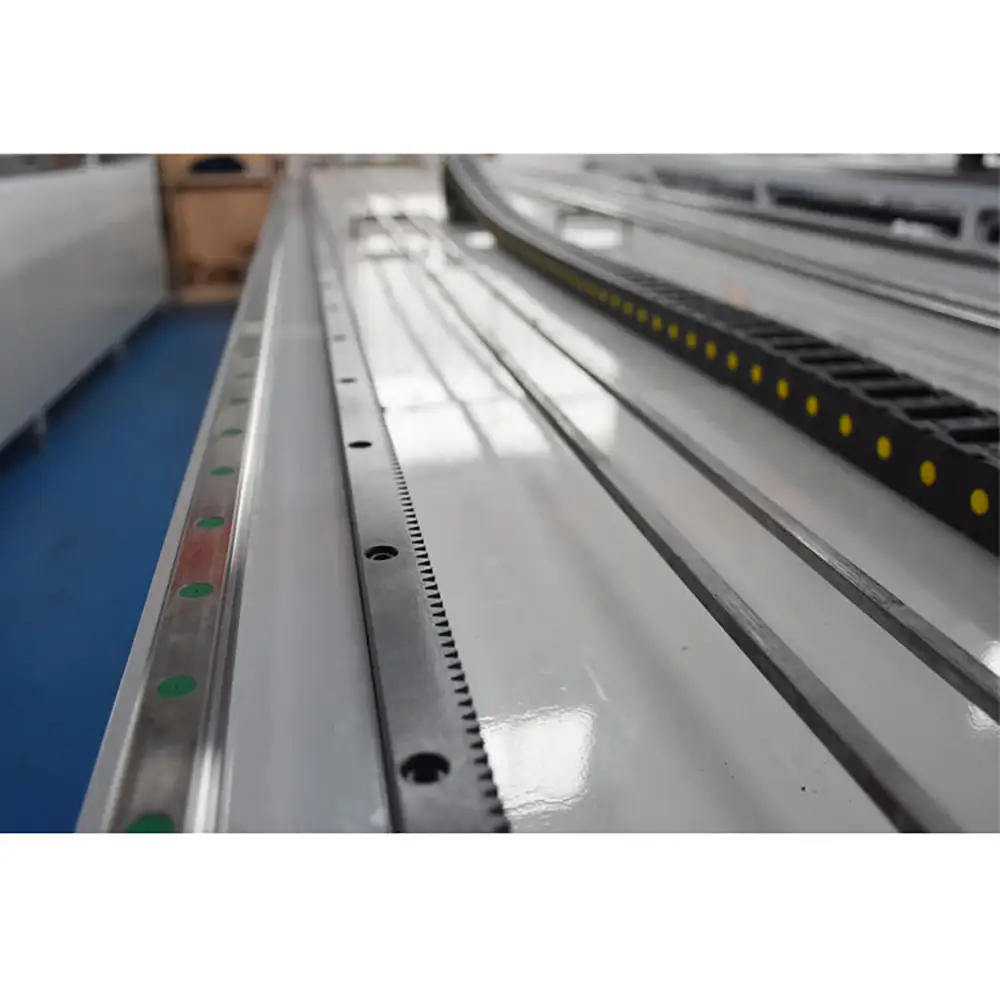

Automatic Pipe Feeding

An automatic feeding system can transfer pipes or tubes toward the punching station with reduced manual handling. Depending on the machine design, the feeding system may include material racks, rollers, guides, clamps, sensors, and transfer mechanisms.

Feeding components should be matched to tube diameter, length, weight, surface condition, and production volume to maintain stable material movement.

Accurate Hole Positioning

Accurate hole positioning is important when tubes are used as assembled components. Holes may need to align with bolts, fasteners, brackets, connecting components, or other structural parts.

The CNC-controlled positioning system helps coordinate the tube with the punching head according to programmed locations. Proper clamping and tooling also contribute to processing stability.

Automatic Tube Cutting Function

In addition to hole punching, the machine includes a cutting function for preparing tubes to the required length. Integrating cutting with punching reduces the need to transfer semi-finished workpieces between separate machines.

The cutting method and tooling can be selected according to the tube material, diameter, wall thickness, and required finished length.

Integrated Punching And Cutting

Combining punching and cutting operations can simplify the production process for manufacturers that repeatedly process the same or similar tube products.

A typical automated cycle may include feeding, positioning, clamping, punching, cutting, and unloading. The actual sequence depends on machine configuration and customer requirements.

Suitable For Round Pipes And Tubes

The machine can be configured for suitable round metal pipes and tubes. Depending on the selected model and tooling, applications may include carbon steel, stainless steel, galvanized steel, aluminum, and other compatible materials.

Material properties should always be considered before machine selection because different materials and wall thicknesses require different punching forces and tooling designs.

Production Efficiency

Automatic feeding and integrated processing help reduce repetitive manual operations. Instead of manually measuring, drilling, repositioning, and cutting every workpiece, operators can monitor an automated production cycle.

This can be especially useful for factories handling large batches of tubular components with standardized dimensions and repeated hole patterns.

Consistent Processing Quality

Manual tube punching can result in variations in hole position when workpieces are repeatedly measured and positioned by hand. CNC positioning and controlled clamping can help reduce such variations.

Consistent processing is important for components that must be assembled with other parts. Final accuracy depends on the machine configuration, tooling, material properties, and production settings.

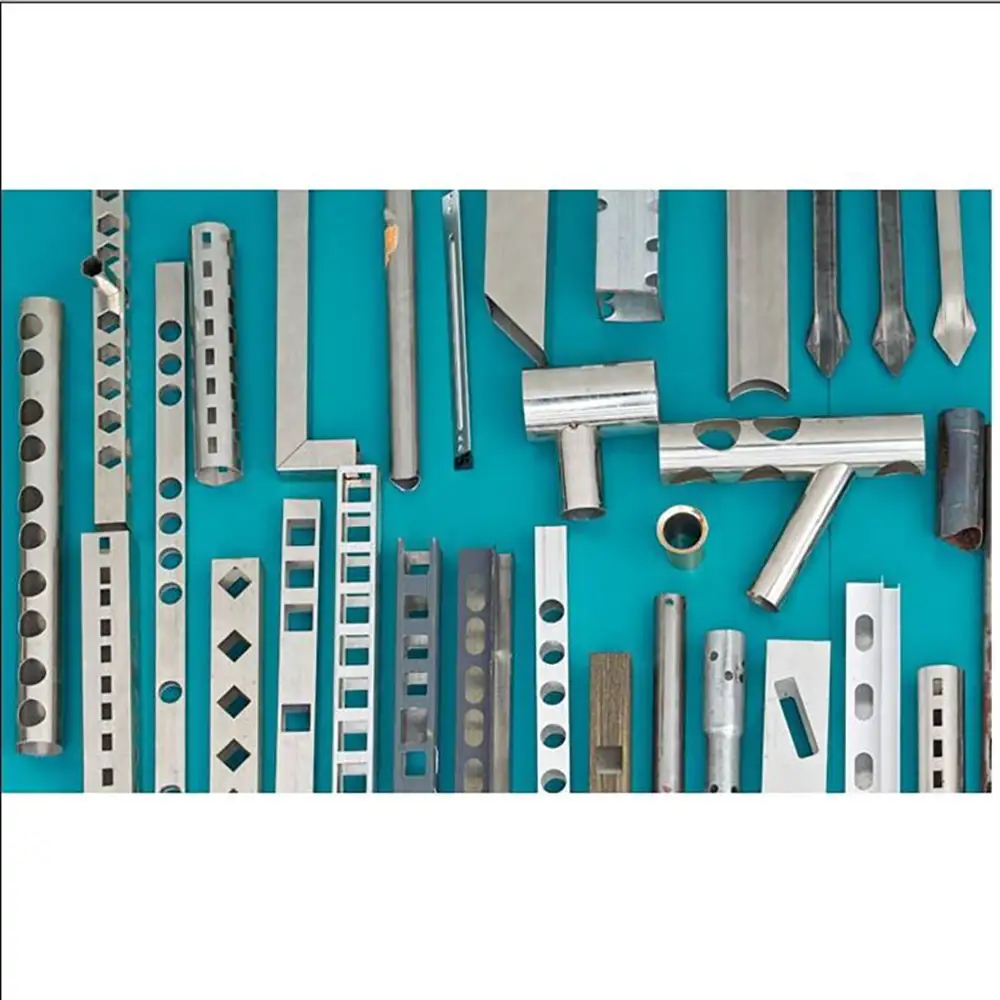

Customized Punching Tooling

Different products require different hole diameters, hole shapes, tube sizes, and punching positions. The machine can therefore be equipped with customized punches, dies, fixtures, guides, and clamping components.

Customers can provide tube samples, CAD drawings, hole patterns, material specifications, and production requirements for tooling evaluation.

Applications In Furniture Manufacturing

Metal furniture is one common application for automatic tube punching and cutting. Chairs, tables, shelving, storage racks, bed frames, office furniture, and other tubular products may require repeated holes for assembly.

An automated machine can help manufacturers process large quantities of tube components with repeatable hole patterns and cutting lengths.

Automotive And Industrial Components

Tubular components used in automotive accessories, machinery frames, equipment supports, agricultural equipment, and industrial assemblies may require multiple accurately positioned holes.

An integrated CNC pipe punching and cutting machine can simplify repetitive fabrication operations for these products.

Reduced Manual Labor

Automatic material handling and programmable processing reduce the need for operators to manually perform every individual punching and cutting operation.

Operators can focus on loading raw materials, monitoring production, checking finished parts, and maintaining the machine, depending on the factory workflow.

Flexible Production

Programmable control allows suitable processing parameters to be adjusted for different tube products. Interchangeable tooling can also help support multiple hole sizes or workpiece specifications within the machine's working range.

Before changing production products, the appropriate tooling, clamping, and processing parameters should be confirmed.

Industrial B2B Solution

The machine is suitable for manufacturers, OEM factories, metal fabrication companies, furniture producers, automotive component suppliers, equipment manufacturers, and other businesses requiring automated tube processing.

Customers can provide technical drawings, tube dimensions, wall thickness, hole specifications, cutting lengths, material information, and expected production volume for machine configuration evaluation.

Key Features
Double Head Punching Configuration
Full Automatic Pipe Processing
CNC And PLC Control
Hydraulic Punching System
Pneumatic Auxiliary Functions
Automatic Tube Feeding
Automatic Hole Positioning
Integrated Tube Cutting
Programmable Processing Cycles
Customized Punching Tooling
Stable Tube Clamping
High Production Efficiency
Main Applications
Metal Furniture Manufacturing
Round Tube Processing
Steel Pipe Fabrication
Automotive Components
Storage Rack Production
Metal Shelving
Chair And Table Frames
Bed Frame Manufacturing
Fitness Equipment
Agricultural Machinery
Industrial Equipment
General Metal Fabrication
FAQs
1. What Is A Double Head Pipe Punching Machine?

It is an automatic machine equipped with two punching heads or coordinated punching stations for processing holes in compatible pipes and tubes.

2. What Is The Advantage Of Double Head Punching?

The double-head configuration can support multiple punching operations and may reduce processing time for certain tube designs, depending on the hole pattern and machine configuration.

3. Does The Machine Use Both Hydraulic And Pneumatic Systems?

The machine can combine hydraulic punching with pneumatic clamping, positioning, feeding, or auxiliary movements according to the selected configuration.

4. Is The Machine CNC Controlled?

Yes. CNC control can coordinate tube positioning and programmed punching and cutting operations, while the PLC system manages the machine's automatic control sequence.

5. Can It Punch Small Holes In Metal Tubes?

Yes. Suitable small-hole punching applications can be supported with the correct punches and dies. Hole diameter, tube material, and wall thickness should be provided for tooling evaluation.

6. Can It Punch And Cut Tubes Automatically?

Yes. The machine integrates automatic tube punching with a cutting function, subject to the selected machine configuration and processing requirements.

7. What Materials Can Be Processed?

Suitable applications may include carbon steel, stainless steel, galvanized steel, aluminum, and other compatible metal tubes. Final suitability depends on material properties and tooling.

8. Can The Feeding System Be Automatic?

Yes. An automatic feeding system can be configured with racks, rollers, guides, clamps, and transfer mechanisms according to tube dimensions and production requirements.

9. Can Different Hole Patterns Be Programmed?

Yes. CNC and PLC control can support different programmed processing patterns within the machine's working range.

10. What Information Is Needed For Machine Selection?

Provide tube diameter, wall thickness, material, tube length, hole diameter, hole quantity, hole spacing, hole pattern, cutting length, and expected production volume. Drawings or samples are also recommended.

Why Choose Us
Professional Pipe Punching Equipment

We provide industrial machinery for automatic pipe punching, tube hole processing, tube cutting, and integrated metal fabrication applications.

CNC And PLC Automation

Programmable CNC and PLC control helps coordinate positioning, punching, cutting, and machine movements for repeatable production cycles.

Hydraulic And Pneumatic Technology

The combination of hydraulic punching and pneumatic auxiliary functions provides a practical configuration for automated tube processing applications.

Customized Tooling Support

We can evaluate punches, dies, clamps, guides, fixtures, and feeding components according to the customer's tube dimensions, hole specifications, material, and product design.

Sample And Drawing Evaluation

Customers can provide CAD drawings, tube samples, hole patterns, material specifications, and production requirements so that machine and tooling configurations can be evaluated before ordering.

Factory Direct B2B Supply

We support international manufacturers, OEM factories, distributors, furniture companies, metal fabricators, and industrial customers with technical communication, machine configuration, packaging, and export services.

International After-Sales Support

We provide operating documentation, technical guidance, spare parts assistance, commissioning support, and after-sales service for overseas customers.
