 CNC 3 Roller Rolling Bending Machine for Greenhouse and Spiral Pipe Forming

The CNC 3 Roller Rolling Bending Machine is a versatile metal tube forming solution designed for rolling,bending,and curving suitable round pipes and tubes. With a three-roller forming structure and CNC-controlled operation,the machine can be configured for greenhouse hoops,spiral or circular tube structures,metal frames,and other curved tubular components.

Round pipe bending requires controlled forming force and accurate roller positioning. Unlike simple manual tube bending methods,a three-roller rolling system progressively forms the workpiece as it passes through the rollers. This approach is particularly useful for producing large-radius curves,hoops,rings,and continuous circular or spiral shapes.

For greenhouse manufacturers,the machine can be used to produce curved steel tubes for hoop frames and tunnel structures. For general metal fabrication,it can also be evaluated for architectural frames,railings,metal furniture,agricultural structures,and other tubular products.

Actual tube diameter,wall thickness,bending radius,material capacity,and production speed depend on the machine configuration,roller dimensions,drive system,and material characteristics.

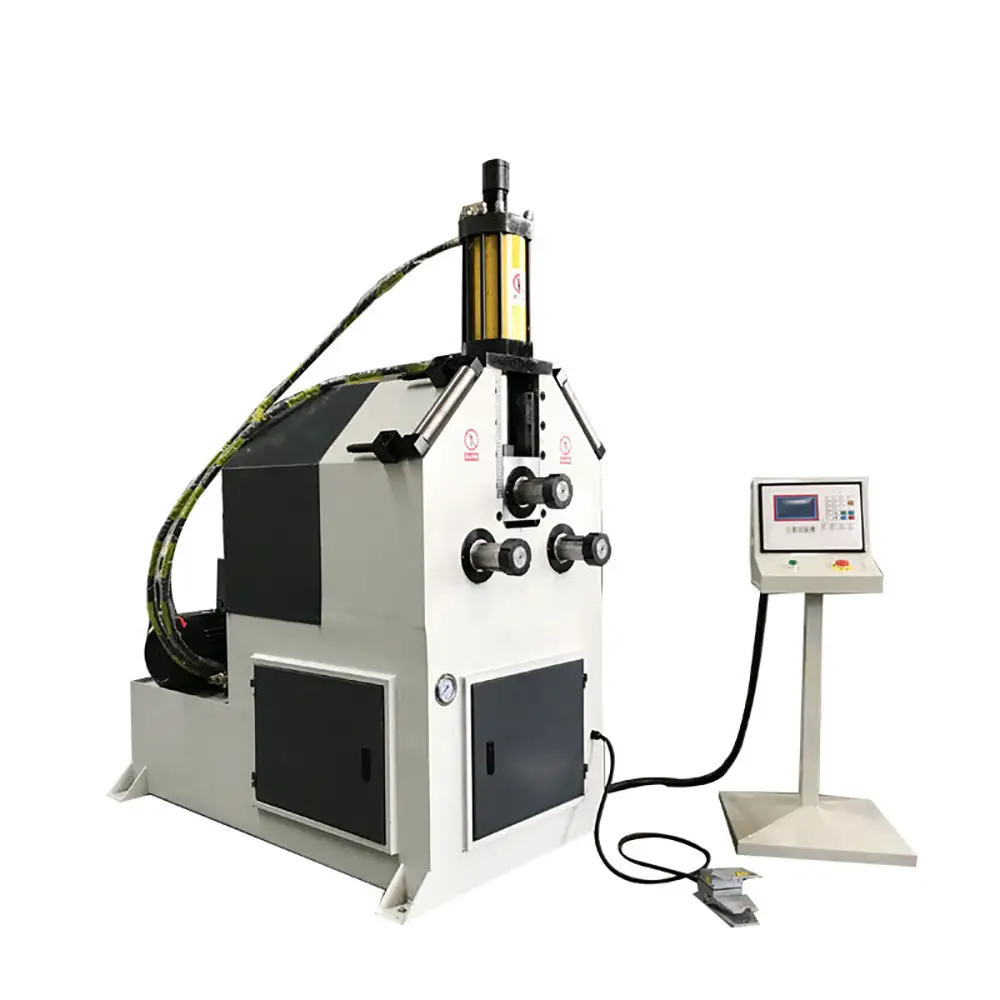

CNC Three Roller Forming System

The three-roller structure provides controlled contact between the workpiece and forming rollers. During operation,the tube is guided through the roller arrangement while the machine progressively changes its curvature.

CNC control can provide more convenient and repeatable positioning of the forming components. Once suitable parameters have been established for a particular tube and radius,operators can use the programmed settings as a reference for subsequent workpieces.

The actual CNC functions vary by machine model. Depending on configuration,the control system may manage roller positioning,forming movements,travel direction,or other operating functions.

CNC control should not be interpreted as eliminating all operator involvement. Loading,workpiece positioning,parameter selection,inspection,and material handling may still be required.

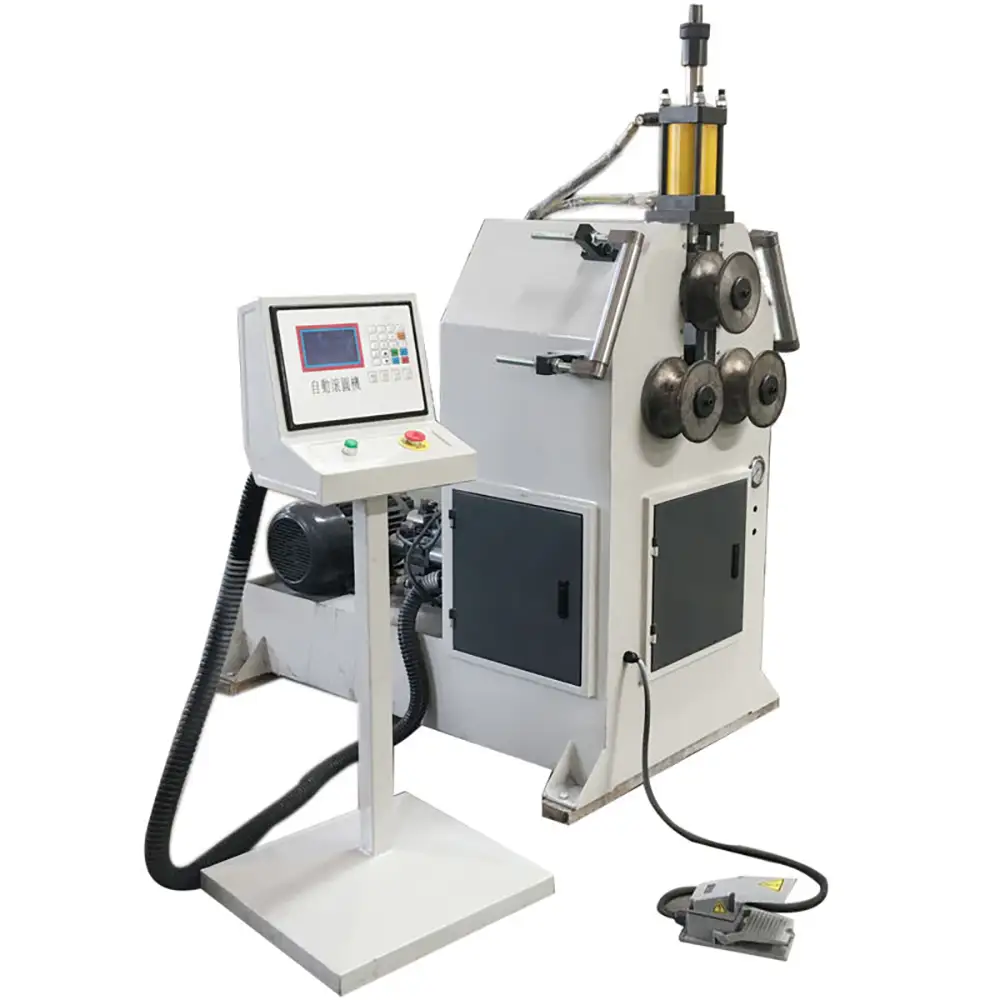

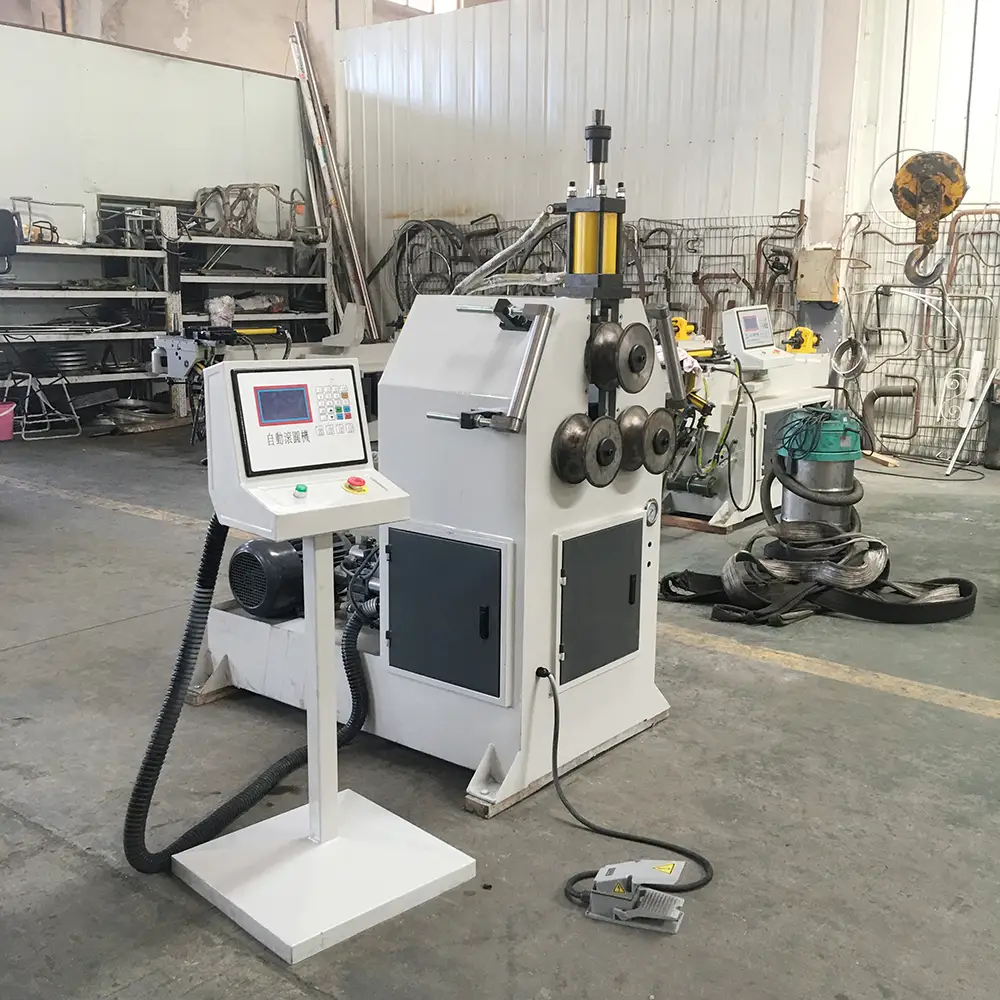

Greenhouse Pipe Bending Applications

One of the primary applications of this type of equipment is greenhouse pipe bending. Modern greenhouse structures frequently use curved steel tubes to create roof hoops,tunnel frames,and supporting structures.

A three-roller pipe bender can help manufacturers produce repeated curved tubes with more consistent geometry than completely manual bending.

Typical greenhouse applications include:

Greenhouse roof hoops

Tunnel greenhouse arches

Agricultural shelter frames

Garden greenhouse structures

Shade house frames

Nursery structures

Farm shelters

Curved greenhouse supports

Custom agricultural frames

The required hoop radius can vary considerably depending on greenhouse width,height,and structural design. The machine should therefore be selected according to the actual tube dimensions and desired finished curve.

Spiral and Circle Pipe Bending

The machine can also be evaluated for spiral pipe bending and circular tube forming applications when the machine configuration supports the required geometry.

Circular or spiral forming involves progressively increasing the curvature of the pipe while maintaining stable feeding and roller contact.

Potential applications include:

Circular tube rings

Spiral tubular structures

Curved handrails

Circular frames

Decorative metal structures

Architectural tubing

Equipment frames

Custom metal loops

The achievable spiral pitch,ring diameter,and curvature depend on the machine's roller arrangement,CNC control,feeding method,and workpiece characteristics.

Customers should provide drawings when a specific spiral or circular shape is required.

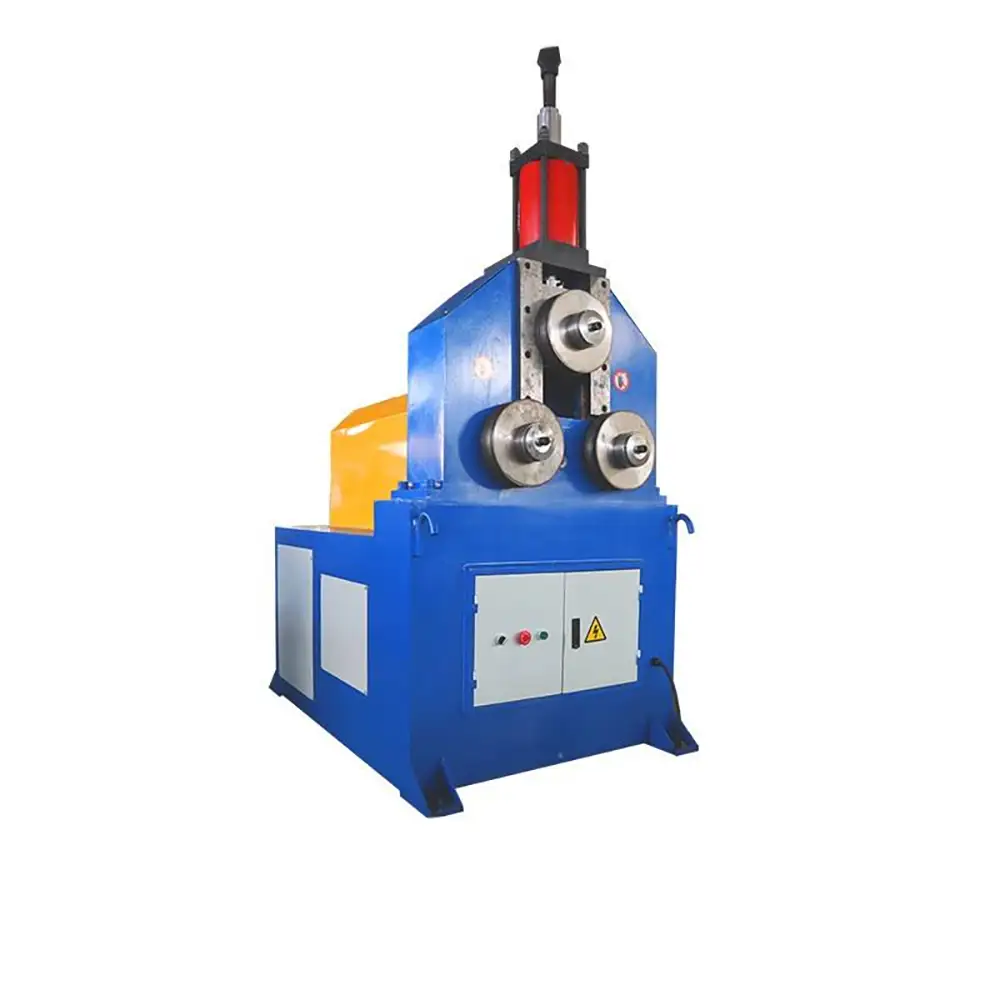

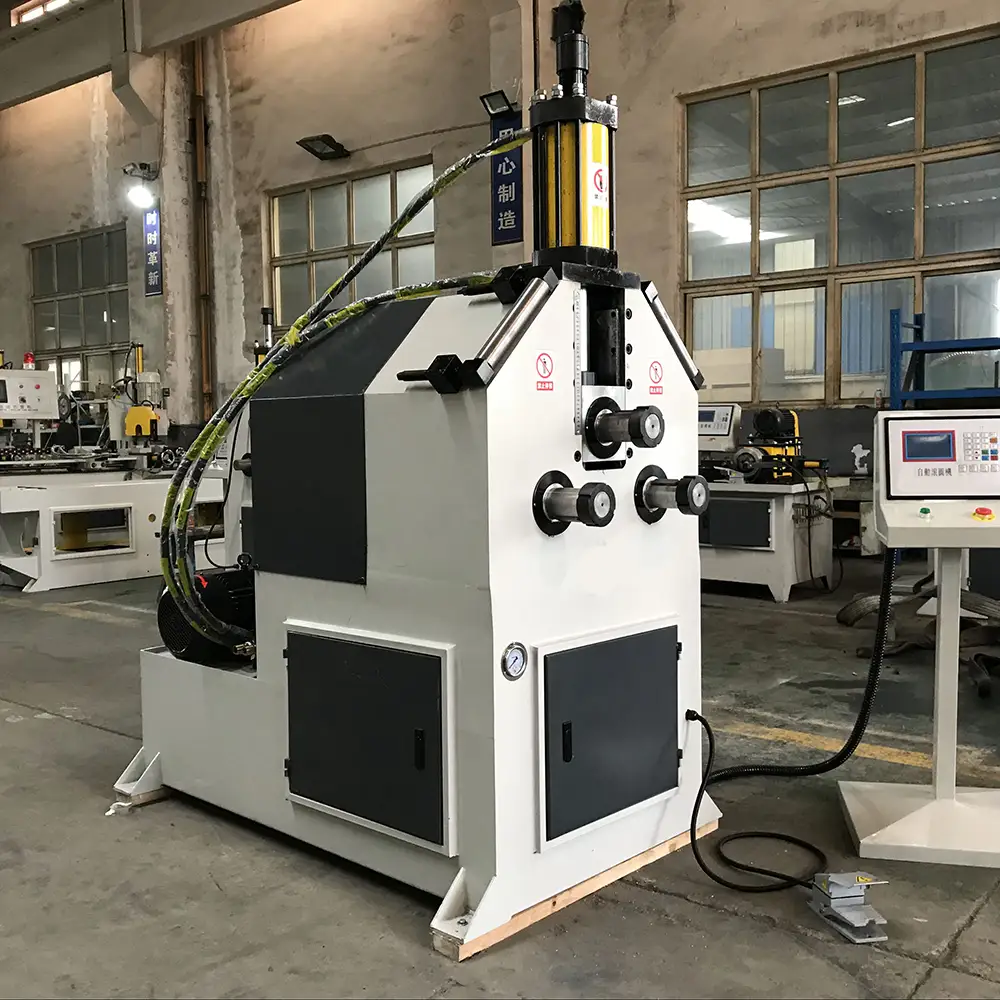

Round Pipe and Tube Rolling

The Round Pipe Roller function is suitable for forming compatible round metal tubes and pipes into controlled curves.

Unlike a single-point bending process,three-roller rolling distributes forming action over multiple contact points. This can be useful for large-radius bending applications where gradual deformation is preferred.

The final radius is affected by:

Tube outside diameter

Wall thickness

Material strength

Roller diameter

Roller spacing

Forming pressure

Number of passes

Springback

Feeding method

For each new tube specification,the machine may require different roller settings and forming parameters.

Steel Tube and Metal Pipe Processing

The machine can be configured for suitable steel tubes and other compatible metal materials.

Common materials may include:

Carbon steel

Mild steel

Galvanized steel

Stainless steel

Aluminum

Alloy steel

Other suitable metal tubing

Carbon steel and galvanized steel are commonly considered for greenhouse structures. Stainless steel and high-strength materials can require different forming forces because of their material properties.

Aluminum tubes can also have different deformation and springback characteristics. Surface protection may be required when the finished appearance is important.

The actual material range should always be confirmed according to the machine's rated forming capacity.

Large Radius Pipe Bending

Three-roller rolling is particularly useful for large-radius pipe bending. Instead of forcing the tube into a tight radius in one operation,the rollers progressively introduce curvature.

This makes the process suitable for applications where smooth,gradual curves are required.

Examples include:

Greenhouse arches

Large circular frames

Curved structural tubes

Architectural handrails

Canopy frames

Agricultural structures

Circular support frames

The minimum achievable radius is not universal and depends on the pipe dimensions,roller geometry,machine configuration,and material.

For tight-radius bends,a dedicated rotary draw tube bender or other specialized bending process may be more appropriate.

Springback Control

Metal tubes can experience springback after forming. After the forming force is removed,the tube may partially return toward its original shape.

Springback depends on material strength,wall thickness,diameter,bending radius,and forming conditions.

A CNC three-roller system can help operators establish repeatable forming settings. Additional passes or controlled correction may be used when required.

For applications requiring precise dimensional tolerances,the actual tube material and finished shape should be tested before production.

Efficient Batch Production

Greenhouse manufacturers often need to produce large quantities of similar hoops. Once a suitable forming setup has been established,the machine can support repeatable processing of multiple tubes.

CNC control can reduce repetitive manual adjustment and make it easier to reproduce established forming positions.

Actual production capacity depends on:

Tube size

Bending radius

Number of forming passes

Loading and unloading

Machine configuration

Operator workflow

Required inspection

For high-volume manufacturing,the pipe bender can be incorporated into a larger production process that includes tube cutting,drilling,welding,and frame assembly.

Tooling and Roller Selection

Roller design has a direct influence on forming quality. Roller grooves should be suitable for the tube profile so that the workpiece is properly supported during bending.

Different pipe diameters may require different roller grooves or tooling arrangements.

Important tooling considerations include:

Roller diameter

Groove profile

Roller spacing

Roller material

Surface finish

Adjustment range

For customers processing several tube sizes,adjustable roller systems or interchangeable tooling may provide additional flexibility depending on the machine design.

Applications Beyond Greenhouses

Although greenhouse frame manufacturing is an important application,the CNC three-roller pipe bender can serve a wider range of industries.

Potential applications include:

Agricultural machinery

Architectural metalwork

Metal furniture

Handrail production

Guardrail manufacturing

Bicycle frames

Fitness equipment

Canopy structures

Steel frame fabrication

Custom tubular products

This makes the machine useful for manufacturers that need a flexible solution for different curved tube products.

Quality Control

Before starting batch production,the first formed tube should be checked against the required drawing,template,or dimensional specifications.

Operators should inspect:

Overall curvature

Tube deformation

Surface condition

Bend symmetry

End position

Required radius

Dimensional consistency

If the tube shows excessive flattening,wrinkling,or surface damage,the roller setup and forming parameters may need adjustment.

Proper support and tooling can help maintain the tube cross-section during forming.

Maintenance and Safety

Routine maintenance helps keep the machine operating consistently. Operators should inspect rollers,bearings,drive components,CNC controls,electrical connections,and hydraulic or mechanical systems according to the machine configuration.

Roller surfaces should be cleaned regularly to prevent metal debris from affecting tube surfaces.

During operation,operators should stay away from moving rollers and pinch points. Long tubes should be properly supported to reduce uncontrolled movement during feeding and bending.

Emergency-stop systems,guards,and other protective features depend on the specific machine configuration and applicable safety requirements.

OEM and Custom Pipe Bending Solutions

Different customers may require different greenhouse hoop dimensions,pipe diameters,bending radii,and production volumes. The machine can therefore be evaluated and configured according to the actual application.

For quotation and machine selection,customers should provide:

Tube outside diameter

Tube wall thickness

Material type

Tube length

Required bending radius

Hoop or spiral drawing

Production quantity

Power supply

Desired CNC functions

Sample tubes or drawings are particularly helpful when the finished geometry is complex.

OEM and ODM options may include customized roller tooling,CNC control systems,material supports,feeding arrangements,and other application-specific components.

Why Choose Us

CNC Three Roller Forming
CNC-controlled roller positioning provides a practical solution for repeatable tube rolling and bending applications.

Greenhouse Hoop Production
Designed for suitable steel tubes used in greenhouse arches,hoops,and agricultural frame structures.

Spiral and Circular Forming
Can be evaluated for suitable circular,ring,and spiral tubular applications according to machine configuration.

Round Pipe Processing
Suitable for forming compatible round steel pipes and metal tubes into controlled curves.

Large Radius Bending
Three-roller rolling is well suited to gradual large-radius curves commonly required for greenhouse structures.

Flexible Material Applications
Can be configured for suitable carbon steel,galvanized steel,stainless steel,aluminum,and other compatible tubes.

Custom Tooling
Roller grooves,tooling,controls,and material supports can be selected according to tube dimensions and forming requirements.

OEM & ODM B2B Support
Suitable for greenhouse manufacturers,metal fabricators,agricultural equipment suppliers,distributors,and industrial machinery buyers.

FAQs

1. What is a CNC three roller pipe bending machine?

It is a CNC-controlled metal forming machine that uses three rollers to progressively bend or roll suitable pipes and tubes into curved shapes.

2. Can it make greenhouse hoops?

Yes. The machine can be configured for suitable steel tubes used to produce greenhouse hoops,arches,and tunnel frames.

3. Can it bend round steel pipes?

Yes. Round steel pipes and tubes can be processed when their dimensions are within the machine's rated forming range.

4. Can it produce circular rings?

Depending on the machine configuration,it can be evaluated for circular tube rolling and ring-forming applications.

5. Can it make spiral pipes or tubes?

Potentially. Spiral forming depends on the CNC motion system,roller configuration,feeding method,and required spiral geometry. A drawing should be provided for evaluation.

6. What materials can be bent?

Depending on the configuration,the machine may process carbon steel,mild steel,galvanized steel,stainless steel,aluminum,and other compatible tubing.

7. What determines the bending radius?

Tube diameter,wall thickness,material properties,roller diameter,roller spacing,forming pressure,and machine configuration all affect the achievable radius.

8. Is this machine fully automatic?

The automation level varies by model. CNC roller positioning and forming functions may be automated,but loading,inspection,and material handling can still require operator involvement.

9. Can it process galvanized greenhouse pipes?

Suitable galvanized steel tubes can be processed when the roller tooling and forming parameters are appropriate for the tube dimensions and surface requirements.

10. How can tube deformation be reduced?

Correct roller groove selection,proper alignment,appropriate forming pressure,and suitable bending parameters can help maintain the tube's cross-sectional shape.

11. Can one machine bend different pipe sizes?

Depending on the adjustment range and tooling,the machine may accommodate multiple tube sizes. Different dimensions may require different roller settings or tooling.

12. What information should I provide for a quotation?

Provide tube material,outside diameter,wall thickness,length,required radius,greenhouse hoop dimensions or spiral drawing,production volume,and desired CNC automation functions.
