Automatic Pipe Rolling Machine for Greenhouse Steel Tube Roller Round Pipe Bender for Hoop Frame Making

 Automatic Pipe Rolling Machine for Greenhouse Steel Tube and Hoop Frame Making

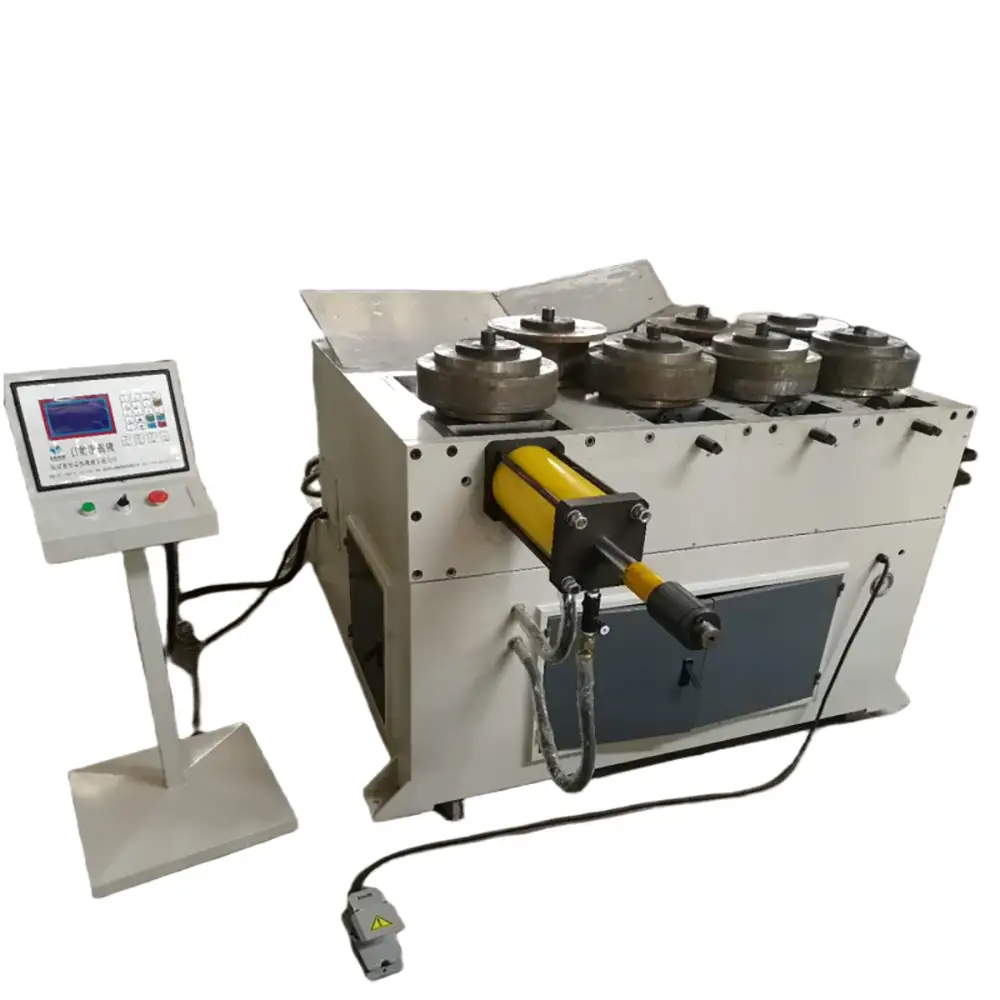

The Automatic Pipe Rolling Machine for Greenhouse Steel Tube Roller is designed for forming round steel tubes and pipes used in greenhouse structures,hoop frames,agricultural buildings,and other curved metal framework applications. By combining controlled pipe rolling or bending with a dedicated forming system,the machine helps manufacturers produce consistent curved sections for greenhouse arches and tubular structures.

Greenhouse construction often requires large quantities of curved steel tubes with similar dimensions and shapes. Manual bending can require significant operator effort and may result in variations between individual workpieces. An automatic pipe rolling machine provides a more controlled production method,allowing suitable tubes to be processed according to predefined forming requirements.

The machine can be configured for different pipe materials,diameters,wall thicknesses,and bending requirements. Actual forming capacity depends on the machine structure,roller configuration,motor or hydraulic system,tooling,and workpiece characteristics.

Greenhouse Steel Tube Rolling and Bending

Greenhouse frames commonly use round steel tubes or other tubular profiles to create curved roof structures,side supports,arches,and connecting members. A tube roller or pipe bender forms the straight tube into the required radius or curved shape.

Unlike simple straight-line cutting equipment,a rolling and bending machine progressively changes the geometry of the tube while maintaining controlled contact with the forming rollers.

For greenhouse applications,the required bending radius is an important consideration. A tighter radius may require different tooling and forming parameters than a large-radius greenhouse arch.

The machine should therefore be selected according to the actual tube specification and required finished shape.

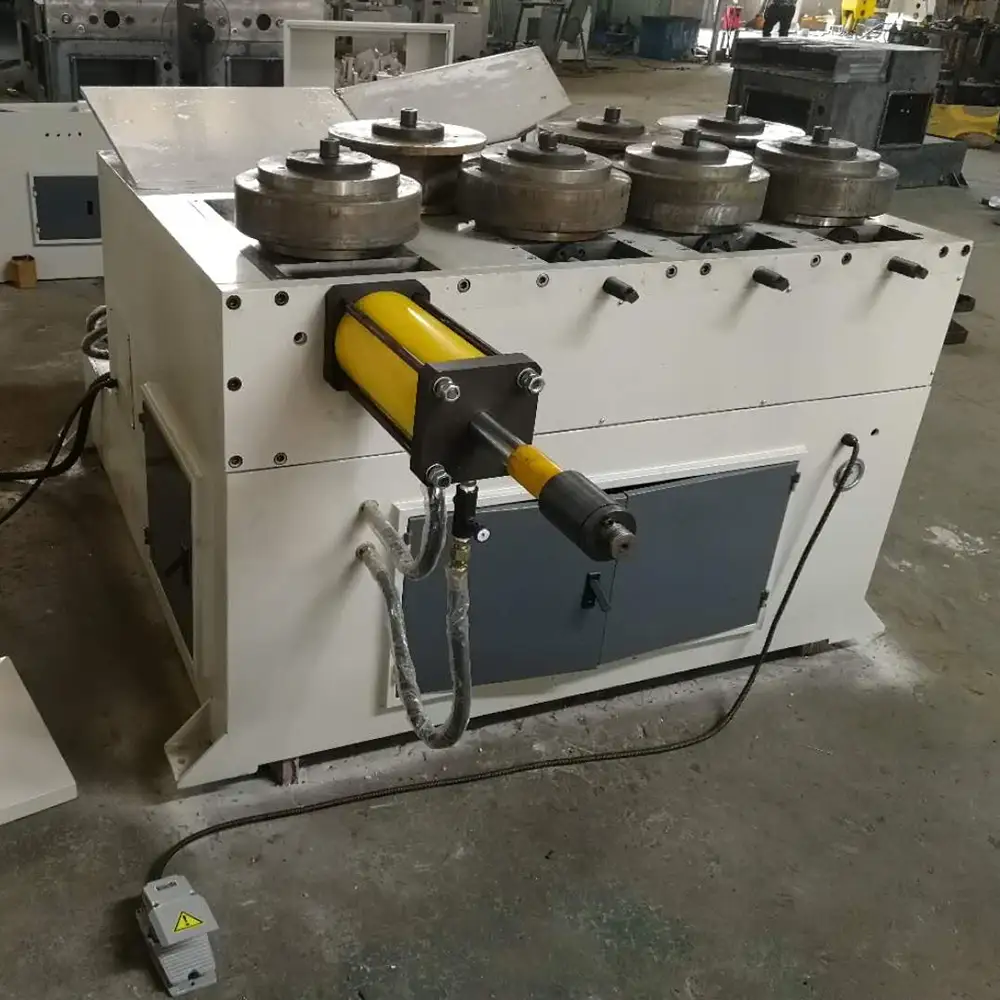

Automatic Greenhouse Hoop Frame Forming

One of the main applications of this equipment is greenhouse hoop frame making. Greenhouse hoops provide the curved structural framework supporting film,polycarbonate panels,shade cloth,and other covering materials.

An automatic forming process can help improve repeatability when producing multiple hoops with similar dimensions. Once the appropriate machine settings and tooling have been established,operators can process successive tubes using a consistent forming procedure.

This is particularly useful for greenhouse manufacturers,agricultural equipment suppliers,metal fabrication companies,and contractors producing greenhouse structures in batches.

Depending on the machine configuration,automatic operation may include controlled roller movement,feeding,forming,positioning,or other functions. The exact automation level should be confirmed for the selected model.

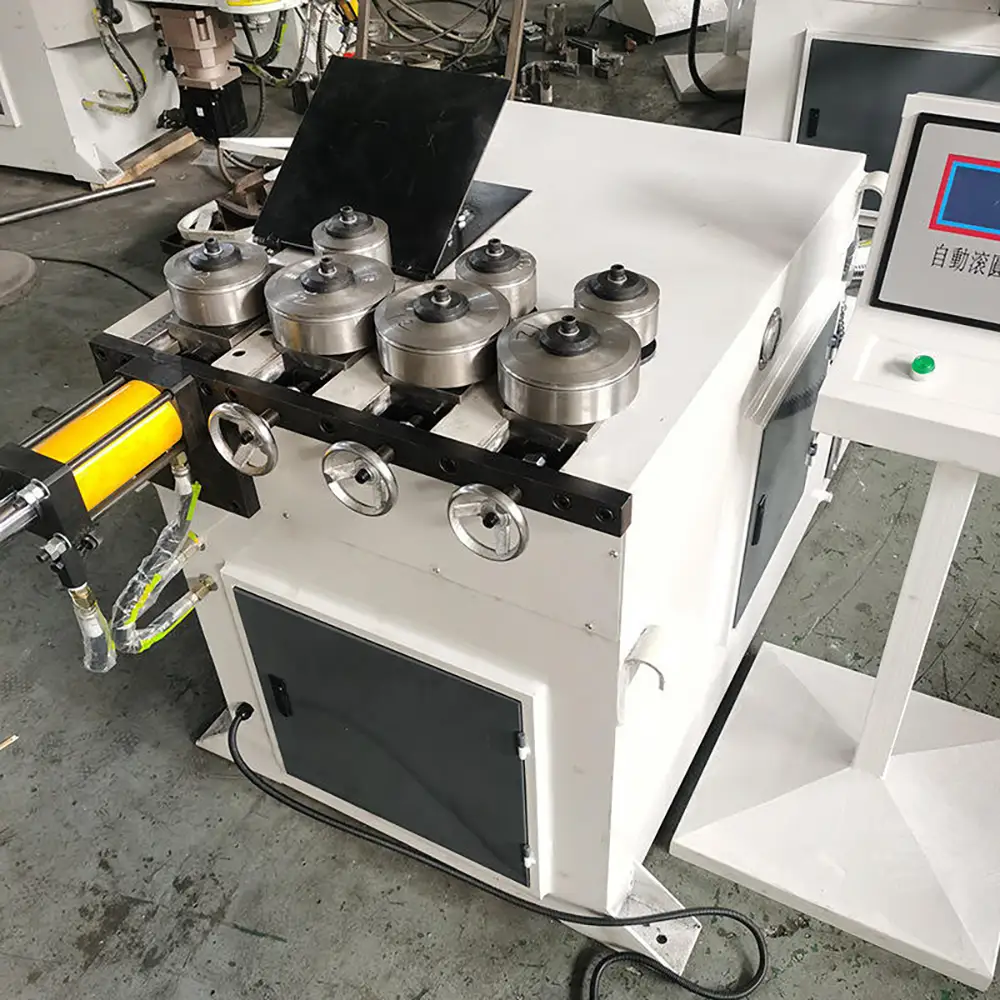

Round Pipe Bending Process

The Round Pipe Bender uses forming rollers or other bending components to progressively shape the tube. The workpiece passes through the forming area while the machine applies controlled force to create the required curve.

Several factors influence the final bending result:

Pipe outside diameter

Tube wall thickness

Material strength

Required bending radius

Roller geometry

Forming pressure

Feeding speed

Machine configuration

Springback characteristics

Steel tubes can exhibit springback after forming. This means the finished tube may relax slightly after leaving the rollers. Proper machine adjustment and testing can help compensate for this behavior.

For new tube sizes or new materials,trial forming is recommended before beginning larger production runs.

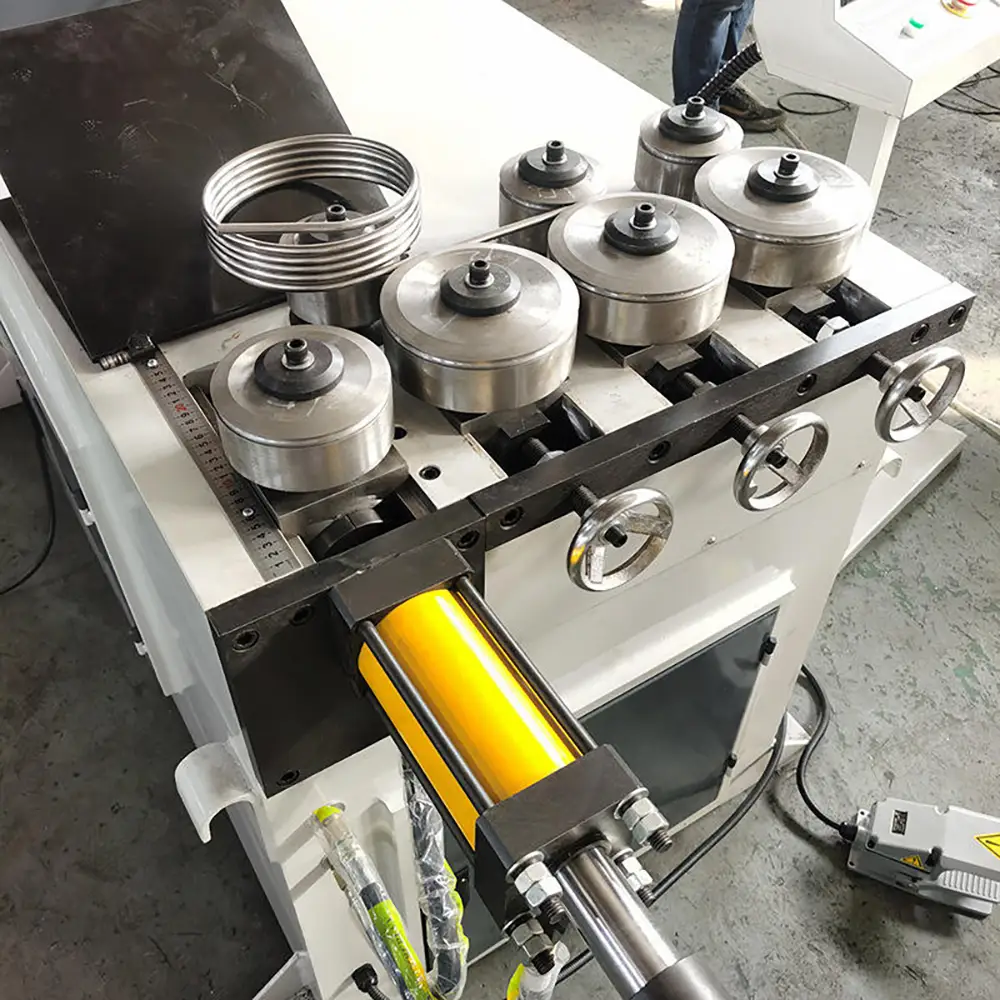

Steel Tube Roller for Agricultural Structures

A Steel Tube Roller can be used for more than greenhouse arches. Suitable tubular materials may also be formed for agricultural buildings,shade structures,tunnels,storage shelters,animal shelters,and other curved steel frameworks.

The ability to process different tube sizes makes the machine useful for manufacturers who produce multiple greenhouse designs.

However,one roller setup does not necessarily cover every tube size or bending radius. Rollers,forming tools,and machine parameters should be selected according to the application.

Customers should provide the tube diameter,wall thickness,material grade,and required curved profile when requesting a machine quotation.

Consistent Pipe Forming for Batch Production

Repeatability is important in greenhouse frame manufacturing because multiple hoops may need to match each other during assembly. Differences in curvature can make installation more difficult and affect the overall appearance and structural arrangement of the greenhouse.

An automatic pipe rolling system can reduce some of the variation associated with manual bending. Controlled feeding and forming help operators reproduce established machine settings across multiple workpieces.

Actual production efficiency depends on tube dimensions,bending radius,feeding method,loading and unloading time,machine configuration,and operator workflow.

The machine should therefore be evaluated according to the complete production process rather than bending speed alone.

Suitable Materials and Tube Profiles

The machine can be configured for suitable steel tubes and other metal tubular materials depending on the forming system.

Typical materials may include:

Carbon steel tubes

Galvanized steel tubes

Mild steel pipes

Stainless steel tubes

Suitable alloy steel tubes

Other compatible metal profiles

Galvanized steel is commonly considered for greenhouse structures because of its corrosion-resistant surface. However,the bending process should be selected carefully to minimize unnecessary damage to protective coatings.

Stainless steel and other higher-strength materials may require different forming forces and tooling. Material properties should always be considered before selecting the machine.

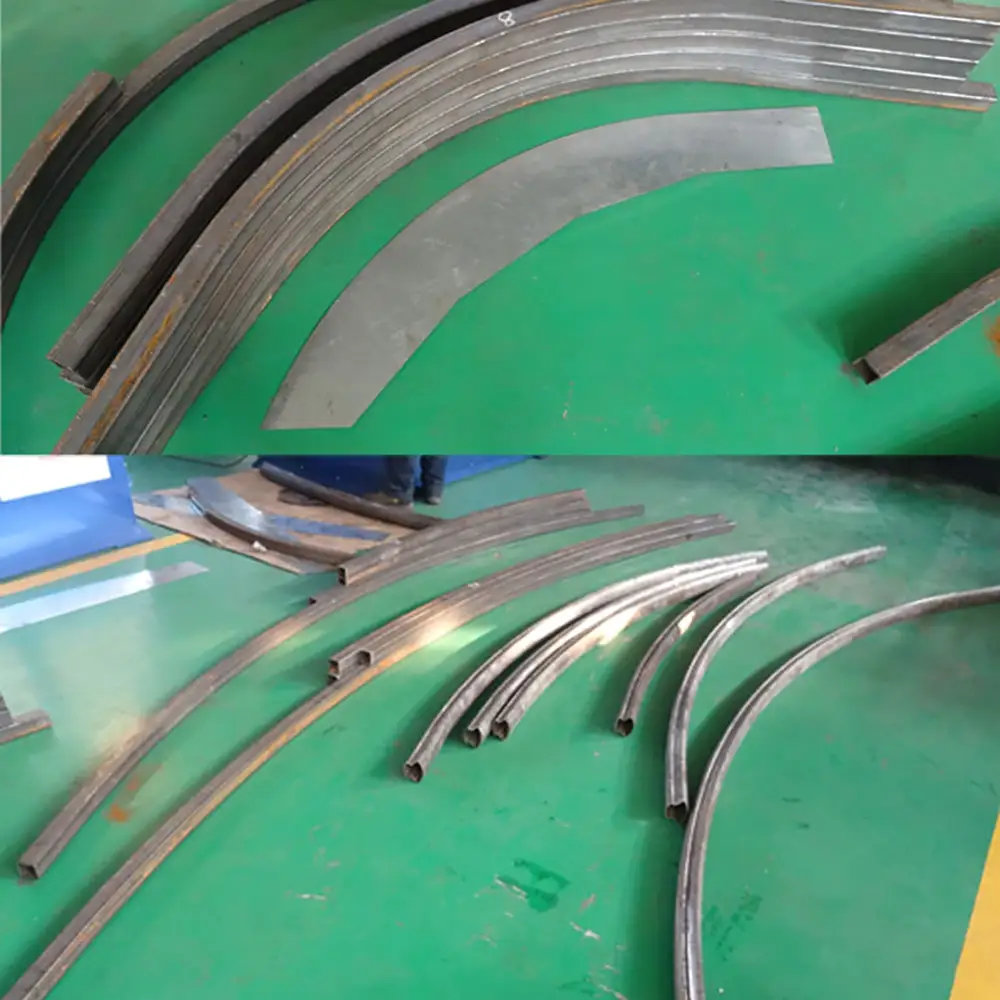

Greenhouse Arch and Curved Frame Applications

Greenhouse hoop structures can have different shapes depending on the greenhouse design. Some applications require simple symmetrical arches,while others may use more complex curved profiles.

The pipe rolling machine can be evaluated for applications such as:

Greenhouse roof hoops

Tunnel greenhouse arches

Agricultural greenhouse frames

Garden greenhouse structures

Shade house frames

Agricultural shelter frames

Curved steel supports

Plant nursery structures

Farm storage shelters

Custom tubular frames

The actual achievable profile depends on the roller arrangement,tooling,and machine movement.

For complex three-dimensional or multi-radius shapes,a different CNC tube bending or specialized forming system may be more appropriate.

Machine Configuration and Tooling

Tooling is an important part of a pipe rolling machine. The roller diameter,groove profile,roller spacing,and adjustment mechanism all influence how the tube is supported and formed.

For different tube dimensions,the machine may require different roller configurations or adjustment positions.

Depending on the machine design,adjustment may be mechanical,electric,hydraulic,or CNC controlled. Automatic systems can provide more controlled positioning and repeatable forming parameters.

Customers should provide sample tubes or technical drawings when possible. This allows the manufacturer to evaluate the appropriate roller arrangement and machine configuration.

Reducing Manual Labor

Manual tube bending can require physical effort,especially when processing long steel tubes or producing large numbers of greenhouse hoops. A powered pipe rolling machine transfers much of the forming force to the machine system.

This can make the production process more manageable and allow operators to focus on loading,positioning,inspection,and material handling.

Automation can be particularly useful when the same or similar greenhouse hoop dimensions are produced repeatedly.

The appropriate automation level depends on production volume,budget,workpiece dimensions,and desired workflow.

Applications Beyond Greenhouse Manufacturing

Although greenhouse hoop frame making is a major application,this type of pipe rolling equipment can also serve other industries.

Potential applications include:

Agricultural machinery

Metal construction

Architectural structures

Garden structures

Fence and railing production

Metal furniture

Sports equipment

Bicycle and fitness equipment

Custom tubular frames

General metal fabrication

For businesses with diverse production requirements,a versatile tube roller can provide additional value by processing suitable tubular components beyond greenhouse frames.

Quality Control and Maintenance

Proper setup is essential for obtaining consistent pipe curvature. Before production,operators should verify roller alignment,workpiece position,forming parameters,and tooling condition.

During production,the first formed tube should be inspected against the required dimensions or template. Adjustments can then be made before processing the remaining batch.

Routine maintenance may include cleaning metal debris,checking roller surfaces,inspecting bearings and drive components,lubricating applicable moving parts,and checking electrical or hydraulic systems according to the machine configuration.

Rollers and tooling should be inspected for excessive wear because damaged forming surfaces can affect tube appearance and dimensional consistency.

Safety Considerations

Pipe rolling and bending machines contain moving rollers and powered mechanical components. Operators should keep hands and loose clothing away from pinch points during operation.

Depending on the configuration,the machine may include emergency-stop controls,protective guards,and other safety-oriented features. Operators should use the equipment according to the manufacturer's instructions and applicable workplace safety requirements.

Long tubes should be properly supported to prevent uncontrolled movement during feeding and forming.

OEM and Custom Greenhouse Pipe Bending Solutions

Different greenhouse manufacturers may use different tube sizes and hoop designs. For this reason,the machine can be evaluated and configured according to specific production requirements.

Customers should provide:

Tube outside diameter

Tube wall thickness

Material type

Tube length

Required bending radius

Hoop shape or drawing

Expected production volume

Power supply requirements

Desired automation level

Based on this information,the manufacturer can recommend suitable rollers,forming tools,drive systems,and control configurations.

OEM and ODM solutions may also include customized tooling,feeding systems,positioning devices,controls,and other production components.

Why Choose Us

Designed for Greenhouse Hoop Production
Suitable for forming curved steel tubes used in greenhouse roofs,hoops,and agricultural frame structures.

Automatic Pipe Rolling Function
Controlled machine movement can help improve repeatability for batch tube forming applications.

Round Steel Tube Processing
Designed for suitable round pipes and steel tubes according to the selected machine configuration.

Consistent Hoop Frame Forming
Repeatable machine settings can help manufacturers produce multiple greenhouse arches with similar curvature.

Flexible Tube Bending Applications
Can be evaluated for greenhouse structures,agricultural shelters,metal frames,and other tubular products.

Custom Tooling Options
Roller grooves,tooling,and machine configuration can be selected according to tube dimensions and required bending profiles.

B2B Industrial Manufacturing Support
Suitable for greenhouse manufacturers,agricultural equipment suppliers,metal fabricators,and machinery distributors.

OEM & ODM Solutions
Machine configuration can be customized according to tube specifications,production requirements,automation level,and target application.

FAQs

1. What is an automatic pipe rolling machine?

It is a powered metal forming machine designed to progressively roll or bend suitable pipes and tubes into curved shapes using controlled forming rollers.

2. Can it be used for greenhouse hoop frames?

Yes. It can be configured for suitable steel tubes used to manufacture greenhouse hoops,arches,and curved agricultural structures.

3. What type of pipes can it process?

Depending on the machine configuration,it can process suitable round steel tubes,carbon steel pipes,galvanized tubes,and other compatible metal tubing.

4. Can it bend galvanized steel tubes?

Suitable galvanized steel tubes may be processed,but the machine setup and tooling should be selected carefully according to the tube dimensions and coating requirements.

5. Can it make different greenhouse hoop radii?

Potentially. Different radii depend on the roller configuration,machine adjustment range,tooling,and tube characteristics. Specific requirements should be confirmed before purchase.

6. Is the machine fully automatic?

The automation level varies by model. Some configurations may provide automatic or controlled roller movement and forming functions,while others require more operator involvement.

7. What affects the bending result?

Tube diameter,wall thickness,material strength,bending radius,roller geometry,forming force,feeding speed,and springback can all affect the finished shape.

8. Can it process stainless steel tubes?

Depending on the machine's forming capacity,it may process suitable stainless steel tubes. Because stainless steel can have different strength and springback characteristics,testing and proper tooling selection are recommended.

9. Can one machine process different tube sizes?

Depending on the roller adjustment and tooling design,a machine may accommodate multiple tube sizes within its rated range. Different tube dimensions may require different tooling or settings.

10. How can greenhouse hoop consistency be improved?

Use consistent tube materials and dimensions,properly align the rollers,establish repeatable forming parameters,and inspect the first workpieces before batch production.

11. Can the machine be customized?

Yes. Customization may include roller tooling,drive systems,control systems,feeding arrangements,material supports,and other application-specific components.

12. What information is needed for a quotation?

Provide the tube material,outside diameter,wall thickness,tube length,required hoop shape,bending radius,production volume,and desired automation level. Drawings or sample tubes are also helpful.
