Checker Rubber Sheet, Rubber Matting & Flooring, Checker Rubber Matting / Flooring

Checker Rubber Sheet, rubber sheet
Specification 3-20mm× 500~2000mm(T× W)
Performance with middle pressure, good water proof, anti-slip performance
Specific Gravity: 1.60g/cm3
Tensile Strength: 3.0MPA
Hardness: 65 Shore A
Elongation: 250%

Checker Rubber Sheet, Rubber Matting And Flooring

Checker rubber sheet is a durable patterned rubber material designed for industrial flooring, workshop matting, equipment protection, walkways and general surface covering applications. Its raised checker pattern provides a textured surface that can improve traction and help create a practical, easy-to-maintain floor covering.

Checker rubber matting and flooring are widely used in factories, workshops, garages, warehouses, commercial facilities, service areas, vehicle interiors and other locations where a durable rubber surface is required. The material can be supplied as sheets, rolls or custom-cut mats depending on the installation method and application.

The checker pattern is not simply a decorative feature. The raised surface can provide additional contact points between footwear, equipment and the floor. However, actual slip performance depends on the rubber compound, pattern design, contamination, moisture, footwear and installation conditions.

What Is Checker Rubber Sheet?

Checker rubber sheet is a flat rubber sheet manufactured with a raised checker or patterned surface. The top pattern can create additional texture while the underside is generally designed for stable installation on a suitable substrate.

Depending on the intended use, checker rubber sheets may be produced from different rubber compounds and can be supplied in different thicknesses, widths, lengths, hardness levels and colors.

Common applications include industrial floor protection, anti-slip matting, workshop flooring, garage flooring, machine-area protection, loading areas, walkways and vehicle flooring.

The appropriate rubber compound should be selected according to the working environment. For example, an indoor workshop application may have different requirements from an outdoor area exposed to sunlight, moisture and temperature changes.

Checker Rubber Matting

Checker rubber matting provides a practical surface for areas that experience regular foot traffic, equipment movement or mechanical activity. The raised checker pattern creates a textured walking surface and can help protect the underlying floor from abrasion, dirt and general industrial wear.

Rubber matting can also provide cushioning compared with hard flooring surfaces. In workstation areas, suitable rubber matting may improve standing comfort and reduce direct contact between workers and hard concrete or metal surfaces.

Checker matting can be installed as individual mats or supplied in larger rolls for covering extensive floor areas.

Checker Rubber Flooring

Checker rubber flooring is suitable for industrial and commercial environments where a durable, textured floor covering is required.

Typical applications include:

Factory floors
Manufacturing workshops
Mechanical workshops
Garages
Warehouses
Service stations
Machine work areas
Industrial walkways
Loading and service areas
Gyms and fitness areas
Commercial utility rooms
Vehicle and trailer flooring

For large areas, rubber flooring rolls can reduce the number of joints compared with installing many small mats. For irregular work areas or removable applications, pre-cut rubber mats may be more convenient.

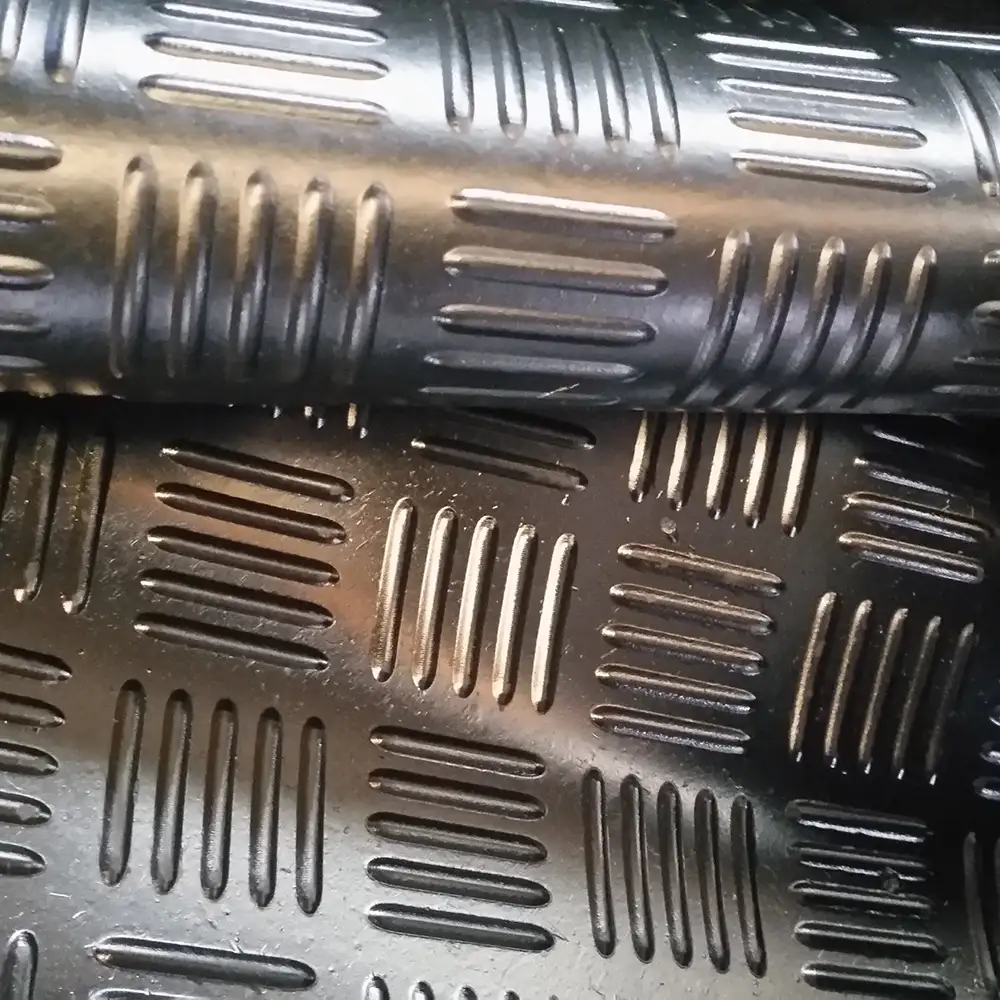

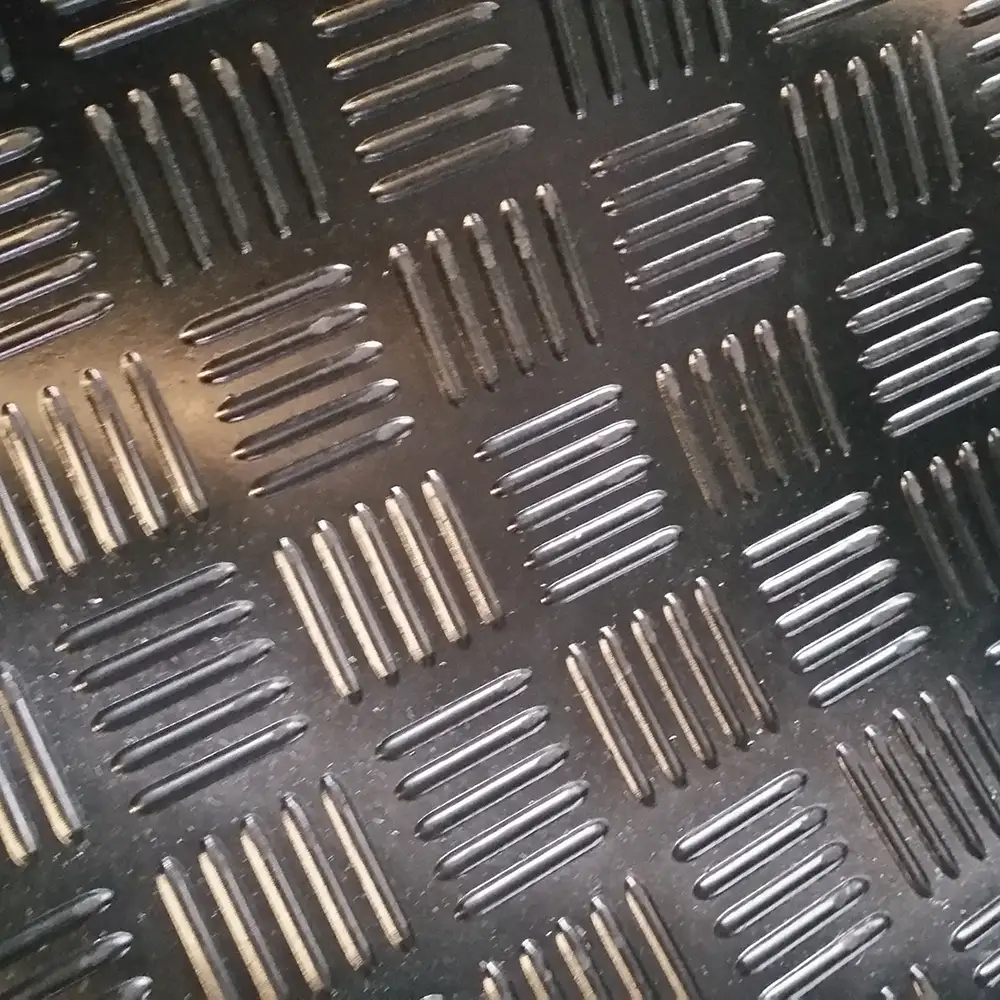

Raised Checker Pattern

The checker pattern is one of the most recognizable rubber flooring designs. Its raised sections create a textured surface that can provide additional traction compared with a completely smooth rubber sheet.

The exact pattern dimensions, height, spacing and geometry vary by product. Pattern selection should consider the intended use, cleaning requirements, foot traffic, equipment movement and overall floor design.

For applications where maximum slip resistance is critical, the checker pattern should not be considered a guarantee of slip-proof performance. Actual traction is influenced by water, oil, dust, footwear and other environmental conditions.

Key Features And Benefits

Checker rubber sheets can provide several practical benefits for industrial and commercial flooring.

Durable Rubber Construction

Rubber is widely used for floor protection because it can absorb impact and withstand repeated use when the correct compound and thickness are selected.

Textured Surface

The raised checker pattern provides surface texture and can support traction in many normal working environments.

Floor Protection

Rubber matting can help protect concrete, metal and other underlying surfaces from scratches, impacts, dirt and equipment contact.

Comfortable Work Surface

Rubber has a degree of resilience that can make standing work areas more comfortable than hard surfaces.

Easy Fabrication

Checker rubber sheet can be cut, trimmed or fabricated into different sizes for specific installation areas.

Flexible Installation

The material can be supplied as rolls, sheets or custom-cut mats depending on project requirements.

Rubber Compounds And Material Selection

Checker flooring can be produced using different rubber materials depending on the application.

SBR Rubber: Often used for general-purpose industrial rubber products where balanced performance and cost are important.

Natural Rubber: Provides good elasticity and resilience for selected applications.

NBR Rubber: Can be considered where improved resistance to oils and greases is required.

EPDM Rubber: Suitable for applications where weather, ozone and outdoor environmental resistance are important.

Neoprene Rubber: Provides a balanced combination of mechanical and environmental properties for selected industrial uses.

The most suitable material depends on the substances, temperatures, mechanical conditions and environmental exposure of the installation location.

Checker Rubber Sheet Vs Smooth Rubber Sheet

Smooth rubber sheet provides a flat surface and can be easier to clean in certain applications. It may be preferred where a uniform surface or sealing function is more important.

Checker rubber sheet adds a raised pattern that provides additional texture and a different visual appearance. It is commonly selected for flooring and matting applications where surface grip and floor protection are important considerations.

The choice should depend on the actual application rather than appearance alone.

Checker Rubber Matting Vs Checker Rubber Flooring

The terms checker rubber matting and checker rubber flooring are often used interchangeably, but they can describe different installation concepts.

Rubber matting often refers to individual mats or flexible rolls used in workstations, entrances, equipment areas or temporary floor protection.

Rubber flooring generally refers to a more complete floor-covering solution designed to cover larger areas.

Both can use the same or similar checker-pattern surfaces. The appropriate format depends on installation area, substrate, required coverage and maintenance requirements.

How To Choose Checker Rubber Flooring

Before purchasing checker rubber sheet, consider the following factors.

Thickness: Select thickness according to expected foot traffic, equipment loading and floor protection requirements.

Width And Length: Roll dimensions should minimize unnecessary seams and cutting waste.

Pattern: Choose a checker pattern appropriate for traction, appearance and cleaning requirements.

Rubber Compound: Consider oil, weather, temperature, abrasion and chemical exposure.

Hardness: Different hardness levels can provide different combinations of flexibility and load-bearing characteristics.

Color: Black is common for industrial applications, while other colors may be available for visual identification or design purposes.

Installation Area: Measure the floor carefully before ordering rolls or sheets.

Cleaning Requirements: Consider whether the raised pattern will collect dust, oil, water or other contaminants in the working environment.

Custom Checker Rubber Matting

A professional rubber sheet manufacturer can provide customized checker rubber matting according to project requirements.

Customization may include sheet thickness, roll width, roll length, rubber compound, hardness, color, surface pattern and custom-cut dimensions.

For industrial customers, OEM and ODM services can also be considered. Custom-cut mats can be produced for workstations, equipment bases, machinery areas and specific floor layouts.

When requesting a quotation, provide the installation dimensions, application, expected traffic, equipment loading, environmental conditions and any oil, chemical or outdoor exposure.

Installation And Maintenance

The installation surface should be clean, dry, level and free from loose debris before laying checker rubber flooring. Accurate measurement and cutting can help reduce gaps and unnecessary material waste.

For permanent installations, the appropriate adhesive or fixing method should be selected according to the substrate and rubber material. For loose-lay applications, the floor should still be prepared properly to minimize movement and edge curling.

Regular cleaning helps maintain the appearance and performance of checker rubber flooring. Dirt, oil, grease and other contaminants should be removed using cleaning methods compatible with the rubber compound.

Inspect the flooring periodically for cuts, excessive wear, lifting edges or other damage, especially in high-traffic and equipment-loading areas.

Why Choose Us

As a professional checker rubber sheet manufacturer and supplier, we provide rubber matting and flooring solutions for industrial, commercial and general-purpose applications.

Multiple Rubber Materials: SBR, NR, NBR, EPDM and other compounds can be considered according to application requirements.
Checker Pattern Options: Different surface patterns and specifications are available.
Custom Thickness: Thickness can be selected according to floor protection and loading requirements.
Custom Roll Sizes: Width and length can be customized for different project areas.
Custom Cutting: Sheets and mats can be supplied in specific dimensions.
OEM & ODM Service: Customized rubber flooring products are available for distributors and industrial buyers.
Application Support: We help customers select suitable materials based on environmental and mechanical conditions.
B2B Export Experience: We support international customers with customized industrial rubber products.

Whether you need checker rubber sheet for a workshop, rubber matting for a factory, or checker rubber flooring for a larger industrial area, we can provide a suitable product configuration based on your application.

FAQs
1. What Is Checker Rubber Sheet Used For?

Checker rubber sheet is commonly used for industrial flooring, workshop matting, garage floors, walkways, machine areas, vehicle flooring and general floor protection.

2. Is Checker Rubber Flooring Anti-Slip?

The raised checker pattern can improve surface texture and traction in many applications. However, actual slip resistance depends on moisture, oil, contamination, footwear, rubber compound and installation conditions.

3. Can Checker Rubber Sheet Be Used In Workshops?

Yes. It is commonly considered for workshops, machinery areas, service areas and other industrial work environments.

4. Can Checker Rubber Matting Be Used Outdoors?

Suitable rubber compounds can be used for selected outdoor applications. EPDM or another weather-resistant compound may be considered where UV, ozone and weather exposure are significant.

5. Is Checker Rubber Flooring Oil Resistant?

Some checker rubber sheets can be manufactured from oil-resistant compounds such as suitable NBR formulations. The specific oil or chemical should be identified before selecting the material.

6. Can Checker Rubber Sheet Be Cut To Size?

Yes. Rubber sheets and rolls can generally be cut or fabricated into custom dimensions according to the application.

7. What Colors Are Available?

Black is a common industrial color, while red and other colors may be available depending on the rubber compound and production specification.

8. Can Checker Rubber Matting Be Used For Heavy Equipment?

It can be considered for equipment areas, but thickness, hardness, rubber compound and load conditions should be evaluated before installation.

9. Can You Supply Checker Rubber Flooring Rolls?

Yes. Checker rubber flooring can be supplied in roll or sheet formats depending on the product specification and project requirements.

10. Do You Provide OEM Checker Rubber Flooring?

Yes. OEM and ODM services can be provided for distributors, wholesalers, contractors and industrial buyers requiring customized rubber flooring products.

Request A Quote

Send us your required thickness, roll width, roll length, rubber material, color, pattern, application and quantity. We can help recommend a suitable checker rubber sheet, rubber matting or flooring solution for your project.
