Checker Rubber Sheet, Anti-Slip Rubber Sheet, DOT Round Button Checker

Checker Rubber Sheet, Anti-Slip Rubber Sheet, DOT Round Button Checker

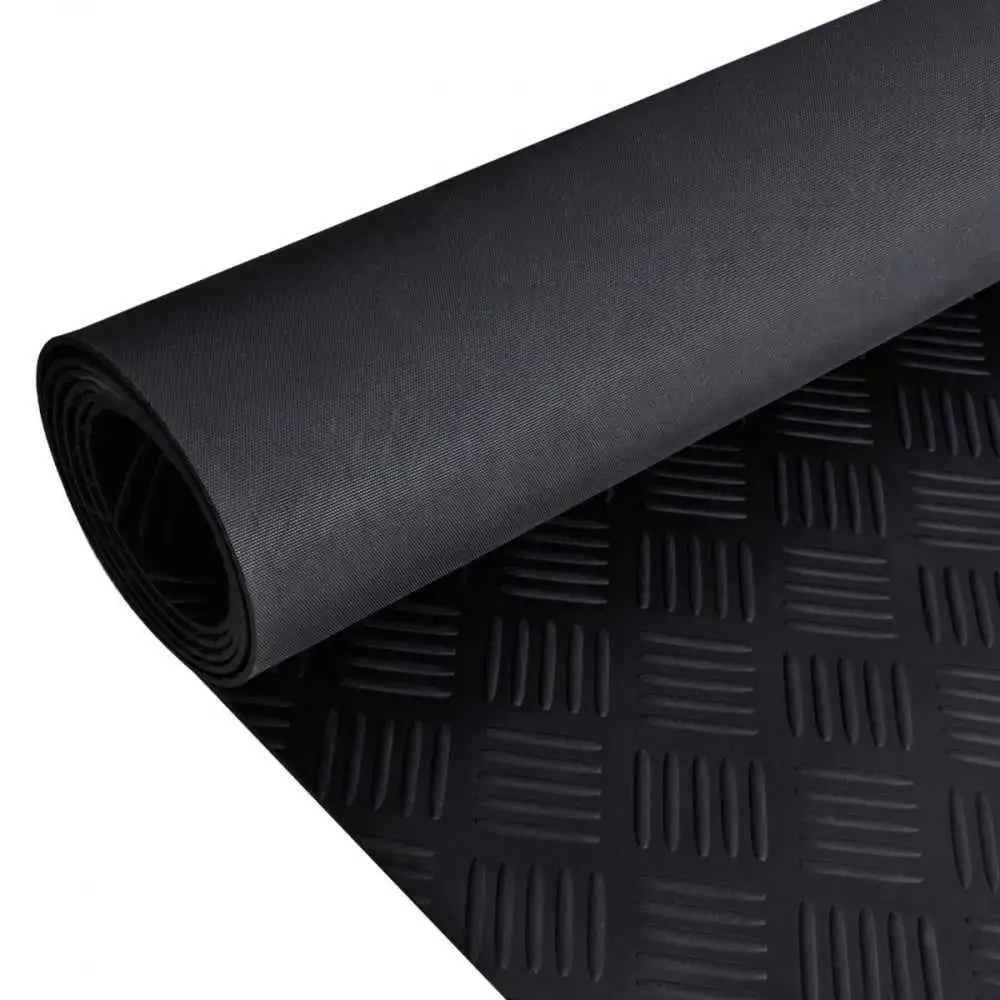

Checker Rubber Sheet is a durable textured rubber flooring material designed for applications where surface traction, floor protection and reliable everyday performance are important. Anti-Slip Rubber Sheet products are available in different surface patterns, including checker, DOT round button, coin and other raised designs.

The raised pattern creates a textured surface that can provide additional traction compared with a completely smooth rubber sheet. This makes checker and round button rubber sheets suitable for workshops, factories, garages, commercial buildings, walkways, workstations, vehicle interiors and other industrial environments.

The DOT Round Button Checker pattern is characterized by repeated raised round buttons or coin-style elements across the surface. This design gives the rubber sheet a distinctive appearance while creating multiple contact points under footwear and equipment.

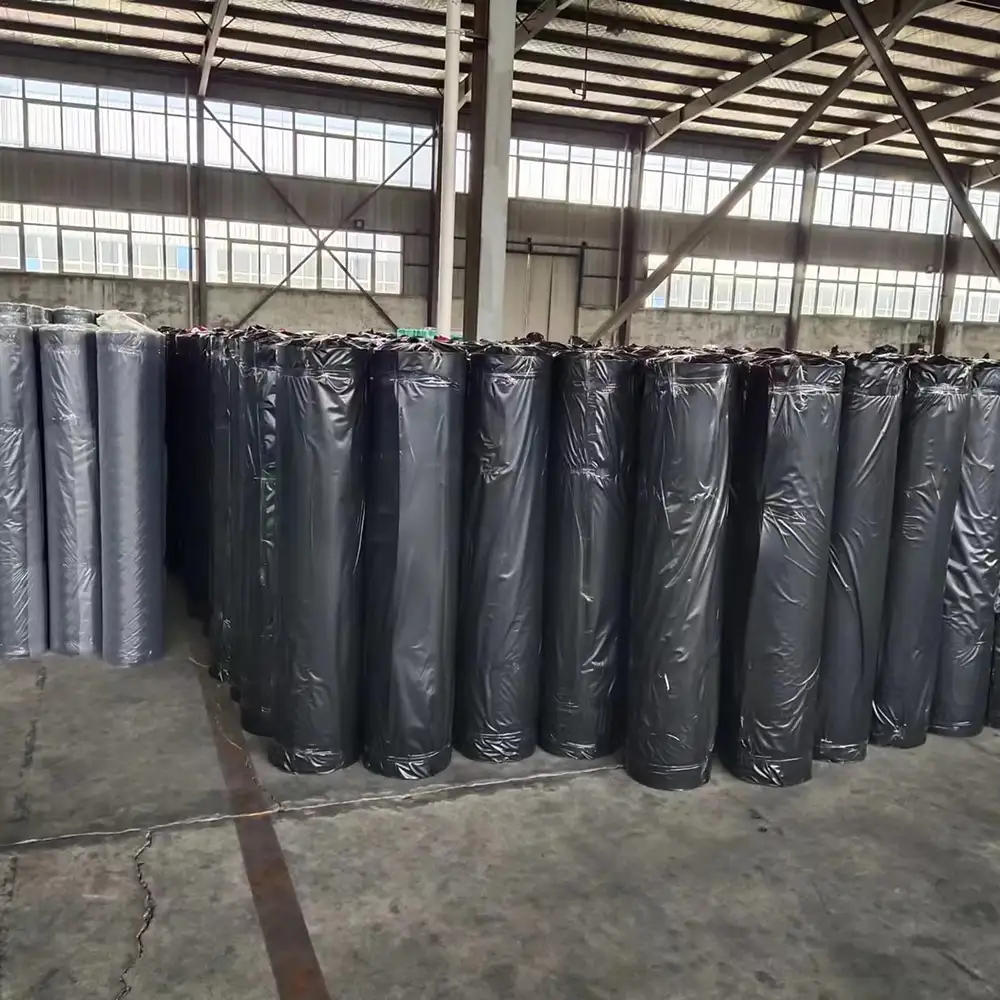

Rubber flooring can be supplied in sheets or rolls and may be available in different thicknesses, widths, lengths and colors. Depending on the product specification, custom cutting and OEM manufacturing can also be provided.

As an industrial rubber sheet manufacturer and supplier, we support distributors, wholesalers, contractors, manufacturers and industrial purchasing teams with customized rubber flooring solutions.

Made by drum-type vulcanizing press(ROTOCURE) or vulcanizing press with NR/SBR, NBR, EPDM, neoprene. 3-6mm thickness is made by drum-type vulcanizing press(ROTOCURE) with shiny surface, 7-20mm thickness is made by vulcanizing press for get higher thick thickness. With the excellent performance of waterproof, anti-slip, shake proof. Apply to the worktable, floor and aisle on hotel, auditoria, airport, harbor, vessel, vehicle and warehouse etc. Designed to protect floor surface and give handsome, ideal for walkway require sound absorption and heavy traffic places, anti-static and nonconductive for added protection, specially formulate heavy-duty, installer-grade material, provide improved traction and slip-resistance, reduces amount of dirt tracked into home, helps prevent concrete deterioration, vapor barrier, moisture will not penetrate, prevent concrete, soil, and water contamination, overlap or butt together for seamless look, hides cracks & stains in older floors, cushioned comfort for walking & working, thermal insulation and noise reduction, ultra durable Formulated to last for years, easy installation without adhesives required, clean and move when it is needed.

Specifications:
Material: SBR, NBR, EPDM etc.
Color: Black, red, blue, green, grey etc.
Top: Checker
Bottom: Impression fabric
Tensile strength: 4-6Mpa
Hardness: 70+/-5shore A
Elongation: 250%
Density: 1.5g/cm3
Standard size: 3mm x 1.2m x 10m
OEM: Allow and accept size by the buyer
Insertion: Allow and accept insert 1PLY fabric

What Is Checker Rubber Sheet?

Checker Rubber Sheet is a rubber sheet manufactured with a raised or textured surface pattern. The pattern may consist of checker-style blocks, raised buttons, diamonds, coins, ribs or other geometric designs.

The purpose of the surface texture is primarily to create a more functional walking and working surface. Depending on the design and environment, the raised pattern can provide additional grip and help reduce the feeling of a completely smooth floor.

Checker rubber sheets can also provide a protective layer over an underlying floor. Rubber is naturally flexible and resilient, allowing the material to absorb some everyday impact and vibration.

The exact performance of a rubber flooring product depends on the compound, hardness, thickness, pattern and installation method.

DOT Round Button Rubber Sheet

DOT Round Button Rubber Sheet is a popular patterned rubber flooring style featuring repeated circular raised buttons across the surface.

The round button design is often referred to as a coin pattern or DOT pattern. It provides a textured appearance and multiple raised contact points.

This type of rubber sheet can be used in industrial floors, vehicle flooring, workshops, commercial areas, ramps, platforms and other locations where a durable textured rubber surface is required.

The size, height, spacing and arrangement of the round buttons can vary according to product design. Buyers should confirm the actual pattern dimensions when matching flooring to a particular project.

Anti-Slip Rubber Sheet

Anti-Slip Rubber Sheet is designed with a textured surface to provide improved traction compared with a smooth rubber surface.

Checker and DOT round button patterns are commonly used for this purpose. However, actual slip resistance depends on several factors, including pattern geometry, rubber compound, surface contamination, footwear, moisture and installation conditions.

For areas where water, oil, grease or other contaminants are present, the complete flooring system should be evaluated rather than relying only on the surface pattern.

If a project has a specific slip-resistance requirement, the required test method and performance level should be confirmed before ordering.

Checker Rubber Flooring

Checker rubber flooring is widely used in industrial and commercial environments because rubber provides a flexible, resilient flooring surface.

Typical benefits include:

Textured Surface
Improved Surface Grip
Floor Protection
Flexible Rubber Construction
Impact Absorption
Vibration Damping
Easy Cutting And Installation
Roll And Sheet Formats
Multiple Pattern Options
Multiple Color Options

The actual performance of the flooring depends on the selected rubber formulation and product construction.

Key Features And Benefits
Textured Anti-Slip Surface

The raised checker or DOT pattern creates a textured surface that can provide additional traction for normal foot traffic.

Durable Rubber Construction

Industrial rubber flooring is designed for regular use in workshops, factories and other working environments. The appropriate compound and thickness should be selected according to traffic and wear conditions.

Floor Protection

A rubber sheet can provide a protective layer over concrete, metal and other suitable substrates, helping separate the underlying surface from normal foot traffic and equipment activity.

Flexible Installation

Rubber sheets and rolls can be cut to fit different floor layouts. Roll products can be particularly useful for covering larger areas.

Easy Maintenance

Routine sweeping and cleaning can help remove dust and debris. Cleaning chemicals should be compatible with the selected rubber compound.

Professional Industrial Appearance

Checker and DOT round button patterns provide a recognizable industrial flooring appearance and can be used in both functional and commercial spaces.

Industrial Applications

Checker and DOT round button rubber sheets can be used in many industries and facilities.

Workshops And Factories

Rubber flooring can be installed around workstations, machinery and production areas where employees regularly stand and walk.

Garages And Automotive Facilities

DOT rubber flooring is commonly considered for garages, service areas and vehicle-related workspaces. Where oil and fuel exposure is frequent, an appropriate oil-resistant rubber compound should be specified.

Warehouses

Textured rubber flooring can be used in selected warehouse walkways, operator areas and workstations.

Commercial Buildings

Checker rubber sheets can be used in corridors, utility areas, entrances and other spaces requiring a durable rubber floor covering.

Vehicle And Equipment Flooring

Certain rubber sheet products can be fabricated for vehicle floors, equipment platforms and other applications where a flexible textured surface is required.

Fitness And Recreation Areas

Rubber flooring can also be considered for gyms, exercise areas and equipment zones. Thickness and hardness should be selected according to the intended activities and equipment.

Checker Pattern Vs DOT Round Button Pattern

Checker and DOT round button patterns are both textured rubber flooring options, but their surface geometry is different.

A checker pattern generally creates a repeating block or diamond-like visual effect, while a DOT round button pattern uses individual circular raised elements.

The choice can depend on appearance, walking feel, cleaning requirements, traction expectations and the intended environment.

There is no single pattern suitable for every application. For projects involving frequent water, oil, debris or aggressive contaminants, the complete flooring design should be reviewed.

How To Choose The Right Rubber Sheet

Several factors should be evaluated before purchasing checker rubber flooring.

Application: Determine whether the material will be used in a workshop, garage, factory, warehouse, gym, commercial facility or vehicle.

Thickness: Select thickness according to traffic, equipment loading, impact and floor-protection requirements.

Pattern: Choose checker, DOT round button, coin, ribbed or another pattern based on functional and visual requirements.

Rubber Compound: Consider oil, grease, chemicals, water, sunlight, temperature and abrasion.

Size: Confirm required sheet width, roll length and installation dimensions.

Color: Black is widely used for industrial flooring, while other colors may be selected for visual differentiation or facility design.

Installation: Determine whether the flooring will be loose laid, bonded or installed using another suitable method.

Custom Rubber Sheet Manufacturing

We can provide customized checker and DOT round button rubber sheets for industrial and commercial projects.

Customization may include:

Rubber Compound
Sheet Thickness
Roll Width
Roll Length
Pattern Design
Button Size
Pattern Spacing
Color
Surface Finish
Custom Cut Dimensions
Packaging

For OEM projects, customers can provide drawings, samples, dimensions or application information. This allows the manufacturing specification to be aligned with the actual project requirements.

Distributors, wholesalers and flooring suppliers can also discuss customized packaging and private-label requirements.

Installation And Maintenance

Before installation, make sure the substrate is clean, dry, flat and free from oil, dust and loose materials. Measure the area carefully before cutting the rubber sheet or roll.

For bonded installation, use an adhesive that is compatible with the rubber compound and substrate. Allow sufficient time for the adhesive to cure according to the adhesive manufacturer's instructions.

During routine use, remove dirt and debris from the textured surface. Appropriate cleaning equipment can be used according to the flooring environment.

Inspect the flooring periodically for cuts, excessive wear, loose edges, permanent deformation or other damage. Replace damaged sections when necessary.

For industrial environments involving oil, chemicals or extreme temperatures, regular inspection is especially important.

Why Choose Us

We provide checker rubber sheets, DOT round button rubber sheets and industrial rubber flooring solutions for B2B customers.

Industrial Rubber Manufacturing: Products are designed for industrial and commercial flooring applications.
Multiple Surface Patterns: Checker, DOT round button, coin and other textured patterns can be considered.
Custom Specifications: Thickness, width, length, color and other specifications can be customized.
Material Selection Support: Rubber compounds can be matched to the actual working environment.
OEM And ODM Service: Suitable for flooring distributors, wholesalers and private-label projects.
Custom Cutting: Sheets and rolls can be processed into specific dimensions where required.
Flexible Supply: Suitable for different project quantities and international B2B purchasing.
Application-Focused Service: We consider flooring use, traffic, environment and installation requirements when developing product solutions.
Frequently Asked Questions
1. What Is A Checker Rubber Sheet?

A checker rubber sheet is a textured rubber flooring material with a raised geometric surface pattern. It is used for floor protection, traction and industrial flooring.

2. What Is A DOT Round Button Rubber Sheet?

It is a rubber sheet featuring repeated raised circular buttons, often called a coin or DOT pattern. It is commonly used for industrial and commercial flooring.

3. Is Checker Rubber Sheet Anti-Slip?

The raised surface pattern can provide additional traction compared with smooth rubber. Actual slip resistance depends on the pattern, environment, footwear and contaminants.

4. What Is DOT Rubber Flooring Used For?

DOT rubber flooring can be used in workshops, factories, garages, walkways, platforms, vehicle areas and commercial facilities.

5. Can Checker Rubber Sheets Be Used Outdoors?

Some rubber compounds can be considered for outdoor applications. Weather, UV, ozone, temperature and moisture exposure should be evaluated when selecting the material.

6. Is DOT Rubber Sheet Suitable For Garages?

Yes, it can be used in garages and automotive work areas. If frequent exposure to oil or fuel is expected, an appropriate oil-resistant rubber compound should be selected.

7. Can The Rubber Sheet Be Supplied In Rolls?

Yes. Checker and DOT rubber flooring can be supplied in roll formats as well as cut sheets, depending on the product specification.

8. Can You Customize The Rubber Sheet Thickness?

Yes. Different thicknesses can be manufactured or supplied according to the material, production process and application requirements.

9. What Colors Are Available?

Black is a common industrial flooring color. Red and other colors may also be available depending on the rubber compound, production requirements and order quantity.

10. Do You Provide OEM Rubber Flooring?

Yes. OEM services can include rubber compound selection, dimensions, thickness, pattern, color, custom cutting, packaging and other agreed specifications.

Request A Quote

If you are looking for Checker Rubber Sheet, Anti-Slip Rubber Sheet or DOT Round Button Rubber Flooring, send us your required pattern, thickness, width, length, color, quantity and application.

We can provide customized rubber flooring solutions for workshops, factories, garages, warehouses, commercial facilities and other industrial environments.
