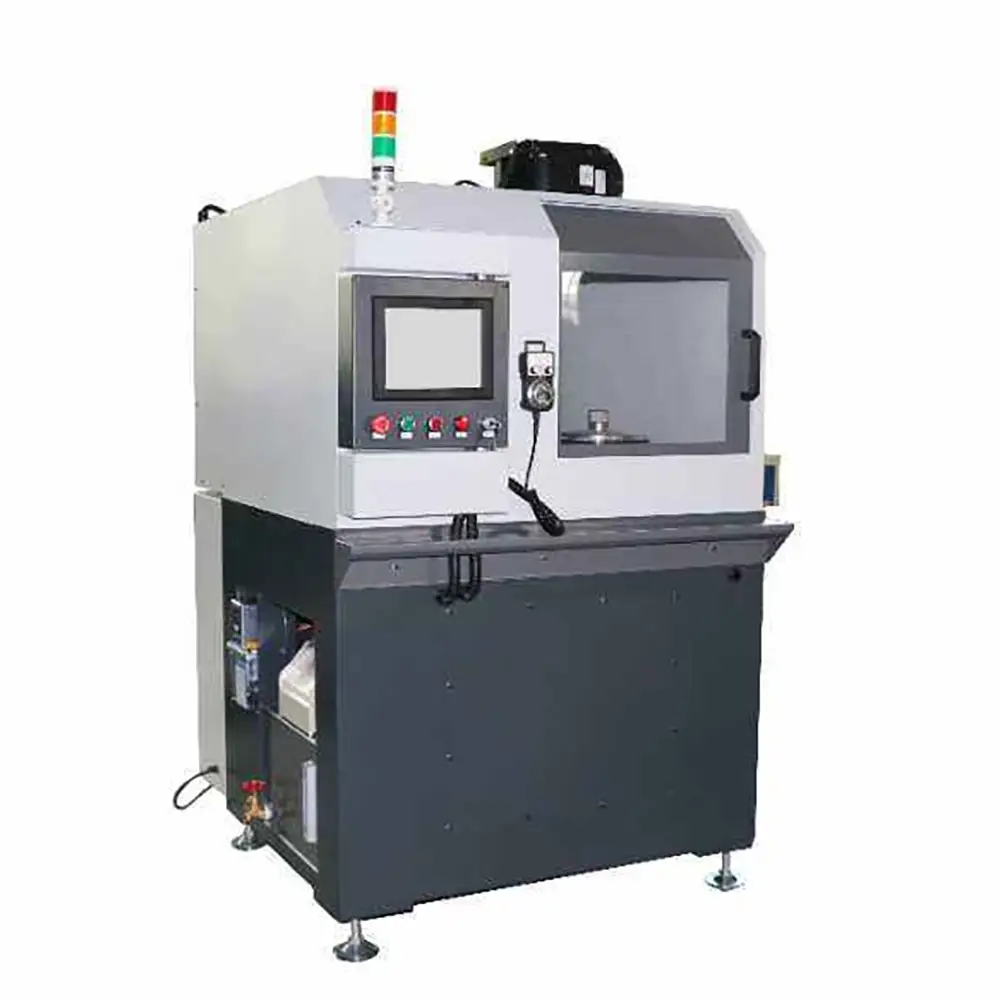

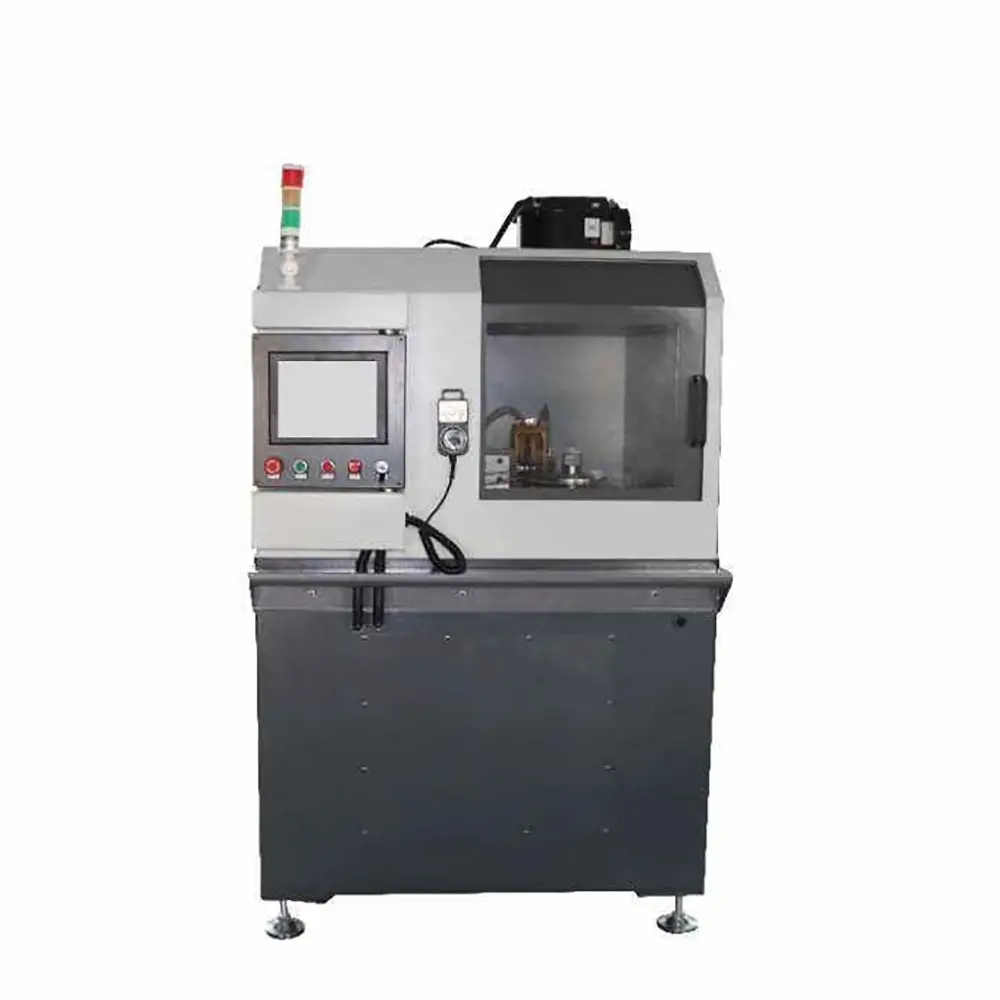

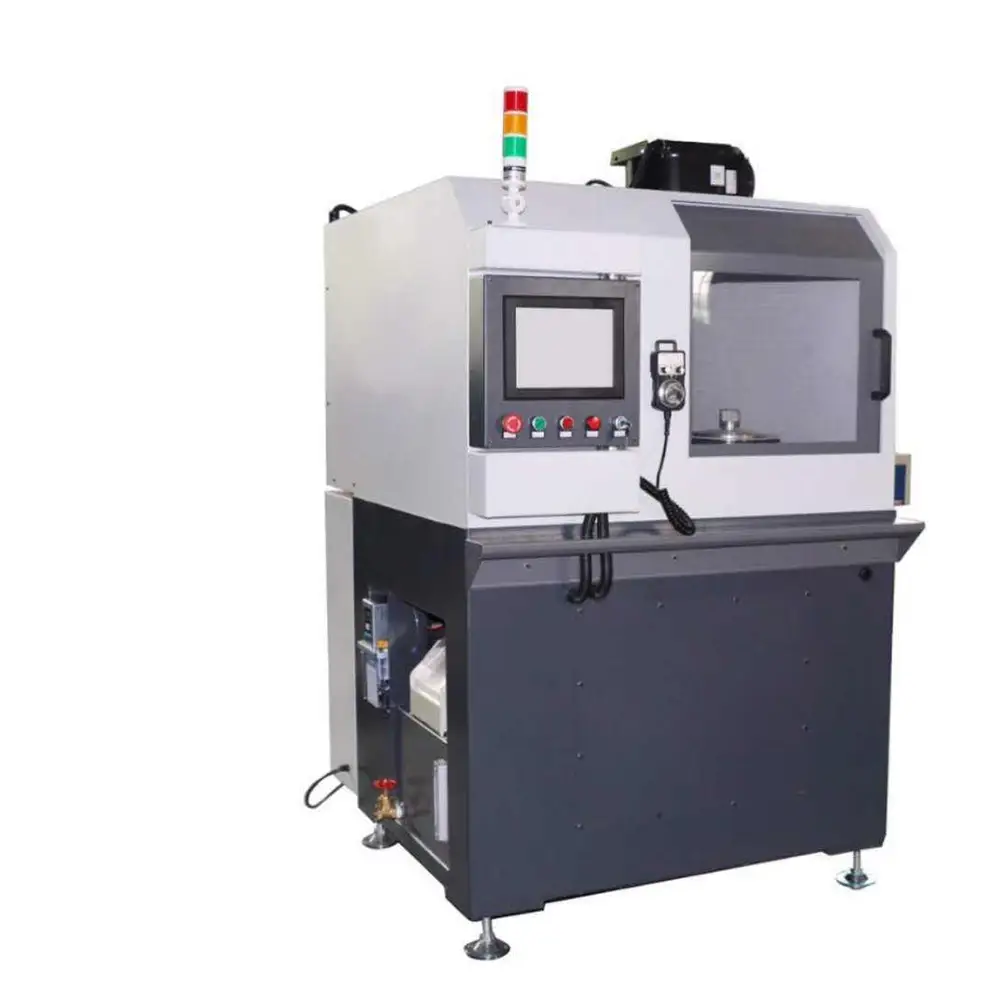

Automatic Saw Tooth Grinding Machine for HSS Circular Saw on Cutting Machine

Automatic Saw Tooth Grinding Machine for HSS Circular Saw Blades

The Automatic Saw Tooth Grinding Machine for HSS Circular Saw is designed for efficient and precise grinding of high-speed steel circular saw blades used in metal cutting and industrial fabrication. By combining automated tooth positioning with controlled grinding, the machine provides a practical solution for maintaining saw blade geometry, restoring cutting performance, and supporting consistent blade production.

HSS circular saw blades are widely used for cutting steel pipes, tubes, bars, profiles, sheets, and other metal materials. During continuous cutting operations, saw teeth gradually become worn, reducing cutting efficiency and affecting the quality of the finished workpiece. A dedicated saw tooth grinding machine allows manufacturers, cutting shops, and tool service companies to sharpen and restore blades instead of replacing them prematurely.

This automatic grinding equipment is suitable for production environments where repeatable tooth grinding, stable operation, and efficient blade maintenance are important.

Name	4 axis saw tooth  grinding machine
Total power	8.9KW
Grinding range	100-500MM
Number of grinding teeth	10-998
Saw blade thickness	≤8MM
Tooth pitch	24MM
Front angle	0.1 ° -25 °
Grinding speed	1-60 teeth / minute
Grinding wheel diameter	Ø200MM
Grinding wheel inner diameter	Ø32MM
Grinding wheel speed	≤6000RPM / min (frequency adjustable)
Grinding wheel thickness	≤9MM
X axis control	750WAC servo
Y-axis control	750WAC servo
A axis control	750WAC servo
Z axis(chamfering)	750WAC servo
Water mist recycling machine	0.015KW
Processing capacity	13m³ / min
Inlet diameter	100MM
Noise level	68dB
Saw blade thickness	≤8MM
working lamp	Waterproof and dustproof white LED
Cooling pump	50L / min
Magnetic separator	0.025KW
Lubricant pump	0.035KW / AC
Clamping plate	Ø130 / Ø170 / Ø210 / Ø260 / Ø310 / Ø400MM
measure	1350x1350x1850mm

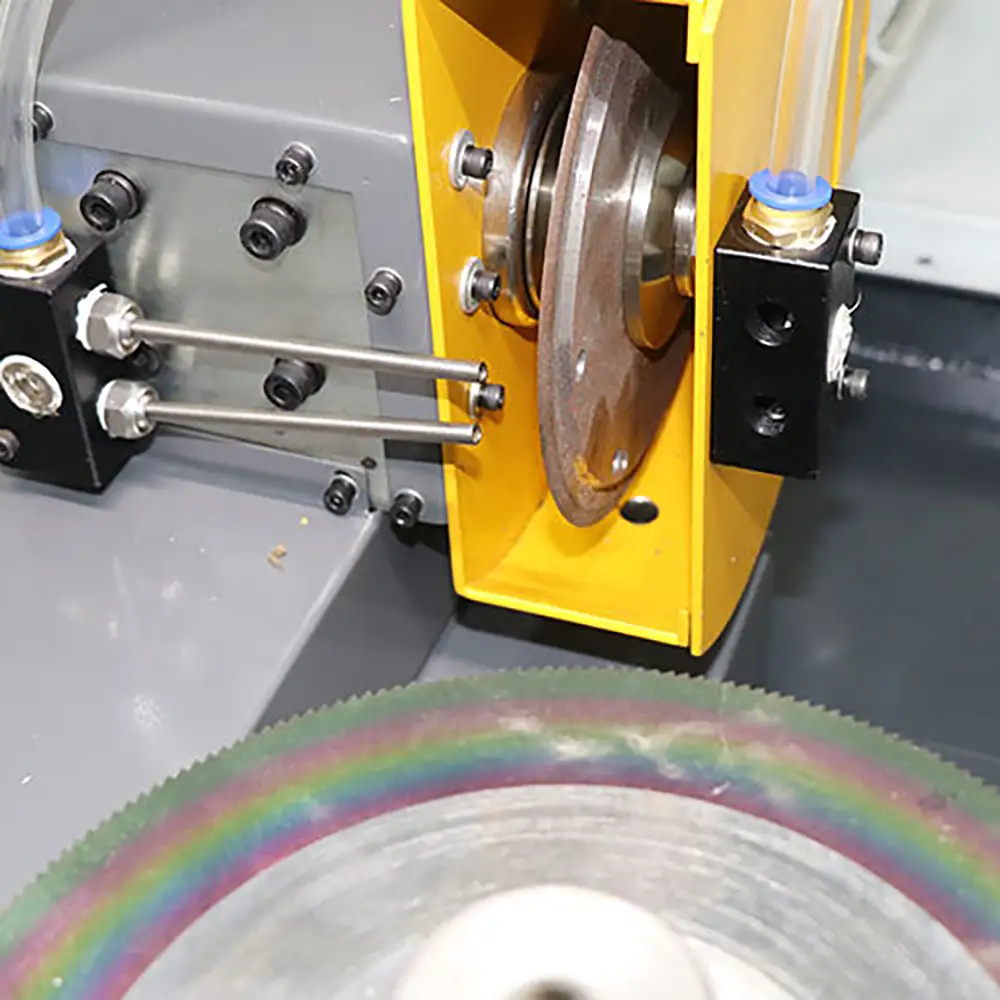

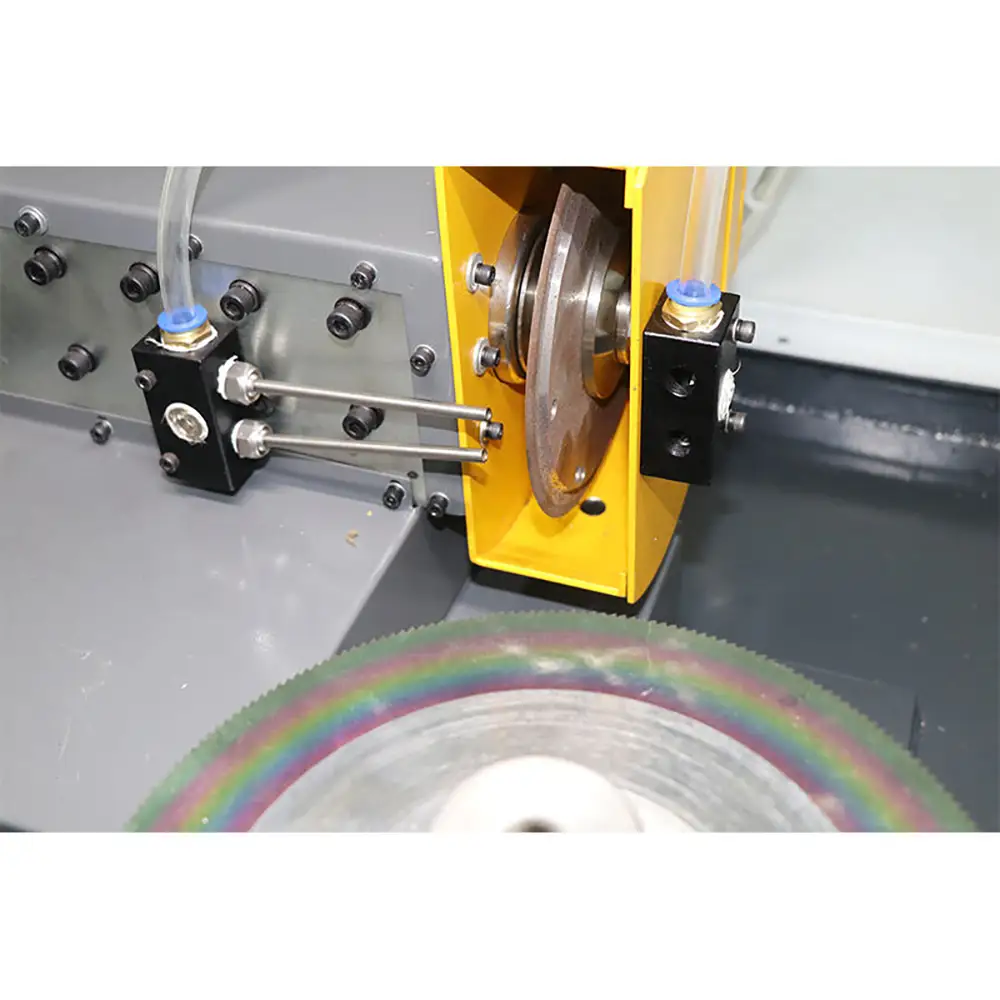

Automatic Tooth Grinding Process

The main function of the machine is to grind individual teeth on a circular saw blade according to the required tooth geometry. An automated feeding and positioning system can help move the blade tooth by tooth through the grinding cycle, reducing manual intervention during repetitive sharpening operations.

Depending on the machine configuration, grinding parameters can be adjusted according to blade diameter, tooth pitch, tooth profile, grinding requirements, and material characteristics. Proper parameter selection helps achieve a consistent grinding result across the entire circumference of the blade.

Automatic operation is especially useful for workshops that need to process multiple HSS circular saw blades. Instead of manually positioning every tooth, the machine can perform repetitive indexing and grinding operations in a controlled sequence.

Designed for HSS Circular Saw Blades

HSS circular saw blades are commonly used in industrial metal-cutting applications because high-speed steel provides suitable hardness, wear resistance, and heat resistance for demanding cutting operations.

The machine is specifically designed around the requirements of circular saw tooth grinding. Depending on the tooling and configuration, it can support different blade sizes and tooth geometries.

Before ordering, buyers should confirm the following parameters:

Circular saw blade outside diameter
Blade thickness
Arbor or bore diameter
Number of teeth
Tooth pitch
Tooth geometry
HSS blade material
Required grinding process
Grinding wheel specification
Required production volume

Providing these specifications to the manufacturer helps determine the appropriate machine configuration.

Precision Grinding and Tooth Geometry

Consistent tooth geometry is important for circular saw cutting performance. Uneven tooth dimensions or incorrect grinding angles can contribute to unstable cutting, increased vibration, rougher edges, and faster blade wear.

An automatic saw tooth grinding machine helps establish a repeatable grinding process. Controlled blade indexing and grinding movement can reduce variations between individual teeth when the machine is correctly configured and operated.

For professional blade maintenance, grinding should restore the required tooth shape without unnecessarily removing excessive material. Proper wheel selection, grinding speed, feed settings, and cooling conditions can all influence the final result.

The actual grinding accuracy and available tooth profiles depend on the machine model, control system, tooling, and configuration selected for the application.

Efficient Circular Saw Blade Sharpening

Manual saw sharpening can require significant operator time, particularly when a blade contains a large number of teeth. Automatic grinding equipment reduces repetitive manual work and creates a more standardized sharpening workflow.

A typical process includes loading the HSS circular saw blade, securing it on the machine, setting the required grinding parameters, aligning the blade, and starting the automatic tooth-by-tooth grinding cycle. After the cycle is completed, the operator can inspect the blade and perform any required finishing or quality-control steps.

This workflow can improve shop productivity while making blade maintenance easier to organize.

Applications in Metal Cutting

HSS circular saw blades are used across many metalworking industries. The grinding machine can therefore support a variety of applications involving circular saw blade maintenance and refurbishment.

Typical applications include:

Steel pipe cutting
Steel tube cutting
Metal bar cutting
Structural profile cutting
Sheet and plate processing
Machinery manufacturing
Automotive component production
Metal fabrication
Steel service centers
Tool and blade maintenance workshops
Circular saw blade manufacturing
Industrial cutting operations

For companies operating their own metal-cutting equipment, an in-house blade sharpening machine can help establish a more controlled maintenance process.

Stable Blade Positioning

Accurate blade positioning is essential for consistent tooth grinding. The circular saw blade needs to remain securely supported while each tooth is indexed into the grinding position.

A properly designed clamping and positioning system helps minimize unwanted blade movement during grinding. Stable positioning also allows the grinding wheel to engage the tooth more consistently.

For different blade sizes or production requirements, the machine may be equipped with different fixtures, supports, or adjustable mechanisms. Buyers should provide blade drawings or dimensional information when requesting a customized configuration.

Grinding Wheel and Tooling Selection

Grinding wheel selection has a direct influence on grinding efficiency and tooth surface quality. The appropriate wheel depends on the blade material, tooth geometry, grinding operation, and production requirements.

For HSS circular saw blades, the grinding process should be selected according to the hardness and characteristics of the material being processed. Grinding parameters should also be matched to the selected wheel and machine configuration.

Regular inspection of the grinding wheel is important. A worn, damaged, or incorrectly dressed wheel can affect grinding quality and increase the risk of inconsistent tooth geometry.

Production and Maintenance Benefits

For professional cutting operations, maintaining saw blades in good condition can support more stable cutting performance. Instead of treating worn blades as disposable products, companies can use grinding equipment to restore suitable tooth geometry when the blade remains structurally serviceable.

The automatic process can also make blade maintenance easier to schedule. Operators can establish standardized grinding procedures based on blade type and production requirements.

For workshops processing different blade specifications, a machine with adjustable parameters can provide additional flexibility. However, the supported diameter range, tooth profile, and automation functions should always be confirmed with the supplier before purchase.

Easy Integration Into a Professional Workshop

The automatic saw tooth grinding machine can be used as an independent blade maintenance machine or as part of a larger cutting-tool service workflow.

It can be positioned near metal-cutting machines so that worn HSS circular saw blades can be removed, inspected, sharpened, and returned to production as part of an organized maintenance process.

For larger manufacturing operations, the machine can complement other equipment such as circular saw machines, blade inspection systems, cleaning equipment, grinding machines, and tool management systems.

Safety and Operation

Grinding operations require appropriate safety procedures. Operators should receive proper training and follow the machine manufacturer's operating instructions.

Important considerations include secure blade mounting, correct grinding wheel installation, appropriate guarding, dust and particle control, electrical safety, and regular inspection of moving components.

Operators should also use appropriate personal protective equipment and follow local workplace safety requirements. The exact safety configuration depends on the machine design and installation environment.

OEM and Custom Manufacturing

Different manufacturers have different requirements for HSS circular saw blades. Blade diameter, tooth profile, production volume, electrical standards, automation requirements, and workshop layout can vary considerably.

As a professional Saw Tooth Grinding Machine Manufacturer and Supplier, we can support OEM and ODM requirements for selected machine configurations. Customization may include blade support arrangements, control functions, voltage requirements, tooling, machine dimensions, and other project-specific options.

For a quotation, buyers can provide blade drawings, dimensions, tooth specifications, material information, expected production volume, and preferred automation level. These details allow the machine configuration to be evaluated more accurately.

Suitable for Blade Manufacturers and Cutting Workshops

This automatic HSS circular saw tooth grinding machine is suitable for companies involved in circular saw blade production, blade refurbishment, metal cutting, tool maintenance, and industrial fabrication.

Whether used for routine blade sharpening or higher-volume processing, automated tooth grinding provides a structured approach to maintaining circular saw blades.

With appropriate machine selection, grinding-wheel configuration, operator training, and maintenance, the equipment can become an important part of a professional cutting-tool maintenance program.

FAQs
1. What type of saw blades can this machine grind?

The machine is primarily designed for HSS circular saw blades. The supported blade diameter, thickness, tooth profile, and other specifications depend on the specific machine configuration.

2. Is this an automatic saw tooth grinding machine?

Yes. It is designed for automated tooth indexing and grinding, reducing the amount of repetitive manual positioning required during blade sharpening.

3. Can it grind different HSS circular saw sizes?

Depending on the model, the machine may support a range of blade sizes. Buyers should provide blade diameter, thickness, bore size, and tooth specifications for confirmation.

4. Can the machine sharpen worn circular saw blades?

Yes. It can be used for suitable HSS circular saw blade sharpening and tooth restoration when the blade remains structurally suitable for reuse.

5. What information should I provide when requesting a quotation?

Provide the blade diameter, thickness, bore diameter, number of teeth, tooth pitch, tooth geometry, HSS material, and required grinding process. Blade drawings or photos can also help.

6. Can the grinding parameters be adjusted?

Machine parameters and adjustment functions depend on the model and control configuration. The required tooth geometry and blade specifications should be confirmed before selecting the machine.

7. Is cooling required during grinding?

The appropriate cooling method depends on the machine design, grinding wheel, blade material, and grinding parameters. The manufacturer can recommend a suitable configuration for the application.

8. Can this machine be used in a saw blade manufacturing workshop?

Yes. It can be used for circular saw blade maintenance, sharpening, refurbishment, and selected manufacturing processes depending on the machine configuration.

9. Can you provide OEM or customized machines?

Yes. OEM and ODM solutions can be discussed according to blade dimensions, tooth requirements, voltage, automation level, tooling, and other project specifications.

10. How do I select the correct machine model?

Start with the maximum and minimum blade diameter, blade thickness, bore diameter, tooth pitch, tooth profile, and expected production volume. These parameters help determine the appropriate machine configuration.

Why Choose Us
Specialized Grinding Equipment – We focus on industrial grinding and metalworking equipment designed for practical production requirements.
HSS Saw Blade Applications – The machine configuration is developed around the requirements of HSS circular saw tooth grinding and sharpening.
Automatic Operation – Automated tooth indexing and grinding can reduce repetitive operator work and improve process consistency.
Flexible Configuration – Machine parameters and tooling can be evaluated according to different blade sizes and tooth specifications.
B2B Manufacturing Support – We provide solutions for distributors, cutting workshops, tool manufacturers, and industrial end users.
OEM & ODM Service – Custom machine configurations can be discussed for specific blade dimensions, production requirements, and operating environments.
Technical Communication – Blade drawings, specifications, photos, and application information can be reviewed before confirming the machine configuration.
Export-Oriented Supply – We support international buyers with machine configuration, production coordination, inspection, packaging, and shipment preparation.
