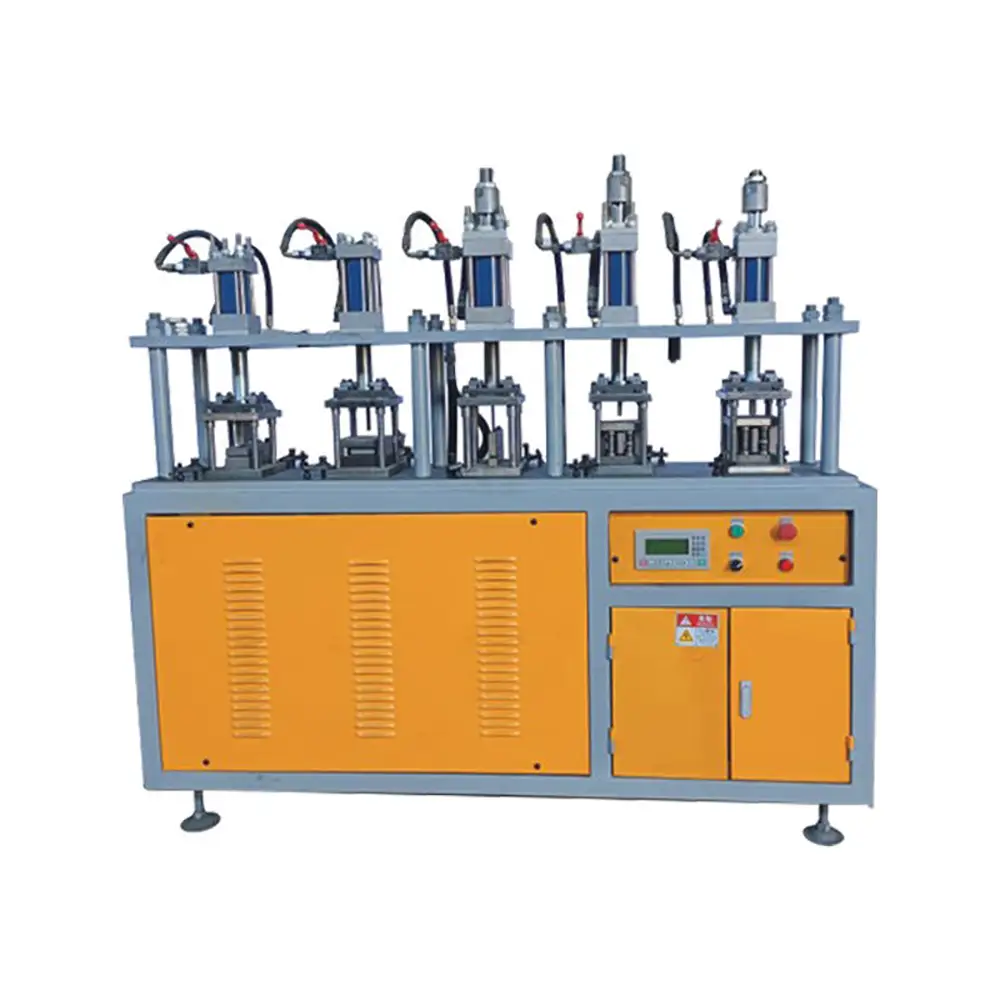

5-Station Ladder Multi-Function Punching & Bending Machine

5-Station Ladder Multi-Function Punching & Bending Machine

The 5-Station Ladder Multi-Function Punching & Bending Machine is designed for efficient processing of metal ladder components and other profiles that require multiple punching, bending, forming, and fabrication operations. By integrating five processing stations into one multifunctional machine, it can help manufacturers reduce repeated manual handling and improve production workflow for ladder manufacturing and related metalworking applications.

Metal ladders require accurately positioned holes, bends, mounting points, and formed sections to achieve proper assembly and consistent dimensions. Traditional production methods may require several separate machines, manual marking, repositioning, and repeated material handling. A multi-station punching and bending machine provides a more organized production solution by combining several operations within one equipment platform.

The exact functions of each station depend on the machine configuration, tooling, material, ladder profile, and customer requirements. Buyers should confirm the available stations, tooling arrangement, processing capacity, and automation functions according to their specific production needs.

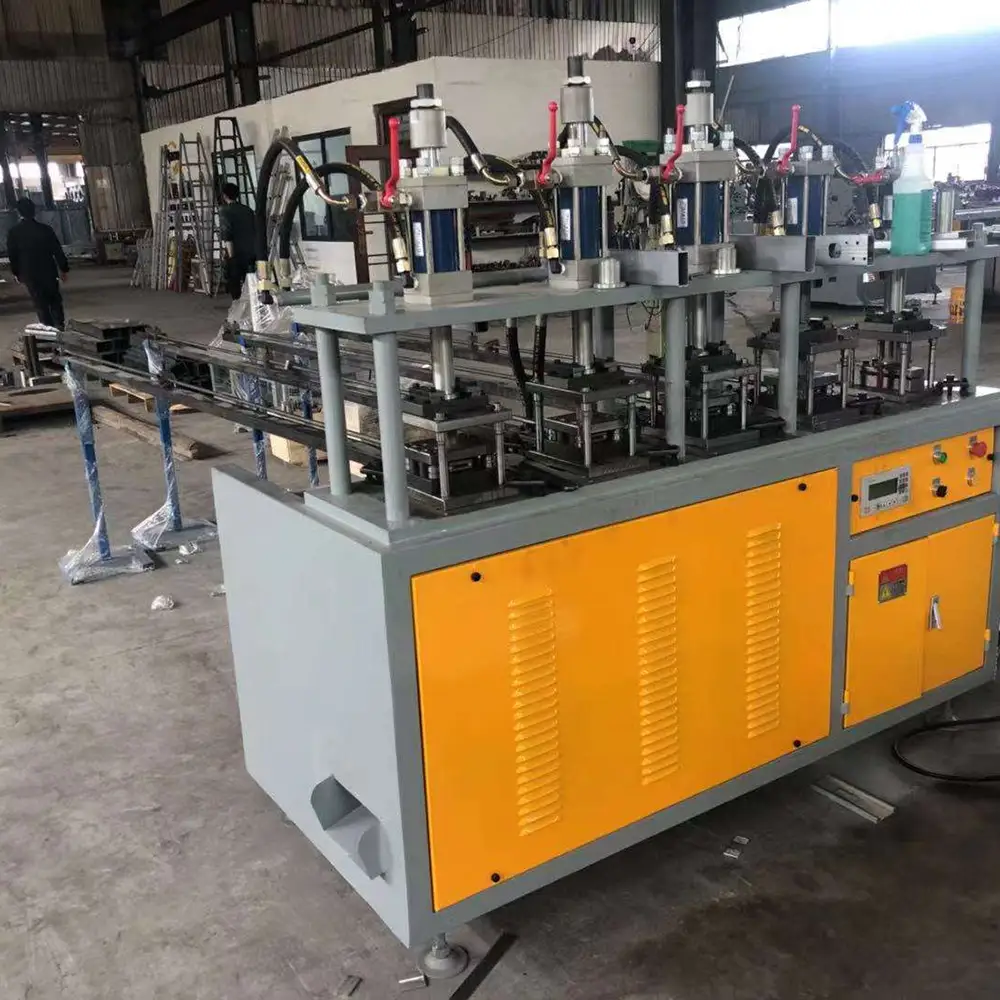

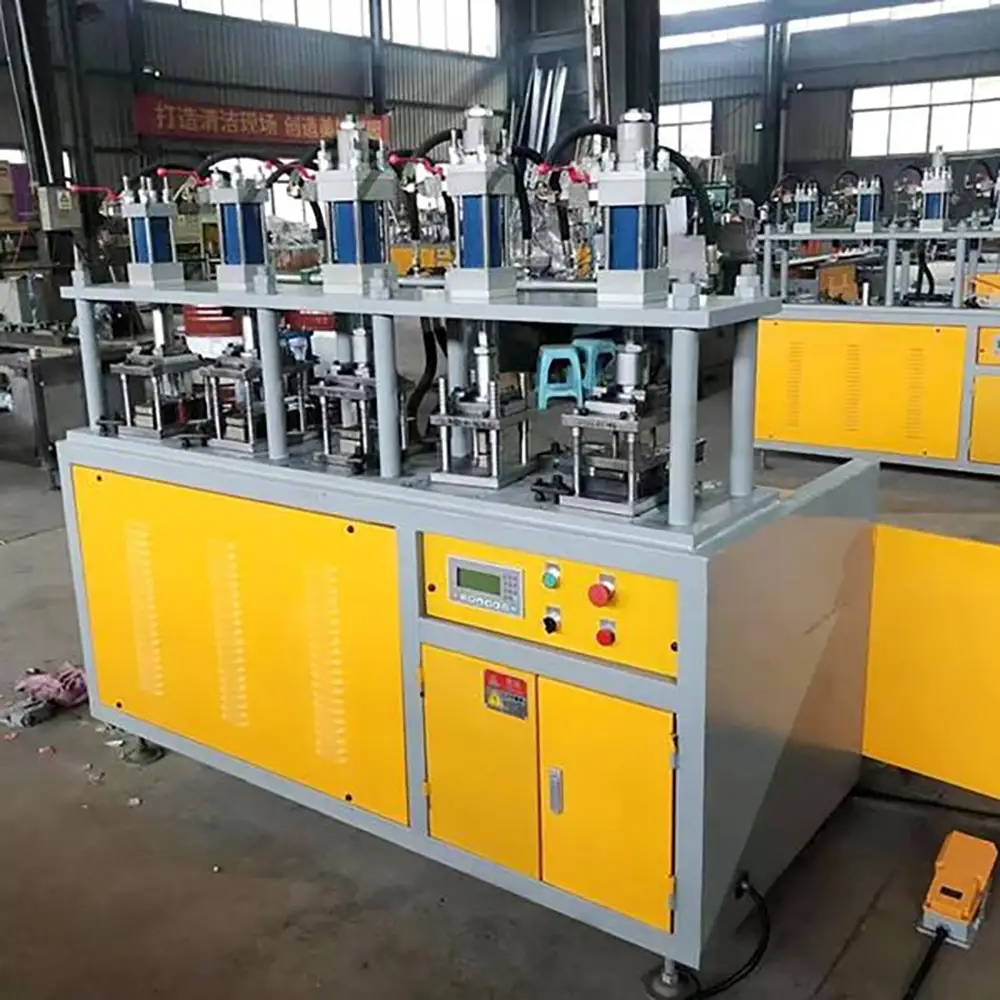

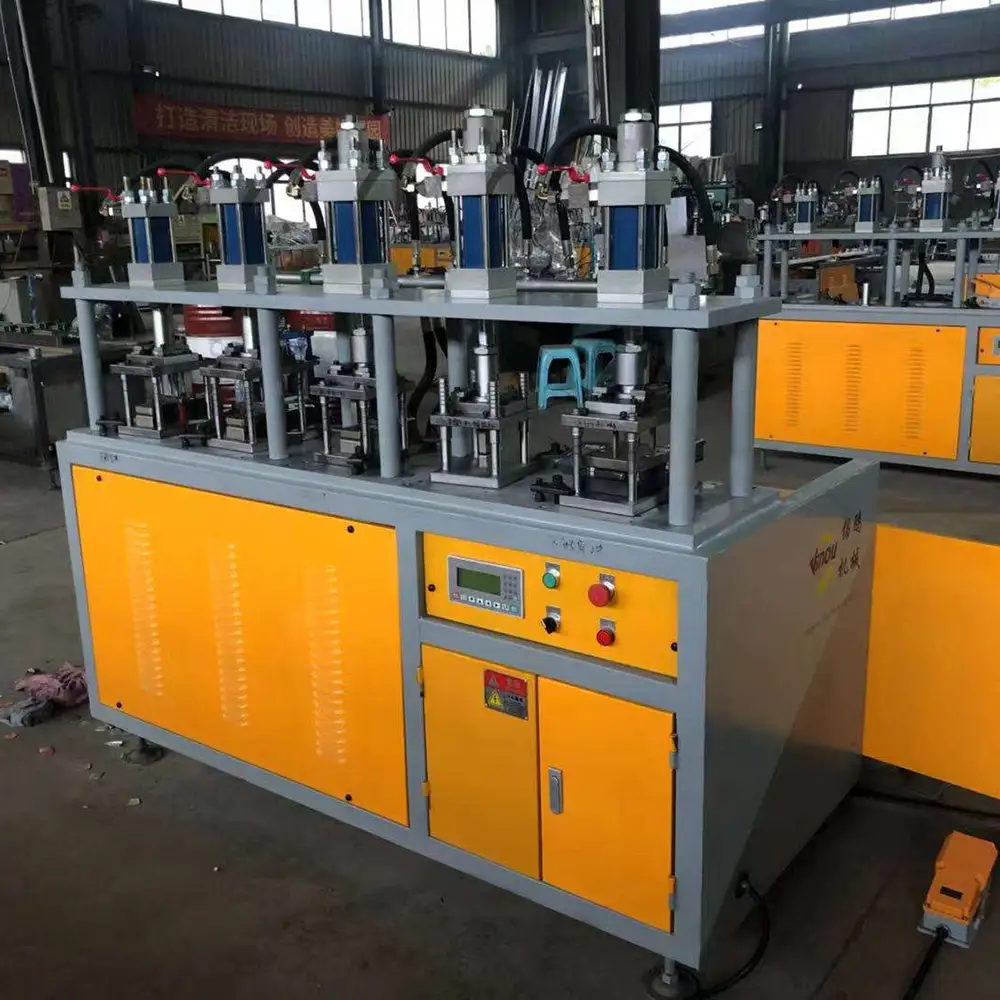

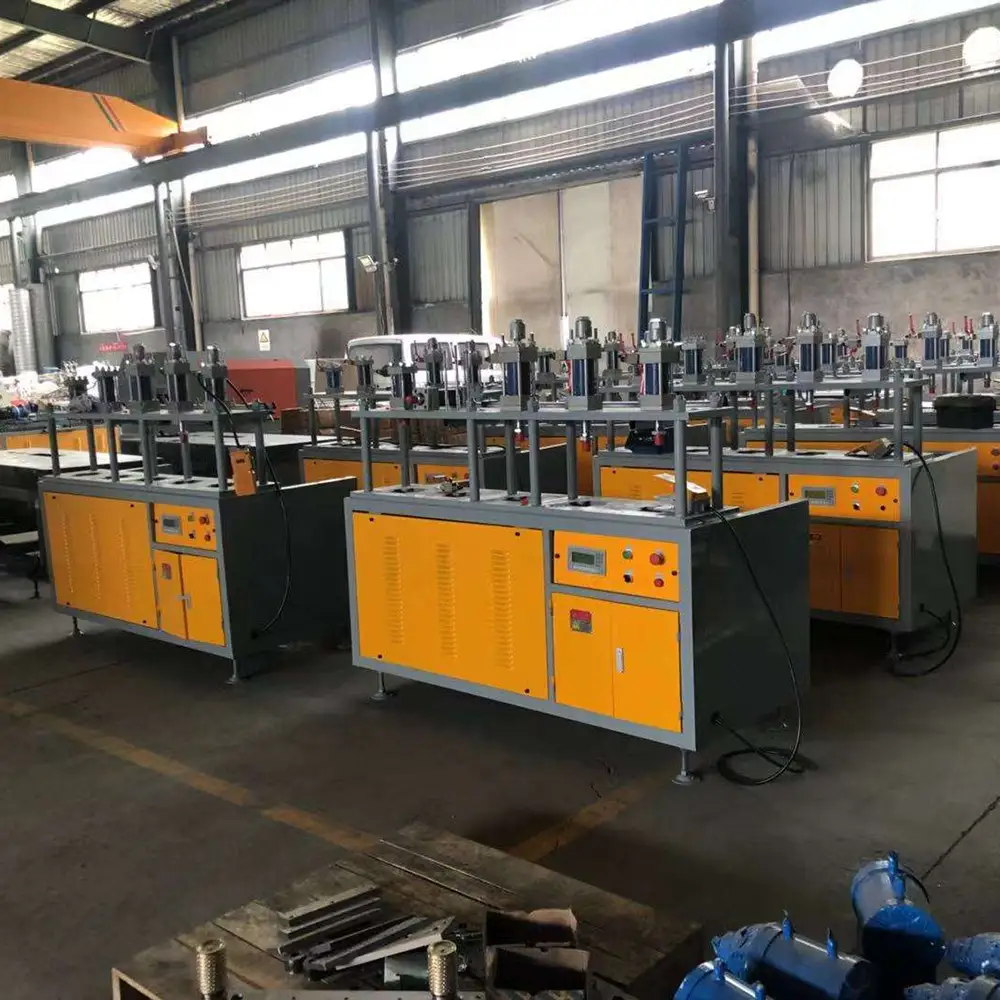

Five-Station Multi-Function Processing

The five-station design allows different metalworking operations to be organized within a single machine. Depending on the configuration, stations may be equipped for punching, bending, cutting, forming, notching, or other customized processes.

This arrangement is particularly useful for manufacturers producing ladder components repeatedly. Instead of moving the same workpiece between multiple independent machines, operators can complete several operations through a coordinated production workflow.

The specific functions assigned to the five stations can be customized according to the ladder design and production process. Customers can provide drawings, samples, material specifications, hole patterns, bending dimensions, and production requirements for machine evaluation.

Ladder Punching Applications

Punching is an important process in ladder manufacturing. Holes may be required for mounting steps, connecting components, installing brackets, attaching accessories, or assembling different ladder sections.

The machine can be configured with suitable punching tools according to the material profile and required hole shape. Proper punch and die selection helps support consistent hole dimensions and positioning.

For repetitive production, dedicated tooling can reduce manual marking and improve process consistency. Actual punching capacity depends on the material type, thickness, profile, hole size, tooling design, and machine configuration.

Ladder Bending and Forming

Bending is another important operation in metal ladder manufacturing. Ladder rails, brackets, supports, hooks, and other components may require straight-angle, offset, U-shaped, or other customized bends.

The bending station can be equipped with suitable forming tooling according to the required geometry. Proper tooling helps control the bending position and final shape of the component.

The actual bending capability depends on material properties, cross-sectional dimensions, bending radius, tooling, and machine structure. Sample testing is recommended for specialized ladder profiles or demanding forming requirements.

Multi-Station Production Workflow

A multi-station design can simplify the production process by arranging different operations in a logical sequence.

A typical workflow may include loading the metal profile, positioning the material, performing punching operations, transferring or repositioning the workpiece, completing bending or forming operations, and removing the finished component.

The exact sequence depends on the machine configuration and product design.

For high-volume ladder manufacturing, a standardized workflow can help reduce unnecessary material handling and improve operator productivity. It can also make production easier to organize when multiple operations are required for the same component.

Suitable Materials

Depending on the tooling and machine configuration, the equipment may be suitable for processing various compatible metal materials, including:

Carbon steel

Mild steel

Stainless steel

Aluminum

Galvanized steel

Metal profiles

Ladder rails and structural sections

Material strength and thickness have a direct influence on punching and bending requirements. Stainless steel and high-strength materials may require different tooling and forming parameters than mild steel or aluminum.

Before selecting the machine, buyers should provide material grade, thickness, profile dimensions, hole requirements, bending specifications, and expected production volume.

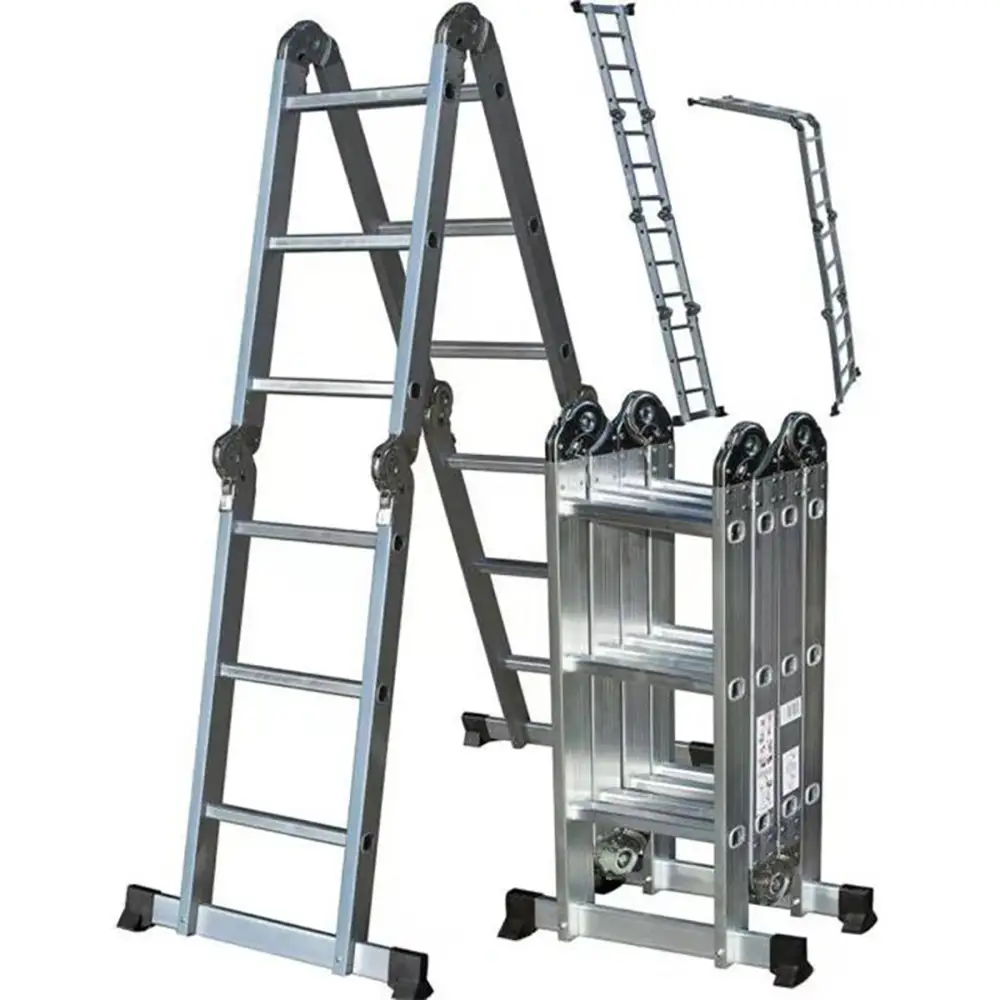

Ladder Manufacturing Applications

The 5-Station Ladder Multi-Function Punching & Bending Machine can support manufacturing of various metal ladder components and related products.

Potential applications include:

Aluminum ladders

Steel ladders

Industrial ladders

Extension ladders

Step ladders

Folding ladder components

Platform ladder components

Warehouse ladders

Construction ladders

Access ladders

Safety ladder components

Customized metal profiles

The actual product range depends on machine capacity, tooling, and the customer's ladder design.

Production Efficiency

Combining multiple operations into one machine can help reduce workpiece movement between separate production stations. This can be particularly valuable for manufacturers producing large quantities of similar ladder components.

Five processing stations provide flexibility for organizing different operations. Dedicated punches, dies, bending tools, and fixtures can further improve production consistency.

Actual production speed depends on material dimensions, hole quantity, bending complexity, station configuration, tooling changes, loading and unloading methods, and operator workflow.

For production planning, manufacturers should evaluate the complete cycle time rather than relying only on the number of stations.

Tooling and Customization

Tooling is a critical component of a multifunction punching and bending machine. Punches, dies, bending tools, clamps, guides, fixtures, and positioning components can be designed according to the required product.

Custom tooling may be developed for specific ladder rail profiles, step components, mounting holes, brackets, and special bending shapes.

For OEM projects, customers can provide CAD drawings or samples. Important information includes material type, profile dimensions, hole diameter, hole spacing, bending angle, bending radius, finished dimensions, and expected production quantity.

This information helps determine the appropriate station configuration and tooling solution.

Accuracy and Repeatability

Consistent hole positions and bending dimensions are important for ladder assembly. If components have significant dimensional differences, assembly can become difficult and finished products may not meet the required design specifications.

A properly configured machine can support repeatable punching and bending operations through dedicated tooling, fixtures, guides, and positioning systems.

Actual accuracy depends on machine construction, tooling quality, material consistency, positioning method, operator procedure, and maintenance condition.

For critical ladder components, manufacturers should establish inspection procedures for hole location, hole diameter, bending angle, profile dimensions, and overall finished-part geometry.

Industrial Applications Beyond Ladders

Although designed around ladder production, a multi-function punching and bending platform may also be adapted for other metal fabrication applications when suitable tooling is available.

Potential applications include brackets, frames, supports, mounting components, structural profiles, agricultural equipment parts, construction hardware, storage equipment, and customized metal components.

This flexibility can make the machine useful for manufacturers that process several related product types.

Maintenance and Safety

Regular maintenance is important for stable machine operation. Operators should inspect punches, dies, bending tools, guides, fixtures, electrical components, hydraulic or pneumatic components where applicable, and other wear parts according to the manufacturer's maintenance recommendations.

Tooling should be checked for wear and proper alignment. Damaged or excessively worn punches and dies can affect hole quality and production consistency.

Operators should receive appropriate training before using the machine. Guards, emergency stops, electrical protection, and other safety features should be verified according to the actual configuration and applicable local requirements.

Custom & OEM Solutions

The machine can be customized for specific ladder production requirements. Custom solutions may include station configurations, punching tools, bending dies, fixtures, positioning systems, feeding arrangements, and control functions.

Customers can provide ladder drawings, samples, material specifications, hole patterns, bending requirements, and production targets.

OEM and ODM support makes the machine suitable for ladder manufacturers, metal fabrication factories, wholesalers, distributors, purchasing agents, and international B2B buyers seeking a dedicated multi-function production solution.

Why Choose Us

Five Processing Stations — Integrates multiple metalworking operations into one production-oriented machine platform.

Ladder Manufacturing Focus — Designed for punching, bending, and forming requirements commonly found in metal ladder production.

Multi-Function Processing — Supports different operations through dedicated stations and customized tooling.

Reduced Material Handling — Combining operations can reduce unnecessary movement between separate machines.

Custom Tooling Support — Punches, dies, bending tools, fixtures, and guides can be customized for specific products.

Flexible Metal Compatibility — Can be configured for compatible steel, stainless steel, aluminum, galvanized steel, and metal profiles.

OEM & ODM Service — Machine configurations can be developed according to drawings, samples, materials, and production requirements.

B2B Industrial Solution — Suitable for manufacturers, wholesalers, distributors, purchasing agents, and ladder production companies.

FAQs

1. What is a 5-station ladder punching and bending machine?

It is a multifunctional metalworking machine with five processing stations designed to perform different punching, bending, forming, or related operations for ladder components and other metal profiles.

2. What does the five-station design mean?

It means the machine provides five processing stations that can be arranged or equipped for different operations according to the specific machine configuration and production requirements.

3. Can this machine manufacture metal ladders?

Yes. It is designed for processing metal ladder components such as rails, supports, brackets, and other parts that require punching and bending operations.

4. What materials can be processed?

Depending on the configuration, compatible materials may include carbon steel, mild steel, stainless steel, aluminum, galvanized steel, and other suitable metal profiles.

5. Can the punching tools be customized?

Yes. Punches and dies can be customized according to hole diameter, hole shape, material thickness, profile geometry, and production requirements.

6. Can the bending station be customized?

Yes. Custom bending dies and forming tools can be designed for specific bending angles, radii, profiles, and finished dimensions.

7. Can one machine perform different operations?

Yes. The five-station concept is intended to combine multiple processing operations. The exact operations depend on the selected configuration and tooling.

8. Is this machine fully automatic?

The automation level depends on the specific configuration. Some functions may be automated or machine-assisted, while loading, unloading, setup, or other operations may still require an operator.

9. Can it process aluminum ladder profiles?

It can be configured for compatible aluminum profiles, provided that the machine and tooling are suitable for the material grade, profile dimensions, and required punching and bending operations.

10. Can the machine produce customized ladder components?

Yes. Custom tooling and station configurations can be developed for special ladder profiles, hole patterns, brackets, bends, and other components.

11. How do I choose the right machine configuration?

Provide the material type, profile dimensions, thickness, hole sizes and positions, bending requirements, finished dimensions, production quantity, and required automation level.

12. Can you provide OEM solutions?

Yes. OEM solutions can include customized stations, punches, dies, bending tools, fixtures, positioning systems, and other machine configurations based on customer drawings or samples.
