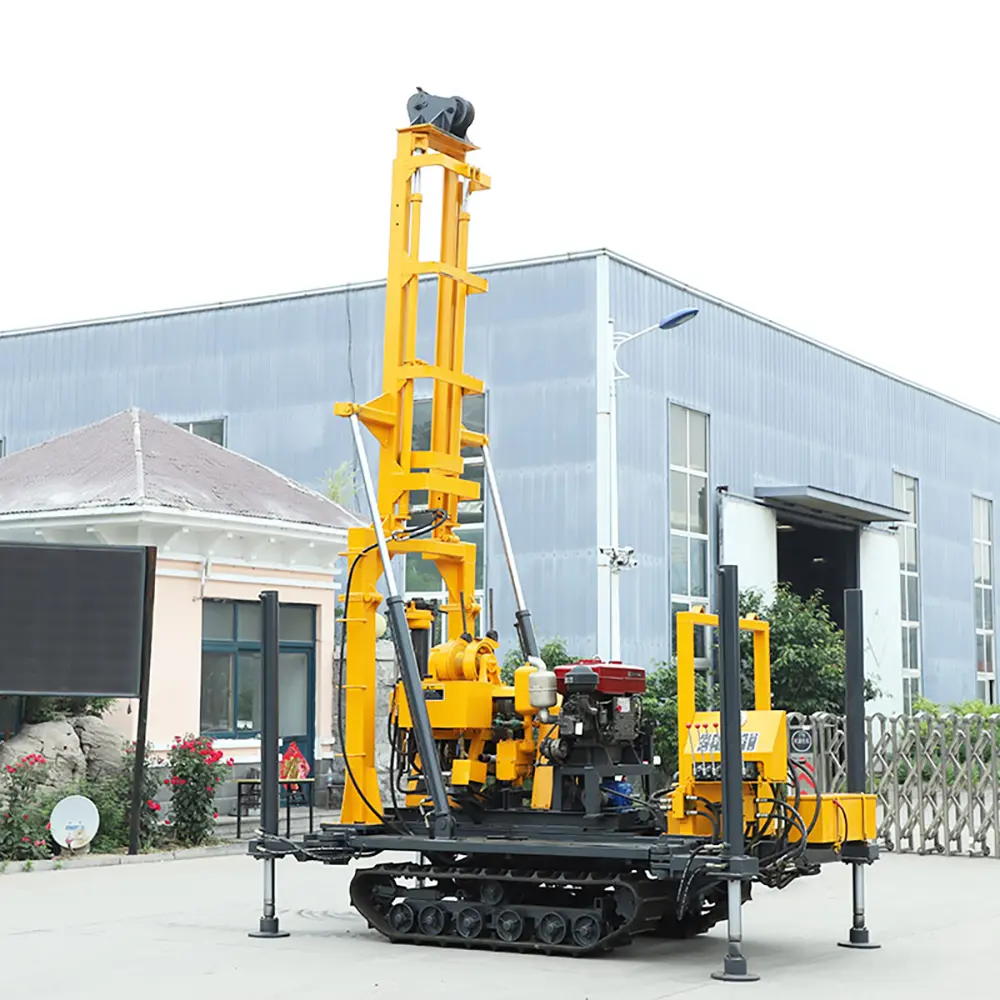

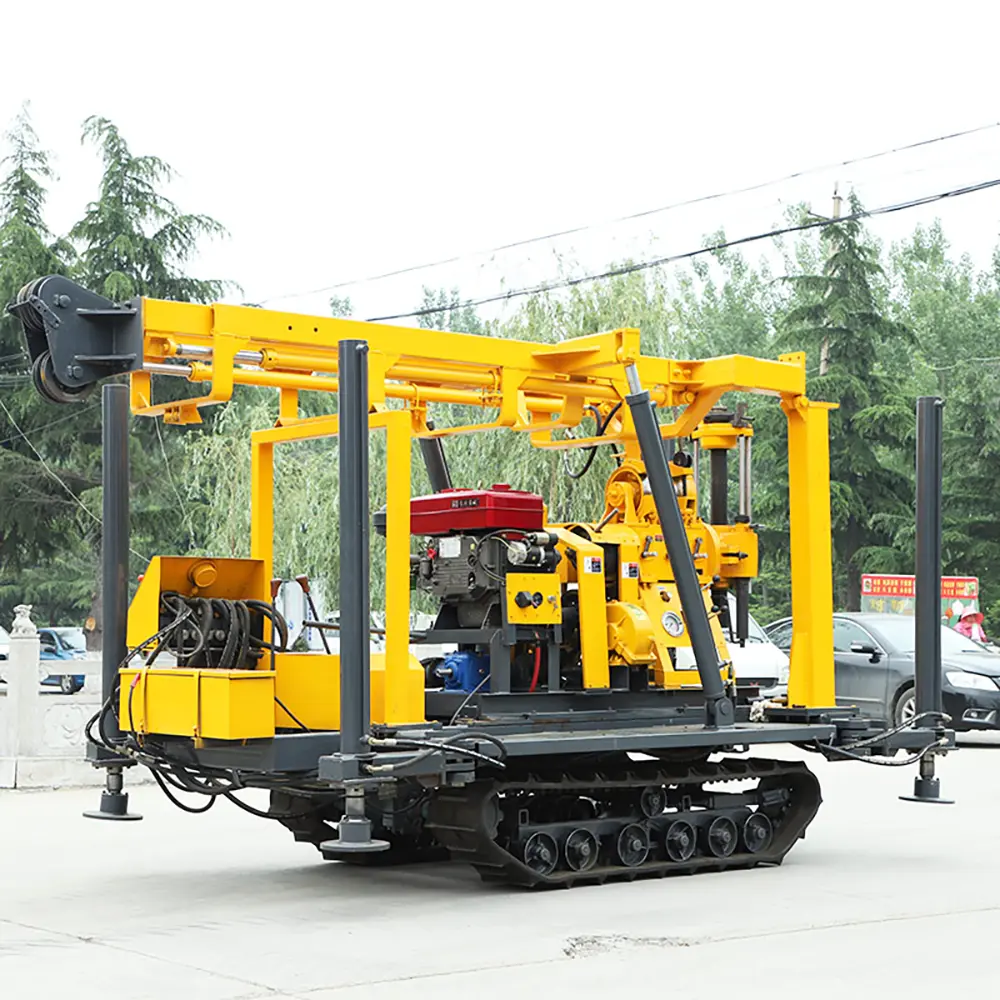

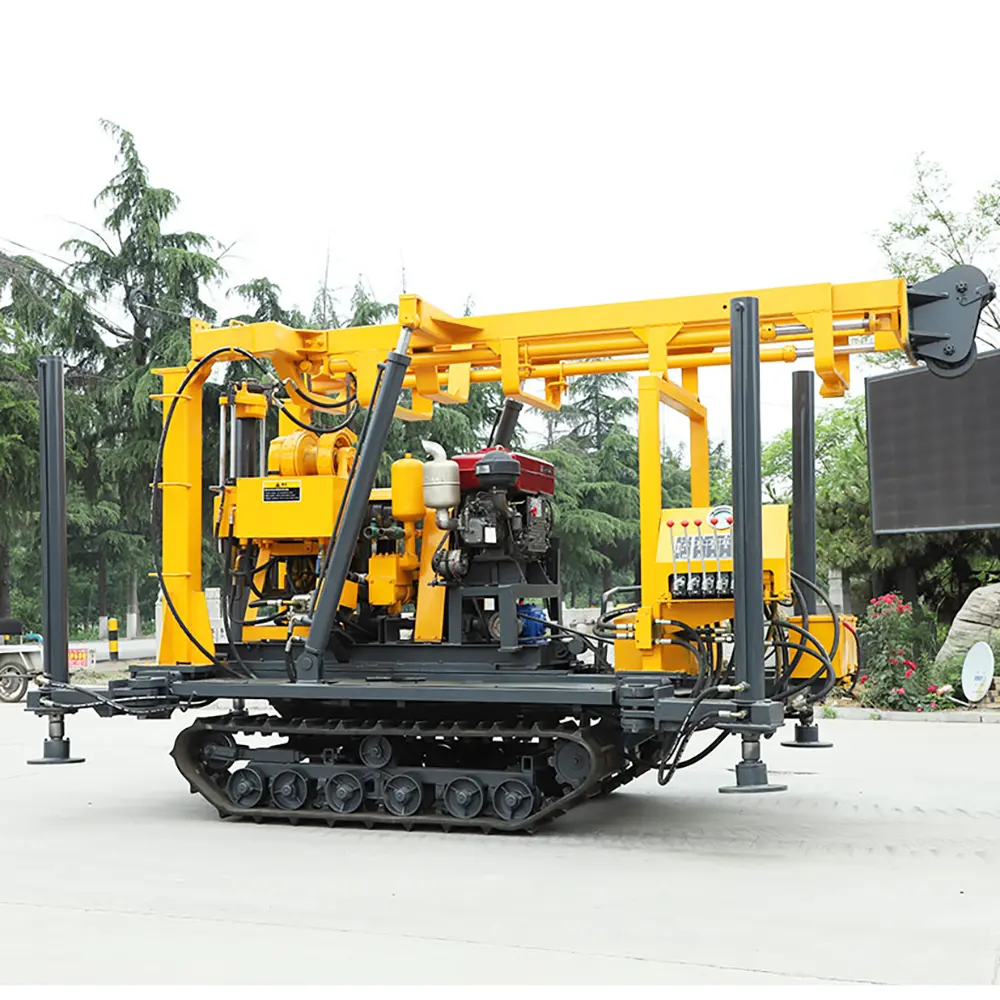

190L Hydraulic Drilling Rig

Drilling diameter: 75-500mm
Drilling depth: 190m
Rated Power: 13.2Kw

model	190L
Drilling depth	190	m
Opening diameter	500(Soil)/220(Rock)	mm
final hole diameter	75	mm
Drill pipe diameter	42-50-60	mm
Drilling angle	90-75	°
Engine power	13.2	kw
weight	3250	kg
Machine size	3800*1950*2700	mm
Vertical shaft speed	64/128/287/557	r/min
Vertical axis travel	450	mm
Single rope lifting force	2500	kg
Single rope lifting speed	0.12-0.95	m/s
Wire rope diameter	φ12.5	mm
Wire rope capacity	35	m
Rated load	18	Ton
effective height	6.5	m
flow	145	L/Min
greatest pressure	1.2	Mpa
Optional configuration	Motor

190L Hydraulic Drilling Rig

The 190L Hydraulic Drilling Rig is a professional and efficient drilling machine designed for a wide range of drilling applications, including water well construction, geological exploration, mining investigation, core sampling, geothermal drilling, and engineering projects.

Equipped with an advanced hydraulic drive system, the 190L Hydraulic Drilling Rig provides strong rotary torque, stable feeding force, and accurate drilling control. The hydraulic system improves power transmission efficiency, reduces mechanical loss, and ensures smooth operation during continuous drilling work.

Compared with conventional drilling machines, the 190L Hydraulic Drilling Rig offers improved performance, better adaptability, and easier operation. It can effectively handle different geological formations, making it suitable for professional drilling contractors and exploration companies.

The 190L Hydraulic Drilling Rig is widely applied in:

Water well drilling
Agricultural irrigation projects
Geological surveys
Mineral exploration
Core sampling
Geothermal drilling
Foundation investigation
Engineering drilling projects

With its reliable structure, flexible operation, and excellent drilling capability, the 190L Hydraulic Drilling Rig provides an economical and practical solution for modern drilling requirements.

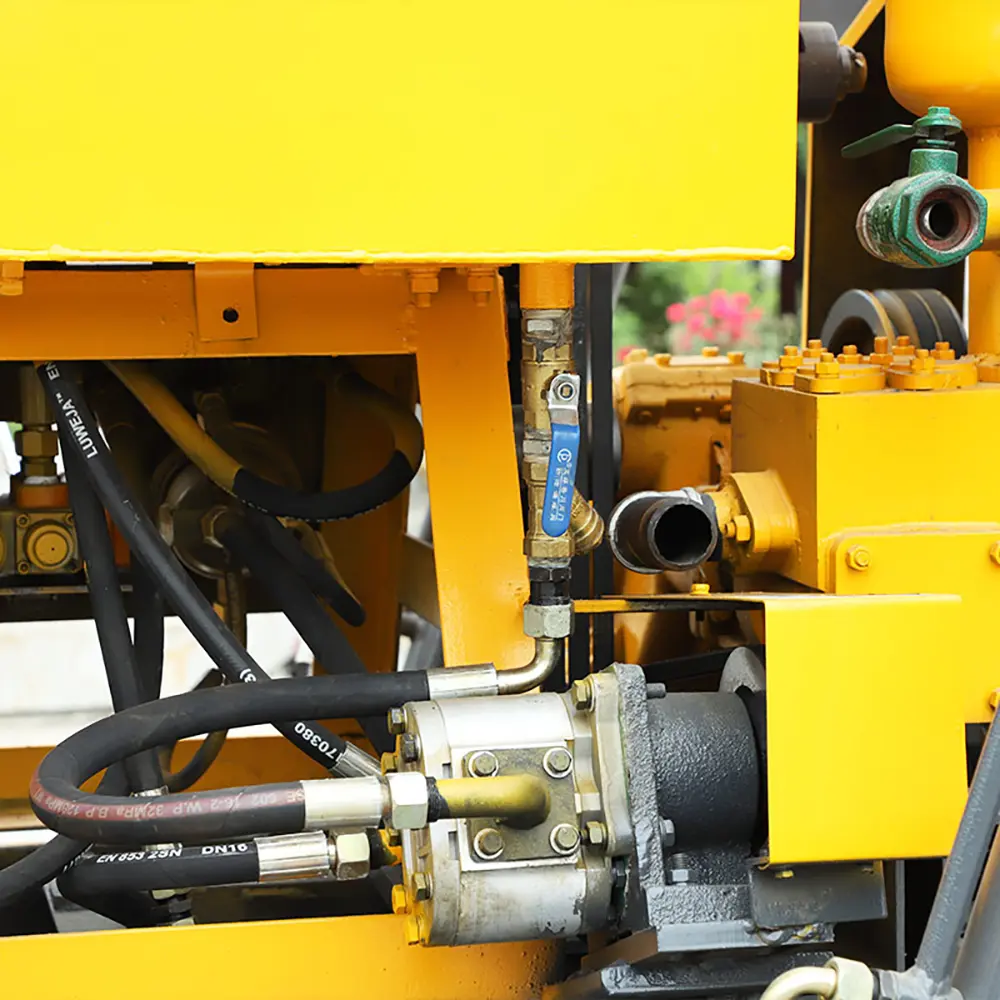

Advanced Hydraulic Power System

The main feature of the 190L Hydraulic Drilling Rig is its efficient hydraulic transmission system.

The hydraulic system controls:

Rotary drilling head
Drill rod feeding system
Hydraulic lifting mechanism
Drilling pressure adjustment
Positioning operation

Compared with mechanical transmission equipment, hydraulic technology provides:

Stronger torque output
Smoother power transmission
More precise control
Reduced vibration
Improved drilling efficiency

The operator can adjust drilling speed, pressure, and rotation according to different geological conditions, ensuring better drilling results.

Efficient Drilling Performance

The 190L Hydraulic Drilling Rig is designed for reliable performance in various drilling environments.

Main advantages include:

Strong rotary power
Stable drilling pressure
Efficient penetration ability
Continuous working capability
Flexible operation control

The machine can effectively work in:

Soil formations
Clay layers
Gravel formations
Weathered rock
Hard rock structures

The powerful hydraulic system ensures stable operation and improves overall drilling productivity.

Hydraulic Water Well Drilling Applications

The 190L Hydraulic Drilling Rig is widely used in groundwater development and water well construction.

Typical applications include:

Agricultural irrigation wells
Rural drinking water wells
Industrial water wells
Groundwater exploration
Small and medium water supply projects

Advantages include:

Faster drilling progress
Better borehole stability
Reduced drilling cost
Improved working efficiency

The 190L provides a dependable solution for water resource development in different environments.

Geological Exploration And Core Drilling

The 190L Hydraulic Drilling Rig is suitable for professional geological investigation and exploration projects.

Applications include:

Geological survey drilling
Mineral resource exploration
Rock core sampling
Engineering investigation
Environmental drilling

The hydraulic control system helps maintain stable drilling parameters, improving sample recovery and drilling accuracy.

It is an ideal choice for projects requiring reliable geological data.

Strong Rock Drilling Capability

The 190L Hydraulic Drilling Rig offers excellent adaptability for challenging geological conditions.

With suitable drilling tools, it can handle:

Limestone
Granite
Sandstone
Hard rock layers
Mixed formations

The hydraulic rotary system provides strong torque for efficient rock penetration and stable drilling operation.

The machine can be configured for:

Core drilling
Rotary drilling
Rock drilling applications

This flexibility allows the 190L to meet different industry requirements.

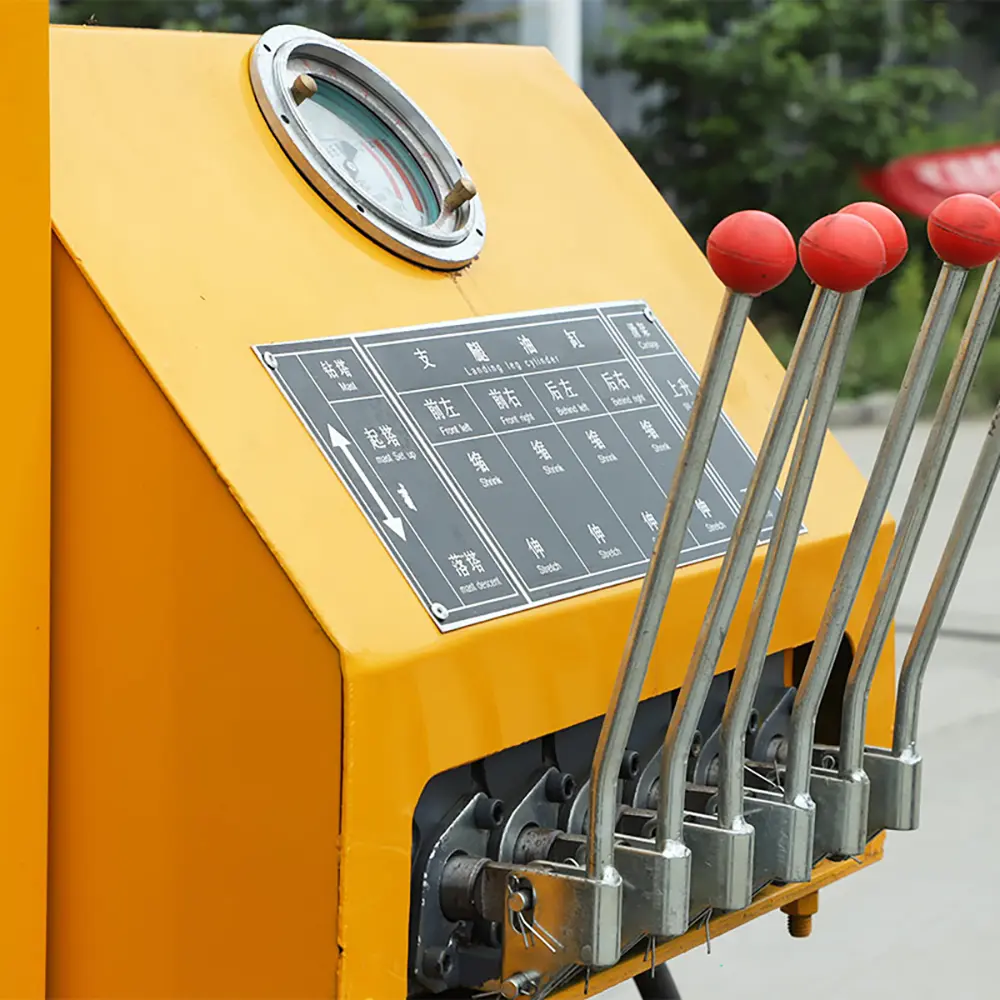

Reliable Hydraulic Control Technology

The hydraulic control system improves drilling accuracy and operational efficiency.

Key benefits include:

Smooth speed regulation
Precise pressure adjustment
Reduced equipment stress
Improved drilling stability
Better operator control

High-quality hydraulic components provide reliable performance and reduce maintenance requirements.

Durable Construction And Long Service Life

The 190L Hydraulic Drilling Rig is manufactured for demanding field environments.

The equipment features:

High-strength steel frame
Reinforced drilling mast
Durable hydraulic components
Wear-resistant drilling accessories
Reliable power system

Benefits include:

Long service life
Lower maintenance costs
Improved reliability
Reduced operating expenses

The robust design allows stable operation in harsh working conditions.

Compact Structure And Easy Transportation

The 190L Hydraulic Drilling Rig is designed for convenient field operation.

Advantages include:

Compact structure
Easy transportation
Fast installation
Simple maintenance
User-friendly operation

It is suitable for:

Mountain areas
Remote locations
Construction sites
Mining fields
Rural projects

The flexible design helps improve work efficiency and reduce downtime.

Wide Application Areas
Water Well Drilling

Used for:

Irrigation wells
Industrial water supply
Groundwater exploration
Rural water projects
Geological Exploration

Applications:

Geological surveys
Mineral investigation
Core sampling
Resource exploration
Mining Industry

Suitable for:

Exploration drilling
Rock analysis
Mineral development
Construction Engineering

Used for:

Foundation investigation
Soil testing
Engineering drilling
Geothermal Projects

Suitable for:

Geothermal wells
Underground energy exploration
Heat pump drilling
Main Features Of 190L Hydraulic Drilling Rig
Advanced hydraulic drive system
Strong drilling torque
Stable drilling performance
Efficient drilling operation
Suitable for various formations
Compact and flexible design
Reliable hydraulic components
Easy operation and maintenance
Wide industrial applications
Professional drilling capability
Why Choose Our 190L Hydraulic Drilling Rig?
1. Powerful Hydraulic Performance

The hydraulic system provides strong drilling force and stable operation for different applications.

2. High Drilling Efficiency

Optimized hydraulic control improves productivity and reduces project completion time.

3. Multi-Functional Drilling Solution

Suitable for water wells, geological exploration, mining, geothermal, and engineering projects.

4. Durable And Reliable Design

High-quality materials and components ensure long-term operation.

5. Excellent Geological Adaptability

The 190L performs efficiently in different soil and rock conditions.

6. Professional Technical Support

We provide customized drilling solutions, spare parts, and after-sales service.

FAQS
1. What is the 190L Hydraulic Drilling Rig used for?

The 190L Hydraulic Drilling Rig is used for water wells, geological exploration, mining drilling, core sampling, geothermal projects, and engineering applications.

2. What are the advantages of hydraulic drilling technology?

Hydraulic drilling provides stronger torque, smoother operation, accurate control, and improved drilling efficiency.

3. Can the 190L Hydraulic Drilling Rig drill hard rock?

Yes. With suitable drilling tools, it can drill through different rock formations including limestone and granite.

4. Is the 190L suitable for water well drilling?

Yes. It is widely used for agricultural irrigation wells, industrial water wells, and groundwater development.

5. What industries use the 190L Hydraulic Drilling Rig?

It is commonly used in mining, geological exploration, construction, geothermal, and water resource industries.

6. Can different drilling tools be installed?

Yes. The machine can be equipped with different drilling tools according to geological conditions and project requirements.

7. Is the 190L Hydraulic Drilling Rig easy to operate?

Yes. The hydraulic control system provides simple operation and accurate adjustment.

8. Can the 190L Hydraulic Drilling Rig be customized?

Yes. Specifications, accessories, and configurations can be customized according to customer requirements., it delivers reliable drilling performance in various geological conditions.

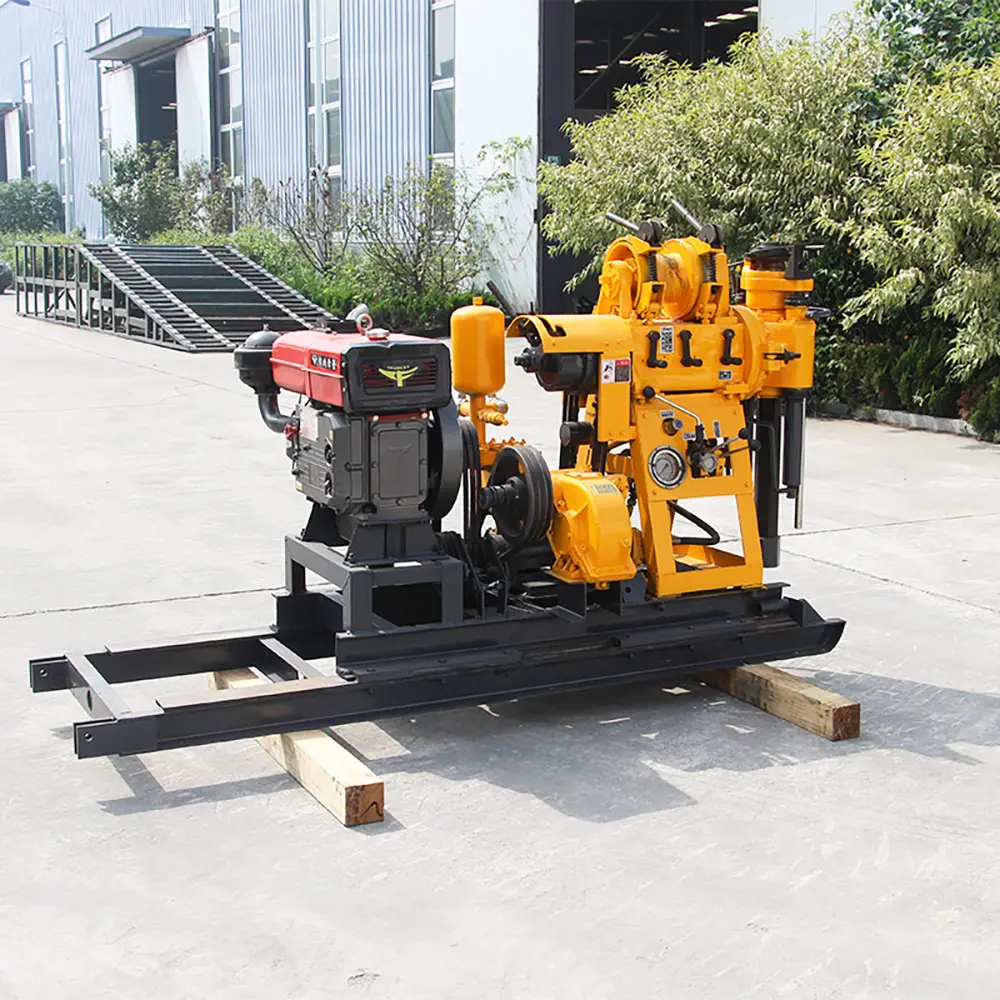

Prev：190YY Hydraulic Drilling Rig
