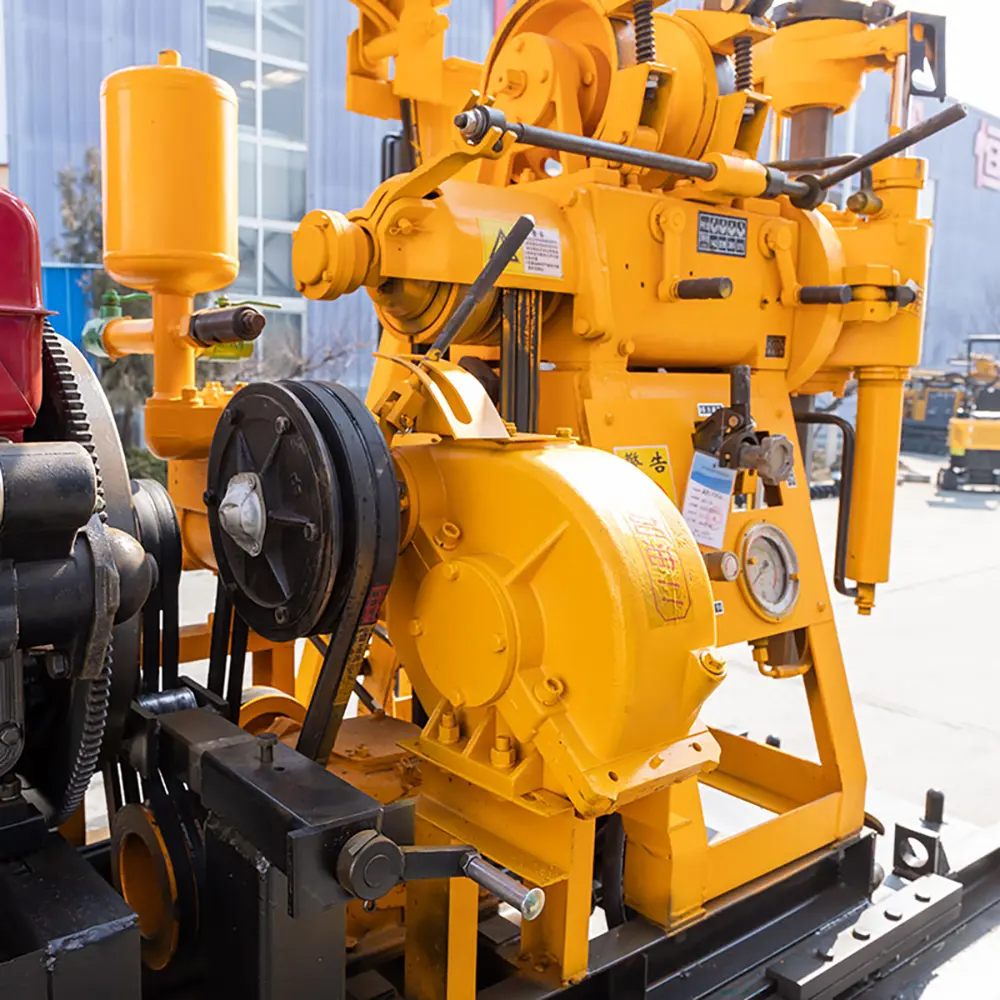

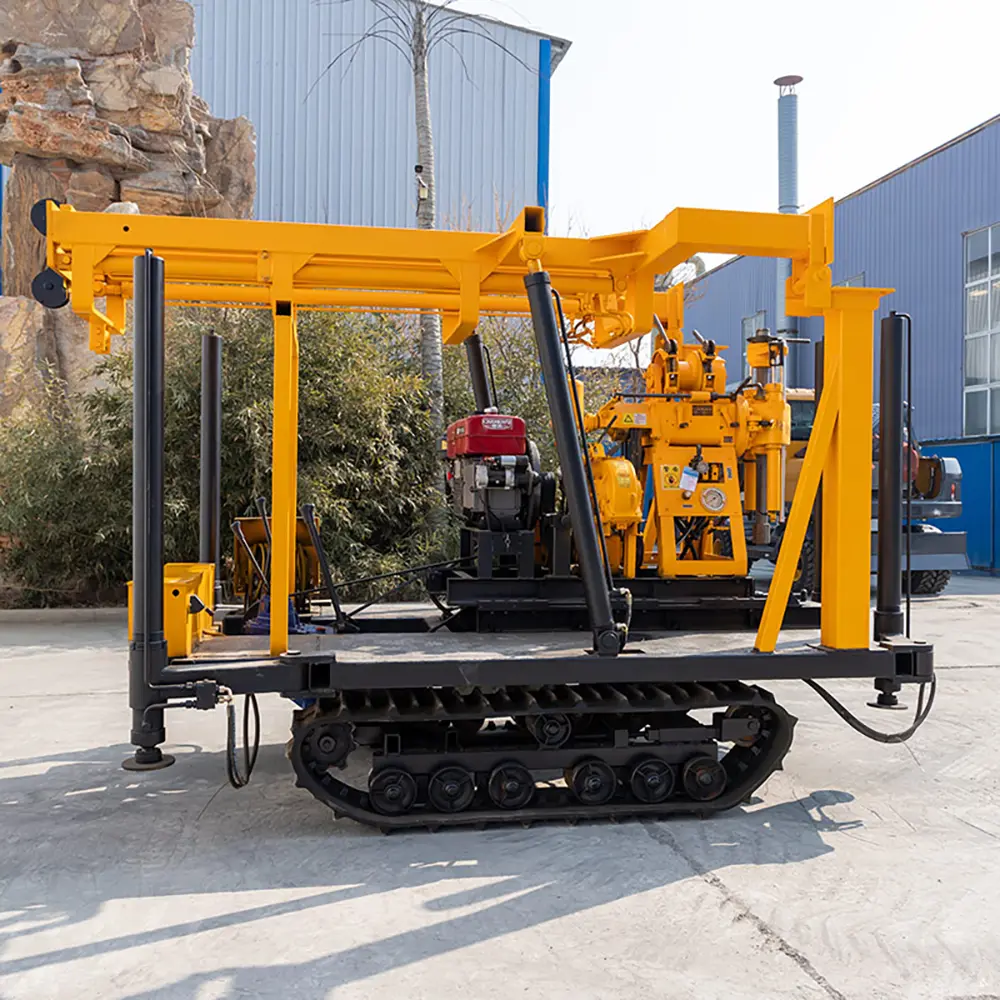

160L Hydraulic Drilling Rig

Drilling diameter: 75-325mm
Drilling depth: 160m
Rated Power: 13.2Kw

model	HW160L
Drilling depth	160	m
Opening diameter	500(Soil)/220(Rock)	mm
final hole diameter	75	mm
Drill pipe diameter	42-50	mm
Drilling angle	90-75	°
Engine power	13.2	kw
weight	3200	kg
Machine size	3800*1950*2700	mm
Vertical shaft speed	142/285/570	r/min
Vertical axis travel	450	mm
Single rope lifting force	2000	kg
Single rope lifting speed	0.41-1.64	m/s
Wire rope diameter	φ9.3	mm
Wire rope capacity	27	m
Rated load	18	Ton
effective height	6.5	m
flow	95	L/Min
greatest pressure	1.2	Mpa
Optional configuration	Walking Gantry

160L Hydraulic Drilling Rig

The 160L Hydraulic Drilling Rig is a professional drilling machine designed for efficient and reliable drilling operations in water resources, geological exploration, mining, construction, and engineering applications. Equipped with an advanced hydraulic power system, the 160L provides strong drilling force, precise control, and excellent adaptability for different geological conditions.

Unlike traditional mechanical drilling equipment, the hydraulic system of the 160L Hydraulic Drilling Rig transfers power smoothly to the rotary head, feeding mechanism, and lifting system. This allows operators to achieve better drilling control, higher efficiency, and improved equipment stability during continuous operation.

The 160L Hydraulic Drilling Rig is widely used in:

Water well drilling
Agricultural irrigation projects
Geological survey drilling
Mineral exploration
Core sampling
Soil investigation
Geothermal drilling
Construction foundation drilling

With its compact structure, reliable hydraulic performance, and flexible application range, the 160L Hydraulic Drilling Rig is an ideal solution for drilling contractors, exploration companies, and engineering professionals.

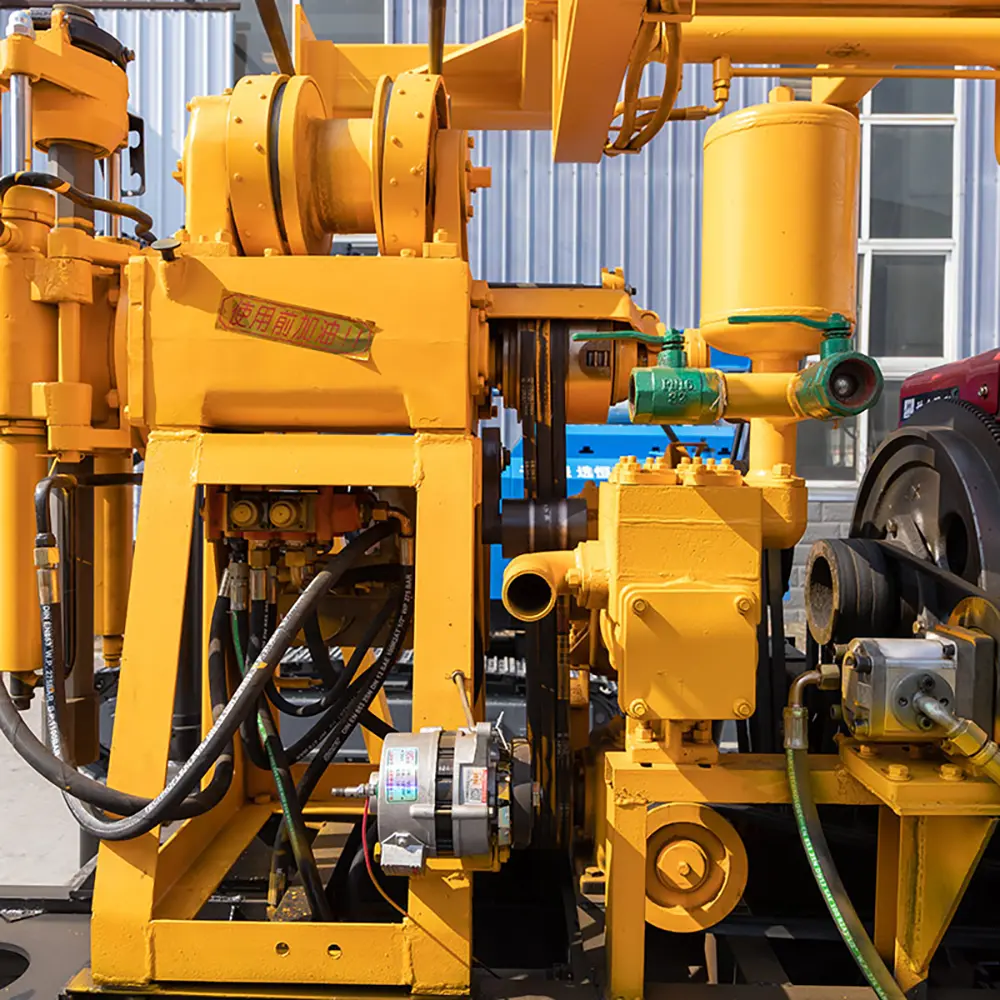

Advanced Hydraulic Power System

The main advantage of the 160L Hydraulic Drilling Rig is its efficient hydraulic drive technology.

The hydraulic system provides controlled power for:

Rotary drilling operation
Drill pipe feeding
Mast lifting
Hydraulic positioning
Drilling pressure adjustment

Compared with conventional drilling machines, hydraulic systems provide:

Higher torque output
Smooth power transmission
Precise operation control
Reduced mechanical impact
Improved working efficiency

The operator can easily adjust drilling parameters according to different geological conditions, ensuring better drilling results.

Powerful Drilling Performance

The 160L Hydraulic Drilling Rig is designed for reliable drilling performance in various environments.

Its major advantages include:

Strong rotary torque
Stable drilling pressure
Efficient penetration capability
Reliable continuous operation
Flexible drilling control

The machine can work effectively in:

Soil layers
Clay formations
Sand and gravel layers
Weathered rock
Hard rock formations

The powerful hydraulic system ensures stable performance throughout the drilling process.

Water Well Drilling Applications

The 160L Hydraulic Drilling Rig is widely used for groundwater development and water well construction.

Common applications include:

Agricultural irrigation wells
Rural water supply projects
Industrial water wells
Groundwater exploration
Small and medium water projects

Advantages include:

Faster drilling speed
Better borehole quality
Reduced drilling time
Lower project costs

The 160L provides an efficient and practical solution for accessing underground water resources.

Geological Exploration And Core Drilling

The 160L Hydraulic Drilling Rig is suitable for geological investigation and exploration work.

It is commonly used for:

Geological surveys
Mineral exploration
Rock sampling
Engineering investigation
Environmental drilling

The hydraulic control system allows stable drilling pressure and rotation speed, improving sample quality and drilling accuracy.

This makes the 160L suitable for exploration projects requiring reliable geological information.

Strong Rock Drilling Capability

The 160L Hydraulic Drilling Rig provides excellent performance in challenging formations.

With suitable drilling tools, it can handle:

Limestone
Granite
Sandstone
Hard rock layers
Mixed geological formations

The hydraulic rotary system generates strong torque to improve penetration efficiency and maintain stable drilling progress.

Compatible drilling methods include:

Rotary drilling
Core drilling
Rock drilling applications

This flexibility allows the machine to meet different project requirements.

Reliable Hydraulic Control System

The hydraulic control system ensures smooth and accurate operation.

Key benefits include:

Flexible speed adjustment
Accurate drilling pressure control
Improved operator efficiency
Reduced equipment vibration
Better drilling precision

High-quality hydraulic components provide long-term reliability and reduce maintenance requirements.

Durable Construction And Long Service Life

The 160L Hydraulic Drilling Rig is built for demanding outdoor working conditions.

The machine features:

High-strength steel structure
Reinforced drilling frame
Durable hydraulic components
Wear-resistant drilling accessories
Reliable power system

Benefits include:

Extended service life
Lower maintenance costs
Improved equipment reliability
Better investment value

The rugged design allows stable operation in harsh environments.

Compact Design And Easy Operation

The 160L Hydraulic Drilling Rig is designed for convenient transportation and operation.

Main advantages include:

Compact structure
Easy movement
Quick setup
Simple maintenance
User-friendly controls

It can operate efficiently in:

Remote areas
Mountain regions
Construction sites
Mining locations
Rural drilling projects

Its flexible design improves working efficiency and reduces downtime.

Wide Application Areas
Water Well Drilling

Used for:

Irrigation wells
Industrial water wells
Groundwater development
Rural water supply
Geological Exploration

Applications:

Mineral investigation
Geological surveys
Core sampling
Resource exploration
Mining Industry

Suitable for:

Exploration drilling
Rock analysis
Mineral development projects
Construction Engineering

Used for:

Foundation investigation
Soil testing
Engineering drilling
Geothermal Projects

Suitable for:

Geothermal exploration
Ground source heat pump drilling
Main Features Of 160L Hydraulic Drilling Rig
Advanced hydraulic drive system
Strong drilling torque
Stable drilling performance
Efficient drilling operation
Suitable for multiple formations
Compact and flexible design
Reliable hydraulic components
Easy operation and maintenance
Wide industrial applications
Professional drilling capability
Why Choose Our 160L Hydraulic Drilling Rig?
1. Powerful Hydraulic Performance

The hydraulic system provides strong drilling force and stable operation for various applications.

2. High Efficiency Drilling

Optimized hydraulic control improves drilling speed and reduces project completion time.

3. Multi-Purpose Applications

Suitable for water wells, geological exploration, mining, and engineering drilling.

4. Durable And Reliable Construction

Quality components ensure long service life and dependable performance.

5. Excellent Geological Adaptability

The machine can handle different soil and rock conditions with proper drilling tools.

6. Professional Technical Support

We provide customized drilling solutions, spare parts, and technical assistance.

FAQS
1. What is the 160L Hydraulic Drilling Rig used for?

The 160L Hydraulic Drilling Rig is used for water wells, geological exploration, mining investigation, core sampling, geothermal projects, and engineering drilling.

2. What are the advantages of hydraulic drilling technology?

Hydraulic systems provide stronger torque, smoother operation, accurate control, and improved drilling efficiency.

3. Can the 160L drill hard rock?

Yes. With suitable drilling tools, it can drill through various rock formations including limestone and granite.

4. Is the 160L suitable for water well drilling?

Yes. It is widely used for agricultural, industrial, and groundwater drilling applications.

5. What industries use the 160L Hydraulic Drilling Rig?

It is commonly used in mining, geology, construction, geothermal, and water resource development.

6. Can different drilling tools be installed?

Yes. The machine can be configured with different drilling tools according to project requirements.

7. Is the 160L Hydraulic Drilling Rig easy to operate?

Yes. The hydraulic control system provides simple operation and precise adjustment.

8. Can the 160L Hydraulic Drilling Rig be customized?

Yes. Specifications, accessories, and configurations can be customized according to customer needs.
