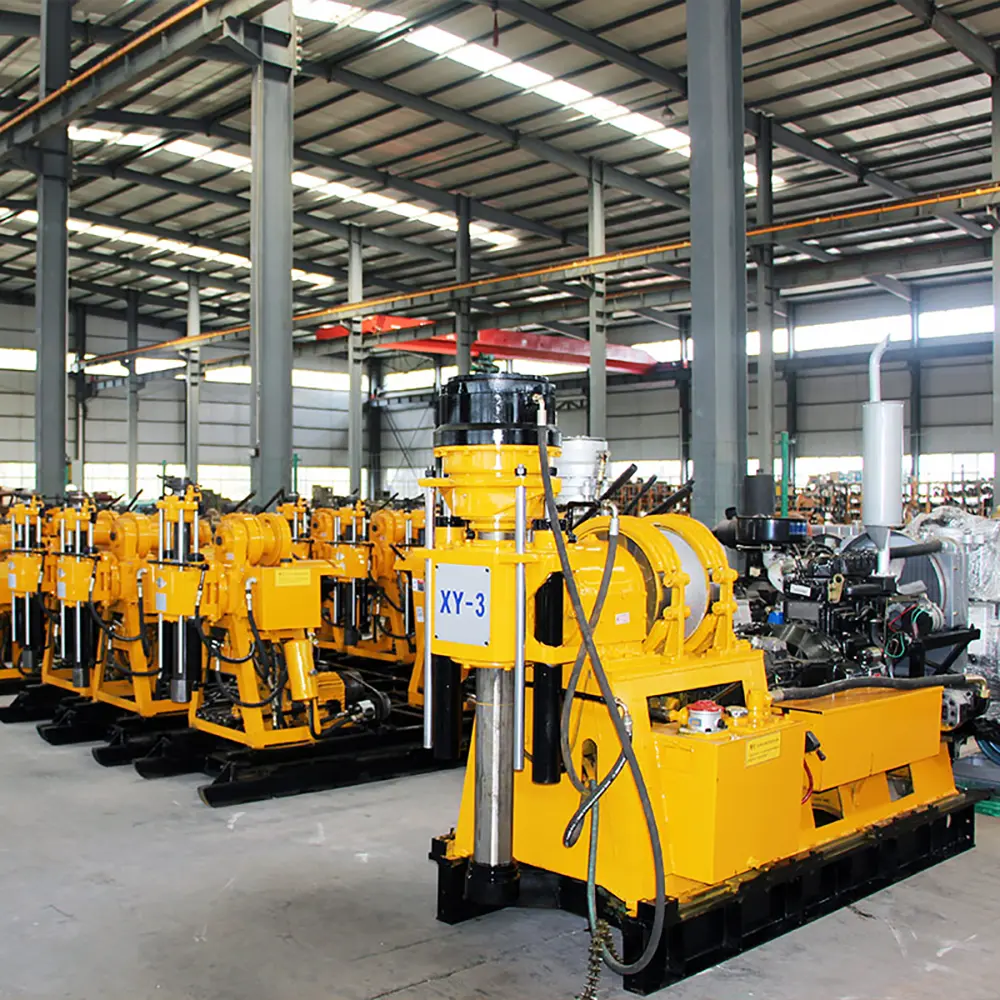

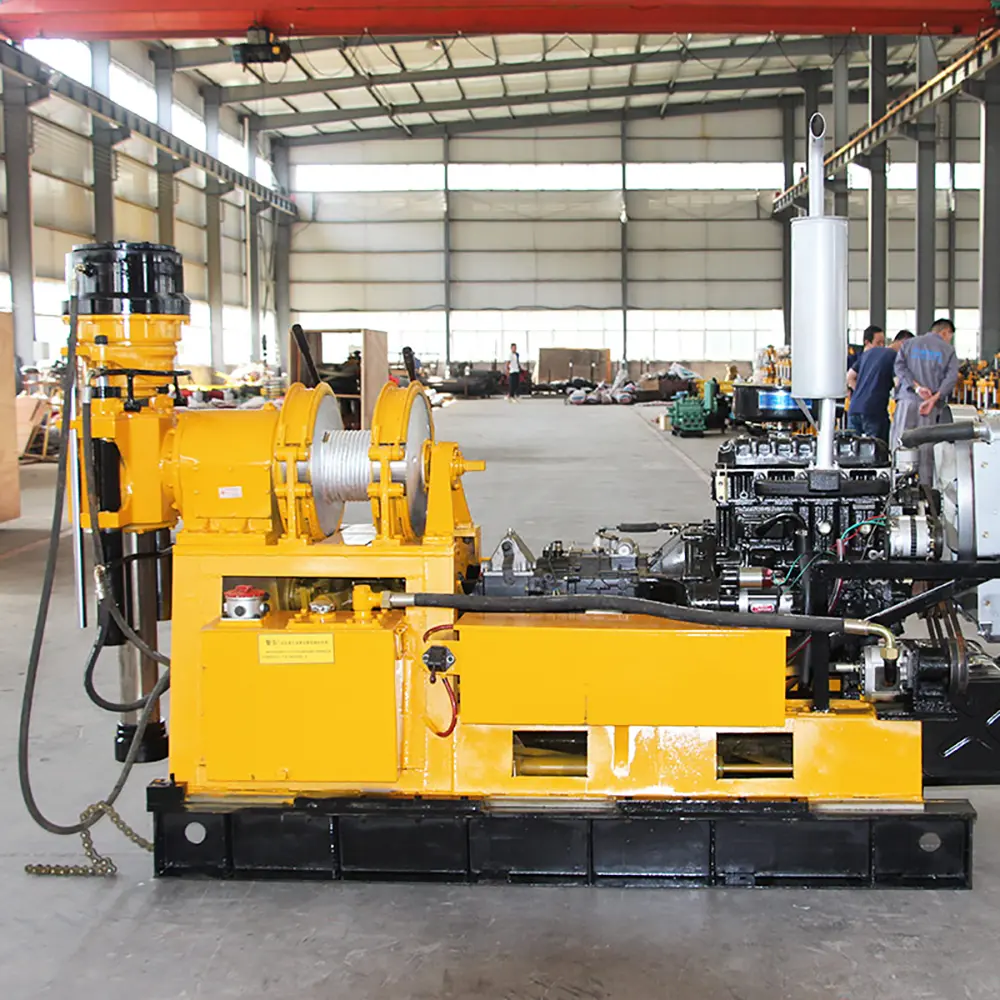

XY-3 Hydraulic Drilling Rig

Drilling depth: 600m
Drilling diameter: 75-325mm
Rated Power: 42Kw

The XY-3 Hydraulic Drilling Rig is a professional and reliable core drilling solution designed for geological exploration, mining investigation, engineering surveys, and rock sampling applications.

With advanced hydraulic technology, strong drilling torque, stable operation, and durable construction, the XY-3 delivers excellent performance in complex geological environments.

For companies requiring efficient, accurate, and dependable exploration drilling equipment, the XY-3 Hydraulic Drilling Rig is an ideal choice.


Main feature:
1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;
2. Hengwang drilling rig is specially designed for the perfect match of engine and hydraulic system;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.

model	XY-3
Drilling depth	600	m
Opening diameter	325	mm
final hole diameter	75	mm
Drill pipe diameter	42-50	mm
Drilling angle	90-75	°

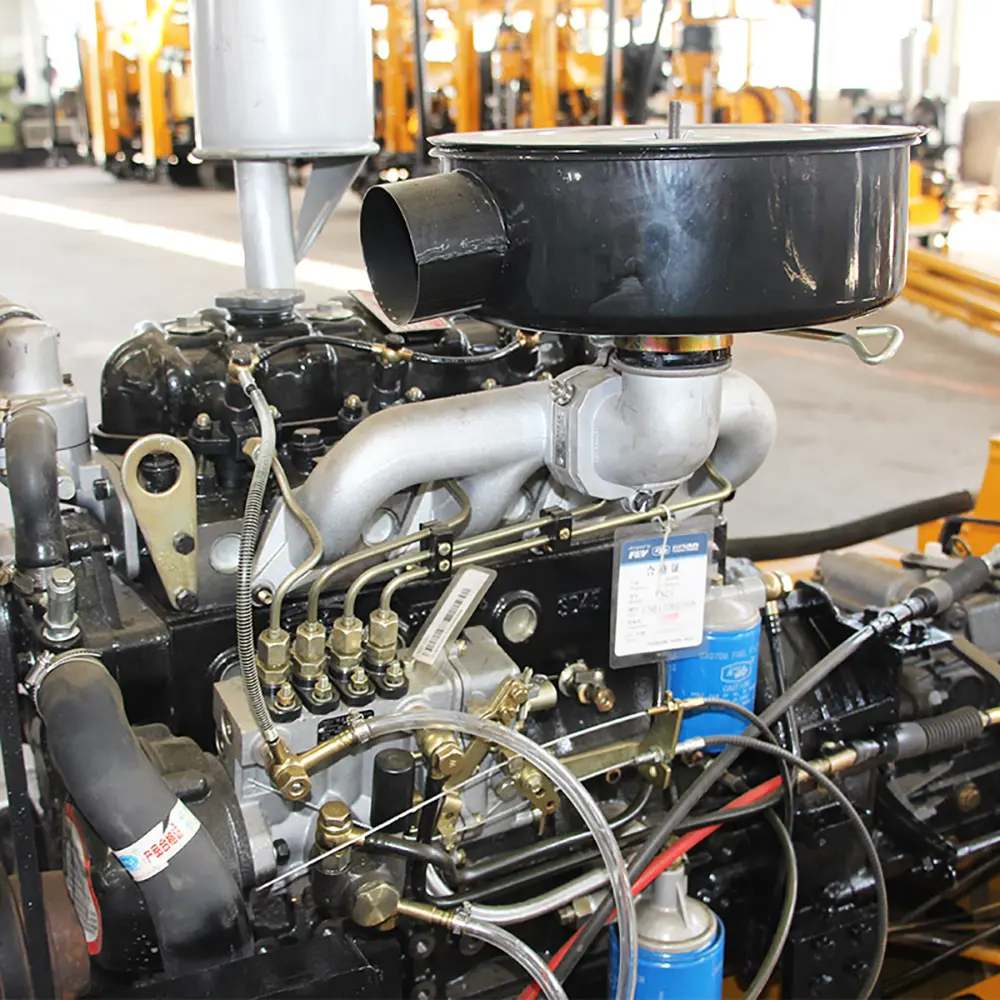

Engine power	42	kw
weight	2350	kg
Machine size	2600*900*1750	mm
Vertical shaft speed	32-1057	r/min
Vertical axis travel	600	mm

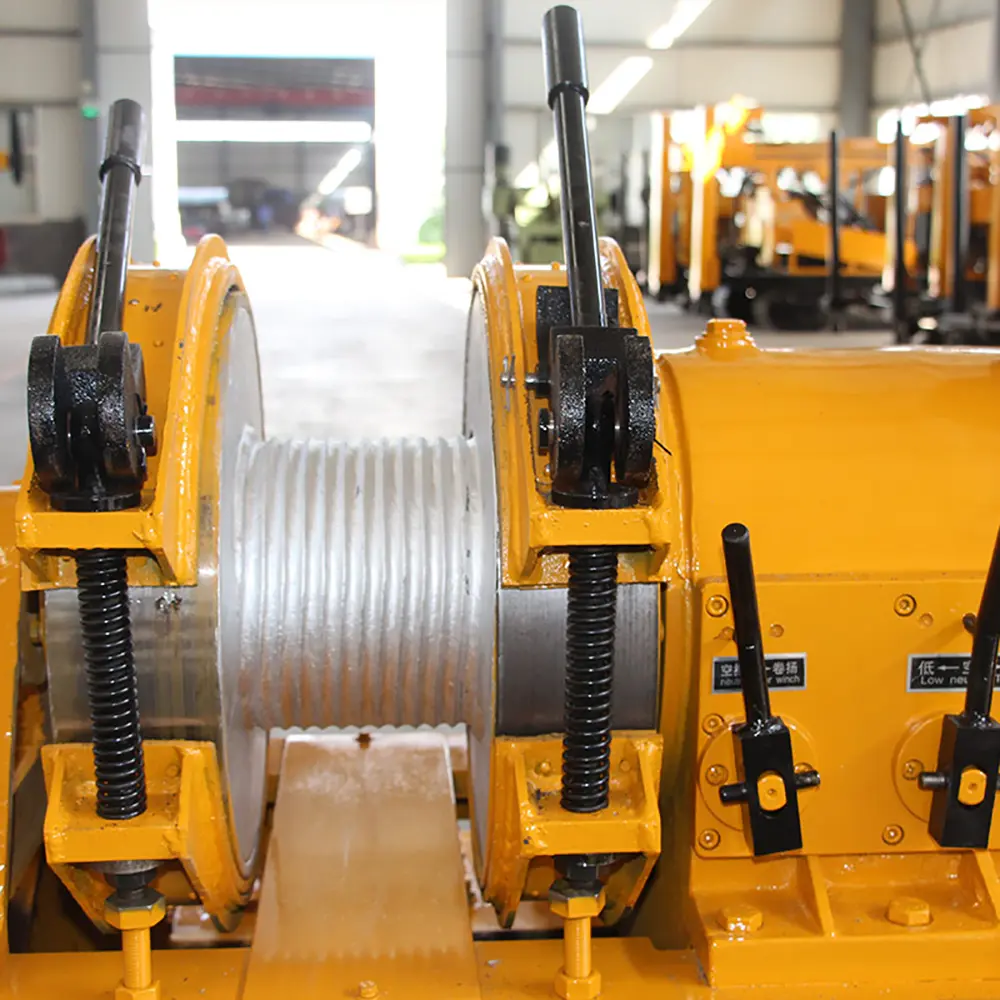

Single rope lifting force	3000	kg
Single rope lifting speed	0.3-1.9	m/s
Wire rope diameter	φ12.5	mm
Wire rope capacity	65	m
Rated load	18	Ton
effective height	11	m
flow	95	L/Min
greatest pressure	1.2	Mpa
Optional configuration	Walking Gantry

XY-3 Hydraulic Drilling Rig

The XY-3 Hydraulic Drilling Rig is a high-performance geological exploration drilling machine designed for professional core drilling applications. It is widely used in mineral exploration, geological surveys, engineering investigations, hydrological exploration, and construction drilling projects.

The XY-3 Hydraulic Drilling Rig combines advanced hydraulic transmission technology with a strong mechanical structure to provide excellent drilling efficiency, stable operation, and precise control. The hydraulic system delivers smooth power transmission, allowing operators to adjust drilling speed, pressure, and torque according to different geological conditions.

Compared with traditional drilling equipment, the XY-3 Hydraulic Drilling Rig provides:

Higher drilling efficiency
Stronger rotary torque
Better drilling accuracy
Stable core recovery performance
Reliable operation in difficult formations
Lower maintenance requirements

The XY-3 Hydraulic Drilling Rig is suitable for:

Geological exploration drilling
Mineral resource investigation
Diamond core drilling
Engineering geological surveys
Water conservancy projects
Foundation investigation
Soil and rock sampling

With its powerful drilling capability and reliable hydraulic performance, the XY-3 Hydraulic Drilling Rig is widely preferred by exploration companies, mining contractors, and geological research organizations.

Advanced Hydraulic Drilling System

The key advantage of the XY-3 Hydraulic Drilling Rig is its efficient hydraulic control system.

The hydraulic system provides power for:

Rotary drilling operation
Drill rod feeding
Hydraulic lifting
Drilling pressure adjustment
Equipment positioning

Benefits of the hydraulic system include:

Smooth power output
Precise drilling control
Strong torque transmission
Reduced mechanical shock
Improved working efficiency

The operator can easily control drilling parameters to achieve stable drilling performance in different geological formations.

Excellent Core Drilling Performance

The XY-3 Hydraulic Drilling Rig is specially designed for geological core drilling applications.

It provides excellent performance for:

Diamond drilling
Rock core sampling
Mineral exploration
Geological investigation
Engineering surveys

The stable rotary system helps improve:

Core recovery rate
Drilling accuracy
Borehole quality
Operational efficiency

This makes the XY-3 an ideal choice for projects requiring reliable geological information.

Strong Rock Formation Adaptability

The XY-3 Hydraulic Drilling Rig is capable of drilling through various geological formations.

Suitable formations include:

Clay layers
Sandstone
Limestone
Granite
Hard rock formations
Complex geological structures

With proper drilling tools, the machine can achieve efficient penetration and stable operation in challenging environments.

Geological Exploration Applications

The XY-3 Hydraulic Drilling Rig is widely used in geological exploration projects.

Typical applications include:

Mineral Exploration

Used for:

Metal ore exploration
Mining resource evaluation
Rock sampling
Geological analysis
Engineering Investigation

Used for:

Building foundation surveys
Road and bridge projects
Tunnel investigation
Soil testing
Hydrological Exploration

Used for:

Groundwater investigation
Hydrogeological surveys
Water resource development

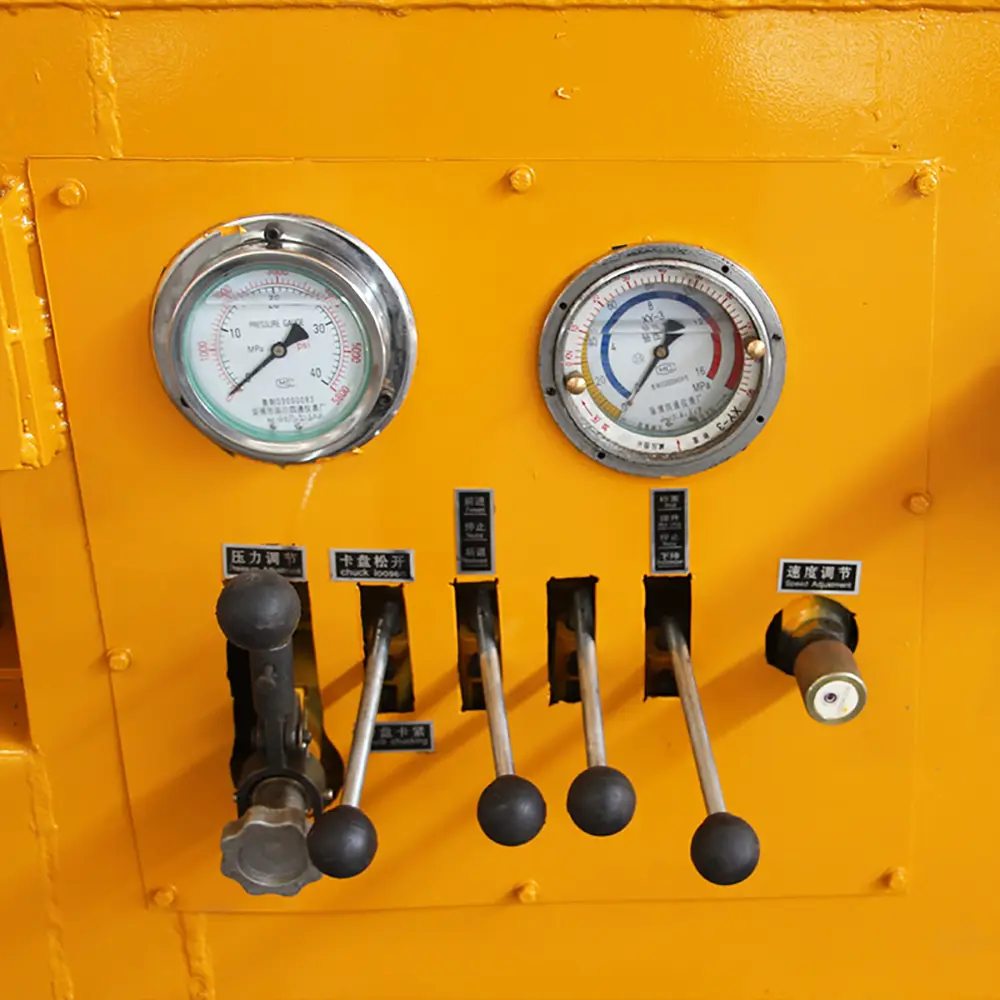

Reliable Hydraulic Control Technology

The hydraulic control system improves drilling efficiency and operational safety.

Main advantages:

Accurate pressure adjustment
Smooth drilling speed control
Stable feeding operation
Reduced equipment vibration
Improved operator convenience

High-quality hydraulic components ensure long-term reliability and reduced downtime.

Durable Construction And Long Service Life

The XY-3 Hydraulic Drilling Rig is manufactured for demanding exploration environments.

The machine features:

High-strength steel frame
Robust drilling structure
Durable hydraulic components
Wear-resistant drilling parts
Reliable transmission system

Advantages:

Long service life
Lower maintenance cost
Better equipment reliability
Strong field adaptability

The rugged design allows continuous operation in harsh working conditions.

Flexible Operation And Easy Maintenance

The XY-3 Hydraulic Drilling Rig is designed for convenient operation and maintenance.

Features include:

Practical structural design
Easy transportation
Simple operation system
Quick maintenance access
Flexible drilling adjustment

The machine can be used in:

Mountain areas
Remote exploration sites
Mining fields
Construction projects

Its practical design helps improve drilling productivity.

Wide Application Areas
Geological Exploration

Applications:

Mineral exploration
Geological survey
Rock sampling
Resource evaluation
Mining Industry

Used for:

Ore exploration
Core recovery
Mine development
Construction Engineering

Applications:

Foundation investigation
Soil testing
Structural survey
Hydrological Projects

Used for:

Groundwater exploration
Water resource investigation
Scientific Research

Suitable for:

Geological studies
Environmental investigation
Main Features Of XY-3 Hydraulic Drilling Rig
Professional hydraulic core drilling system
Strong rotary torque
Stable drilling performance
High core recovery capability
Suitable for various formations
Reliable hydraulic control
Durable heavy-duty structure
Easy operation and maintenance
Wide geological applications
Efficient exploration performance
Why Choose Our XY-3 Hydraulic Drilling Rig?
1. Professional Core Drilling Capability

Designed specifically for geological exploration and core sampling applications.

2. Powerful Hydraulic Performance

Provides stable torque and precise drilling control for different formations.

3. High Drilling Efficiency

Improves productivity through optimized hydraulic operation and reliable structure.

4. Excellent Geological Adaptability

Suitable for various soil and rock conditions.

5. Durable And Reliable Design

High-quality materials ensure long service life and stable performance.

6. Complete Technical Support

We provide customized solutions, drilling accessories, spare parts, and professional service.

FAQS
1. What is the XY-3 Hydraulic Drilling Rig used for?

The XY-3 Hydraulic Drilling Rig is mainly used for geological exploration, core drilling, mineral investigation, engineering surveys, and rock sampling.

2. What type of drilling can the XY-3 perform?

It can perform hydraulic core drilling, diamond drilling, geological drilling, and exploration drilling with suitable tools.

3. Can the XY-3 drill hard rock?

Yes. The machine can drill through hard rock formations such as granite, limestone, and sandstone when equipped with proper drilling tools.

4. Is the XY-3 suitable for mining exploration?

Yes. It is widely used for mineral exploration, ore investigation, and geological sampling.

5. What are the advantages of hydraulic drilling control?

Hydraulic control provides smoother operation, accurate pressure adjustment, stronger torque, and improved drilling efficiency.

6. Can drilling tools be customized?

Yes. Different drilling rods, bits, and accessories can be selected according to project requirements.

7. Is the XY-3 Hydraulic Drilling Rig easy to maintain?

Yes. The machine is designed for convenient maintenance and long-term field operation.

8. Can the XY-3 be used in remote areas?

Yes. Its durable structure and flexible design make it suitable for mountain and remote exploration locations.
