XY-44A Hydraulic Drilling Rig

Max.drill depth: 1400m
Drill angel: 0°-360°
Rated Power: 81kw
Main feature:
1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;
2. Hengwang water well drilling rig is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.

XY-44A
Drill rod category		Drill rod specifications (mm)	Drilling depth (m)
Drill rod	Inside and outside flat	42	1400
		50	1000
		60	830
	Cord coring	55.5	1250
		71	1000
		89	800
DCDMA Drill rod	Cord coring	BQ drill rod	1300
		NQ drill rod	1000
		HQ drill rod	750
		PQ drill rod	420
	outside Thickening type	60mm	800
		73mm	500
		89mm	300

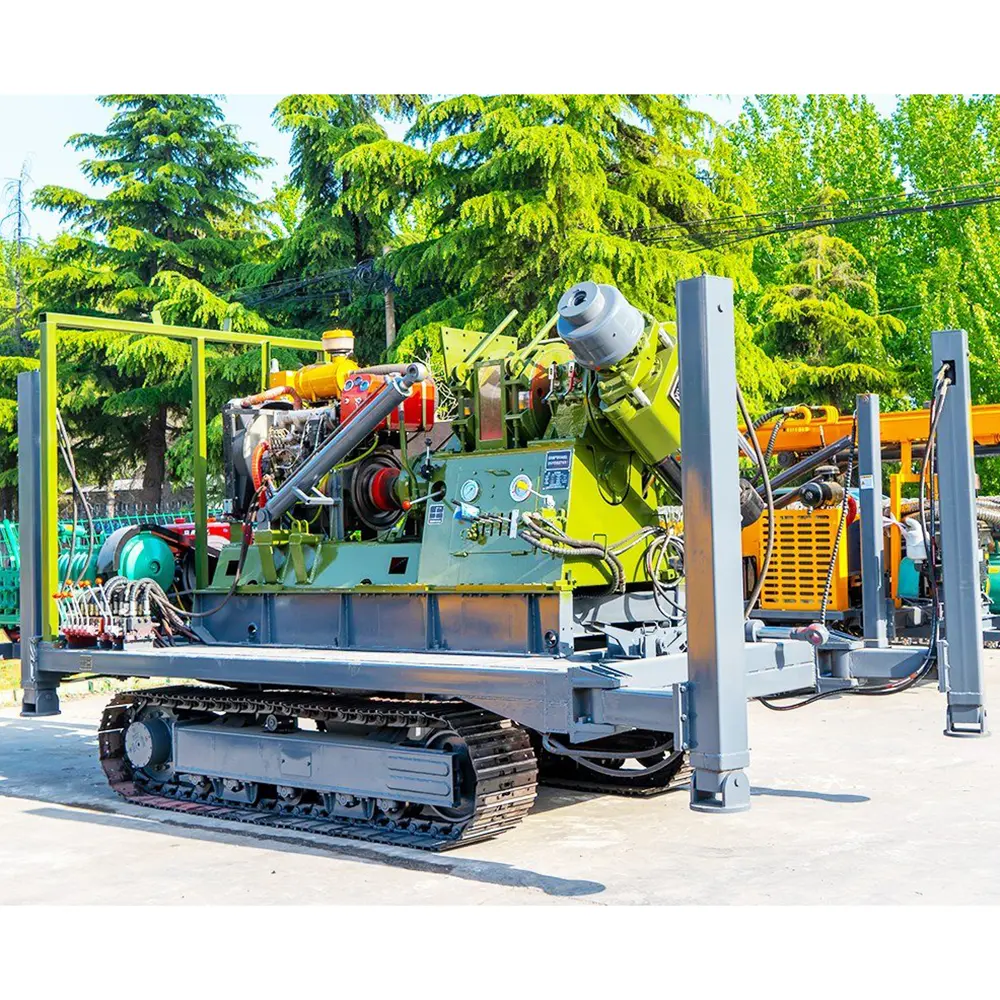

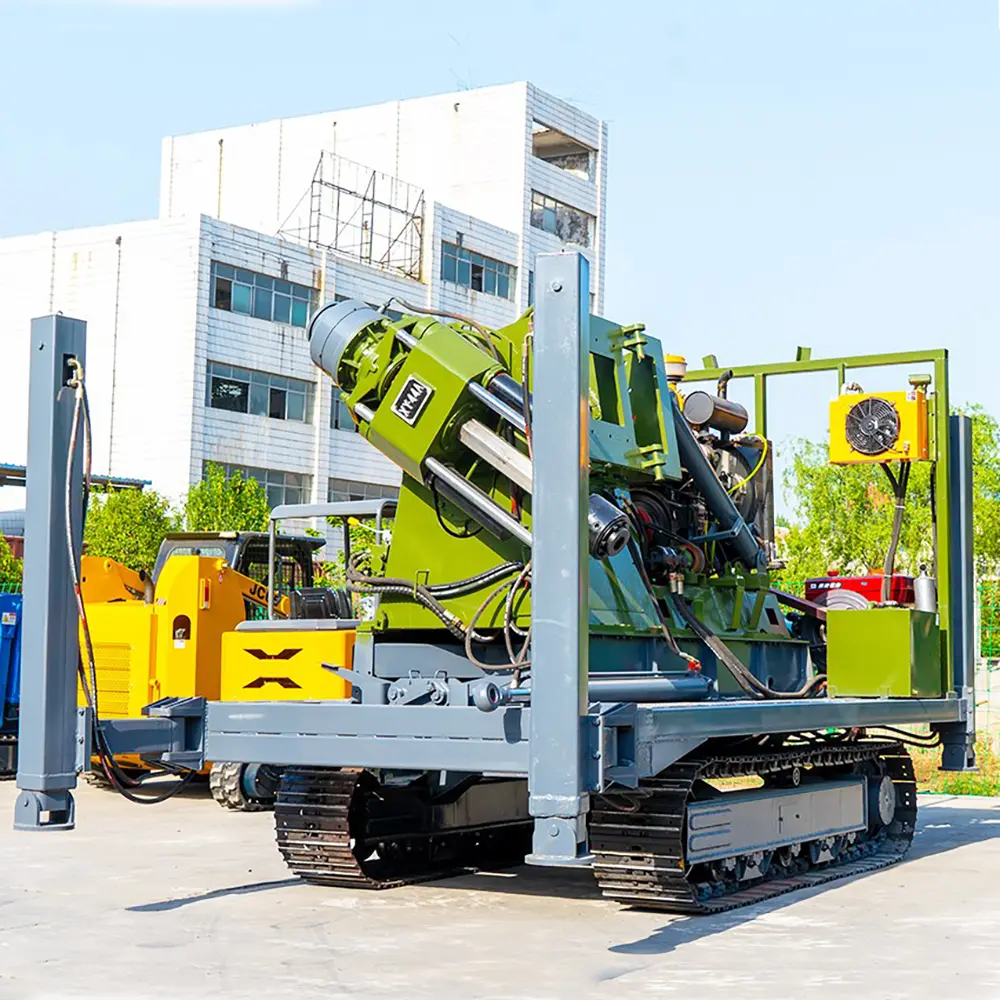

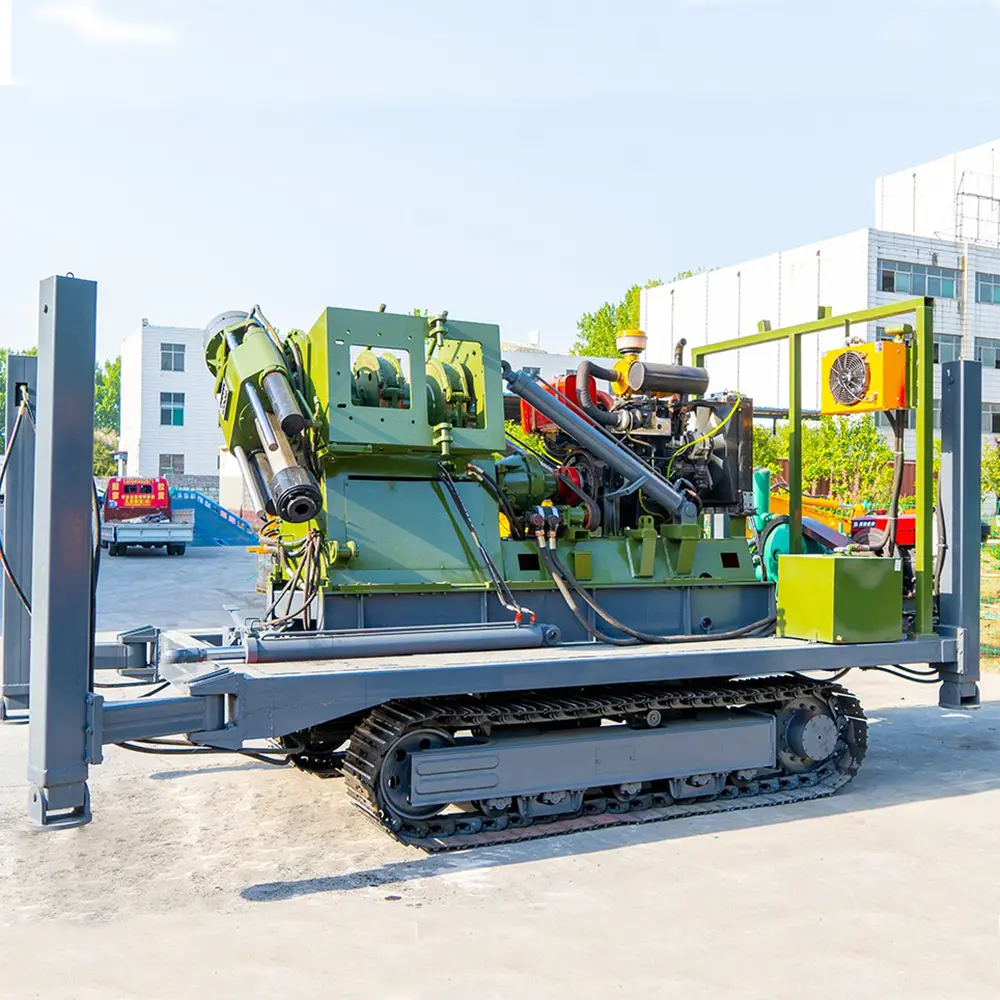

XY-44A Hydraulic Drilling Rig

The XY-44A Hydraulic Drilling Rig is a professional geological exploration drilling machine designed for core drilling, mineral exploration, engineering investigation, and scientific research applications. It is widely used in mining, construction, hydrological exploration, and geological survey projects.

The XY-44A Hydraulic Drilling Rig combines a reliable hydraulic transmission system with a strong mechanical structure to provide stable drilling performance, efficient operation, and accurate control. The hydraulic system delivers smooth power transmission to the rotary head and feeding mechanism, allowing operators to adjust drilling speed, pressure, and torque according to different geological conditions.

Designed for medium and deep exploration drilling, the XY-44A Hydraulic Drilling Rig provides excellent adaptability in complex formations and is suitable for diamond core drilling and geological sampling operations.

Compared with traditional drilling equipment, the XY-44A Hydraulic Drilling Rig offers:

High drilling efficiency
Strong rotary torque
Stable drilling operation
Excellent core recovery performance
Precise hydraulic control
Long service life

The XY-44A Hydraulic Drilling Rig is widely applied in:

Geological exploration drilling
Mineral resource investigation
Diamond core drilling
Engineering geological surveys
Hydrological exploration
Foundation investigation
Rock and soil sampling

With dependable performance and flexible operation, the XY-44A Hydraulic Drilling Rig is an ideal choice for professional drilling contractors, mining companies, and exploration organizations.

Advanced Hydraulic Drilling System

The main advantage of the XY-44A Hydraulic Drilling Rig is its efficient hydraulic control technology.

The hydraulic system provides power for:

Rotary drilling head
Drill rod feeding system
Hydraulic lifting operation
Drilling pressure adjustment
Equipment positioning

Benefits of the hydraulic system include:

Smooth power transmission
Accurate drilling control
Strong torque output
Reduced mechanical impact
Improved working efficiency

The operator can easily control drilling parameters to achieve stable drilling performance in different geological conditions.

High Performance Core Drilling Capability

The XY-44A Hydraulic Drilling Rig is specially designed for professional core drilling operations.

It is suitable for:

Diamond core drilling
Geological sampling
Mineral exploration
Rock analysis
Engineering investigation

The stable rotary mechanism improves:

Core recovery rate
Borehole accuracy
Drilling efficiency
Sample quality

This makes the XY-44A an effective solution for exploration projects requiring accurate underground data.

Strong Geological Adaptability

The XY-44A Hydraulic Drilling Rig can operate efficiently in various geological formations.

Suitable formations include:

Clay layers
Sandstone
Limestone
Granite
Weathered rock
Hard rock formations

With suitable drilling tools, the machine maintains stable performance in complex geological environments.

Its adaptability makes it suitable for mining areas, construction projects, and remote exploration locations.

Geological Exploration Applications

The XY-44A Hydraulic Drilling Rig is widely used in professional exploration industries.

Mineral Exploration

Applications:

Metal ore exploration
Resource evaluation
Rock sampling
Geological analysis
Engineering Investigation

Used for:

Building foundation surveys
Road and bridge investigation
Tunnel exploration
Soil testing
Hydrological Exploration

Suitable for:

Groundwater investigation
Hydrogeological surveys
Water resource development
Scientific Research

Used for:

Geological studies
Environmental investigation
Underground structure analysis
Reliable Hydraulic Control Technology

The hydraulic control system improves drilling precision and operation efficiency.

Key advantages:

Smooth drilling speed adjustment
Accurate pressure control
Stable feeding performance
Reduced vibration
Improved operator convenience

High-quality hydraulic components ensure reliable operation during long-term field drilling.

Durable Construction And Long Service Life

The XY-44A Hydraulic Drilling Rig is built for demanding exploration environments.

The machine features:

High-strength steel frame
Reinforced drilling structure
Durable hydraulic components
Wear-resistant drilling accessories
Reliable transmission system

Advantages:

Extended service life
Lower maintenance costs
Improved equipment reliability
Strong field adaptability

The rugged structure allows continuous operation in harsh drilling conditions.

Flexible Operation And Easy Maintenance

The XY-44A Hydraulic Drilling Rig is designed for convenient operation and maintenance.

Main advantages:

Practical structural design
Easy transportation
Simple control system
Quick maintenance access
Flexible drilling adjustment

It is suitable for:

Mountain exploration sites
Mining fields
Construction areas
Remote geological survey locations

The efficient design helps reduce downtime and improve productivity.

Wide Application Areas
Geological Exploration

Used for:

Geological surveys
Mineral investigation
Core sampling
Resource exploration
Mining Industry

Applications:

Ore exploration
Rock analysis
Mineral development
Construction Engineering

Used for:

Foundation investigation
Soil testing
Engineering evaluation
Hydrological Projects

Suitable for:

Groundwater exploration
Water resource surveys
Environmental Investigation

Used for:

Soil sampling
Underground analysis
Main Features Of XY-44A Hydraulic Drilling Rig
Professional hydraulic core drilling system
Strong rotary torque
Stable drilling performance
High core recovery capability
Suitable for multiple formations
Reliable hydraulic components
Durable drilling structure
Easy operation and maintenance
Wide exploration applications
Efficient drilling performance
Why Choose Our XY-44A Hydraulic Drilling Rig?
1. Professional Core Drilling Performance

Designed for geological exploration, mining investigation, and engineering sampling.

2. Powerful Hydraulic Control

Provides stable torque output and precise drilling adjustment.

3. Efficient Exploration Operation

Improves drilling productivity and reduces project completion time.

4. Excellent Geological Adaptability

Suitable for different soil and rock formations.

5. Durable And Reliable Design

Manufactured with quality materials for long service life.

6. Complete Technical Support

We provide customized configurations, spare parts, and professional drilling solutions.

FAQS
1. What is the XY-44A Hydraulic Drilling Rig used for?

The XY-44A Hydraulic Drilling Rig is mainly used for geological exploration, core drilling, mineral investigation, engineering surveys, and rock sampling.

2. What drilling methods can the XY-44A support?

It supports hydraulic core drilling, diamond drilling, geological drilling, and exploration drilling with suitable accessories.

3. Can the XY-44A drill hard rock?

Yes. With proper drilling tools, it can drill through granite, limestone, sandstone, and other hard formations.

4. Is the XY-44A suitable for mining exploration?

Yes. It is widely used for mineral exploration, ore investigation, and geological sampling projects.

5. What are the benefits of hydraulic drilling control?

Hydraulic control provides smooth operation, accurate pressure adjustment, stronger torque, and improved drilling efficiency.

6. Can drilling accessories be customized?

Yes. Drill rods, bits, and accessories can be selected according to different project requirements.

7. Is the XY-44A Hydraulic Drilling Rig easy to operate?

Yes. The hydraulic control system makes operation simple and improves drilling accuracy.

8. Can the XY-44A work in remote areas?

Yes. Its durable structure allows operation in mountains, mining areas, and remote exploration sites.

Product Conclusion

The XY-44A Hydraulic Drilling Rig is a professional and reliable core drilling machine designed for geological exploration, mining investigation, engineering surveys, and rock sampling applications.

With advanced hydraulic technology, strong drilling capability, stable operation, and durable construction, the XY-44A delivers excellent performance in different geological environments.

For customers seeking efficient, accurate, and long-lasting exploration drilling equipment, the XY-44A Hydraulic Drilling Rig is an excellent choice.
