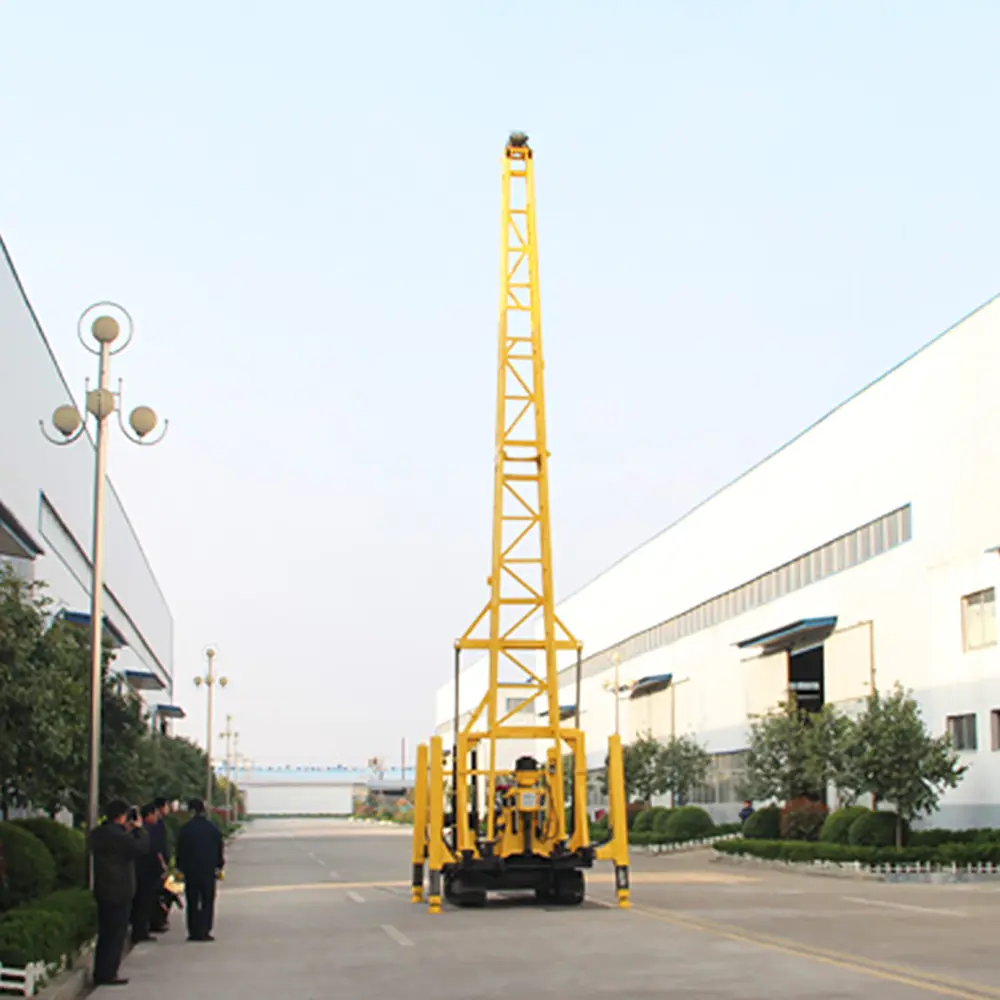

XY-3L Hydraulic Drilling Rig

Drilling depth: 600m
Drilling diameter: 75-325mm
Rated Power: 65Kw

model	XY-3L
Drilling depth	600	m
Opening diameter	325	mm
final hole diameter	75	mm
Drill pipe diameter	42-50	mm
Drilling angle	90-75	°
Engine power	42	kw
weight	5000	kg
Machine size	3800*1950*2700	mm
Vertical shaft speed	32-1057	r/min
Vertical axis travel	600	mm
Single rope lifting force	3000	kg
Single rope lifting speed	0.3-1.9	m/s
Wire rope diameter	φ12.5	mm
Wire rope capacity	65	m
Rated load	18	Ton
effective height	11	m
flow	95	L/Min
greatest pressure	1.2	Mpa
Optional configuration	Walking Gantry

XY-3L Hydraulic Drilling Rig

The XY-3L Hydraulic Drilling Rig is a professional hydraulic core drilling machine designed for demanding geological exploration and engineering drilling applications. It is widely used in mineral exploration, geological surveys, hydrological investigation, construction engineering, and scientific research projects.

Combining a powerful hydraulic transmission system with a reliable mechanical structure, the XY-3L Hydraulic Drilling Rig provides excellent drilling efficiency, stable operation, and accurate control. The hydraulic system delivers smooth power transmission to the rotary mechanism and feeding system, allowing operators to adjust drilling parameters according to different geological formations.

Compared with traditional drilling equipment, the XY-3L Hydraulic Drilling Rig offers:

Higher drilling efficiency
Stronger rotary torque
Improved drilling stability
Better core recovery performance
Precise hydraulic control
Long service life

The XY-3L Hydraulic Drilling Rig is suitable for:

Geological exploration drilling
Mineral resource investigation
Diamond core drilling
Engineering geological surveys
Hydrological exploration
Foundation investigation
Rock and soil sampling

With its reliable performance and flexible application capability, the XY-3L Hydraulic Drilling Rig is an ideal choice for professional drilling contractors, mining companies, and exploration organizations.

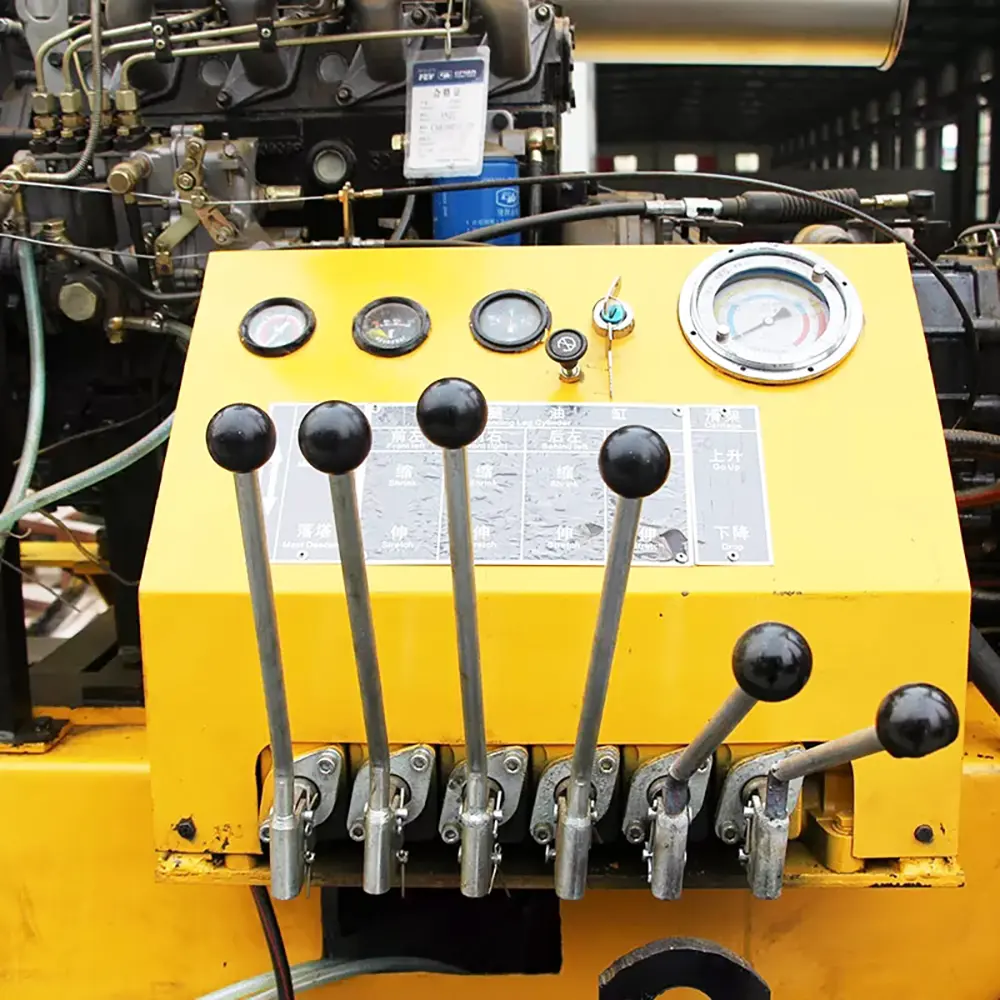

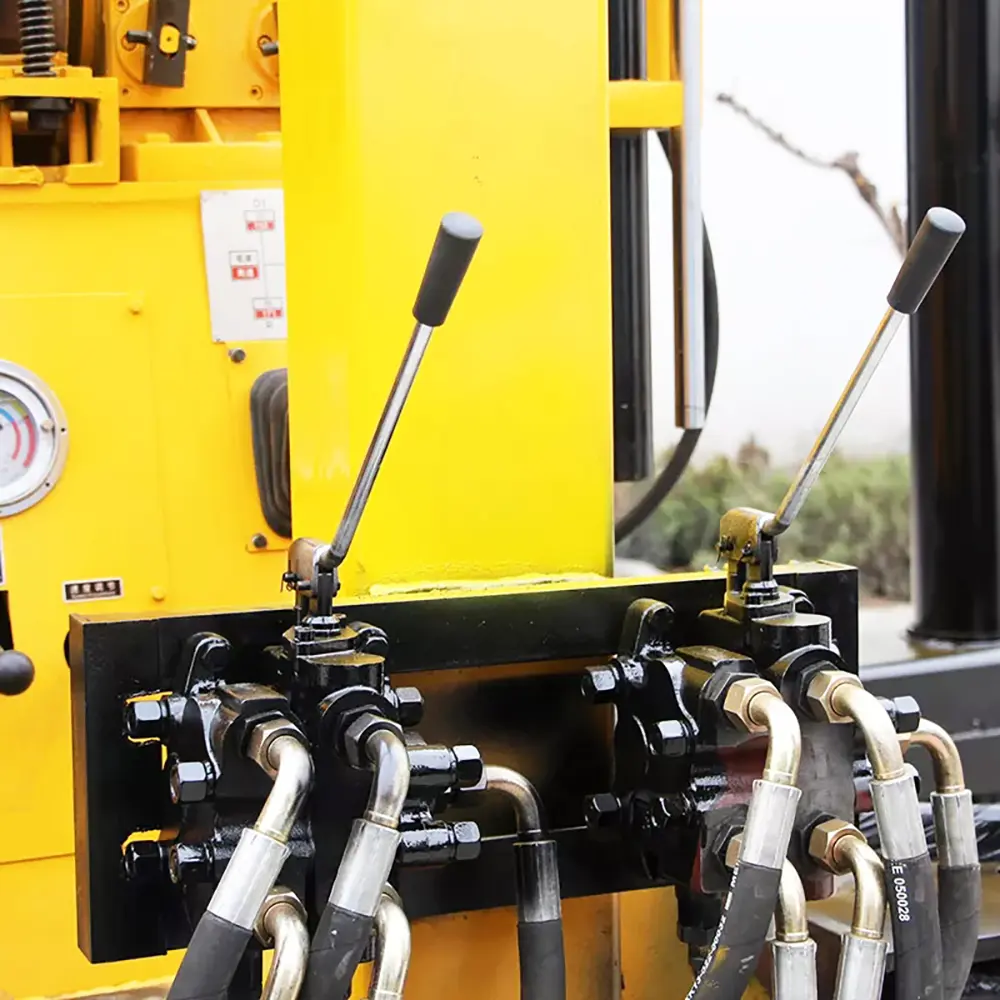

Advanced Hydraulic Control System

The main advantage of the XY-3L Hydraulic Drilling Rig is its efficient hydraulic operating system.

The hydraulic system controls:

Rotary drilling head
Drill rod feeding
Hydraulic lifting mechanism
Drilling pressure adjustment
Mast positioning

The hydraulic drive technology provides:

Smooth power transmission
High drilling torque
Accurate operation control
Reduced mechanical impact
Improved drilling efficiency

Operators can easily adjust rotation speed and drilling pressure according to geological conditions, improving drilling performance and reducing downtime.

High Performance Core Drilling Capability

The XY-3L Hydraulic Drilling Rig is specially designed for professional core drilling operations.

It provides excellent performance for:

Diamond core drilling
Geological sampling
Mineral exploration
Rock analysis
Engineering investigation

The stable rotary system helps improve:

Core recovery rate
Borehole accuracy
Drilling efficiency
Sample quality

This makes the XY-3L an effective solution for exploration projects requiring accurate underground information.

Strong Geological Adaptability

The XY-3L Hydraulic Drilling Rig is capable of working in different geological environments.

Suitable formations include:

Soil layers
Clay formations
Sandstone
Limestone
Granite
Hard rock formations

With proper drilling tools and accessories, the rig can maintain stable performance in complex geological conditions.

Its excellent adaptability makes it suitable for mining areas, construction sites, and remote exploration locations.

Geological Exploration Applications

The XY-3L Hydraulic Drilling Rig is widely used in professional exploration projects.

Mineral Exploration

Applications include:

Ore exploration
Resource evaluation
Rock sampling
Geological analysis
Engineering Investigation

Used for:

Building foundation surveys
Road and bridge investigation
Tunnel exploration
Soil testing
Hydrological Exploration

Suitable for:

Groundwater investigation
Hydrogeological surveys
Water resource development
Scientific Research

Used for:

Geological studies
Environmental investigation
Underground structure analysis
Reliable Hydraulic Drilling Performance

The hydraulic system of the XY-3L improves operational stability and drilling accuracy.

Key advantages include:

Smooth drilling speed adjustment
Accurate pressure control
Stable feeding operation
Reduced vibration
Improved operator efficiency

High-quality hydraulic components ensure dependable operation during long-term field projects.

Durable Construction Design

The XY-3L Hydraulic Drilling Rig is built for demanding outdoor drilling environments.

The equipment features:

High-strength steel frame
Reinforced drilling structure
Durable hydraulic components
Wear-resistant drilling accessories
Reliable transmission system

Benefits include:

Long equipment lifespan
Lower maintenance costs
Improved reliability
Better field performance

The rugged construction allows continuous operation under challenging conditions.

Flexible Operation And Easy Maintenance

The XY-3L Hydraulic Drilling Rig is designed for convenient transportation and operation.

Main advantages:

Compact structural design
Easy installation
Simple operation
Convenient maintenance
Flexible drilling adjustment

It is suitable for:

Mountain exploration areas
Remote mining locations
Construction projects
Geological survey sites

The practical design improves work efficiency and reduces operating difficulties.

Wide Application Areas
Geological Exploration

Used for:

Geological surveys
Mineral investigation
Core sampling
Resource exploration
Mining Industry

Applications:

Ore body investigation
Mineral development
Rock testing
Construction Engineering

Used for:

Foundation investigation
Soil analysis
Engineering evaluation
Hydrological Projects

Suitable for:

Groundwater exploration
Water resource surveys
Environmental Investigation

Used for:

Soil sampling
Underground analysis
Main Features Of XY-3L Hydraulic Drilling Rig
Advanced hydraulic drilling system
Strong rotary torque
Stable core drilling performance
High recovery rate capability
Suitable for multiple formations
Reliable hydraulic components
Durable heavy-duty structure
Easy operation and maintenance
Wide exploration applications
Professional drilling performance
Why Choose Our XY-3L Hydraulic Drilling Rig?
1. Professional Exploration Performance

Designed for geological surveys, mineral exploration, and core sampling projects.

2. Powerful Hydraulic System

Provides stable torque output and precise drilling control.

3. Efficient Drilling Operation

Improves drilling speed and reduces project completion time.

4. Excellent Formation Adaptability

Works effectively in different soil and rock conditions.

5. Durable And Reliable Equipment

High-quality materials ensure long service life and stable operation.

6. Complete Technical Support

We provide customized configurations, spare parts, and professional drilling solutions.

FAQS
1. What is the XY-3L Hydraulic Drilling Rig used for?

The XY-3L Hydraulic Drilling Rig is mainly used for geological exploration, mineral exploration, core drilling, engineering investigation, and rock sampling.

2. What type of drilling methods can the XY-3L support?

It supports hydraulic core drilling, diamond drilling, geological drilling, and exploration drilling with suitable tools.

3. Can the XY-3L drill hard rock?

Yes. With proper drilling bits and tools, it can drill through granite, limestone, sandstone, and other hard formations.

4. Is the XY-3L suitable for mining exploration?

Yes. It is widely used for mineral exploration, ore investigation, and geological sampling.

5. What are the benefits of hydraulic control?

Hydraulic control provides smooth operation, accurate pressure adjustment, strong torque, and improved drilling efficiency.

6. Can drilling accessories be customized?

Yes. Drill rods, bits, and accessories can be configured according to different project requirements.

7. Is the XY-3L Hydraulic Drilling Rig easy to operate?

Yes. The hydraulic control system makes operation simple and efficient.

8. Can the XY-3L work in remote areas?

Yes. Its durable structure and flexible design allow operation in mountains, mines, and remote exploration locations.
