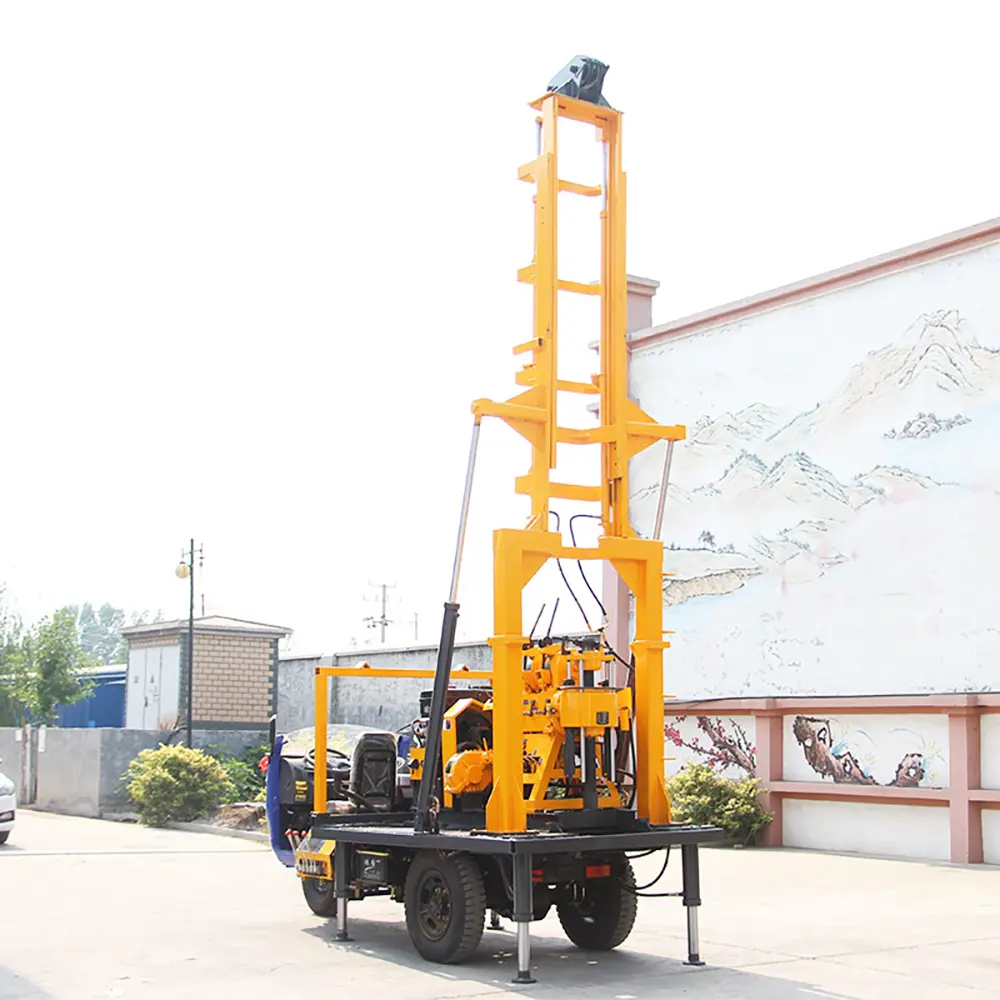

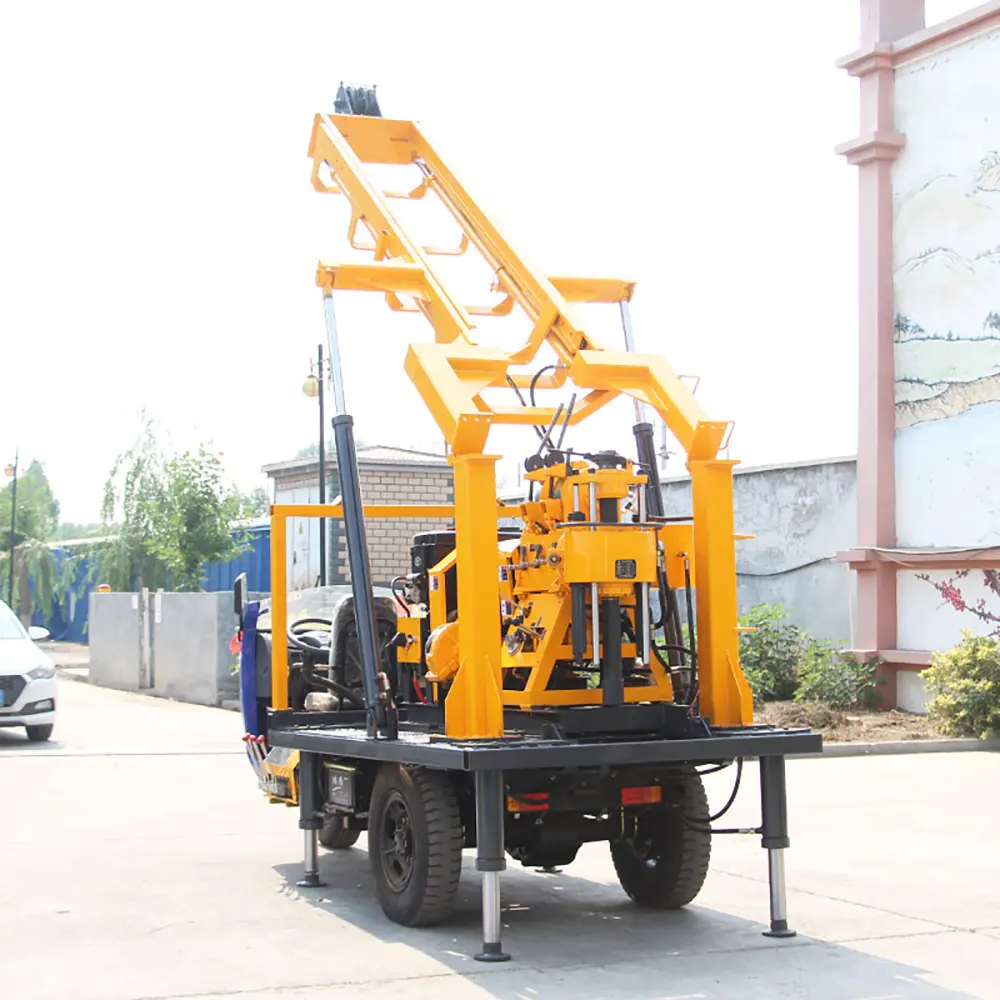

230S Hydraulic Drilling Rig

Drilling depth: 230m
Drilling diameter: 75-300mm
Rated Power: 15Kw

The 230S Hydraulic Drilling Rig is a powerful, efficient, and reliable drilling machine designed for water wells, geological exploration, mining, core sampling, geothermal, and engineering applications.

With advanced hydraulic technology, strong drilling capability, durable construction, and flexible operation, the 230S delivers excellent performance in challenging geological environments.

For customers seeking a professional, heavy-duty, and cost-effective hydraulic drilling solution, the 230S Hydraulic Drilling Rig is an ideal choice.


Main feature:
1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;
2. Hengwang water borehole drilling is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.

Model	230S
Drilling depth(m)	230
Open hole dia. (mm)	500(Soil), 273(Rocks)
End hole dia. (mm)	75
Drill rod dia. (mm)	42, 50, 60
drill angle (°)	90-75
Matching power (kW)	15
Weight (kg)	3000
Dimension (L*W*H) (m)	4*1. 7*2. 3

230S Hydraulic Drilling Rig

The 230S Hydraulic Drilling Rig is a professional heavy-duty hydraulic drilling machine designed for efficient and reliable drilling operations in various industries. It is widely used for water well construction, geological exploration, mineral exploration, core sampling, geothermal drilling, and engineering investigation projects.

Featuring an advanced hydraulic drive system, the 230S Hydraulic Drilling Rig provides strong rotary torque, stable feeding force, and precise drilling control. The hydraulic transmission system ensures smooth power delivery, reduces mechanical stress, and improves drilling efficiency during continuous operation.

Compared with traditional drilling equipment, the 230S Hydraulic Drilling Rig provides:

Higher drilling efficiency
Stronger rotary power
Better drilling stability
More accurate operation control
Reduced maintenance requirements
Longer service life

The 230S Hydraulic Drilling Rig is widely used in:

Deep water well drilling
Agricultural irrigation projects
Geological survey drilling
Mineral exploration
Core sampling
Geothermal drilling
Construction foundation investigation
Engineering drilling projects

With its powerful performance, reliable structure, and flexible operation, the 230S Hydraulic Drilling Rig is an excellent drilling solution for contractors, exploration companies, and industrial users.

Advanced Hydraulic Drive System

The main advantage of the 230S Hydraulic Drilling Rig is its efficient hydraulic power system.

The hydraulic system provides power for:

Rotary drilling head
Drill rod feeding system
Hydraulic lifting mechanism
Drilling pressure adjustment
Machine positioning

Compared with mechanical drilling systems, hydraulic technology offers:

Stronger torque output
Smooth power transmission
Accurate drilling control
Lower vibration
Higher working efficiency

The operator can easily adjust drilling parameters according to different formations, ensuring optimal drilling performance.

Powerful Drilling Performance

The 230S Hydraulic Drilling Rig is engineered for demanding drilling environments.

Its excellent performance includes:

High rotary torque
Stable drilling pressure
Fast penetration capability
Continuous working performance
Flexible drilling adjustment

The machine can operate efficiently in:

Soil layers
Clay formations
Sand and gravel layers
Weathered rock
Hard rock formations

The powerful hydraulic system ensures reliable operation even under difficult geological conditions.

Hydraulic Water Well Drilling Applications

The 230S Hydraulic Drilling Rig is widely used in groundwater development projects.

Typical applications include:

Agricultural irrigation wells
Industrial water wells
Rural water supply projects
Groundwater exploration
Deep well construction

Advantages:

Faster drilling speed
Better borehole stability
Reduced drilling costs
Improved project efficiency

The 230S provides a dependable solution for water resource development.

Geological Exploration And Core Drilling

The 230S Hydraulic Drilling Rig is designed for professional geological investigation.

Applications include:

Geological surveys
Mineral exploration
Rock core sampling
Engineering investigation
Environmental drilling

The precise hydraulic control system maintains stable drilling parameters and improves sample quality.

It is suitable for exploration projects requiring accurate geological data.

Strong Hard Rock Drilling Capability

The 230S Hydraulic Drilling Rig provides excellent performance in complex formations.

With suitable drilling tools, it can handle:

Granite
Limestone
Sandstone
Basalt
Hard rock layers
Mixed geological formations

The hydraulic rotary system generates strong torque to improve drilling penetration.

Compatible drilling methods include:

Core drilling
Rotary drilling
Rock drilling applications

This flexibility allows the 230S to meet different project requirements.

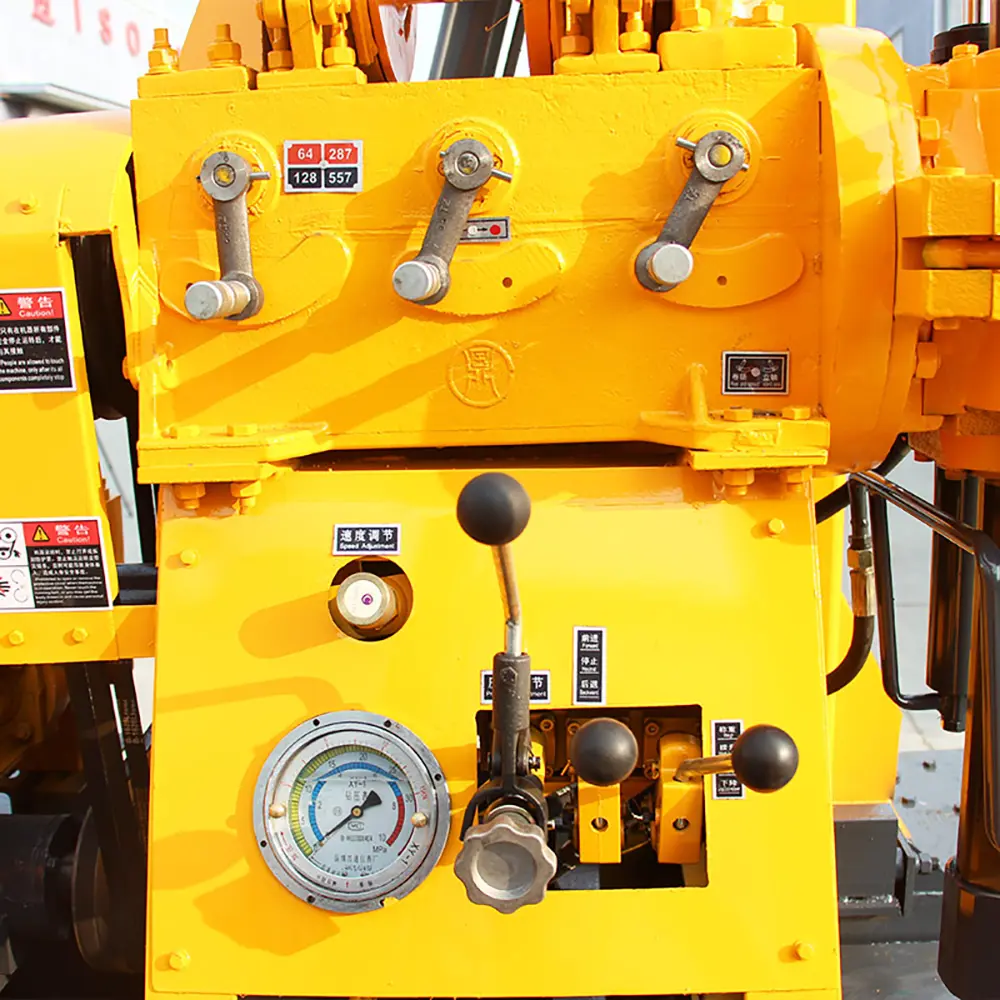

Reliable Hydraulic Control Technology

The hydraulic control system improves drilling accuracy and operational efficiency.

Key advantages:

Smooth speed regulation
Precise pressure adjustment
Reduced equipment wear
Improved drilling stability
Better operator control

High-quality hydraulic components provide dependable performance for long-term operation.

Durable Heavy Duty Construction

The 230S Hydraulic Drilling Rig is built for industrial field conditions.

The machine features:

High-strength steel frame
Reinforced drilling structure
Heavy-duty hydraulic components
Wear-resistant drilling accessories
Reliable power system

Benefits:

Extended service life
Lower maintenance costs
Improved reliability
Better return on investment

The rugged construction allows stable operation in harsh environments.

Compact Design And Easy Operation

Although designed for powerful drilling performance, the 230S Hydraulic Drilling Rig maintains practical mobility and easy operation.

Advantages include:

Compact structure
Easy transportation
Fast installation
Simple maintenance
User-friendly control system

It is suitable for:

Mountain areas
Remote locations
Mining sites
Construction fields
Rural projects

The flexible design improves productivity and reduces downtime.

Wide Application Areas
Water Well Drilling

Used for:

Deep water wells
Irrigation wells
Industrial water supply
Groundwater exploration
Geological Exploration

Applications:

Mineral surveys
Geological investigation
Core sampling
Resource exploration
Mining Industry

Suitable for:

Exploration drilling
Rock analysis
Mineral development
Construction Engineering

Used for:

Foundation investigation
Soil testing
Engineering drilling
Geothermal Projects

Suitable for:

Geothermal wells
Ground source heat systems
Underground energy exploration
Main Features Of 230S Hydraulic Drilling Rig
Advanced hydraulic drive system
Strong rotary torque
High drilling efficiency
Stable drilling performance
Excellent geological adaptability
Heavy-duty construction design
Reliable hydraulic components
Easy operation and maintenance
Multi-purpose drilling applications
Professional drilling capability
Why Choose Our 230S Hydraulic Drilling Rig?
1. Powerful Hydraulic Performance

The hydraulic system delivers strong drilling force and stable operation for challenging projects.

2. High Efficiency Drilling

Optimized hydraulic control improves drilling speed and reduces project completion time.

3. Multi-Functional Application

Suitable for water wells, mining, geological exploration, geothermal, and engineering drilling.

4. Durable Industrial Structure

High-quality materials ensure reliable performance and long service life.

5. Excellent Formation Adaptability

The 230S can handle different soil and rock conditions with suitable drilling tools.

6. Professional Technical Support

We provide customized drilling solutions, spare parts, and technical assistance.

FAQS
1. What is the 230S Hydraulic Drilling Rig used for?

The 230S Hydraulic Drilling Rig is used for water wells, geological exploration, mining drilling, core sampling, geothermal projects, and engineering applications.

2. What makes hydraulic drilling technology better?

Hydraulic systems provide stronger torque, smoother operation, accurate control, and higher drilling efficiency.

3. Can the 230S drill hard rock?

Yes. With proper drilling tools, it can drill through granite, limestone, basalt, and other hard formations.

4. Is the 230S suitable for deep water wells?

Yes. It is designed for professional groundwater development and deep well drilling projects.

5. Which industries use the 230S Hydraulic Drilling Rig?

It is widely used in mining, geology, construction, geothermal energy, and water resource industries.

6. Can drilling tools be changed?

Yes. Different drilling tools can be installed according to geological conditions and project requirements.

7. Is the 230S easy to operate?

Yes. The hydraulic control system provides convenient operation and accurate adjustment.

8. Can the 230S Hydraulic Drilling Rig be customized?

Yes. Specifications, accessories, and configurations can be customized according to customer needs.
