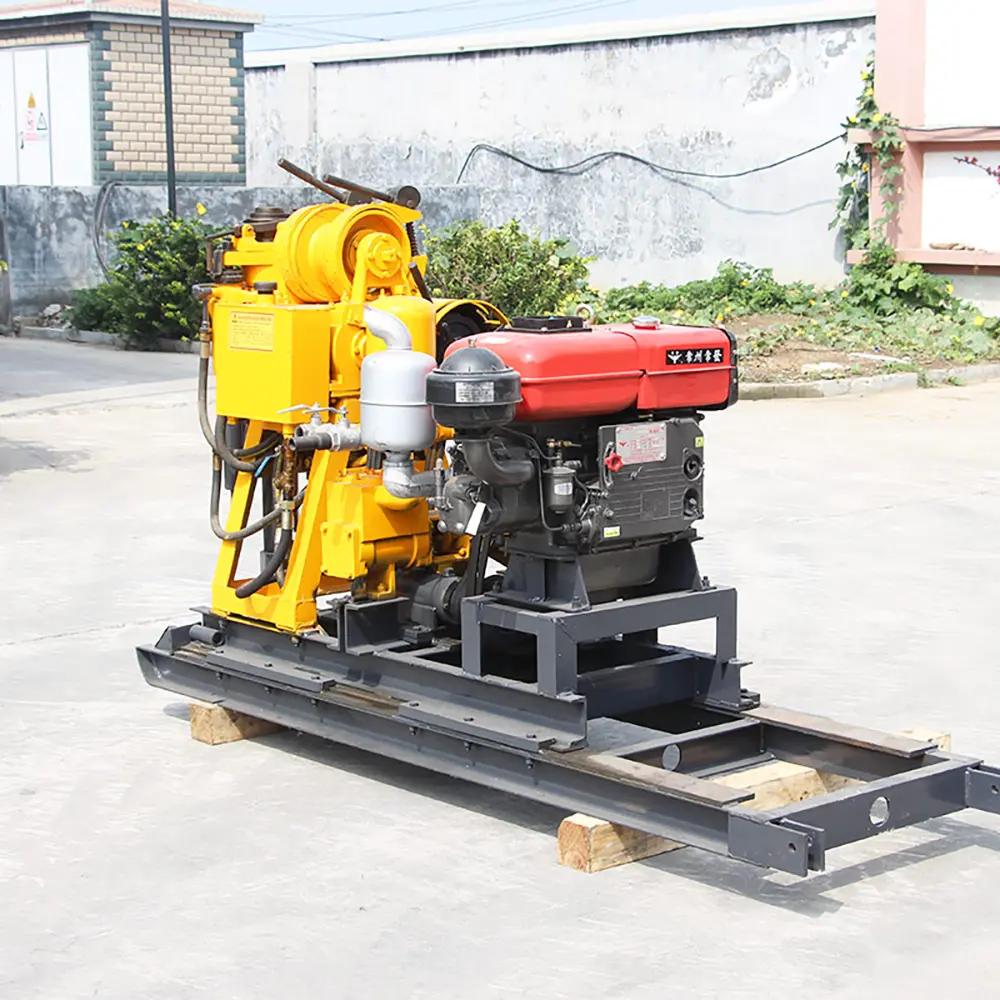

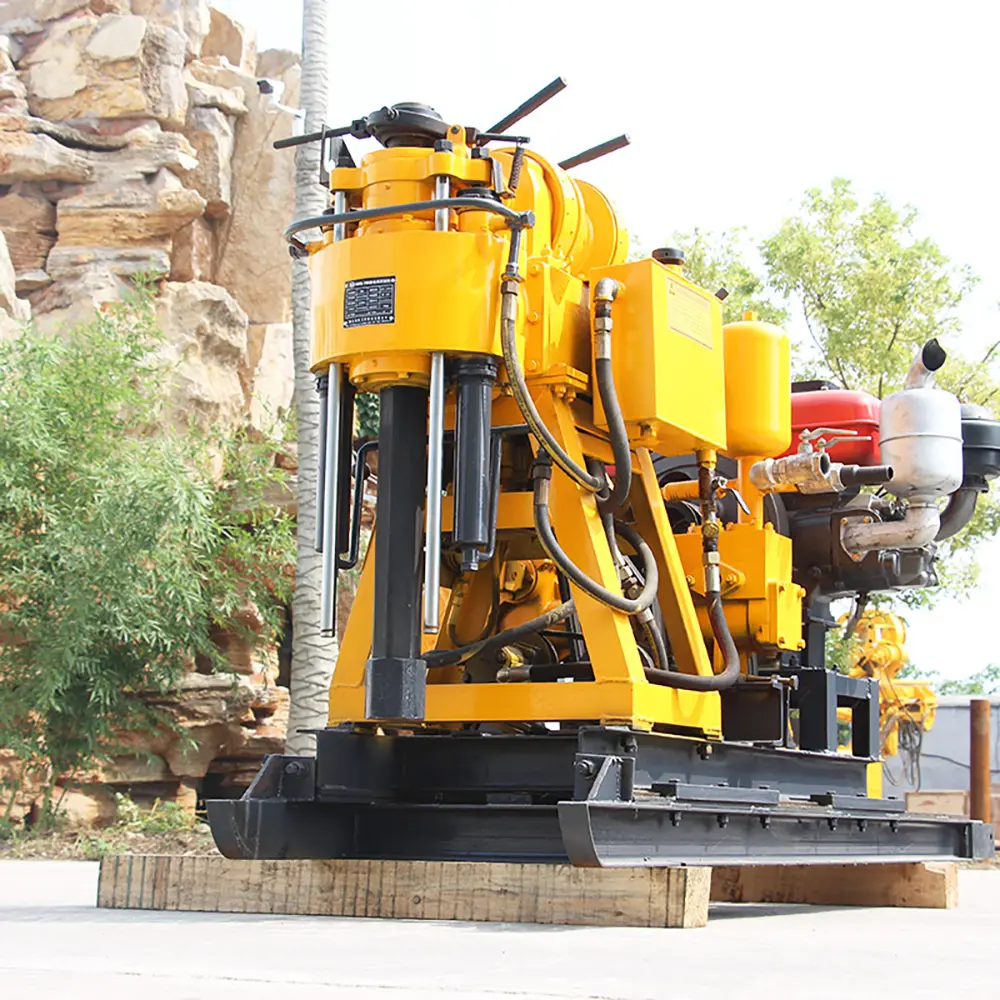

190YY Hydraulic Drilling Rig

Drilling depth: 190m
Drilling diameter: 75-300mm
Rated Power: 13.2kw

model	HW190YY
Drilling depth	190	m
Opening diameter	500(Soil)/220(Rock)	mm
final hole diameter	75	mm
Drill pipe diameter	42-50	mm
Drilling angle	90-75	°
Engine power	13.2	kw
weight	900	kg
Machine size	2400*800*1400	mm
Vertical shaft speed	130/300/480/730/830/1045	r/min
Vertical axis travel	450	mm
Single rope lifting force	2100	kg
Single rope lifting speed	0.35-2.23	m/s
Wire rope diameter	φ9.3	mm
Wire rope capacity	27	m
Rated load	18	Ton
effective height	6.5	m
flow	95	L/Min
greatest pressure	1.2	Mpa
Optional configuration	Motor

190YY Hydraulic Drilling Rig

The 190YY Hydraulic Drilling Rig is a professional hydraulic-powered drilling machine designed to meet the requirements of modern drilling projects. It is widely used in water well construction, geological exploration, mineral investigation, engineering drilling, geothermal projects, and foundation surveys.

Equipped with an advanced hydraulic transmission system, the 190YY Hydraulic Drilling Rig provides strong rotary torque, stable feeding force, and precise drilling control. The hydraulic system allows efficient power transmission and smooth operation, helping operators achieve better drilling performance in various geological conditions.

Compared with traditional drilling equipment, the 190YY Hydraulic Drilling Rig offers advantages such as:

Higher drilling efficiency
Stronger torque output
Better operational stability
Improved drilling accuracy
Lower mechanical wear
Longer service life

The 190YY Hydraulic Drilling Rig is suitable for:

Water well drilling
Agricultural irrigation wells
Geological investigation
Mineral exploration
Core sampling
Geothermal drilling
Construction engineering drilling
Environmental drilling projects

With its reliable structure, flexible operation, and professional drilling capability, the 190YY Hydraulic Drilling Rig is an excellent choice for contractors, drilling companies, and exploration professionals.

Advanced Hydraulic Drive Technology

The core advantage of the 190YY Hydraulic Drilling Rig is its efficient hydraulic power system.

The hydraulic system provides stable power for:

Rotary drilling head
Drill rod feeding mechanism
Hydraulic lifting system
Drilling pressure adjustment
Machine positioning

Compared with mechanical transmission systems, hydraulic technology provides:

Smooth power output
Higher drilling torque
Accurate speed control
Reduced vibration
Improved working efficiency

Operators can adjust drilling parameters according to different formations, ensuring optimal drilling performance.

High Efficiency Drilling Performance

The 190YY Hydraulic Drilling Rig is engineered for reliable operation in complex environments.

Its excellent drilling capability includes:

Strong rotary force
Stable drilling pressure
Efficient penetration performance
Continuous working ability
Flexible drilling adjustment

The machine can operate effectively in:

Soil formations
Clay layers
Gravel formations
Weathered rock
Hard rock conditions

The powerful hydraulic system ensures consistent performance and improved drilling productivity.

Hydraulic Water Well Drilling Applications

The 190YY Hydraulic Drilling Rig is widely used for groundwater development and water well projects.

Common applications include:

Agricultural irrigation wells
Rural drinking water wells
Industrial water wells
Groundwater exploration
Small and medium water supply projects

Advantages include:

Faster drilling speed
Stable borehole formation
Reduced drilling cost
Improved project efficiency

The 190YY provides an economical and reliable solution for accessing underground water resources.

Geological Exploration And Core Drilling

The 190YY Hydraulic Drilling Rig is designed for professional geological investigation.

Applications include:

Geological surveys
Mineral exploration
Rock sampling
Engineering investigation
Environmental drilling

The hydraulic control system helps maintain stable drilling parameters, improving drilling accuracy and sample quality.

It is suitable for exploration projects requiring dependable geological information.

Strong Rock Drilling Capability

The 190YY Hydraulic Drilling Rig delivers excellent performance in challenging formations.

With appropriate drilling tools, it can work efficiently in:

Limestone
Granite
Sandstone
Hard rock layers
Complex geological structures

The hydraulic rotary system provides strong torque to improve drilling penetration and maintain stable operation.

Compatible drilling methods include:

Core drilling
Rotary drilling
Rock drilling applications

This flexibility allows the 190YY to adapt to different drilling requirements.

Reliable Hydraulic Control System

The hydraulic control system ensures accurate and efficient drilling operation.

Key advantages include:

Smooth speed adjustment
Precise pressure control
Reduced mechanical stress
Improved drilling stability
Better operator control

High-quality hydraulic components provide reliable performance and reduce maintenance requirements.

Durable Construction And Long Service Life

The 190YY Hydraulic Drilling Rig is manufactured for demanding industrial environments.

The equipment features:

High-strength steel frame
Reinforced drilling structure
Heavy-duty hydraulic components
Wear-resistant drilling parts
Reliable power system

Benefits include:

Extended service life
Lower maintenance costs
Improved operational reliability
Better investment value

The rugged construction allows stable operation under harsh working conditions.

Compact Structure And Easy Operation

The 190YY Hydraulic Drilling Rig is designed for convenient transportation and field operation.

Main advantages include:

Compact design
Easy installation
Simple maintenance
User-friendly controls
Flexible movement

It can be used in:

Mountain regions
Rural areas
Construction sites
Mining locations
Remote exploration areas

The practical design improves working efficiency and reduces downtime.

Wide Application Areas
Water Well Drilling

Suitable for:

Irrigation wells
Industrial water supply
Groundwater development
Rural water projects
Geological Exploration

Used for:

Geological surveys
Mineral investigation
Core sampling
Resource exploration
Mining Industry

Applications:

Exploration drilling
Rock analysis
Mineral development
Construction Engineering

Used for:

Foundation investigation
Soil testing
Engineering drilling
Geothermal Drilling

Suitable for:

Geothermal wells
Underground energy projects
Heat pump drilling
Main Features Of 190YY Hydraulic Drilling Rig
Advanced hydraulic drive system
Strong rotary torque
Stable drilling performance
Efficient drilling operation
Suitable for multiple formations
Compact and flexible structure
Reliable hydraulic components
Easy maintenance
Wide application range
Professional drilling capability
Why Choose Our 190YY Hydraulic Drilling Rig?
1. Powerful Hydraulic Performance

The hydraulic system provides strong drilling force and stable operation for different applications.

2. High Drilling Efficiency

Optimized hydraulic control improves drilling speed and reduces project completion time.

3. Multi-Purpose Drilling Solution

Suitable for water wells, geological exploration, mining, geothermal, and engineering projects.

4. Durable And Reliable Design

High-quality materials and components ensure long-term performance.

5. Excellent Geological Adaptability

The 190YY can operate effectively in different soil and rock conditions.

6. Professional Technical Support

We provide customized drilling solutions, spare parts, and after-sales service.

FAQS
1. What is the 190YY Hydraulic Drilling Rig used for?

The 190YY Hydraulic Drilling Rig is used for water wells, geological exploration, mineral investigation, core sampling, geothermal projects, and engineering drilling.

2. What are the advantages of hydraulic drilling systems?

Hydraulic systems provide higher torque, smoother operation, accurate control, and improved drilling efficiency.

3. Can the 190YY drill hard rock formations?

Yes. With suitable drilling tools, the machine can drill through limestone, granite, sandstone, and other hard formations.

4. Is the 190YY suitable for water well drilling?

Yes. It is widely used for agricultural, industrial, and groundwater well projects.

5. What industries use the 190YY Hydraulic Drilling Rig?

It is commonly used in mining, geological exploration, construction, geothermal, and water resource development.

6. Can the drilling system be customized?

Yes. Different drilling tools, accessories, and configurations can be customized according to project requirements.

7. Is the 190YY Hydraulic Drilling Rig easy to operate?

Yes. The hydraulic control system provides simple operation and precise adjustment.

8. How can maintenance costs be reduced?

Regular inspection, proper operation, and using quality drilling accessories help extend equipment service life.
