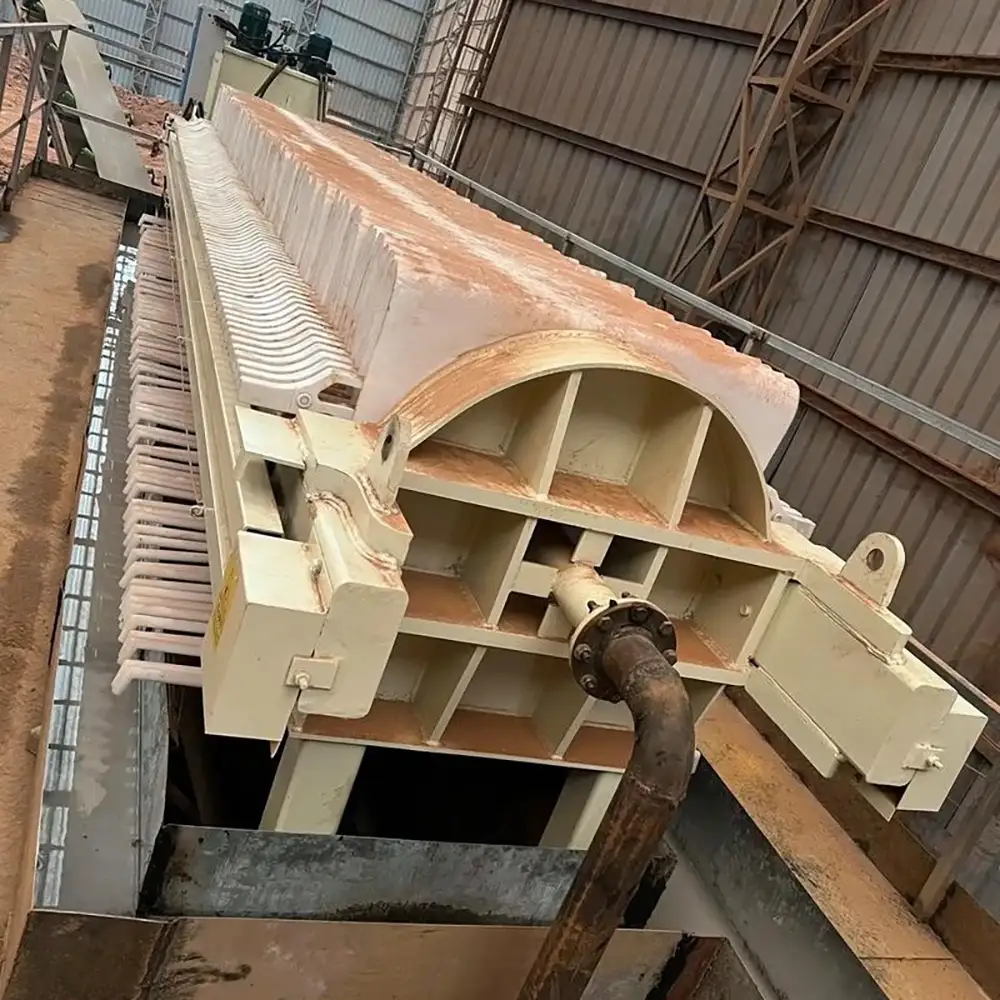

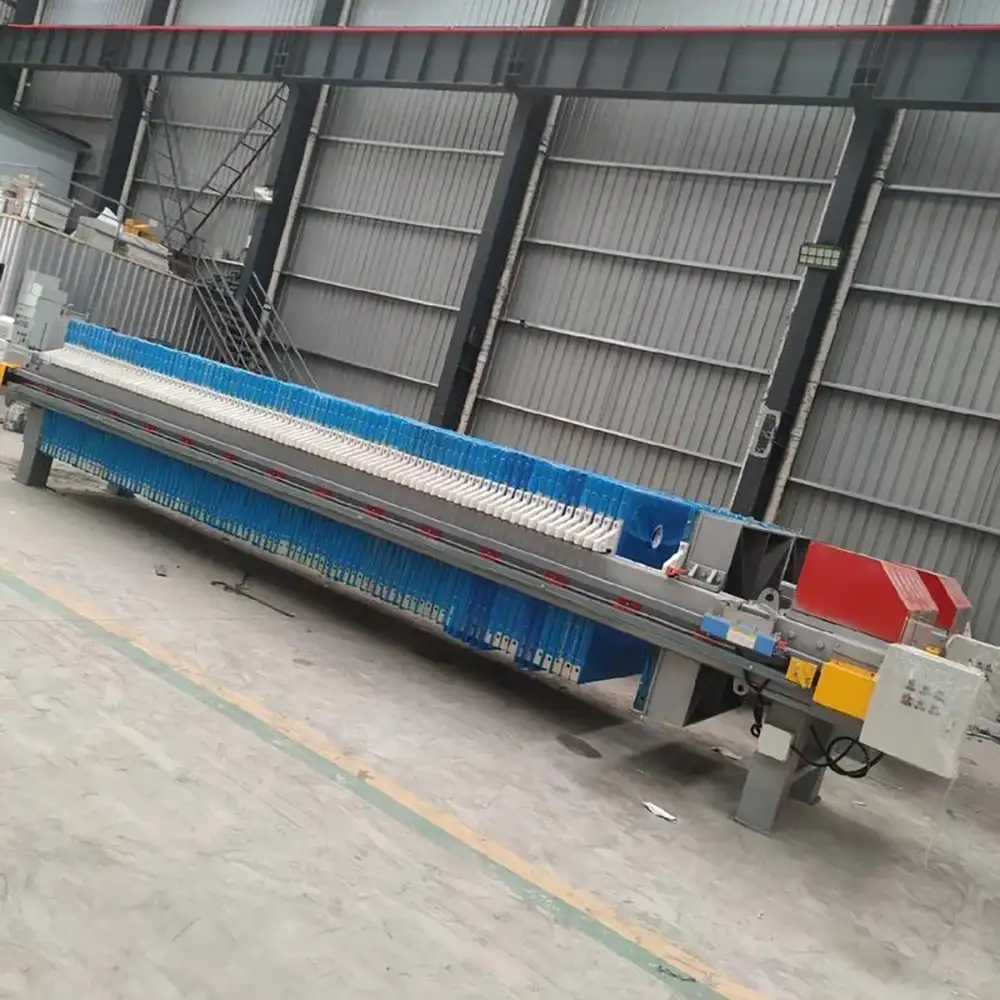

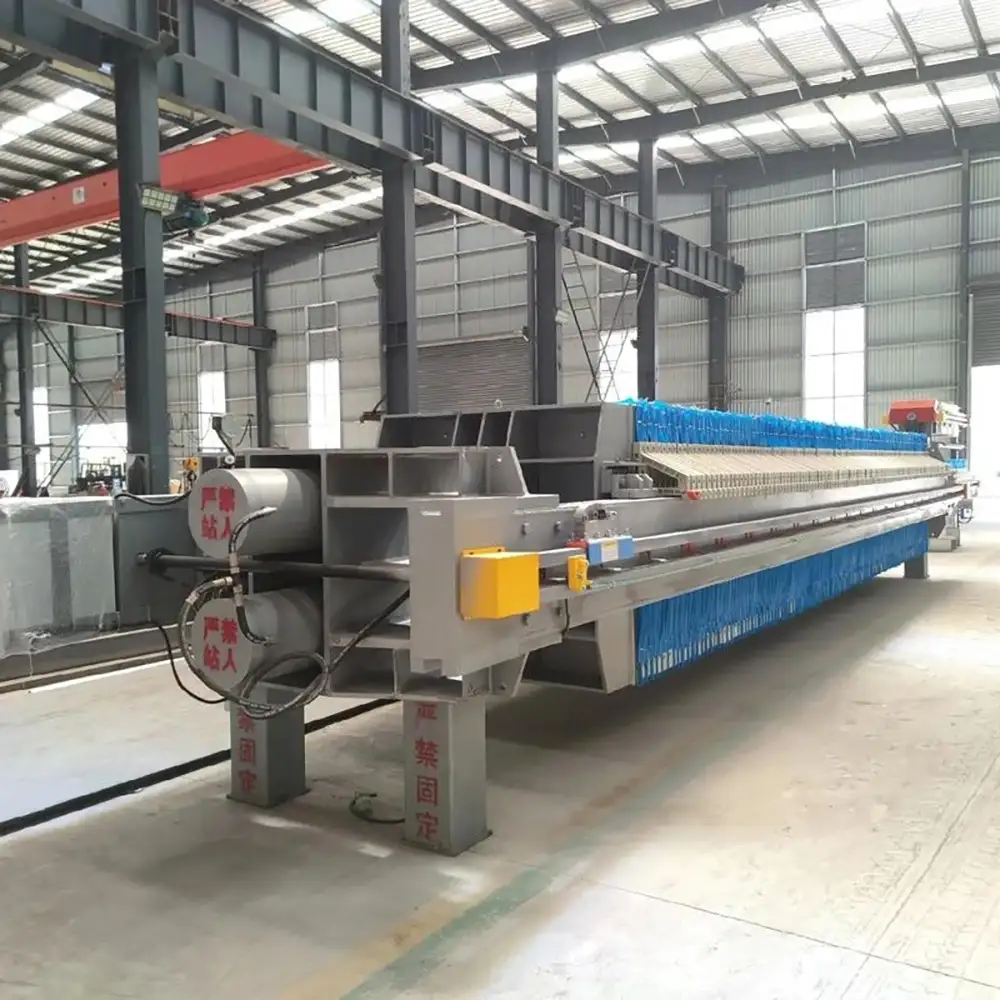

Wastewater Treatment Plate Mud Press Filter Sludge Dewatering Machine Filter

The Wastewater Treatment Plate Mud Press Filter Sludge Dewatering Machine is a pressure filtration system designed for separating water from sludge, mud, slurry, and other solid-containing liquid materials. Using filter plates, filter cloths, filtration chambers, a hydraulic closing system, and a sludge feed pump, the equipment applies pressure to the material and separates liquid from retained solids.

Plate mud presses and sludge filter presses are widely used in municipal wastewater treatment, industrial wastewater treatment, mining, mineral processing, chemical production, food processing, pharmaceutical manufacturing, paper mills, textile production, and other industries requiring reliable solid-liquid separation.

During operation, sludge is pumped into the filtration chambers. Liquid passes through the filter cloth and flows through the filtrate channels, while suspended solids remain inside the chambers and gradually form a filter cake. Once the filtration cycle is completed, the plates are opened and the accumulated cake is discharged.

The exact filtration performance depends on sludge characteristics, solids concentration, filter cloth selection, feed pressure, conditioning method, and operating conditions.

Efficient Sludge Dewatering

The primary purpose of the Sludge Dewatering Machine is to reduce the amount of water contained in sludge before further treatment, transportation, disposal, drying, or other downstream processing.

Pressure filtration can provide effective separation for sludge streams that are difficult to dewater using simple gravity settling.

As sludge enters the filter chambers, increasing pressure forces liquid through the filter cloth. The retained solids gradually form a compact filter cake.

Reducing sludge moisture can help decrease the volume and weight of material requiring subsequent handling.

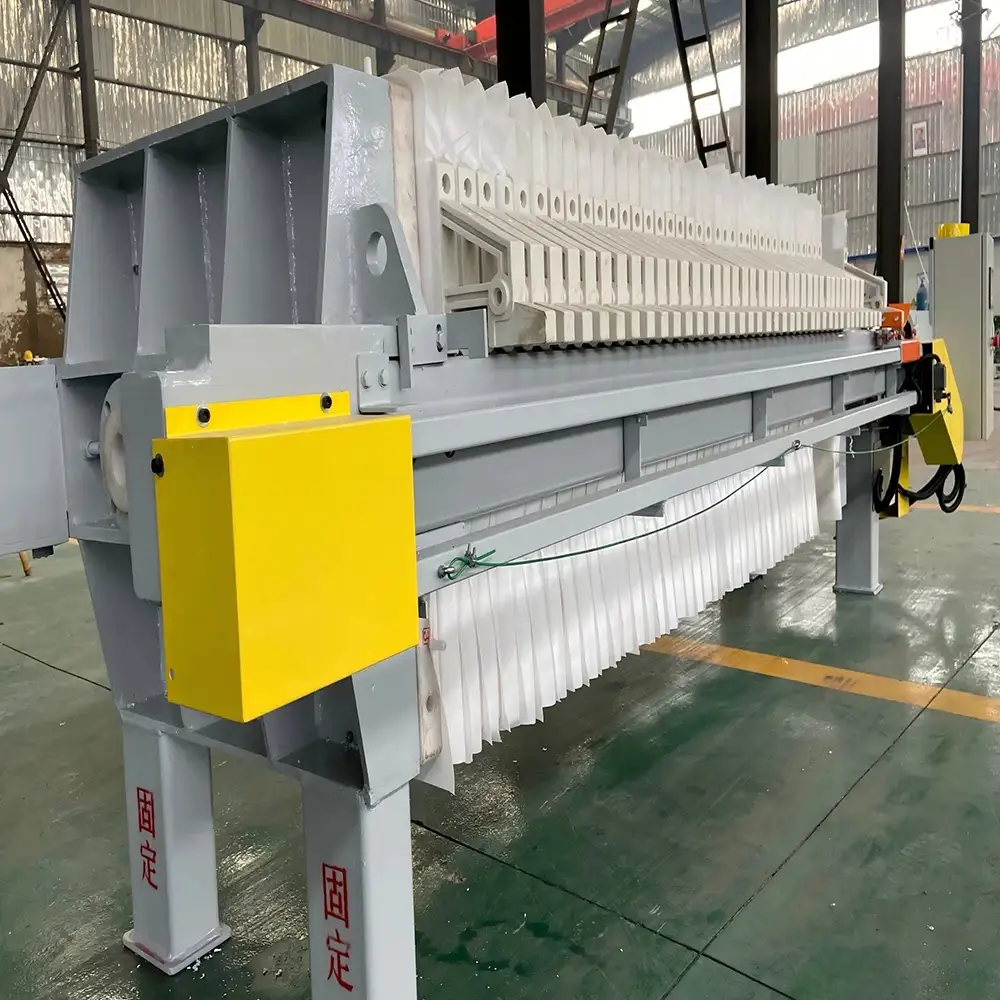

Plate Mud Press Working Principle

The plate mud press consists of multiple filter plates, filter frames or chamber plates, filter cloths, a hydraulic closing mechanism, a feed system, and filtrate collection channels.

When the plates are closed, filtration chambers are formed between adjacent plates. Sludge is then pumped into these chambers.

Under pressure, liquid moves through the filter cloth while solid particles are retained. The filtered liquid is collected through internal channels and directed to the filtrate outlet.

As solids accumulate, the filtration cake becomes thicker and filtration resistance increases. When the filtration cycle reaches the required condition, the feed is stopped and the plates are opened for cake discharge.

Pressure Filtration For Wastewater Sludge

Wastewater treatment processes can generate different types of sludge, including biological sludge, chemically precipitated sludge, and mixed industrial sludge.

A plate filter press can be used to mechanically dewater suitable sludge streams after upstream treatment and conditioning.

The equipment can be positioned downstream of sedimentation, dissolved air flotation, coagulation, flocculation, or other wastewater treatment processes.

Where chemical conditioning is required, polymer or other suitable conditioning systems can be installed before the filter press to improve floc formation and filtration performance.

Solid-Liquid Separation

The Solid-Liquid Separation Filter Press is designed to retain solid particles while allowing liquid to pass through the filtration medium.

This makes the equipment useful not only for wastewater sludge but also for industrial slurries and process residues.

Depending on the application, the same filtration principle can be used for mineral slurry, chemical sludge, food processing residues, pharmaceutical materials, and other compatible solid-containing liquids.

The filter cloth and plate configuration should be selected according to particle size, viscosity, chemical characteristics, temperature, and filtration requirements.

Filter Cake Formation

One of the main results of pressure filtration is the formation of a dewatered filter cake.

As the filtration chambers fill, suspended solids accumulate on the filter cloth and form a cake layer. Continued filtration removes additional liquid from the cake structure.

The final cake condition depends on the sludge characteristics, conditioning, filtration pressure, cycle time, filter cloth, and other operating parameters.

After filtration, the cake can be discharged and transferred to a conveyor, collection container, drying system, thermal treatment system, composting process, or other downstream equipment where appropriate.

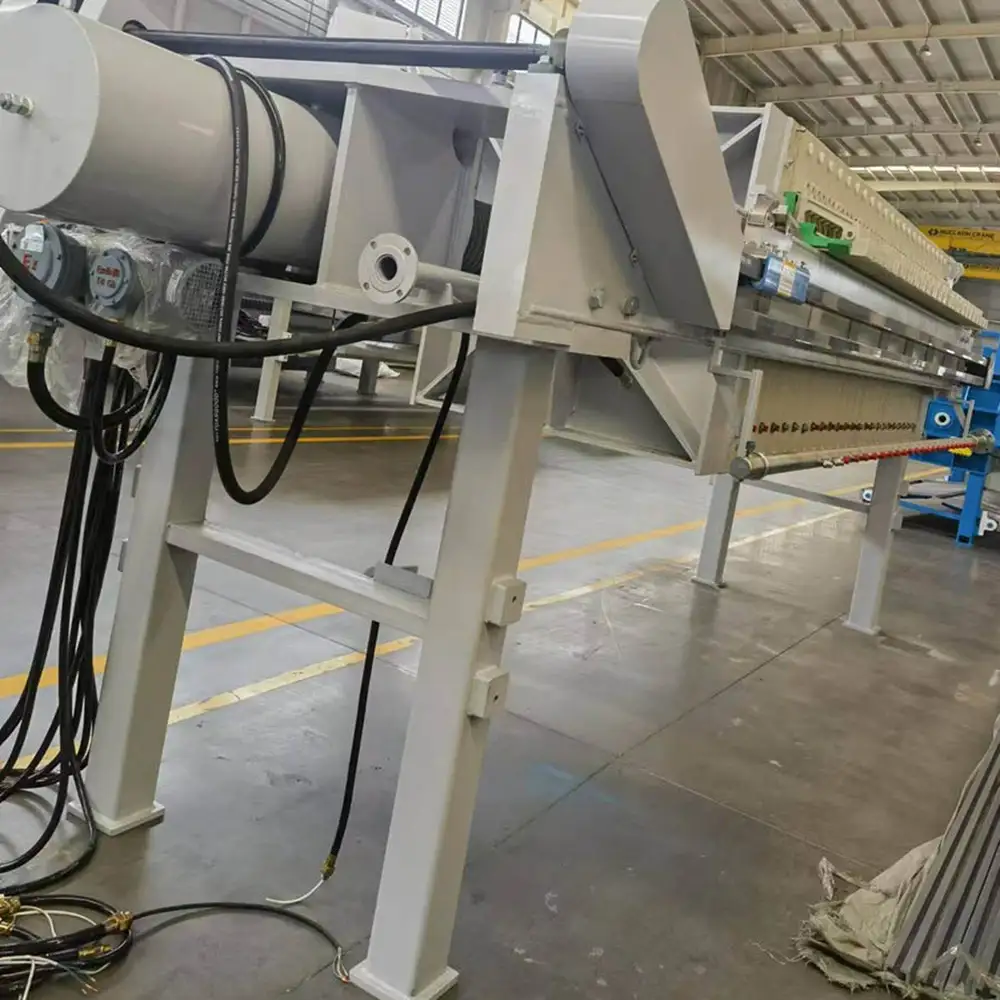

Hydraulic Plate Closing

A hydraulic closing system is commonly used to bring the filter plates together and maintain the required compression during filtration.

Stable plate closing helps maintain the sealing condition between adjacent plates and reduces the risk of leakage during operation.

The hydraulic system can be configured according to the filter press size, plate arrangement, operating requirements, and automation level.

Routine inspection of hydraulic components, seals, hoses, and pressure-related parts is important for reliable operation.

Filter Cloth Selection

Filter cloth is a critical filtration component because it determines how liquid passes through the filter while retaining solid particles.

Different sludge types may require different cloth materials, weave structures, pore characteristics, and surface treatments.

Polypropylene and polyester are commonly considered for suitable industrial filtration applications, while other materials may be selected for specific chemical or temperature conditions.

Proper filter cloth selection can improve filtration stability, cake release, filtrate clarity, and cloth service life.

Sludge Conditioning

Some wastewater sludge has poor filtration characteristics because particles are extremely fine or retain water strongly.

Sludge conditioning can help improve the formation of larger flocs and create a more permeable filter cake.

Polymer dosing, coagulation, or other conditioning methods may be used before the filter press.

The appropriate conditioning process depends on sludge composition and should be determined through laboratory testing or application trials when necessary.

Municipal Wastewater Treatment

Municipal wastewater treatment plants generate sludge during biological and physical-chemical treatment processes.

A plate mud press can be used as a sludge dewatering stage after sludge thickening or conditioning.

The dewatered sludge cake can then be transported for further treatment or disposal according to the plant's sludge management process.

For municipal applications, equipment selection should consider sludge production, operating schedule, available installation space, and desired cake handling method.

Industrial Wastewater Treatment

Industrial facilities can produce sludge with significantly different characteristics depending on the manufacturing process.

Potential applications include chemical plants, food processing facilities, paper mills, textile factories, pharmaceutical production, metal processing, and other industrial operations.

The filter press can be integrated into the wastewater treatment system after appropriate pretreatment and sludge conditioning.

Because industrial sludge may be corrosive, abrasive, oily, or chemically active, wetted materials should be selected according to the actual process conditions.

Mining And Mineral Slurry

Mining and mineral processing operations generate slurries containing fine mineral particles and process water.

A plate and frame filter press can be used for dewatering suitable mineral slurries, concentrates, tailings, and process residues.

The pressure filtration process produces a solid filter cake while allowing separated liquid to be collected.

For abrasive mineral applications, suitable wear-resistant components and filter materials can be considered.

Food And Pharmaceutical Applications

Food processing and pharmaceutical manufacturing may generate process slurries and solid-containing liquids requiring controlled filtration.

A suitable plate filter press can provide batch pressure filtration for compatible applications.

Materials that come into contact with the process stream should be selected according to the product characteristics, cleaning requirements, temperature, and chemical conditions.

Specific hygienic or regulatory requirements should be evaluated separately for each project.

Filtrate Collection

The liquid separated during filtration is collected through the internal filtrate channels.

Depending on the plate configuration, filtrate can be discharged through suitable outlet arrangements and directed to a collection tank or downstream treatment stage.

In wastewater treatment applications, filtrate may be returned to an appropriate treatment process when suitable.

A properly designed filtrate collection system helps maintain an organized treatment process and reduces uncontrolled liquid discharge around the equipment.

Batch Filtration Operation

The plate mud press generally operates in repeated filtration cycles rather than as a continuous dewatering machine.

A typical cycle includes plate closing, sludge feeding, pressure filtration, cake formation, feed stopping, plate opening, and cake discharge.

Batch operation allows high-pressure filtration and can be suitable for plants where sludge production varies or where a concentrated filter cake is required.

Automation options can reduce manual handling during plate movement, feeding, and cake discharge depending on the equipment configuration.

Compact Industrial Design

Plate filter presses arrange multiple filtration chambers within a relatively compact frame.

This can provide a practical solution for wastewater treatment plants where floor space must be considered.

The filter press can be combined with sludge pumps, conditioning tanks, polymer dosing systems, conveyors, filtrate tanks, and other auxiliary equipment according to the plant layout.

Durable Construction

Industrial sludge dewatering equipment must operate in wet environments and may be exposed to chemicals, abrasive solids, pressure, and repeated mechanical movement.

The filter press can be configured with suitable frame materials, plates, filter cloths, seals, hydraulic components, and other parts according to the application.

Regular cleaning, inspection, filter cloth maintenance, and replacement of worn components can help maintain stable operation.

Customized Sludge Dewatering Solutions

The correct filter press configuration depends on the actual sludge and process requirements.

Important factors include sludge type, feed flow, solids concentration, particle size, pH, temperature, viscosity, chemical composition, required filtration area, cycle time, and desired cake characteristics.

Customers can provide sludge analysis, wastewater information, production volume, and application requirements for equipment evaluation.

Customized options may include plate dimensions, filtration area, plate material, filter cloth, hydraulic system, feed pump, control system, cake discharge arrangement, and auxiliary equipment.

Integration With Complete Wastewater Treatment Plants

The Wastewater Treatment Plate Mud Press Filter can serve as one stage of a complete wastewater treatment process.

A typical system may include screening, equalization, pH adjustment, coagulation, flocculation, sedimentation or flotation, sludge collection, conditioning, filter press dewatering, and final sludge handling.

The exact process depends on wastewater characteristics and the required treatment objectives.

B2B Sludge Dewatering Equipment

For wastewater treatment contractors, environmental engineering companies, municipal treatment plants, industrial factories, mining operations, food processing companies, and equipment distributors, this Sludge Dewatering Filter Press provides a practical pressure filtration solution.

The equipment can be supplied as an individual sludge dewatering machine or integrated into a complete wastewater treatment system.

Customers can provide sludge samples, wastewater analysis, treatment capacity, operating conditions, and desired cake moisture or handling requirements so that the appropriate filter press configuration can be evaluated.

Key Features
Wastewater Sludge Dewatering
Plate Mud Press Design
Pressure Filtration Technology
Efficient Solid-Liquid Separation
Hydraulic Plate Closing
Replaceable Filter Cloth
Effective Filter Cake Formation
Industrial Wastewater Applications
Municipal Sludge Treatment
Batch Pressure Filtration
Flexible Equipment Configuration
Customized Sludge Dewatering Solutions
Main Applications
Municipal Wastewater Treatment
Industrial Wastewater Treatment
Sewage Sludge Dewatering
Chemical Industry
Metal Processing
Food Processing
Pharmaceutical Industry
Paper Mill Wastewater
Textile Industry
Mining And Mineral Processing
Industrial Slurry Dewatering
Environmental Protection Projects
FAQs
1. What Is A Plate Mud Press?

A plate mud press is a pressure filtration machine used to separate liquid from mud, sludge, slurry, and other solid-containing materials.

2. How Does A Sludge Dewatering Filter Press Work?

Sludge is pumped into filtration chambers between filter plates. Pressure forces liquid through the filter cloth while solids are retained and gradually form a filter cake.

3. Can It Be Used For Wastewater Treatment?

Yes. Plate filter presses are commonly used as a sludge dewatering stage in suitable municipal and industrial wastewater treatment systems.

4. What Types Of Sludge Can Be Processed?

Suitable applications may include municipal sludge, industrial wastewater sludge, chemically precipitated sludge, food processing sludge, mineral slurry, and other compatible solid-containing materials.

5. Is Sludge Conditioning Necessary?

Not always. However, some sludge types benefit from polymer dosing or other conditioning methods to improve floc formation and filtration performance.

6. What Happens To The Filter Cake?

The dewatered filter cake can be collected and transported for further treatment, drying, composting, thermal treatment, recovery, or disposal depending on its composition and the applicable process.

7. What Is The Difference Between A Plate Filter Press And A Screw Press?

A plate filter press uses batch pressure filtration, while a screw press generally provides continuous mechanical dewatering. The appropriate choice depends on sludge characteristics and production requirements.

8. Can The Filter Press Be Automated?

Yes. Depending on the configuration, hydraulic plate movement, sludge feeding, filtration monitoring, plate opening, and cake discharge can be automated or semi-automated.

9. Can The Machine Handle Industrial Sludge?

Yes. Suitable industrial sludge can be processed when the plate materials, filter cloth, seals, frame, and other components are selected according to the actual sludge characteristics.

10. How Do I Select The Right Machine?

Provide sludge type, flow rate, solids concentration, moisture content, pH, temperature, chemical composition, desired filtration cycle, and required cake characteristics. These details help determine the suitable filter press configuration.

Why Choose Us
Professional Sludge Dewatering Equipment

We provide pressure filtration and sludge dewatering equipment for municipal wastewater, industrial wastewater, process sludge, and compatible slurry applications.

Application-Based Configuration

We evaluate sludge characteristics, solids concentration, flow rate, filtration requirements, and operating conditions to help select a suitable machine configuration.

Customized Filter Components

Filter plates, filter cloths, hydraulic systems, feed pumps, seals, control systems, and cake discharge arrangements can be configured according to application requirements.

Complete Treatment Integration

The plate mud press can be integrated with sludge conditioning, wastewater treatment, filtrate collection, conveyors, drying systems, and other upstream or downstream equipment.

Reliable Industrial Construction

Suitable materials and components can be selected according to chemical exposure, abrasive solids, temperature, pressure, and other operating conditions.
