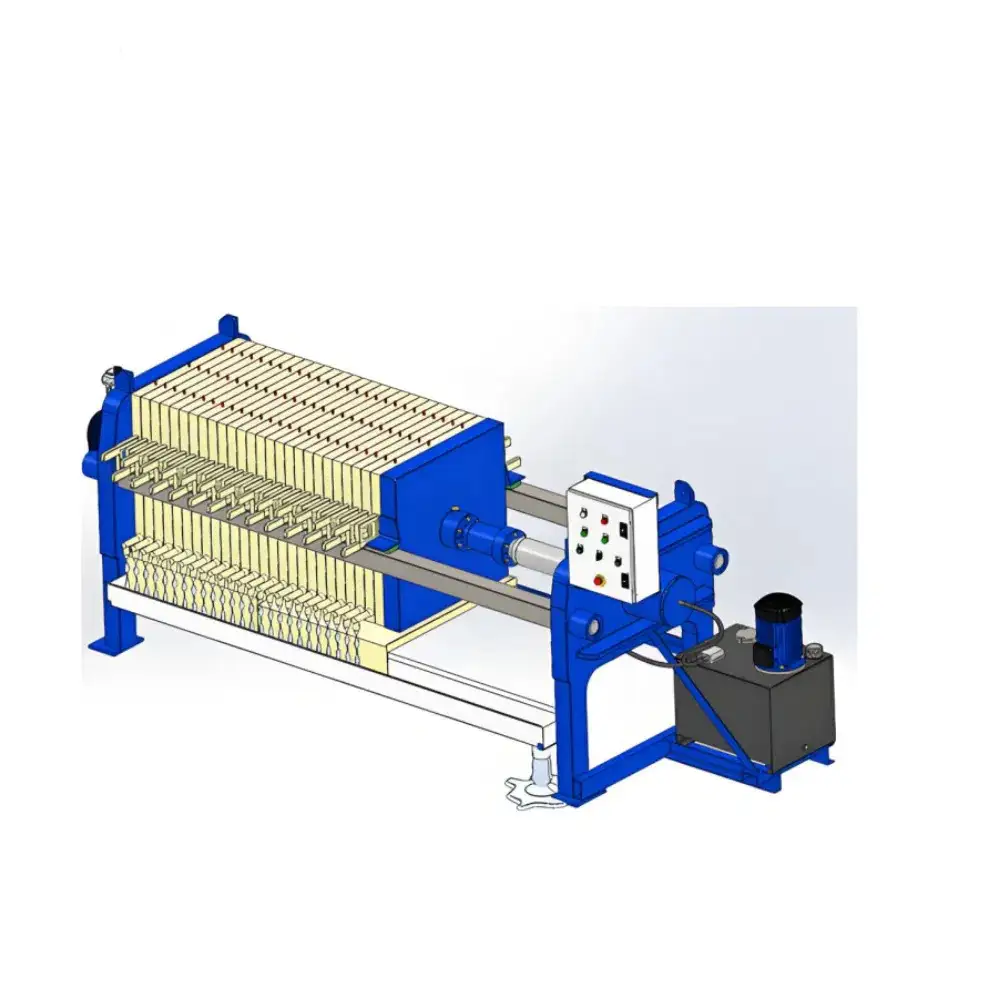

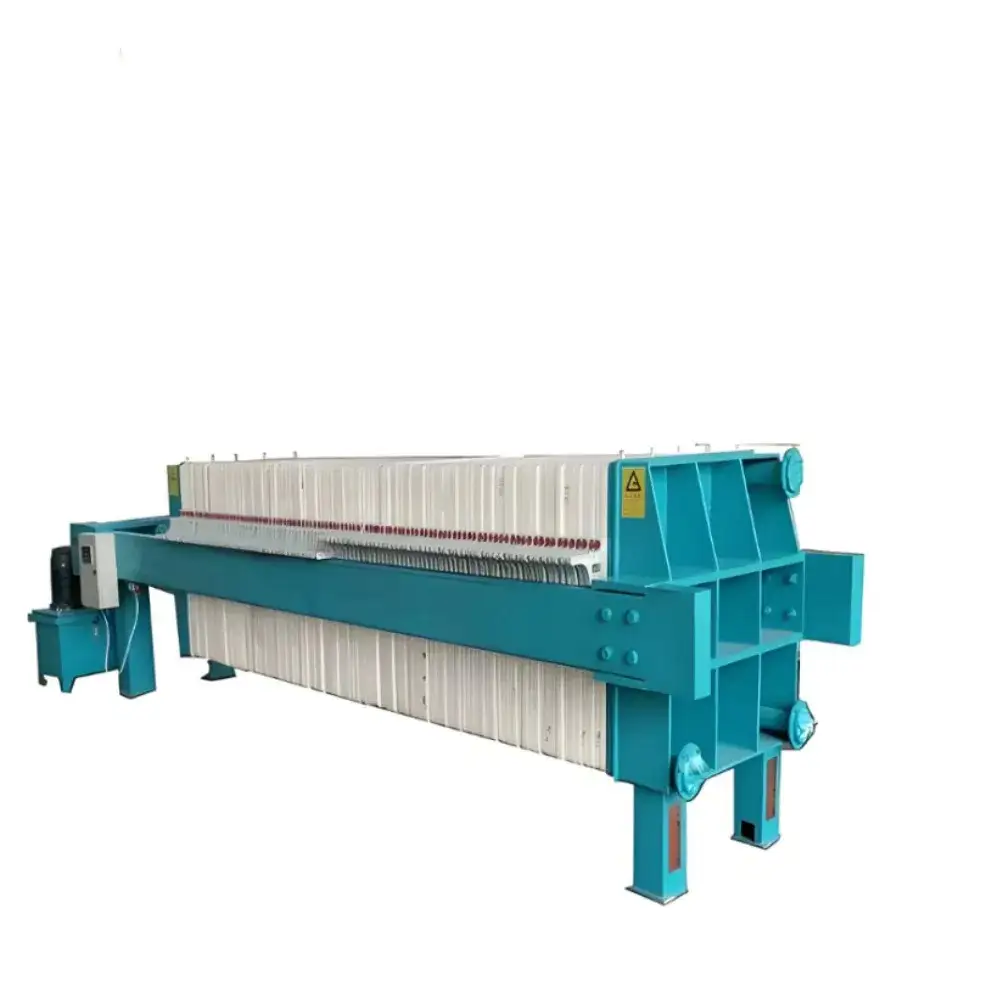

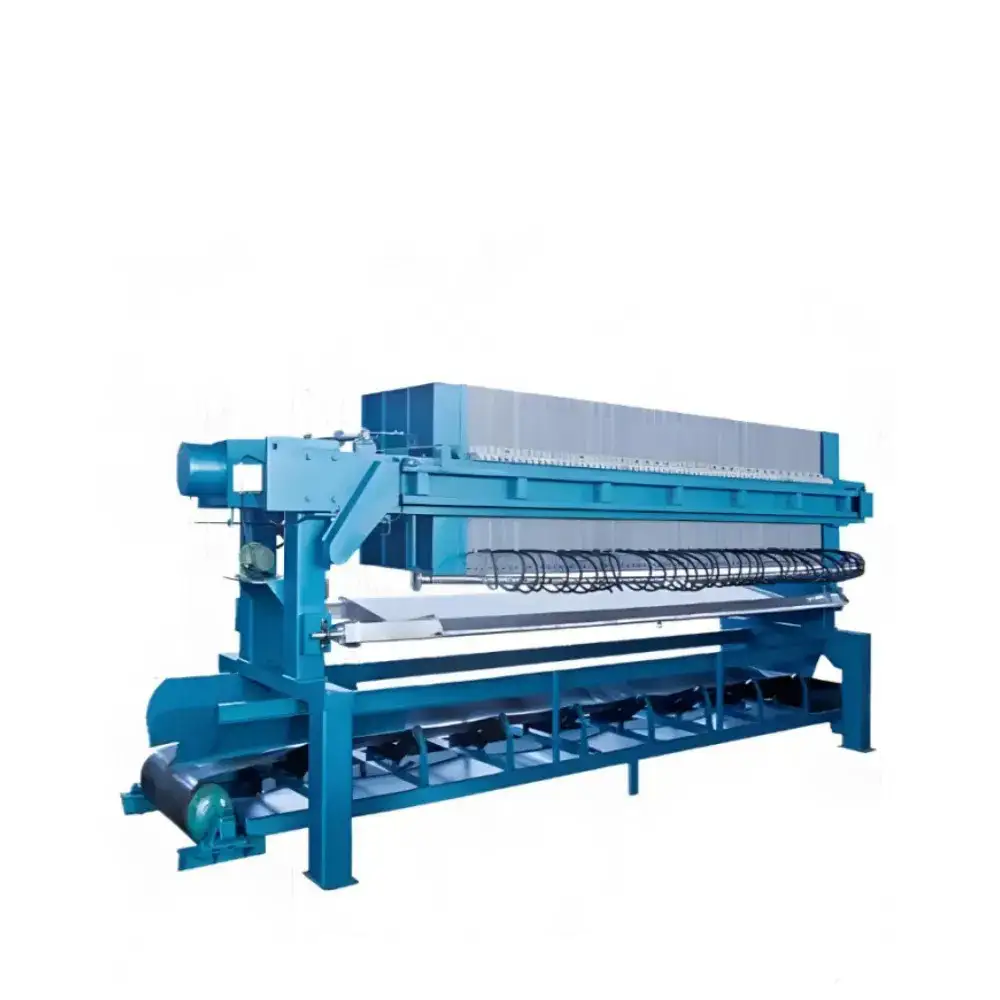

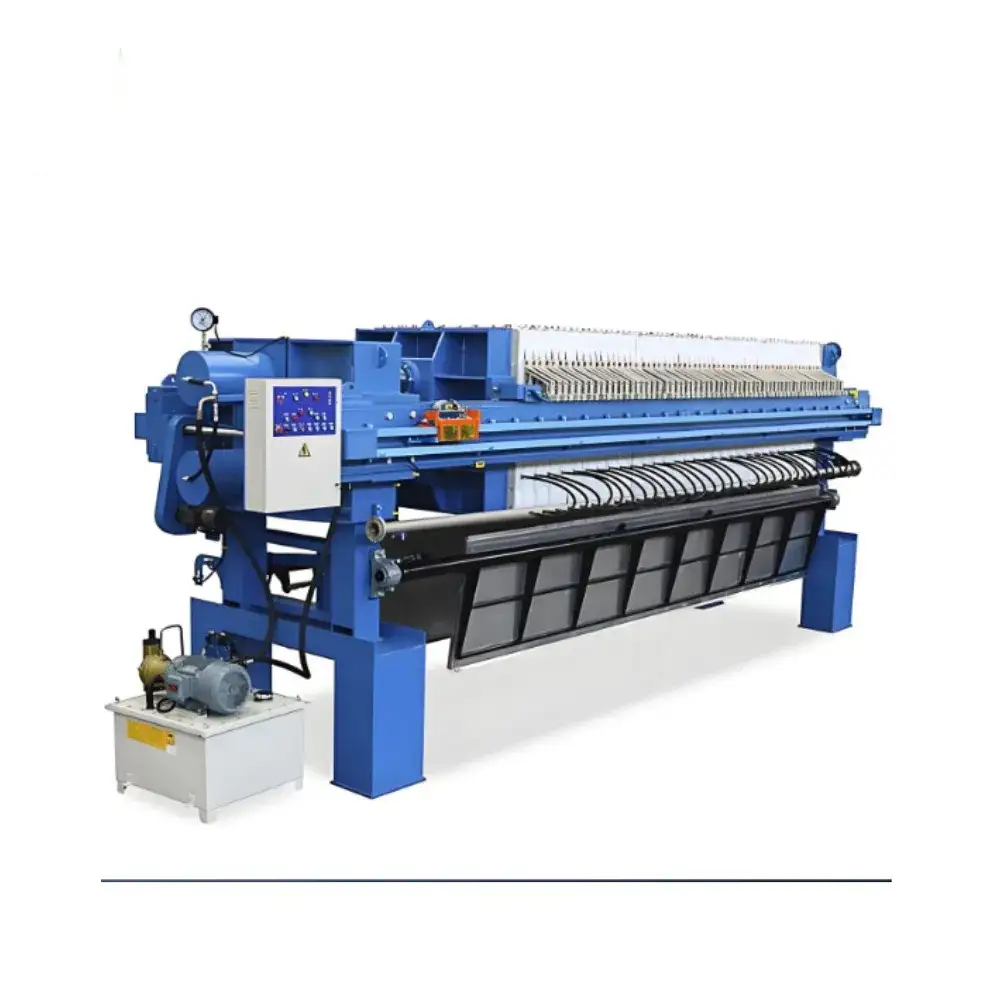

High-Efficiency Plate and Frame Filter Press Equipment for Sludge Dewatering

The plate and frame filter press uses pressure difference and filter cloth filtration to separate the solid-liquid mixture. It is mainly composed of a frame, filtration, automatic plate pulling, hydraulic and electrical control parts. It has the advantages of good separation effect, wide application range, high degree of automation, energy saving and environmental protection. It is suitable for sludge dehydration in urban sewage treatment, pharmaceutical, electroplating and other industries. It is an ideal equipment for environmental management and resource recovery.

The High-Efficiency Plate And Frame Filter Press Equipment For Sludge Dewatering is an industrial pressure filtration system designed for efficient solid-liquid separation and sludge dewatering. Using a series of filter plates, frames, filter cloths, hydraulic components, and a controlled filtration chamber, the equipment separates liquid from suspended solids and forms a dewatered filter cake.

Plate and frame filter presses are widely used in municipal wastewater treatment, industrial wastewater treatment, food processing, chemical production, mining, mineral processing, pharmaceutical manufacturing, paper production, and other industries where effective sludge or slurry dewatering is required.

For factories and wastewater treatment facilities that need reliable batch filtration, the plate and frame structure provides a practical solution for concentrating suspended solids and producing a manageable filter cake. The system can be configured according to sludge characteristics, processing requirements, material compatibility, and desired filtration performance.

Efficient Sludge Dewatering

The primary function of the filter press is to reduce the liquid content of sludge through pressure filtration. Sludge is pumped into the filtration chambers formed between the plates and frames. As pressure is applied, liquid passes through the filter cloth while solid particles are retained inside the chambers.

As filtration continues, solids accumulate and form a filter cake. The resulting cake can then be discharged for further treatment, transportation, disposal, composting, drying, or other downstream processing.

Actual dewatering performance depends on sludge concentration, particle characteristics, filter cloth selection, conditioning methods, filtration pressure, and operating parameters.

Plate And Frame Filtration Principle

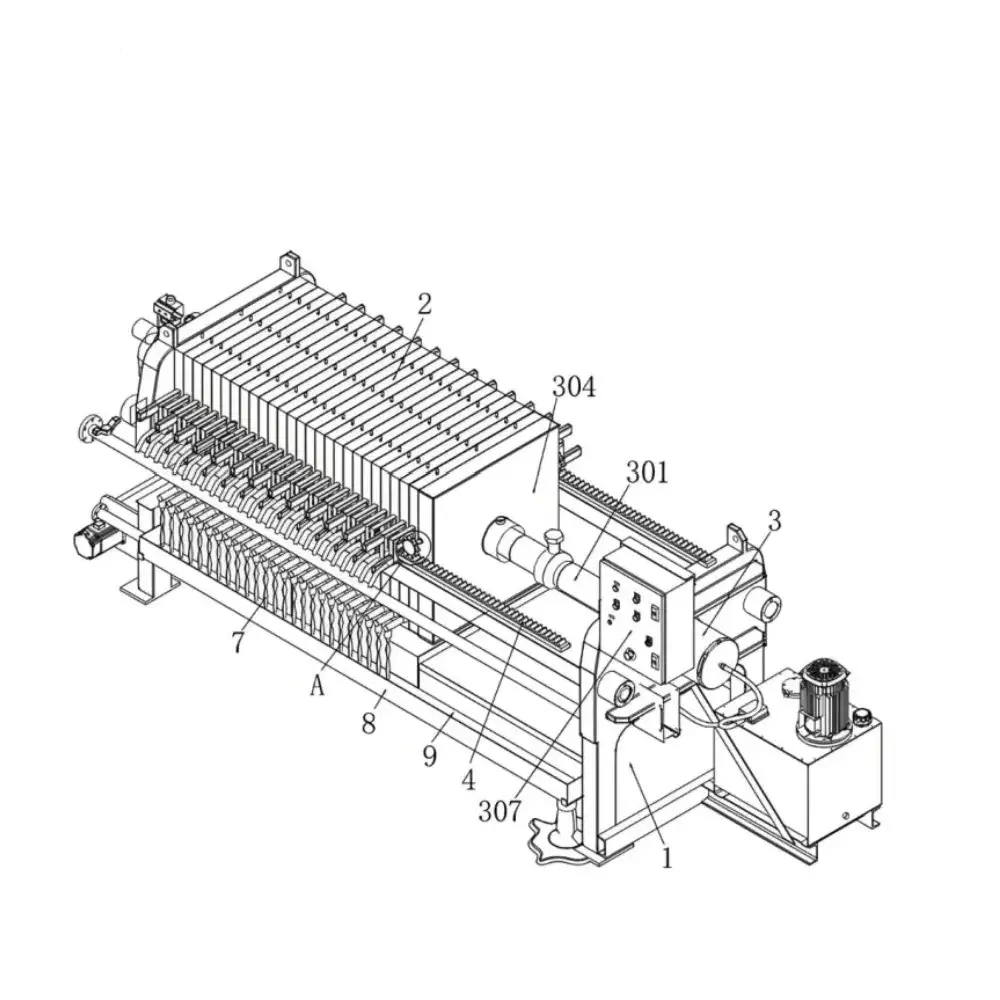

The plate and frame filter press consists of multiple plates and frames arranged in a filtration pack. Filter cloths are positioned between the filtration components to create separation surfaces.

During operation, the feed pump transfers sludge or slurry into the filter chambers. Liquid moves through the filter cloth and exits through the filtrate channels, while solid particles remain within the chamber.

Once the chambers are sufficiently filled, the filtration cycle is stopped and the plates are opened. The accumulated filter cake can then be removed before the next cycle begins.

This straightforward mechanical filtration principle makes the equipment suitable for a wide range of industrial solid-liquid separation applications.

High-Pressure Solid-Liquid Separation

Pressure filtration is particularly useful when gravity settling or conventional screening cannot provide the required level of solid-liquid separation.

The filter press applies mechanical pressure to the sludge inside the filtration chambers. The filter cloth provides a controlled separation barrier, allowing filtrate to pass while retaining suspended solids.

Different filter cloth materials and filtration configurations can be selected according to particle size, sludge composition, chemical characteristics, and required filtration performance.

Suitable For Wastewater Sludge

The equipment can be used for sludge generated by municipal and industrial wastewater treatment systems. Depending on the feed characteristics, applications may include activated sludge, chemically precipitated sludge, industrial process sludge, and other suitable solid-containing wastewater streams.

For wastewater treatment plants, effective sludge dewatering can reduce the volume and handling requirements of residual solids. The dewatered cake can then be transferred to suitable downstream treatment or disposal processes.

Industrial Wastewater Applications

Industrial wastewater can contain suspended solids, precipitated materials, process residues, and other particulate matter that require separation before further treatment or disposal.

The Sludge Dewatering Filter Press can be integrated into industrial wastewater treatment systems to separate solids from liquid streams.

Potential applications include chemical plants, food processing facilities, paper mills, textile factories, mineral processing operations, pharmaceutical facilities, and other industrial production environments.

The appropriate filter press configuration should be selected according to the actual wastewater composition and treatment requirements.

Hydraulic Plate Closing System

A hydraulic closing system can be used to compress and hold the filter plate assembly together during filtration.

Stable plate compression helps maintain the required sealing condition between adjacent filtration chambers. The hydraulic system can be configured according to the size and operating requirements of the filter press.

Reliable hydraulic operation is important for maintaining stable filtration cycles and reducing the risk of leakage during pressure filtration.

Filter Cloth Selection

Filter cloth is one of the most important components of a plate and frame filter press. Different sludge and slurry characteristics require different cloth materials, weave structures, and filtration properties.

Common filter cloth materials may include polypropylene, polyester, and other application-specific materials.

The selection should consider particle size, chemical compatibility, temperature, viscosity, filtration rate, and desired cake characteristics. Proper cloth selection can improve filtration stability and extend operating life.

Filter Cake Formation

As suspended solids accumulate inside the filtration chambers, a filter cake gradually forms on the filter cloth surface.

The thickness and structure of the filter cake depend on the characteristics of the feed material and the filtration process. A properly formed cake provides additional filtration resistance while helping retain fine particles.

After the filtration cycle is completed, the plates can be separated and the cake removed. Depending on the machine configuration, cake discharge can be manual, semi-automatic, or integrated with additional handling equipment.

Filtrate Collection

During the filtration process, separated liquid is collected through the internal filtrate channels and directed to a designated collection system.

The recovered liquid may be returned to the wastewater treatment process, transferred to another treatment stage, or handled according to the production process.

The filtrate collection arrangement can be configured according to the plant layout and treatment system requirements.

Sludge Conditioning Compatibility

Some types of sludge benefit from chemical or physical conditioning before pressure filtration. Conditioning can improve particle flocculation and help create a more permeable filter cake.

The filter press can therefore be integrated with upstream sludge conditioning equipment such as polymer dosing systems, mixing tanks, or coagulation and flocculation units when required.

The appropriate conditioning method depends on the characteristics of the sludge and should be determined through application testing.

Batch Filtration Operation

Unlike continuous screw presses or certain centrifuge systems, a plate and frame filter press normally operates through repeated filtration cycles.

Each cycle includes plate closing, sludge feeding, pressure filtration, filtrate collection, cake formation, plate opening, and cake discharge.

This batch filtration method provides flexibility for applications where sludge production varies or where high-pressure dewatering is required at specific intervals.

Applications In Food Processing

Food processing facilities can generate wastewater containing organic solids, suspended particles, and process residues.

A suitable plate and frame filter press can help separate these solids from wastewater streams or process slurries. Applications may include food production, beverage processing, starch processing, agricultural product processing, and other suitable industries.

Materials and filter cloths should be selected according to the characteristics of the processed material.

Mining And Mineral Processing

Mineral processing plants frequently handle slurries containing fine mineral particles and process water.

Plate and frame filter presses can be used for dewatering suitable mineral slurries, concentrates, tailings, and other solid-containing process streams.

The equipment can help produce a filter cake that is easier to transport, store, or process further while allowing separated liquid to be collected for reuse or additional treatment.

Chemical And Pharmaceutical Applications

Chemical and pharmaceutical production may generate process slurries that require controlled solid-liquid separation.

With appropriate corrosion-resistant materials, filter cloths, seals, and filtration configurations, the equipment can be adapted to suitable chemical processing applications.

Material compatibility should always be evaluated according to the chemical composition, concentration, temperature, and operating conditions of the process stream.

Compact Industrial Layout

A plate and frame filter press provides a relatively compact filtration solution compared with some large settling or storage systems.

The filtration plates are arranged in a compact assembly, while pumps, hydraulic equipment, filtrate collection systems, and sludge conditioning equipment can be positioned around the main machine.

This makes the system suitable for many industrial wastewater treatment plants and production facilities where available floor space must be considered.

Durable Industrial Construction

Industrial filter presses are designed for repetitive filtration cycles and demanding operating environments.

Depending on the application, components can be selected for resistance to moisture, chemicals, abrasion, and mechanical stress. The frame, plates, filter cloths, hydraulic system, pumps, seals, and piping should be maintained regularly to ensure stable operation.

Routine inspection and timely replacement of wear components can help maintain filtration performance.

Customized Filter Press Solutions

Different sludge types require different filtration configurations. The appropriate filter press should be selected according to feed flow, solids concentration, particle characteristics, pH, temperature, filtration requirements, and desired cake condition.

Customers can provide sludge samples, wastewater analysis, production information, and treatment capacity requirements for equipment evaluation.

Customized options may include plate size, filtration area, plate material, filter cloth, hydraulic system, feed pump, cake discharge method, control system, and auxiliary equipment.

Integration With Complete Wastewater Treatment Systems

The filter press can serve as a sludge dewatering stage within a larger wastewater treatment system.

A typical process may include wastewater pretreatment, screening, equalization, coagulation and flocculation, clarification or biological treatment, sludge thickening, sludge conditioning, filter press dewatering, and final sludge handling.

The exact process depends on wastewater characteristics and the required treatment objectives.

B2B Industrial Sludge Dewatering Solution

For wastewater treatment contractors, industrial factories, environmental engineering companies, sewage treatment plants, and equipment distributors, the High-Efficiency Plate And Frame Filter Press Equipment For Sludge Dewatering provides a practical solution for pressure filtration and solid-liquid separation.

Its configurable filtration area, filter cloth selection, hydraulic system, plate materials, and auxiliary equipment allow the system to be adapted to different industrial requirements.

For accurate equipment selection, customers should provide information such as sludge type, feed concentration, flow rate, operating temperature, pH, expected filtration cycle, and required dewatering performance.

Key Features
High-Efficiency Sludge Dewatering
Plate And Frame Filter Press Design
Efficient Solid-Liquid Separation
Pressure Filtration Operation
Hydraulic Plate Closing
Replaceable Filter Cloth
Effective Filter Cake Formation
Suitable For Industrial Wastewater
Batch Filtration Operation
Flexible Filtration Area
Customized Equipment Configuration
Easy Integration With Treatment Systems
Main Applications
Municipal Wastewater Treatment
Industrial Wastewater Treatment
Sewage Sludge Dewatering
Chemical Industry
Food Processing
Beverage Production
Pharmaceutical Industry
Paper Mill Wastewater
Textile Industry
Mining And Mineral Processing
Agricultural Wastewater
Industrial Slurry Dewatering
FAQs
1. What Is A Plate And Frame Filter Press?

A plate and frame filter press is a pressure filtration machine that separates solids from liquids by pumping sludge or slurry into filtration chambers containing filter cloths.

2. What Is A Plate And Frame Filter Press Used For?

It is commonly used for sludge dewatering, industrial wastewater treatment, slurry filtration, solid-liquid separation, and process filtration.

3. How Does The Filter Press Dewater Sludge?

Sludge is pumped into the filtration chambers. Pressure forces liquid through the filter cloth while solid particles are retained, gradually forming a dewatered filter cake.

4. Can It Be Used For Industrial Wastewater?

Yes. It can be configured for suitable industrial wastewater and process sludge applications, including chemical, food, paper, textile, pharmaceutical, and mineral processing industries.

5. What Type Of Filter Cloth Is Used?

Filter cloth selection depends on the sludge characteristics and application. Polypropylene, polyester, and other suitable filtration materials can be considered according to chemical compatibility and particle characteristics.

6. Does The Filter Press Operate Continuously?

A conventional plate and frame filter press normally operates in batch cycles. Each cycle includes feeding, pressure filtration, cake formation, plate opening, and cake discharge.

7. Can The Filter Press Be Automated?

Yes. Depending on the configuration, hydraulic closing, plate movement, feeding, filtration monitoring, and cake discharge can be equipped with automation or control systems.

8. Can It Handle Chemical Sludge?

Yes, suitable chemical sludge can be processed when the filter plates, filter cloth, seals, frame, and other wetted components are selected for the specific chemical conditions.

9. How Do I Choose The Right Filter Press?

Important factors include sludge type, flow rate, solids concentration, particle characteristics, pH, temperature, required filtration area, filtration cycle, and desired cake condition.

10. Can The Equipment Be Customized?

Yes. The filter press can be configured with different plate sizes, filtration areas, filter cloths, hydraulic systems, feed pumps, discharge arrangements, control systems, and auxiliary equipment according to the application.

Why Choose Us
Professional Sludge Dewatering Solutions

We focus on industrial solid-liquid separation and sludge dewatering equipment for wastewater treatment, process filtration, agricultural waste, and industrial applications.

Application-Based Equipment Selection

We evaluate sludge characteristics, solids concentration, flow requirements, material compatibility, and filtration objectives to help customers select a suitable filter press configuration.

Customized Filtration Components

Filter plates, frames, filter cloths, hydraulic systems, pumps, seals, control systems, and auxiliary equipment can be configured according to different operating conditions.

Stable Industrial Construction

The equipment is designed for repeated filtration cycles and can be configured with suitable materials and components for demanding industrial environments.

Complete System Integration

The filter press can be integrated with sludge conditioning, feeding, filtrate collection, sludge conveying, drying, wastewater treatment, and other downstream or upstream equipment.
