Plate and Frame Filter Presses for Sludge Treatment, Intelligent Mud Treatment Dewatering Filter Press Machine



Intelligent Sludge Dewatering

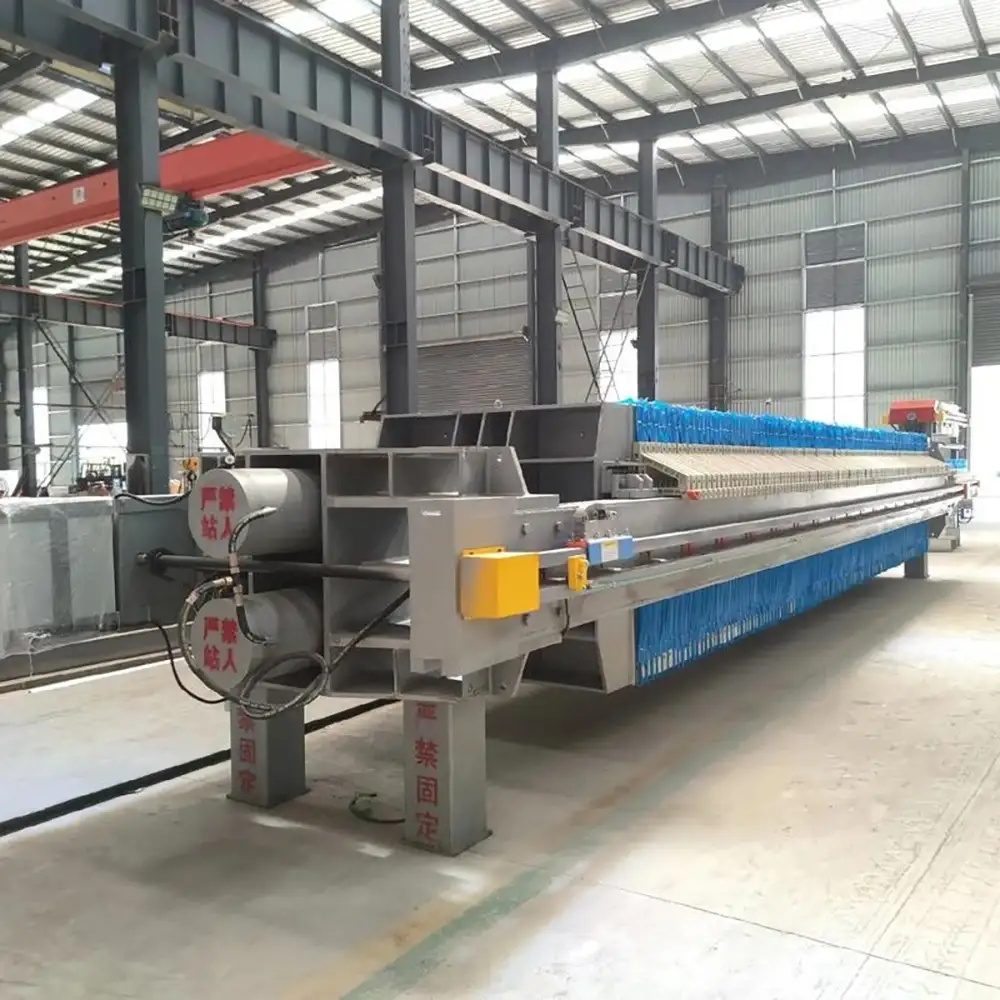

The Intelligent Sludge Dewatering Filter Press can be equipped with automatic control functions according to the system configuration.

Control components can monitor and manage selected operating parameters such as feeding, hydraulic plate closing, filtration cycle, pressure, liquid level, or other process conditions.

Automatic operation can reduce the need for continuous manual intervention and help operators manage repeated filtration cycles more efficiently.

The actual automation level depends on the selected equipment configuration and the requirements of the wastewater treatment project.

Efficient Sludge Treatment

Sludge treatment often requires reducing the water content before transportation, disposal, drying, incineration, composting, recovery, or other downstream processes.

Mechanical pressure filtration can remove a significant portion of free and interstitial water from suitable sludge.

The resulting filter cake has a higher solids concentration than the original feed sludge, making it easier to collect and handle.

Actual cake moisture and dewatering performance depend on sludge characteristics, conditioning, filter cloth, pressure, filtration time, and other operating parameters.

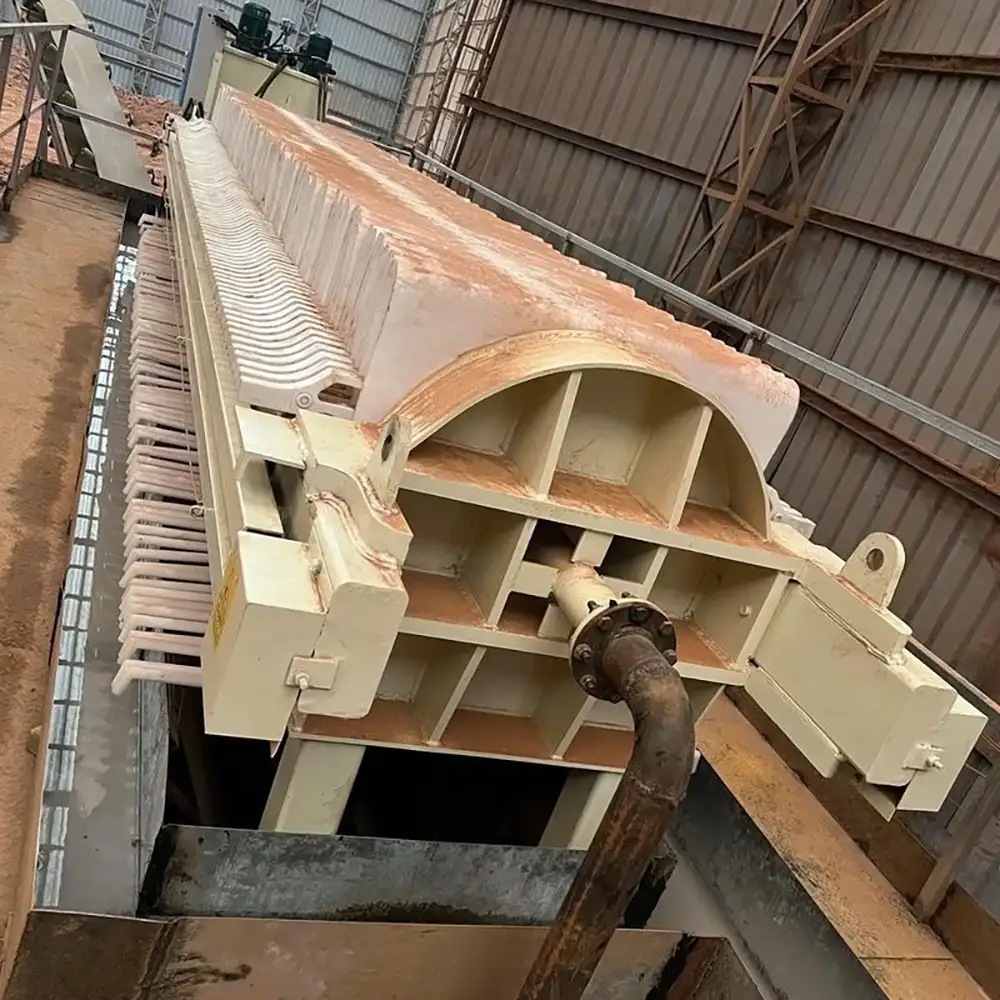

Mud Treatment And Dewatering

The term "mud" can refer to different types of water-containing solid materials generated by wastewater treatment, construction, mining, drilling, or industrial processes.

The filter press can be configured for suitable mud and slurry applications where pressure filtration is appropriate.

Fine particles can be retained by the filter cloth while liquid is separated and collected through the filtrate channels.

Before selecting equipment, the physical and chemical properties of the mud should be evaluated to determine the appropriate filter cloth, plate material, feed system, and filtration configuration.

Wastewater Sludge Treatment

Wastewater treatment plants generate sludge during sedimentation, biological treatment, coagulation, flocculation, and other processes.

A plate and frame filter press can be installed as a sludge dewatering stage after sludge collection, thickening, or conditioning.

The machine can receive concentrated sludge from an upstream treatment process and separate liquid from solids through pressure filtration.

The dewatered sludge cake can then be transported to further treatment or disposal facilities.

Industrial Wastewater Applications

Industrial wastewater sludge can have highly variable characteristics depending on the manufacturing process.

Chemical plants may generate chemically precipitated sludge, while food processing plants can produce organic sludge. Paper mills, textile factories, metal processing facilities, pharmaceutical plants, and mining operations may generate different types of process sludge.

A plate and frame filter press can be configured according to the characteristics of these compatible materials.

For corrosive or abrasive applications, suitable materials and components should be selected according to the actual operating environment.

Sludge Conditioning

Some sludge types have poor filtration characteristics because the particles are very fine or retain water strongly.

Sludge conditioning can improve the filtration process by changing particle structure and promoting floc formation.

Polymer dosing, coagulation, or other suitable conditioning methods may be used upstream of the filter press.

A conditioning system can include chemical storage, dosing pumps, mixing equipment, and control components.

The appropriate chemical and dosage should be determined based on sludge analysis and application testing.

Filter Cloth Filtration

Filter cloth is a key component of the plate and frame filtration process.

The cloth must allow liquid to pass through while retaining the required solid particles.

Different filter cloth materials, weave patterns, permeability levels, and surface characteristics can be selected according to sludge properties.

Polypropylene and polyester filter cloths are commonly considered for industrial applications, while specialized materials may be required for certain chemical or temperature conditions.

Proper cloth selection can influence filtrate clarity, filtration speed, cake release, and service life.

Filter Cake Formation

As sludge fills the filtration chambers, solid particles gradually accumulate on the filter cloth.

The resulting filter cake becomes increasingly thick as the filtration cycle continues.

The structure of the cake depends on particle characteristics, conditioning, pressure, filtration time, and other process variables.

Once the filtration cycle is complete, the plates can be opened and the cake removed.

The cake can then be transferred by conveyor, container, screw conveyor, or another suitable handling system.

Hydraulic Plate Closing System

A hydraulic closing system provides the force required to compress the filter plates and maintain the filtration chambers during operation.

Stable plate compression helps maintain sealing between the plates and reduces the risk of leakage.

Hydraulic components can be selected according to the filter press size and operating requirements.

Regular inspection of hydraulic oil, hoses, seals, cylinders, and pressure components can help maintain reliable operation.

Automatic Cake Discharge

Depending on the machine configuration, plate movement and cake discharge can be manually operated, semi-automated, or integrated with automatic systems.

Automatic plate opening can reduce repetitive operator work during filtration cycles.

A suitable discharge arrangement can also be connected to conveyors or collection systems for more efficient sludge handling.

The appropriate automation level depends on the required production capacity and plant operating conditions.

Filtrate Collection

During pressure filtration, separated liquid passes through the filter cloth and enters internal filtrate channels.

The filtrate is then directed toward a collection outlet.

In wastewater treatment systems, the separated liquid may be returned to an appropriate treatment stage or handled according to the plant's process design.

The filtrate collection system can be configured according to the filter plate design and installation requirements.

Municipal Sludge Dewatering

Municipal wastewater treatment plants can generate substantial amounts of sludge requiring regular dewatering.

A plate and frame filter press provides a batch pressure filtration option for suitable municipal sludge.

The equipment can be integrated with sludge thickening, conditioning, polymer dosing, filtrate collection, cake conveying, and final sludge handling systems.

Equipment selection should consider daily sludge production, solids concentration, operating schedule, available space, and desired cake handling method.

Food Processing And Organic Sludge

Food processing wastewater can contain organic solids and suspended materials that require separation.

A suitable filter press can be used to dewater compatible food processing sludge after appropriate pretreatment.

The filtration system can help reduce sludge volume and prepare solids for subsequent treatment or disposal.

Materials and filtration components should be selected according to the process conditions and cleaning requirements.

Mining And Mineral Slurry

Mining and mineral processing operations generate slurries containing solid mineral particles and process water.

Plate and frame filter presses can be used for suitable concentrates, mineral slurries, tailings, and process residues.

Pressure filtration produces a solid cake while separated liquid is collected through the filtrate system.

For abrasive applications, wear-resistant components and suitable filter materials can be considered.

Chemical And Pharmaceutical Sludge

Chemical and pharmaceutical production can generate sludge containing process residues, precipitated solids, and other materials.

The filter press can provide controlled batch pressure filtration when the material is compatible with the selected equipment.

For chemically aggressive applications, wetted components, filter plates, seals, and filter cloths should be selected according to chemical compatibility.

Compact Equipment Layout

Plate and frame filter presses arrange multiple filtration chambers in a compact frame structure.

This makes them suitable for wastewater treatment plants and industrial facilities where installation space must be considered.

The filter press can be installed with feed pumps, sludge conditioning tanks, polymer dosing equipment, filtrate tanks, conveyors, and other auxiliary equipment.

The complete system layout can be adjusted according to the available plant space.

Durable Industrial Construction

Sludge treatment equipment may operate in environments exposed to water, chemicals, abrasive solids, pressure, and repeated mechanical movement.

Suitable frame materials, filter plates, hydraulic components, seals, filter cloths, and piping can be selected according to application requirements.

Regular cleaning, inspection, lubrication where applicable, filter cloth maintenance, and replacement of worn components can help maintain stable operation.

Customized Intelligent Filter Press

Different sludge applications require different filtration configurations.

The machine can be customized according to sludge type, feed flow, solids concentration, particle characteristics, pH, temperature, filtration area, cycle time, and desired cake condition.

Automation options can include PLC-based control, pressure monitoring, automatic feeding, hydraulic control, plate movement, cake discharge, and alarm functions depending on the selected system.

Customers can provide sludge samples, wastewater analysis, production information, and treatment requirements for equipment evaluation.

Complete Sludge Treatment Integration

The filter press can serve as one part of a complete wastewater and sludge treatment system.

A representative process may include screening, equalization, coagulation, flocculation, sedimentation or flotation, sludge thickening, conditioning, pressure filtration, cake discharge, and final sludge handling.

Additional drying, incineration, composting, or other treatment processes can be added when required.

The exact process should be designed according to the sludge properties and final treatment objectives.

B2B Sludge Dewatering Solution

For wastewater treatment contractors, environmental engineering companies, industrial factories, municipal treatment plants, mining companies, food processors, and equipment distributors, the Plate And Frame Filter Press For Sludge Treatment provides a flexible solution for pressure filtration and sludge dewatering.

Customers can purchase an individual filter press or integrate the machine into a complete sludge treatment system.

For accurate equipment selection, customers should provide information such as sludge type, daily volume, solids concentration, moisture content, pH, temperature, chemical characteristics, desired cake condition, and required operating schedule.

Key Features
Plate And Frame Filter Press
Intelligent Sludge Dewatering
Efficient Mud Treatment
Pressure Filtration Technology
Solid-Liquid Separation
Automatic Hydraulic Plate Closing
Optional Automatic Plate Opening
Replaceable Filter Cloth
Effective Filter Cake Formation
Wastewater Sludge Treatment
Flexible Filtration Configuration
Intelligent Control Options
Main Applications
Municipal Wastewater Treatment
Industrial Wastewater Treatment
Sewage Sludge Dewatering
Chemical Industry
Food Processing
Pharmaceutical Industry
Paper Mill Sludge Treatment
Textile Industry
Metal Processing
Mining And Mineral Processing
Industrial Slurry Dewatering
Environmental Protection Projects
FAQs
1. What Is A Plate And Frame Filter Press?

A plate and frame filter press is a pressure filtration machine that separates liquid from sludge, mud, slurry, and other solid-containing materials using filter plates, frames, and filter cloths.

2. How Does The Intelligent Filter Press Work?

The machine pumps sludge into filtration chambers and applies pressure to separate liquid from solids. Depending on configuration, automatic controls can manage feeding, hydraulic closing, filtration monitoring, plate movement, and other operating functions.

3. Can It Be Used For Municipal Sludge?

Yes. Suitable municipal wastewater sludge can be processed after appropriate thickening or conditioning.

4. Can It Treat Industrial Sludge?

Yes. It can be configured for suitable industrial sludge from chemical, food, paper, textile, pharmaceutical, metal processing, mining, and other industries.

5. Does Sludge Need Chemical Conditioning?

Not necessarily. However, certain sludge types can benefit from polymer or other conditioning methods to improve filtration performance.

6. What Is The Difference Between A Plate Filter Press And A Screw Press?

A plate filter press generally uses batch pressure filtration, while a screw press is designed for continuous mechanical dewatering. Selection depends on sludge properties and project requirements.

7. Can The Machine Be Fully Automated?

Depending on the configuration, automatic hydraulic operation, sludge feeding, pressure monitoring, plate movement, cake discharge, and PLC control can be incorporated.

8. What Filter Cloth Should Be Used?

The appropriate filter cloth depends on particle size, sludge characteristics, chemical compatibility, temperature, permeability requirements, and desired cake release.

9. What Happens To The Dewatered Sludge Cake?

The cake can be conveyed for further drying, composting, incineration, recovery, disposal, or other downstream treatment depending on its composition and local requirements.

10. What Information Is Needed To Select A Filter Press?

Important information includes sludge type, flow rate, solids concentration, moisture content, pH, temperature, chemical characteristics, required filtration capacity, operating schedule, and desired cake condition.

Why Choose Us
Intelligent Sludge Treatment Equipment

We provide plate and frame filter presses with optional automation and control functions for efficient sludge dewatering and industrial solid-liquid separation.

Application-Based Configuration

We consider sludge characteristics, feed volume, solids concentration, filtration requirements, and operating conditions when evaluating the appropriate equipment configuration.

Customized Filtration Components

Filter plates, filter cloths, hydraulic systems, pumps, seals, controls, cake discharge systems, and auxiliary equipment can be selected according to the application.

Complete System Integration

The filter press can be integrated with sludge thickening, conditioning, polymer dosing, filtrate collection, conveyors, drying systems, and other wastewater treatment equipment.

Reliable Industrial Design

Suitable materials and components can be selected for wet, corrosive, abrasive, or demanding industrial operating environments.
