Stainless Steel Rotary Rake Type Mechanical Screen/Grille Machine for Wastewater Treatment

Mechanical grille is a type of grille equipment that can automatically remove garbage attached to the grille.
Mechanical grille is one of the early purification equipment in water supply and drainage treatment technology. It greatly reduces the labor intensity of workers, protects their physical health, reduces the head loss of water inflow, and improves the efficiency of pump stations

Stainless Steel Rotary Rake Type Mechanical Screen/Grille Machine for Wastewater Treatment

The Stainless Steel Rotary Rake Type Mechanical Screen/Grille Machine is designed for continuous preliminary screening in municipal sewage treatment plants, industrial wastewater treatment systems, pumping stations, water intake facilities, and other water treatment applications. It automatically intercepts and removes floating and suspended coarse solids before wastewater enters downstream treatment processes.

Wastewater screening is an important preliminary treatment step because large debris such as rags, plastics, paper, fibers, sticks, and other solid materials can cause clogging, pump damage, pipe blockage, and operational problems. Mechanical screens use automated rake mechanisms to continuously remove retained solids from the screening surface, reducing manual cleaning requirements.

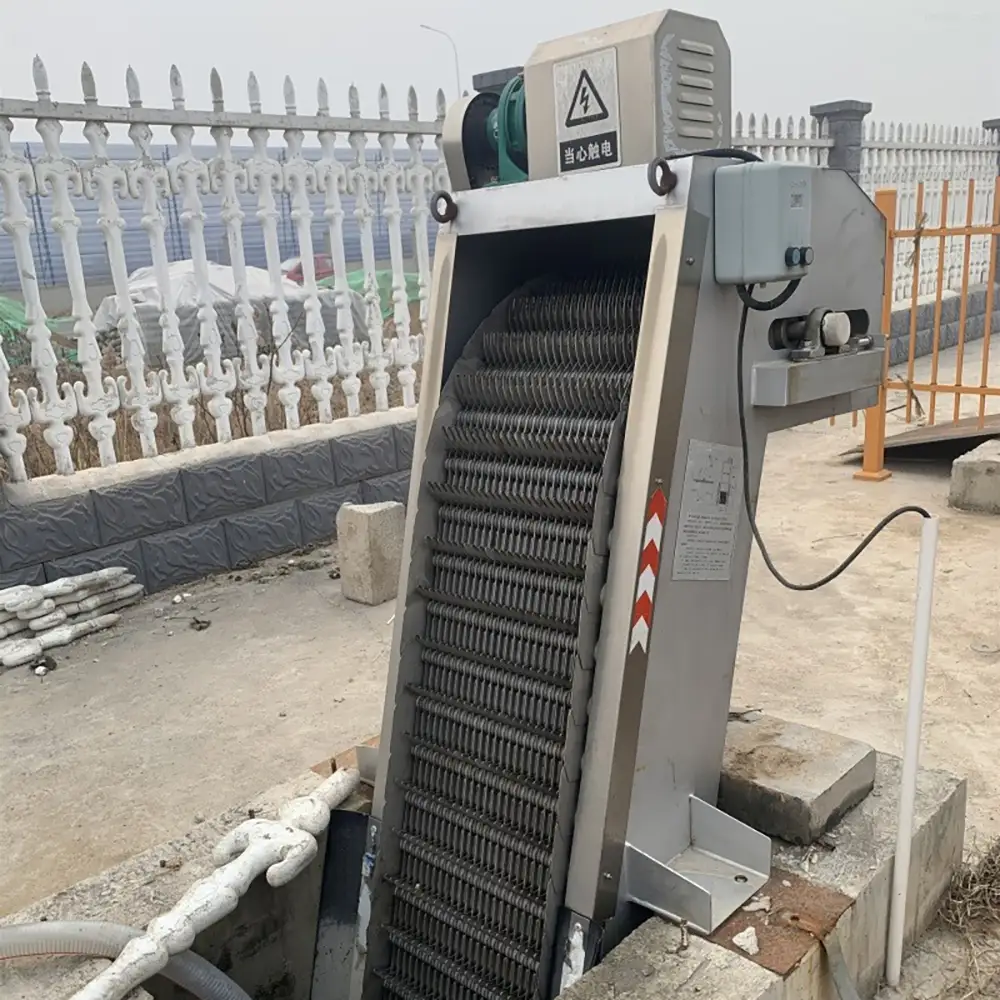

Stainless Steel Construction for Wastewater Applications

The rotary rake mechanical screen can be manufactured with corrosion-resistant stainless steel components, such as SUS304 or SUS316, depending on the wastewater characteristics and project requirements. Stainless steel construction is particularly suitable for wet and corrosive environments where long-term resistance to wastewater exposure is important.

The screen frame, rake teeth, chains, shafts, support components, and other wetted parts can be configured according to the required material specification. Stainless steel rake teeth can provide durable engagement with the screen bars while helping maintain stable screening performance during continuous operation.

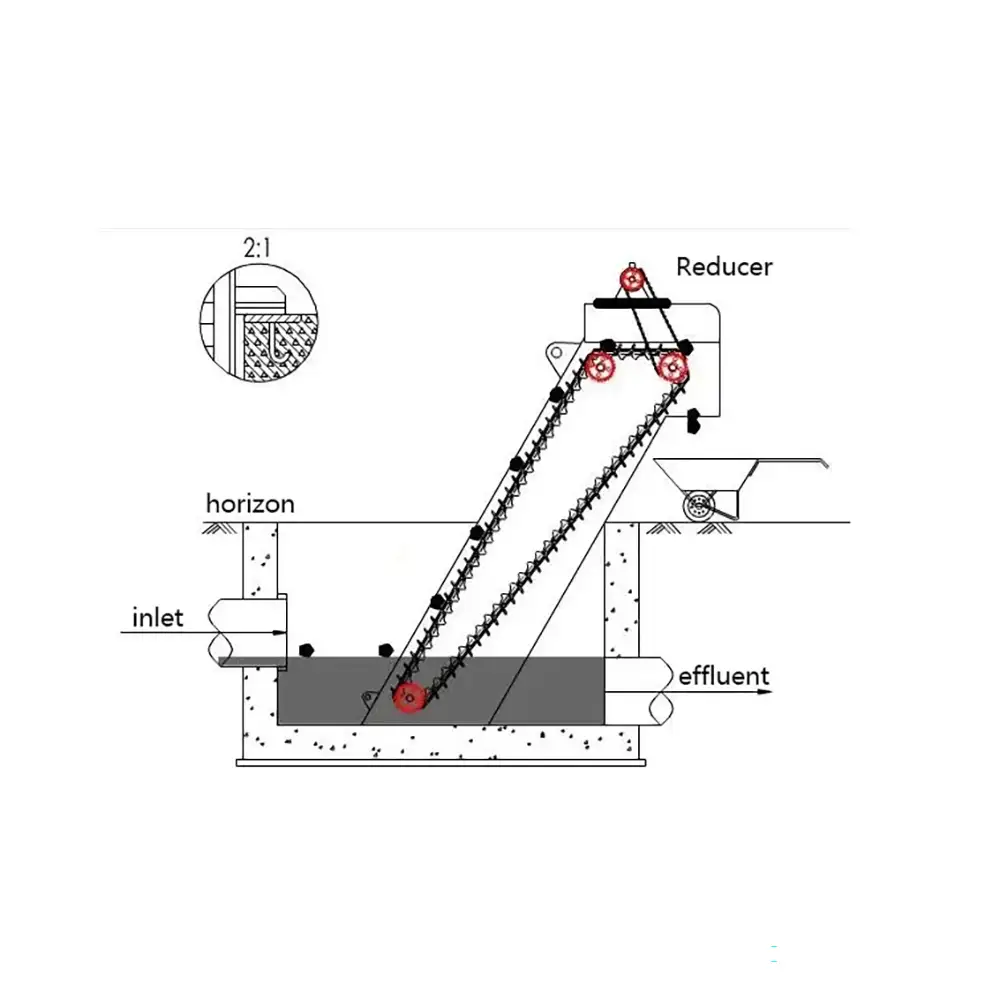

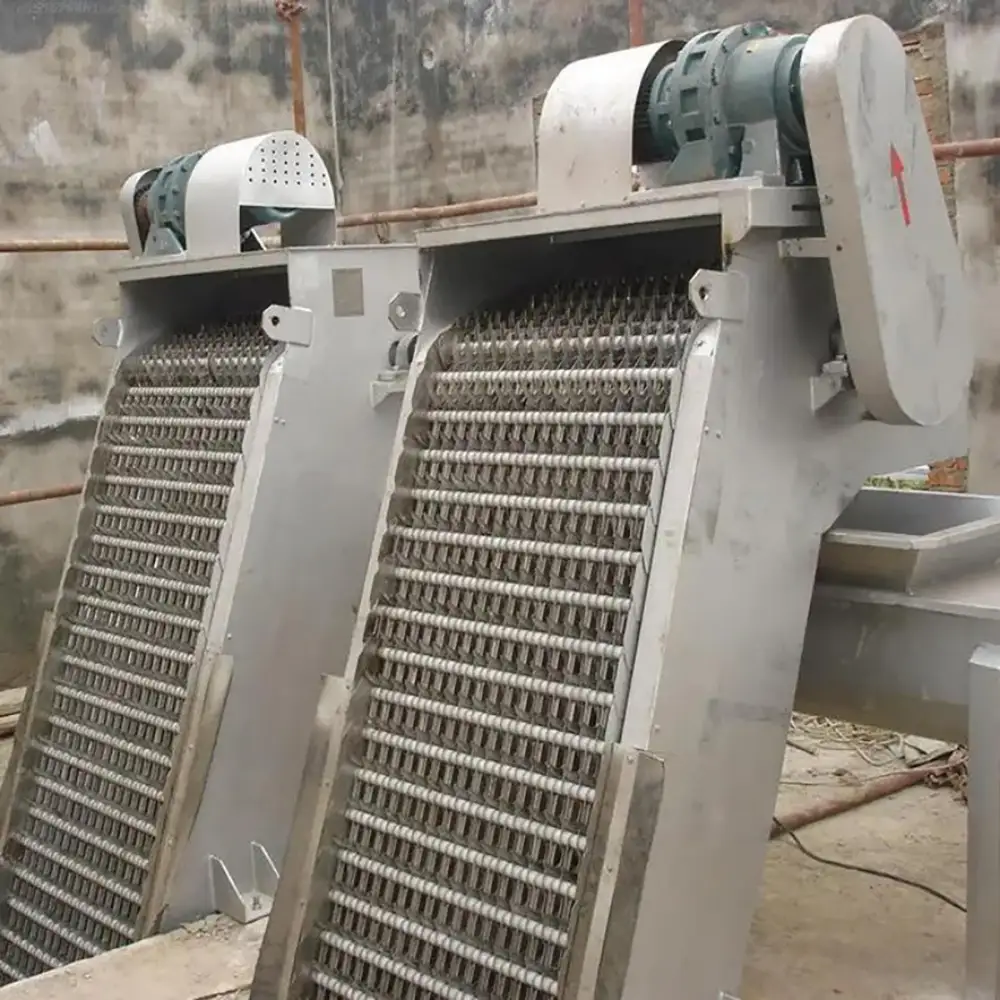

Automatic Rotary Rake Screening Principle

The equipment consists primarily of a screen or grille section, rotary rake mechanism, transmission system, drive motor, frame, guide system, and screenings discharge section.

As wastewater flows through the screen, solids larger than the selected opening are retained on the grille surface. The rotating rake teeth continuously travel along the screen, engage the retained debris, lift it upward, and discharge it at the upper section of the machine.

This rotary rake configuration provides automatic and continuous cleaning of the screen surface. Similar mechanically cleaned bar screens use rake mechanisms connected to chains or other drive systems to lift collected material from the channel and discharge it for subsequent handling.

Effective Suspended Solids and Debris Removal

The mechanical screen is suitable for removing many types of coarse wastewater contaminants, including:

Rags and textile fibers
Plastics and packaging materials
Leaves and organic debris
Paper and floating waste
Hair and fibrous materials
Food processing residues
Large suspended solids
Industrial production debris
Floating trash and miscellaneous solids

The appropriate screen gap should be selected according to wastewater characteristics, required screening performance, hydraulic conditions, and downstream equipment. Fine and coarse screening configurations can be designed for different treatment stages.

Protect Downstream Treatment Equipment

One of the main functions of a mechanical grille machine is protecting downstream equipment. Removing large solids at the inlet can reduce the risk of blockage and interference in pumps, valves, pipelines, aeration systems, biological reactors, clarifiers, and other treatment units.

EPA wastewater treatment guidance identifies screening as an initial treatment operation used to remove objects such as rags, plastics, paper, and metals that could damage or clog downstream equipment.

For plants using biological treatment, MBR, MBBR, DAF, filtration, or other advanced processes, effective preliminary screening can help improve overall system reliability.

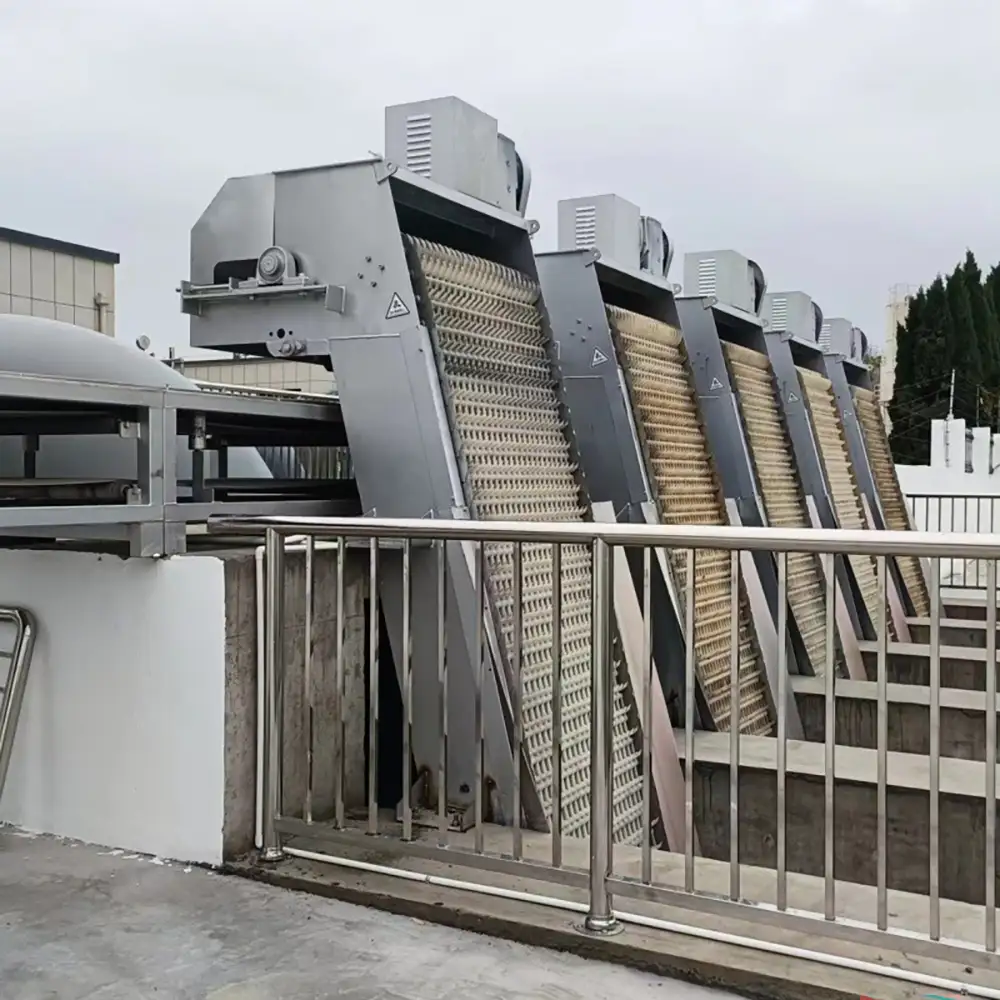

Wide Range of Wastewater Applications

The stainless steel rotary rake screen can be used in many municipal and industrial wastewater applications.

Municipal Sewage Treatment

At municipal wastewater treatment plants, the machine can be installed at the headworks to remove coarse solids from incoming sewage before primary or biological treatment.

Industrial Wastewater

Industrial applications include food processing, slaughterhouses, textile plants, paper mills, chemical production, printing and dyeing facilities, breweries, and other manufacturing industries where wastewater contains fibrous or coarse solids.

Pumping Stations

Installed upstream of pumps, the mechanical screen helps capture rags and debris that could wrap around impellers or obstruct pump passages.

Water Intake and Pretreatment

The equipment can also be used for raw water screening, drainage systems, stormwater applications, and other facilities requiring automatic removal of larger solids.

Continuous and Automatic Operation

The rotary rake system is designed for automatic operation, reducing the need for frequent manual screening. Depending on the control configuration, the machine can operate continuously or according to predetermined operating cycles and wastewater level conditions.

Automatic operation can be integrated with electrical control panels, level sensors, overload protection, alarms, and other plant control equipment. This makes it suitable for modern wastewater treatment plants where reliable unattended or low-intervention operation is preferred.

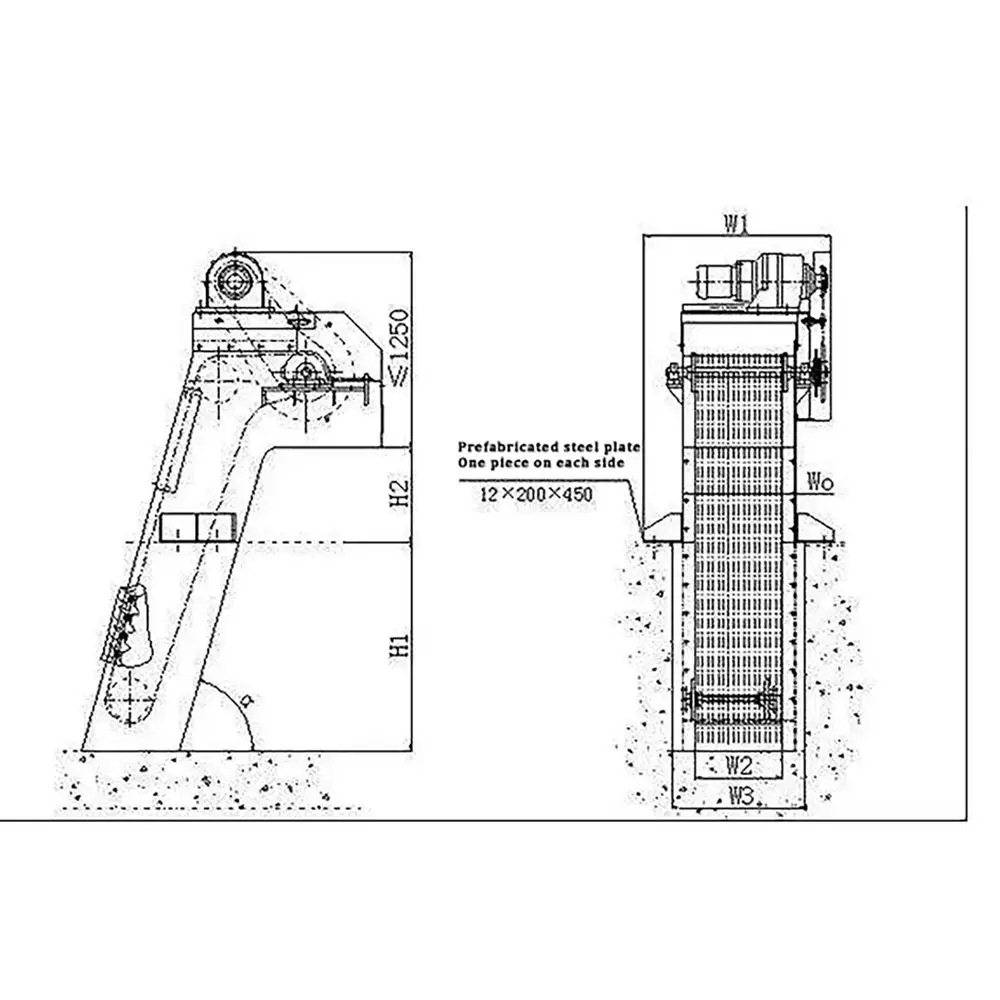

Adjustable Screening Configuration

Different projects require different screening capacities. The equipment can therefore be configured according to:

Channel width
Channel depth
Wastewater flow rate
Screen opening
Installation angle
Rake speed
Material specification
Discharge height
Motor power
Control requirements

For example, commercially available rotary mechanical screens can use different bar gaps and channel dimensions depending on the application.

Screenings Discharge and Handling

After the rotary rake removes solids from the screen surface, the collected material can be discharged into a screenings container, chute, screw conveyor, belt conveyor, or other solids-handling equipment.

For larger wastewater plants, the mechanical screen can be integrated with downstream screenings washing, compacting, conveying, and collection systems. This creates a more complete automated preliminary treatment line and can reduce manual handling of wastewater debris.

Durable and Low-Maintenance Design

The stainless steel structure provides durability in demanding wastewater environments. A properly selected drive system, chain arrangement, rake mechanism, and guide structure can provide stable operation while simplifying routine inspection.

Regular maintenance should include checking the drive motor, chains, rake teeth, guides, fasteners, overload protection, and discharge area. Operators should also remove accumulated material from surrounding areas and follow the equipment manufacturer's recommended lubrication and inspection procedures. EPA training guidance emphasizes appropriate maintenance and adjustment of mechanically cleaned screens to maintain reliable operation.

Why Choose Us
Stainless steel construction suitable for demanding wastewater environments
Rotary rake design for automatic continuous screening
Efficient removal of coarse solids, rags, plastics, and fibrous debris
Multiple screen opening configurations available
Suitable for municipal and industrial wastewater
Helps protect pumps, pipelines, valves, and downstream treatment units
Automatic operation reduces manual screening work
Flexible channel width, depth, angle, and discharge configurations
Compatible with conveyor and screenings collection systems
Designed for integration into complete wastewater treatment plants
FAQ
1. What is a rotary rake mechanical screen?

A rotary rake mechanical screen is an automatic wastewater screening machine that uses moving rake teeth to continuously remove solids retained on a fixed screen or grille.

2. What does the mechanical screen remove?

It can remove rags, plastics, paper, fibers, leaves, hair, food residues, floating debris, and other coarse suspended or floating solids.

3. Why is mechanical screening important?

Mechanical screening provides preliminary solids removal and helps protect downstream pumps, pipelines, valves, biological treatment equipment, and other process units from clogging or damage.

4. Is stainless steel suitable for wastewater treatment?

Yes. Stainless steel such as SUS304 or SUS316 is commonly used for wastewater screening equipment where corrosion resistance and durability are required.

5. What is the difference between a mechanical screen and a manual grille?

A manual grille requires operators to remove accumulated solids manually, while a mechanical screen uses an automated rake mechanism to lift and discharge retained material.

6. Can the screen operate continuously?

Yes. Rotary rake screens can be configured for continuous or intermittent automatic operation depending on the wastewater flow and control strategy.

7. Can the screen opening be customized?

Yes. Screen opening, channel dimensions, installation angle, rake configuration, discharge height, and other parameters can be selected according to the treatment requirements.

8. Where is a rotary rake screen installed?

It is normally installed at the inlet or preliminary treatment stage of wastewater treatment plants, pumping stations, industrial effluent treatment systems, and certain water intake applications.

9. Can it be connected to a conveyor?

Yes. Screenings can be discharged to a screw conveyor, belt conveyor, collection chute, or other solids-handling equipment.

10. Is the equipment suitable for industrial wastewater?

Yes. It can be used for industrial wastewater containing coarse solids and fibrous materials, including food processing, textile, paper, slaughterhouse, and other industrial effluents.

11. Does the machine require regular maintenance?

Yes. Routine inspection of the motor, transmission system, chains, rake teeth, guides, fasteners, and discharge area is recommended for reliable long-term operation.

12. Can the rotary rake mechanical screen be integrated into a complete treatment system?

Yes. It can be used as preliminary screening before sedimentation, DAF, biological treatment, MBBR, MBR, filtration, sludge treatment, and other wastewater treatment processes.
