Semi-Automatic Material Lifter for Lines Tubes 220V/440V/380V Voltage Customizable Dimensions Motor Hoist

Semi-Automatic Material Lifter for Lines and Tubes
Product Overview

The Semi-Automatic Material Lifter for Lines and Tubes is designed to assist manufacturers and industrial operators with lifting, positioning, and transferring long materials such as tubes, pipes, profiles, and other elongated components. Combining a motor-driven hoisting system with a practical material support structure, this equipment can help reduce manual handling and improve workflow efficiency in production environments.

Material lifting is an important part of many metalworking and manufacturing processes. Long tubes and pipes can be difficult to move manually because of their length, weight, and shape. A dedicated material lifter provides a controlled method for raising materials to a required working position or transferring them between production stations.

The semi-automatic design offers a balance between operator control and powered lifting. Depending on the production line, the operator can position the material and control the lifting movement while the motorized hoist performs the primary lifting operation.

The machine can be customized according to material dimensions, lifting height, load requirements, factory layout, and production-line configuration.

Model	Fork size (mm)	Rising height (mm)	Fork load rating (kg)	Overall net weight (kg)	Dimensions (mm)	mode
JS-3.5	500*700	3500	400	145	800x850x2050	Manal
JS-5	500*700	5000	340	170	800x850x2050	Manal
JS-6.5	500*700	6500	300	190	800x850x2050	Manal
JS-7.9	500*700	7900	200	210	800x850x2050	Manal

item	value
automatic grade	Semi-automatic
voltage	220V, 380V, 440V
machinery capacity	100 pieces/ month
key machines	motor and hoist
Weight (KG)	220
brand name	SOAR
dimension(l*w*h)	Customizable
place of origin	SHANDONG,CHINA
power	Customizable
Function	lifter

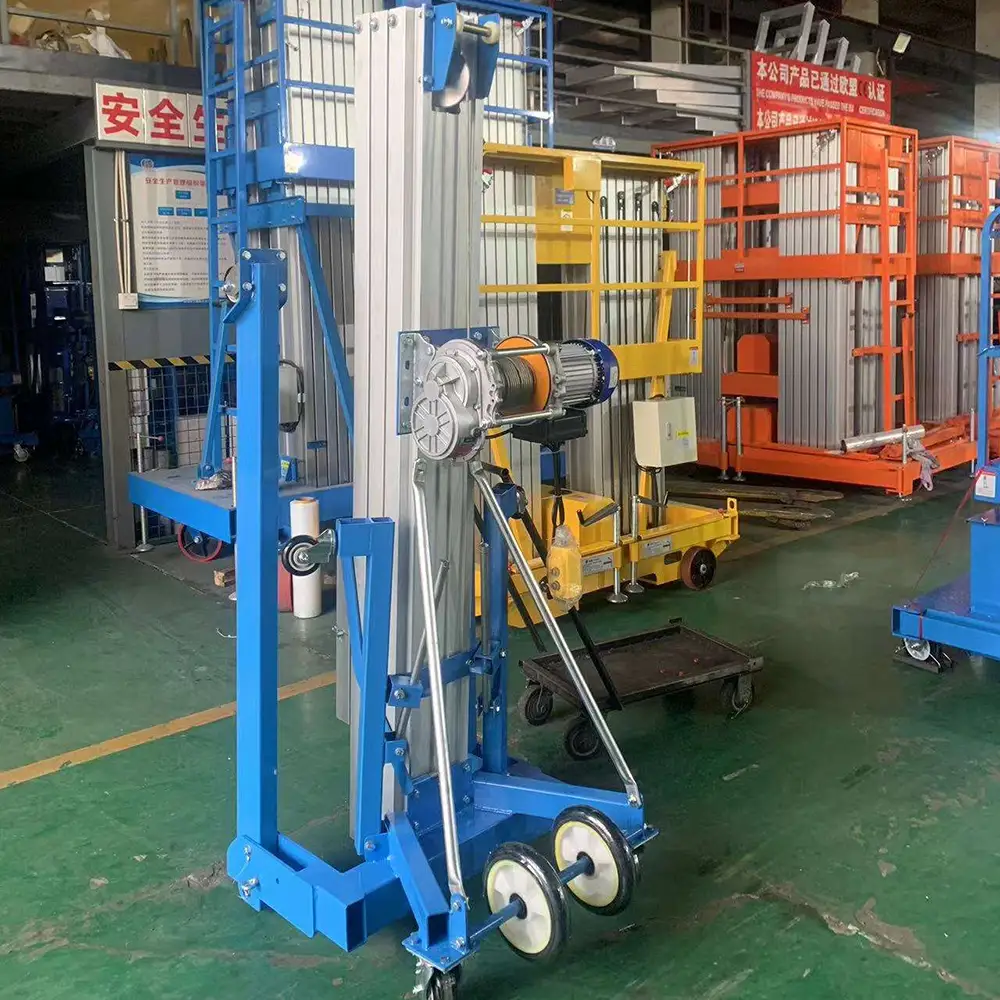

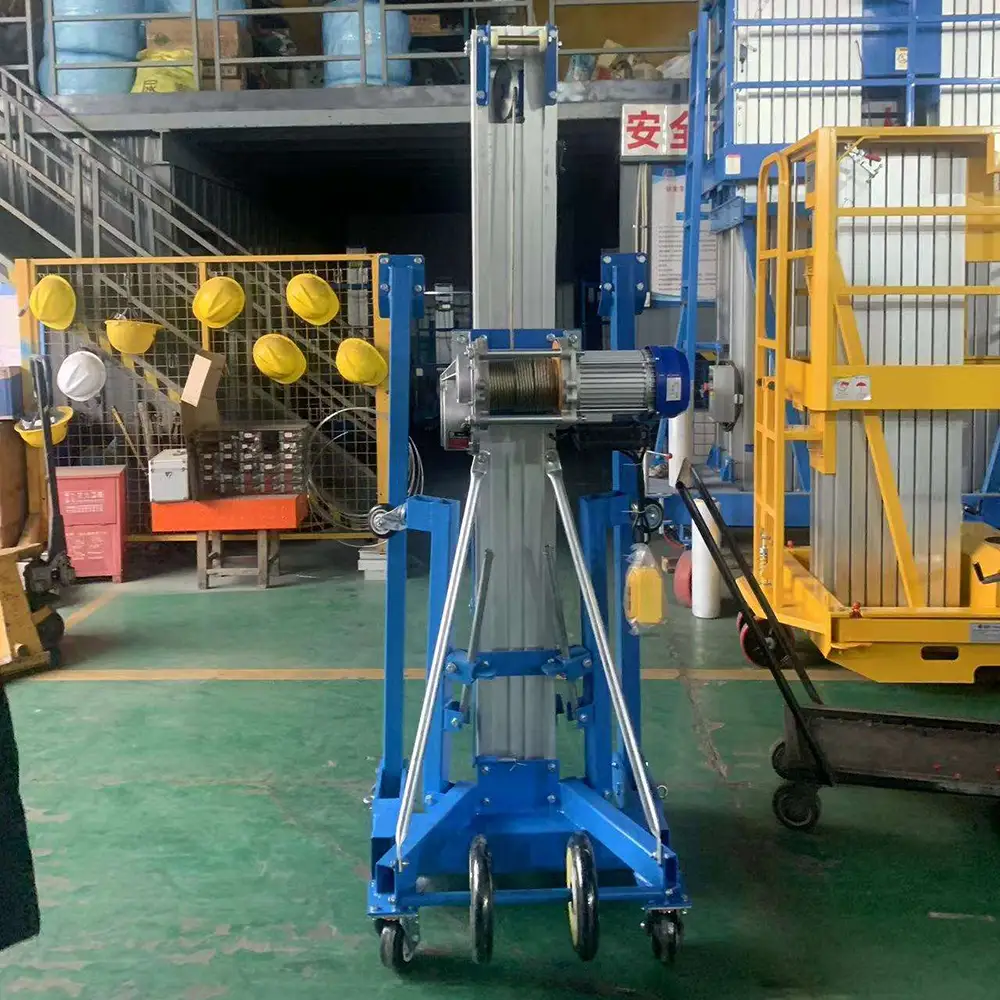

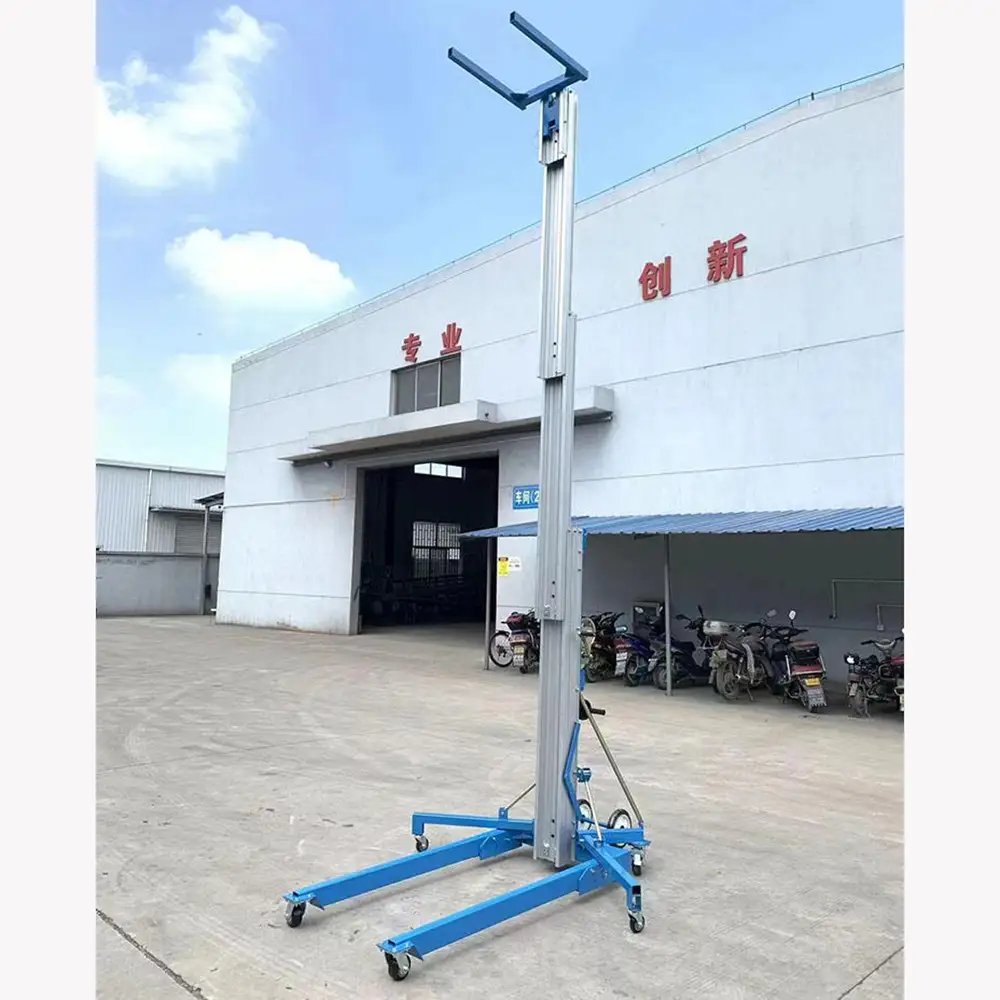

Motor Hoist Lifting System

The motor hoist is the main powered component of the material lifter. It provides mechanical assistance for raising and positioning the load, reducing the amount of physical effort required from operators.

A motor-driven lifting system can be particularly useful when the same type of tube or profile must be repeatedly moved during production. Instead of relying entirely on manual lifting, operators can use the powered hoist to perform controlled vertical movement.

The exact lifting capacity, lifting speed, motor configuration, and hoisting mechanism should be selected according to the maximum material weight and application requirements.

For industrial projects, customers should provide the expected load weight, lifting height, material dimensions, and operating frequency so the appropriate configuration can be evaluated.

Semi-Automatic Operation

Semi-automatic operation allows the machine to provide powered lifting while retaining operator involvement in material positioning and production control. This configuration can be useful for production environments where complete automation is not necessary or where different material sizes must be handled.

The operator can place or guide the tube, pipe, or profile into the designated support area and then operate the lifting system according to the machine's control procedure.

This approach can improve workflow while maintaining flexibility for different production tasks.

Depending on the application, the equipment can potentially be integrated with sensors, limit switches, conveyors, production-line controls, or other material handling equipment.

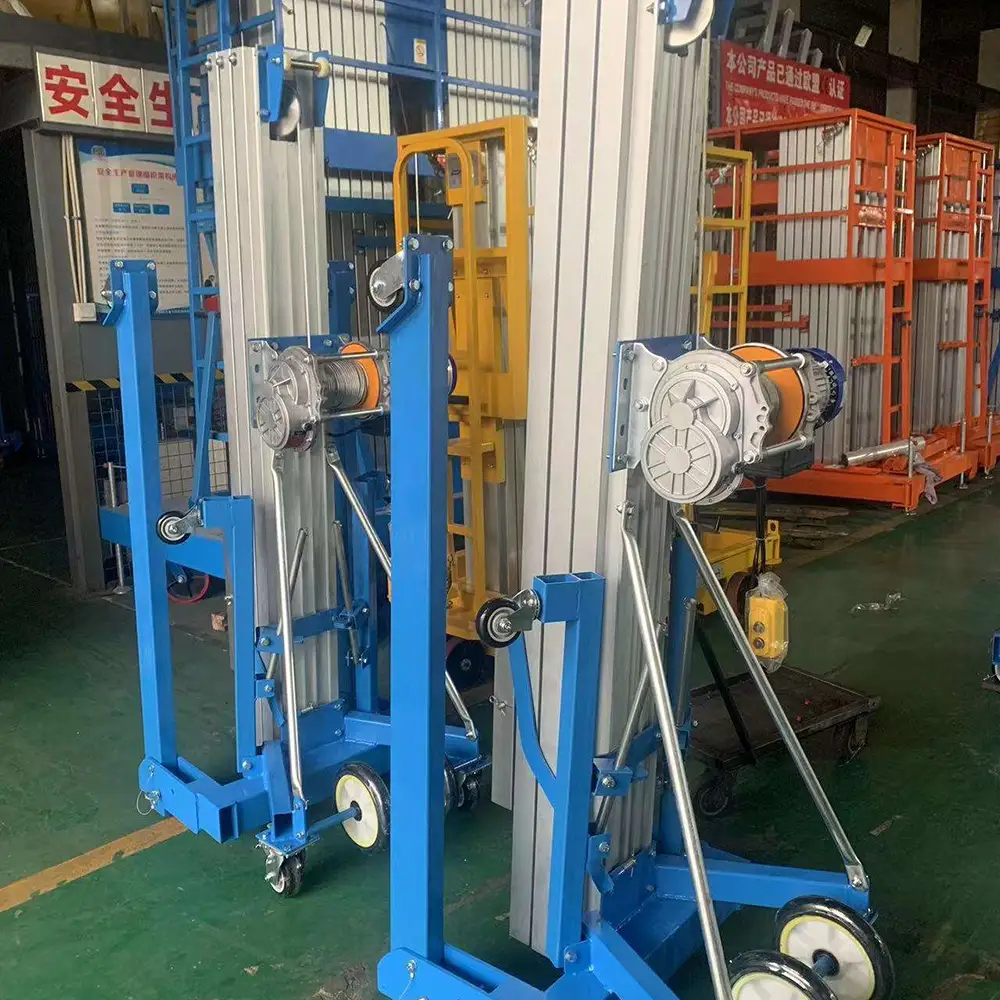

Tube and Pipe Handling

Long tubes and pipes can present challenges during production because their length can make them difficult to support and move. A material lifter provides dedicated support during lifting and positioning operations.

The machine can be designed for selected tube and pipe dimensions. Depending on the configuration, it may be used for:

Steel Tubes
Stainless Steel Tubes
Metal Pipes
Rectangular Tubes
Square Tubes
Round Tubes
Structural Profiles
Long Metal Components
Fabricated Tube Assemblies
Other Suitable Long Materials

The actual load capacity and dimensions should always be confirmed based on the material being handled.

Production Line Integration

The Semi-Automatic Material Lifter can be used as part of a larger manufacturing line. It may help transfer materials between production stations or raise components to the appropriate working height.

Potential applications include tube processing lines, pipe fabrication, metal cutting lines, welding production, polishing operations, bending lines, assembly stations, and other industrial processes.

For example, a tube may be moved from a storage or feeding position to a processing station. After processing, the material can then be transferred to another stage using additional handling equipment.

The machine layout can be customized to match the available factory space and production-line arrangement.

Customizable Dimensions

Different manufacturing facilities have different material sizes and working heights. Therefore, customizable dimensions are an important feature for industrial material lifting equipment.

Machine dimensions can be designed according to the customer's requirements, including overall length, width, lifting height, support position, working height, and installation space.

When requesting a customized machine, buyers should provide:

Material Length
Material Width
Material Diameter
Material Weight
Required Lifting Height
Working Height
Production-Line Layout
Available Installation Space
Desired Operating Method
Electrical Voltage

These specifications help determine the appropriate mechanical and electrical configuration.

220V, 380V, and 440V Voltage Options

Electrical requirements vary between countries and factories. The material lifter can be configured for different voltage requirements, including 220V, 380V, and 440V, according to the project specification.

Before ordering, customers should confirm the local electrical supply, frequency, phase requirements, and applicable electrical standards.

For international B2B projects, the electrical configuration should be confirmed before production to ensure that the machine is suitable for the destination market.

Material Handling Efficiency

Powered lifting equipment can help reduce repetitive manual lifting and improve material handling efficiency. This can be especially valuable when long or heavy tubes need to be moved repeatedly during production.

A dedicated lifting system also helps establish a more organized workflow by providing a consistent method for raising and positioning materials.

The overall improvement in productivity depends on material weight, production volume, operator workflow, machine cycle time, and the configuration of the surrounding production line.

Industrial Applications

This material lifter can be used in various industrial manufacturing environments, including:

Tube Manufacturing
Pipe Processing
Steel Fabrication
Metalworking
Tube Cutting
Tube Welding
Tube Polishing
Pipe Assembly
Structural Steel Processing
Automotive Component Manufacturing
Machinery Manufacturing
Industrial Material Handling

It can be used as an individual material handling machine or incorporated into a customized production line.

Safety Considerations

Lifting equipment must be used according to appropriate operating procedures and applicable workplace safety requirements. Operators should verify that the material weight does not exceed the rated capacity of the equipment.

The load should be properly positioned and supported before lifting. Operators should keep clear of suspended loads and follow designated operating procedures.

Regular inspection of the motor, hoist, lifting mechanism, support structure, fasteners, electrical system, limit devices, and other safety-related components is recommended.

The final machine configuration should incorporate appropriate safety features based on the intended application and local requirements.

Maintenance

Routine maintenance helps maintain reliable lifting performance. Operators should inspect the motor hoist, cables or lifting components, mechanical connections, bearings, guides, electrical connections, and control devices according to the manufacturer's maintenance recommendations.

Any unusual noise, vibration, lifting instability, or abnormal electrical behavior should be investigated before continued operation.

The machine should also be kept clean and free of accumulated metal debris, oil, dust, and other contaminants that could interfere with moving components.

OEM and ODM Customization

For industrial equipment distributors, tube manufacturers, metalworking companies, and production-line integrators, customized material lifters can provide greater flexibility.

OEM and ODM services may include lifting capacity, machine dimensions, working height, motor specifications, voltage, control system, support structure, safety configuration, branding, and packaging.

Customers can provide material drawings, production-line layouts, technical specifications, and operating requirements to support customized equipment development.

Why Choose Our Semi-Automatic Material Lifter?
Powered Material Handling – Motorized lifting reduces repetitive manual handling of tubes, pipes, and long materials.
Semi-Automatic Operation – Combines powered lifting with flexible operator control for different production tasks.
Tube And Pipe Applications – Designed for selected long metal materials and industrial components.
Custom Dimensions – Equipment dimensions and lifting height can be customized according to production requirements.
Multiple Voltage Options – 220V, 380V, and 440V configurations can be discussed according to project requirements.
Production Line Integration – Can be incorporated into tube, pipe, metalworking, welding, cutting, and assembly lines.
OEM & ODM Support – Customized machine specifications, electrical configurations, branding, and packaging are available for qualified projects.
B2B Industrial Supply – Suitable for manufacturers, metalworking companies, machinery distributors, importers, and production-line integrators.
Frequently Asked Questions
1. What is a semi-automatic material lifter?

A semi-automatic material lifter is powered lifting equipment that assists operators in raising and positioning materials while retaining manual control over parts of the handling process.

2. Can it lift tubes and pipes?

Yes. The machine is designed for selected tube, pipe, profile, and other long-material handling applications. The exact capacity depends on the machine configuration.

3. What voltage options are available?

The machine can be configured for project requirements such as 220V, 380V, or 440V. Electrical frequency and phase should also be confirmed before ordering.

4. Can the dimensions be customized?

Yes. Overall dimensions, support configuration, lifting height, working height, and other structural specifications can be customized according to the application.

5. What materials can be handled?

Depending on the machine design, suitable materials may include steel tubes, stainless steel tubes, pipes, rectangular tubes, square tubes, profiles, and other long metal components.

6. What information is needed for machine selection?

Important information includes material weight, length, diameter or dimensions, required lifting height, working height, production frequency, installation space, and voltage requirements.

7. Can it be integrated into a production line?

Yes. It can be designed for integration with tube processing, cutting, welding, polishing, assembly, and other production equipment.

8. Is the machine fully automatic?

The standard concept is semi-automatic, meaning powered lifting is combined with operator control. Additional automation can be discussed for specific production requirements.

9. Do you provide OEM and ODM services?

Yes. Machine dimensions, lifting capacity, voltage, motor configuration, controls, branding, packaging, and other specifications can be customized for qualified projects.

10. Can you supply equipment for overseas customers?

Yes. International B2B supply can be arranged according to destination-country electrical requirements, machine specifications, packaging, and shipping needs.

Conclusion

The Semi-Automatic Material Lifter for Lines and Tubes provides a practical powered handling solution for manufacturers working with long, heavy, or difficult-to-handle materials. Its motor hoist system can assist operators with lifting and positioning while the semi-automatic configuration maintains flexibility for different production tasks.

With customizable dimensions, lifting specifications, and 220V, 380V, or 440V electrical configurations, the machine can be adapted to different factory environments and production lines. It is suitable for tube and pipe processing, metal fabrication, welding, cutting, polishing, assembly, and other industrial material handling applications.

For manufacturers, machinery distributors, production-line integrators, and international B2B buyers, OEM and ODM customization provides additional flexibility for developing a material lifting solution around specific load requirements, working heights, production layouts, and electrical standards.
