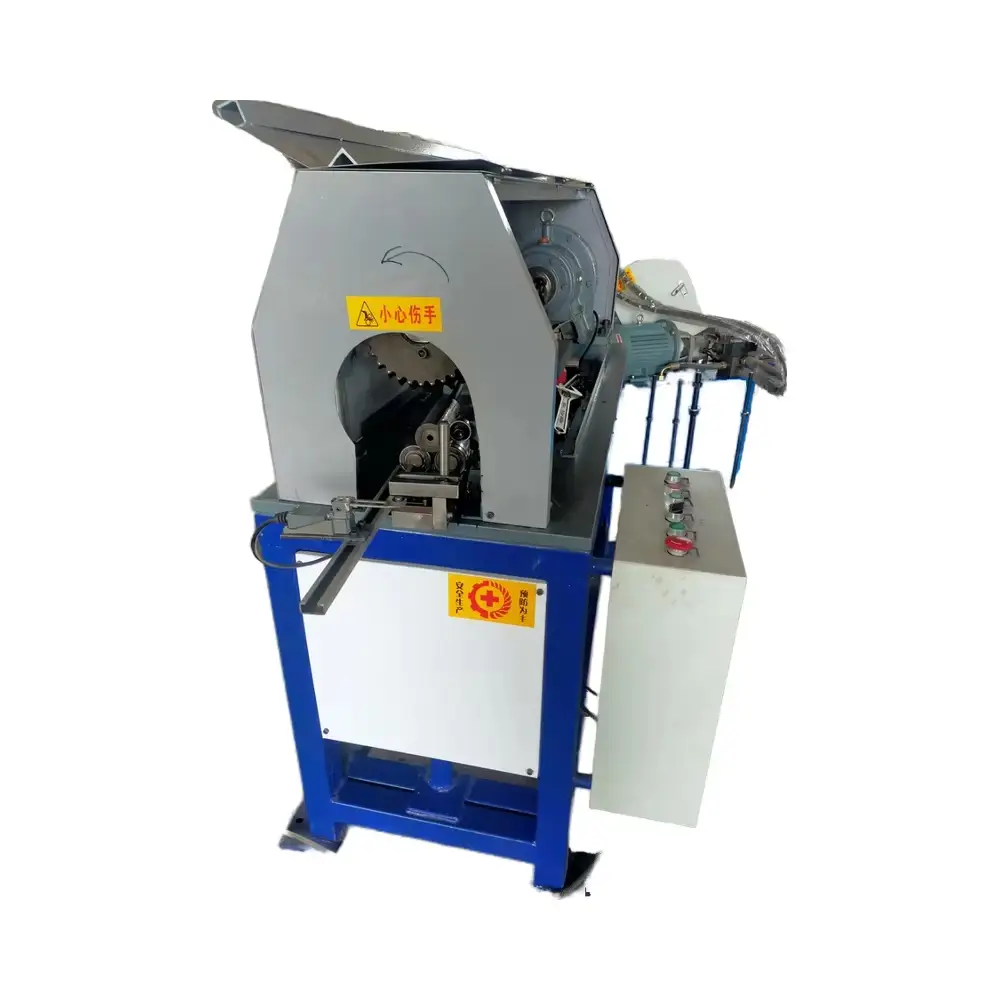

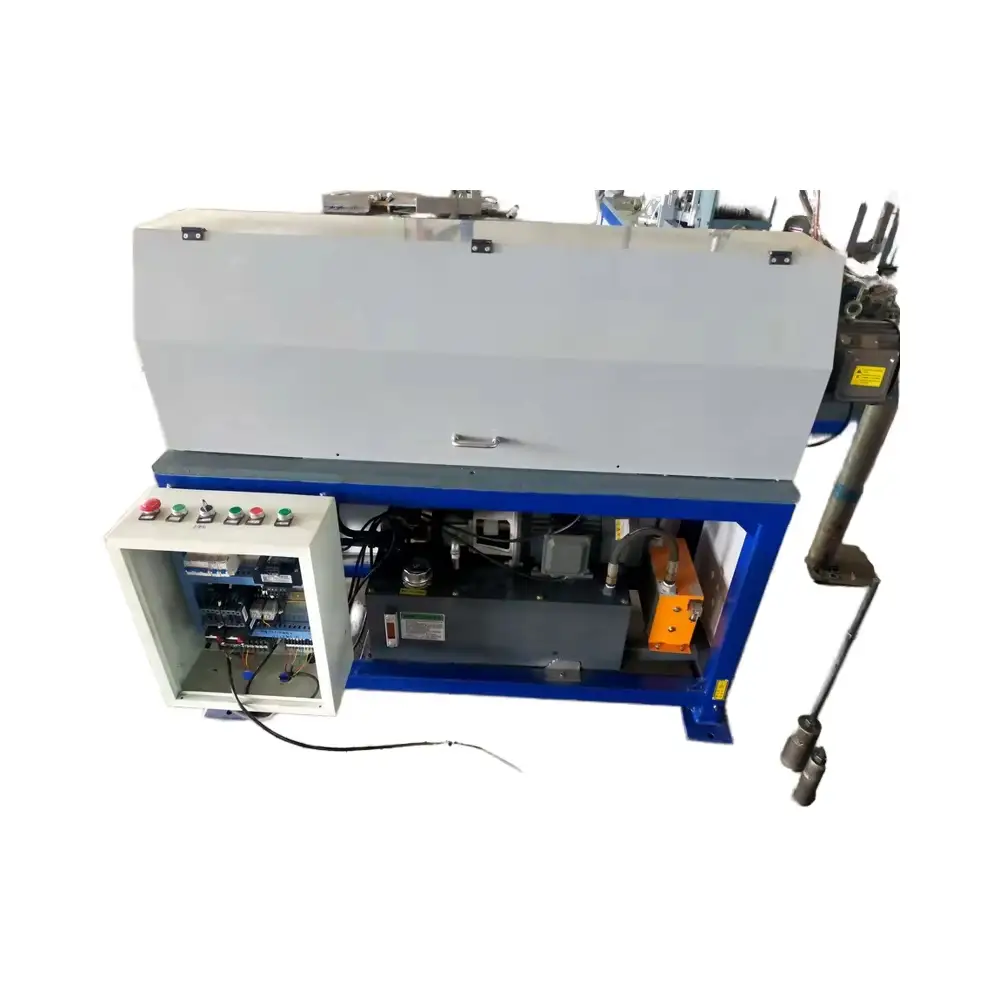

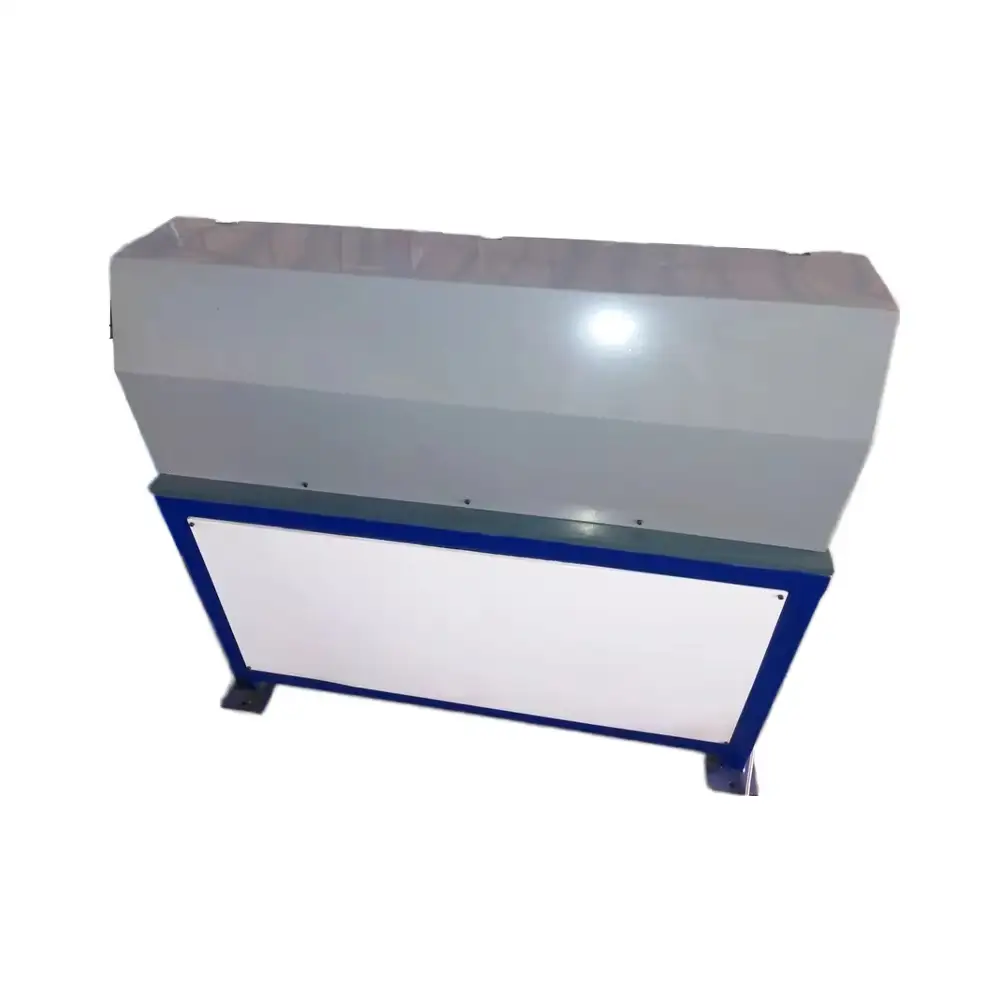

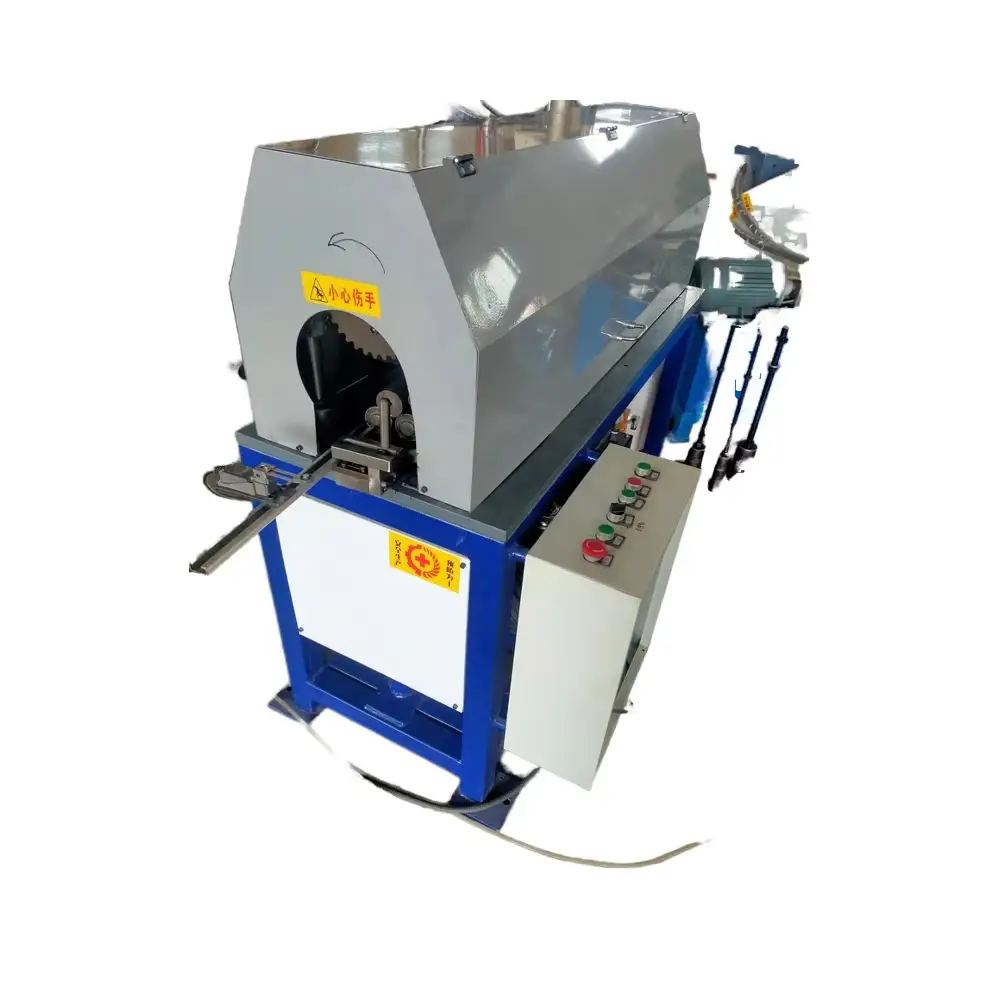

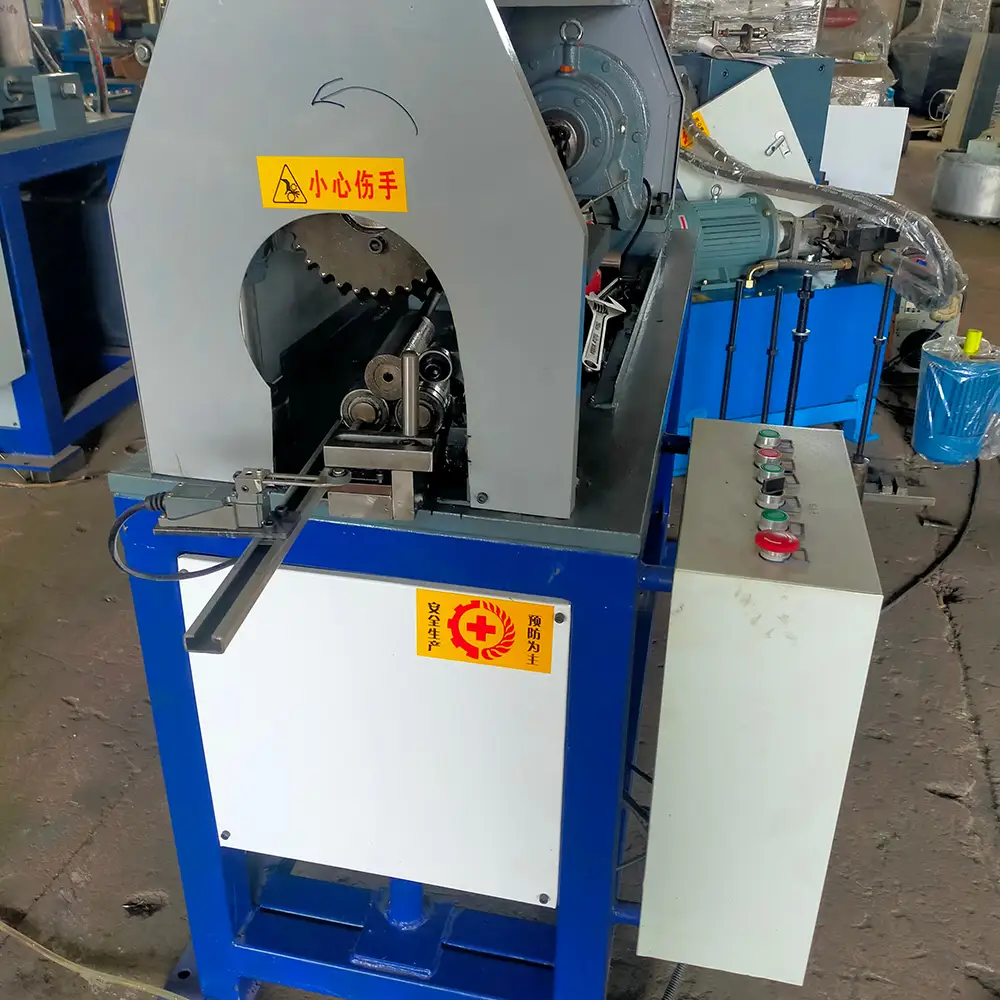

Semi Automatic Exhaust Pipe Perforating Machine for Muffler Tube Processing

The Semi Automatic Exhaust Pipe Perforating Machine for Muffler is designed for efficient and repeatable hole punching and perforating of exhaust pipes, muffler tubes, and other metal tube components. It provides a practical production solution for manufacturers that need consistent perforation patterns on stainless steel, carbon steel, and other compatible metal tubes.

Exhaust and muffler components often require multiple holes distributed along a specific section of the tube. Manual drilling can require repeated measuring, marking, clamping, and repositioning, which may increase labor requirements and make consistency more difficult to maintain. A dedicated exhaust pipe perforating machine can standardize these operations through application-specific fixtures and punching tooling.

The semi-automatic configuration combines operator loading and positioning with machine-controlled or assisted punching operations according to the specific machine design. This makes it suitable for repetitive production while retaining flexibility for different exhaust tube sizes and hole patterns.

Actual punching capacity depends on tube material, diameter, wall thickness, hole size, perforation pattern, tooling design, and machine configuration.

item	value
weight (kg)	5000
Max.processing diameter	Custom-Made Products
Processing thickness	0.8-1.5mm
processing length	50-500mm
Work desk	1200*500mm
Spindle speed	60Rpm
Machine dimension	1400X500X1200mm
output capacity	60pcs/h
Adjustment height	100mm

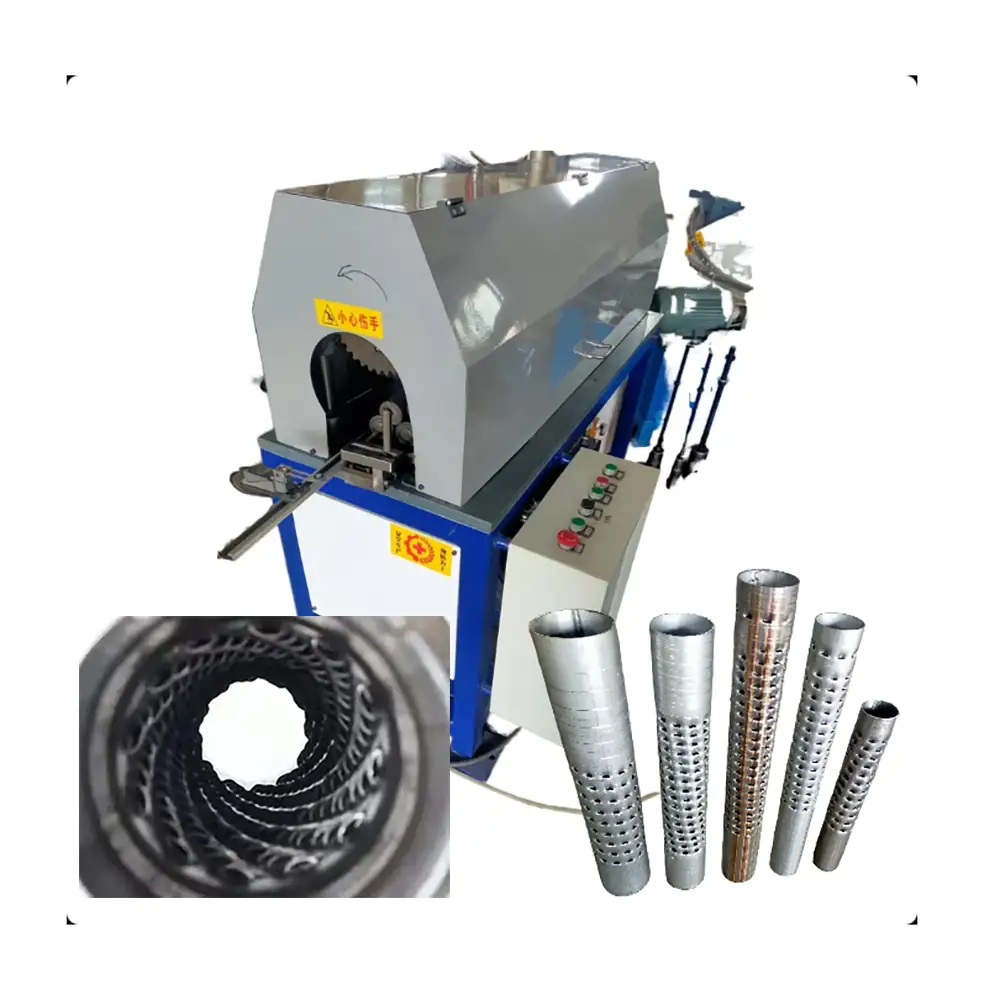

Exhaust Pipe Perforating for Muffler Manufacturing

Perforated tubes are widely used in muffler and exhaust system manufacturing. The perforation pattern can be part of the internal exhaust flow and acoustic design of the finished muffler assembly.

The machine can be configured to create holes in selected sections of an exhaust tube according to production drawings. Dedicated punches and dies can help maintain consistent hole dimensions and spacing during repetitive manufacturing.

The exact hole arrangement depends on the muffler design and engineering requirements. Different products may require different hole diameters, quantities, spacing, and perforated lengths.

For this reason, tooling should be selected according to the actual exhaust tube specification rather than using a universal punching configuration.

Stainless Steel Tube Hole Punching

Stainless steel is commonly used in exhaust and muffler applications because of its corrosion resistance and suitability for demanding operating environments.

Punching stainless steel requires suitable tooling and sufficient machine capacity. Punch geometry, die clearance, material hardness, wall thickness, and hole diameter can all affect the finished hole quality and tool life.

The machine can be configured with application-specific tooling for stainless steel tube perforation. Before mass production, sample testing is recommended to verify hole quality, tube deformation, tooling life, and overall processing performance.

Semi Automatic Operating Process

The semi-automatic design is intended to simplify repetitive exhaust tube perforating while allowing the operator to control workpiece loading and positioning.

A typical process may include placing the exhaust tube into the fixture, positioning it according to the required perforation pattern, securing the workpiece, activating the punching cycle, and removing the processed tube.

Depending on the machine configuration, indexing or positioning systems can assist with repeated hole locations. The actual operating sequence varies according to the selected machine design.

This type of workflow can help reduce repetitive manual marking and drilling operations while maintaining operator involvement where product variation requires additional flexibility.

Custom Exhaust Pipe Punching Tooling

Custom tooling is particularly important for muffler and exhaust pipe applications because different products often use different tube diameters and perforation patterns.

The machine can be equipped with custom punches, dies, tube fixtures, positioning stops, indexing components, and other application-specific tooling.

Customers can provide exhaust pipe drawings, tube dimensions, hole diameter, hole spacing, perforated length, material, and production requirements. These details can be used to develop the appropriate tooling concept.

For OEM projects, physical tube samples can also help verify the required punching method before finalizing production tooling.

Multiple Hole Perforation Patterns

Exhaust pipe perforation commonly involves multiple holes rather than a single opening. Hole spacing and distribution must therefore be controlled throughout the processing length.

A dedicated fixture can help establish a consistent reference position for the tube. Depending on the machine design, manual scales, stops, indexing mechanisms, or other positioning systems may be used.

For high-volume production, repeatable positioning can reduce variation between tubes. However, actual positioning accuracy depends on the machine structure, fixture design, tube straightness, positioning method, and operator procedure.

Round Exhaust Pipe Processing

Most exhaust and muffler tubes have round cross-sections, requiring dedicated workholding to prevent unwanted rotation or movement during punching.

A properly designed round-tube fixture supports the pipe and maintains its orientation during the punching process. This is especially important when holes must be positioned at a specific angular orientation around the tube.

Custom fixtures can be developed for different tube diameters and production requirements. Where a tube requires holes at multiple angular positions, the positioning method should be designed around the actual perforation pattern.

Materials and Tube Compatibility

The machine can potentially process a variety of compatible metal tubes, including:

Stainless steel exhaust tubes

Carbon steel exhaust pipes

Mild steel tubes

Galvanized steel tubes

Other compatible metal pipe materials

Material hardness, tensile strength, wall thickness, and tube diameter should be considered when selecting the punching force and tooling.

Stainless steel applications may require specialized tooling and process parameters to achieve clean holes and reasonable tool life.

Applications Beyond Muffler Tubes

Although primarily suited to exhaust and muffler manufacturing, the machine can also be used for other tube perforating applications when the required material and dimensions are compatible.

Potential applications include:

Automotive exhaust components

Motorcycle exhaust systems

Muffler manufacturing

Industrial exhaust systems

Metal filter tubes

Perforated structural tubes

Heating and ventilation components

Agricultural equipment

Industrial machinery

Customized metal tube components

The suitability of the machine should be confirmed according to the specific tube dimensions and perforation requirements.

Production Efficiency

A dedicated perforating machine can reduce the amount of manual drilling and marking required for repetitive tube production.

Semi-automatic operation allows the operator to load and position the tube while the machine performs the punching operation using predefined tooling. This can provide a balance between production efficiency and flexibility.

For manufacturers producing several exhaust models, interchangeable fixtures and tooling can help adapt the machine to different tube specifications.

Actual cycle time depends on the number of holes, tube length, hole pattern, positioning method, tooling configuration, loading process, and operator workflow.

Hole Quality and Process Consistency

Consistent hole quality is important for exhaust tube manufacturing. The finished holes should be checked for diameter, location, edge condition, deformation, and burrs according to the product requirements.

Punch and die clearance should be matched to the tube material and thickness. Worn tooling can affect hole quality and increase punching force.

Sample production and inspection are recommended when introducing a new tube specification or perforation pattern.

Maintenance and Operation

Regular maintenance helps maintain stable machine performance. Operators should inspect punches, dies, fixtures, clamps, hydraulic components, electrical systems, and other wear parts according to the manufacturer's recommendations.

Tooling should be kept clean and inspected for wear. Workholding fixtures should remain properly aligned so that tubes are positioned consistently.

The machine should be operated by trained personnel following the supplied operating instructions. Guards, emergency stops, electrical protection, and other safety provisions should be confirmed according to the actual machine configuration and applicable local requirements.

Custom & OEM Exhaust Pipe Perforating Solutions

For manufacturers with specialized muffler requirements, Custom & OEM solutions can include dedicated punches, dies, tube fixtures, positioning systems, indexing mechanisms, and customized machine configurations.

Customers can provide drawings, tube samples, material specifications, hole patterns, production volume, and other technical information for evaluation.

This makes the Semi Automatic Exhaust Pipe Perforating Machine suitable for exhaust manufacturers, automotive component factories, distributors, wholesalers, purchasing agents, and international B2B buyers seeking customized tube perforating equipment.

Why Choose Us

Dedicated Exhaust Tube Processing — Designed around repetitive hole punching and perforating requirements for exhaust and muffler tubes.

Stainless Steel Tube Capability — Suitable tooling and machine configurations can be developed for stainless steel exhaust pipe applications.

Semi Automatic Operation — Provides a practical balance between operator flexibility and repeatable machine-assisted punching.

Custom Punching Tooling — Punches, dies, fixtures, clamps, and positioning components can be customized according to the required perforation pattern.

Multiple Hole Patterns — Suitable for applications requiring repeated holes with defined spacing and positioning.

OEM & ODM Support — Machine and tooling solutions can be developed from product drawings, samples, and production requirements.

Automotive And Industrial Applications — Suitable for mufflers, exhaust systems, automotive components, and other compatible tube products.

B2B Manufacturing Support — Suitable for factories, wholesalers, distributors, purchasing agents, and industrial equipment buyers.

FAQs

1. What is an exhaust pipe perforating machine?

It is a specialized machine used to create multiple holes or perforations in exhaust pipes, muffler tubes, and other compatible metal tubes.

2. Can this machine punch stainless steel exhaust tubes?

Yes. Stainless steel tubes can be processed when suitable punching capacity, tooling, fixtures, and process parameters are selected.

3. What does semi-automatic mean?

Semi-automatic operation generally means the operator performs certain loading, positioning, or setup tasks while the machine assists or controls the punching process according to its configuration.

4. Can it process muffler pipes?

Yes. Muffler tube perforation is one of the primary applications for this type of machine.

5. Can it create multiple holes in one tube?

Yes. The machine can be configured for repetitive multiple-hole perforation according to the required hole pattern and positioning system.

6. Can the hole spacing be customized?

Yes. Hole spacing and perforation patterns can be configured according to the product drawing and machine tooling arrangement.

7. Can custom punches and dies be supplied?

Yes. Custom punches, dies, fixtures, and positioning components can be developed for specific exhaust pipe dimensions and hole patterns.

8. What materials can be perforated?

Depending on the machine configuration, materials may include stainless steel, carbon steel, mild steel, galvanized steel, and other compatible metal tubes.

9. Can the machine process different exhaust pipe diameters?

It can be configured for different tube dimensions, but the actual diameter range depends on the machine design, fixtures, and tooling.

10. How do I choose the correct tooling?

Important information includes tube material, outside diameter, wall thickness, hole diameter, hole spacing, perforated length, and the required hole pattern.

11. Is this machine suitable for automotive exhaust production?

Yes. It can be used for compatible automotive and motorcycle exhaust tube and muffler manufacturing applications.

12. Can you provide a customized exhaust pipe perforating machine?

Yes. Custom machine configurations, tooling, fixtures, and positioning systems can be developed according to drawings, samples, and production requirements.
