Overall introduction of incinerator
Incinerator is an environmental protection equipment that treats various types of waste (domestic waste, industrial hazardous waste, medical waste, etc.) through high-temperature oxidation. Its core goal is to convert organic waste into carbon dioxide and water, and at the same time achieve pollutant emission reduction and energy recovery through advanced technology. The following systematically introduces the incinerator from multiple dimensions:
1. Definition and core functions
Definition: Incinerator is a comprehensive treatment system that uses high-temperature (usually ≥850ºC) combustion technology, combined with physical, chemical and automatic control methods to achieve waste reduction, harmlessness and resource utilization.
Core functions:
Reduction: 90% reduction in volume and 70% reduction in weight.
Harmlessness: decomposition of dioxins, killing pathogens, and stabilizing heavy metals.
Resource utilization: waste heat power generation or heating to achieve energy recovery.
2. Working principle
High-temperature oxidation:
Organic matter is decomposed into CO, HO and heat in an oxygen-rich environment.
Pollutant control:
Dioxin: Synthesis is blocked by high temperature (≥850ºC) and sufficient residence time (≥2 seconds).
Acidic gases: lime slurry neutralizes SO and HCl.
Particles: Bag/electrostatic precipitator filtration.
3. Core component system
System module Main components Functional description
Pretreatment system Crusher, sorting equipment, garbage storage pit Crushing and classification to improve combustion uniformity
Combustion system Main combustion chamber, secondary combustion chamber, burner, grate/rotary kiln/fluidized bed High temperature decomposition of organic matter, complete incineration of harmful substances
Air supply and cooling Primary/secondary fan, air preheater, quenching tower Optimize combustion efficiency and prevent dioxin resynthesis
Emission control Bag filter, deacidification tower (dry/semi-dry/wet method), SCR/SNCR denitrification, activated carbon injection Remove particulate matter, acid gas, NOx and dioxin
Energy recovery Waste heat boiler, steam turbine generator set, heat exchanger Power generation or heating, improve energy utilization
Automation control PLC/DCS system, CEMS online monitoring, sensor network Real-time control of temperature, air volume, and emissions to ensure safe operation
Ash treatment Water-cooled slag discharger, fly ash solidification device Safe disposal of heavy metal residues
4. Main types and applicable scenarios
Type Structural features Applicable scenarios Advantages
Mechanical grate furnace Stepped grate pushes garbage Urban domestic waste, mixed waste Large processing capacity, suitable for complex components
Rotary kiln incinerator Inclined steel drum rotation (0.5-3 rpm) Hazardous waste, medical waste Fully mixed, good high temperature stability
Fluidized bed incinerator Sand layer fluidization, blast combustion Sludge, high calorific value industrial waste Uniform combustion, low temperature and low NOx emission
Plasma gasification furnace Plasma torch (>5000ºC) cracking waste Radioactive waste, extremely difficult to degrade substances Ultra-high temperature complete decomposition, no secondary pollution
V. Application field
Municipal field:
Treatment of urban domestic waste (average daily processing capacity of 100-3000 tons).
Case: Shanghai Laogang Incineration Plant (processing capacity of 6000 tons/day, power generation of 300 MW).
Industrial field:
Hazardous waste in the chemical and pharmaceutical industries (containing halogens and heavy metal waste).
Medical field:
High temperature sterilization of infectious medical waste (needles, pathological tissues, etc.).
Agricultural field:
Energy utilization of biomass waste such as animal carcasses and straw.
VI. Technical advantages and challenges
Advantages:
Rapid volume reduction: thousands of tons of waste can be processed per day, greatly reducing landfill pressure.
Energy regeneration: 1 ton of garbage generates about 300-600 kWh of electricity (equivalent to 0.3 tons of standard coal).
Strict environmental protection: The emission indicators of modern incineration plants are lower than the natural background value (such as dioxin concentration <0.1 ng TEQ/Nm³).
Challenges:
High investment cost: Construction cost is about 400,000-1 million yuan/ton of processing capacity (excluding land).
Operational complexity: Continuous monitoring of combustion parameters and pollutant emissions is required.
Public perception: "NIMBY effect" makes site selection difficult.
VII. Technical development trend
Ultra-low emission technology:
Coupling SCR+wet deacidification to achieve NOx<50 mg/Nm³ and SO<10 mg/Nm³.
Intelligent control:
AI algorithm optimizes combustion efficiency (such as predicting calorific value fluctuations and automatically adjusting air supply).
Low-carbon innovation:
Biomass coupled incineration (replacing fossil fuels), carbon capture and storage (CCS).
Small modular design:
Distributed treatment of medical or island waste (processing capacity 1-10 tons/day).
VIII. Typical process flow
Feeding: After crushing and sorting, the waste is sent into the furnace by a hydraulic push rod.
Combustion: Organic matter is decomposed in the main combustion zone (900ºC) → Secondary combustion chamber (1100ºC, 2 seconds) is completely oxidized.
Residue heat utilization: Flue gas is passed through the boiler to produce steam → Drive the steam turbine to generate electricity.
Purification and emission: Rapid cooling + deacidification + dust removal + denitrification → Clean gas is discharged through the chimney.
Residue treatment: Fly ash chelation and solidification, bottom ash is made into building materials or landfill.
Summary
As the core facility of modern waste management, the incinerator achieves a balance between pollution reduction and carbon reduction and energy recovery through high-temperature oxidation and multi-stage purification technology. Despite the challenges of cost and public acceptance, with the advancement of technology (such as near-zero emissions and intelligent operation and maintenance), its role in the global circular economy will continue to increase and become an important pillar of sustainable urban development.
|
Serial number |
Parameter category |
Parameter description |
Typical range/value |
|
1 |
Processing capacity |
Amount of waste processed per day/hour |
0.5-1000 tons/day (differentiated by furnace type and application scenario) |
|
2 |
Effective furnace volume |
Volume of waste in the main combustion chamber |
5-500 m³ (proportional to the processing volume) |
|
3 |
Combustion temperature |
Temperature of the main combustion chamber |
800-1300ºC (higher temperature for hazardous waste incineration) |
|
4 |
Flue gas residence time |
Residence time of flue gas in the high temperature zone (≥850ºC) |
≥2 seconds (mandatory requirement) |
|
5 |
Thermal efficiency |
Energy conversion efficiency of waste heat recovery system |
20-30% (power generation efficiency) |
|
6 |
Emission standard |
Concentration of pollutants such as particulate matter, NOx, SO, dioxin, etc. |
Comply with stringent standards such as EU 2010/75 and China GB 18485 |
|
7 |
Material requirements |
Material of furnace body, flue, key components |
Carbon steel + refractory lining/stainless steel/heat-resistant alloy (selected by temperature) |
|
8 |
Power requirements |
Main combustion power + total power of auxiliary system |
0.5-50 MW (calculated based on processing volume and calorific value) |
|
9 |
Occupancy area |
Site required for the whole system (including pretreatment, combustion, tail gas treatment) |
500-50,000 m² (large incineration plants require garbage storage pits) |
|
10 |
Fuel consumption |
Amount of auxiliary fuel (natural gas/diesel) (for low calorific value waste) |
10-200 Nm³/h (adjusted by calorific value gap |

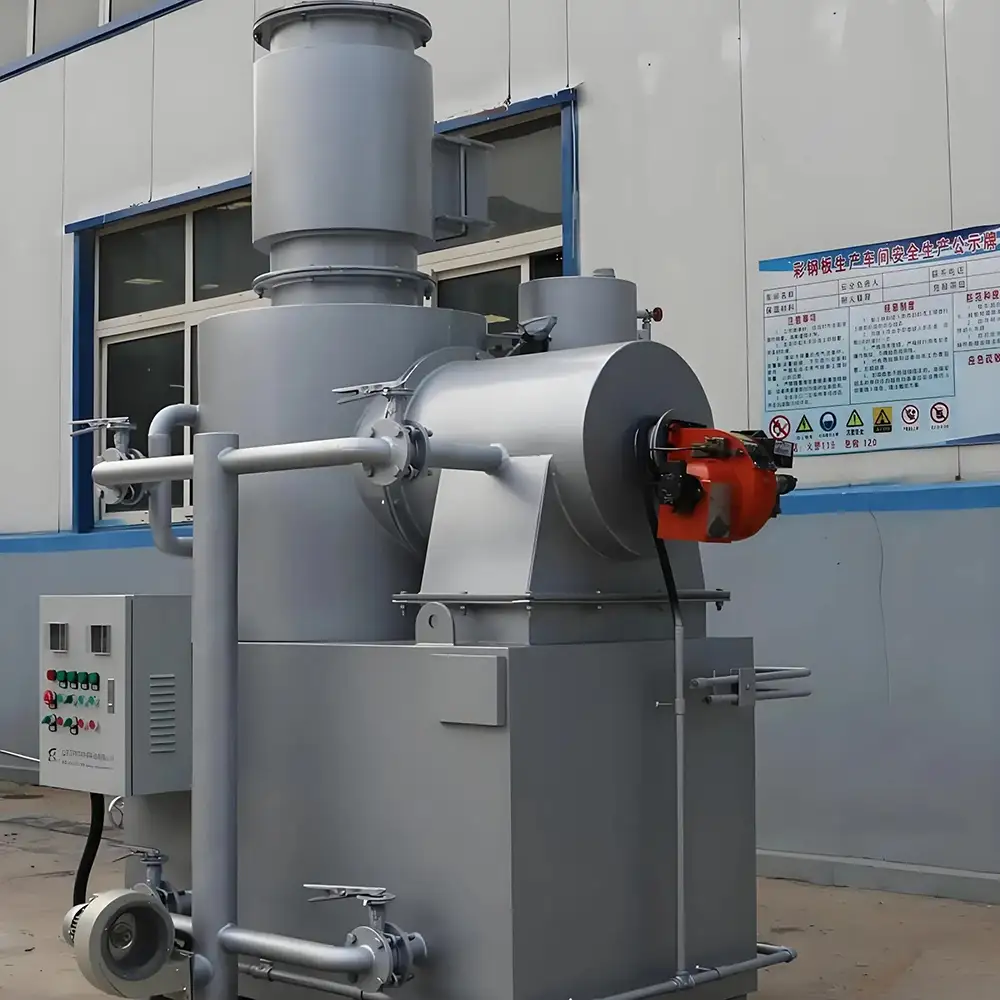

The Rotary Kiln Multi-Stage Combustion Facility Animal Incinerator is an industrial thermal treatment system designed for the controlled treatment of suitable animal waste, animal carcasses, veterinary waste, and other combustible biological materials. The rotary kiln design provides continuous material movement through the primary combustion chamber, while a secondary combustion stage can provide additional treatment of combustible gases generated during the process.
Animal waste management can be challenging for farms, veterinary facilities, slaughterhouses, laboratories, animal shelters, and specialized waste treatment facilities. Proper thermal treatment can provide a controlled method for reducing the volume of suitable combustible biological waste and managing animal residues under defined operating conditions.
Rotary Kiln Incineration
The rotary kiln is a cylindrical combustion chamber that rotates during operation. This movement helps tumble and expose the feed material to combustion air and heat while gradually transporting the material through the chamber.
Compared with a stationary combustion chamber, the rotary configuration can provide greater flexibility for handling heterogeneous solid materials. The actual feeding method, rotation speed, chamber design, and combustion conditions depend on the selected equipment configuration.

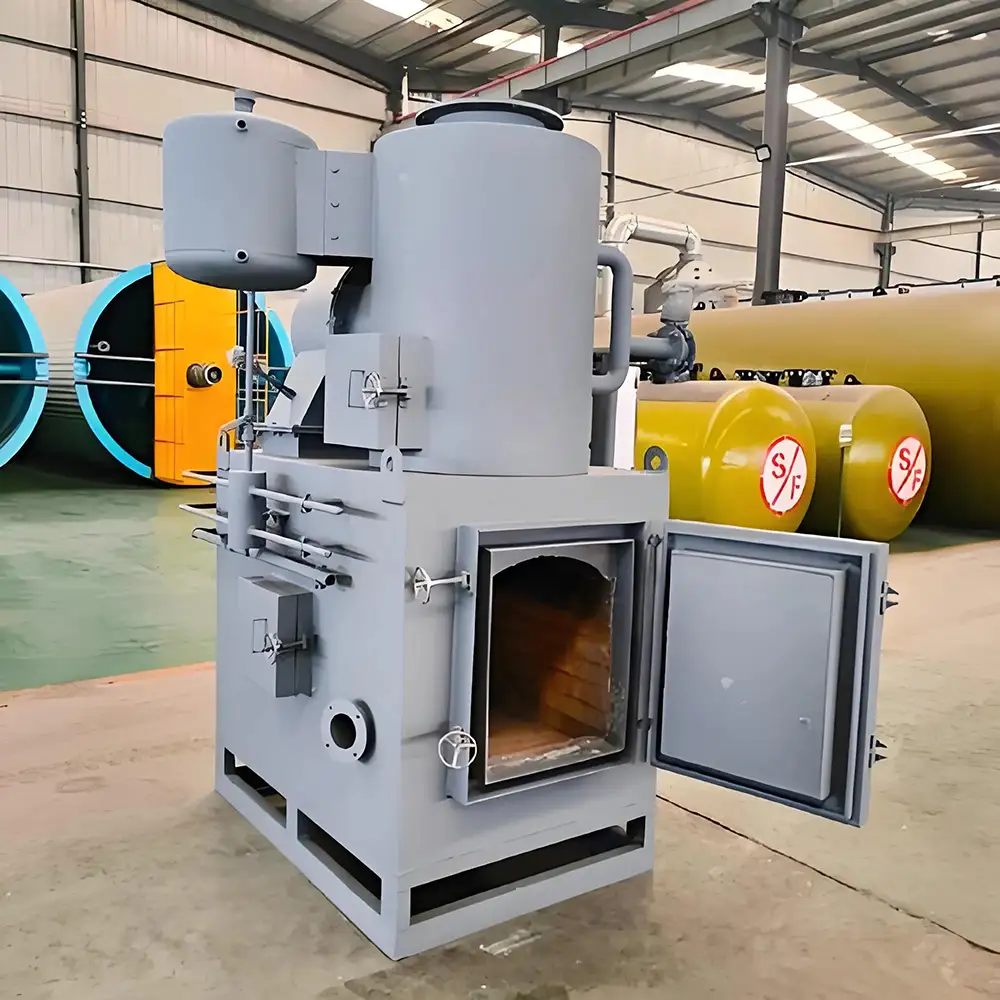

Animal Incinerator
An Animal Incinerator is designed for thermal treatment of suitable animal-related waste streams. Potential applications include livestock carcasses, poultry waste, veterinary waste, animal by-products, and other compatible organic materials.
The equipment can be used by agricultural facilities, veterinary operations, animal research facilities, slaughtering and processing businesses, and specialized waste management projects. Feed material must be evaluated to determine whether it is suitable for the selected incineration process.
Multi-Stage Combustion
Multi-stage combustion separates the thermal treatment process into different combustion zones or stages. The primary chamber handles the main solid feed, while a secondary combustion chamber can provide additional oxidation of combustible gases.
This configuration helps create a more controlled combustion process and can support more complete treatment of suitable combustible components. The exact chamber arrangement and operating parameters depend on the waste characteristics and system design.
Primary Combustion Chamber
The rotary kiln serves as the primary combustion chamber in the system. Animal waste enters the chamber through the feeding system and is gradually exposed to heat and combustion air as the kiln rotates.
The combination of controlled rotation, air distribution, and thermal conditions helps facilitate the breakdown of combustible organic materials. Remaining ash is discharged after the thermal treatment process according to the equipment configuration.
Secondary Combustion Chamber
Gases generated during primary combustion may contain combustible components. A secondary combustion chamber provides additional residence time and controlled combustion conditions for these gases.
This stage is important for improving gas-phase oxidation before the flue gas enters downstream treatment equipment. The actual design should be selected according to the waste composition, required process conditions, and applicable environmental requirements.

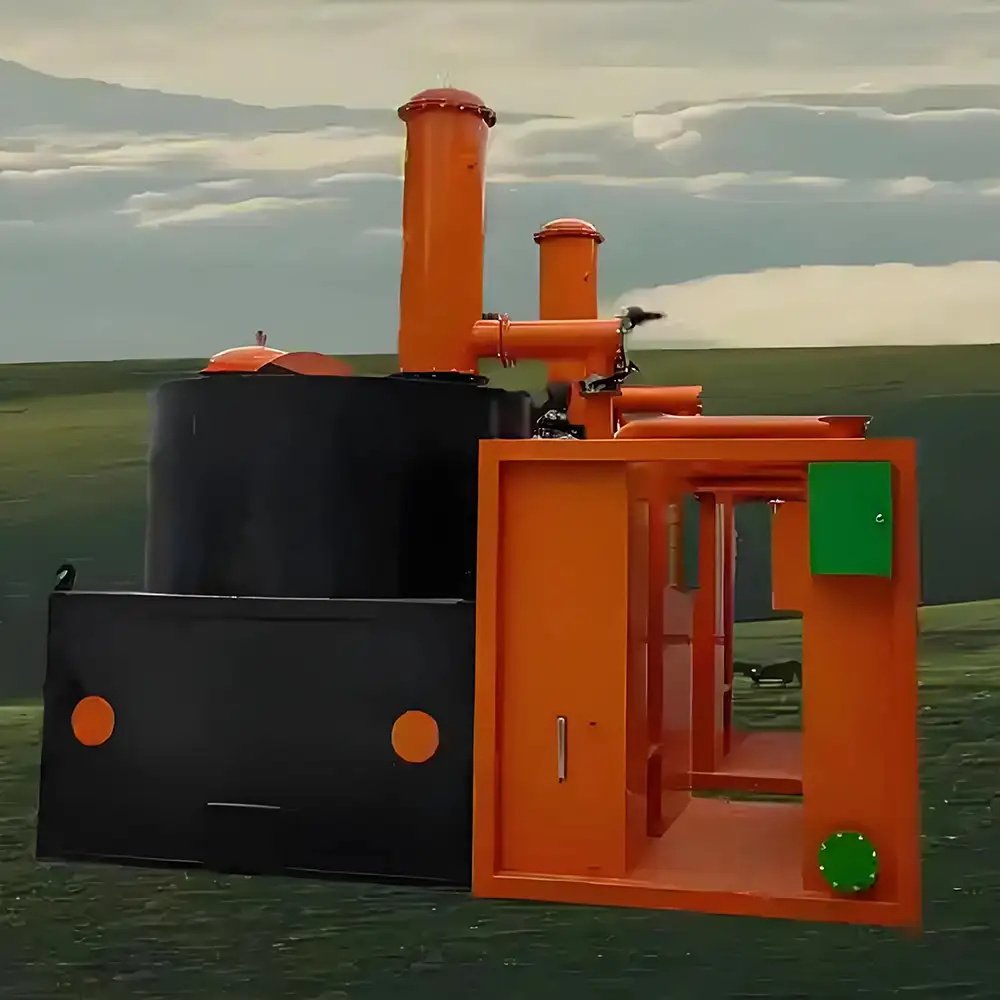

Animal Carcass Disposal
Animal carcass disposal requires careful consideration of biological material, moisture, fat content, bone content, and other physical properties. Rotary kiln technology can provide a suitable thermal treatment method for compatible carcass waste.
The system can be configured for different types of animal waste depending on the project. Feed preparation and handling requirements should be evaluated based on carcass size, quantity, moisture, and composition.

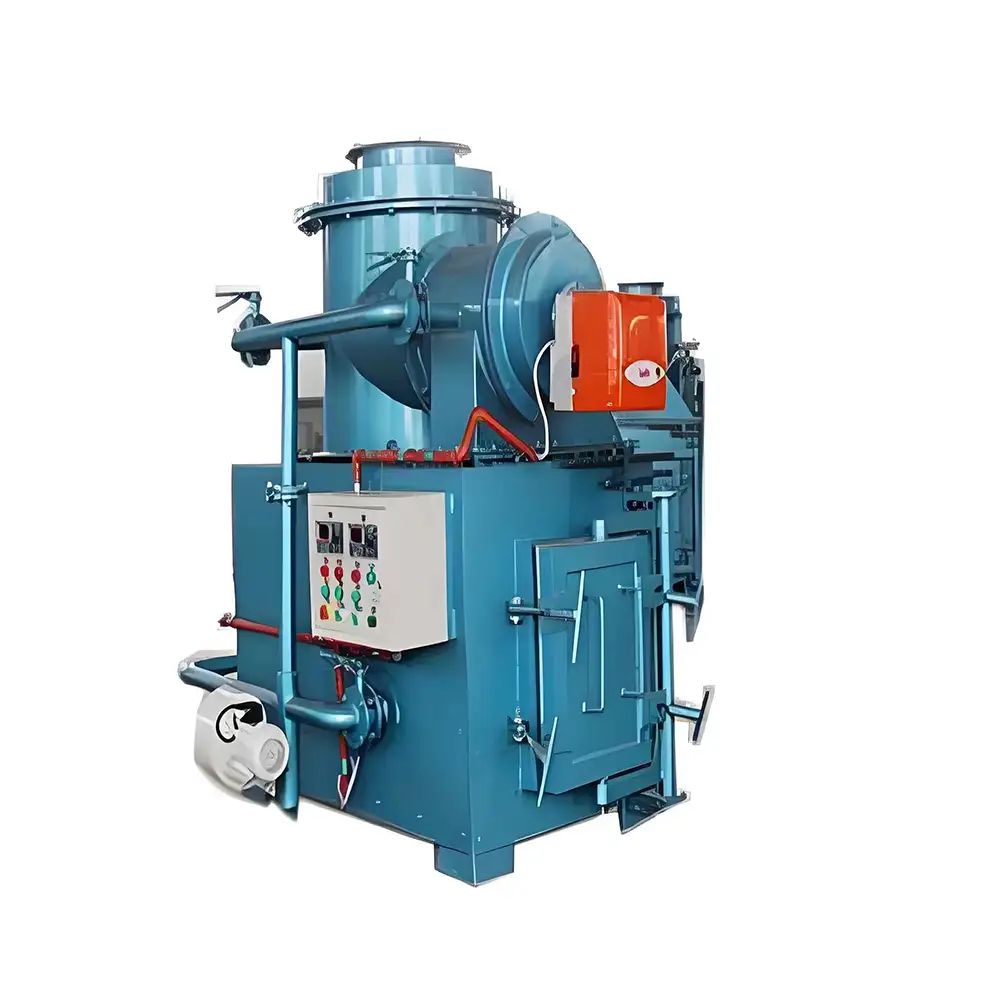

Livestock Waste Incineration
Livestock operations can generate animal mortality and other organic residues that require controlled disposal. A Livestock Incinerator can provide an on-site or centralized thermal treatment option for suitable waste.
Potential applications include cattle, pigs, poultry, sheep, goats, and other livestock operations, subject to local regulations and feed suitability.
Veterinary Waste Incinerator
Veterinary clinics, animal hospitals, laboratories, and animal care facilities may generate animal carcasses and other biological waste. A properly configured Veterinary Waste Incinerator can provide controlled thermal treatment for compatible materials.
The system can be designed with suitable feeding, combustion, ash removal, and flue gas treatment components according to the facility's waste characteristics and operating requirements.
Heterogeneous Waste Handling
Animal waste can vary considerably in size, moisture content, fat content, density, and composition. Rotary kiln systems are often selected for applications where feed material is not perfectly uniform.
The rotating chamber helps move the material through the combustion zone and can support more consistent exposure to heat. Proper feeding and combustion control remain important for stable operation.
Controlled Feeding System
A reliable feeding system helps introduce waste into the rotary kiln at a controlled rate. Depending on the application, the system can incorporate loading hoppers, conveyors, hydraulic feeding mechanisms, or other material-handling equipment.
The feeding configuration should be selected according to waste size, bulk density, moisture, handling characteristics, and required operating workflow.
Combustion Air Management
Air supply is essential for stable combustion. The system can be designed with controlled primary and secondary air distribution to support the combustion process.
Airflow control can be coordinated with temperature monitoring and fuel supply to help maintain suitable operating conditions. Automated control functions can be included depending on the project requirements.
Refractory Lining
The combustion chambers are exposed to high temperatures and require suitable thermal protection. Refractory lining can help protect the structural components and maintain thermal stability inside the combustion chambers.
Different refractory materials may be selected according to operating temperature, waste composition, chemical conditions, and expected service requirements.
Flue Gas Treatment
Incineration produces flue gas that may contain particulate matter and other combustion by-products. Appropriate flue gas treatment should therefore be considered as part of the complete incineration facility.
Depending on the waste composition and regulatory requirements, the system may incorporate dust collection, gas cooling, scrubbing, filtration, activated carbon, or other suitable treatment technologies.
Ash Discharge
After combustion, inorganic material and non-combustible residues remain as ash. A controlled ash discharge system can help remove the material from the combustion chamber.
Ash characteristics depend on the animal waste and any other materials entering the system. Residual ash should be handled, tested, transported, and disposed of or reused according to its characteristics and applicable requirements.
Odor And Waste Management
Animal waste can generate unpleasant odors during storage and handling. Controlled thermal treatment can be incorporated into a broader waste management process to reduce the quantity of untreated biological material requiring long-term storage.
Proper feeding, storage, ventilation, and facility design are important for managing odor and maintaining a controlled working environment.
Automated Operation
The incinerator can incorporate automated controls for feeding, kiln rotation, combustion air, temperature monitoring, burner operation, secondary combustion, and other process functions.
Automation can reduce repetitive manual operations and provide operators with centralized monitoring of important operating conditions. The degree of automation can be selected according to the project requirements.
Energy Management
Rotary kiln incineration requires thermal energy to initiate and maintain suitable combustion conditions. Depending on the calorific value and moisture content of the animal waste, auxiliary burners may be required.
The system can be designed to manage fuel input according to the feed material and operating conditions. Heat recovery can also be evaluated where the project has a suitable demand for recovered thermal energy.
Customized Animal Waste Incineration System
Animal waste characteristics vary significantly between farms, veterinary facilities, slaughterhouses, laboratories, and other sources. Therefore, incinerator configuration should be based on actual feed data.
Customization can include kiln dimensions, feeding equipment, burner systems, secondary combustion chamber, refractory lining, ash removal, flue gas treatment, control system, and installation arrangement.
Industrial And Agricultural Applications
The Rotary Kiln Animal Incinerator can be considered for livestock farms, poultry farms, veterinary facilities, animal hospitals, slaughterhouses, animal research facilities, rendering-related operations, and centralized animal waste treatment projects.
The system can be configured for different waste types and processing workflows following technical assessment.
B2B Thermal Waste Treatment Solution
For agricultural companies, livestock operations, veterinary facilities, environmental engineering companies, waste treatment contractors, and international industrial equipment buyers, the Multi-Stage Combustion Animal Incinerator provides a controlled thermal treatment solution for compatible animal waste.
Customers can provide animal waste type, daily quantity, moisture content, carcass size, calorific value where available, operating schedule, site conditions, and local environmental requirements for technical evaluation.
Key Features
Rotary Kiln Combustion Design
Multi-Stage Combustion System
Animal Waste Thermal Treatment
Animal Carcass Incineration
Livestock Waste Treatment
Veterinary Waste Incineration
Controlled Feeding System
Primary And Secondary Combustion
Refractory Lined Combustion Chambers
Flue Gas Treatment Integration
Automated Process Control
Customized Facility Configuration
Main Applications
Livestock Farms
Poultry Farms
Animal Carcass Disposal
Veterinary Clinics
Animal Hospitals
Veterinary Laboratories
Slaughterhouses
Animal Research Facilities
Animal Waste Treatment Plants
Agricultural Waste Treatment
Animal By-Product Treatment
Centralized Waste Incineration Facilities
FAQs
1. What Is A Rotary Kiln Animal Incinerator?
A Rotary Kiln Animal Incinerator is an industrial thermal treatment system that uses a rotating combustion chamber to treat suitable animal waste, carcasses, veterinary waste, and other compatible combustible biological materials.
2. What Is Multi-Stage Combustion?
Multi-stage combustion uses separate primary and secondary combustion zones to treat solid waste and combustible gases under controlled conditions.
3. Can It Incinerate Animal Carcasses?
Yes. The system can be designed for suitable animal carcass applications. Carcass size, moisture, fat content, quantity, and other characteristics should be evaluated before equipment selection.
4. Can It Be Used On Livestock Farms?
Yes. It can be considered for suitable livestock mortality and animal waste applications, subject to local regulations and technical requirements.
5. Can It Treat Veterinary Waste?
Yes. Compatible veterinary waste and animal biological waste can be treated when the system is properly configured for the material characteristics.
6. Does The Rotary Kiln Handle Different Waste Sizes?
The rotary design can provide flexibility for heterogeneous solid materials, but waste size and feeding requirements still need to be evaluated to determine the appropriate configuration.
7. Does The Incinerator Require Auxiliary Fuel?
Auxiliary fuel requirements depend on the moisture content, calorific value, feed rate, and operating conditions of the waste. Burners can be used to start the process and support stable combustion when required.
8. Does It Include Flue Gas Treatment?
Flue gas treatment can be integrated into the incineration facility. The required equipment depends on the waste composition, combustion process, emissions requirements, and applicable local regulations.
9. Can The Incinerator Be Customized?
Yes. Rotary kiln dimensions, feeding, burners, secondary combustion, refractory materials, ash removal, flue gas treatment, controls, and other components can be configured according to the project.
10. What Information Is Needed For Equipment Selection?
Useful information includes waste type, daily processing quantity, moisture content, carcass size, calorific value, feeding method, operating hours, site conditions, and applicable environmental requirements.
Why Choose Us
Rotary Kiln Incineration Expertise
We provide industrial thermal treatment equipment for animal waste, agricultural waste, veterinary waste, and other compatible combustible materials.
Multi-Stage Combustion Design
The primary rotary kiln and secondary combustion stage can be configured to provide controlled treatment of solid waste and combustible gases.
Customized Waste Handling
Feeding systems, kiln dimensions, burners, ash discharge, refractory lining, and flue gas treatment can be configured according to the characteristics of the customer's waste.
Application-Based Engineering
Customers can provide waste composition, daily quantity, moisture content, carcass dimensions, and operating requirements for technical evaluation before selecting the equipment.
Complete B2B Project Support
We support international customers with process consultation, equipment configuration, technical drawings, documentation, export packaging, shipping coordination, installation guidance, and after-sales assistance.
Integrated Environmental Solution
The incinerator can be combined with feeding, combustion, ash handling, flue gas treatment, monitoring, and other supporting systems to form a coordinated thermal waste treatment facility.
Prev：
Hazardous Waste Thermal Destruction Unit Water Treatment Plant Incinerators
Next：
Marine Aquaculture Protein Separator / Fine Bubble Design / High Protein Removal Rate
TAG:
Animal Waste Treatment Equipment,
Thermal Waste Treatment Equipment,
Industrial Thermal Treatment,
Multi Stage Combustion Incinerator,
Industrial Waste Incinerator,
Industrial Waste Incineration Equipment,
Thermal Waste Treatment System,
Animal Waste Thermal Treatment,
Animal Waste Disposal Equipment,
Animal Carcass Disposal System,
Animal Mortality Incinerator,
Animal Mortality Disposal Equipment,
Poultry Incinerator,
Poultry Waste Incinerator,
Farm Animal Incinerator,
Agricultural Waste Incinerator,
Multi Stage Combustion System,
Multi Stage Incineration System,
Industrial Rotary Kiln Incinerator,
Rotary Kiln Waste Incinerator,
Rotary Kiln Thermal Treatment,
Rotary Kiln Combustion System,
Animal Waste Combustion System,
Veterinary Animal Incinerator,
Animal Hospital Incinerator,
Slaughterhouse Waste Incinerator,
Animal By Product Incinerator,
Animal Waste Treatment Plant,
Animal Waste Treatment System,
Rotary Kiln Animal Incinerator,
Related Category:
Rotary Kiln Animal Incinerator, Animal Incinerator, Rotary Kiln Incinerator, Multi-Stage Combustion Incinerator, Animal China, suppliers, manufacturers, factory, customized, wholesale, quotation, made in China
