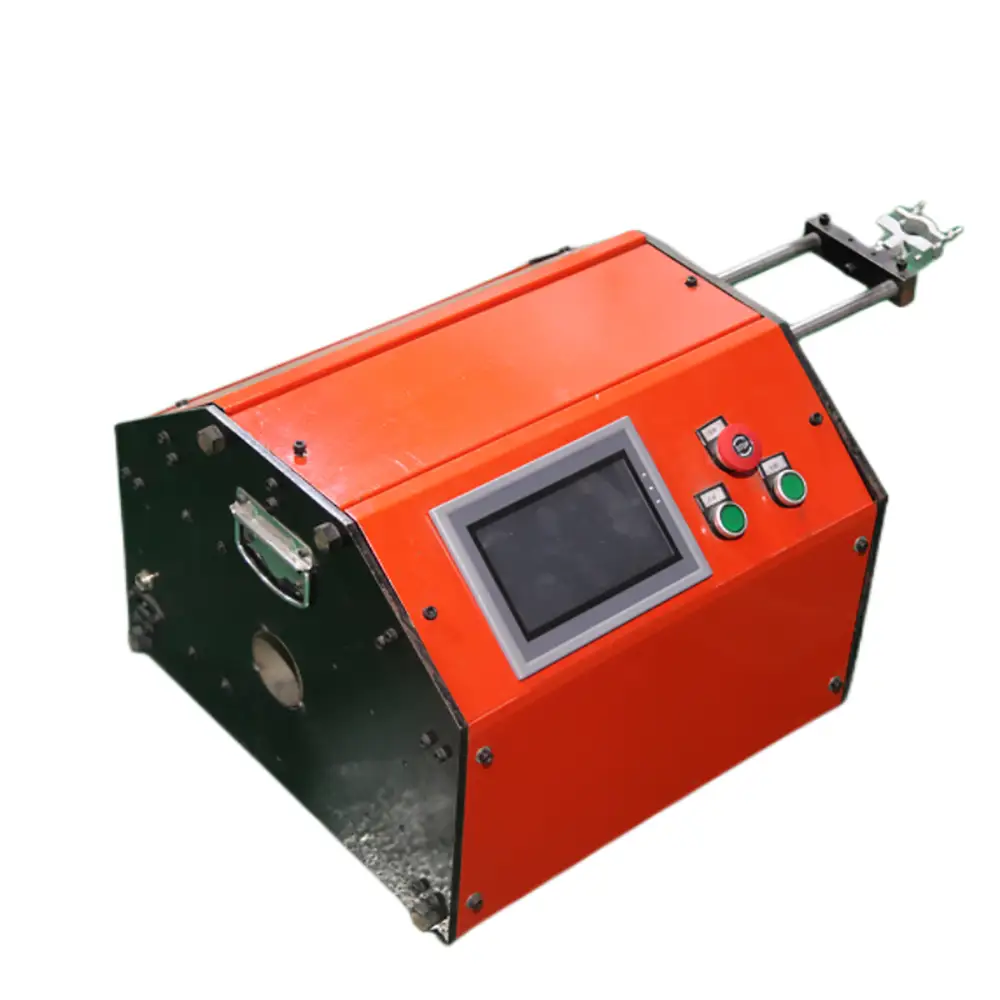

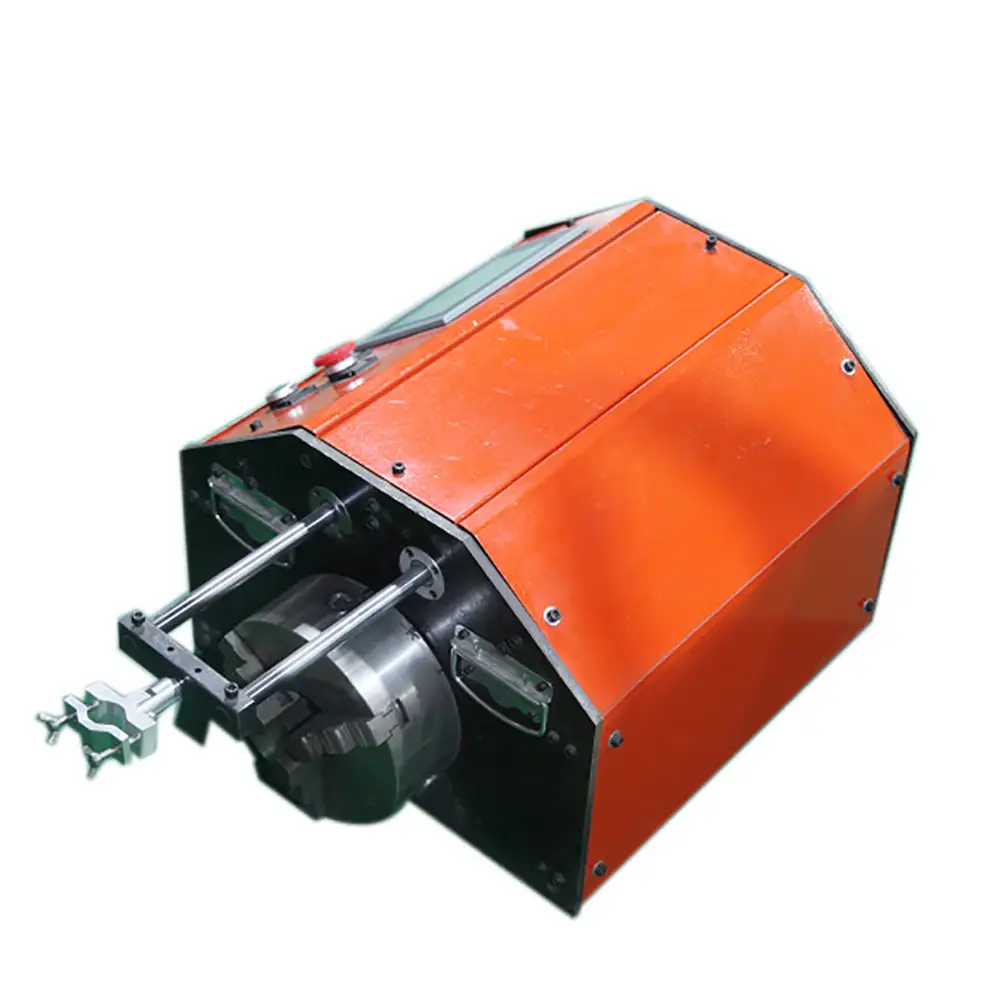

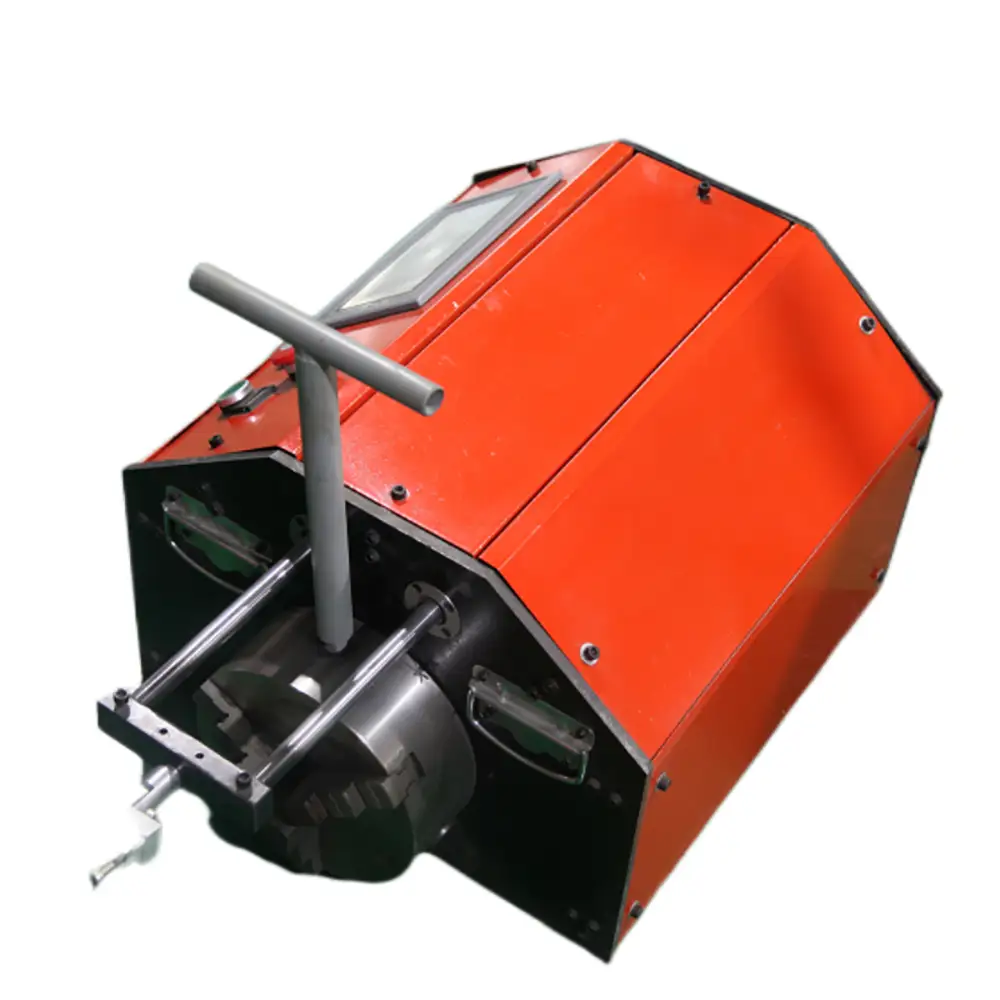

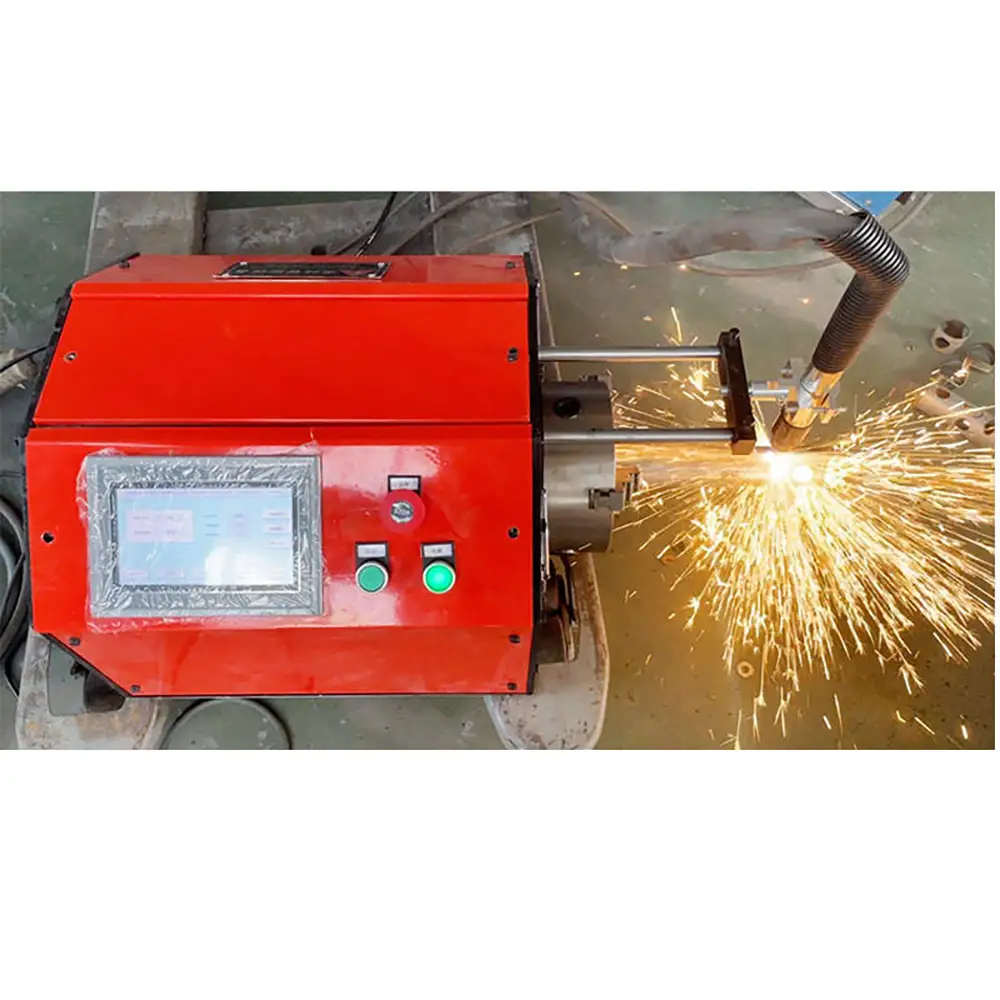

Plasma Pipe Cutting Machine for Notch

 The Plasma Pipe Cutting Machine for Notch is a specialized metal tube processing solution designed for pipe notching, hole cutting, profile cutting, cut-off operations and other fabrication requirements. By combining plasma cutting technology with controlled pipe positioning and torch movement, this machine provides an efficient way to prepare round, square and other suitable metal tubes for welding, assembly and structural fabrication.

Pipe notching is an important operation in industries where two tubes or pipes must fit together before welding. Traditional manual notching often requires marking, grinding, drilling or cutting by hand. These processes can take considerable time and may produce variations between workpieces. A plasma pipe cutting machine can automate or simplify the cutting process and provide more repeatable results.

Depending on the machine configuration, the equipment can process round pipes, circular tubes, square tubes and other supported metal profiles. Typical operations include pipe notching, saddle cutting, branch-hole cutting, slot cutting, angled cutting, end cutting and customized profile cutting.

Plasma Pipe Notching

The primary application of this equipment is pipe notching.

Pipe notching creates a shaped opening or end profile that allows one pipe to connect with another pipe or structural member. A properly prepared notch can improve the fit-up between components and reduce the amount of manual grinding required before welding.

Common applications include:

Pipe-to-pipe connections
Branch pipe fabrication
Structural steel frames
Handrail fabrication
Metal furniture
Machinery frames
Construction structures
Agricultural equipment
Industrial pipe fabrication
Custom metal assemblies

The exact notch shape and cutting capability depend on the machine's control system, pipe dimensions, plasma power and software configuration.

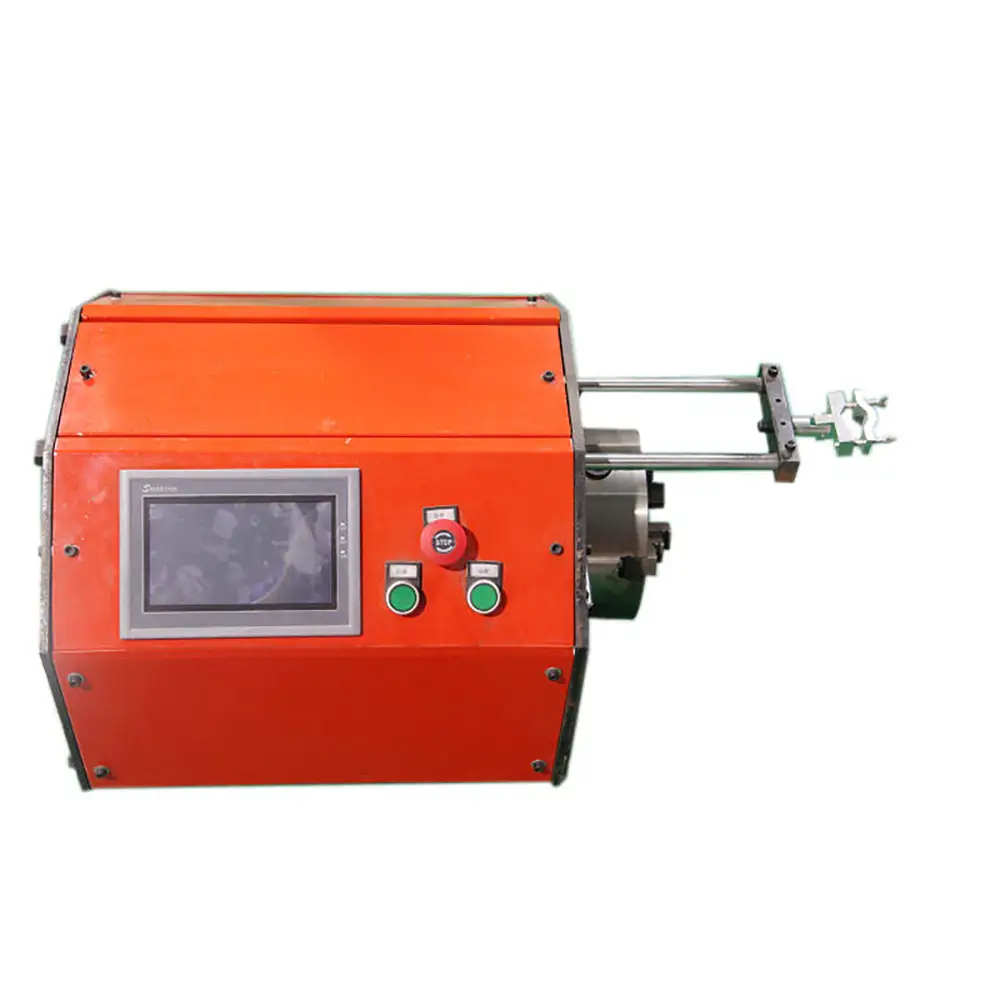

Saddle Cutting for Pipe Connections

One common type of pipe notch is a saddle cut. Saddle-shaped profiles are used when one round tube intersects another tube.

This type of cutting is especially important in:

Steel structures
Pipe frameworks
Handrails
Industrial frames
Equipment supports
Trailer frames
Agricultural machinery
Custom tube fabrication

A plasma pipe cutting machine can produce programmed saddle profiles to help prepare tubes for welding. This can reduce manual template marking and grinding and improve production consistency.

Pipe Hole Cutting

In addition to notching, the machine can be used for pipe hole cutting.

Holes may be required for branch connections, bolts, brackets, drainage, ventilation, mechanical assemblies or other fabrication purposes.

Depending on the machine configuration, operators can process different hole sizes and shapes according to the required cutting pattern.

Typical hole applications include:

Branch pipe holes
Round holes
Oval openings
Connection holes
Mounting holes
Ventilation openings
Drainage holes
Welding preparation openings

For repeated production, CNC-controlled cutting can improve positional consistency and reduce manual measurement.

CNC Tube Cutting and Profile Processing

A CNC pipe cutting system can control the torch movement according to programmed cutting paths. This allows the machine to perform more than simple straight cutting.

Depending on configuration, the machine may support:

Pipe cut-off
Pipe notching
Tube notching
Saddle cutting
Hole cutting
Slot cutting
Arc cutting
Miter cutting
End cutting
Profile cutting
Intersection cutting

This multifunctional capability makes the equipment suitable for manufacturers that process tubes with different fabrication requirements.

Round Pipe and Tube Processing

Round pipe processing is one of the most common applications.

Round tubes are widely used in structural fabrication, construction, agricultural machinery, automotive components, handrails, frames, exhaust components and industrial equipment.

Notching round tubes manually can require templates and extensive grinding. CNC plasma cutting can provide a more efficient method for producing repeatable profiles.

For example, when fabricating a tubular frame, multiple round tubes may require different notch shapes and hole positions. A programmable cutting system can help simplify these repetitive operations.

Square Tube Cutting and Notching

The machine can also be configured for suitable square tube and rectangular tube applications.

Square and rectangular tubing is commonly used for:

Steel structures
Machine frames
Furniture
Gates
Fencing
Agricultural equipment
Construction components
Trailer structures
Industrial equipment

Cutting and notching square tubing can involve straight cuts, angled cuts, holes and customized profiles. The machine configuration should be selected according to tube dimensions and the required cutting geometry.

Plasma Cutting Technology

Plasma cutting is suitable for electrically conductive metals. A plasma arc is generated through the torch and concentrated onto the workpiece to melt and remove material along the cutting path.

Depending on the plasma power and configuration, suitable materials can include:

Carbon steel
Mild steel
Stainless steel
Galvanized steel
Aluminum
Other conductive metals

Cutting capacity depends on material type, wall thickness, plasma power, cutting speed, torch consumables and machine configuration.

For buyers, it is important to provide actual material and thickness requirements when selecting the machine.

Automatic Pipe Processing

Automatic or CNC-controlled movement can reduce the amount of manual torch handling required during pipe fabrication.

For repetitive jobs, automatic cutting can provide more consistent movement and help operators reproduce the same cutting pattern across multiple workpieces.

This is particularly useful for manufacturers producing:

Repeated tube assemblies
Steel frames
Pipe supports
Handrails
Machinery structures
Agricultural equipment
Construction components

Automation can also reduce repetitive manual operations and help improve overall workshop productivity.

Pipe Welding Preparation

Pipe notching and profile cutting are often performed before welding.

A properly cut tube profile can improve the fit between connected components. Better fit-up may reduce excessive gaps, manual grinding and adjustment before welding.

For fabrication companies, this can help streamline the workflow from tube preparation to welding and final assembly.

The machine can therefore serve as an important preparation process within a larger tube fabrication operation.

Applications Across Different Industries

The Plasma Pipe Cutting Machine for Notch can be used in a variety of industrial applications.

Steel Structure Fabrication

For structural tubes, the machine can produce notches, holes and angled cuts before assembly and welding.

Metal Furniture

Tube furniture manufacturers can use plasma cutting for frames, brackets, holes and customized profiles.

Agricultural Machinery

The equipment can process tubes used in agricultural machinery frames, supports and implements.

Construction

Pipe and tube components used in construction can be cut, notched and prepared for welding.

Handrail and Fencing

Round and square tubes used for handrails, fences and gates can require repeated angle, notch and hole operations.

Machinery Manufacturing

Machine frames and structural components often require customized tube profiles and connection openings.

How to Choose a Plasma Pipe Notching Machine

Several factors should be considered before purchasing a pipe plasma cutting machine.

First, determine the pipe shape and size. Round and square tubes may require different fixtures or configurations.

Second, identify the material and wall thickness. Plasma power should match the required cutting thickness.

Third, determine the required cutting operations. If the application requires only straight cut-off, a simpler machine may be sufficient. If the project requires notching, saddle cutting, holes and complex profiles, a CNC plasma pipe cutting system may provide greater flexibility.

Fourth, consider production volume. Small workshops may prefer compact equipment, while high-volume manufacturers may require automatic loading, unloading and more advanced CNC functions.

Finally, consider software, torch height control, drive system, positioning accuracy, consumables and technical support.

Why Choose Us
Specialized Pipe Notching Solution: Designed for tube notch and profile cutting applications.
Plasma Cutting Technology: Suitable for efficient processing of many electrically conductive metals.
Multiple Cutting Functions: Supports notching, holes, cut-off, slots, arcs and profiles depending on configuration.
Round and Square Tube Options: Suitable for different common tube profiles.
CNC Automation: Programmable cutting can improve repeatability for production work.
Welding Preparation: Helps prepare tube connections before welding and assembly.
Flexible Configuration: Machine specifications can be selected according to tube dimensions and production requirements.
Industrial Applications: Suitable for steel structures, machinery, construction, agriculture and general fabrication.
OEM and Custom Support: Equipment can be configured for specific pipe sizes, materials and cutting requirements.
B2B Manufacturing Experience: Suitable for manufacturers, distributors, fabricators and industrial equipment buyers.
Main Applications

The Plasma Pipe Cutting Machine for Notch is suitable for pipe notching, saddle cutting, tube hole cutting, steel structure fabrication, machinery frames, agricultural equipment, construction components, handrails, fencing, metal furniture, trailer frames, pipe fabrication and general metalworking.

FAQS
1. What is a plasma pipe notching machine?

A plasma pipe notching machine is equipment designed to cut notches, holes, profiles and other shapes in metal pipes and tubes using a plasma cutting process.

2. What is pipe notching used for?

Pipe notching is commonly used to prepare tubes for joining and welding. It allows one tube to fit against another tube or structural component.

3. Can this machine perform saddle cutting?

Yes. Saddle cutting can be supported when the machine control system and configuration are designed for the required pipe intersection profile.

4. Can it cut holes in pipes?

Yes. Pipe hole cutting is one of the common applications of CNC plasma tube cutting equipment.

5. Can it cut round tubes?

Yes. The machine can be configured for round pipe and tube processing according to the required diameter and wall thickness.

6. Can it process square tubes?

Yes. Suitable square and rectangular tubes can be processed when the machine is equipped with the appropriate support and positioning system.

7. What materials can it cut?

Typical materials include carbon steel, mild steel, stainless steel, galvanized steel and aluminum, depending on the plasma system and material thickness.

8. Is CNC control necessary for pipe notching?

CNC control is not required for every application, but it can provide greater flexibility and repeatability when producing complex notches, holes and profiles.

9. Can it cut pipe intersections?

Yes. With suitable CNC software and machine configuration, pipe intersection and branch connection profiles can be processed.

10. Can it cut slots and arcs?

Yes. Slots, arcs and other profiles can be cut when supported by the machine's control system and cutting software.

11. Can plasma cutting replace manual pipe notching?

For suitable applications, plasma cutting can significantly reduce manual marking, cutting and grinding. The appropriate machine depends on pipe size, material, thickness and required profile.

12. Can the machine be customized?

Yes. Configuration can be discussed according to pipe diameter, square tube dimensions, wall thickness, plasma power, cutting functions and automation requirements.

13. What information should I provide when requesting a quotation?

Provide the pipe shape, outside diameter or dimensions, wall thickness, material, required notch or hole type, plasma power requirements and expected production volume. These details help determine the appropriate machine configuration.
