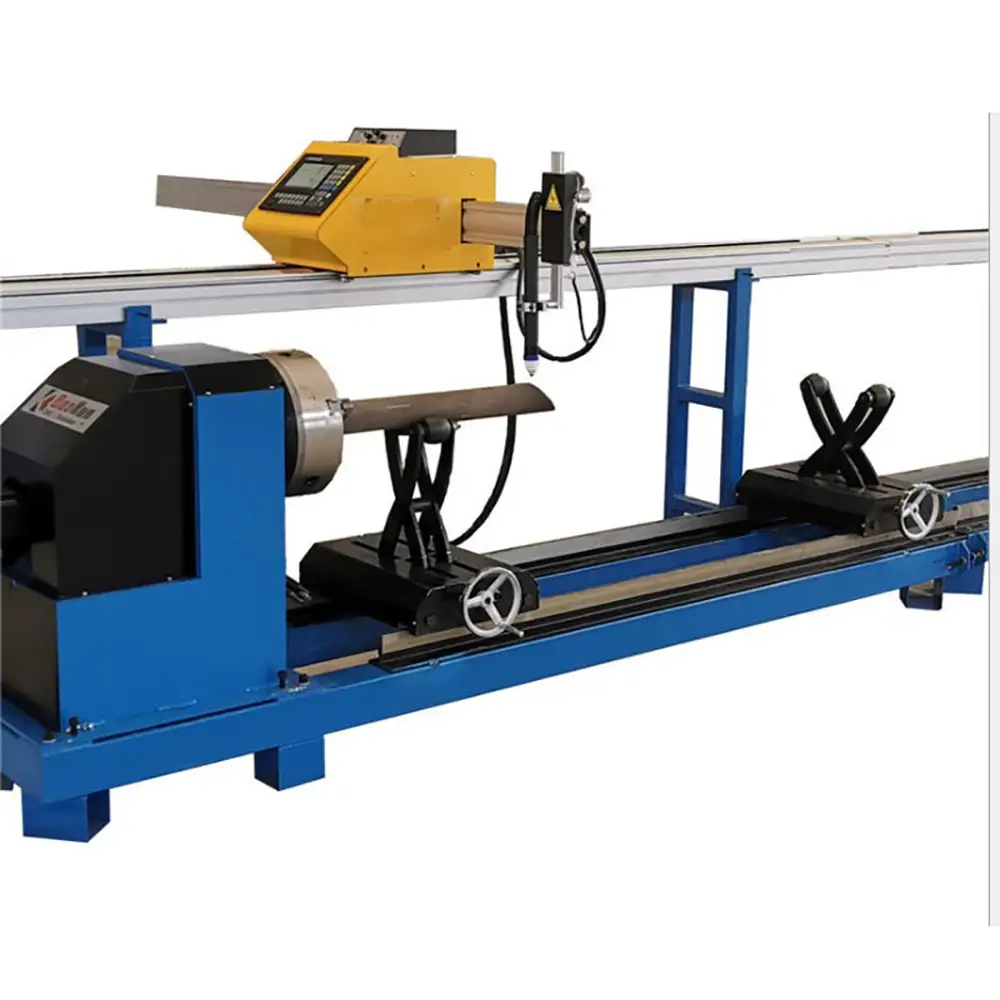

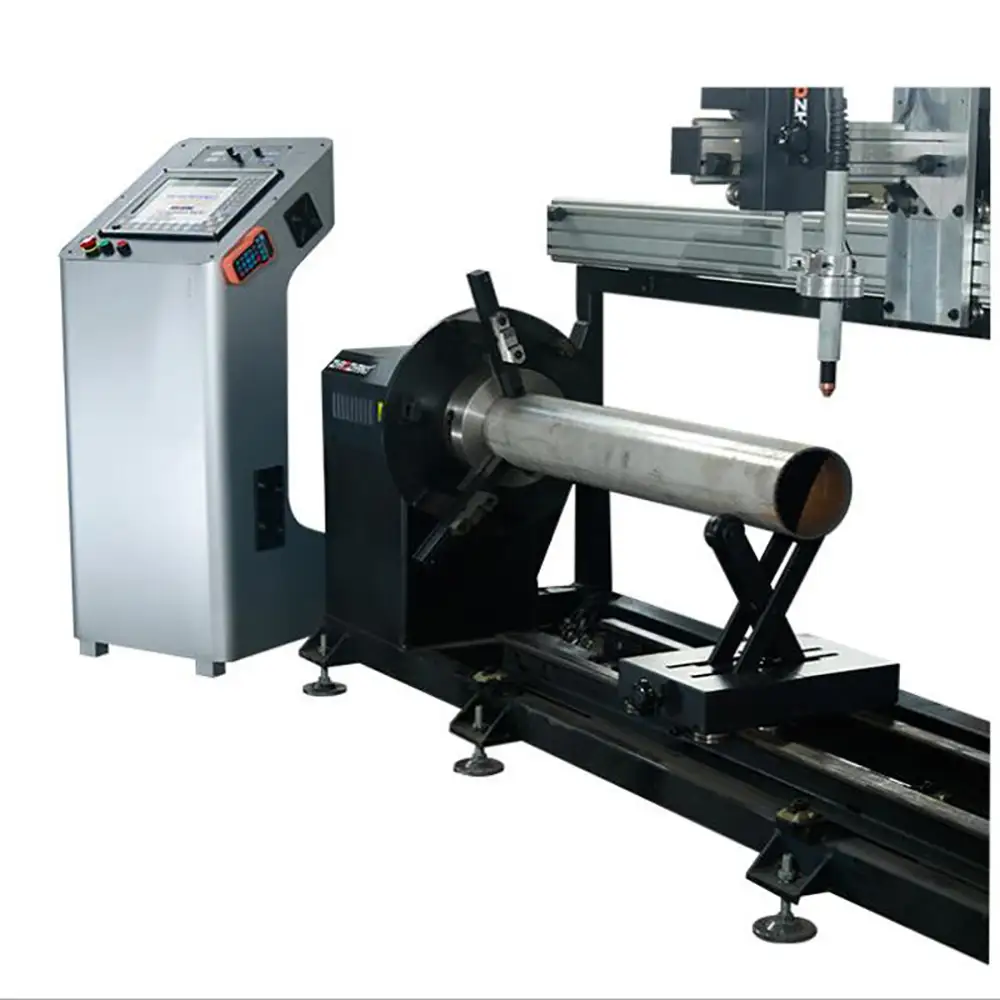

CNC Pipe Tube Cutting Machine Cutting Notching Punch Hole

The CNC Pipe Tube Cutting Machine Cutting Notching Punch Hole is a multifunctional CNC tube processing solution designed for manufacturers that need accurate and repeatable cutting, notching, hole and profile operations on metal pipes and tubes. Combining computer-controlled movement with an efficient cutting process, this type of machine can streamline tube fabrication and reduce the amount of manual marking, cutting, drilling and grinding required during production.

Pipe and tube components are widely used in construction, steel structures, agricultural machinery, automotive components, industrial equipment, furniture, handrails, fencing, trailers and machinery frames. Many of these applications require more than simple straight cutting. Tubes may need to be cut to length, notched for welding, punched or cut with holes, slotted, beveled or shaped for connection with other components.

A CNC pipe tube cutting machine provides a flexible method for performing these operations with greater consistency. Depending on the machine configuration, cutting technology and software, the equipment can process round pipe, circular tube, square tube, rectangular tube and other supported metal profiles.

CNC Pipe and Tube Cutting

The primary function of the machine is CNC-controlled pipe and tube cutting.

Instead of manually guiding a cutting torch or cutting tool, the CNC system controls the movement according to programmed cutting paths. This allows manufacturers to produce repeated components with more consistent dimensions and cutting positions.

Straight cut-off operations can be used to divide long tubes into specific lengths before welding or assembly. CNC control becomes especially useful when different tube lengths or cutting patterns are required within the same production process.

Typical cutting applications include:

Straight pipe cut-off
Tube length cutting
Angled pipe cutting
Miter cutting
Pipe end cutting
Profile cutting
Custom shape cutting
Welding preparation

The appropriate cutting capacity depends on the machine design, cutting technology, material and tube dimensions.

Pipe Notching

Pipe notching is one of the most important functions for tube fabrication.

When two tubes need to be joined together, the end of one tube may require a specially shaped notch. A properly formed notch allows the tubes to fit together before welding and can reduce the amount of manual grinding and fitting.

CNC pipe notching can be used for:

Round tube joints
Structural frames
Handrails
Steel structures
Machine frames
Agricultural machinery
Trailer frames
Industrial equipment
Custom tubular assemblies

Depending on the software and machine configuration, the system can create different notch geometries according to the required connection.

Punch Hole and Pipe Hole Processing

The machine can also be configured for pipe hole cutting or punch hole processing, depending on the selected cutting or tooling system.

Holes are frequently required in tube fabrication for bolts, brackets, pipe connections, drainage, ventilation, assembly and welding preparation.

Typical applications include:

Round holes
Mounting holes
Connection holes
Branch pipe holes
Bolt holes
Ventilation openings
Drainage openings
Assembly holes

CNC positioning helps maintain the programmed hole location along the tube. This can be particularly valuable when multiple holes must be produced at specific distances and angles.

The actual hole diameter, material thickness and processing method should be confirmed according to the machine configuration.

Cutting, Notching and Hole Processing in One Machine

A major advantage of multifunctional CNC pipe equipment is the ability to combine several tube processing operations.

Instead of moving a workpiece between separate machines for cutting, drilling, notching and profile processing, an integrated CNC tube processing system can perform multiple operations within one workflow when properly configured.

This can help reduce:

Manual measurement
Repositioning time
Workpiece handling
Setup operations
Manual grinding
Production errors

For manufacturers processing large numbers of similar tube components, integrating multiple operations can improve overall production efficiency.

Round Pipe and Tube Processing

Round pipes and tubes are widely used in structural and industrial applications.

The machine can be used for suitable round tube applications such as:

Steel frame fabrication
Handrails
Fencing
Agricultural machinery
Automotive components
Exhaust components
Machinery frames
Pipe structures
Furniture frames

Round tube notching and hole cutting can be particularly difficult when performed manually because the cutting position must follow the tube geometry. CNC-controlled movement can help produce more consistent profiles when the appropriate software and machine configuration are used.

Square and Rectangular Tube Processing

Square and rectangular tubes are also commonly used in metal fabrication.

Typical applications include machinery frames, construction structures, gates, furniture, trailers, agricultural equipment and industrial supports.

The CNC system can be configured to process suitable square and rectangular profiles for operations such as:

Straight cutting
Angled cutting
Hole cutting
Slot cutting
Notching
Profile cutting
End preparation

The required fixture, support mechanism and software should be selected according to the tube dimensions and geometry.

CNC Pipe Profile Cutting

Modern tube fabrication often requires customized profiles rather than simple straight cuts.

Profile cutting can create specific shapes required for assembly or welding. Depending on the machine configuration, this can include curved cuts, slots, notches, branch connections, saddle profiles and other customized shapes.

For steel structure manufacturers, this functionality can reduce manual template preparation and improve consistency between components.

Materials

CNC pipe tube cutting machines can be configured for a range of conductive or machinable metals depending on the cutting technology.

Common materials include:

Carbon steel
Mild steel
Stainless steel
Galvanized steel
Aluminum
Alloy steel
Other suitable metal tubes

Material thickness and cutting quality depend on the machine configuration, cutting power, tooling, speed and process parameters.

Buyers should provide the exact material and wall thickness when selecting equipment.

CNC Automation and Production Efficiency

CNC control allows cutting programs to be created and repeated for production work.

For manufacturers producing multiple identical tube components, CNC operation can help improve repeatability and reduce operator-dependent variation.

The system can also be useful for mixed production because different cutting programs can be prepared for different workpieces.

This flexibility makes CNC pipe processing equipment suitable for both custom fabrication and batch production.

For higher-volume manufacturing, additional automation such as automatic loading, unloading, tube feeding or material handling can be considered depending on the production requirements.

Welding Preparation

Tube cutting and notching are often performed as preparation processes before welding.

A properly cut and notched tube can improve the fit between components. Better fit-up may reduce the need for excessive grinding and adjustment and can help create a more efficient welding workflow.

For example, when producing tubular frames, one tube may require a saddle notch while another requires a hole or angled end. CNC processing can prepare these components before they reach the welding station.

Industrial Applications

The CNC Pipe Tube Cutting Machine can be used across many industries.

Steel Structure: Cutting, notching and hole processing for structural tube components.

Agricultural Machinery: Processing tube frames, supports and equipment components.

Construction: Preparing structural tubes, brackets and framework components.

Automotive: Tube components, frames, exhaust-related parts and structural assemblies.

Metal Furniture: Cutting and notching tubes for chairs, tables, frames and shelving.

Trailer Manufacturing: Processing tubular frames, supports and connection components.

Handrail and Fence Manufacturing: Cutting round and square tubes for repeated fabrication.

Industrial Equipment: Producing machine frames, supports and tubular assemblies.

How to Choose the Right CNC Pipe Tube Cutting Machine

Before purchasing, buyers should determine the maximum and minimum tube dimensions, material type, wall thickness and required processing operations.

It is also important to identify whether the machine needs to perform only cutting or whether it must also handle notching, hole cutting, punching, slotting, profiling and welding preparation.

Production volume is another important consideration. A compact CNC system may be suitable for custom fabrication and small-batch manufacturing, while high-volume production may benefit from automated loading and unloading.

The cutting method should also match the application. Depending on the material and thickness, plasma, laser, saw or other processing technologies may be appropriate.

Why Choose Us
Multifunctional CNC Processing: Combines pipe cutting with notching and hole-processing capabilities.
Accurate CNC Positioning: Helps maintain consistent cutting and hole locations.
Round and Square Tube Capability: Suitable for common pipe and tube profiles.
Efficient Notching: Helps prepare tube joints for welding and assembly.
Hole Processing: Suitable for connection, mounting and fabrication requirements.
Flexible Cutting Programs: Different cutting patterns can be used for different workpieces.
Reduced Manual Processing: Helps reduce repetitive marking, cutting and grinding operations.
Industrial Applications: Suitable for structural steel, machinery, agriculture, construction and fabrication.
OEM/Custom Configuration: Machine specifications can be matched to tube dimensions and production requirements.
B2B Manufacturing Support: Suitable for manufacturers, fabricators, distributors and industrial equipment buyers.
Main Applications

The CNC Pipe Tube Cutting Machine is suitable for steel structure fabrication, pipe and tube manufacturing, agricultural machinery, construction equipment, automotive components, trailer manufacturing, metal furniture, handrails, fencing, machinery frames, industrial equipment, pipe fabrication and custom metalworking.

FAQS
1. What is a CNC pipe tube cutting machine?

A CNC pipe tube cutting machine is automated equipment designed to cut and process metal pipes and tubes according to programmed cutting paths.

2. Can this machine perform pipe notching?

Yes. When configured for notching, the machine can create customized notch profiles for tube connections and welding preparation.

3. Can it cut holes in pipes?

Yes. Pipe hole cutting can be included depending on the machine's cutting technology, control system and configuration.

4. What does punch hole mean in tube processing?

Punch hole generally refers to creating openings in a tube for mounting, connection or assembly. Depending on the machine, this may be performed using plasma cutting, drilling, punching or another suitable process.

5. Can it process round tubes?

Yes. Round pipe and circular tube processing are common applications for CNC tube cutting equipment.

6. Can it process square tubes?

Yes. Suitable square and rectangular tubes can be processed when the machine is equipped with the appropriate support and control configuration.

7. What materials can the machine process?

Depending on the cutting technology, it can process materials such as carbon steel, mild steel, stainless steel, galvanized steel and aluminum.

8. Can it perform saddle cutting?

Yes. With suitable CNC software and machine configuration, saddle or pipe intersection profiles can be produced for tube-to-tube connections.

9. Can it cut slots and complex profiles?

Yes. CNC cutting systems can support slots, arcs, notches and other customized profiles when these functions are supported by the machine software.

10. Is CNC control better than manual pipe cutting?

CNC control can provide greater repeatability and is particularly useful for production involving repeated or complex cutting patterns. The best solution depends on production volume and application requirements.

11. Can the machine be used for welding preparation?

Yes. Cutting, notching, hole and profile processing can prepare tubes for subsequent welding and assembly.

12. Can the machine be customized?

Yes. Machine configuration can be selected according to tube dimensions, material, wall thickness, cutting technology, automation level and required processing functions.

13. What information is needed for a quotation?

Provide the tube shape, outside diameter or width and height, wall thickness, material, required cutting/notching/hole operations and expected production volume. These details help determine the appropriate configuration.
