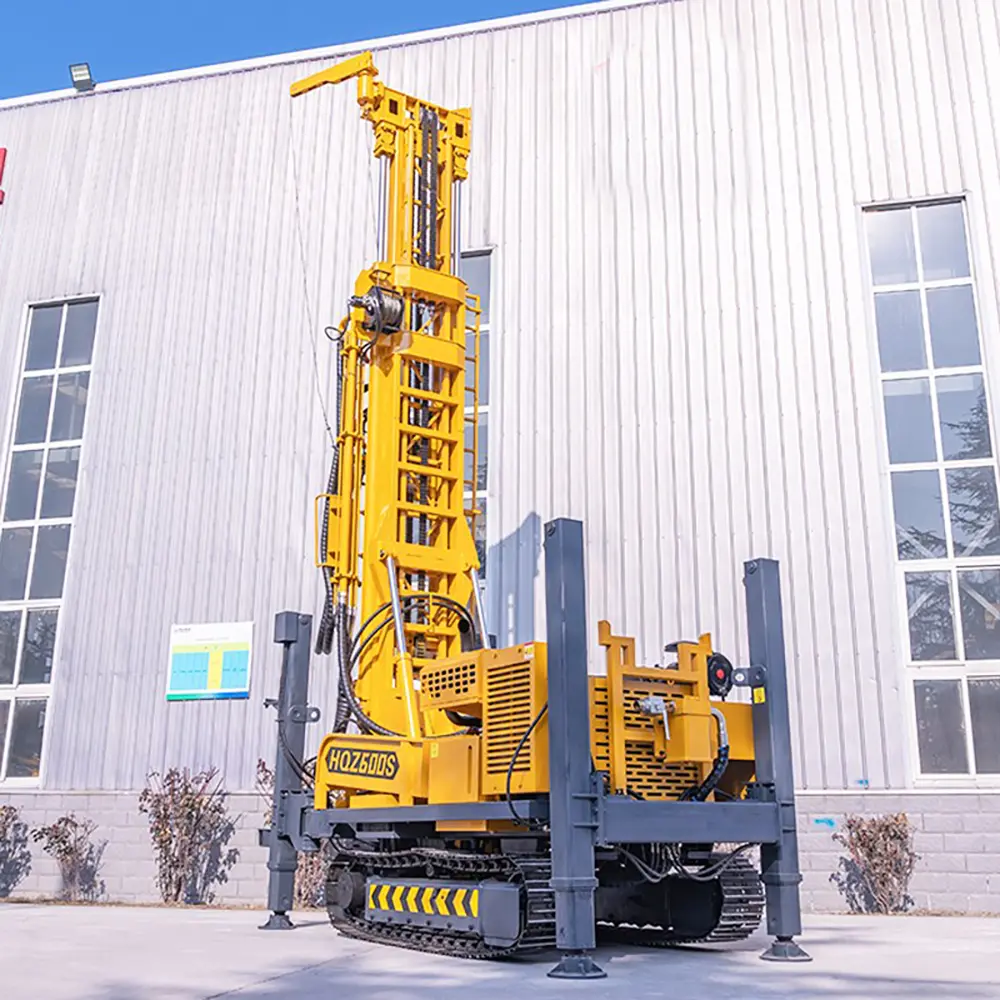

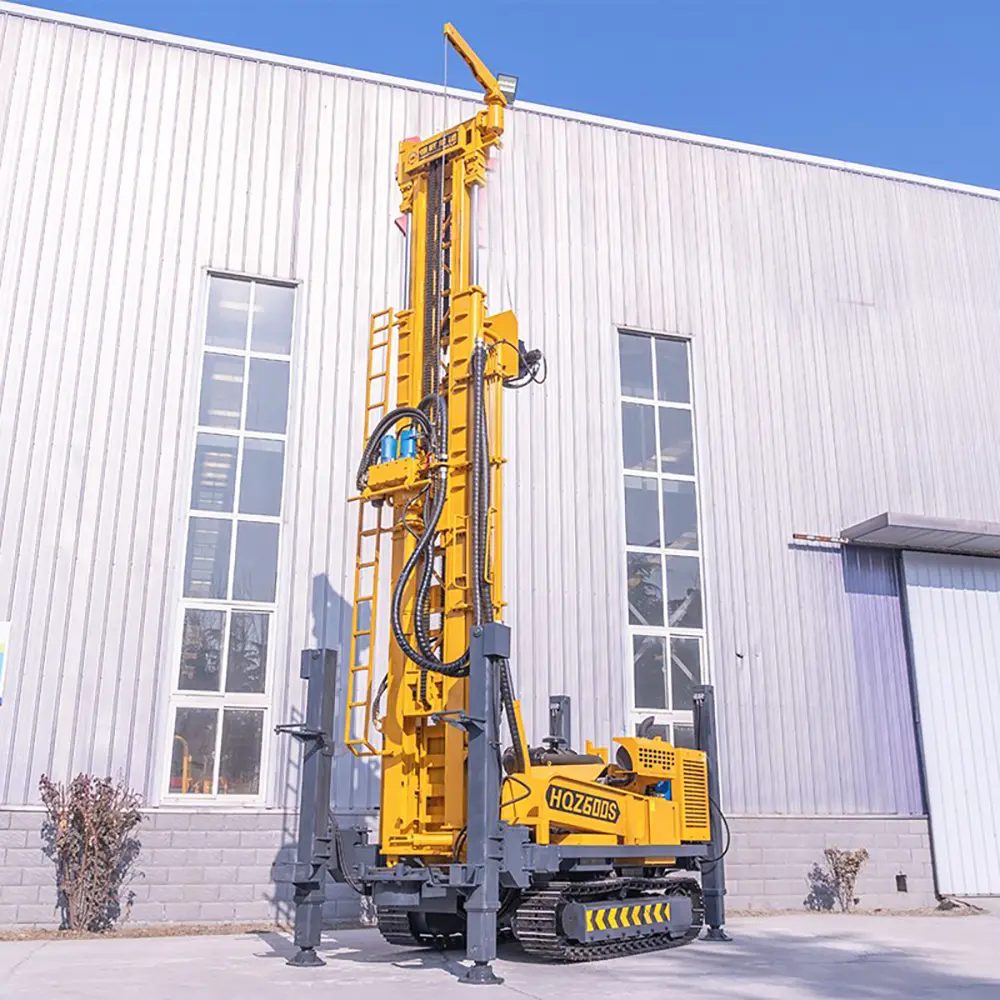

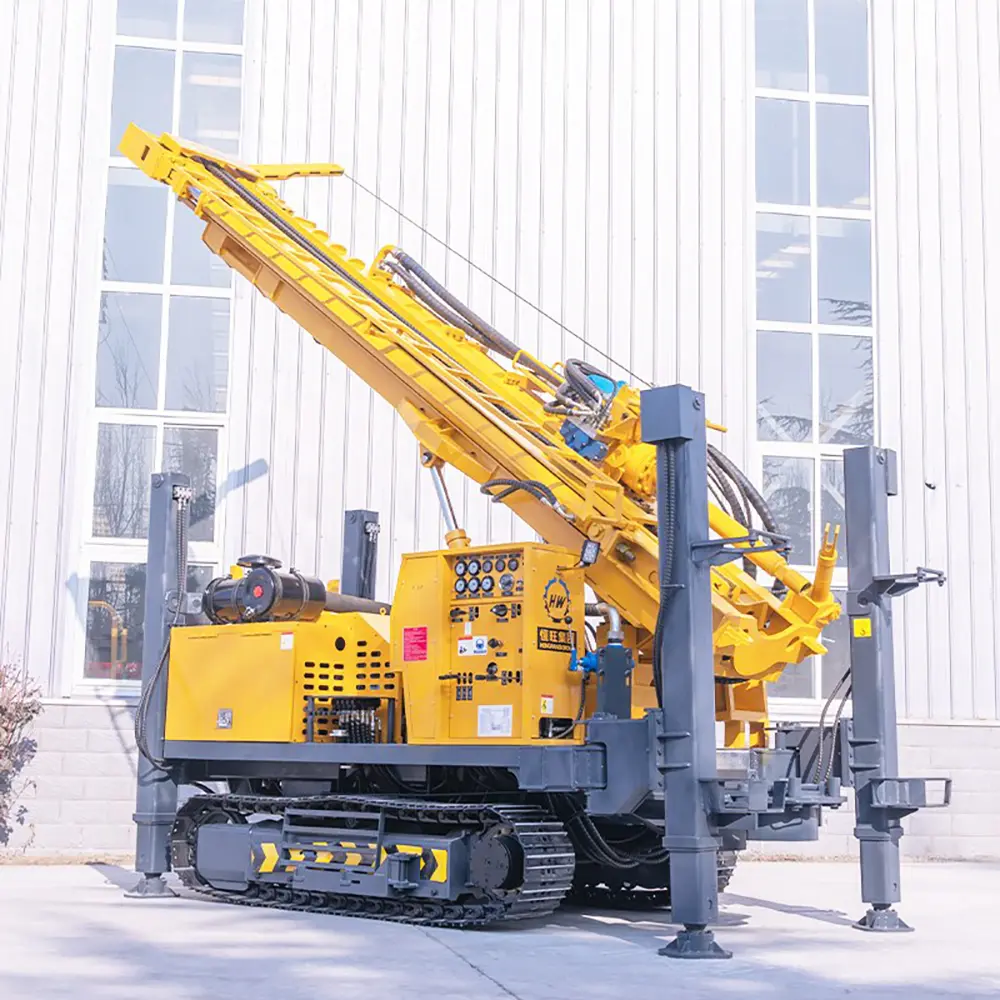

HQZ-600L Pneumatic Drill Rig

Drilling depth: 600m
Drilling diameter: 130-350mm
Engine Power: 132Kw

model	HQZ-600L
tower	6	m
Chassis	Steel track	/
Drilling diameter	130-350	mm
Drilling depth	600	m
One-time advancement length	6.6	m
Walking speed	2.5	km/h
Maximum gradeability	30	/
Engine brand	Yuchai	/
Engine power	132	kw
working pressure	1.7-3.5	mpa
Air consumption	17-42	m³/min
Drill pipe diameter	102/108/114	mm
Drill pipe length	3.0/6.0	m
Lifting power	28	T
Swing speed	45-115	rpm
Rotating torque	9000-11000	N.m
Dimensions	6000*2200*2950	mm
weight	12	T

HQZ-600L Pneumatic Drill Rig

The HQZ-600L Pneumatic Drill Rig is a powerful and multifunctional crawler-mounted drilling machine designed for professional deep drilling applications. It combines advanced pneumatic drilling technology, a high-strength steel track chassis, and a powerful hydraulic control system to provide excellent drilling efficiency and reliable operation in demanding environments.

Designed for deep water wells, geological exploration, geothermal drilling, mining investigation, and industrial drilling projects, the HQZ-600L offers outstanding performance in both soil and hard rock formations.

The machine uses compressed air to drive the down-the-hole (DTH) hammer system, delivering strong impact energy directly to the drill bit. This technology improves rock penetration speed, reduces drilling resistance, and provides stable drilling performance in challenging geological conditions.

The HQZ-600L Pneumatic Drill Rig is equipped with a steel crawler chassis, allowing it to move efficiently across uneven terrain, mountains, construction sites, and remote drilling locations. Its strong mobility and stable structure make it an excellent solution for professional drilling contractors.

With a maximum drilling depth of approximately 600 meters, drilling diameter of 130-350mm, and a powerful 132kW engine, the HQZ-600L is suitable for large-scale drilling operations requiring high efficiency and reliability.

Advanced Pneumatic Drilling Technology

The HQZ-600L Pneumatic Drill Rig adopts advanced air-powered DTH drilling technology.

Compressed air provides power for the impactor, creating repeated high-energy impacts that allow the drill bit to penetrate hard rock efficiently.

The pneumatic drilling system provides:

Strong impact force
Fast drilling speed
Excellent rock penetration
Efficient cutting removal
Stable deep drilling performance

Compared with traditional drilling methods, pneumatic drilling offers advantages including:

Better performance in hard rock formations
Reduced drilling time
Simple maintenance structure
High operational reliability
Lower long-term operating costs

The HQZ-600L is especially suitable for projects requiring deep drilling and strong rock-breaking capability.

Powerful 600m Deep Drilling Capability

The HQZ-600L Pneumatic Drill Rig is designed for deep drilling applications.

Main drilling advantages include:

Maximum drilling depth up to 600m
Drilling diameter range of 130-350mm
Strong lifting capacity
High rotary torque
Stable drilling operation

The machine provides a powerful rotary torque range of approximately 9000-11000N·m, lifting force up to 28T, and rotation speed of 45-115rpm, making it capable of handling demanding drilling conditions.

It is suitable for:

Deep water wells
Industrial water supply wells
Agricultural irrigation wells
Geothermal wells
Geological investigation holes
Mining exploration drilling
Steel Crawler Chassis For Difficult Terrain

The HQZ-600L features a heavy-duty steel track chassis designed for excellent mobility and stability.

Advantages of the crawler system include:

Strong off-road performance
High climbing ability
Stable drilling platform
Reduced ground pressure
Easy movement on rough terrain

The machine can operate effectively in:

Mountain areas
Remote regions
Construction sites
Mining areas
Uneven ground conditions

The crawler design reduces transportation difficulties and improves working efficiency in challenging environments.

Efficient Water Well Drilling Solution

The HQZ-600L Pneumatic Drill Rig is widely used for deep water well construction.

Applications include:

Agricultural irrigation wells
Industrial water wells
Municipal water projects
Geothermal energy wells
Groundwater exploration

The combination of powerful air drilling and high torque rotary performance allows operators to achieve efficient drilling results even in hard geological formations.

Benefits include:

Faster penetration speed
Better borehole quality
Reduced drilling downtime
Higher project productivity
Excellent Hard Rock Drilling Performance

The HQZ-600L is specifically designed for complex geological conditions.

It can effectively drill through:

Granite
Limestone
Basalt
Weathered rock
Hard rock layers
Mixed formations

The pneumatic impact system delivers strong energy directly to the bottom of the hole, improving drilling efficiency and reducing energy loss.

This makes the HQZ-600L an ideal choice for mining exploration and deep geological drilling projects.

High Torque Hydraulic Rotary System

The HQZ-600L Pneumatic Drill Rig combines pneumatic drilling with a reliable hydraulic rotary system.

The rotary system provides:

High torque output
Smooth rotation control
Stable drilling pressure
Efficient drill pipe handling

Key specifications include:

Working pressure: 1.7-3.5MPa
Air consumption: 17-42m³/min
Drill pipe diameter: 102/108/114mm
Drill pipe length: 3.0/6.0m
Walking speed: 2.5km/h

These features ensure stable operation during long drilling processes.

Durable Structure And Long Service Life

The HQZ-600L Pneumatic Drill Rig is built for heavy-duty industrial applications.

Its durable structure includes:

High-strength steel frame
Heavy-duty crawler chassis
Reliable hydraulic components
Wear-resistant drilling parts
Reinforced drilling tower

Benefits:

Longer service life
Reduced maintenance costs
Improved reliability
Better return on investment

The robust design allows continuous operation in harsh drilling environments.

Easy Operation And Maintenance

Despite its powerful drilling capability, the HQZ-600L is designed for convenient operation.

Advantages include:

User-friendly control system
Easy drilling parameter adjustment
Simple maintenance procedures
Convenient component inspection
Reduced operator training requirements

The practical design helps improve drilling efficiency while minimizing downtime.

Wide Application Areas
Deep Water Well Drilling

Suitable for:

Industrial wells
Agricultural wells
Commercial water projects
Groundwater development
Geological Exploration

Applications:

Mineral exploration
Geological surveys
Rock sampling
Resource investigation
Mining Industry

Used for:

Exploration drilling
Rock investigation
Mine development
Borehole construction
Geothermal Projects

Suitable for:

Geothermal wells
Heat pump drilling
Underground energy projects
Main Features Of HQZ-600L Pneumatic Drill Rig
600m deep drilling capability
Pneumatic DTH drilling technology
Steel crawler-mounted chassis
130-350mm drilling diameter range
132kW powerful engine
9000-11000N·m rotary torque
28T lifting force
Excellent hard rock drilling performance
Suitable for water wells and exploration
Durable heavy-duty construction

Why Choose Our HQZ-600L Pneumatic Drill Rig?
1. Powerful Deep Drilling Performance

The HQZ-600L provides up to 600m drilling depth capability for professional drilling projects.

2. Excellent Hard Rock Capability

The pneumatic DTH system delivers strong impact energy for efficient rock penetration.

3. Superior Mobility

The steel crawler chassis allows operation in difficult terrains and remote areas.

4. Wide Application Range

Suitable for water wells, geothermal drilling, mining exploration, and geological projects.

5. Durable Industrial Design

Heavy-duty components ensure reliable long-term operation.

6. Professional Technical Support

We provide customized drilling solutions, spare parts, and technical service support.

FAQS
1. What is the HQZ-600L Pneumatic Drill Rig used for?

The HQZ-600L is mainly used for deep water wells, geological exploration, geothermal drilling, mining exploration, and industrial drilling projects.

2. How deep can the HQZ-600L drill?

The HQZ-600L can achieve drilling depths up to approximately 600 meters depending on geological conditions and drilling configuration.

3. What drilling diameter does the HQZ-600L support?

The drilling diameter range is approximately 130-350mm.

4. Is the HQZ-600L suitable for hard rock drilling?

Yes. The pneumatic DTH system provides powerful impact energy for drilling hard rock formations.

5. What power source does the HQZ-600L use?

The machine uses a diesel engine and compressed air system to power drilling operations.

6. Can the HQZ-600L drill geothermal wells?

Yes. It is suitable for geothermal drilling projects requiring deep and stable boreholes.

7. Why use a crawler-mounted drilling rig?

Crawler systems provide better stability, mobility, and adaptability in difficult working environments.

8. Can the HQZ-600L be customized?

Yes. Different drilling tools, compressors, pumps, and accessories can be configured according to project requirements.
