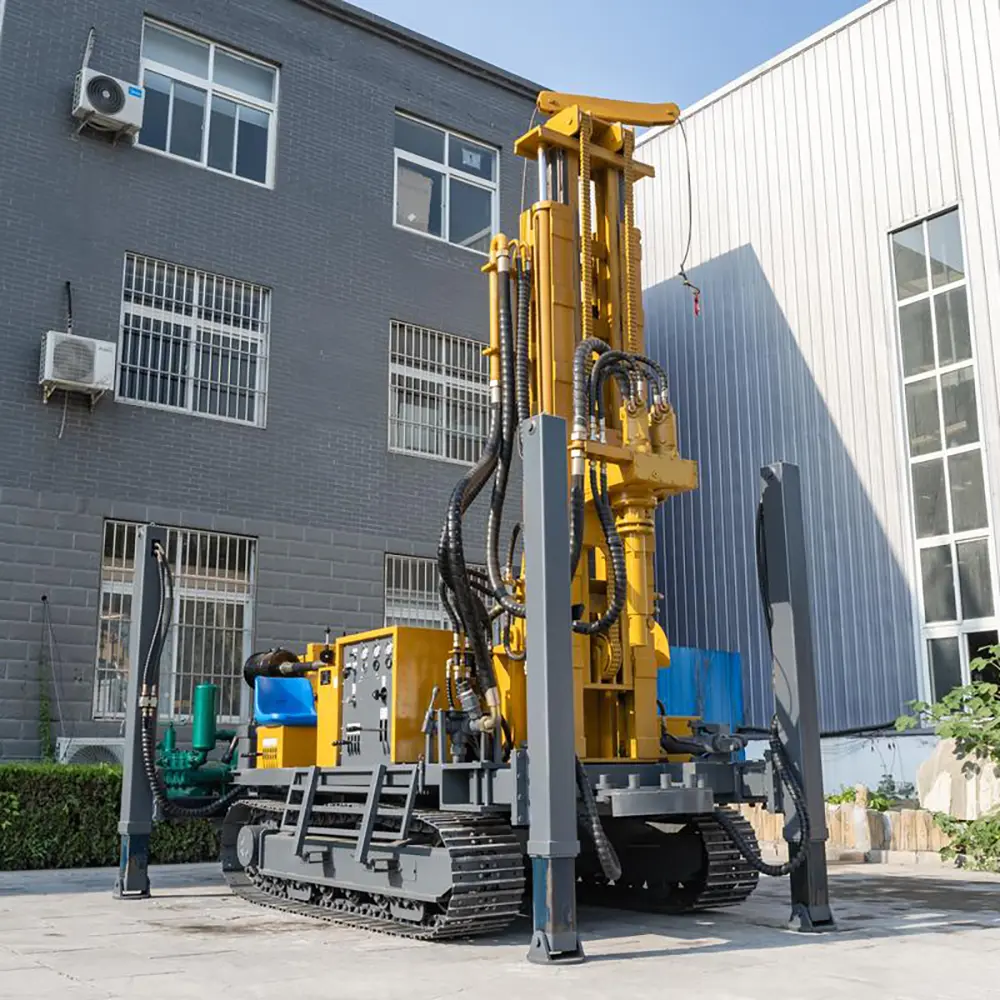

HQZ-320L Pneumatic Drill Rig

Drilling depth: 320m
Drilling diameter: 130-325mm
Main motor power: 85Kw
The HQZ-320L Pneumatic Drill Rig is a high-efficiency crawler-mounted drilling machine developed for professional drilling operations such as water well construction, geological exploration, geothermal drilling, mining exploration, and engineering investigation. It combines advanced pneumatic DTH drilling technology with a reliable hydraulic rotary system to provide excellent drilling speed, strong rock penetration, and stable performance.

Designed for medium-depth drilling applications, the HQZ-320L Pneumatic Drill Rig delivers outstanding performance in different geological environments. The machine uses compressed air to power the down-the-hole hammer, transferring impact energy directly to the drill bit. This allows the rig to efficiently break hard rock formations while maintaining stable drilling progress.

Compared with conventional drilling machines, the HQZ-320L provides advantages such as faster penetration, better hard rock adaptability, lower drilling resistance, and improved operational efficiency.

The crawler-mounted structure gives the HQZ-320L excellent mobility and stability. It can easily move and operate in mountains, construction areas, mining fields, farmland, and remote locations where working conditions are challenging.

model	HQZ-320L
tower	3/6	m
Chassis	Steel track	/
Drilling diameter	130-305	mm
Drilling depth	320	m
One-time advancement length	3.6/6.6	m
Walking speed	2.5	km/h
Maximum gradeability	30	/

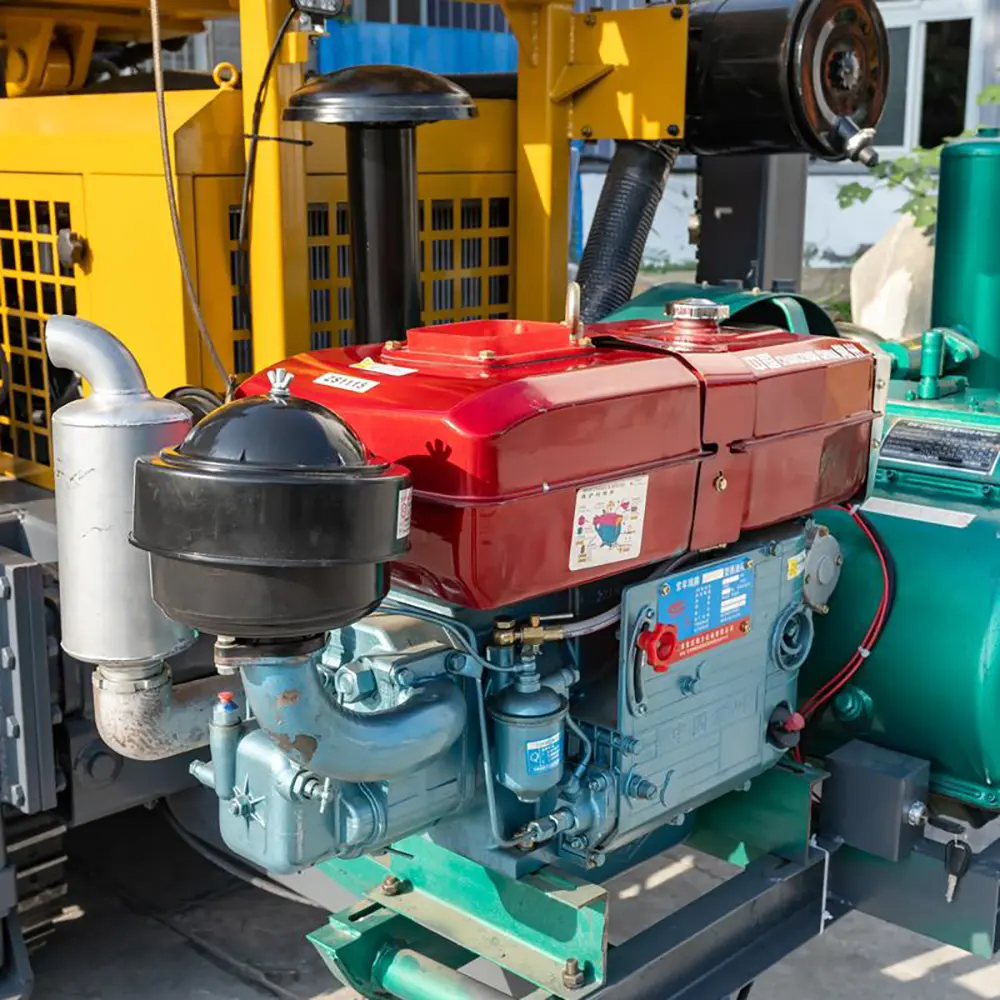

Engine brand	Yuchai	/
Engine power	85	kw
working pressure	1.7-3.3	mpa
Air consumption	17-35	m³/min
Drill pipe diameter	76/89/102	mm
Drill pipe length	3.0/6.0	m
Lifting power	24	T
Swing speed	55-115	rpm
Rotating torque	8500-9000	N.m
Dimensions	5300*2200*2800	mm
weight	7/9	T

Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Submit the form to get the latest parameters and quotations.


Main feature:
1. Pneumatic drilling rig, with air compressor, the efficiency is equivalent to 10~15 times of ordinary drilling rig.
2. The drilling on the rock is mainly based on the down-the-hole hammer drilling process. The down-the-hole hammer rock drilling operation efficiency is high, and the drilling cost per meter is lower.
3. Due to the full hydraulic and top drive rotary propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.
HQZ pneumatic rig drilling machine is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.
Submit the form to get the latest parameters and quotations.

The HQZ-320L Pneumatic Drill Rig is widely used for:

• Water well drilling
• Agricultural irrigation wells
• Geological survey drilling
• Geothermal drilling
• Mining exploration
• Engineering foundation investigation
• Rock drilling projects

With its compact structure, powerful drilling ability, and reliable performance, the HQZ-320L is an ideal drilling solution for contractors and professional drilling companies.

Advanced Pneumatic DTH Drilling Technology

The HQZ-320L Pneumatic Drill Rig adopts compressed-air-powered DTH drilling technology.

During operation, compressed air drives the impactor at the bottom of the borehole. The impact force generated by the hammer breaks the rock efficiently, while rotary movement continuously advances the drill bit.

The pneumatic drilling system provides:

Strong impact energy
High drilling efficiency
Excellent rock-breaking ability
Fast penetration speed
Effective drilling debris removal

This technology is especially suitable for:

Hard rock formations
Rocky soil layers
Deep geological drilling
Mining exploration applications

The DTH system reduces energy loss and improves drilling performance compared with traditional surface-impact drilling methods.

Powerful Drilling Performance

The HQZ-320L Pneumatic Drill Rig is designed to provide stable and efficient drilling performance.

Main advantages include:

Strong rotary torque
Stable drilling pressure
Reliable lifting performance
Efficient drill pipe handling
Adaptability to different formations

The machine is suitable for drilling:

Medium-depth water wells
Geological exploration holes
Geothermal boreholes
Mining investigation holes

Its powerful hydraulic system ensures smooth operation and improved drilling accuracy.

Crawler Mounted Mobility Design

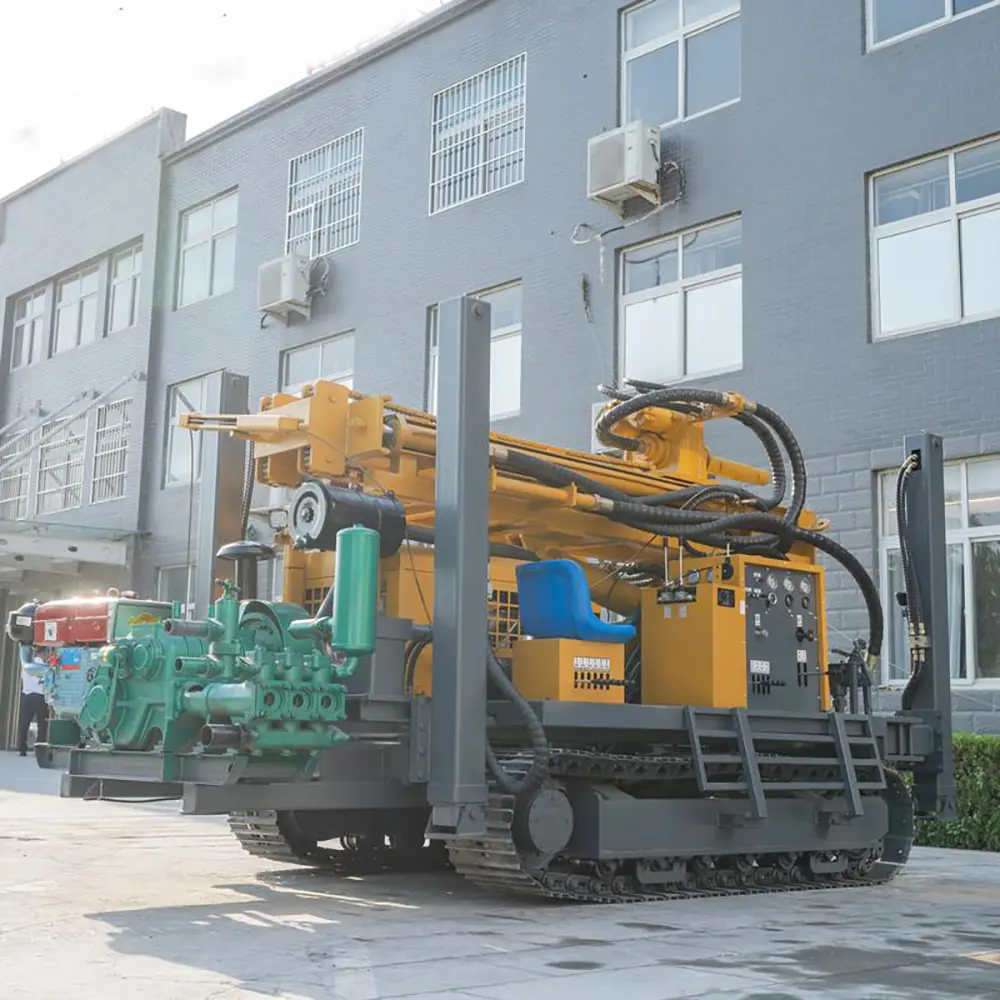

The HQZ-320L features a crawler-mounted chassis designed for field drilling operations.

The crawler system provides:

Strong off-road capability
Excellent stability
Easy movement on uneven terrain
Reduced ground pressure
Improved site adaptability

The machine can operate effectively in:

Mountain regions
Remote areas
Construction sites
Mining locations
Rural drilling projects

The crawler structure eliminates the limitations of traditional truck-mounted drilling rigs and allows operation in areas with difficult access.

Efficient Water Well Drilling Solution

The HQZ-320L Pneumatic Drill Rig is widely used for water well drilling applications.

It is suitable for:

Agricultural irrigation wells
Industrial water wells
Rural water supply projects
Groundwater exploration
Geothermal wells

The combination of pneumatic impact drilling and hydraulic rotary control improves drilling efficiency and borehole quality.

Benefits include:

Faster drilling operation
Better hole stability
Reduced drilling time
Lower operating costs
Excellent Hard Rock Drilling Capability

The HQZ-320L is designed to handle challenging geological conditions.

It can effectively drill through:

Granite
Limestone
Basalt
Weathered rock
Hard rock layers
Mixed formations

The pneumatic DTH hammer delivers powerful impact energy directly to the drill bit, making it highly effective for rock penetration.

This makes the HQZ-320L suitable for:

Mining exploration
Geological investigation
Rock drilling projects
Deep groundwater development

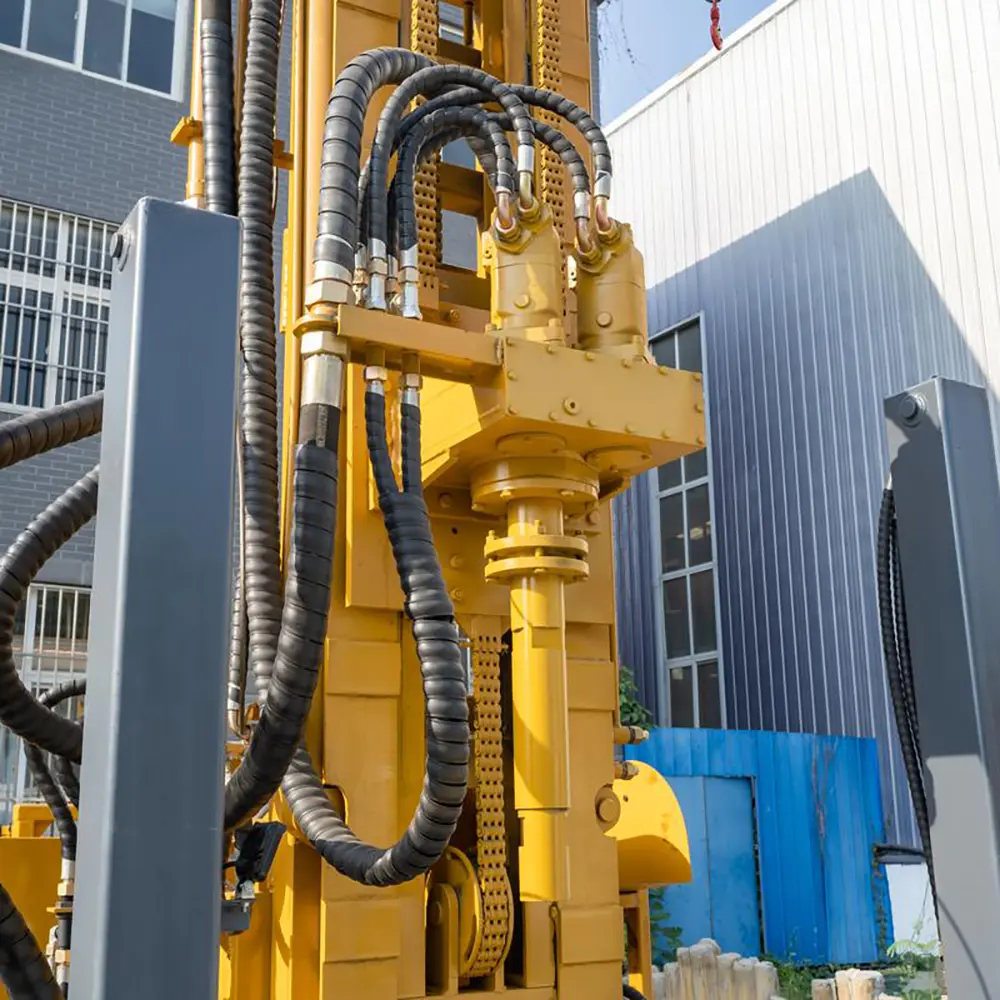

Reliable Hydraulic Rotary System

The HQZ-320L combines pneumatic drilling with a powerful hydraulic rotary system.

The hydraulic system provides:

Smooth operation
Accurate control
Stable torque output
Efficient drilling performance

Key advantages:

Reduced mechanical wear
Improved drilling consistency
Longer component life
Better operator control

The rotary system allows the machine to maintain stable performance during continuous drilling operations.

Durable Structure And Long Service Life

The HQZ-320L Pneumatic Drill Rig is built for demanding outdoor drilling environments.

Its durable construction includes:

High-strength steel frame
Reinforced drilling mast
Heavy-duty crawler chassis
Reliable hydraulic components
Wear-resistant drilling parts

Advantages:

Long service life
Reduced maintenance requirements
Improved reliability
Lower operating expenses

The robust design ensures stable operation even under harsh working conditions.

Easy Operation And Maintenance

The HQZ-320L Pneumatic Drill Rig is designed with operator convenience in mind.

Features include:

Simple control system
Easy transportation
Convenient maintenance access
Quick drilling setup
Reduced operator training requirements

The practical design helps improve productivity and reduce downtime.

Wide Application Areas
Water Well Drilling

Used for:

Farm irrigation wells
Industrial water supply
Rural water projects
Groundwater development
Geological Exploration

Applications:

Mineral exploration
Geological surveys
Rock sampling
Resource investigation
Mining Industry

Suitable for:

Exploration drilling
Rock investigation
Mine development
Borehole construction
Geothermal Projects

Used for:

Geothermal wells
Ground source heat pump drilling
Underground energy exploration
Main Features Of HQZ-320L Pneumatic Drill Rig
Pneumatic DTH drilling technology
Crawler-mounted mobile structure
Strong hard rock drilling capability
Efficient air-powered drilling system
Hydraulic rotary control
Excellent terrain adaptability
Suitable for water wells and exploration
Durable heavy-duty construction
Easy operation and maintenance
Why Choose Our HQZ-320L Pneumatic Drill Rig?
1. Efficient Air-Powered Drilling

The pneumatic DTH system provides powerful impact energy for fast and stable rock drilling.

2. Excellent Mobility

The crawler chassis allows operation in remote and difficult terrains.

3. Wide Application Range

Suitable for water wells, mining, geothermal, and geological exploration projects.

4. Reliable Performance

High-quality components ensure stable operation and long equipment life.

5. Cost-Effective Solution

The HQZ-320L reduces drilling time and improves project efficiency.

6. Professional Support

We provide technical assistance, spare parts, and customized drilling solutions.

FAQS
1. What is the HQZ-320L Pneumatic Drill Rig used for?

The HQZ-320L is mainly used for water wells, geological exploration, geothermal drilling, mining exploration, and engineering drilling projects.

2. Is the HQZ-320L suitable for hard rock drilling?

Yes. The pneumatic DTH drilling system provides strong impact force for efficient hard rock penetration.

3. What are the advantages of pneumatic drilling?

Pneumatic drilling provides faster penetration, better rock-breaking performance, and efficient drilling in hard formations.

4. Can the HQZ-320L drill water wells?

Yes. It is suitable for agricultural, industrial, and groundwater well drilling projects.

5. Why use a crawler-mounted drilling rig?

Crawler systems provide better stability, mobility, and adaptability in difficult working environments.

6. What industries use the HQZ-320L?

It is widely used in water resources, mining, geothermal energy, construction, and geological exploration industries.

7. Is the HQZ-320L easy to operate?

Yes. The machine features a practical control system designed for convenient operation and maintenance.

8. Can the HQZ-320L be customized?

Yes. Drilling tools, accessories, and configurations can be customized according to customer requirements.
