DL-280 Mud/air Drilling Rig

DL-280 Mud/Air Drilling Rig

The DL-280 Mud/Air Drilling Rig is a versatile crawler-mounted drilling machine designed for professional drilling applications including water wells, geological exploration, geothermal drilling, mining investigation, and engineering projects. Combining mud circulation drilling technology and air-powered DTH drilling technology, the DL-280 provides excellent flexibility for different geological formations and drilling environments.

Unlike traditional single-function drilling equipment, the DL-280 Mud/Air Drilling Rig allows operators to select the most suitable drilling method according to ground conditions. Air drilling is ideal for hard rock formations requiring high penetration efficiency, while mud drilling provides better borehole stability in loose soil, clay, and unstable formations.

The crawler-mounted structure gives the DL-280 outstanding mobility and stability, allowing it to work effectively in mountains, construction areas, farmland, remote locations, and uneven terrain. Its compact design and powerful drilling capability make it a practical solution for contractors requiring flexible and efficient drilling equipment.

The DL-280 Mud/Air Drilling Rig is widely used for:

Water well drilling
Agricultural irrigation wells
Industrial water wells
Geothermal drilling
Geological exploration
Mining exploration
Engineering investigation
Rock formation drilling

With reliable performance, flexible drilling modes, and durable construction, the DL-280 provides an economical drilling solution for various industries.

Dual Mud And Air Drilling Technology

The biggest advantage of the DL-280 Mud/Air Drilling Rig is its multifunctional drilling capability.

The machine supports two drilling methods:

Air DTH Drilling Mode

Air drilling uses compressed air to power a down-the-hole hammer for efficient rock breaking.

Advantages:

High drilling speed
Strong impact force
Excellent hard rock penetration
Efficient removal of drilling debris
Improved drilling productivity

This mode is suitable for:

Granite
Limestone
Hard rock formations
Mining exploration holes

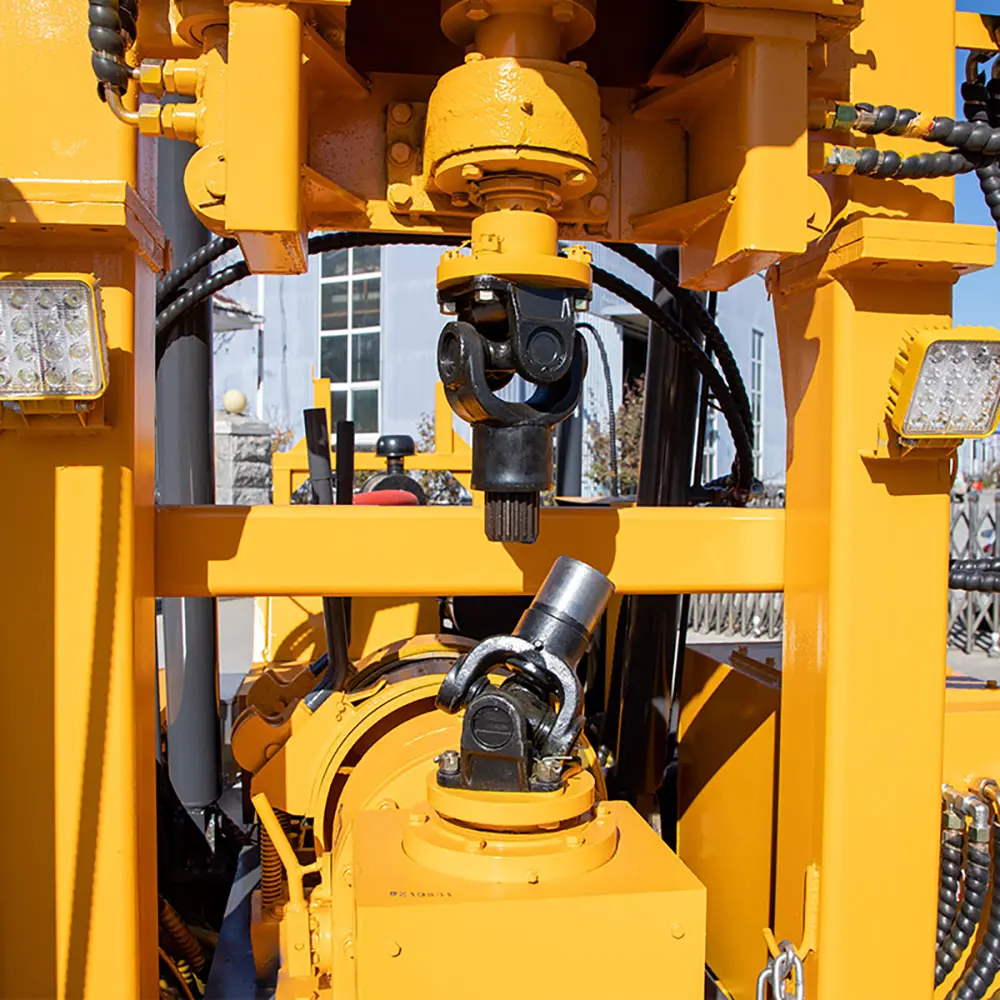

Mud Circulation Drilling Mode

Mud drilling uses drilling fluid circulation to stabilize boreholes and remove cuttings.

Advantages:

Better borehole stability
Suitable for soft formations
Effective debris transportation
Reduced hole collapse risk

This mode is ideal for:

Clay layers
Sand formations
Gravel formations
Unstable geological conditions

The combination of mud and air drilling enables the DL-280 to adapt to a wider range of geological environments compared with conventional drilling rigs.

Powerful Drilling Performance

The DL-280 Mud/Air Drilling Rig delivers strong drilling capability for medium-depth drilling projects.

Main performance advantages include:

Efficient drilling speed
Strong rotary torque
Stable drilling pressure
Reliable lifting capacity
Flexible drilling operation

The DL-280 provides:

Maximum drilling depth: approximately 200m
Drilling diameter: 75-350mm
Engine power: 42kW
Maximum torque: 9800N·m

The wide drilling diameter range allows the machine to meet different project requirements, including small exploration holes and larger water well drilling applications.

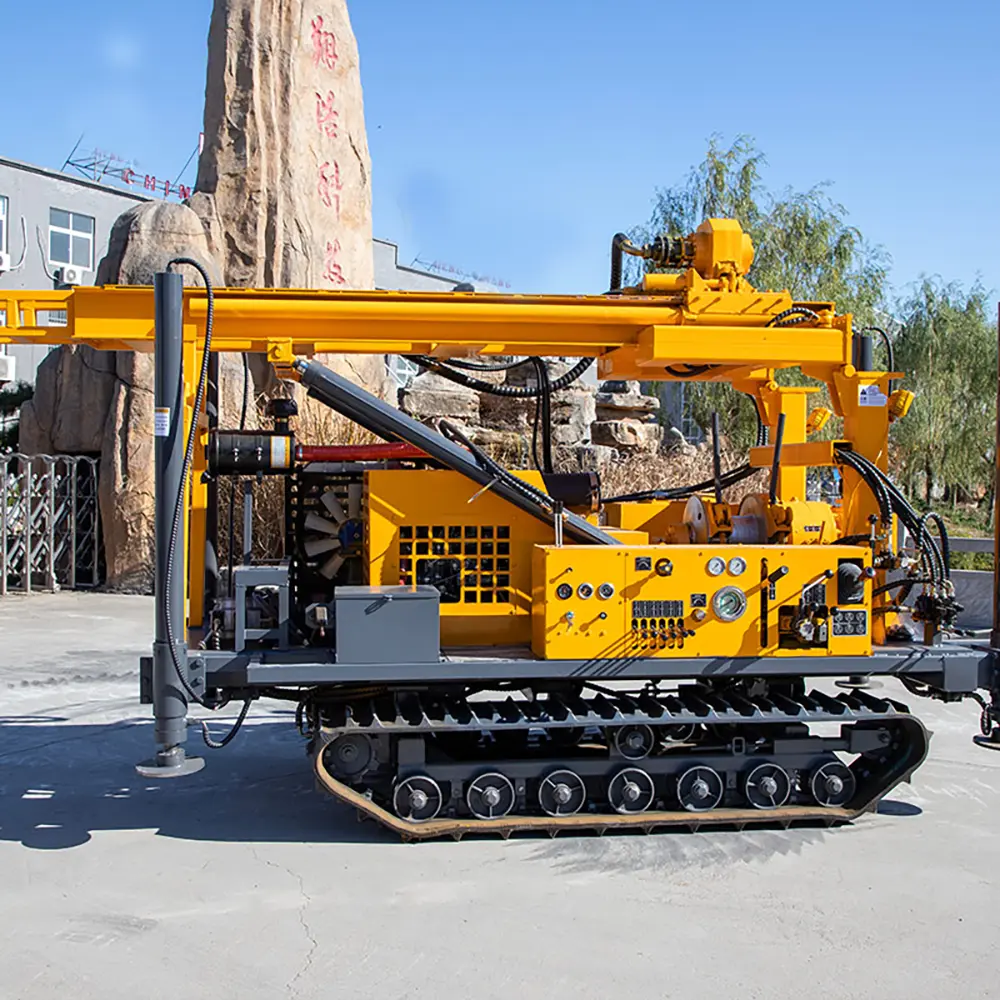

Crawler Mounted Mobility Design

The DL-280 features a crawler-type chassis designed for difficult field conditions.

The crawler system provides:

Excellent off-road capability
Strong climbing ability
Stable operation on uneven ground
Easy movement between drilling locations
Reduced ground pressure

The machine can operate efficiently in:

Mountain areas
Rural regions
Muddy construction sites
Remote exploration areas
Uneven terrain

This mobility greatly improves project efficiency by reducing transportation difficulties.

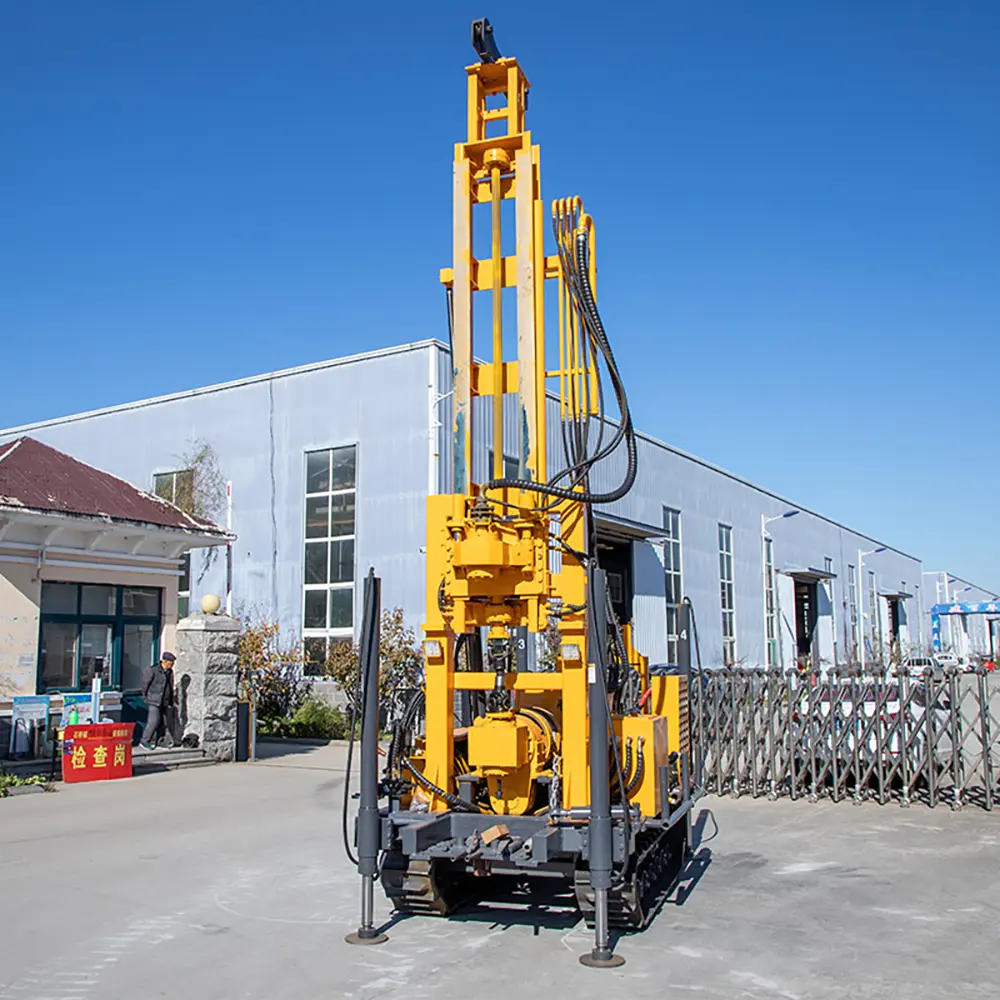

Efficient Water Well Drilling Solution

The DL-280 Mud/Air Drilling Rig is an excellent choice for water well construction.

It is suitable for:

Agricultural irrigation wells
Industrial water wells
Rural water supply projects
Geothermal wells
Groundwater exploration

The dual drilling system allows operators to choose the best method based on underground conditions.

Benefits include:

Faster drilling progress
Improved borehole quality
Reduced drilling risks
Better adaptability
Excellent Geological Adaptability

The DL-280 is designed to handle various geological formations.

It can drill through:

Soil layers
Clay formations
Gravel layers
Weathered rock
Hard rock formations

The ability to switch between mud and air drilling makes it suitable for complex geological environments.

Operators can adjust drilling methods according to:

Rock hardness
Groundwater conditions
Formation stability
Borehole requirements

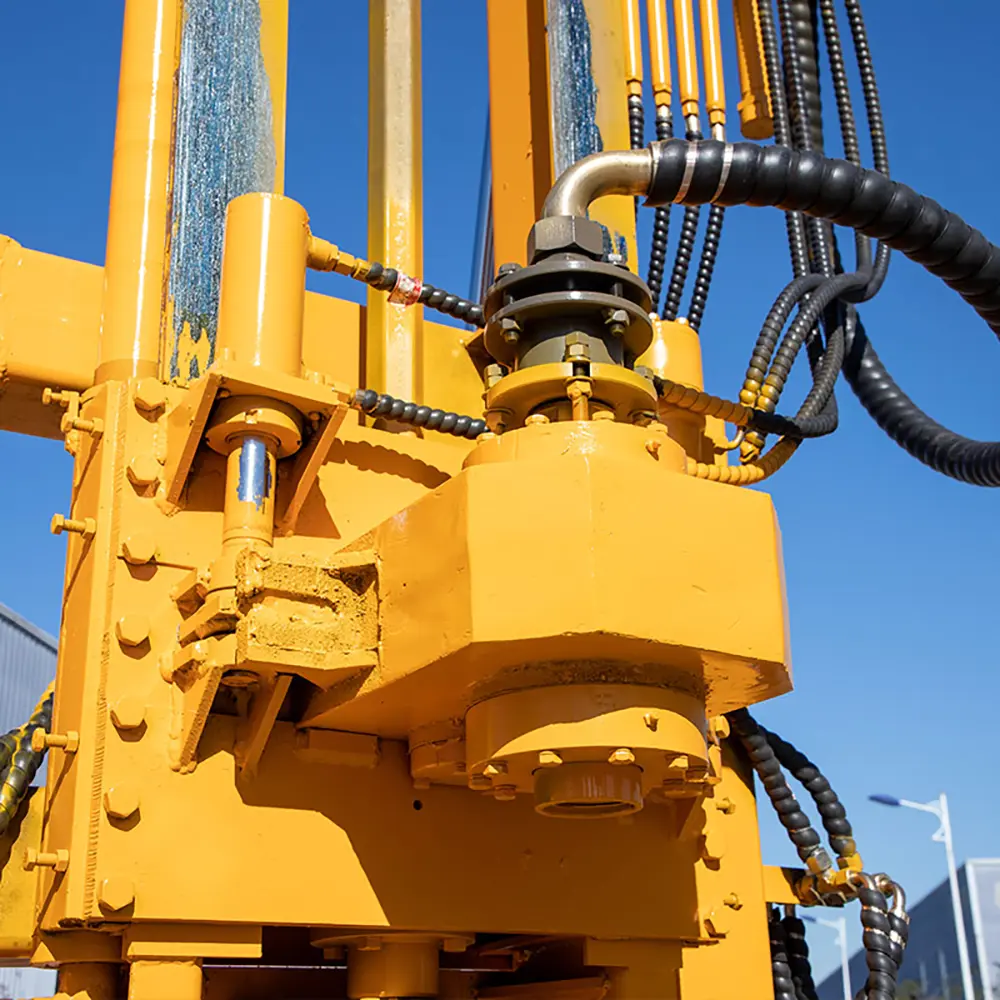

High Torque Rotary System

The DL-280 Mud/Air Drilling Rig is equipped with a powerful rotary system.

The rotary system provides:

Strong torque output
Stable rotation speed
Efficient drill bit performance
Improved drilling efficiency

With maximum torque reaching approximately 9800N·m, the machine can handle demanding drilling operations and maintain reliable performance in challenging formations.

Durable Structure And Long Service Life

The DL-280 is designed for professional outdoor drilling operations.

Its durable construction includes:

High-strength drilling frame
Reliable power system
Heavy-duty crawler chassis
Wear-resistant components
Stable mechanical structure

Advantages:

Longer service life
Lower maintenance costs
Reduced downtime
Reliable operation

The robust design makes it suitable for continuous drilling in mining, construction, and exploration industries.

Easy Operation And Maintenance

The DL-280 Mud/Air Drilling Rig is designed for operator convenience.

Key benefits include:

Simple control system
Easy transportation
Quick setup
Convenient maintenance
Reduced training requirements

The practical design helps drilling teams improve productivity while lowering operating costs.

Wide Application Areas
Water Well Drilling

Suitable for:

Farm irrigation wells
Industrial wells
Drinking water projects
Geothermal wells
Geological Exploration

Used for:

Geological surveys
Rock sampling
Mineral investigation
Resource exploration
Mining Industry

Applications include:

Mineral exploration drilling
Rock investigation
Exploration holes
Mine development projects
Engineering Construction

Suitable for:

Foundation investigation
Infrastructure projects
Ground condition analysis
Main Features Of DL-280 Mud/Air Drilling Rig
Dual mud and air drilling modes
Crawler-mounted mobile structure
200m drilling depth capability
75-350mm drilling diameter range
9800N·m maximum torque
Pneumatic DTH drilling capability
Strong hydraulic performance
Excellent terrain adaptability
Durable industrial design
Easy operation and maintenance

Why Choose Our DL-280 Mud/Air Drilling Rig?
1. Multifunctional Drilling Capability

The combination of mud and air drilling allows operation in different geological conditions.

2. Strong Rock Drilling Performance

The pneumatic DTH system provides powerful impact energy for hard rock drilling.

3. Excellent Mobility

Crawler-mounted design allows operation in difficult terrain and remote areas.

4. Wide Application Range

Suitable for water wells, geothermal projects, exploration, mining, and construction.

5. Reliable And Durable Construction

High-quality components ensure stable performance and long service life.

6. Professional Technical Support

We provide customized drilling solutions, spare parts, and complete after-sales support.

FAQS
1. What is the DL-280 Mud/Air Drilling Rig used for?

The DL-280 is used for water well drilling, geological exploration, geothermal drilling, mining exploration, and engineering drilling projects.

2. What is the advantage of mud and air drilling combination?

The dual-mode system allows the rig to handle both soft formations and hard rock conditions efficiently.

3. How deep can the DL-280 drill?

The DL-280 can drill to approximately 200 meters depending on geological conditions and drilling configuration.

4. What drilling diameter does the DL-280 support?

The drilling diameter range is approximately 75-350mm.

5. Is the DL-280 suitable for hard rock drilling?

Yes. The air-powered DTH drilling system provides strong penetration capability for hard rock formations.

6. Can the DL-280 drill water wells?

Yes. It is widely used for agricultural, industrial, and geothermal water well projects.

7. Why choose a crawler drilling rig?

Crawler systems provide better stability, mobility, and adaptability on uneven terrain.

8. Can the DL-280 be customized?

Yes. Drilling tools, pumps, air systems, and accessories can be customized according to project requirements.
