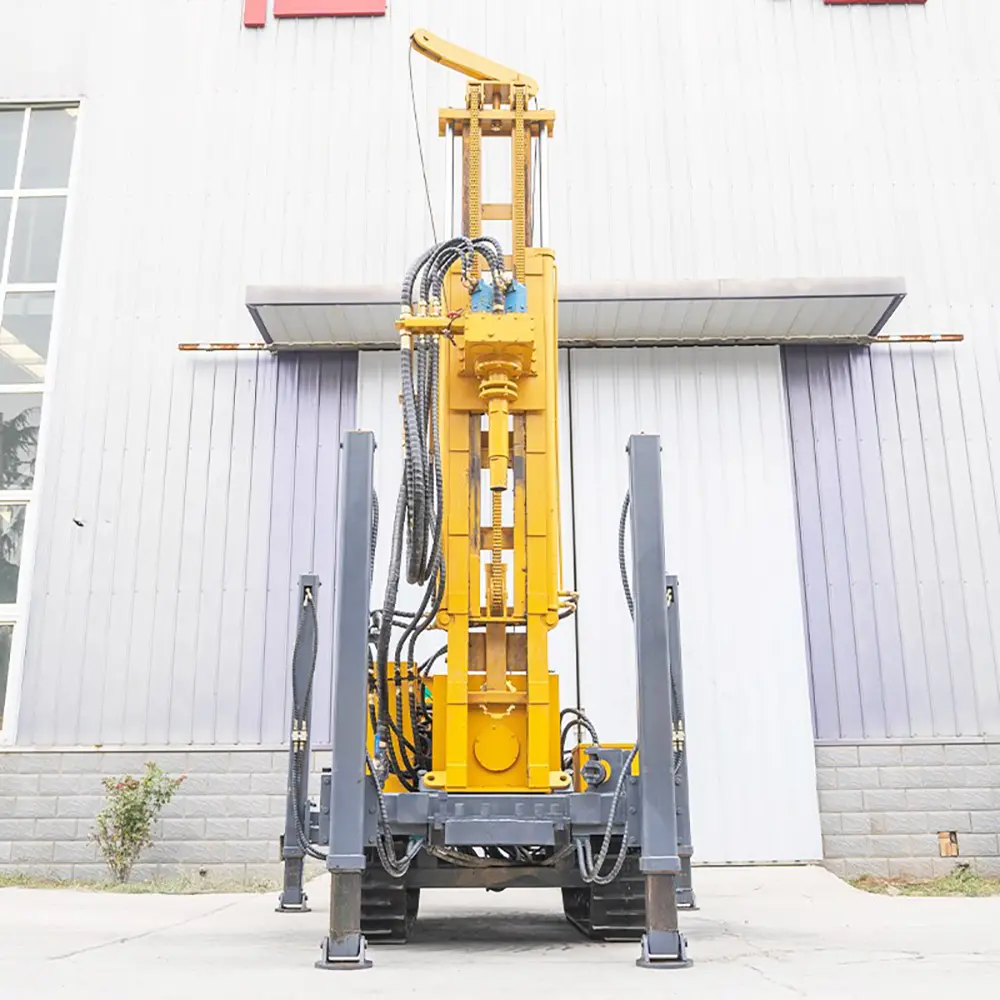

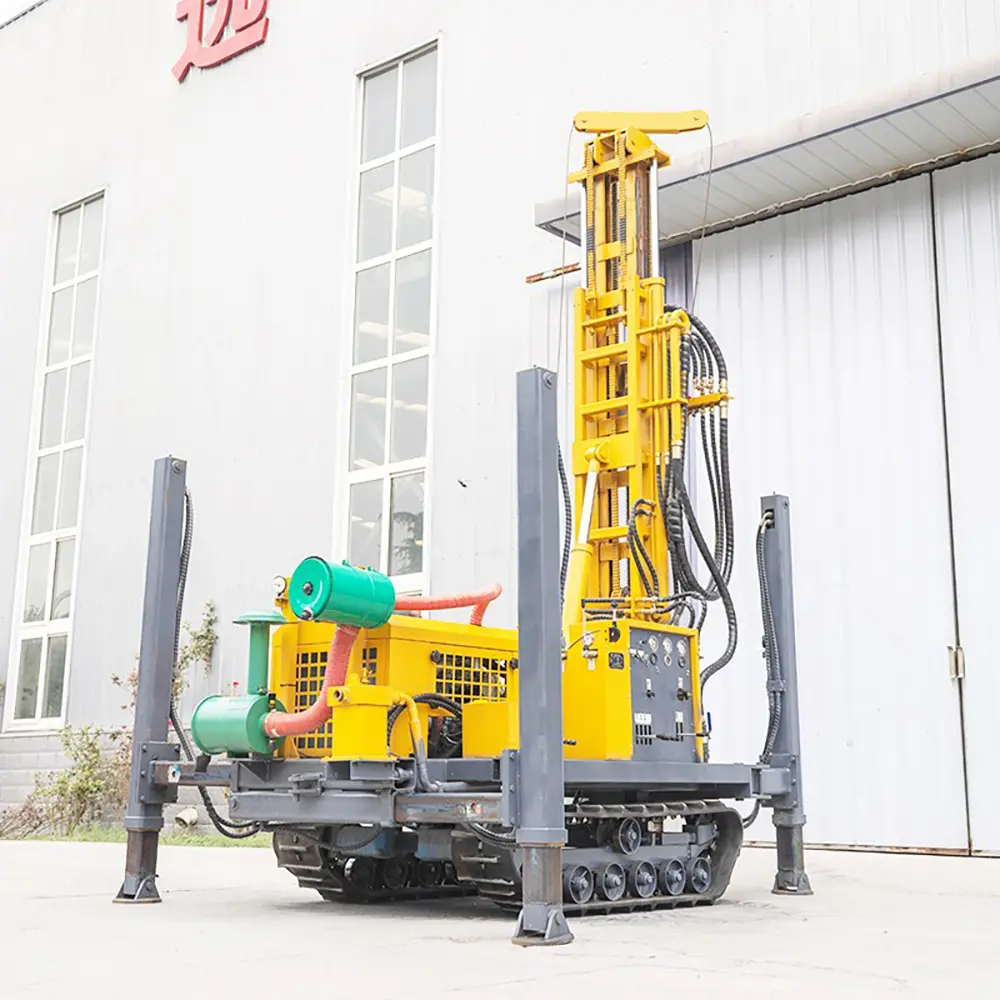

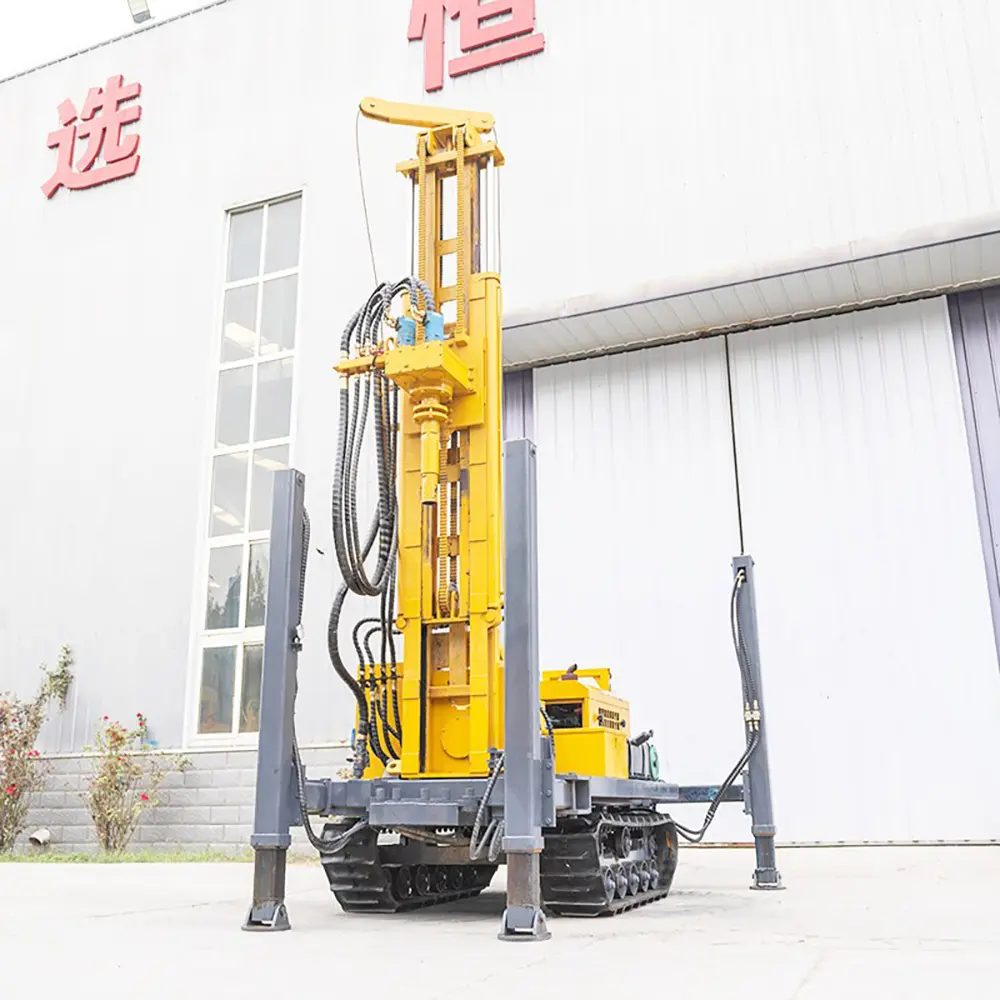

HQZ-220L Pneumatic Drill Rig

Drilling depth: 220m
Drilling diameter: 130-254mm
Engine Power: 60Kw

model	HQZ-220L
tower	3	m
Chassis	Rubber track            /           Steel  track	/
Drilling diameter	130-254	mm
Drilling depth	220	m
One-time advancement length	3.6	m
Walking speed	2.5	km/h
Maximum gradeability	30	/
Engine brand	Yunnei	/
Engine power	60	kw
working pressure	1.45-2.5	mpa
Air consumption	17-31	m³/min
Drill pipe diameter	76/89	mm
Drill pipe length	1.5/2.0/3.0	m
Lifting power	15	T
Swing speed	45-65	rpm
Rotating torque	4000-4600	N.m
Dimensions	3500*1700*2250     /       3800*1700*2250	mm
weight	4.5                           /                5	T

HQZ-220L Pneumatic Drill Rig

The HQZ-220L Pneumatic Drill Rig is a professional crawler-mounted drilling machine designed for medium-depth drilling applications including water well construction, geological exploration, geothermal drilling, mining investigation, and engineering drilling projects. With a combination of advanced pneumatic DTH drilling technology and a reliable hydraulic rotary system, the HQZ-220L delivers excellent drilling efficiency, strong rock penetration, and stable operation.

The machine uses compressed air to power the down-the-hole hammer, generating powerful impact energy directly at the drill bit. This drilling method allows the rig to efficiently break hard rock formations, improve drilling speed, and maintain stable borehole quality.

Compared with traditional drilling equipment, the HQZ-220L Pneumatic Drill Rig provides several advantages:

Faster drilling speed
Better hard rock adaptability
Lower energy consumption
Improved drilling stability
Easy transportation and operation

The crawler-mounted structure provides excellent mobility and stability, allowing the machine to operate in challenging environments such as mountains, construction sites, mining areas, farmland, and remote locations.

The HQZ-220L Pneumatic Drill Rig is widely used for:

Water well drilling
Agricultural irrigation wells
Geological exploration
Geothermal drilling
Mining exploration
Engineering investigation
Rock drilling projects

With its compact structure, reliable performance, and flexible applications, the HQZ-220L is an ideal drilling solution for contractors and drilling professionals.

Advanced Pneumatic DTH Drilling Technology

The HQZ-220L Pneumatic Drill Rig adopts advanced compressed-air-powered DTH drilling technology.

During drilling operation, compressed air drives the impactor located near the drill bit. The hammer generates repeated impact forces that break rock efficiently, while the rotary system provides continuous drilling movement.

The pneumatic DTH drilling system offers:

Strong impact energy
High penetration efficiency
Excellent hard rock drilling ability
Effective drilling debris removal
Stable deep-hole drilling performance

This technology is especially suitable for:

Granite formations
Limestone layers
Rocky soil
Hard rock conditions
Geological investigation projects

By transferring impact energy directly to the bottom of the borehole, the HQZ-220L improves drilling efficiency and reduces energy loss.

Efficient 220m Deep Drilling Capability

The HQZ-220L Pneumatic Drill Rig is designed for medium-depth drilling projects requiring reliable performance and easy operation.

Main advantages include:

Maximum drilling depth: 220m
Suitable drilling diameter: 130-305mm
Strong lifting capacity
Stable rotary torque
Efficient drilling operation

The machine provides excellent performance for:

Small and medium water wells
Geological survey holes
Groundwater exploration
Geothermal drilling projects
Mining investigation holes

Its compact design allows flexible operation while maintaining professional drilling capability.

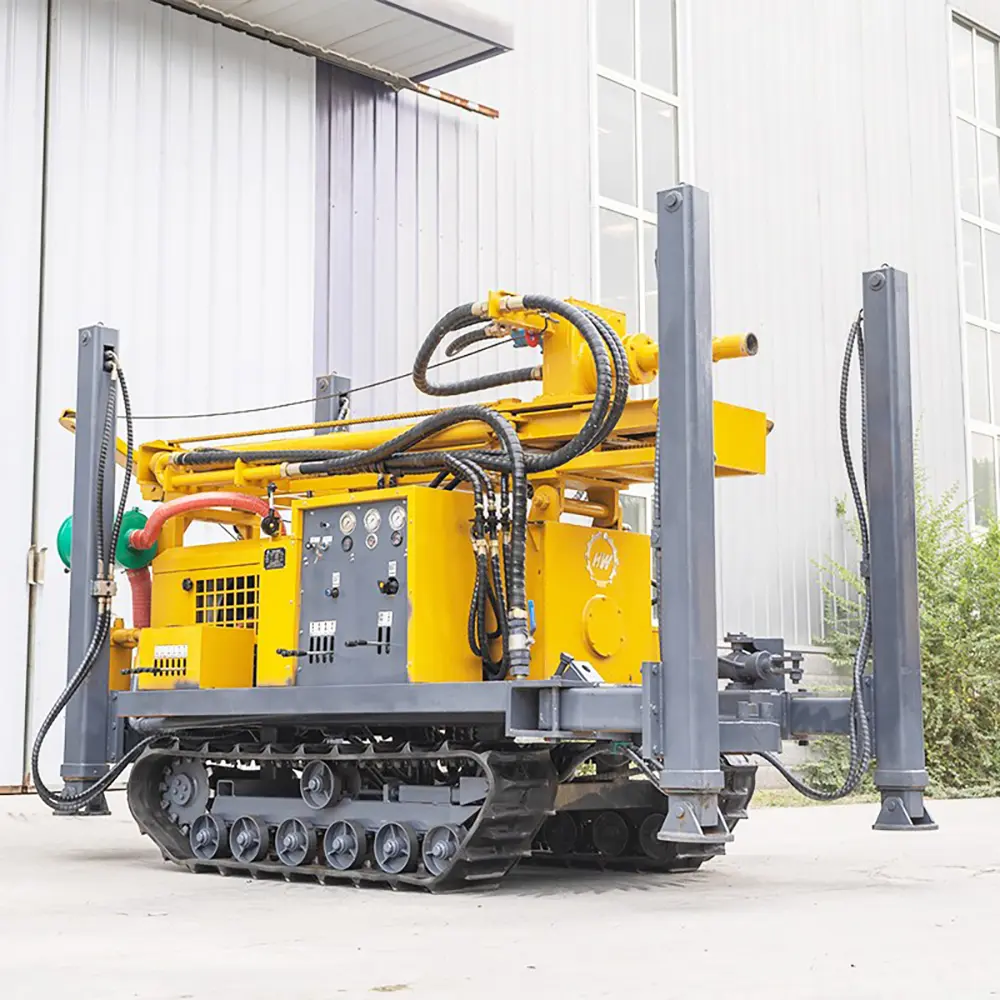

Crawler Mounted Mobility Design

The HQZ-220L Pneumatic Drill Rig features a crawler-mounted chassis designed for outdoor drilling operations.

The crawler system provides:

Excellent off-road capability
Strong climbing performance
Stable drilling platform
Low ground pressure
Easy movement between drilling locations

The machine can operate effectively in:

Mountain areas
Rural fields
Construction sites
Mining zones
Uneven terrain

Compared with truck-mounted drilling equipment, the crawler design provides better accessibility and stability in difficult working environments.

Reliable Water Well Drilling Solution

The HQZ-220L Pneumatic Drill Rig is widely used for water well construction.

Typical applications include:

Agricultural irrigation wells
Rural drinking water wells
Industrial water wells
Groundwater exploration
Geothermal wells

The combination of pneumatic impact drilling and hydraulic rotary control allows efficient drilling through different formations.

Benefits include:

Faster drilling progress
Better borehole quality
Reduced drilling time
Lower operating costs
Strong Hard Rock Drilling Performance

The HQZ-220L is designed to handle complex geological conditions.

It can effectively drill through:

Weathered rock
Limestone
Granite
Basalt
Hard rock layers
Mixed formations

The pneumatic DTH hammer delivers powerful impact energy directly to the drill bit, improving penetration performance.

This makes the HQZ-220L suitable for:

Mining exploration
Geological surveys
Rock drilling projects
Underground resource investigation
Hydraulic Rotary System

The HQZ-220L combines pneumatic impact drilling with a reliable hydraulic rotary system.

The hydraulic rotary system provides:

Smooth rotation control
Stable torque output
Efficient drill pipe operation
Better drilling accuracy

Advantages include:

Reduced mechanical wear
Improved equipment reliability
Easy operation
Longer service life

The hydraulic system helps maintain consistent performance during continuous drilling operations.

Durable Construction And Long Service Life

The HQZ-220L Pneumatic Drill Rig is manufactured for demanding drilling environments.

Its durable structure includes:

High-strength steel frame
Reinforced drilling mast
Heavy-duty crawler chassis
Reliable hydraulic components
Wear-resistant drilling accessories

Advantages:

Long service life
Reduced maintenance requirements
Improved reliability
Lower operating expenses

The strong structure ensures stable operation in harsh outdoor conditions.

Easy Operation And Maintenance

The HQZ-220L Pneumatic Drill Rig is designed for operator convenience.

Features include:

Simple control system
Quick drilling setup
Easy transportation
Convenient maintenance access
Reduced operator training requirements

The practical design improves working efficiency and reduces downtime.

Wide Application Areas
Water Well Drilling

Suitable for:

Farm irrigation wells
Rural water supply
Industrial water projects
Groundwater development
Geological Exploration

Applications:

Mineral exploration
Geological surveys
Rock sampling
Resource investigation
Mining Industry

Used for:

Exploration drilling
Rock investigation
Mine development
Borehole construction
Geothermal Projects

Suitable for:

Ground source heat pump drilling
Small geothermal wells
Underground energy exploration
Main Features Of HQZ-220L Pneumatic Drill Rig
220m drilling depth capability
Pneumatic DTH drilling technology
Crawler-mounted mobile structure
Strong hard rock drilling capability
Air-powered impact drilling system
Hydraulic rotary control
Excellent terrain adaptability
Suitable for water wells and exploration
Durable industrial construction
Easy operation and maintenance
Why Choose Our HQZ-220L Pneumatic Drill Rig?
1. Efficient Pneumatic Drilling Performance

The DTH drilling system provides powerful impact energy for fast and stable drilling.

2. Compact And Flexible Design

The HQZ-220L combines mobility with strong drilling capability for various job sites.

3. Excellent Terrain Adaptability

The crawler chassis allows operation in remote and difficult locations.

4. Wide Application Range

Suitable for water wells, mining, geothermal, and geological exploration projects.

5. Reliable And Durable Construction

High-quality components ensure long service life and stable operation.

6. Professional Technical Support

We provide customized drilling solutions, spare parts, and after-sales service.

FAQS
1. What is the HQZ-220L Pneumatic Drill Rig used for?

The HQZ-220L is mainly used for water well drilling, geological exploration, geothermal drilling, mining investigation, and engineering projects.

2. How deep can the HQZ-220L drill?

The HQZ-220L can drill approximately 220 meters depending on geological conditions and drilling configuration.

3. Is the HQZ-220L suitable for hard rock drilling?

Yes. The pneumatic DTH hammer provides strong impact force for efficient hard rock drilling.

4. What is the advantage of pneumatic drilling technology?

Pneumatic drilling provides faster penetration, efficient rock breaking, and stable performance in hard formations.

5. Can the HQZ-220L drill water wells?

Yes. It is suitable for agricultural, rural, industrial, and groundwater well drilling projects.

6. Why choose a crawler-mounted drilling rig?

Crawler systems provide better stability, mobility, and adaptability in difficult terrain.

7. What industries use the HQZ-220L?

It is widely used in water resources, mining, geothermal energy, construction, and geological exploration industries.

8. Can the HQZ-220L be customized?

Yes. Drilling tools, compressors, accessories, and machine configurations can be customized according to project requirements.
