TQZ-260 Pneumatic Drill Rig Technical Parameters

TQZ-260 Pneumatic Drill Rig is a high-performance air-powered drilling machine designed for water well drilling, geothermal drilling, geological exploration, and mining applications..

Drilling depth: 260m
Drilling diameter: 130-254mm
Engine Power: 50Hp

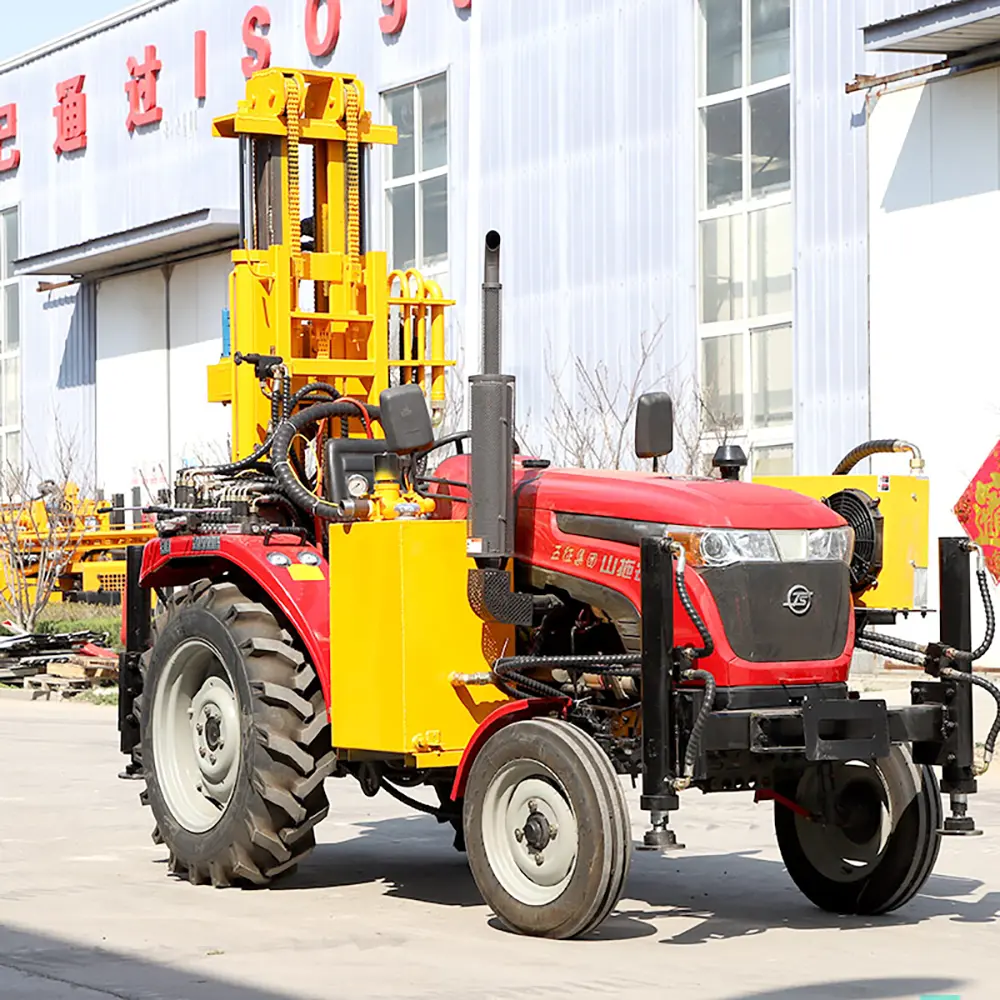

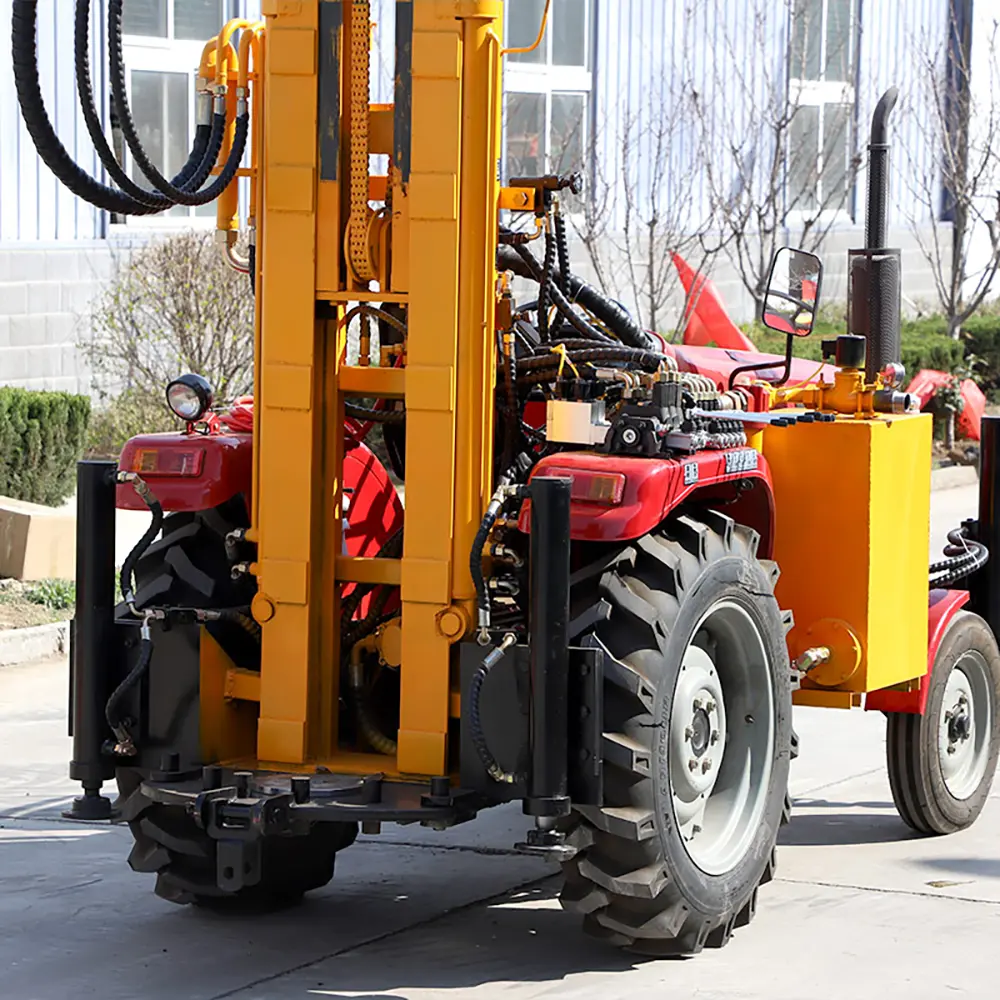

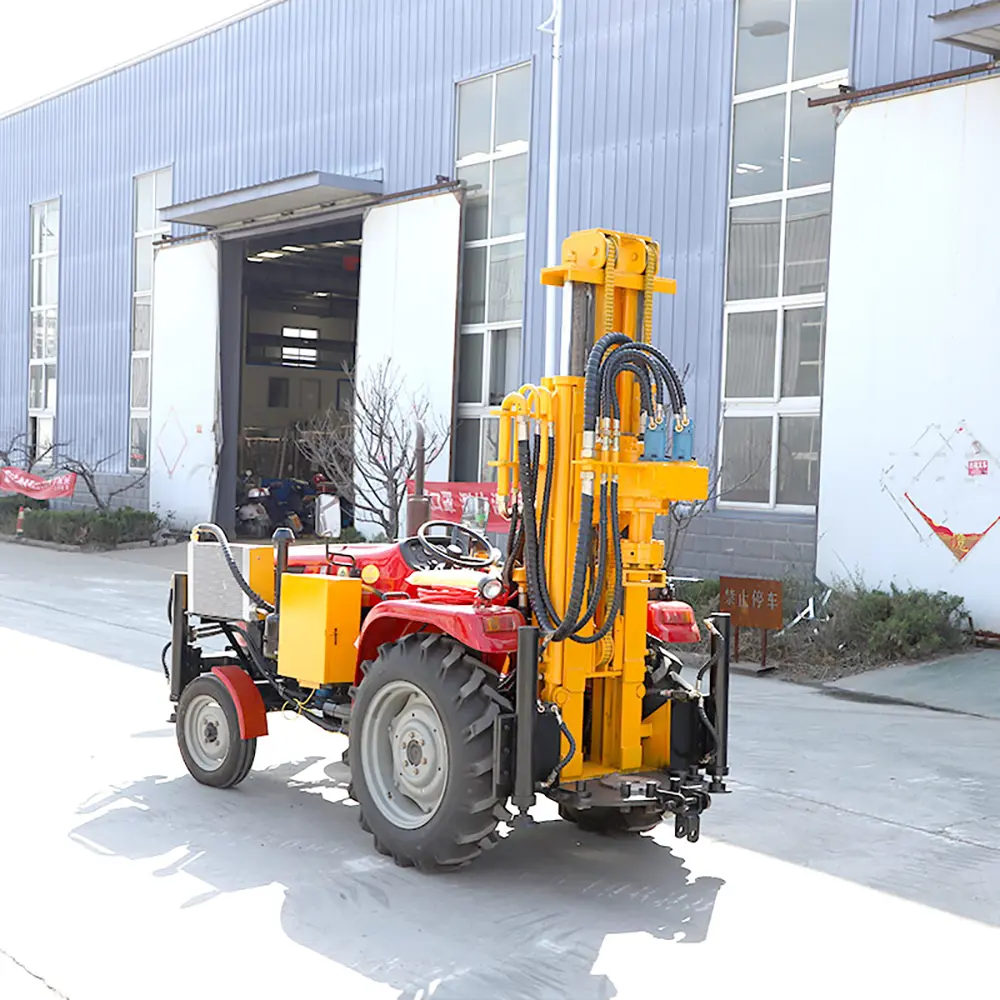

The TQZ-260 Pneumatic Drill Rig is a powerful tractor-mounted air drilling machine designed for professional water well drilling, geological exploration, mining investigation, and industrial drilling projects. Combining a pneumatic drilling system with a mobile tractor chassis, the TQZ-260 provides excellent drilling efficiency, strong mobility, and reliable performance in challenging working environments.

The TQZ-260 uses advanced pneumatic down-the-hole (DTH) drilling technology, where compressed air drives the impactor to achieve efficient rock breaking and fast drilling speed. This makes it suitable for hard rock formations and deep drilling applications where traditional drilling methods may have lower efficiency.

With a drilling depth of up to 260 meters, drilling diameter range of approximately 130-254mm, and strong rotary torque performance, the TQZ-260 provides an economical and practical solution for water wells, geothermal projects, geological surveys, and mining exploration.

The tractor-mounted structure improves transportation convenience and allows the machine to move efficiently across uneven terrain. Its compact design makes it suitable for outdoor drilling projects where accessibility and flexibility are important.

Model TQZ-260
Overall weight (T) 4
Dimension (mm) 3800*1700*2700
Drilling diameter (mm) 130-254
Drilling depth (m) 260
One-time advance length of the drill (mm) 1500
Traveling speed (km/h) 30
Climbing capacity (max) 25°
Minimum ground clearance (mm) 250
Working Air Pressure (mpa) 1.7-2.5
Air consumption (m3/min) 17-31
Main machine power (HP) 40
Rotation speed (pm) 40-65
Rotary torque (Nm) 4000—4700


The TQZ-260 Pneumatic Drill Rig is a powerful and efficient drilling solution designed for water wells, geological exploration, mining, and engineering applications.

With advanced pneumatic drilling technology, tractor-mounted mobility, strong torque output, and durable construction, the TQZ-260 delivers reliable performance in challenging drilling environments.

For contractors seeking a flexible, efficient, and cost-effective air-powered drilling machine, the TQZ-260 Pneumatic Drill Rig is an excellent choice.

Prev:TQZ-200 Pneumatic Drill Rig
Next:Sorry, no information
TAG: Industrial Drilling Equipment, Rock Drilling Machine, Heavy Duty Pneumatic Drill, Air Powered Rock Drilling Machine, Construction Drilling Equipment, Pneumatic Drilling Machine, Mining Drill Equipment, Blast Hole Drilling Rig, Geological Drilling Machine, Mining Exploration Equipment, Pneumatic Drill Rig, Air Powered Drill Rig, Underground Drilling Rig, Quarry Drilling Equipment, Air Rock Drill, Hard Rock Drill Machine, Portable Pneumatic Drill, Tunnel Drilling Machine, Compressed Air Drill Rig, Rock Exploration Drill,
Related Category:
Pneumatic Water Well Drilling Rig, Air Powered Drilling Machine China, suppliers, manufacturers, factory, customized, wholesale, quotation, made in China
Related Products

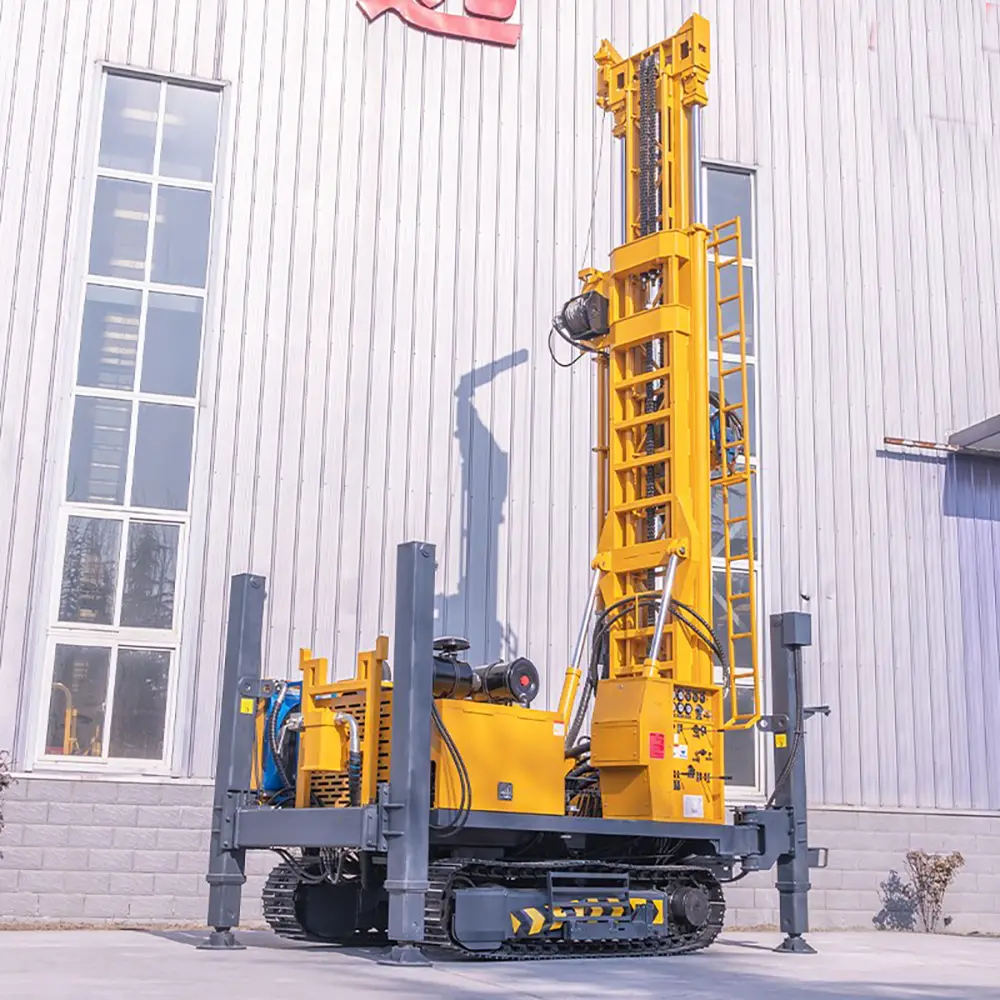

HQZ-600L Pneumatic Drill Rig
HQZ-600L Pneumatic Drill Rig

HQZ-600L Pneumatic Drill Rig is a heavy-duty crawler-mounted air-powered drilling machine designed for deep water well drilling, geological exploration, geothermal projects, and mining applications. With 600m drilling depth capability...

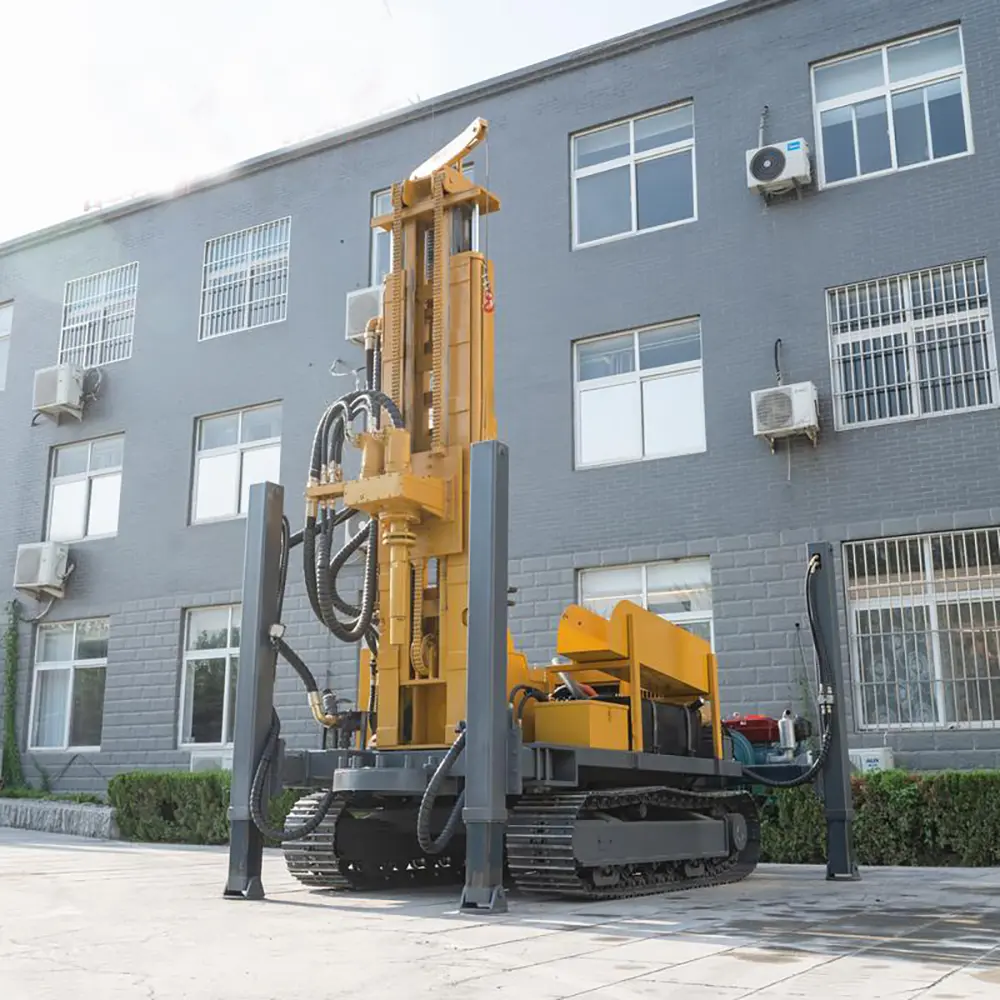

HQZ-320L Pneumatic Drill Rig
HQZ-320L Pneumatic Drill Rig

HQZ-320L Pneumatic Drill Rig is a powerful crawler-mounted air drilling machine designed for water well drilling, geological exploration, geothermal projects, and mining applications....

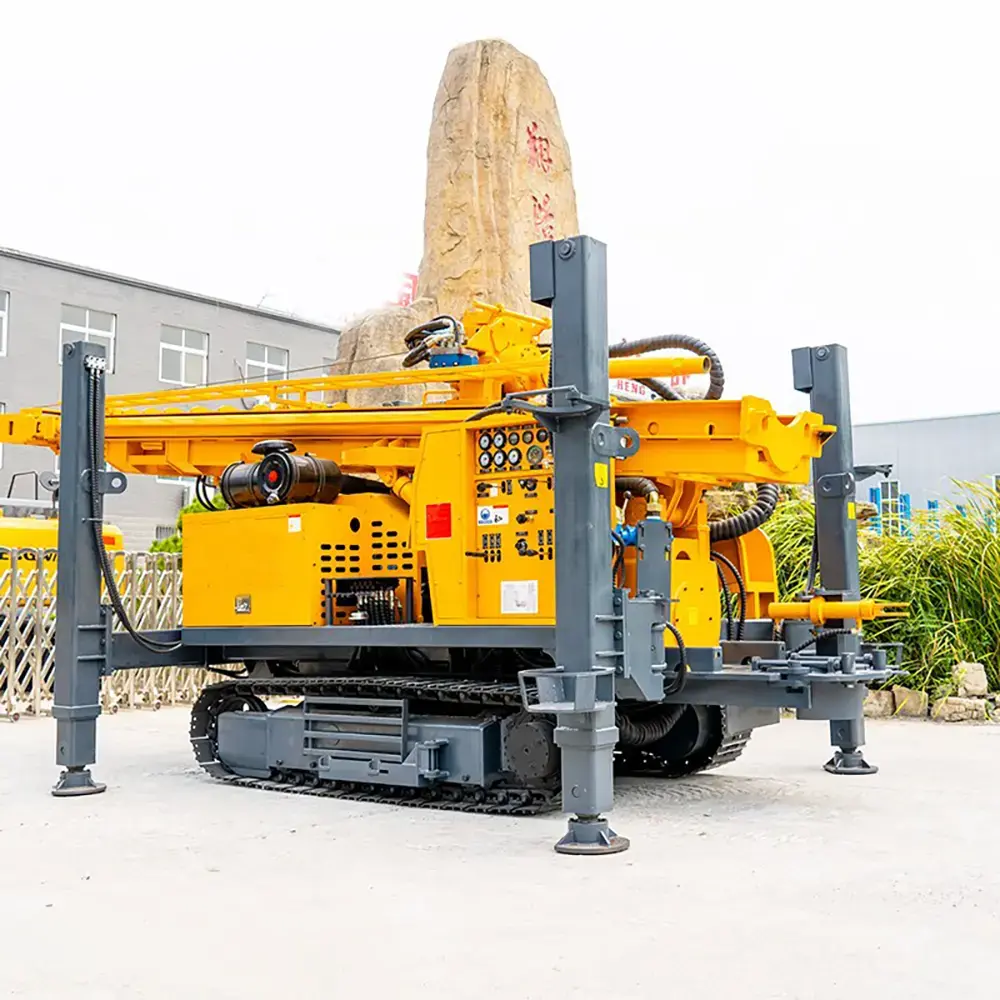

HQZ-500L Pneumatic Drill Rig
HQZ-500L Pneumatic Drill Rig

HQZ-500L Pneumatic Drill Rig is a heavy-duty crawler-mounted air-powered drilling machine designed for deep water wells, geological exploration, geothermal drilling, and mining projects. Featuring 500m drilling depth capability, powerful pneumatic DTH...

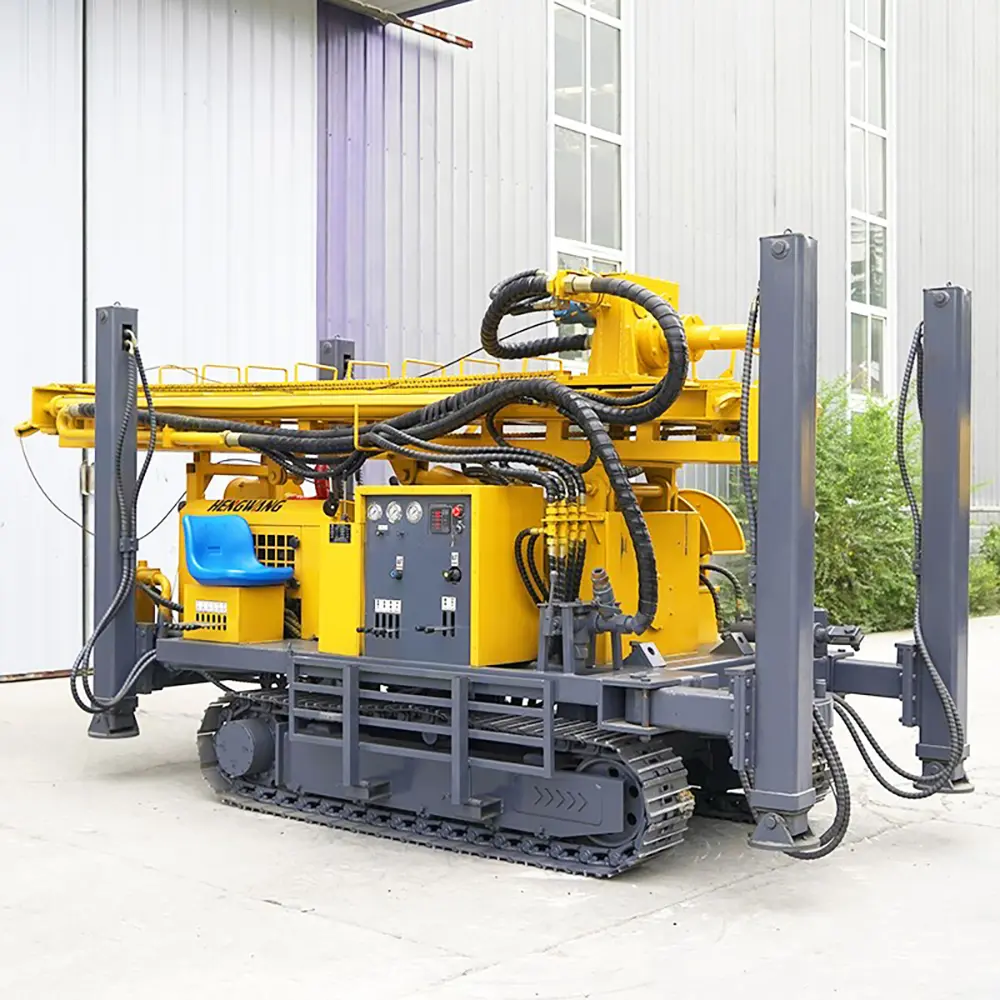

HQZ-260L Pneumatic Drill Rig
HQZ-260L Pneumatic Drill Rig

HQZ-260L Pneumatic Drill Rig is a compact and efficient crawler-mounted air-powered drilling machine designed for water well drilling, geological exploration, geothermal projects, and mining applications....

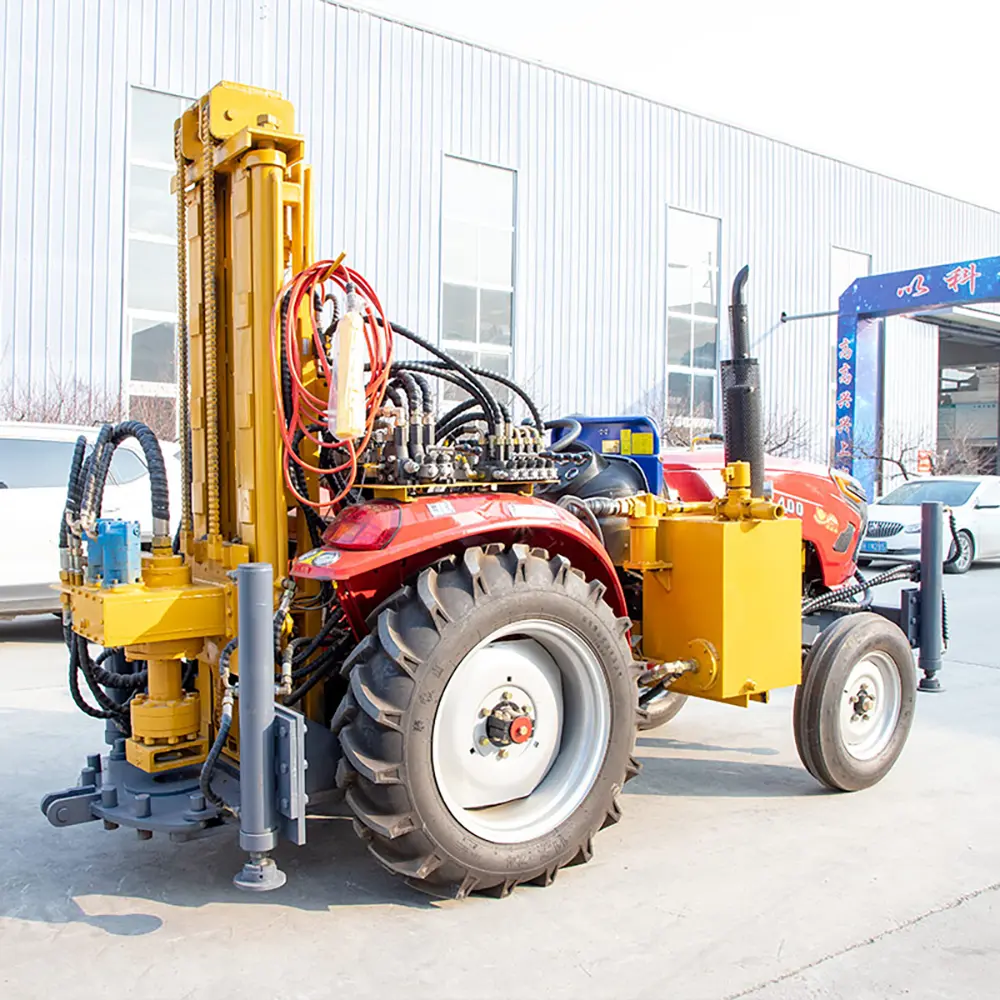

TQZ-200 Pneumatic Drill Rig
TQZ-200 Pneumatic Drill Rig

QZ-200 Pneumatic Drill Rig is a professional tractor-mounted air drilling machine designed for water well drilling, geological exploration, mining investigation, and industrial drilling applications...

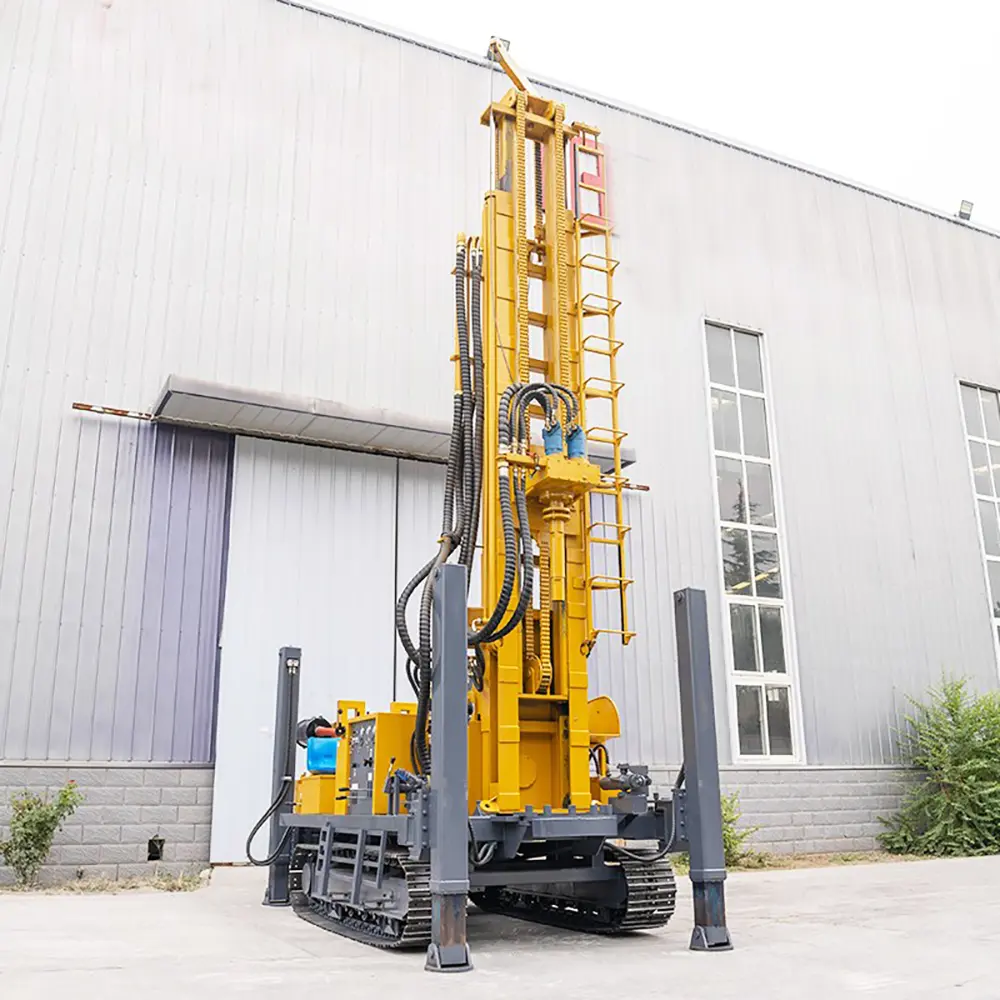

HQZ-400L Pneumatic Drill Rig
HQZ-400L Pneumatic Drill Rig

HQZ-400L Pneumatic Drill Rig is a high-performance crawler-mounted air-powered drilling machine designed for water wells, geothermal drilling, geological exploration, and mining applications....

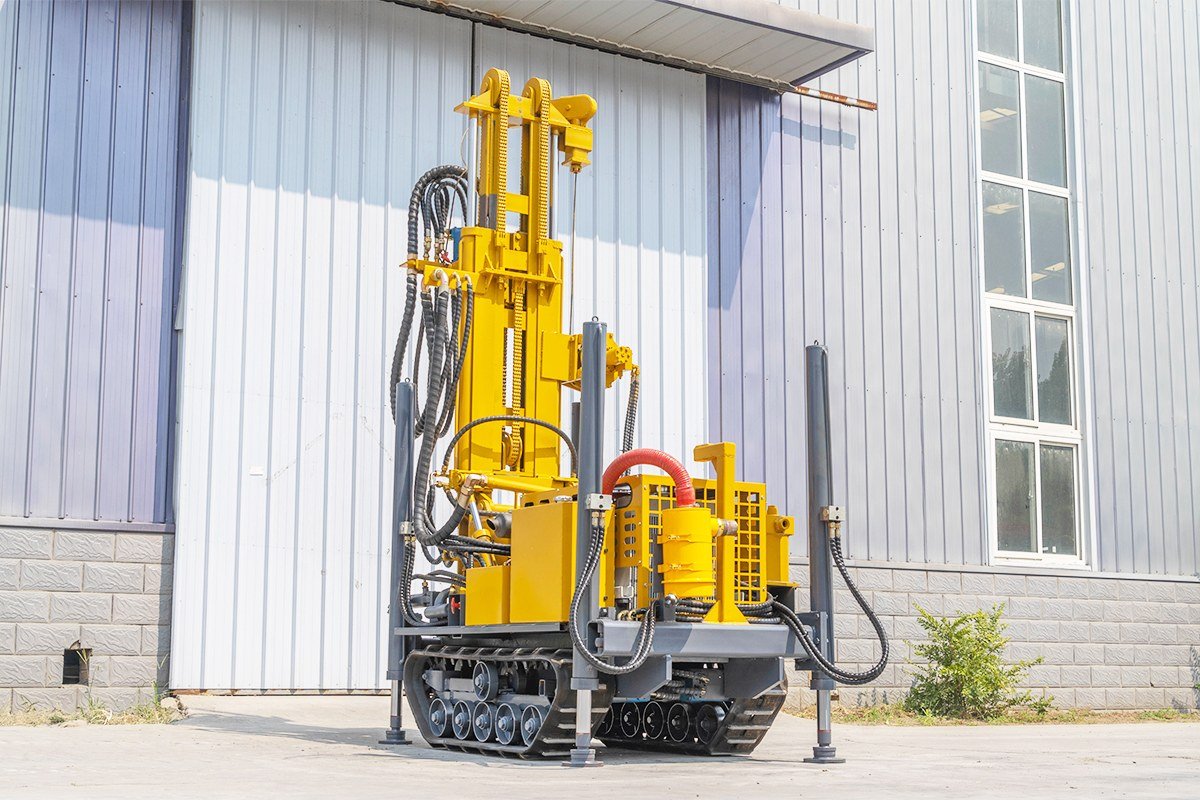

HQZ-160L Pneumatic Drill Rig
HQZ-160L Pneumatic Drill Rig

HQZ-160L Pneumatic Drill Rig is a powerful crawler-mounted air drilling machine designed for water well drilling, geological exploration, mining, and industrial drilling applications. Featuring pneumatic drilling technology...

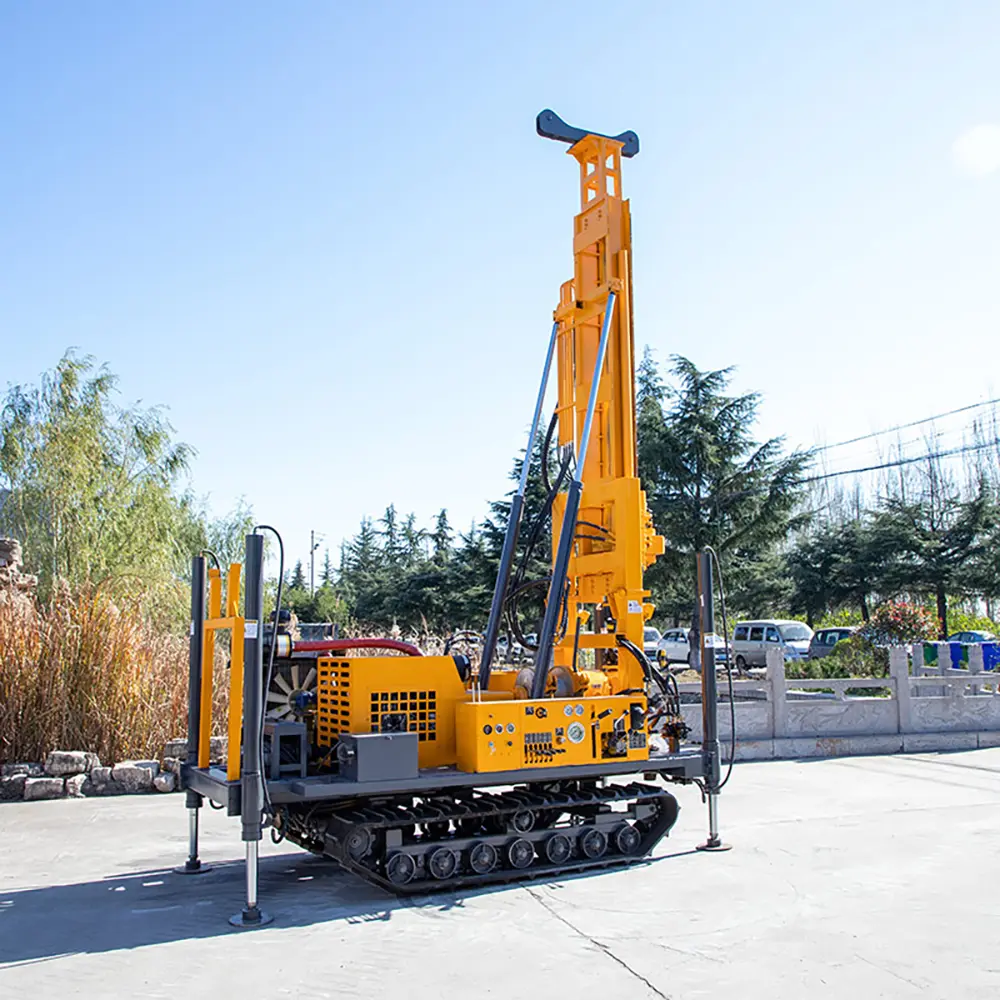

DL-280 Mud/air Drilling Rig
