HQZ-500L Pneumatic Drill Rig

HQZ-500L Pneumatic Drill Rig

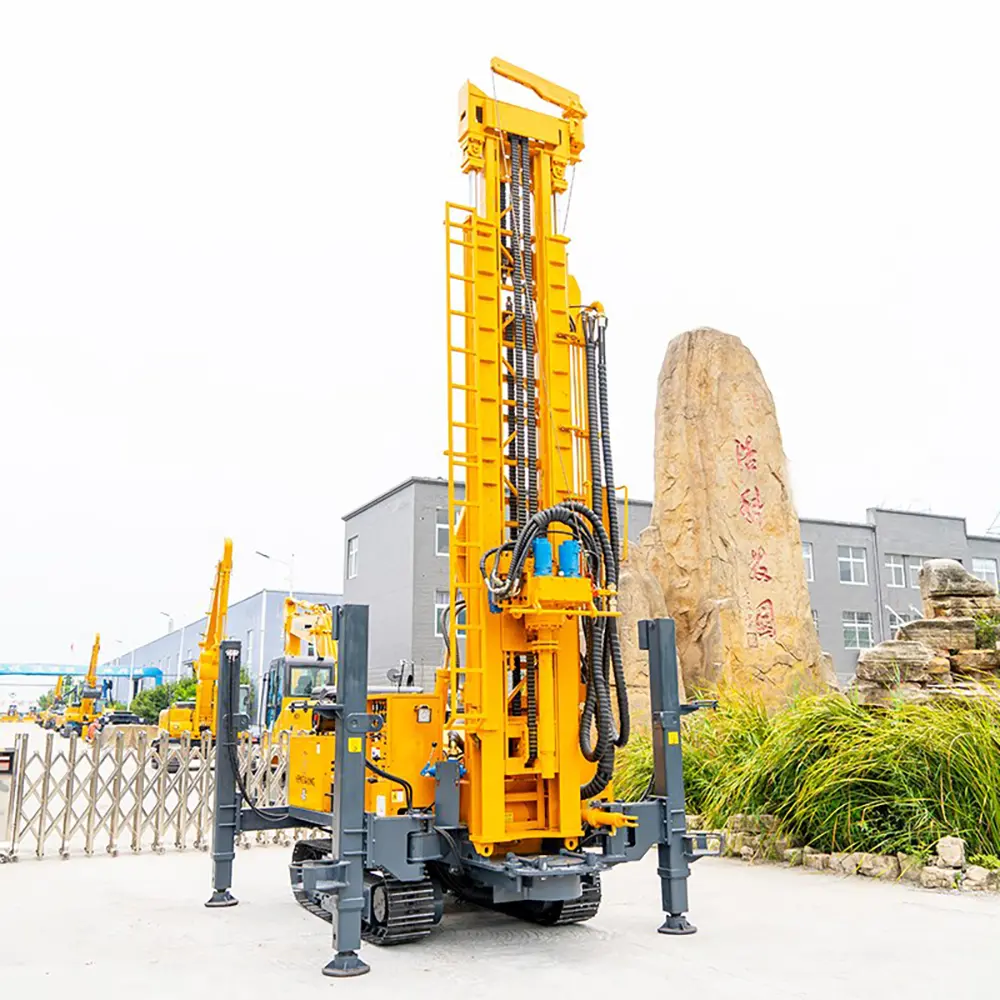

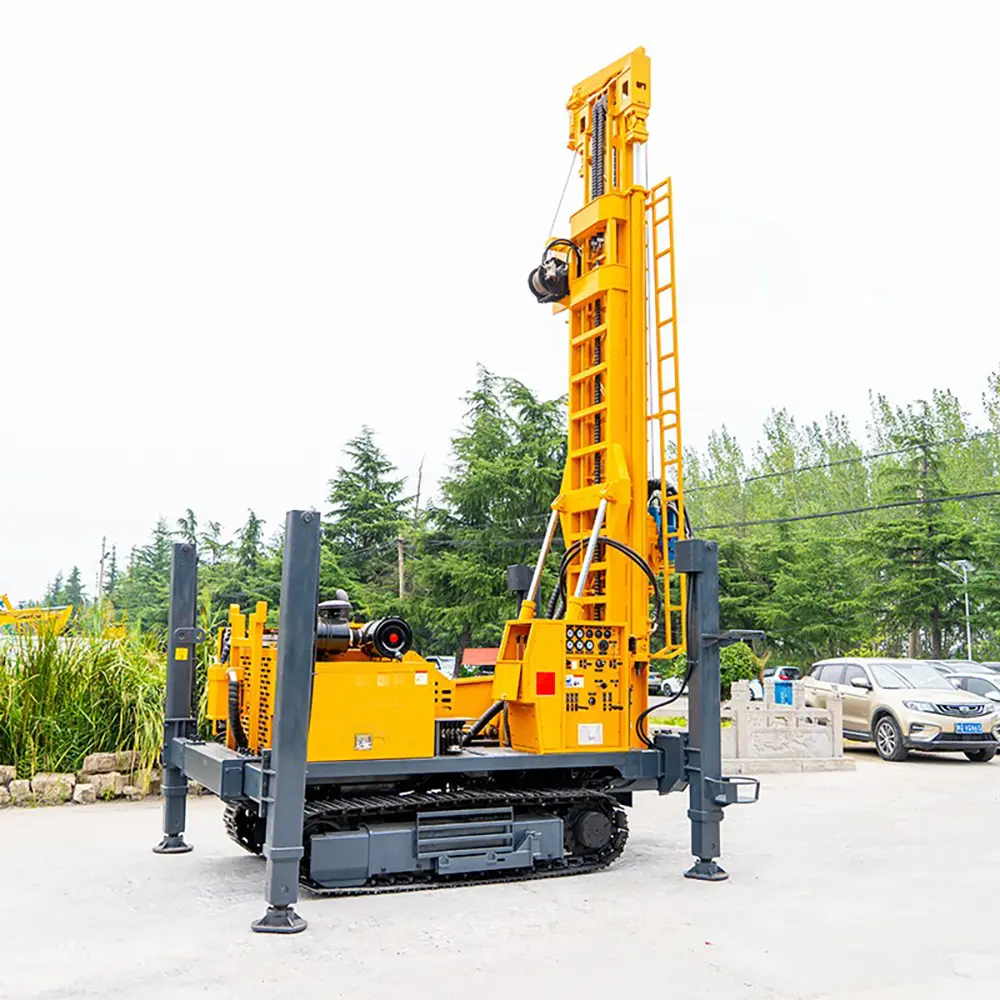

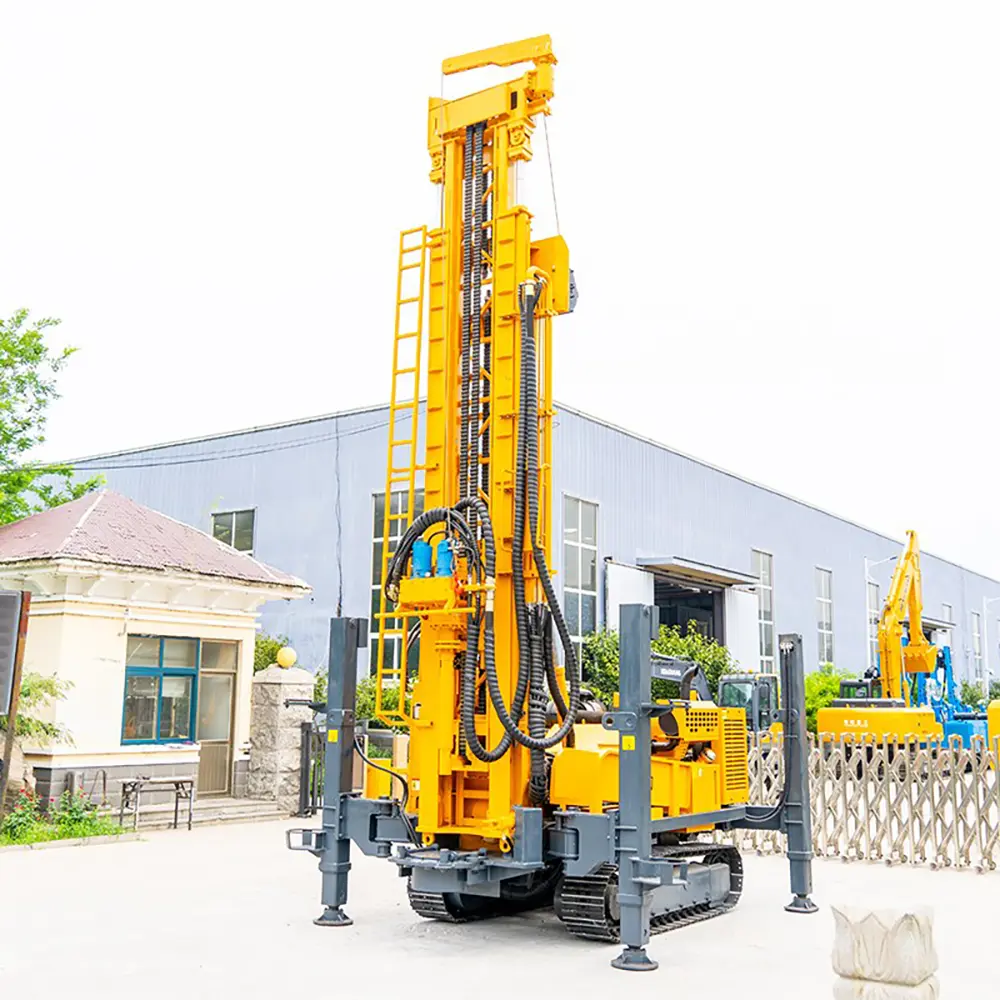

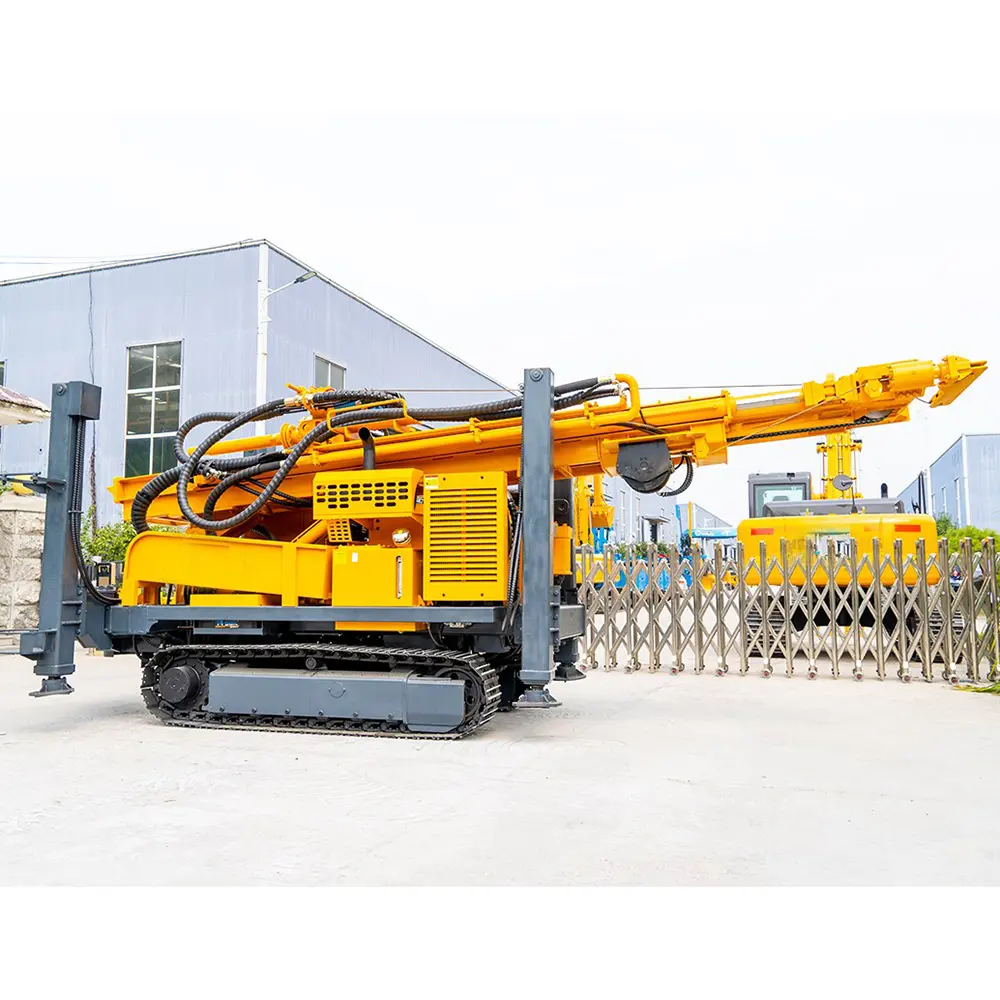

The HQZ-500L Pneumatic Drill Rig is a high-performance crawler-mounted drilling machine designed for deep drilling applications including water well construction, geological exploration, geothermal projects, mining investigation, and industrial drilling operations.

Combining advanced pneumatic impact drilling technology with a powerful hydraulic rotary system, the HQZ-500L delivers strong rock penetration, stable drilling performance, and excellent operational efficiency. It uses compressed air to drive the down-the-hole (DTH) hammer, allowing the drill bit to generate powerful impact energy directly at the bottom of the borehole.

Compared with conventional drilling equipment, the HQZ-500L Pneumatic Drill Rig offers faster drilling speed, better hard rock capability, and improved adaptability in challenging geological environments.

The machine is equipped with a heavy-duty steel crawler chassis, providing excellent mobility and stability on uneven terrain. It can efficiently operate in mountains, mining areas, construction sites, and remote locations where transportation conditions are difficult.

With a maximum drilling depth of approximately 500 meters, drilling diameter range of 130-350mm, and powerful engine system, the HQZ-500L is an ideal choice for professional drilling contractors requiring deep and efficient drilling performance.

Advanced Pneumatic DTH Drilling Technology

The HQZ-500L Pneumatic Drill Rig adopts advanced compressed-air-powered DTH drilling technology.

During operation, compressed air drives the impactor located near the drill bit. The repeated impact force breaks rock efficiently while rotary movement removes drilled material.

The pneumatic drilling system provides:

Strong impact energy
Fast penetration speed
Excellent hard rock drilling ability
Efficient cutting removal
Stable deep-hole drilling performance

The advantages of pneumatic drilling include:

Higher efficiency in rock formations
Reduced drilling time
Reliable operation in harsh environments
Simple maintenance structure
Long equipment service life

This technology makes the HQZ-500L suitable for demanding applications where traditional drilling methods may struggle.

Powerful 500m Deep Drilling Capability

The HQZ-500L Pneumatic Drill Rig is designed for medium-to-deep drilling operations.

Main performance advantages include:

Maximum drilling depth: 500m
Drilling diameter: 130-350mm
Strong lifting capacity
High rotary torque
Stable drilling pressure

The machine provides:

Engine power: approximately 118kW
Working pressure: 1.7-3.5MPa
Air consumption: 17-42m³/min
Lifting force: 26T
Rotary torque: 8000-10000N·m
Rotation speed: 40-100rpm

These specifications allow the HQZ-500L to handle demanding drilling tasks in different geological conditions.

Heavy-Duty Steel Crawler Design

The HQZ-500L Pneumatic Drill Rig features a steel track crawler chassis designed for field drilling operations.

The crawler system provides:

Excellent off-road capability
Strong climbing performance
Improved drilling stability
Easy movement on rough terrain
Reduced site preparation requirements

It is suitable for:

Mountain drilling projects
Remote water well construction
Mining exploration areas
Construction sites
Uneven ground conditions

The steel crawler structure ensures reliable operation even in difficult working environments.

Efficient Water Well Drilling Solution

The HQZ-500L is widely used for deep water well drilling projects.

Applications include:

Agricultural irrigation wells
Industrial water wells
Municipal water supply projects
Geothermal wells
Groundwater exploration

The combination of pneumatic impact drilling and high torque rotary capability allows operators to achieve excellent drilling efficiency.

Benefits include:

Faster drilling progress
Better borehole quality
Reduced downtime
Higher project productivity
Excellent Hard Rock Drilling Performance

The HQZ-500L Pneumatic Drill Rig is designed for complex geological formations.

It can effectively drill through:

Granite
Limestone
Basalt
Weathered rock
Hard rock layers
Mixed formations

The DTH impact system transfers energy directly to the drill bit, improving rock-breaking efficiency and reducing energy loss.

This makes the HQZ-500L especially suitable for:

Mining exploration
Deep geological investigation
Rock drilling projects
Large water wells
High Torque Hydraulic Rotary System

The HQZ-500L combines pneumatic drilling technology with a reliable hydraulic rotary system.

The rotary system provides:

Powerful torque output
Smooth rotation control
Stable drilling operation
Efficient drill pipe handling

The high torque system improves drilling performance when working with large diameter drill bits or difficult formations.

The machine supports drill pipe sizes including:

102mm
108mm
114mm

with drill pipe lengths of 3m or 6m according to project requirements.

Durable Construction And Long Service Life

The HQZ-500L Pneumatic Drill Rig is manufactured for heavy-duty industrial applications.

Its durable structure includes:

High-strength steel frame
Reinforced drilling tower
Heavy-duty crawler chassis
Reliable hydraulic components
Wear-resistant drilling parts

Advantages:

Long service life
Reduced maintenance cost
Improved reliability
Lower operating expenses

The robust construction allows continuous operation in demanding drilling environments.

Easy Operation And Maintenance

Although designed for deep drilling, the HQZ-500L features a practical operating system.

Advantages include:

Simple controls
Convenient maintenance access
Easy component inspection
Reduced operator training requirements
Improved working efficiency

Regular lubrication and inspection help maintain stable performance and extend equipment life.

Wide Application Areas
Deep Water Well Drilling

Used for:

Agricultural wells
Industrial wells
Commercial water projects
Groundwater development
Geological Exploration

Applications:

Mineral exploration
Geological surveys
Rock sampling
Resource investigation
Mining Industry

Suitable for:

Exploration drilling
Mine development
Rock investigation
Borehole construction
Geothermal Projects

Used for:

Geothermal wells
Ground source heat pump drilling
Underground energy projects
Main Features Of HQZ-500L Pneumatic Drill Rig
500m deep drilling capability
Pneumatic DTH drilling technology
Steel crawler chassis
130-350mm drilling diameter range
118kW powerful engine
8000-10000N·m rotary torque
26T lifting force
Excellent hard rock performance
Suitable for water wells and exploration
Durable heavy-duty construction

Why Choose Our HQZ-500L Pneumatic Drill Rig?
1. Powerful Deep Drilling Capability

The HQZ-500L provides up to 500m drilling depth for professional drilling projects.

2. Excellent Hard Rock Performance

The pneumatic DTH system delivers strong impact energy for efficient rock penetration.

3. Superior Mobility

The crawler-mounted design allows operation in difficult terrains and remote locations.

4. Wide Application Range

Suitable for water wells, mining exploration, geothermal projects, and geological investigation.

5. Durable Industrial Design

Heavy-duty components ensure stable operation and long service life.

6. Professional Technical Support

We provide customized drilling solutions, spare parts, and technical assistance.

FAQS
1. What is the HQZ-500L Pneumatic Drill Rig used for?

The HQZ-500L is mainly used for deep water wells, geological exploration, geothermal drilling, mining exploration, and industrial drilling projects.

2. How deep can the HQZ-500L drill?

The HQZ-500L can drill up to approximately 500 meters depending on geological conditions and drilling configuration.

3. What drilling diameter does the HQZ-500L support?

The drilling diameter range is approximately 130-350mm.

4. Is the HQZ-500L suitable for hard rock drilling?

Yes. The pneumatic DTH drilling system provides strong impact force for hard rock formations.

5. What power source does the HQZ-500L use?

The machine uses a diesel engine and compressed air system to power drilling operations.

6. Can the HQZ-500L drill geothermal wells?

Yes. It is suitable for geothermal drilling applications requiring deep and stable boreholes.

7. Why choose a crawler-mounted drilling rig?

Crawler systems provide better stability, mobility, and adaptability in difficult environments.
