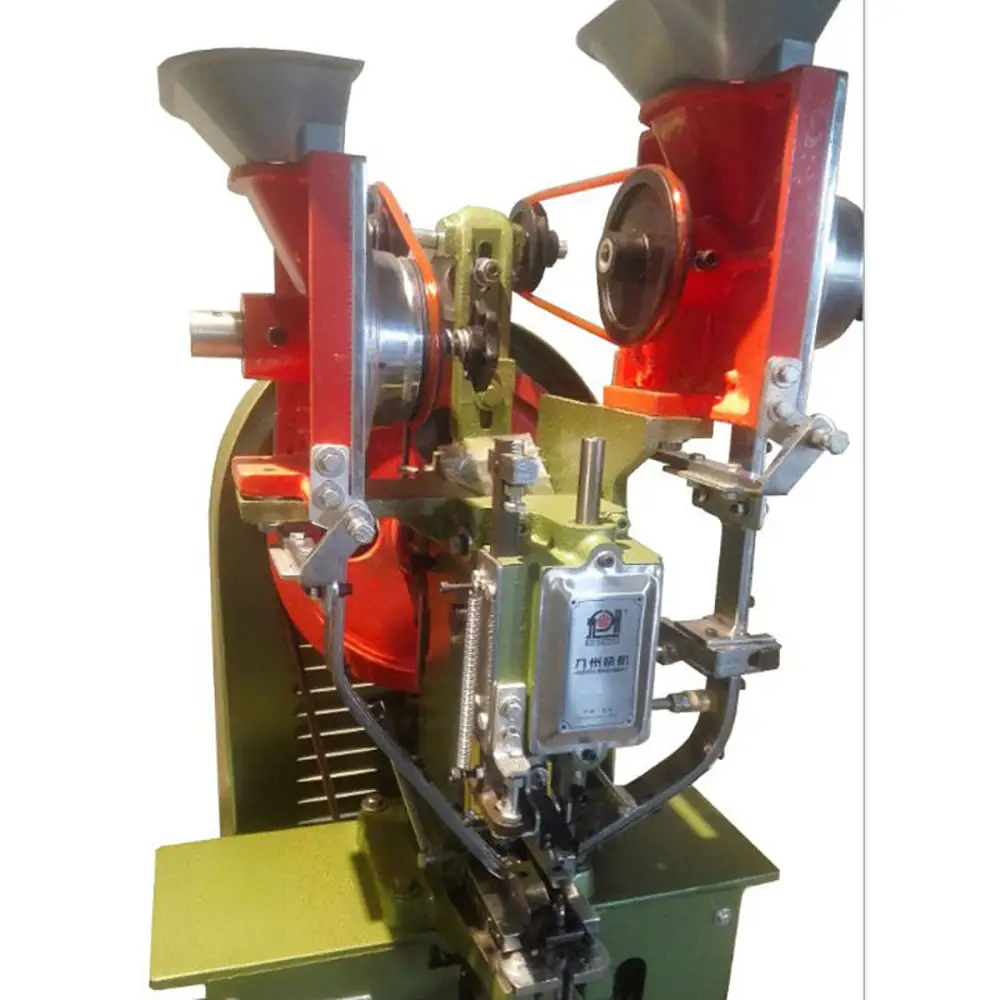

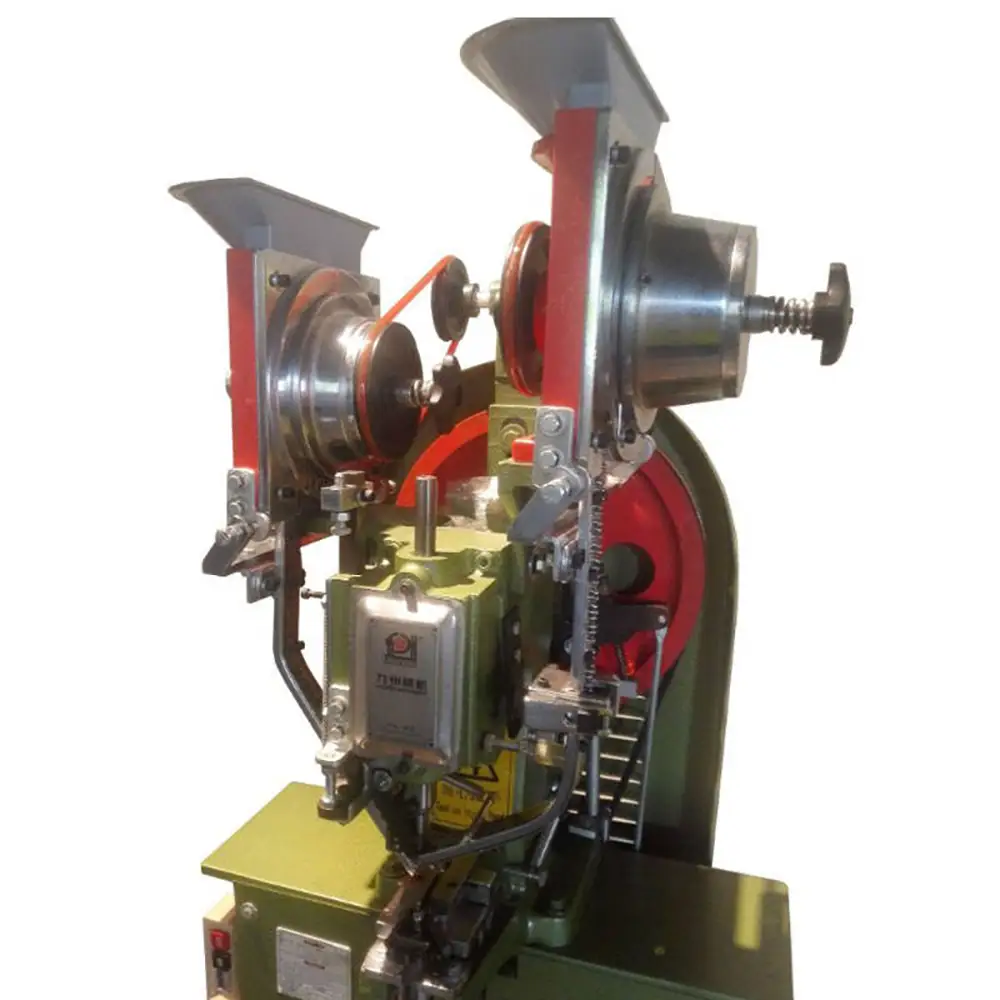

Full Automatic Male Female Double Rivet Feed Automatically Riveting Machine

Fully Automatic Male and Female Double Rivet Feeding Riveting Machine

The Fully Automatic Male and Female Double Rivet Feeding Riveting Machine is an automated industrial fastening solution designed for applications that require two different rivet components, such as male and female rivets, to be automatically fed, positioned, and assembled during the riveting process. By integrating automatic feeding, workpiece positioning, and riveting into one production system, the machine helps manufacturers reduce manual operations and improve assembly efficiency.

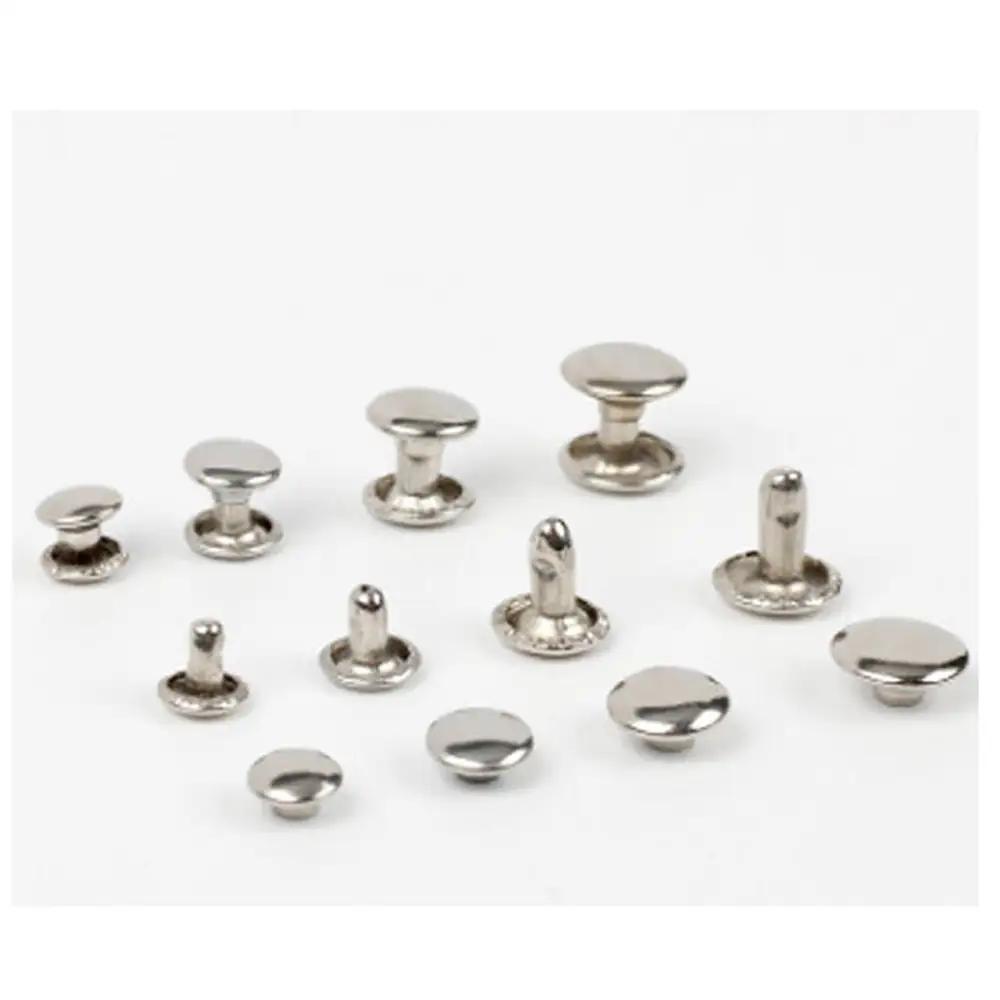

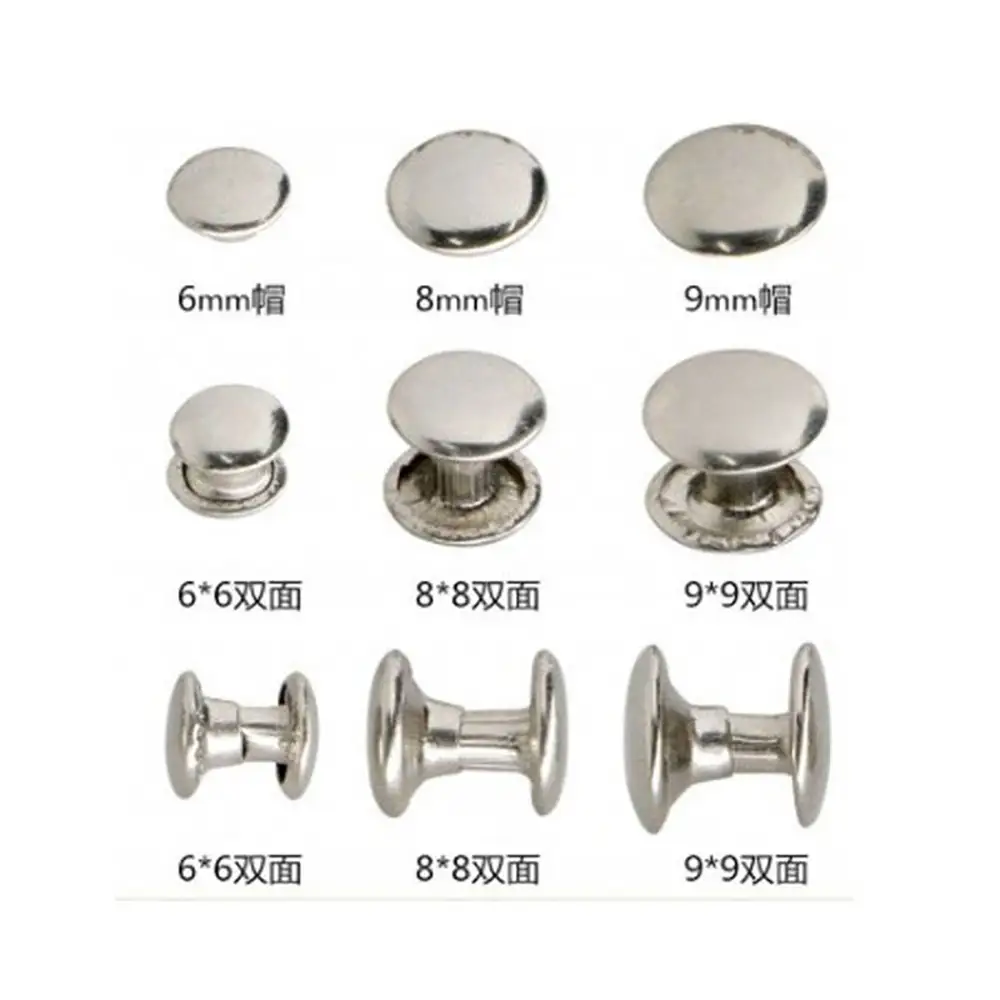

Male and female rivets are commonly used in products where two complementary fastening components need to be joined together. These fasteners can be found in bags, luggage, leather goods, footwear, garments, furniture hardware, automotive accessories, electrical products, and various consumer and industrial components.

Traditional manual assembly often requires operators to separately pick, position, and install the two rivet components. This repetitive process can increase labor requirements and create variation in component positioning. The Automatic Double Rivet Machine is designed to automate these steps and provide a more consistent production cycle.
Function of riveting machine
1 Fit for riveting the spherical head, half-hollow rivets
2 With automatic feeding device, which can rivet continuously
3 The clamp and punch of high-performance is of a high riveting capability
4 Can rivet clinch of various specifications if the die is changed
Application: Used for fixing rivets on helmets, belts, tags, toys, etc.

usage	Suitable for  shos clothe and some soft workpiece
riveting diameter	Φ1.5-5mm
power	60w
Machine throat depth	135mm
size	680*750*1680mm
N W	150kg
G W	165kg

Automatic Male and Female Rivet Feeding

The key feature of this equipment is its automatic feeding system for male and female rivet components. Separate feeding mechanisms can supply the corresponding rivet parts to the working station in the correct sequence.

Automatic feeding reduces the need for operators to manually handle small rivet components. This can be particularly useful for high-volume manufacturing environments where thousands or even millions of fastening operations may be required.

The feeding system can be configured according to the size, shape, material, and structure of the male and female rivets. Feeding bowls, tracks, guides, sensors, and positioning components can be designed to ensure that the fasteners reach the riveting station correctly.

Because different rivets have different geometries, sample testing is recommended before finalizing the feeding system and tooling.

Double Rivet Assembly

Unlike a conventional riveting machine designed for a single fastener component, the Male Female Double Rivet Machine is intended for applications requiring two complementary rivet parts.

The machine can coordinate the feeding and positioning of both components during the assembly process. Once the workpiece and rivets are correctly positioned, the riveting mechanism performs the required fastening operation.

This integrated process can reduce manual handling and help create a repeatable production sequence.

The exact operating sequence depends on the customer's product structure and the type of male and female rivet being used.

Fully Automatic Riveting Process

The machine is designed to automate multiple steps of the fastening process. A typical production cycle may include automatic feeding of the male rivet, automatic feeding of the female rivet, workpiece positioning, fastener alignment, riveting, and finished-product release.

Automation can help reduce repetitive manual work while maintaining a consistent production rhythm.

For factories with high production volumes, automatic feeding and riveting can also make it easier to standardize production procedures. The actual production capacity depends on the rivet specifications, feeding speed, product design, loading method, riveting cycle, and machine configuration.

Therefore, production output should be confirmed according to the customer's actual product rather than relying solely on a theoretical machine speed.

Applications for Bags and Leather Goods

Male and female rivets are frequently used in bags, backpacks, luggage, leather products, and fashion accessories. They can provide both functional fastening and decorative effects.

The Automatic Riveting Machine can be equipped with customized fixtures for different product shapes and riveting positions.

For soft materials such as leather, synthetic leather, fabric, and textile composites, fixture design is especially important. The workpiece needs to be held securely without causing unnecessary deformation or surface damage.

Customized positioning fixtures can be developed based on product samples or drawings.

Luggage and Hardware Applications

The machine can also be used for luggage, suitcases, travel bags, tool bags, and other products containing multiple hardware components.

Male and female rivets can be used for attaching straps, handles, reinforcement components, decorative hardware, and other parts.

Automating the riveting process can help manufacturers reduce repetitive assembly operations and improve consistency across large production batches.

Automatic Rivet Feeding System

The Automatic Rivet Feeding Machine uses dedicated feeding components to separate and deliver rivets to the working position. The feeding mechanism needs to match the physical characteristics of the fastener.

Factors such as rivet diameter, length, head shape, material, weight, and surface finish can affect feeding performance.

For special-shaped rivets, customized feeding tracks or sorting mechanisms may be required.

Sensors can also be incorporated into the system to monitor rivet presence and help reduce production errors caused by missing or incorrectly positioned fasteners.

Customized Tooling and Fixtures

Every product has different dimensions and riveting locations. For this reason, customized tooling is an important part of an automated riveting solution.

We can develop fixtures according to customer drawings, samples, or production requirements. The fixture can hold the workpiece at a repeatable position and provide access for the riveting head.

Customized riveting heads and dies can also be developed according to the male and female rivet specifications.

Before production, the tooling should be tested with actual rivets and workpieces to verify the final fastening result.

Improve Production Efficiency

The primary advantage of a Fully Automatic Riveting Machine is the reduction of repetitive manual operations.

Instead of manually placing two rivet components for every fastening cycle, the machine can automatically supply and position the required components. This can help improve production efficiency and reduce operator workload.

Automation can also support more consistent cycle times and make production planning easier.

For high-volume manufacturers, the machine can be integrated into an automated assembly line or combined with upstream and downstream production equipment.

Stable Riveting Performance

Consistent fastening requires accurate positioning of both rivet components and the workpiece. The machine is designed to coordinate these operations through mechanical fixtures, feeding systems, and control components.

A stable riveting process can help reduce problems such as misalignment, incomplete fastening, loose rivets, or inconsistent finished appearance.

The actual riveting parameters should be determined based on the rivet material, dimensions, workpiece material, and required fastening strength.

Easy Operation and Maintenance

The machine can be equipped with a practical control system for managing automatic feeding and riveting operations. Operators can monitor the production cycle and perform routine adjustments according to the operating instructions.

Routine maintenance may include checking feeding tracks, sensors, riveting dies, fixtures, moving components, fasteners, lubrication points, and electrical systems.

Keeping the feeding system clean is particularly important when working with small rivet components because dust, debris, or damaged fasteners can affect feeding performance.

Quality Control

For automated rivet assembly, quality control should cover both the feeding process and the finished fastening result.

Manufacturers can inspect rivet position, alignment, finished rivet dimensions, fastening condition, surface appearance, and mechanical strength.

Sample testing before mass production allows the machine settings and tooling to be adjusted according to the actual product.

For customized projects, customers can provide production samples, male and female rivet samples, technical drawings, and target output requirements for machine evaluation.

Why Choose Our Fully Automatic Double Rivet Riveting Machine?

1. Fully Automatic Rivet Feeding
The machine automatically feeds the required male and female rivet components, reducing repetitive manual handling.

2. Double Rivet Application
Designed specifically for products requiring two complementary rivet components.

3. Integrated Riveting Process
Automatic feeding, positioning, and riveting can be combined into one production cycle.

4. Improved Production Efficiency
Automation helps reduce repetitive labor and supports consistent production cycles.

5. Customized Fixtures
Fixtures can be designed according to the customer's workpiece shape and riveting position.

6. Customized Feeding Systems
Feeding tracks and mechanisms can be adapted to different rivet shapes and specifications.

7. Wide Application Range
Suitable for bags, luggage, leather goods, footwear, garments, furniture hardware, and industrial products.

8. OEM & Custom Solutions
Machine configurations can be developed according to product samples, drawings, rivet specifications, and production requirements.

FAQ
1. What is a Male and Female Double Rivet Machine?

It is an automatic riveting machine designed to feed and assemble two complementary rivet components, commonly called male and female rivets.

2. Can both rivets be fed automatically?

Yes. The machine can use separate automatic feeding systems for the male and female rivet components.

3. What products can use this machine?

Potential applications include bags, backpacks, luggage, suitcases, leather goods, footwear, garments, furniture hardware, automotive accessories, and other products requiring double-rivet fastening.

4. Can the machine handle different rivet sizes?

Different rivet sizes may require corresponding feeding components, tooling, or fixture adjustments. The applicable range depends on the machine configuration.

5. Can custom rivets be used?

Yes, provided the rivet design is compatible with the feeding and riveting system. Samples should be provided for evaluation.

6. Can the fixture be customized?

Yes. Customized fixtures can be developed according to product dimensions, material, and riveting position.

7. What is the production speed?

Production speed depends on rivet specifications, feeding performance, riveting cycle, workpiece loading, and machine configuration. Actual output should be confirmed through sample testing.

8. Can the machine detect missing rivets?

Depending on the configuration, sensors can be incorporated to monitor rivet presence and feeding conditions.

9. Is the machine suitable for leather products?

Yes. It can be configured for leather, synthetic leather, fabric, and other suitable materials when the correct fixture and riveting parameters are selected.

10. Can I provide product samples?

Yes. Providing product samples and male/female rivet samples is recommended for customized machine development and testing.

11. Can the machine be integrated into an automatic production line?

Yes. Depending on the production requirements, the machine can be designed as a standalone workstation or integrated into a broader automated assembly line.

12. Do you provide OEM and customized machines?

Yes. Customized feeding systems, riveting tooling, fixtures, control configurations, and complete production solutions can be developed according to customer requirements.
