Full Automatic Hydraulic Servo Motor Pipe Bending Machine for Fitness Equipment

Features of 3D CNC Hydraulic Pipe And Tube  Bending Machine DW120
1 Auto recognition of machine/work price dynamic specification,quick and good processing 2 Slow core draing,trolley co-puch,improve appearance of angl 3 Multilingual operation guiding+15-inch true color careen+touch screen,friendly operation 4 Diagrammationcal programming system,modifythe stereo pipe image on the screen and get the processing program, easy, quick and accurate programming 5 Rebound test,comparison test on features of different sets of pipes 6 Single- step adjustiong, precise abservation the deformation of pipe while die testing 7 Auto die diagram drawing,great help in research new products 8 bend pipe with or without mandrel


Model		DW120 CNC(full auto)
Max. Bending Capacity	round	MS:φ120×8mm;SS: φ108×7mm
	Square	90×90×5mm
	angle steel	90 mm
	rectangle	60×120mm
	rod	Φ80mm
	Square rod	70×70mm
Bending method		Hydraulic
Operate mode		Manual, semi auto,auto
Feeding, rotate and adjust angle		serve motor,automatic
driving axle		gear and rack
Fit to Shapes		Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material		steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language		Chinese, English, Spanish, Russian, or as requirement
Max Length of bending pipe		Unlimited
Feeding speed		1.1 m/sec
Feeding precession		±0.1
Max R for bending		R50-R450mm
Max angle for bending		190°
Bending precession		±0.1°
Bending speed		30°/sec
Angle precision		±0.1°
Power of Servo motor system		6 Kw
Power for motor		11 Kw
Total power		17 Kw
Oil Tank Capacity		260 KG
Max oil temperature		60°
cooling method		Air or water cold
operating mode		button and touch screen
Maximum number of stored bending programs		200 sets
Max number of elbow pipe each program		20sets
Overall size (L×W×H)		6.5×1.1×1.4 m
Weight		5600kg

Full Automatic Hydraulic Servo Motor Pipe Bending Machine for Fitness Equipment

The Full Automatic Hydraulic Servo Motor Pipe Bending Machine for Fitness Equipment is an industrial tube forming solution designed for efficient and repeatable bending of metal pipes and tubes used in fitness and gym equipment manufacturing. By combining hydraulic forming force with servo motor-controlled machine movement,the equipment can support precise and repeatable tube processing for components with straight sections,curves,and multiple bends.

Fitness equipment manufacturers commonly use steel and other metal tubes to produce frames,handles,support structures,seat supports,brackets,and other tubular components. These parts often require consistent bend angles and positioning so that finished components can be assembled correctly.

A fully automatic pipe bending system can reduce repetitive manual operations while providing a controlled production process. The exact automation level,bending capacity,servo configuration,number of axes,and tooling depend on the selected machine model.

Automatic Pipe Bending for Fitness Equipment

Fitness equipment manufacturing involves many tubular components with different geometries. A single machine may be used for products such as:

Treadmill Frames

Exercise Bike Frames

Weight Machine Frames

Strength Training Equipment

Gym Racks

Squat Racks

Fitness Machine Handles

Support Frames

Exercise Equipment Brackets

Training Equipment Structures

The actual workpiece range depends on the machine's rated capacity and tooling.

For manufacturers producing repeated frame components,automatic bending can help reduce manual positioning and improve consistency between production pieces.

Hydraulic Pipe Bending System

The hydraulic system provides the mechanical force required to form suitable metal tubes. Hydraulic bending is widely used in industrial pipe processing because it can provide controlled forming force for different tube materials and dimensions.

The required bending force depends on tube diameter,wall thickness,material strength,bend radius,and tooling.

For fitness equipment frames made from steel tubing,the hydraulic system can provide the forming force required for suitable applications. The machine should always be selected according to the actual tube specifications rather than relying only on general machine descriptions.

Servo Motor Control

Servo motor technology can provide controlled positioning of machine movements. In an automatic pipe bending system,servo-driven movement may be used for tube positioning,rotation,feeding,or other machine functions depending on the configuration.

This can be useful when producing parts that require multiple bends at specific positions.

Servo control can also make it easier to repeat programmed movement sequences. However,actual positioning accuracy and machine performance depend on the servo system,machine structure,tooling,control system,and production conditions.

Customers requiring specific tolerances should provide drawings and dimensional requirements before ordering.

Multi-Bend Tube Processing

Fitness equipment frames frequently contain multiple bends in one continuous tube. A programmed bending process can coordinate different bending positions and angles according to the required product geometry.

For example,a frame component may require several bends along one tube while maintaining specific distances between bending points.

Automatic control can help reduce repetitive manual measurements and positioning operations. This can be particularly useful for manufacturers producing large quantities of similar fitness equipment components.

The number of bends and available bending axes depend on the specific machine configuration.

Steel Tube Bending for Gym Equipment

Steel tubing is widely used for gym and fitness equipment because of its structural properties and availability.

Suitable tube materials may include:

Carbon Steel

Mild Steel

Stainless Steel

Galvanized Steel

Alloy Steel

Other Compatible Metal Tubes

Material properties influence bending behavior. High-strength steel may require greater forming force,while thin-wall tubing may require suitable support to reduce deformation.

Tube diameter,wall thickness,and bend radius should be considered when selecting bending tooling.

Bending Dies and Tooling

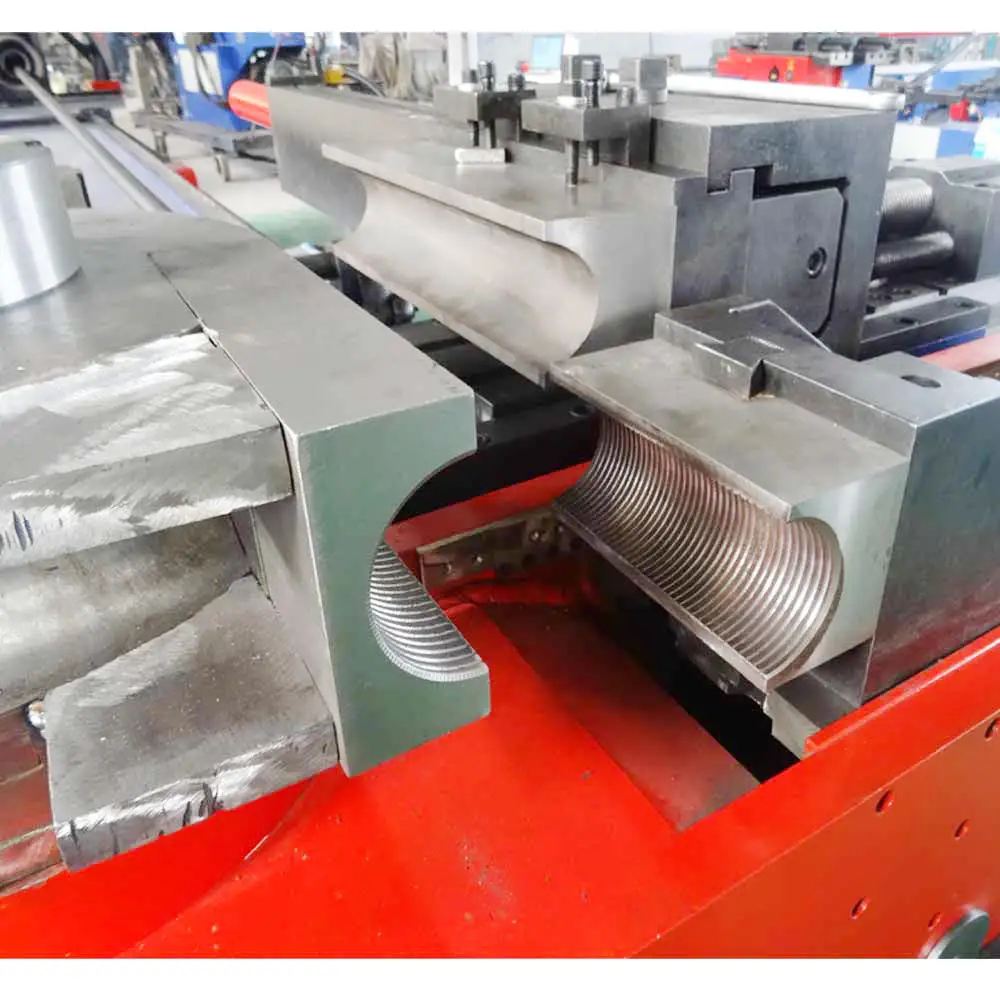

Bending dies are essential for producing the required tube geometry. The tooling must match the tube diameter,shape,material,and desired bend radius.

Depending on the application,the tooling system may include:

Bending Dies

Clamping Dies

Pressure Dies

Guides

Mandrels

Positioning Fixtures

Tube Supports

Fitness equipment manufacturers often produce multiple frame designs. Interchangeable tooling can therefore provide flexibility when different tube sizes or bend geometries are required.

Custom dies can also be considered for specialized fitness equipment frames and components.

Fitness Equipment Manufacturing Applications

The pipe bending machine can support many fitness equipment manufacturing processes.

Potential applications include:

Treadmill Frames

Tubular treadmill frames may require multiple bends and accurately positioned sections for structural support and assembly.

Exercise Bike Frames

Exercise bikes often use curved steel tubes for the frame and support structures. Controlled tube bending can help maintain consistent component geometry.

Strength Training Equipment

Weight machines,squat racks,cable machines,and other strength equipment may use bent steel tubes for frames,handles,and supports.

Gym Racks and Storage Equipment

Tube bending can also be used for racks,stands,and storage structures used in commercial gyms and fitness facilities.

Production Efficiency

Full automatic pipe bending equipment can improve production efficiency by automating repetitive bending operations.

Once the tooling and program have been established,the machine can process repeated workpieces with less manual intervention than a conventional manual bender.

Actual production output depends on tube dimensions,number of bends,material handling,loading and unloading,tool changes,program complexity,and inspection requirements.

For high-volume production,the machine may be integrated into a larger manufacturing workflow involving tube cutting,punching,drilling,welding,grinding,and powder coating.

Bending Quality and Dimensional Consistency

Fitness equipment components often need consistent dimensions because multiple parts must fit together during welding and final assembly.

Bending quality depends on machine rigidity,tooling alignment,hydraulic force,servo positioning,tube material,wall thickness,bend radius,and process parameters.

Potential forming issues such as flattening,wrinkling,surface marks,and springback should be considered during process development.

For new products,trial bending using the actual production tube can help determine suitable tooling and parameters.

Automatic Production Workflow

An automatic tube bending machine can form part of a broader production system.

A typical fitness equipment manufacturing workflow may include:

Tube Cutting

Tube Cleaning or Preparation

Automatic Tube Bending

Drilling or Punching

End Forming

Welding

Grinding

Surface Treatment

Powder Coating

Final Assembly

Integrating bending with other processes can help manufacturers establish a more organized production workflow.

Maintenance and Safety

The machine combines hydraulic,servo,electrical,and mechanical systems. Operators should follow the manufacturer's operating procedures and applicable workplace safety requirements.

Depending on the configuration,safety features may include machine guards,emergency stops,limit systems,and electrical protection.

Routine maintenance may include checking hydraulic hoses and fittings,hydraulic oil,servo and electrical connections,tooling,fasteners,and moving components.

Bending dies should be inspected regularly for wear because damaged tooling can affect the dimensions and surface quality of finished tubes.

OEM and Custom Fitness Equipment Tube Bending

Fitness equipment manufacturers may require different frame dimensions,tube diameters,bending angles,and production volumes.

The machine can be evaluated for customized applications. Customers should provide:

Tube Material

Tube Outside Diameter

Wall Thickness

Tube Shape

Bend Radius

Bend Angle

Number of Bends

Distance Between Bends

Production Volume

Required Tolerance

CAD drawings,3D models,and samples are useful for selecting appropriate tooling and machine configuration.

OEM and ODM solutions may include custom dies,fixtures,servo configurations,feeding systems,controls,and other application-specific options.

Why Choose Us

Full Automatic Operation – Designed to reduce repetitive manual intervention during tube bending production.

Hydraulic Bending Force – Provides controlled forming force for suitable steel and metal tube applications.

Servo Motor Control – Supports controlled positioning and repeatable programmed machine movements according to the configuration.

Fitness Equipment Application – Suitable for treadmill frames,exercise bikes,gym racks,strength equipment,and other tubular fitness products.

Multi-Bend Capability – Suitable for components requiring multiple bends and controlled bend positioning.

Flexible Tooling – Dies,mandrels,and supporting fixtures can be selected according to tube dimensions and product geometry.

Industrial Production Efficiency – Suitable for manufacturers producing repeated metal tube components and frame structures.

OEM & ODM Support – Machine configuration and tooling can be evaluated according to customer drawings,samples,materials,and production requirements.

FAQs

1. What is a servo hydraulic pipe bending machine?

It is a tube bending machine that combines hydraulic forming force with servo-controlled machine movements for suitable automatic pipe bending applications.

2. Can this machine bend tubes for fitness equipment?

Yes. It can be configured for suitable metal tubes used in treadmill frames,exercise bikes,gym racks,strength equipment,and other fitness products.

3. What materials can it bend?

Depending on the machine configuration,it may process carbon steel,mild steel,stainless steel,galvanized steel,alloy steel,and other compatible metal tubes.

4. Can it bend stainless steel tubes?

Yes. Stainless steel can be processed when the machine and tooling are suitable for the tube dimensions and material characteristics.

5. What is the advantage of servo motor control?

Servo control can provide controlled positioning for machine movements such as tube feeding,rotation,or positioning,depending on the machine design.

6. Can it perform multiple bends on one tube?

Yes. Automatic tube bending systems can be configured for multiple bending operations when the machine has the required axes and tooling.

7. Can it bend square or rectangular tubes?

Some machines can process square or rectangular tubing with suitable tooling. The actual capability depends on the machine design and bending method.

8. What determines the maximum tube size?

Tube diameter,wall thickness,material strength,bend radius,tooling,and available hydraulic forming force all affect the maximum practical bending capacity.

9. Is the machine completely unmanned?

Not necessarily. Full automatic bending can reduce manual intervention during the bending cycle,but operators may still be needed for loading,unloading,setup,tool changes,and inspection.

10. Can custom tooling be supplied?

Yes. Custom bending dies,clamping components,fixtures,and other tooling can be evaluated according to the required tube geometry.

11. Is it suitable for high-volume fitness equipment production?

It can be suitable for repetitive production when the machine capacity,tooling,automation,and workflow match the required production volume.

12. What information should I provide for a quotation?

Provide tube material,outside diameter,wall thickness,tube shape,bend radius,bend angles,number of bends,production volume,and drawings or samples if available.
