Aluminium Step Ladder Drilling Machine Automatic CNC Ladder Making Machines

Aluminium Step Ladder Drilling Machine for Automatic CNC Ladder Production

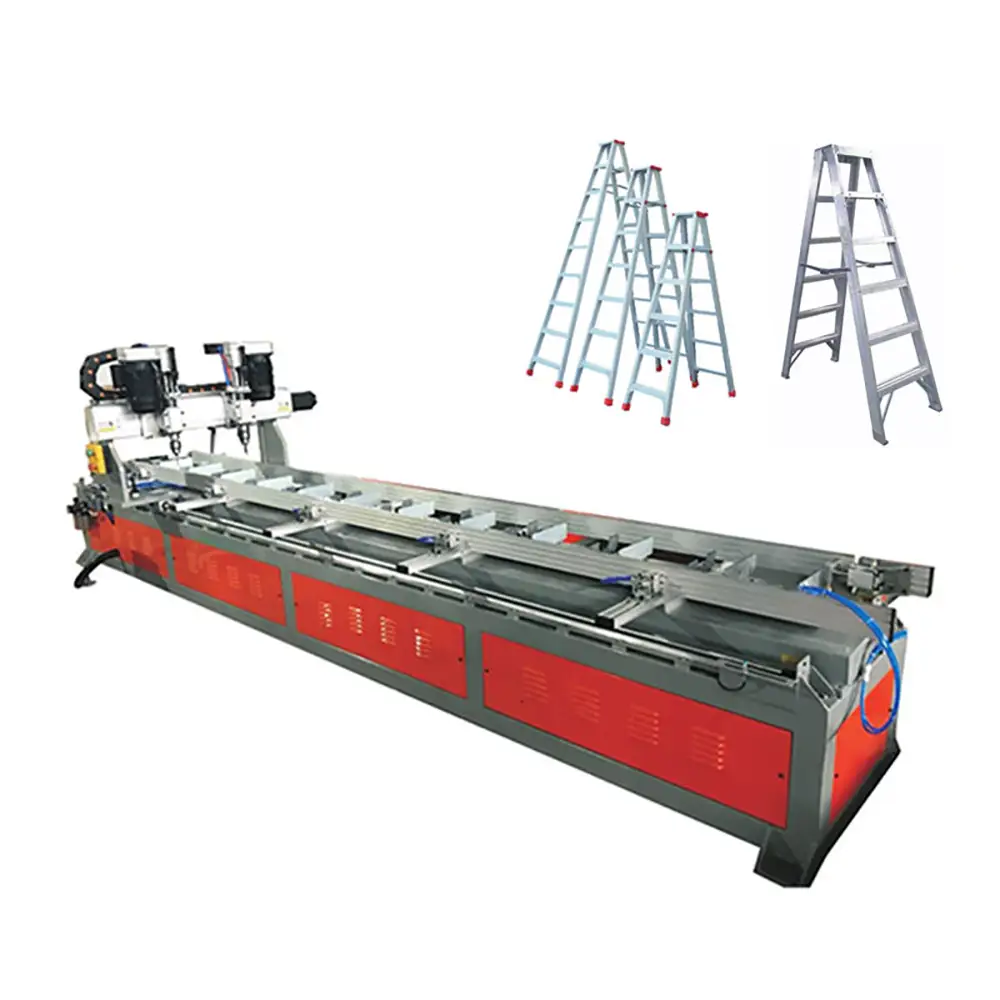

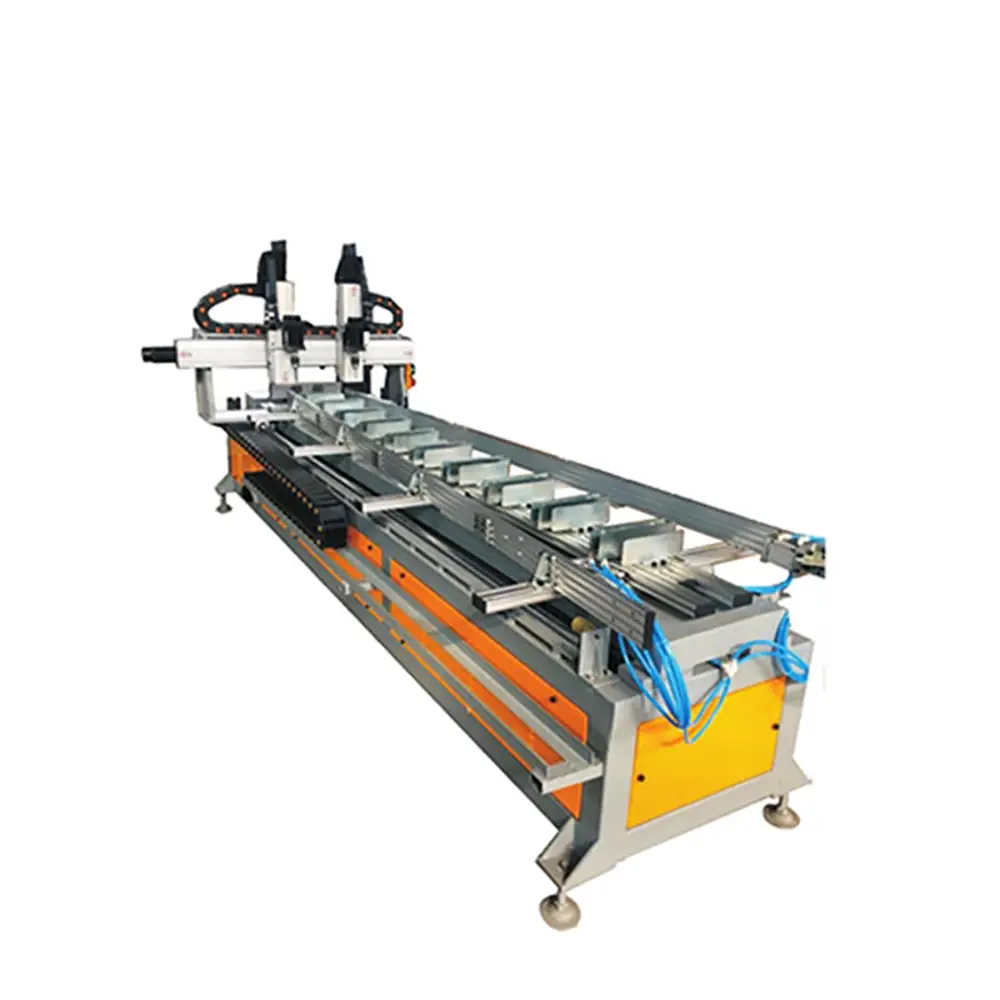

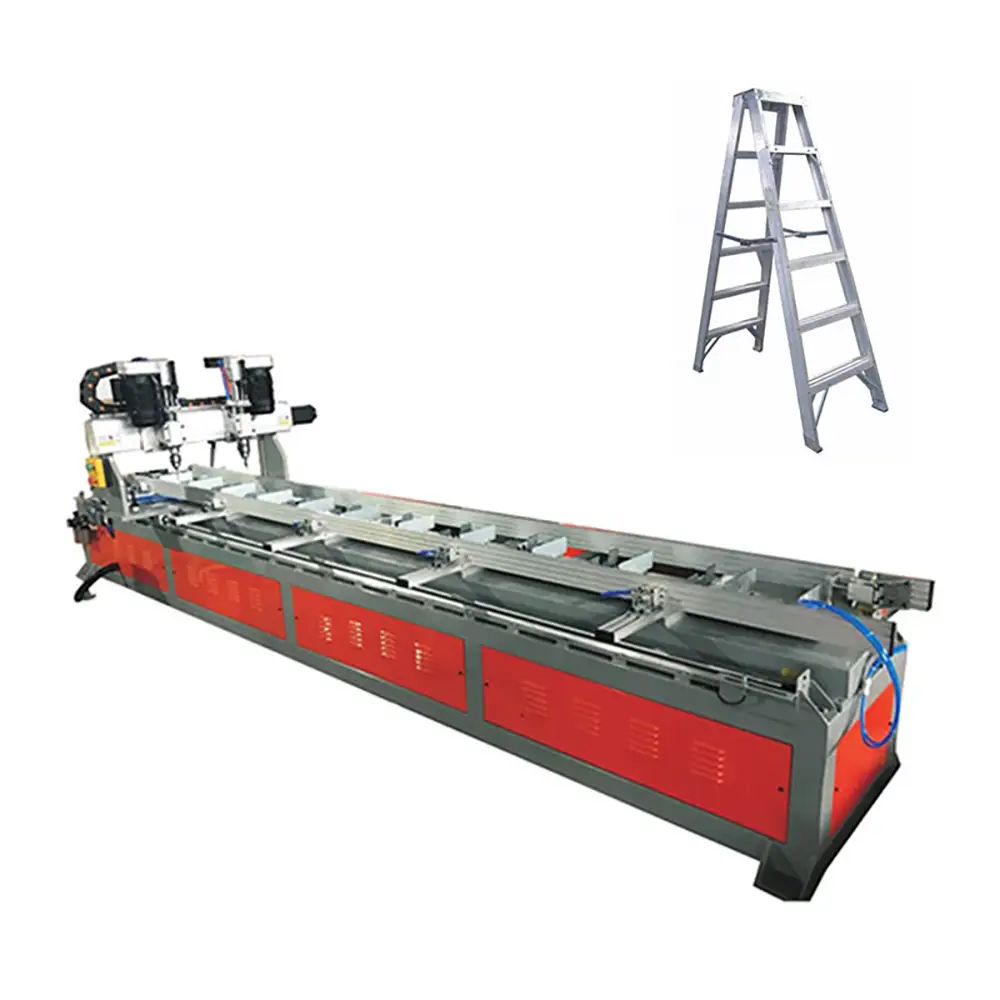

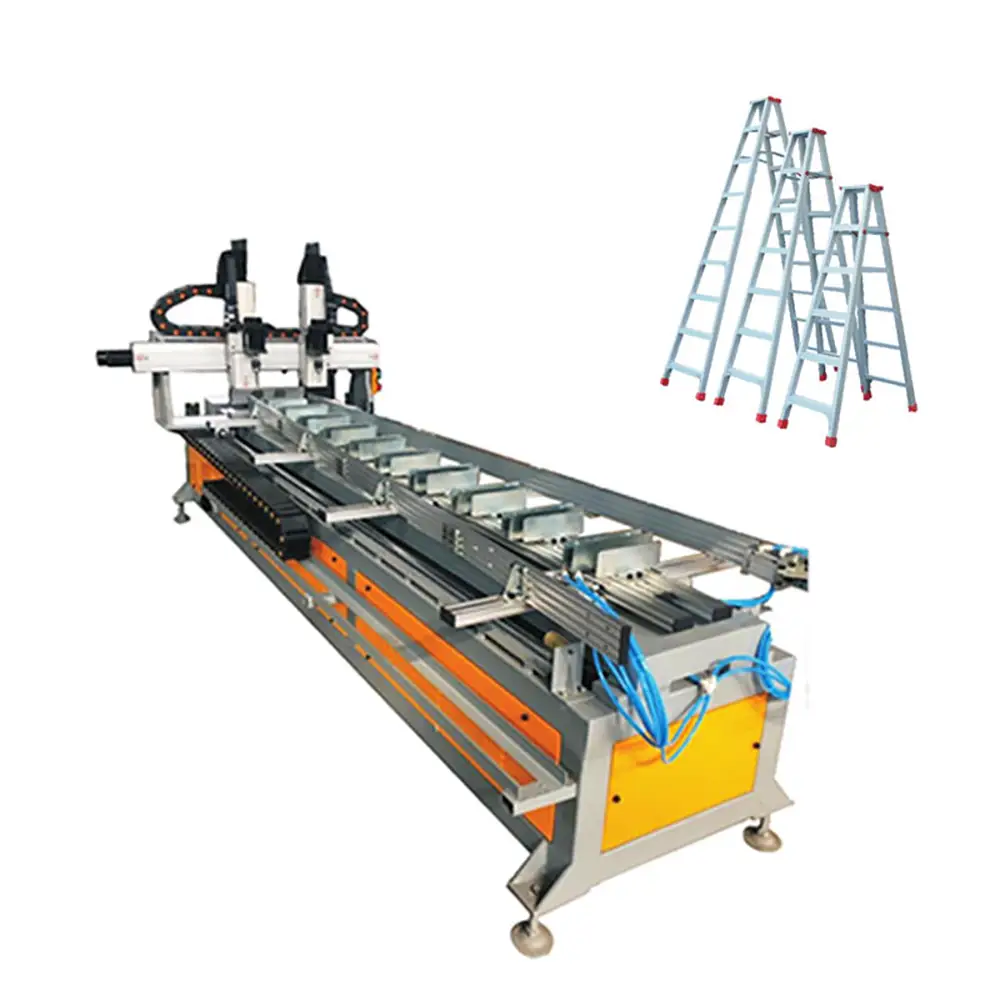

The Aluminium Step Ladder Drilling Machine is a specialized CNC processing solution designed for manufacturers producing aluminum step ladders,household ladders,folding ladders,and other lightweight ladder products. The machine is primarily used for drilling accurately positioned holes in aluminum ladder profiles,helping manufacturers streamline repetitive processing operations and improve consistency between ladder components.

Aluminum step ladders typically use extruded aluminum profiles for side rails,steps,support members,and connecting components. During production,these profiles often require multiple holes at predetermined positions for mounting steps,hinges,brackets,bolts,and other hardware.

Traditional manual drilling requires operators to measure and mark each position before drilling. For repetitive production,this process can consume considerable labor and may introduce variations between components.

A CNC ladder drilling machine uses programmed positioning to control drilling locations according to the required ladder design. Depending on the machine configuration,it can also incorporate automatic feeding,clamping,positioning,and other profile-processing functions.

The actual automation level,drilling capacity,profile size,and machine configuration should be confirmed according to the specific model and production requirements.

CNC Aluminum Step Ladder Manufacturing

The production of an aluminum step ladder normally involves several stages,including aluminum profile extrusion or sourcing,cutting,drilling,punching,forming,assembly,and inspection.

The CNC drilling stage is particularly important because ladder rails and other components need accurately positioned holes for subsequent assembly.

A typical CNC drilling workflow may include:

Loading the aluminum ladder profile.

Positioning the profile on the machine.

Securing the workpiece with suitable fixtures.

Selecting the appropriate CNC drilling program.

Drilling the programmed holes.

Repositioning the profile when additional operations are required.

Removing the finished component for assembly.

The exact process depends on the machine design.

For manufacturers producing several ladder models,the CNC controller can allow different drilling programs to be used for different hole patterns.

Automatic Step Ladder Drilling Machine

An automatic step ladder drilling machine is designed to reduce repetitive manual drilling work.

Instead of manually measuring the distance between each hole,the operator can use programmed positioning to determine where the drilling head should process the aluminum profile.

This can be especially useful for step ladder rails because multiple holes may need to follow a consistent spacing pattern.

Automation can also help reduce operator workload and improve production organization.

However,the term automatic can describe different levels of machine automation. Some systems may provide automatic positioning and drilling,while others may also incorporate automatic feeding or unloading.

Customers should confirm the exact automation functions included with the selected configuration.

Aluminum Profile Drilling

Aluminum ladder rails are generally made from extruded profiles with specific cross-sectional shapes.

Different ladder manufacturers may use:

Rectangular aluminum profiles

Channel-shaped profiles

Special ladder rail extrusions

Reinforced aluminum profiles

Tubular aluminum sections

Customized aluminum extrusions

Because profile dimensions can vary considerably,the machine fixture and drilling arrangement should be matched to the actual extrusion.

Important information includes profile width,height,wall thickness,length,and cross-sectional geometry.

For custom ladder production,the customer should provide profile drawings or physical samples before machine configuration.

Accurate Ladder Hole Positioning

Hole positioning is one of the most important requirements in ladder manufacturing.

Step mounting holes need to align with the corresponding ladder steps or rungs. Hinge and support holes also need to maintain consistent dimensions to ensure proper assembly.

CNC positioning allows hole coordinates and spacing to be programmed according to the ladder design.

The final accuracy depends on machine rigidity,drive-system performance,fixture stability,tool condition,profile straightness,and CNC programming.

For applications requiring specific dimensional tolerances,customers should provide those requirements during the machine selection process.

Drilling Step Ladder Rails

Long aluminum ladder rails require stable support during drilling.

If the profile bends,moves,or vibrates during machining,the final hole positions may vary.

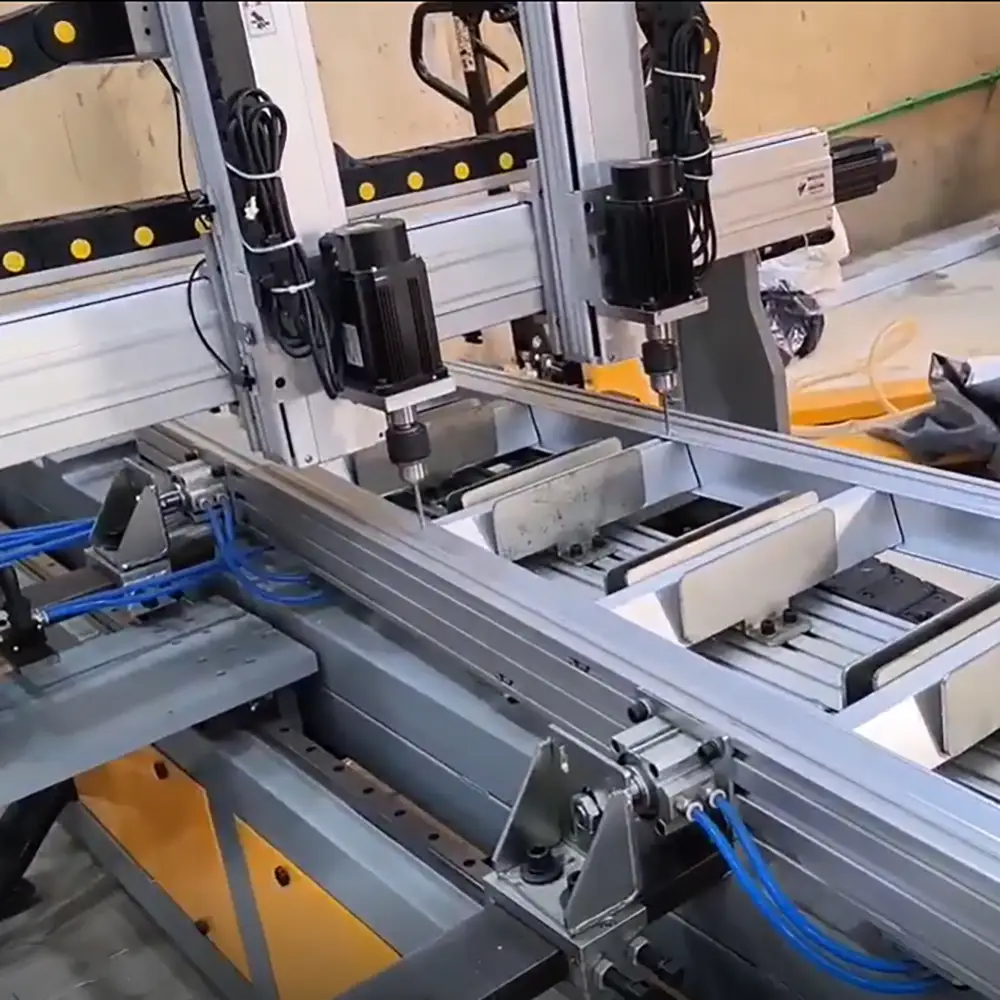

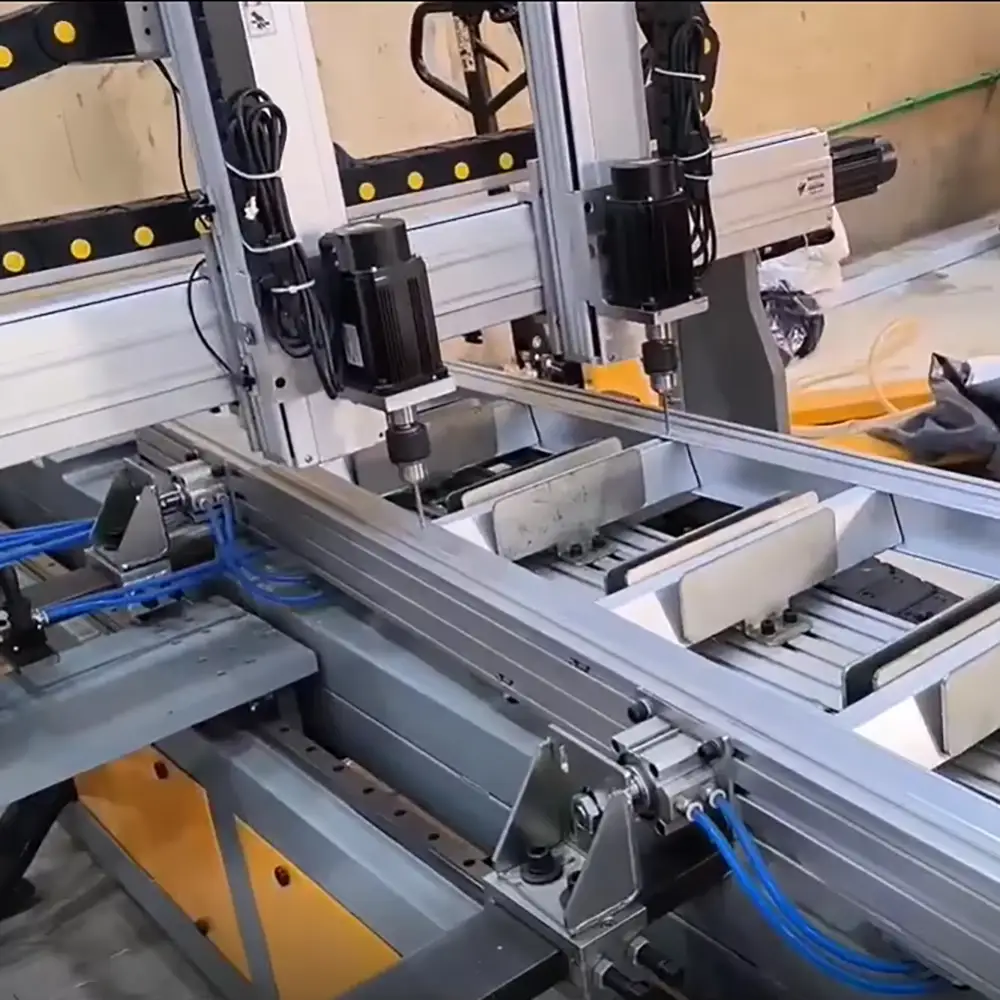

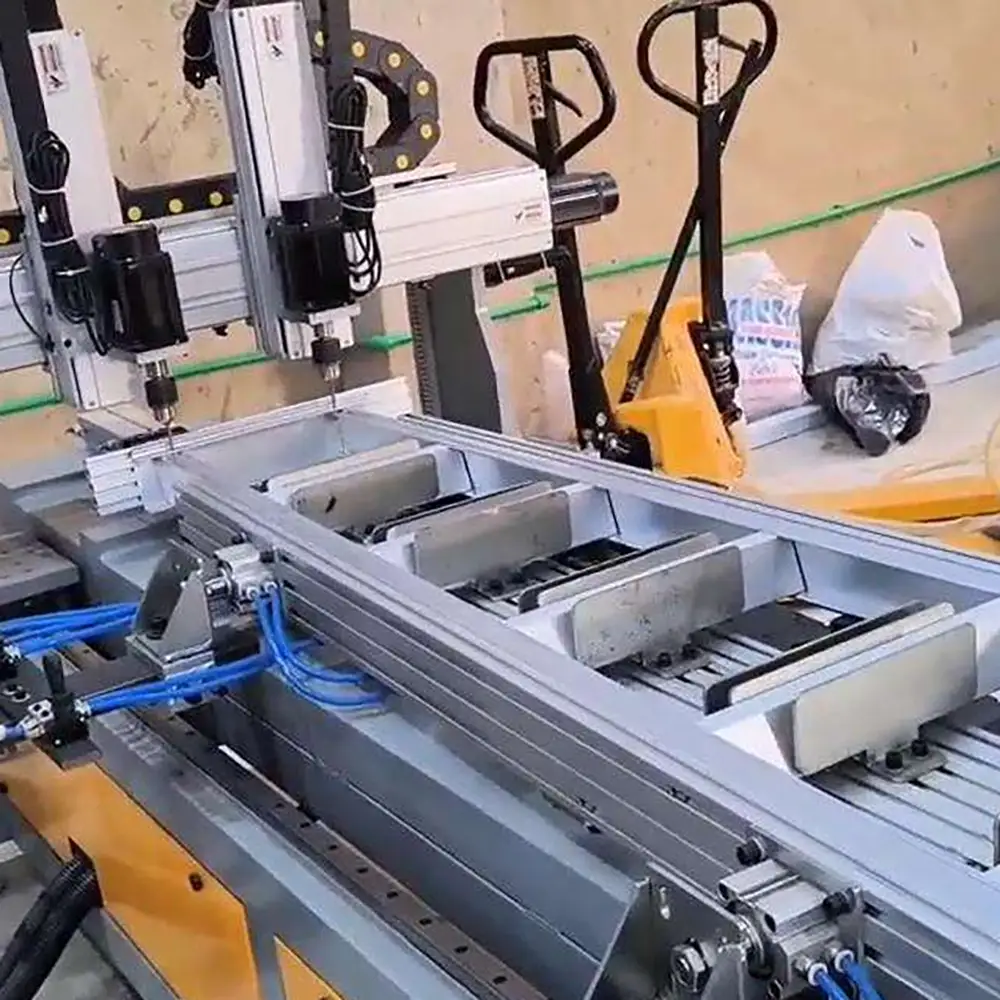

A suitable fixture can hold the profile securely while allowing the drilling head to move to the required positions.

For long profiles,additional material supports may be required depending on the machine structure and profile dimensions.

Proper workholding is particularly important when the ladder rail contains a series of holes that must maintain consistent spacing over a long distance.

CNC Programs for Different Ladder Sizes

A major benefit of CNC control is programmable production.

Different step ladder models may have different:

Overall lengths

Step spacing

Hole diameters

Hole quantities

Hinge locations

Bracket positions

Profile dimensions

A CNC drilling machine can use different programs for these production requirements when supported by the selected controller.

This can make it easier for manufacturers to switch between different ladder models without redesigning the entire manual measurement process.

The specific programming interface,file compatibility,and software functions depend on the CNC control system.

Production Efficiency

For ladder factories producing repeated components,the CNC drilling process can improve production workflow.

Automated positioning reduces repetitive measurement and marking tasks. Consistent drilling programs can also help standardize production between different batches.

Actual production capacity depends on profile length,number of holes,hole diameter,drilling speed,feeding method,tool changes,loading time,and machine configuration.

For higher-volume production,the drilling machine may be integrated with aluminum profile cutting,automatic feeding,material handling,and ladder assembly equipment.

The complete production line should be designed according to actual factory requirements rather than relying on a single machine's nominal processing speed.

Drill Tooling and Hole Quality

The quality of drilled holes depends on the selected drilling tools and operating parameters.

Drill diameter should match the required hole size. Drill geometry,cutting speed,feed rate,and tool material should also be appropriate for the aluminum alloy.

Worn drills may create excessive burrs,rough hole edges,or dimensional variation.

Regular inspection of drill condition can help maintain stable processing quality.

If a ladder manufacturer requires multiple hole sizes,the machine can be configured around suitable tooling options depending on the spindle and tool-changing system.

Clamping and Workpiece Support

Proper clamping helps maintain consistent hole positions.

Aluminum profiles should be securely held without excessive deformation. The fixture should correspond to the shape of the extrusion being processed.

For manufacturers using multiple ladder profiles,interchangeable fixtures can provide greater flexibility.

Long workpieces may also require additional support points to prevent deflection during drilling.

The fixture design should be evaluated together with the profile dimensions and drilling locations.

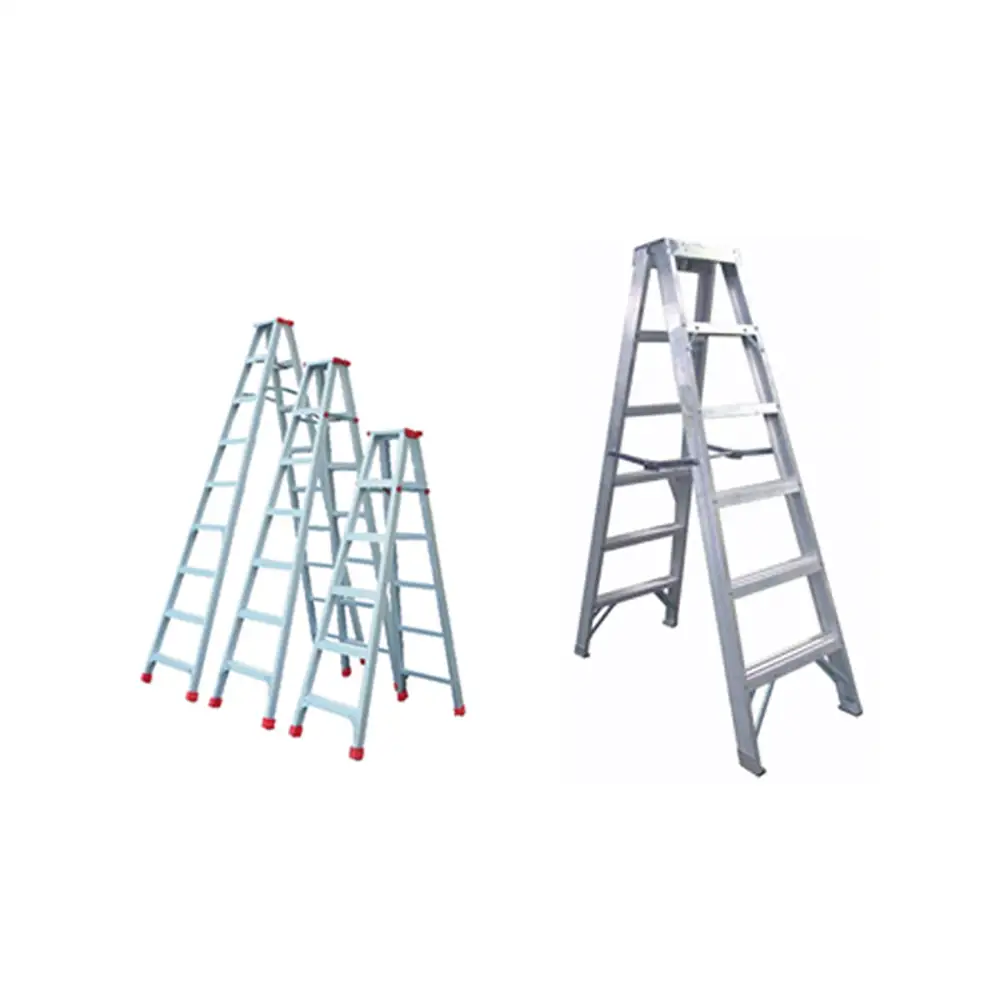

Applications in Ladder Manufacturing

The machine can support a variety of aluminum ladder production applications,including:

Household step ladders

Folding aluminum ladders

Extension ladders

Platform ladders

Multipurpose ladders

Lightweight utility ladders

Telescopic ladder components

Industrial aluminum ladders

Maintenance ladders

Custom aluminum ladder products

The primary application is repeatable drilling of suitable aluminum profiles used in ladder construction.

For OEM ladder manufacturers,the machine can also be configured around customized ladder designs.

OEM and ODM Ladder Machine Solutions

Different ladder manufacturers may use unique aluminum extrusion profiles and hole patterns.

For this reason,customization may be required for specific production applications.

Potential OEM and ODM options include:

Custom profile fixtures

Automatic profile feeding

CNC positioning systems

Multiple drilling heads

Adjustable work supports

Special drilling tools

Custom drilling programs

Material handling equipment

Production-line integration

Customers can provide CAD drawings,aluminum profile samples,hole-position drawings,and ladder specifications for technical evaluation.

B2B Manufacturing and Export Applications

The Aluminium Step Ladder Drilling Machine is suitable for ladder factories,aluminum profile processors,OEM manufacturers,metal fabrication companies,and machinery distributors.

For B2B purchasing,the machine should be evaluated according to profile dimensions,production volume,hole requirements,automation level,tooling configuration,and available factory utilities.

International buyers should also confirm power supply requirements,spare parts,tooling availability,installation support,and technical documentation before placing an order.

Maintenance and Safety

Routine maintenance should include inspection of drilling tools,spindles,fixtures,profile supports,drive components,and electrical connections.

Aluminum chips should be removed regularly from the work area to maintain clean and stable operation.

Operators should ensure that the ladder profile is correctly positioned and clamped before starting a drilling cycle.

Depending on the configuration,safety features may include guards,emergency-stop controls,interlocks,and electrical protection. Operators should follow the manufacturer's operating instructions and applicable workplace safety requirements.

Why Choose Us

CNC Step Ladder Drilling
Programmable CNC positioning supports repeatable drilling of aluminum ladder rails and components.

Designed for Aluminum Profiles
Suitable for selected aluminum extrusion profiles used in step ladder manufacturing.

Automatic Processing Capability
Reduces repetitive manual measurement,marking,and drilling operations.

Flexible Ladder Applications
Supports household step ladders,folding ladders,extension ladders,platform ladders,and other compatible products.

Repeatable Hole Positioning
CNC programs can help maintain consistent hole spacing and processing locations.

Stable Profile Clamping
Suitable fixtures and supports help maintain workpiece position during drilling.

Custom Tooling Options
Drills,fixtures,supports,and other components can be configured for specific ladder profiles.

OEM & ODM B2B Support
Machine configurations can be adapted to ladder drawings,profile dimensions,hole patterns,and production requirements.

FAQs

1. What is an aluminum step ladder drilling machine?

It is a specialized machine designed to drill accurately positioned holes in aluminum profiles used to manufacture step ladders and related ladder products.

2. Can it drill long ladder rails?

Yes,provided the ladder profile dimensions are within the machine's working range. Suitable supports may be required for long profiles.

3. Is the machine CNC controlled?

Yes. The CNC system can control programmed drilling positions according to the selected machine configuration.

4. Can different ladder sizes be processed?

Yes. Different drilling programs can be used for different ladder sizes when supported by the CNC controller and machine configuration.

5. What aluminum profiles can be drilled?

The compatible profile range depends on the machine design. Profile width,height,wall thickness,and cross-sectional shape should be provided before ordering.

6. Can it drill multiple holes automatically?

Yes. When configured for automatic drilling,the machine can process a series of programmed holes according to the selected CNC program.

7. Can hole spacing be customized?

Yes. Hole coordinates and spacing can be programmed according to the ladder design and machine control capabilities.

8. What affects drilling accuracy?

Machine rigidity,profile clamping,workpiece support,CNC positioning,tool condition,profile straightness,and drilling parameters can all affect accuracy.

9. Can different drill sizes be used?

Yes,when supported by the spindle and tooling configuration. Different drill sizes can be selected for different hole requirements.

10. Does it include automatic feeding?

Automatic feeding is configuration-dependent. Feeding and material handling systems can be added or integrated when required.

11. Can custom fixtures be supplied?

Yes. Custom fixtures can be developed for specific aluminum ladder profiles and production requirements.

12. What information is needed for a quotation?

Provide the aluminum profile drawing,profile dimensions,ladder type,profile length,hole diameter,hole spacing,number of holes,production volume,and desired automation level. Samples or CAD drawings are recommended.
