CNC Aluminium Ladder Making Machines Drilling Machine for Ladders Driller

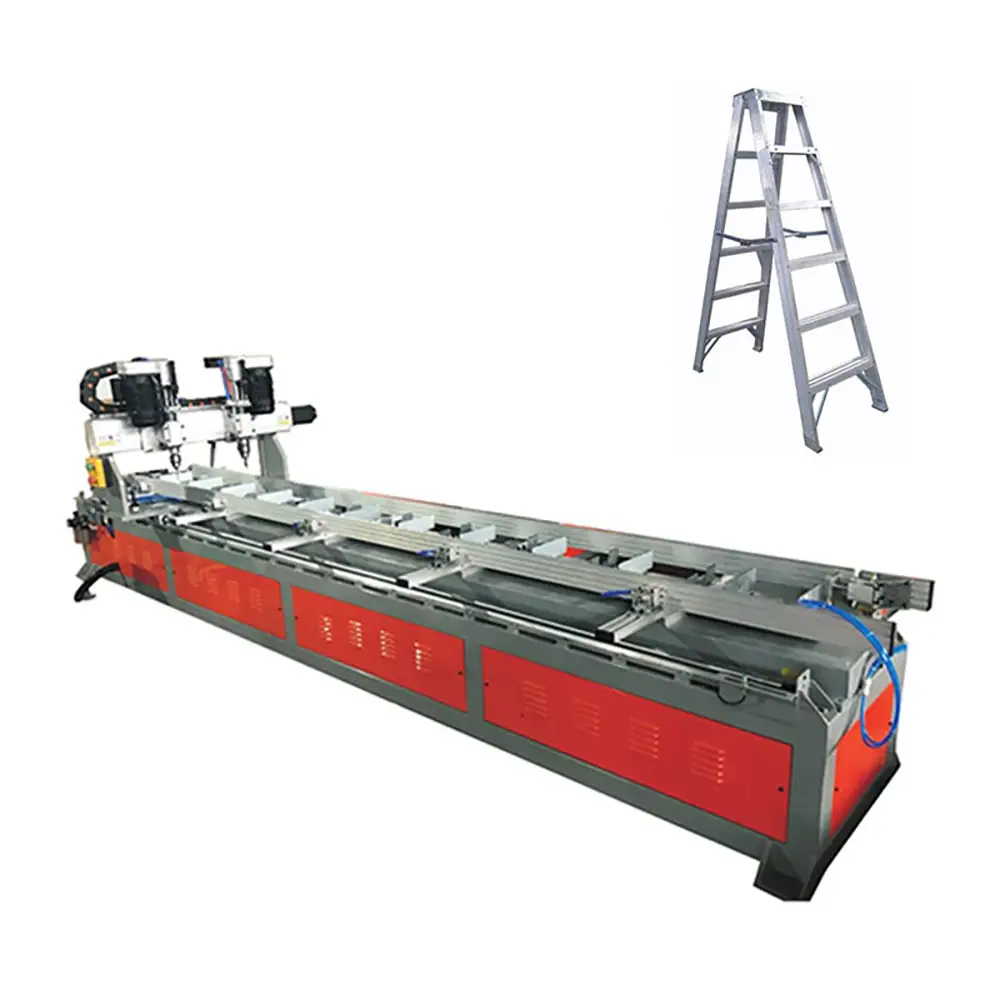

 CNC Aluminium Ladder Making Machine for Ladder Drilling

The CNC Aluminium Ladder Making Machine is a specialized aluminum profile processing solution designed for manufacturers producing household ladders,step ladders,folding ladders,extension ladders,and other aluminum ladder products. The machine focuses on accurate and repeatable drilling of aluminum ladder profiles,helping manufacturers improve production consistency while reducing repetitive manual measuring and drilling operations.

Aluminum ladders are commonly manufactured from extruded profiles that require multiple holes for steps,rungs,hinges,brackets,connecting components,and assembly hardware. The position and spacing of these holes are important because inaccurate drilling can make final assembly more difficult and affect the dimensional consistency of the finished ladder.

A CNC-controlled ladder drilling machine provides programmable positioning for repetitive hole-processing operations. Depending on the machine configuration,it may support automatic profile positioning,clamping,drilling,and other processing functions.

The exact drilling capacity,profile dimensions,number of drilling heads,automation level,and compatible tooling depend on the selected machine model.

CNC Aluminum Ladder Drilling Process

The main purpose of the machine is to provide controlled drilling for aluminum ladder components.

A typical workflow can include:

Loading the aluminum ladder profile.

Positioning the profile according to the programmed dimensions.

Clamping the workpiece securely.

Moving the drilling system to the programmed position.

Drilling the required holes.

Repositioning the profile for additional holes when required.

Removing the processed component for assembly or the next manufacturing stage.

The actual operating sequence depends on the machine design.

CNC control can reduce the need for operators to manually measure every hole position. This is particularly useful for manufacturers producing repeated ladder components with standardized hole patterns.

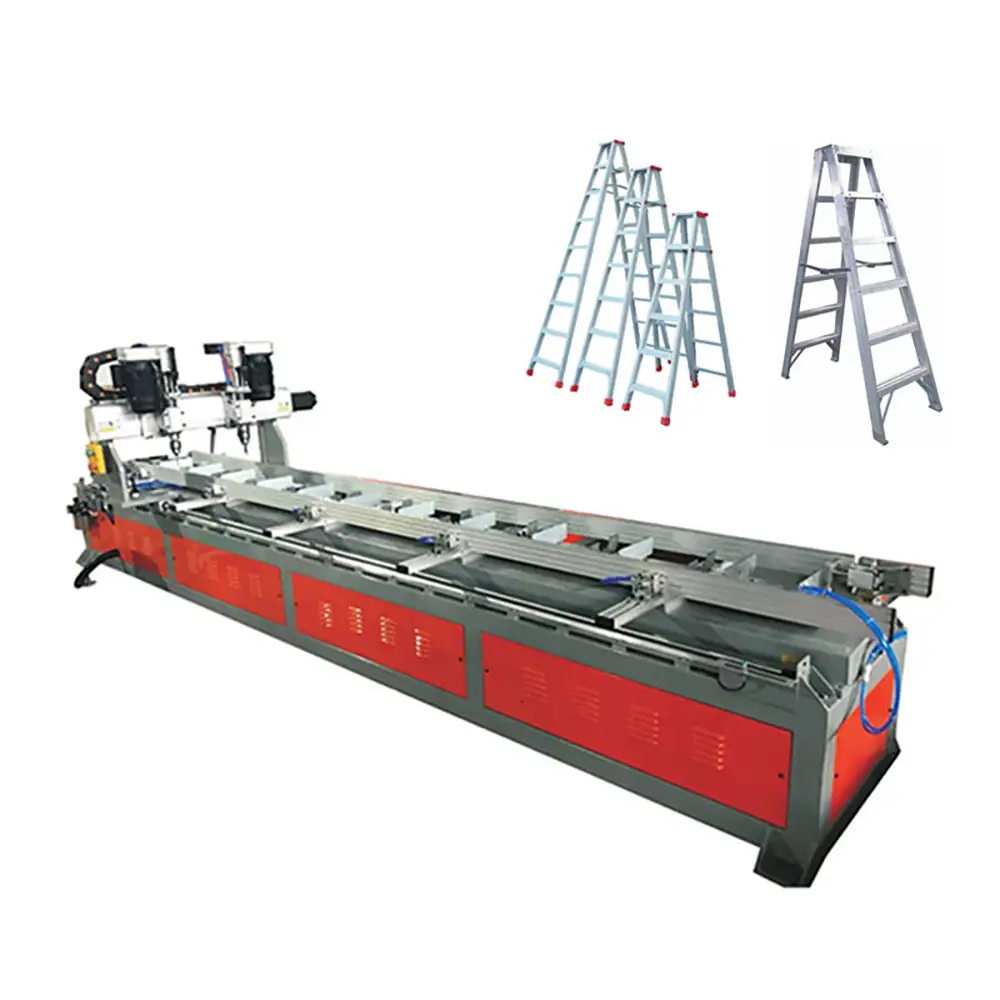

Aluminum Profile Drilling Machine

Aluminum extrusion profiles are widely used for ladder rails and structural components because they can provide a useful combination of low weight,corrosion resistance,and structural performance.

However,aluminum ladder profiles can have different cross-sectional shapes,dimensions,and wall thicknesses.

The drilling machine should therefore be selected according to the actual profile being processed.

Important profile information may include:

Profile width

Profile height

Wall thickness

Cross-sectional shape

Overall profile length

Hole diameter

Hole spacing

Hole quantity

Required drilling positions

Providing these specifications allows the machine configuration and tooling to be matched to the ladder production application.

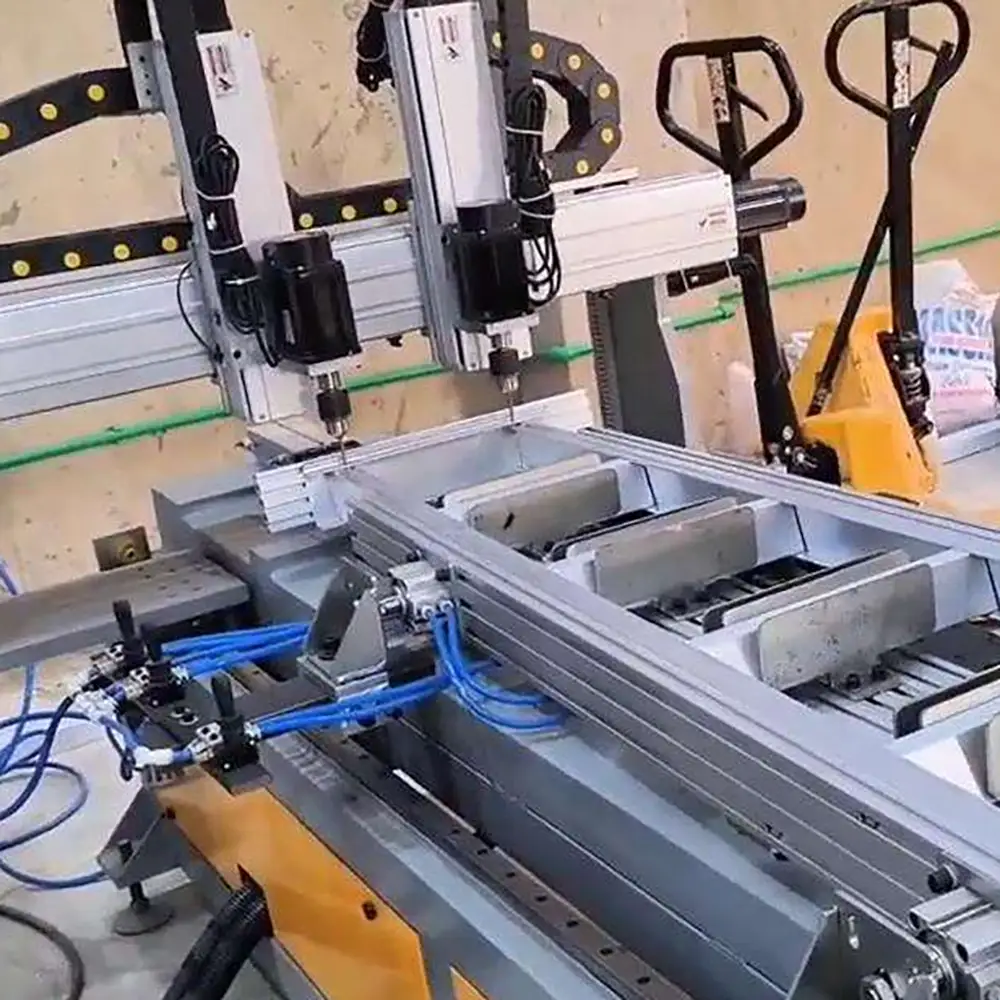

Automatic Ladder Drilling Machine

An automatic ladder drilling machine is designed to reduce repetitive manual operations during aluminum ladder manufacturing.

Instead of manually marking every hole,the operator can use a programmed CNC sequence to control drilling positions.

This can be especially valuable when producing large quantities of identical ladder rails or when several ladder models require different hole patterns.

Different CNC programs may be used for different ladder sizes. Depending on the control system,the operator can select the appropriate program according to the production order.

Actual automation functions vary by machine model. Automatic feeding,automatic positioning,and automatic unloading should be confirmed separately when required.

Precision Hole Positioning

Accurate hole positioning is important for ladder assembly.

For example,holes used for ladder steps or rungs need to align correctly with corresponding components. Holes used for hinges and brackets may also require consistent spacing.

CNC positioning can help improve repeatability by controlling the programmed distance between processing points.

However,final accuracy depends on several factors,including machine rigidity,profile clamping,drive-system performance,tool condition,programming,and workpiece characteristics.

For demanding applications,customers should specify the required tolerances before purchasing.

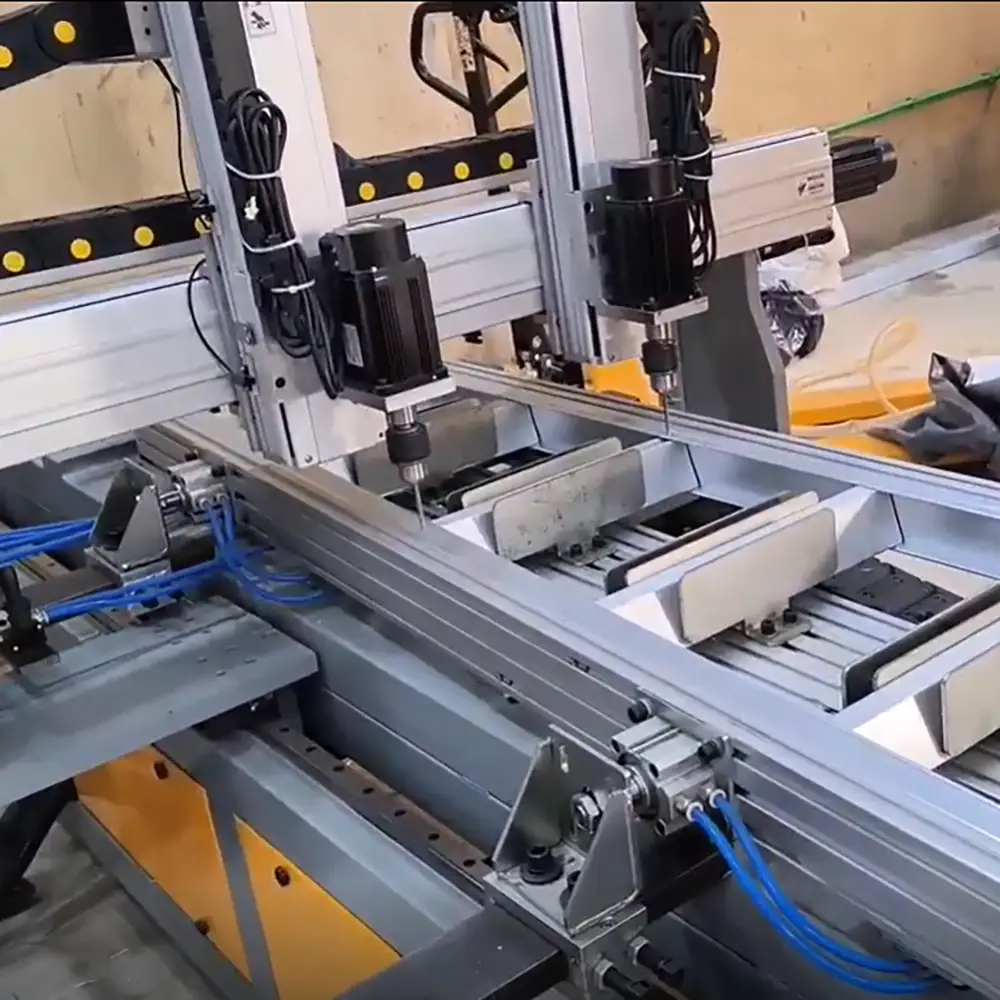

Drilling Aluminum Ladder Rails

Ladder rails are often relatively long aluminum profiles,which makes stable workholding particularly important.

The profile should be properly supported to minimize movement or vibration during drilling. Long workpieces may require additional support depending on the machine structure and profile dimensions.

The drill must also be selected according to the aluminum alloy and required hole diameter.

Aluminum can produce chips during drilling,and proper chip evacuation is important for maintaining drilling performance and tool life.

Cutting parameters should be selected according to the drill type,profile material,wall thickness,and machine configuration.

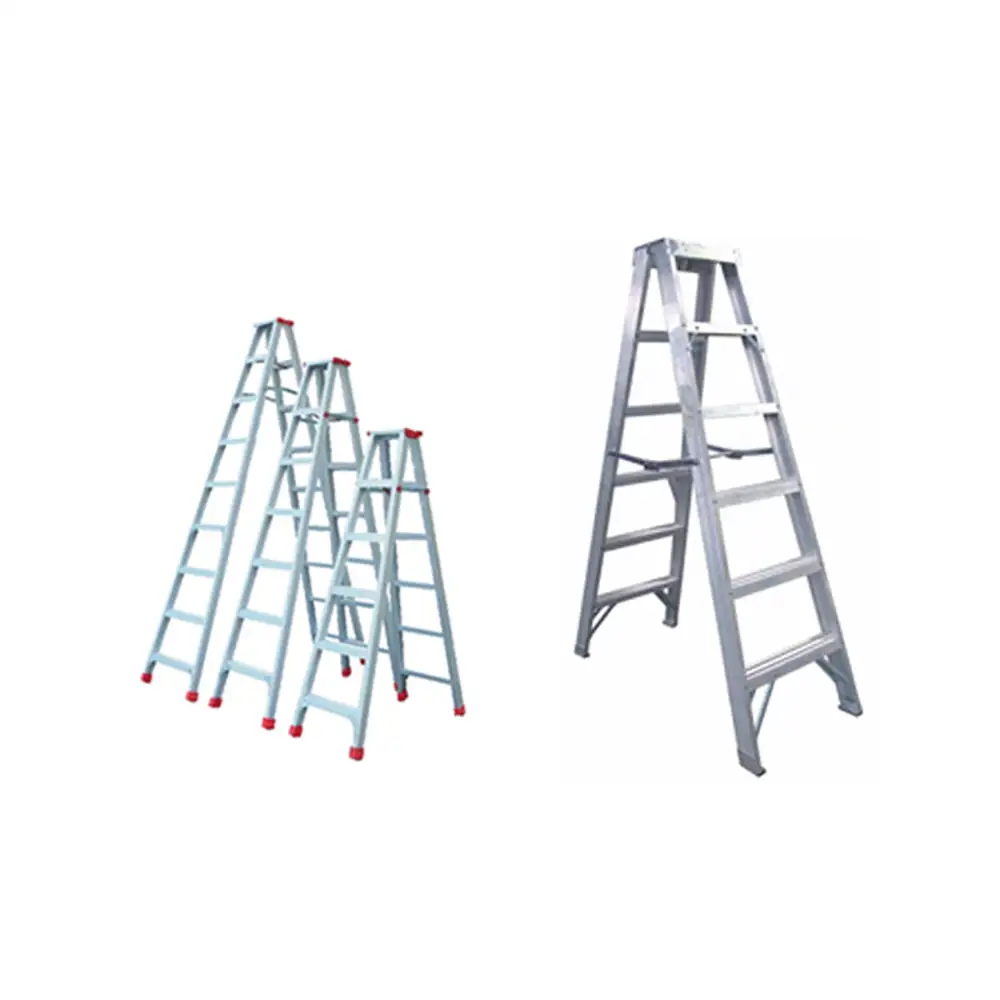

Household Ladder Manufacturing Applications

The CNC ladder drilling machine can support various household and utility ladder production applications.

Potential products include:

Aluminum household ladders

Folding step ladders

Extension ladders

Platform ladders

Multipurpose ladders

Telescopic ladder components

Lightweight utility ladders

Maintenance ladders

Warehouse ladders

Custom aluminum ladders

The machine can be used for processing ladder rails,steps,brackets,and other aluminum components that require repeatable drilling.

For manufacturers producing several product models,the CNC system can help organize different hole patterns through programmable processing parameters.

Ladder Production Efficiency

Automated drilling can improve production workflow by reducing repeated manual measuring,marking,and positioning.

For high-volume ladder production,the machine can be integrated into a broader manufacturing line together with aluminum profile cutting machines,assembly equipment,and material handling systems.

Actual production capacity depends on the number of holes per profile,profile length,drilling diameter,spindle speed,feeding method,tool changes,loading time,and operator workflow.

A CNC drilling machine should therefore be selected according to the expected production volume rather than relying only on the nominal machine cycle time.

Workpiece Clamping and Support

Secure clamping is essential when drilling aluminum profiles.

If the ladder profile moves during drilling,the hole position can deviate from the programmed location. Proper fixtures can help maintain the required position throughout the machining process.

Different ladder profiles may require different fixtures. Manufacturers producing several aluminum extrusion designs may benefit from interchangeable or customized workholding systems.

For long profiles,additional support structures can also help maintain stable positioning during processing.

CNC Programming for Different Ladder Models

One benefit of CNC control is the ability to store and use different drilling programs.

A manufacturer may produce several ladder sizes with different rung spacing or hole patterns. Instead of manually changing the measurement process for every profile,the operator can select the corresponding CNC program.

Programs can be developed around the required hole coordinates and processing sequence.

The compatible programming method,file formats,and software depend on the selected CNC controller.

Customers should confirm the required software workflow if the machine needs to integrate with existing CAD/CAM or production systems.

Tooling and Drill Selection

Drill tooling directly affects hole quality and production performance.

The drill diameter should match the required hole size,while drill geometry and cutting parameters should be suitable for aluminum.

Worn drills may produce poor hole quality,increased burrs,or higher cutting loads. Regular inspection and timely replacement of drilling tools can help maintain consistent production.

If different hole sizes are required,the machine can be configured around suitable tooling options depending on the spindle and tool-changing design.

OEM and Custom Ladder Drilling Solutions

Ladder manufacturers may have unique profile dimensions,hole patterns,and production requirements. A customized CNC ladder drilling machine can therefore be developed around specific applications.

Potential customization options may include:

Customized profile fixtures

Automatic feeding

Multiple drilling heads

CNC positioning systems

Adjustable work supports

Customized drilling programs

Special drill tooling

Material handling systems

Production-line integration

Customers can provide aluminum profile drawings,finished ladder drawings,samples,and hole-position diagrams for machine evaluation.

B2B Applications

The machine is suitable for ladder manufacturers,aluminum extrusion processors,OEM ladder suppliers,metal fabrication companies,and machinery distributors.

For B2B buyers,the machine should be evaluated according to compatible profile dimensions,drilling capacity,automation level,production volume,tooling requirements,and factory power conditions.

For overseas buyers,providing complete technical information before ordering can help ensure the machine is configured correctly for the intended ladder production process.

Maintenance and Safety

Routine maintenance should include inspection of drilling tools,spindles,fixtures,profile supports,drive components,and electrical connections.

Aluminum chips should be cleaned from the working area regularly. Drills should be checked for wear and replaced when necessary.

Operators should also verify that the workpiece is properly clamped before starting the drilling cycle.

Depending on the machine configuration,safety features may include protective guards,emergency-stop controls,interlocks,and electrical protection. Operators should follow the manufacturer's operating instructions and applicable workplace safety requirements.

Why Choose Us

CNC Ladder Drilling Technology
Programmable positioning supports repeatable drilling of aluminum ladder profiles.

Designed for Aluminum Profiles
Suitable for selected aluminum extrusions used in household and utility ladder manufacturing.

Automatic Drilling Capability
Helps reduce repetitive manual measuring,marking,and drilling operations.

Flexible Ladder Applications
Suitable for step ladders,folding ladders,extension ladders,platform ladders,and other compatible products.

Repeatable Hole Positioning
CNC control helps maintain programmed hole spacing and processing locations.

Custom Fixtures and Tooling
Workholding systems,drills,and other components can be configured for specific aluminum profiles.

Production-Oriented Design
Suitable for repetitive ladder component processing and integration into larger manufacturing workflows.

OEM & ODM B2B Support
Machine configurations can be customized according to profile dimensions,hole patterns,production volume,and automation requirements.

FAQs

1. What is a CNC aluminum ladder drilling machine?

It is a CNC-controlled machine designed to drill accurately positioned holes in aluminum ladder profiles and related components.

2. What type of ladders can it process?

It can be used for suitable household ladders,step ladders,folding ladders,extension ladders,platform ladders,and other aluminum ladder products.

3. Can it automatically drill ladder rail holes?

Yes. When configured with automatic positioning and drilling functions,the machine can drill programmed holes along suitable ladder profiles.

4. Can it process long aluminum profiles?

Yes,provided the profile dimensions are within the machine's rated working range. Long profiles may require suitable work supports.

5. Can different hole patterns be programmed?

Yes. CNC control can support different drilling programs for different ladder models when supported by the selected controller.

6. Can it drill different hole sizes?

Different drill sizes can be used when supported by the machine's spindle and tooling configuration.

7. What aluminum profiles can be processed?

The compatible range depends on machine specifications. Customers should provide profile width,height,wall thickness,and cross-sectional drawings before ordering.

8. Does the machine include automatic feeding?

Automatic feeding is configuration-dependent. Feeding and material-handling systems can be added when required for production.

9. How is drilling accuracy maintained?

Accurate positioning depends on CNC control,machine rigidity,profile clamping,workpiece support,tool condition,and correct programming.

10. Can custom fixtures be made?

Yes. Customized fixtures can be designed for specific aluminum ladder profiles and hole-processing requirements.

11. Is the machine suitable for mass production?

It can be used for repetitive production,and automation can be configured according to the required production volume and workflow.

12. What information is needed for a quotation?

Provide the aluminum profile drawing,profile dimensions,ladder type,profile length,hole diameter,hole spacing,number of holes,production volume,and desired automation level. Samples or CAD drawings are recommended.
