FU Chain Conveyor, Flat Top Conveyor Chain Conveyor

FU chain conveyor is a kind of used to level(Or tilt 15 or less) transportation of powder, small granular materials of new products, long service life, high reliability operation, energy efficient, sealing, safe and convenient maintenance, is an ideal new equipment. The production has been widely used in building materials, construction, chemical, thermal power, food processing, mining, machinery, metallurgy, transportation, port and shipping industries.

FU Chain Conveyor, Flat Top Conveyor Chain Conveyor

The FU Chain Conveyor is a heavy-duty mechanical conveying system designed for continuous transportation of powder, granular, and bulk materials in industrial production environments. Also known as a Flat Top Chain Conveyor or industrial chain conveyor, it uses a continuous chain and specially designed conveying surfaces to move materials horizontally or at a controlled incline.

FU chain conveyors are widely used in cement plants, mining operations, power plants, chemical processing facilities, grain handling systems, building material production, and other industries where reliable bulk material transportation is required. Their enclosed or semi-enclosed construction helps reduce material loss, dust emissions, and contamination while providing stable and continuous conveying performance.

As an industrial chain conveyor manufacturer and supplier, we can provide customized FU chain conveyor equipment according to material characteristics, conveying capacity, installation layout, conveyor length, operating environment, and production requirements.

What Is an FU Chain Conveyor?

An FU Chain Conveyor is a type of continuous conveyor that uses a chain-driven conveying mechanism to transport bulk materials through a horizontal or slightly inclined conveyor housing.

Unlike conventional belt conveyors, the FU chain conveyor does not rely on a flexible rubber belt. Instead, the conveying force is generated by a durable chain system connected to flat conveying plates, flights, or other material-contact components.

The chain travels along the conveyor housing while carrying material from the feeding point to the discharge point. Depending on the application, the conveyor can be configured as an enclosed system to improve dust control and environmental protection.

The flat-top design provides a stable conveying surface and makes this type of equipment suitable for many dry bulk materials.

Main Components

A typical FU Chain Conveyor consists of several major components:

Conveyor Housing
Heavy-Duty Conveyor Chain
Flat Top Plates or Flights
Drive Sprocket
Driven Sprocket
Drive Motor
Gear Reducer
Chain Tensioning Device
Inlet Chute
Discharge Outlet
Bearings and Shafts
Inspection and Maintenance Covers

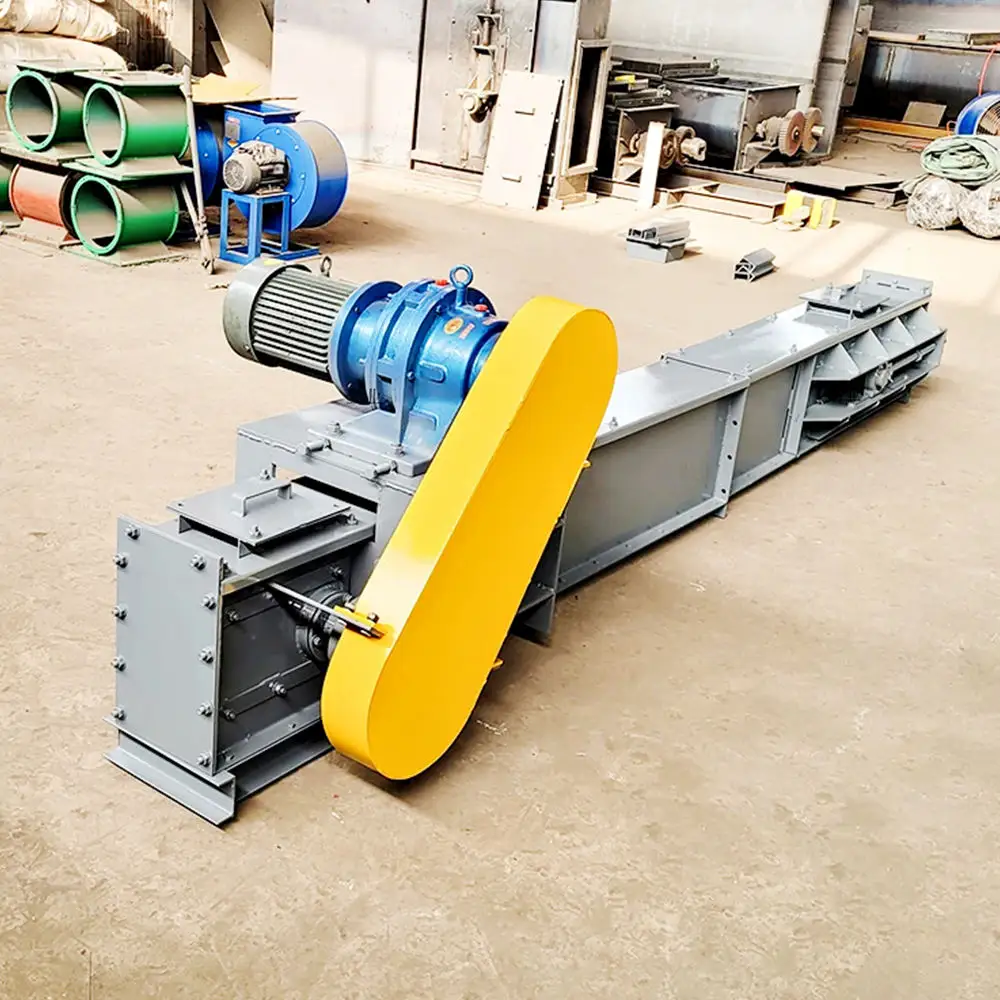

The conveyor housing protects the chain and transported material while helping maintain a controlled conveying path. The drive motor and gearbox provide the torque required to move the loaded chain continuously.

High-strength chain components are selected according to the material weight, conveying distance, operating speed, and working conditions.

How Does an FU Chain Conveyor Work?

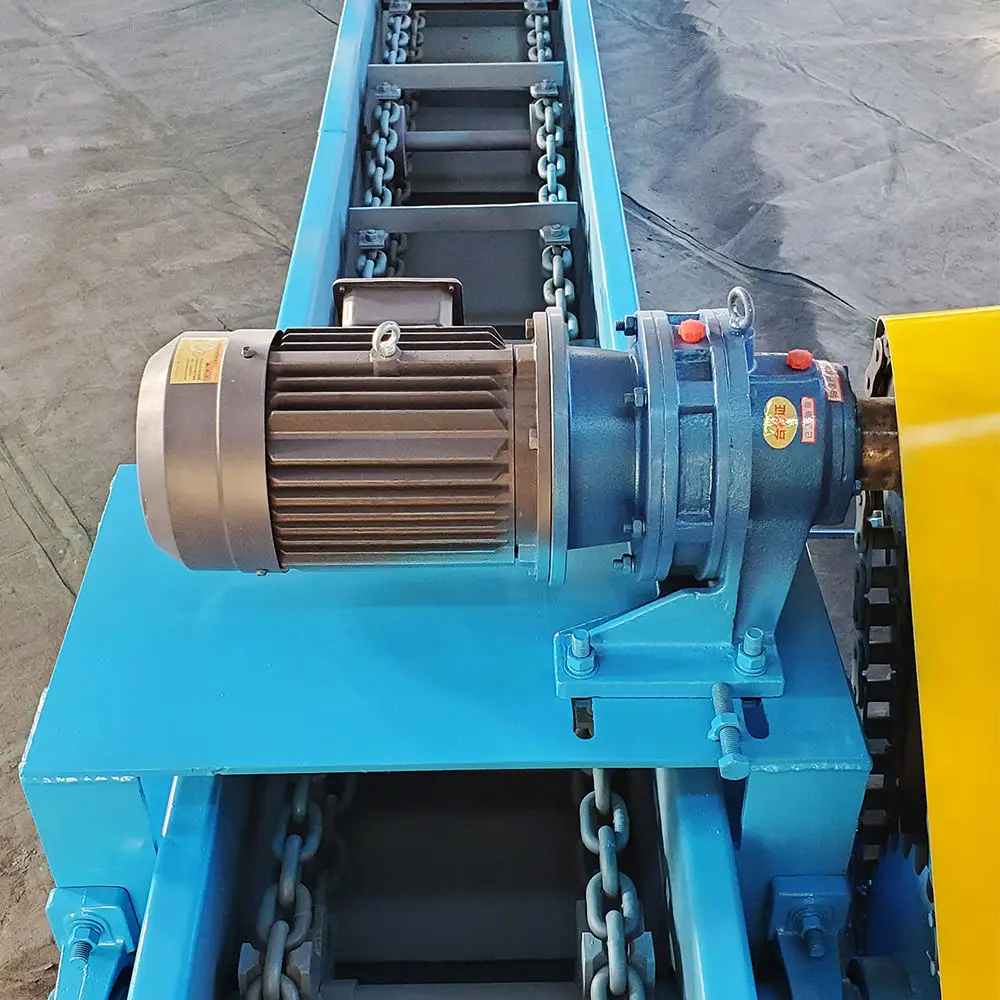

The working principle is straightforward. Bulk material enters the conveyor through the inlet. The drive motor transfers power through a gearbox to the drive sprocket.

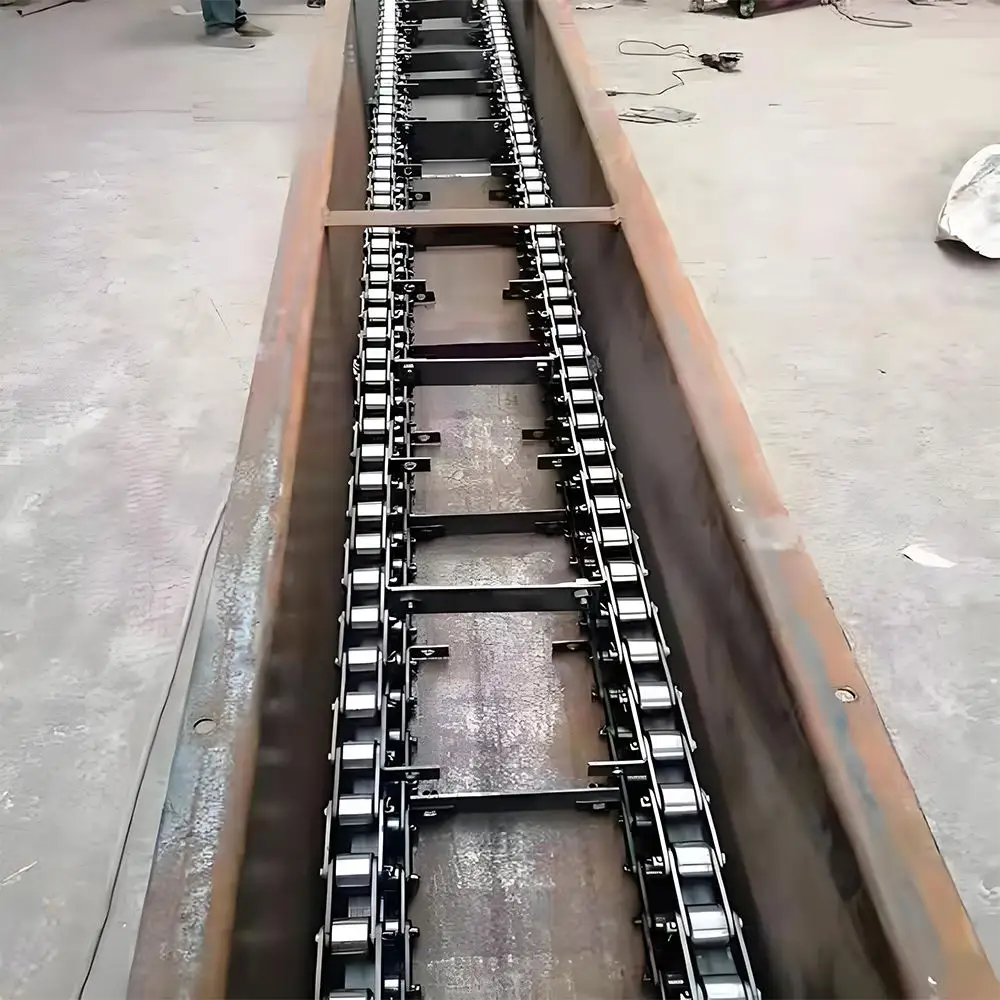

The drive sprocket engages with the conveyor chain and causes the chain to circulate continuously. Flat-top plates, flights, or conveying elements attached to the chain move the material forward along the conveyor housing.

When the material reaches the discharge section, it exits through the designated outlet by gravity or controlled discharge.

The continuous chain movement allows the conveyor to operate for extended periods and integrate easily with other equipment such as crushers, grinders, mixers, storage silos, bagging machines, feeders, and packing systems.

Applications of FU Chain Conveyor

FU Chain Conveyors are suitable for a broad range of bulk material handling applications.

Cement and Building Materials

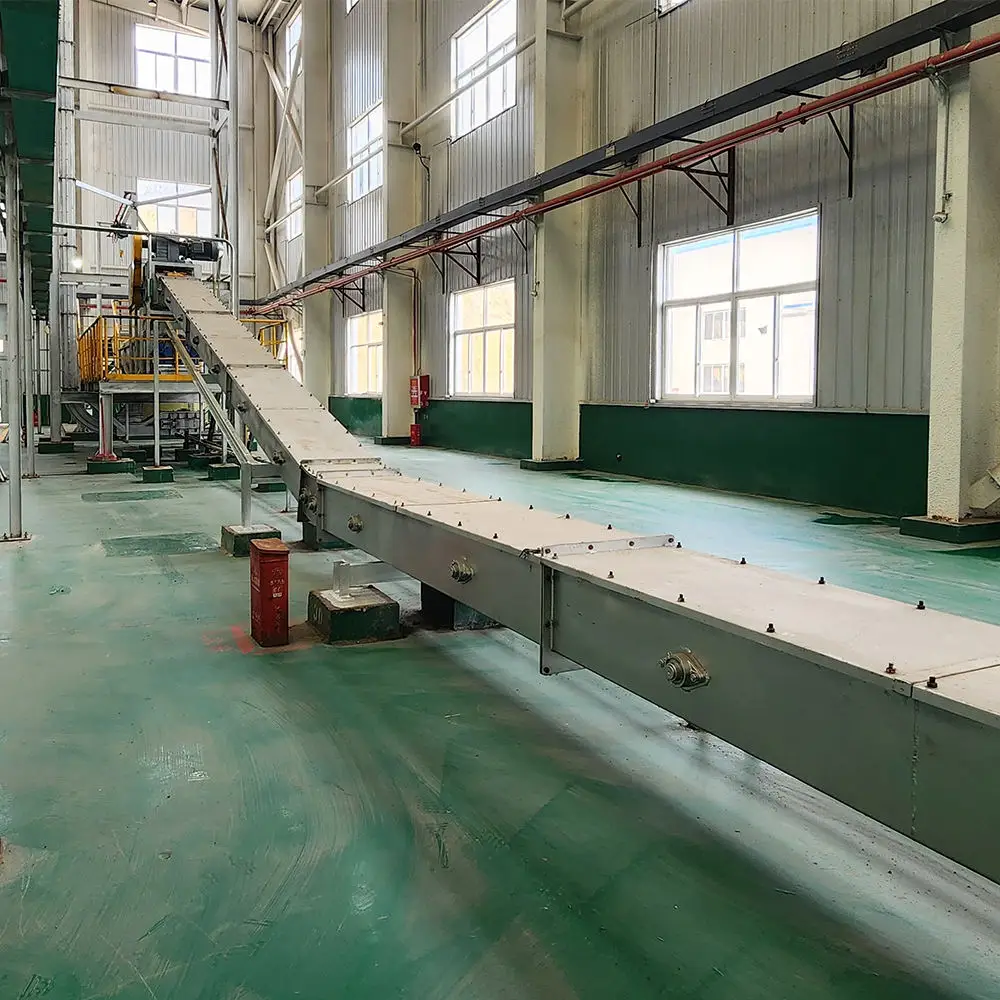

Cement plants commonly require continuous transportation of powder and granular materials between production stages. FU conveyors can be used for cement, clinker-related materials, limestone powder, gypsum, fly ash, and other dry bulk materials.

Mining and Quarrying

In mining and aggregate processing, chain conveyors can transport mineral materials, crushed stone, ore, coal, and other bulk products between processing equipment.

Coal and Power Plants

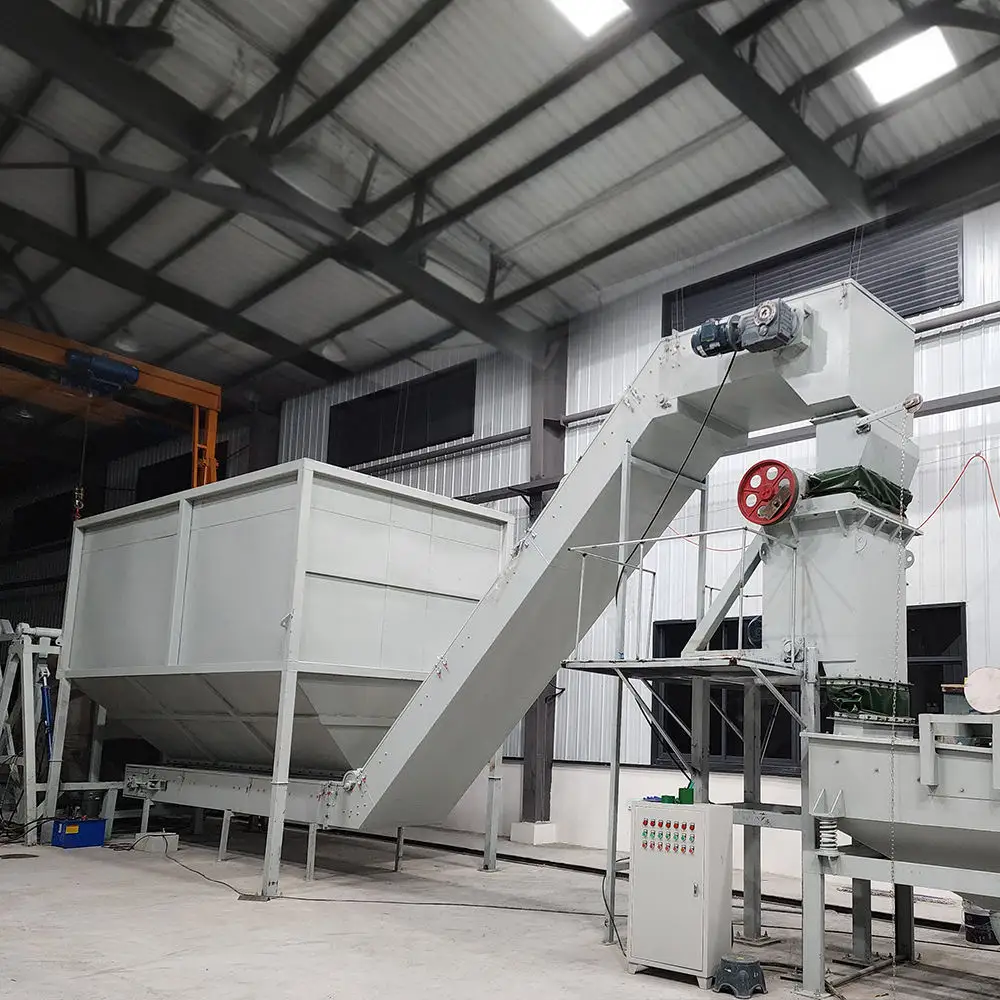

FU chain conveyor systems can be applied to coal handling, ash handling, fly ash transportation, and other bulk material conveying processes in power generation facilities.

Chemical Industry

The enclosed design can be beneficial when handling powders and granules that need controlled transportation. Conveyor construction and material selection can be customized for specific chemical environments.

Grain and Agricultural Materials

Depending on the chain and conveying configuration, the equipment can transport grain, seeds, feed, fertilizer, and other granular agricultural materials.

Industrial Production

FU chain conveyors can also be integrated into manufacturing lines for transporting raw materials, intermediate products, powders, pellets, and granular products.

Key Advantages
Heavy-Duty Construction

The chain-driven structure is designed for demanding industrial applications where continuous material transportation and mechanical durability are important.

Stable Continuous Conveying

The continuous chain provides consistent material movement, making the conveyor suitable for production lines that operate for long periods.

Enclosed Material Handling

An enclosed conveyor housing can help minimize dust dispersion and material leakage, which is especially useful for cement, fly ash, coal dust, powders, and other dusty materials.

Compact Installation

Compared with some long-distance conveying solutions, chain conveyors can provide a relatively compact arrangement and can be integrated into confined industrial layouts.

Wide Material Compatibility

FU chain conveyors can handle many types of dry bulk materials, including powders, granules, pellets, coal, ash, cementitious materials, minerals, and agricultural products.

Easy System Integration

The conveyor can be connected with feeders, hoppers, silos, crushers, mills, mixers, elevators, packing machines, and other processing equipment.

Customizable Configuration

Conveyor length, chain type, conveying capacity, drive arrangement, inlet and outlet locations, housing dimensions, and other specifications can be customized according to the production line.

How to Select the Right FU Chain Conveyor

Choosing the appropriate FU Chain Conveyor requires consideration of several operating parameters.

First, determine the material type. Material density, particle size, moisture content, abrasiveness, temperature, and flow characteristics all affect conveyor selection.

Next, determine the required conveying capacity. The required throughput is normally expressed in tons per hour or another suitable unit.

The conveying distance is another important factor. Longer conveyors may require different chain specifications, drive configurations, and tensioning arrangements.

Installation angle should also be considered. Although FU conveyors are commonly used for horizontal conveying, customized systems can be designed for certain inclined applications.

The operating environment is equally important. Outdoor installations, high-temperature areas, dusty environments, corrosive conditions, and continuous-duty applications may require different materials and protective configurations.

Maintenance and Operation

Regular maintenance helps extend the service life of an FU Chain Conveyor.

Operators should periodically inspect the conveyor chain, sprockets, bearings, gearbox, motor, and tensioning mechanism. Lubrication should be performed according to the manufacturer's recommendations.

The chain should maintain appropriate tension. Excessive tension can increase component wear and drive load, while insufficient tension may cause unstable operation or chain disengagement.

Conveyor housing and discharge areas should also be inspected for material buildup. Any abnormal noise, vibration, temperature increase, or chain movement should be investigated promptly.

Before performing maintenance, the conveyor should be stopped and isolated from the power supply according to appropriate industrial safety procedures.

OEM and Custom FU Chain Conveyor Solutions

Different production lines require different conveyor configurations. We offer OEM and custom FU Chain Conveyor solutions based on customer requirements.

Customization may include conveyor length, width, chain specifications, conveying capacity, drive motor, gearbox, inlet position, discharge configuration, housing structure, inspection ports, wear-resistant components, and surface treatment.

Our engineering team can work with customers to develop a suitable conveyor layout for new production lines or replacement projects.

Whether you need a single FU Chain Conveyor Machine or a complete bulk material conveying system, the equipment can be designed to match the surrounding machinery and plant layout.

Why Choose Us?

Choosing the right conveyor manufacturer is important for achieving reliable long-term material handling performance.

Industrial Manufacturing Experience: We provide conveyor equipment for demanding bulk material handling applications.
Custom Engineering: Conveyor dimensions and configurations can be adapted to specific production requirements.
Heavy-Duty Components: Appropriate chains, sprockets, drives, bearings, and structural components are selected for industrial operation.
Wide Application Range: Our equipment can be used in cement, mining, coal, power generation, chemical processing, agriculture, and general manufacturing.
OEM Service: Custom specifications, branding, and equipment configurations are available for distributors and industrial buyers.
Complete Material Handling Solutions: FU conveyors can be integrated with feeders, crushers, mills, silos, mixers, elevators, and packing systems.
Export-Oriented Service: We support international B2B customers with technical communication, equipment configuration, and project requirements.
FAQs
1. What is an FU Chain Conveyor?

An FU Chain Conveyor is a chain-driven bulk material conveyor designed for continuous transportation of powders, granules, and other industrial materials.

2. What materials can an FU Chain Conveyor handle?

It can be designed for cement, coal, fly ash, minerals, limestone, gypsum, fertilizer, grain, pellets, powders, granules, and many other bulk materials.

3. What is a Flat Top Chain Conveyor?

A Flat Top Chain Conveyor uses a continuous chain with flat conveying surfaces or plates to transport materials along a fixed conveying path.

4. Can the FU Chain Conveyor handle dusty materials?

Yes. An enclosed configuration can help control dust and reduce material leakage, making it suitable for many dusty bulk materials.

5. Is an FU Chain Conveyor suitable for cement plants?

Yes. FU chain conveyor systems are commonly suited to bulk material transportation applications in cement and building material production.

6. Can the conveyor length be customized?

Yes. Conveyor length, width, chain configuration, drive arrangement, inlet, and discharge positions can be customized according to the application.

7. Can an FU Chain Conveyor transport coal?

Yes. With appropriate chain, housing, drive, and wear-resistant components, the conveyor can be configured for coal handling applications.

8. What determines the conveyor capacity?

Capacity depends on material density, material characteristics, conveyor dimensions, chain speed, loading conditions, conveying distance, and system configuration.

9. Can the FU Chain Conveyor be integrated into an existing production line?

Yes. The conveyor can be configured with suitable inlet and outlet positions to connect with feeders, silos, crushers, mills, mixers, elevators, and other equipment.

10. Do you provide OEM and customized chain conveyors?

Yes. We provide OEM and custom conveyor solutions based on material characteristics, capacity, layout, operating conditions, and customer specifications.
