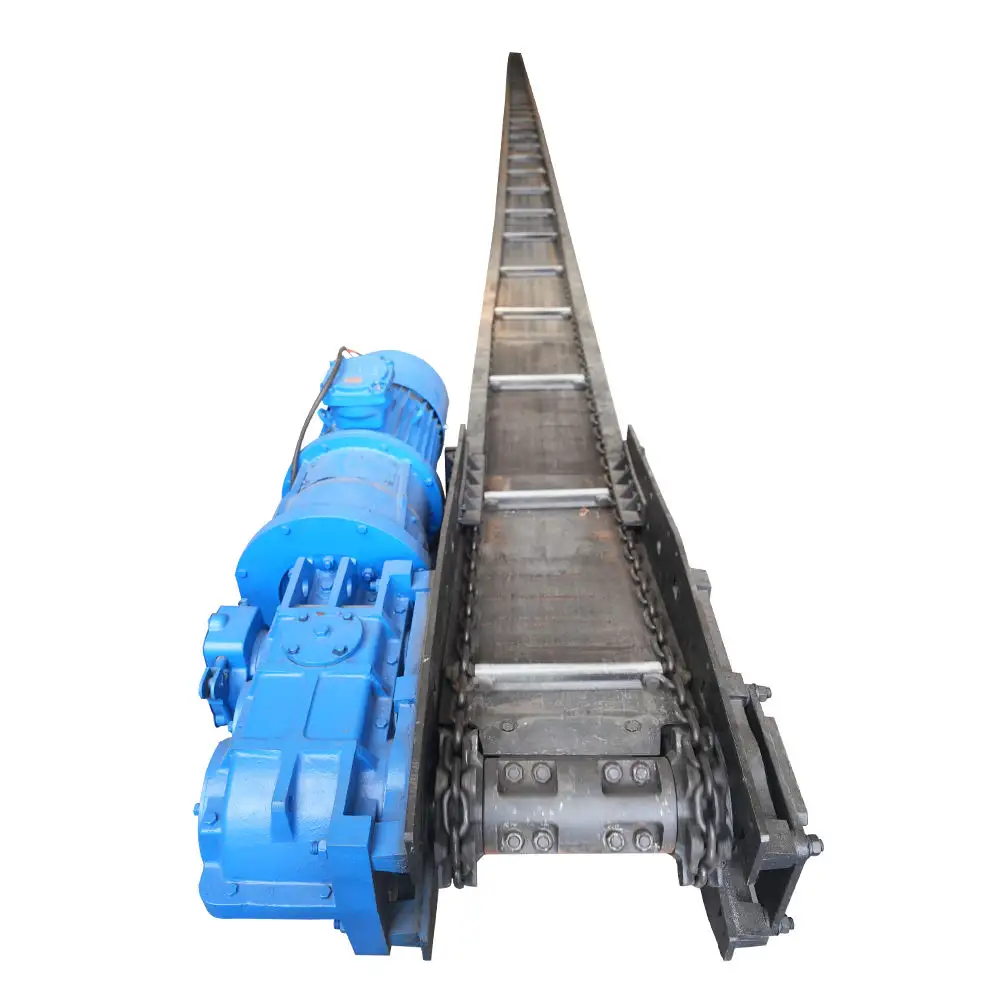

BHL Ring Chain Scraper Conveyor, MS Drag Chain Scraper Conveyor

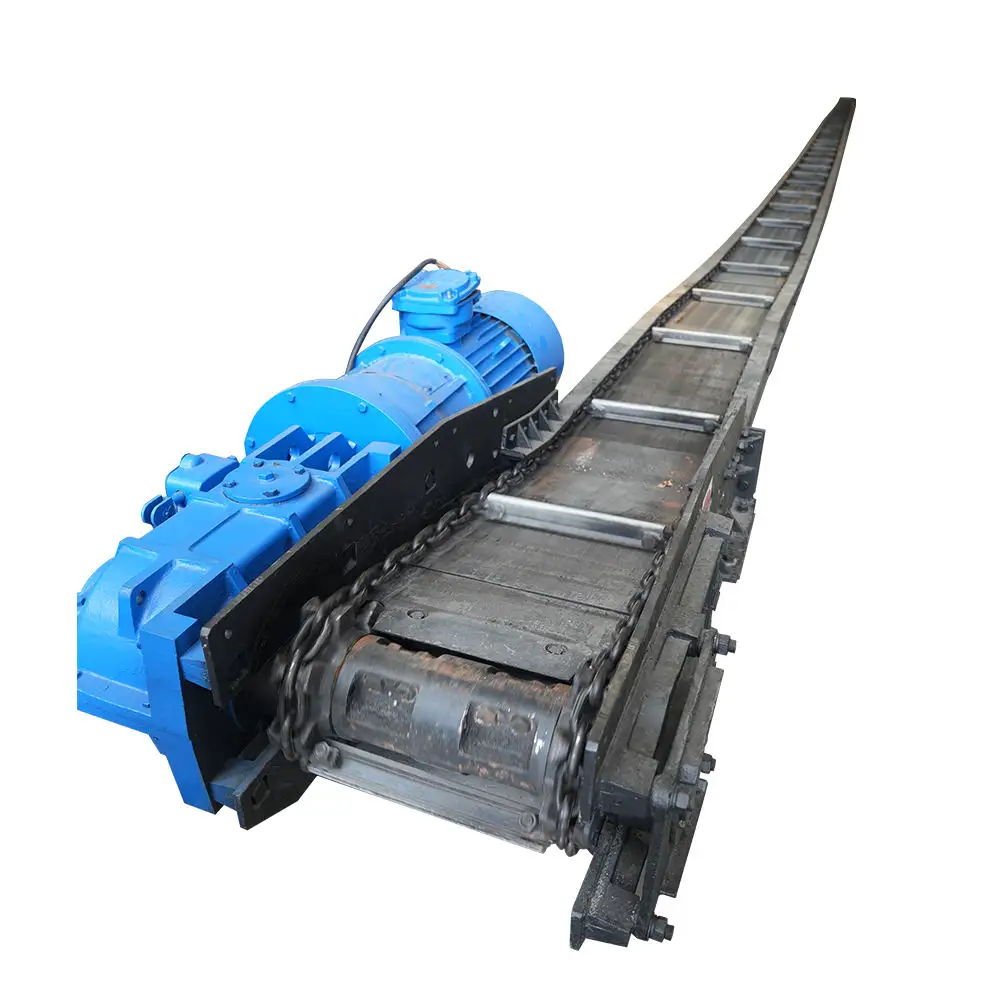

The BHL Ring Chain Scraper Conveyor is a heavy-duty mechanical conveying machine designed for continuous transportation of coal, cement, clinker, ash, minerals, powder, granules, and other bulk materials. The equipment uses a durable ring chain and scraper assembly to move materials through a controlled conveying channel.

Also known as an MS Drag Chain Scraper Conveyor, ring chain conveyor, or industrial drag scraper conveyor, this type of equipment is widely used in cement plants, coal handling systems, power plants, mining operations, metallurgy, chemical processing, and other industries requiring reliable bulk material transportation.

The BHL design combines a robust chain drive with scraper flights and a durable conveyor housing. The MS construction provides a practical structural solution for industrial conveying applications, while optional wear-resistant components can be used where abrasive materials or demanding operating conditions require additional protection.

As a professional Ring Chain Scraper Conveyor manufacturer and supplier, we provide standard and customized conveyor systems according to material characteristics, capacity, conveying distance, installation layout, and customer requirements.

What Is a Ring Chain Scraper Conveyor?

A Ring Chain Scraper Conveyor is a continuous chain conveying system that uses a ring-type chain connected to scraper flights. As the chain circulates through the conveyor trough, the scraper flights push or carry bulk material toward the discharge end.

Unlike belt conveyors, the conveying force comes from the mechanical chain and sprocket system. This construction provides a strong conveying mechanism for applications involving dense, granular, dusty, or abrasive materials.

The conveyor housing can be designed as an enclosed or partially enclosed structure. This helps provide a controlled conveying path while reducing dust dispersion and material spillage.

The equipment is particularly suitable for material handling systems where robust mechanical construction and continuous operation are required.

Main Components

A typical BHL Ring Chain Scraper Conveyor consists of:

Ring Chain
Scraper Flights
Conveyor Trough
Drive Sprocket
Tail Sprocket
Drive Motor
Gear Reducer
Chain Tensioning Device
Drive Shaft
Tail Shaft
Bearings
Material Inlet
Discharge Outlet
Inspection Covers
Wear-Resistant Liner

The ring chain provides the main traction force. Scraper flights are attached to the chain at appropriate intervals and move through the conveyor housing to transport the material.

The drive motor and reducer supply the required torque, while the sprocket system guides the chain along the conveying route.

For abrasive materials such as clinker, coal, slag, and minerals, wear-resistant liners can be added to the conveyor trough to reduce structural wear.

How Does the BHL Ring Chain Scraper Conveyor Work?

The working principle is based on continuous mechanical dragging.

Material enters through the feeding inlet and accumulates within the conveying section. The electric motor drives the gearbox, which transfers power to the main drive sprocket.

The sprocket engages with the ring chain and causes it to circulate continuously. Scraper flights connected to the chain move through the material layer and push the material forward along the conveyor trough.

When the material reaches the discharge area, it is released through the outlet and transferred to the next stage of the production or material handling system.

This operating principle allows the conveyor to provide steady bulk material transportation and makes it suitable for integration with feeders, hoppers, crushers, mills, silos, elevators, and packing systems.

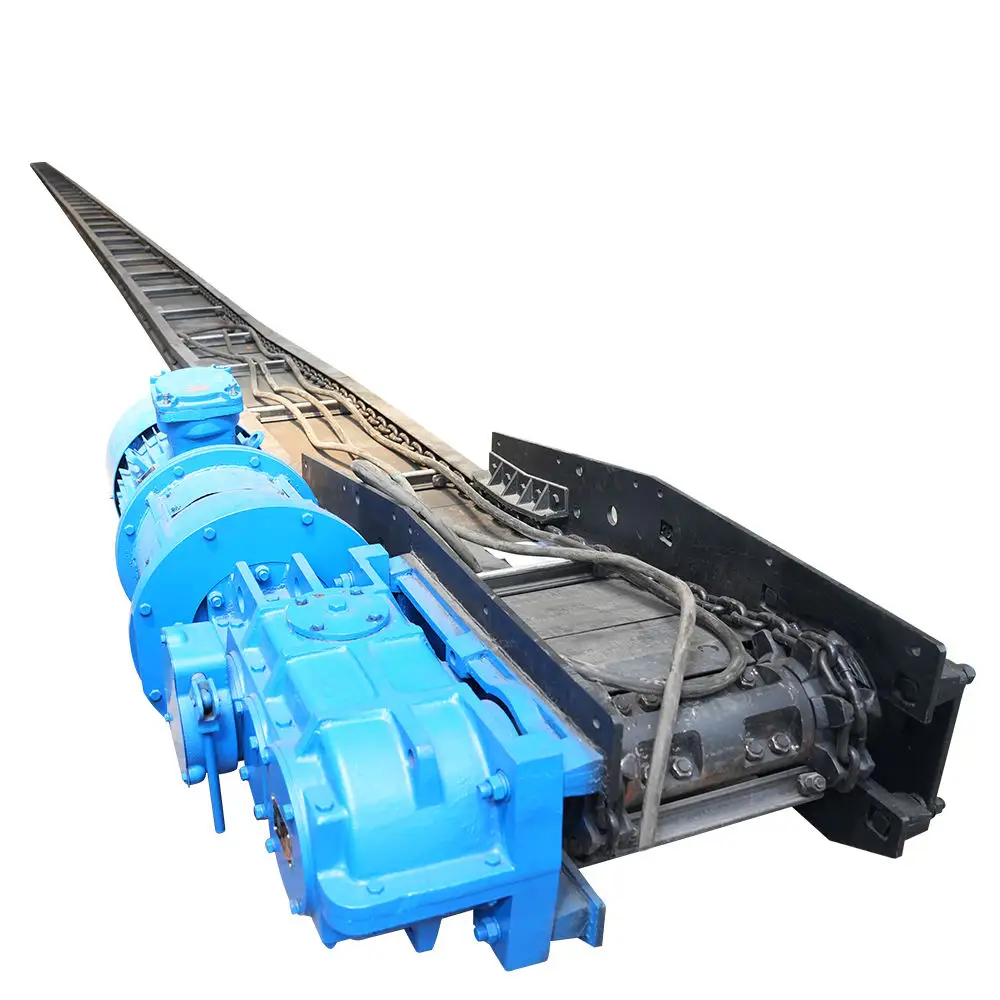

MS Drag Chain Scraper Conveyor Construction

The MS Drag Chain Scraper Conveyor can use mild steel or other suitable structural materials for the conveyor body, support structure, and related components.

MS construction offers a practical solution for many standard industrial environments. Depending on the application, the conveyor can also be configured with specialized steel grades, wear-resistant liners, reinforced chains, and other upgraded components.

The appropriate material should be selected according to the conveyed product, temperature, abrasion level, moisture, corrosion conditions, and expected operating hours.

For standard coal and cement material handling, a robust MS conveyor structure combined with appropriately selected chain and wear components can provide dependable service.

Applications
Cement Plants

BHL Ring Chain Scraper Conveyors can transport cement raw materials, clinker, limestone, gypsum, coal, fly ash, and other bulk materials used throughout cement production.

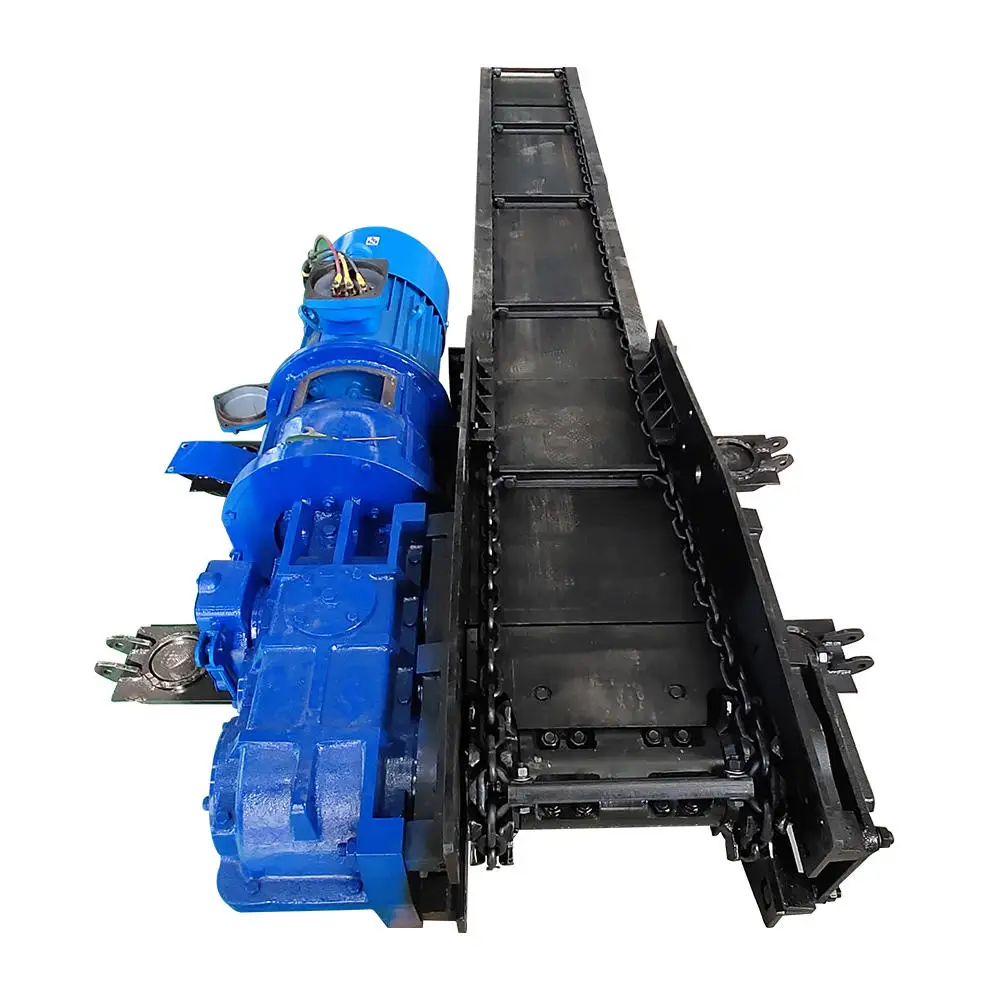

Coal Handling

The conveyor can be used for coal feeding, transfer, storage, and transportation in coal processing facilities and power plant material handling systems.

Power Plants

Ring chain scraper conveyors can be integrated into systems for coal ash, bottom ash, slag, and other solid material handling applications.

Mining and Mineral Processing

The heavy-duty chain system can be configured for ore, minerals, crushed materials, coal, and other bulk products.

Metallurgy

The equipment can be used to transport industrial residues, mineral products, slag, and other solid bulk materials generated during metallurgical processes.

Chemical and General Industry

Depending on material characteristics and equipment configuration, the conveyor can transport powders, granules, pellets, and other industrial materials.

Key Advantages
Strong Chain Conveying

The ring chain provides a positive mechanical drive and is suitable for continuous heavy-duty material transportation.

Heavy-Duty Structure

The conveyor body, drive system, chain, and scraper assembly can be designed for demanding industrial operating conditions.

Suitable for Bulk Materials

The equipment can handle many powders, granules, coal products, cement materials, clinker, ash, and minerals.

Enclosed Conveying Option

An enclosed structure helps reduce dust emissions and material spillage, making the system suitable for dusty industrial environments.

Continuous Operation

The chain and scraper system provides continuous transportation and can be integrated into automated production lines.

Wear-Resistant Options

For abrasive materials, wear-resistant liners and reinforced scraper components can be selected to improve service life.

Flexible Installation

Conveyor length, width, inlet, outlet, drive arrangement, chain configuration, and structural dimensions can be customized.

Easy System Integration

The conveyor can connect with feeders, hoppers, crushers, screens, mills, silos, elevators, belt conveyors, screw conveyors, and other equipment.

How to Select the Right Scraper Conveyor

Several parameters should be considered when selecting a BHL Ring Chain Scraper Conveyor.

The first factor is the material being conveyed. Important properties include bulk density, particle size, moisture, temperature, abrasiveness, and flowability.

The second factor is required conveying capacity. The conveyor should be sized according to the required throughput and production conditions.

The conveying distance determines the appropriate chain, drive system, motor power, and structural configuration.

Installation conditions are also important. The available space, conveyor elevation, inlet position, outlet location, and connection with other equipment should be considered during system design.

For coal, clinker, slag, and mineral applications, abrasion and material temperature should receive particular attention.

Maintenance and Operation

Routine inspection helps maintain stable performance and extend equipment service life.

The ring chain, scraper flights, sprockets, bearings, gearbox, motor, tensioning system, and conveyor trough should be inspected regularly.

Proper chain tension is essential. Excessive tension can increase stress on the chain, sprockets, bearings, and drive system. Insufficient tension can result in unstable chain movement.

Wear-resistant liners and scraper components should be checked regularly when handling abrasive materials.

Lubrication should follow the manufacturer's recommended schedule. Any abnormal vibration, noise, overheating, or chain movement should be investigated promptly.

The conveyor must be stopped and isolated from its power source before maintenance, inspection, cleaning, or component replacement.

OEM and Custom BHL Ring Chain Scraper Conveyor

Different industrial projects require different conveyor specifications. We provide OEM and customized BHL Ring Chain Scraper Conveyor solutions based on customer requirements.

Customization can include conveyor length, width, chain type, scraper design, drive motor, gearbox, material inlet, discharge outlet, housing structure, wear-resistant lining, inspection openings, sealing system, and support arrangement.

For cement plants, the conveyor can be configured for clinker, limestone, cement raw materials, coal, gypsum, and ash.

For coal and mining applications, heavy-duty chain and wear-resistant components can be selected according to material density, particle size, abrasiveness, and required throughput.

Why Choose Us?
Industrial Conveyor Manufacturing: We provide heavy-duty chain and scraper conveying equipment for bulk material handling.
Ring Chain Technology: The ring chain and scraper configuration provides reliable mechanical conveying for demanding applications.
Coal and Cement Solutions: Equipment can be configured for coal, cement raw materials, clinker, ash, limestone, and minerals.
Custom Engineering: Conveyor dimensions, drives, chains, scrapers, and discharge configurations can be customized.
Wear-Resistant Options: Suitable wear-resistant components can be selected for abrasive materials.
Complete Conveying Integration: Equipment can connect with feeders, crushers, hoppers, mills, silos, elevators, and other machines.
OEM Service: Customized specifications are available for distributors, engineering companies, contractors, and industrial end users.
International B2B Support: We provide technical communication and equipment configuration support for overseas projects.
FAQs
1. What is a BHL Ring Chain Scraper Conveyor?

It is a heavy-duty chain conveyor that uses a ring chain and scraper flights to continuously transport bulk materials through a conveyor trough.

2. What is an MS Drag Chain Scraper Conveyor?

It is a drag chain conveyor using mild steel construction for the conveyor body and related structural components, designed for industrial bulk material transportation.

3. What materials can it handle?

The conveyor can be configured for coal, cement raw materials, clinker, limestone, gypsum, ash, minerals, powders, granules, and other bulk solids.

4. Is it suitable for cement plants?

Yes. It can be integrated into cement production and material handling systems for clinker, limestone, coal, cement raw materials, gypsum, and ash.

5. Can it be used for coal handling?

Yes. The conveyor can be configured for coal feeding, transportation, transfer, and storage applications.

6. Can it handle abrasive materials?

Yes. Wear-resistant liners, scraper components, and reinforced chain systems can be selected for abrasive materials.

7. Can the conveyor be enclosed?

Yes. An enclosed housing can be used to help reduce dust and material spillage during transportation.

8. How is the conveyor capacity determined?

Capacity depends on material density, particle size, conveyor dimensions, chain speed, loading conditions, conveying distance, and system configuration.

9. Can the conveyor dimensions be customized?

Yes. Conveyor length, width, chain specifications, scraper design, drive system, inlet, and discharge arrangement can be customized.

10. Do you provide OEM Ring Chain Scraper Conveyors?

Yes. We provide OEM and custom conveyor solutions according to material properties, conveying capacity, layout, operating conditions, and customer specifications.
