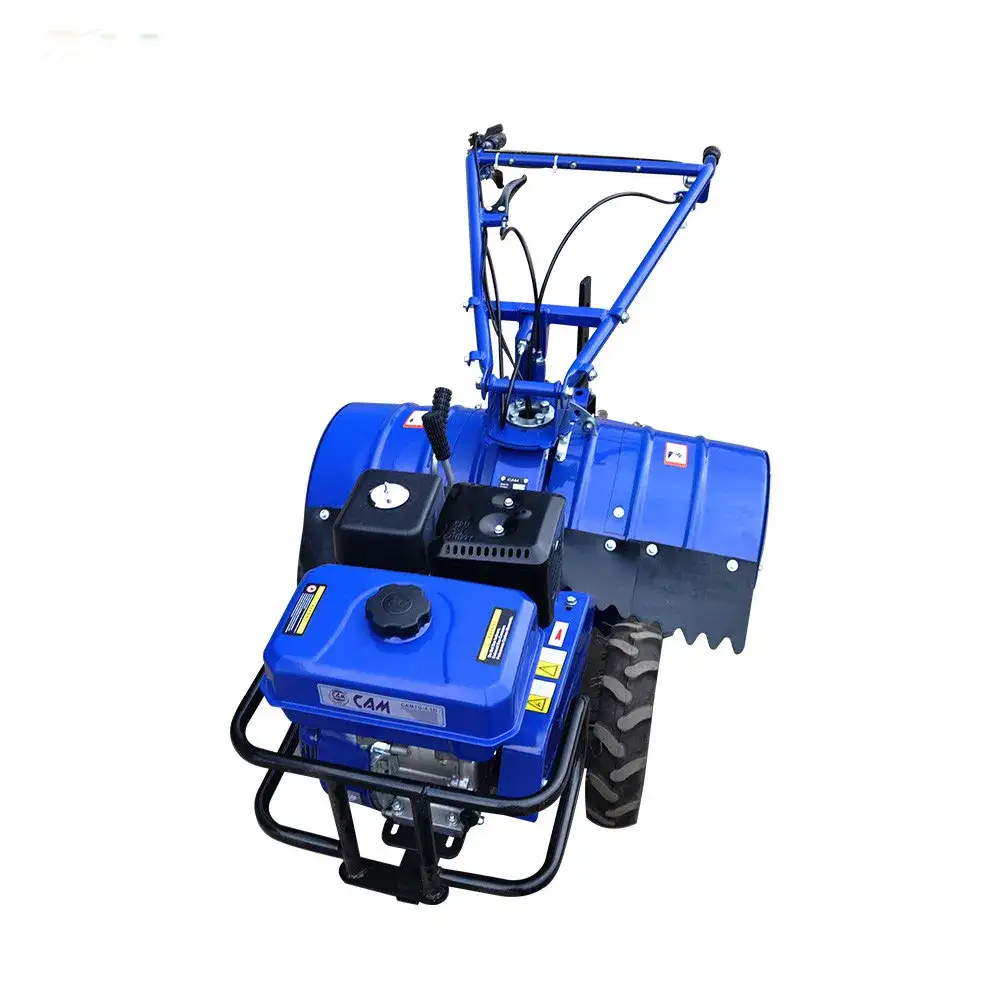

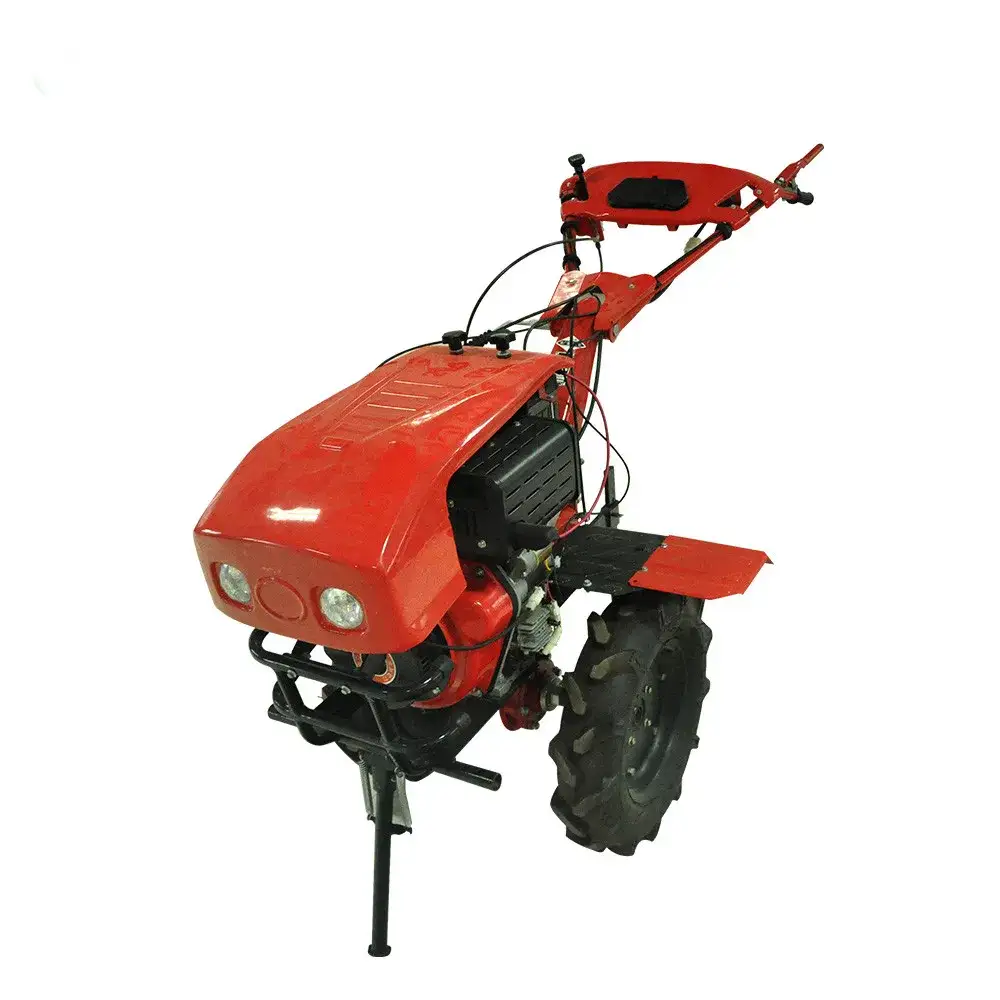

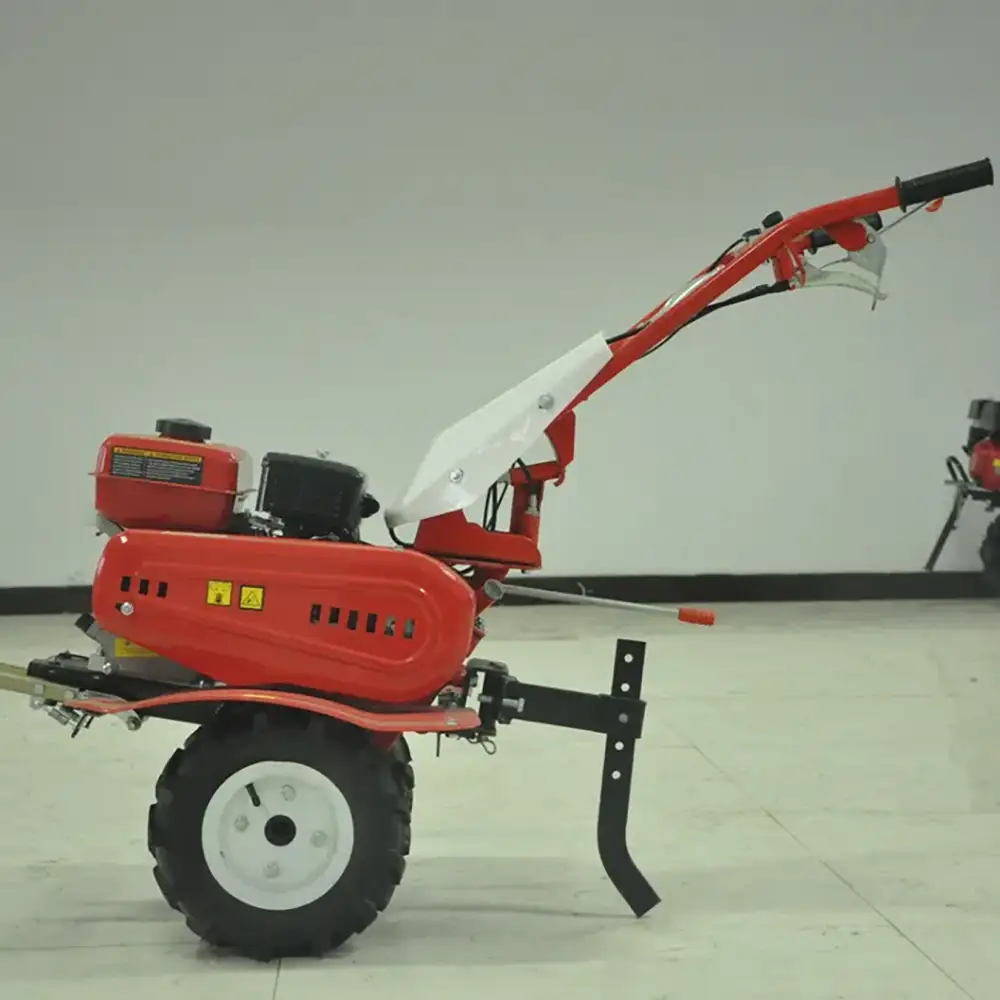

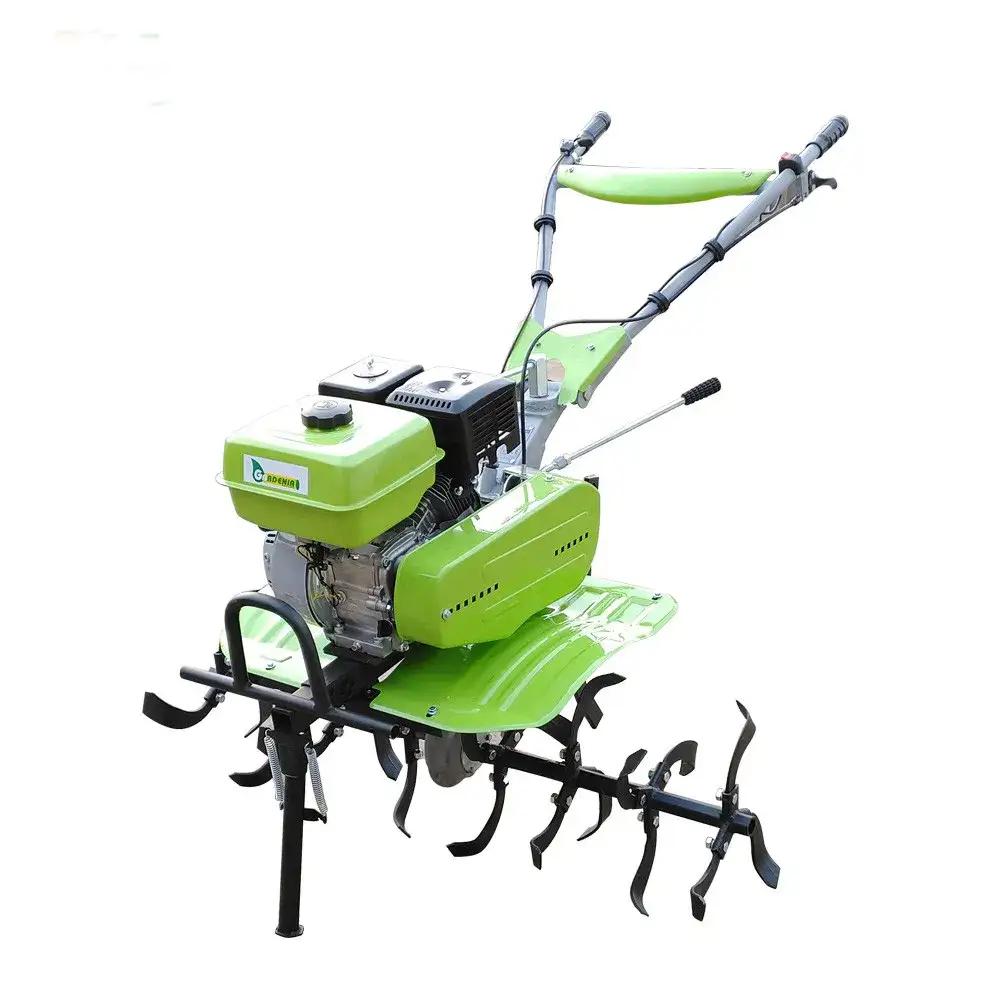

Farming Machinery Mini Rotary Cultivator Tiller with Gasoline Engine Technical Parameters

Farming Machinery Mini Rotary Cultivator Tiller with Gasoline Engine, A tiller will make fast work of turning your areas. A power tiller is a useful tool to own if you have large areas to till, such as plots for new flower beds.

A tiller will make fast work of turning your areas.


A power tiller is a useful tool to own if you have large areas to till, such as plots for new flower beds, or if you want to create and maintain a vegetable garden. Whether you're loosening the soil to reseed a yard or routinely turning over a garden, a tiller will make fast work of what would otherwise be time-consuming labor. But power tillers come in a variety of sizes and types, and it's important to understand their differences so you can make the right purchase.
How a Tiller Works
A power tiller is basically a set of blades (called tines) that are mounted within a wheeled housing and are powered by either a gasoline engine or an electric motor. Each tine consists of four blades curving in alternately opposing directions. Blades one and three are curved pointing in toward the tiller; blades two and four are curved pointing away from the tiller. The inward-pointing tines keep the clods of soil and grass from accumulating on the blades, while the outward-pointing tines are the heavy cutters. They all work in conjunction with one another to dig into the soil aggressively, all the while moving soil away from the tines to avoid clogging them.
GASOLINE MODEL
Item 170 177 190
Engine 7hp 9hp 12hp
Transmission type Gear drive/belt drive
Start model Manual/electric starter
Working width 500mm ≥960mm 1050-1350mm
Working depth ≥100mm 200mm 200mm
Size of wheel 400-8
Adjustment of handle bar 360 degree horizon and 45 degree vertical
Fuel consumption ≤10kh/ha
Working efficiency o.1-0.2acre/h o.1-0.2acre/h 0.3-0.4acre/h
Working speed >0.3m/s
Fuel tank 3L 5L 6L
Weight(KG) 120 132 150
Package size 79*45.5*86cm 98*57*81cm 98*57*81cm
