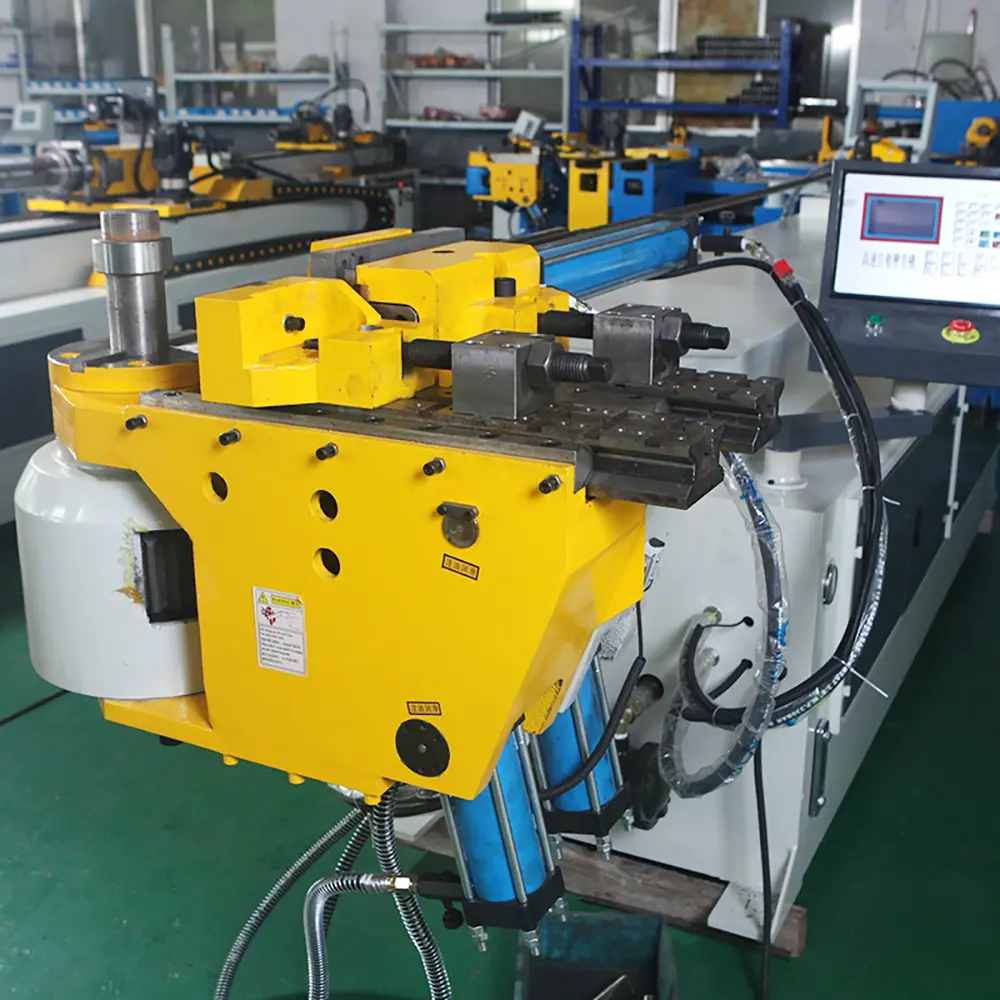

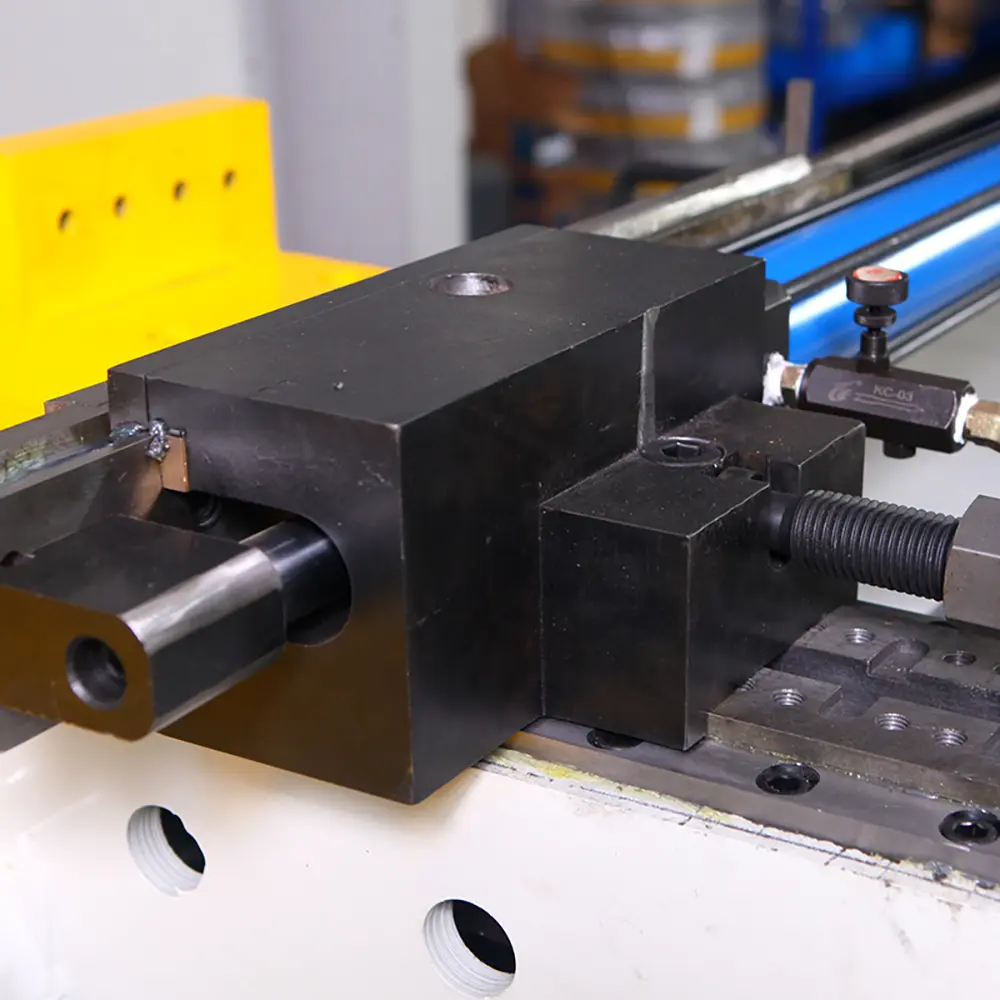

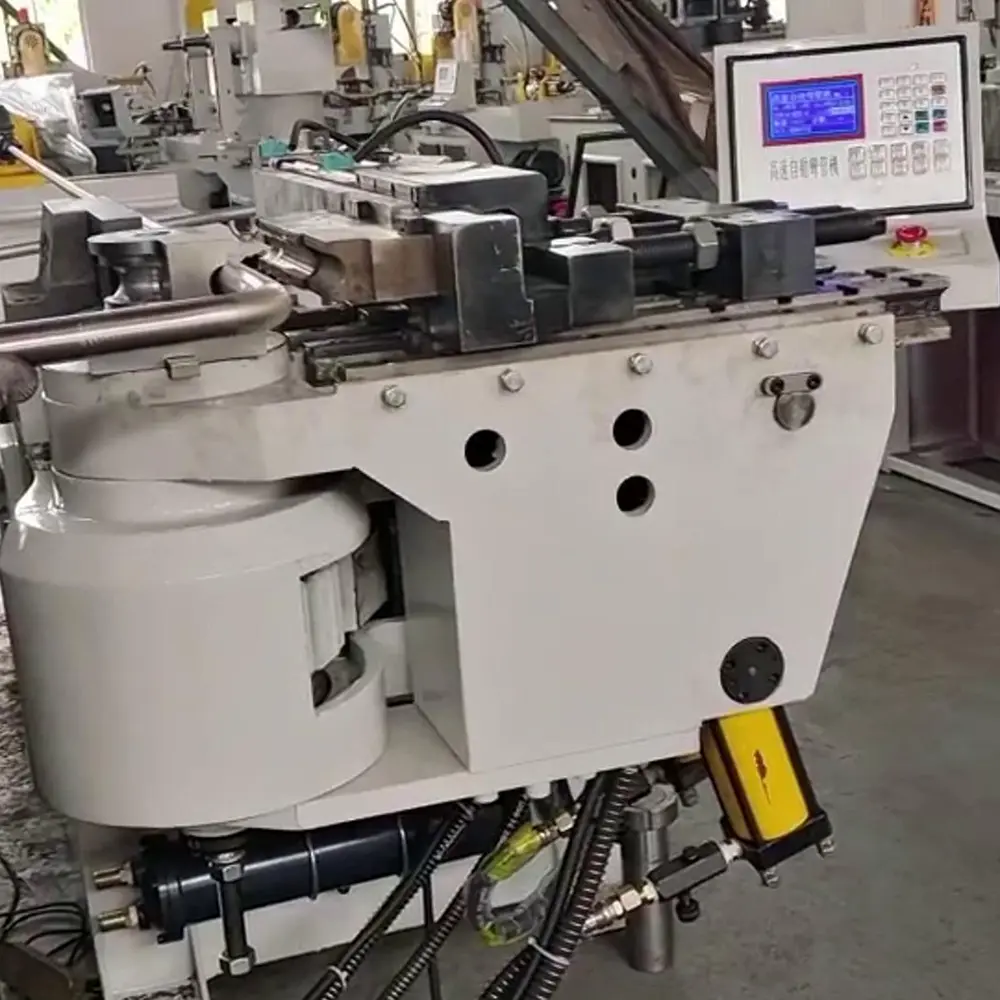

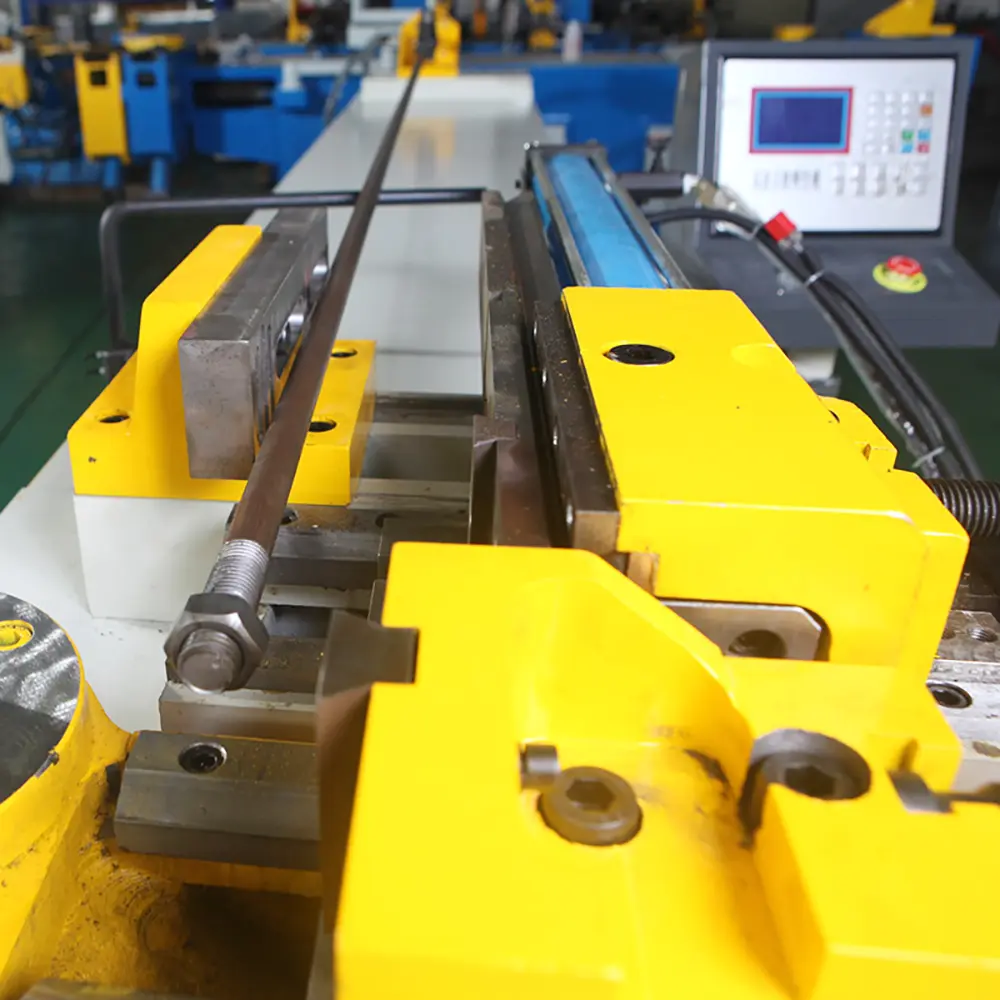

DW89NC Semi-Automatic Hydraulic Pipe Bending Machine Technical Parameters

Model DW89NC Max. Bending Capacity ○ round MS:896mm;SS: 765mm Square 70704mm angle steel 80 mm ▭ rectangle 5080mm rod 60mm Square rod 5050mm Operate mode Manual, semi auto, Feeding, rotate and adjust angle manual Fit to Shapes Round tube, square.

Model
DW89NC


Max. Bending Capacity
○ round
MS:φ89×6mm;SS: φ76×5mm
Square
70×70×4mm
angle steel
80 mm
▭ rectangle
50×80mm
rod
Φ60mm
Square rod
50×50mm
Operate mode
Manual, semi auto,
Feeding, rotate and adjust angle
manual
Fit to Shapes
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material
steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language
Chinese, English, Spanish, Russian, or as requirement
range of bending radius
R50-R450mm
Max bending angle
190°
Bending precession
±0.1°
Bending speed
30°/sec
voltage
380/415 or as requirement
Total power
11 KW
Oil Tank Capacity
260 L
Hydraulic oil
antiwear hydraulic oil 46#
Standard Oil pressure
21 MPA
Max oil temperature
60°
cooling method
Air-cooled or Water-cooled
operating mode
button , touch screen, footswitch
Maximum number of stored bending programs
20
Max number of elbow pipe each program
20
size
4.2×1.2×1.3M
weight(KG)
4300


Prev:DW89CNC Hydraulic Pipe Bending Machine
Next:DW114NC Semi-Automatic Hydraulic Pipe Bending Machine
TAG:
Related Category:
China, suppliers, manufacturers, factory, customized, wholesale, quotation, made in China
Related Products
DW120CNC Hydraulic Pipe Bending Machine
DW120CNC Hydraulic Pipe Bending Machine

Model (DW) DW 120 CNC Max. Bending Capacity(mm)(diameter)(thickness) o round (MS) 12068 o round (SS) 10867 square 909085 angle steel 9065 rectangle 6012065 ●rod 080 square rod 7070 max length of through mandrel(m) 1.7 Max R for bending(mm) R25-R200...

Parts End Deburring Chamfering Machine
Parts End Deburring Chamfering Machine

Parts End Deburring Chamfering Machine is designed for automatic burr removal and edge chamfering of metal parts, shafts, rods, tubes, and machined components. Improve surface quality, processing efficiency, and production consistency....

Heating Pipe Taper Forming Machine
Heating Pipe Taper Forming Machine

Heating Pipe Taper Forming Machine is designed for hot forming,tapering,and reducing metal pipe ends. It provides accurate and efficient tube processing solutions for furniture,automotive,construction,and industrial applications....

Double Shaft Small Flat Grinding Machine
Double Shaft Small Flat Grinding Machine

Double Shaft Small Flat Grinding Machine is designed for precision flat surface grinding, deburring, and finishing of metal parts. Ideal for small components, hardware, stainless steel, and industrial machining applications....

30.5 Meter Aerial Work Platform
30.5 Meter Aerial Work Platform

30.5 Meter Aerial Work Platform is a high-reach hydraulic lifting machine designed for safe and efficient elevated operations. With a maximum working height of 30.5 meters, stable platform structure, powerful hydraulic system, and excellent mobility...

Square Pipe Polishing Machine
Square Pipe Polishing Machine

Square Pipe Polishing Machine is designed for automatic grinding and polishing of square metal pipes and tubes. It provides efficient surface finishing solutions for stainless steel, aluminum, and steel square tubes with consistent polishing quality....

Exhaust Pipe Expanding And Shrinking Machine 6005
Exhaust Pipe Expanding And Shrinking Machine 6

Exhaust Pipe Expanding And Shrinking Machine 6005 is designed for precise expansion and shrinking of exhaust pipes and metal tubes. With hydraulic forming technology,it provides efficient,stable,and high-quality tube end processing solutions....

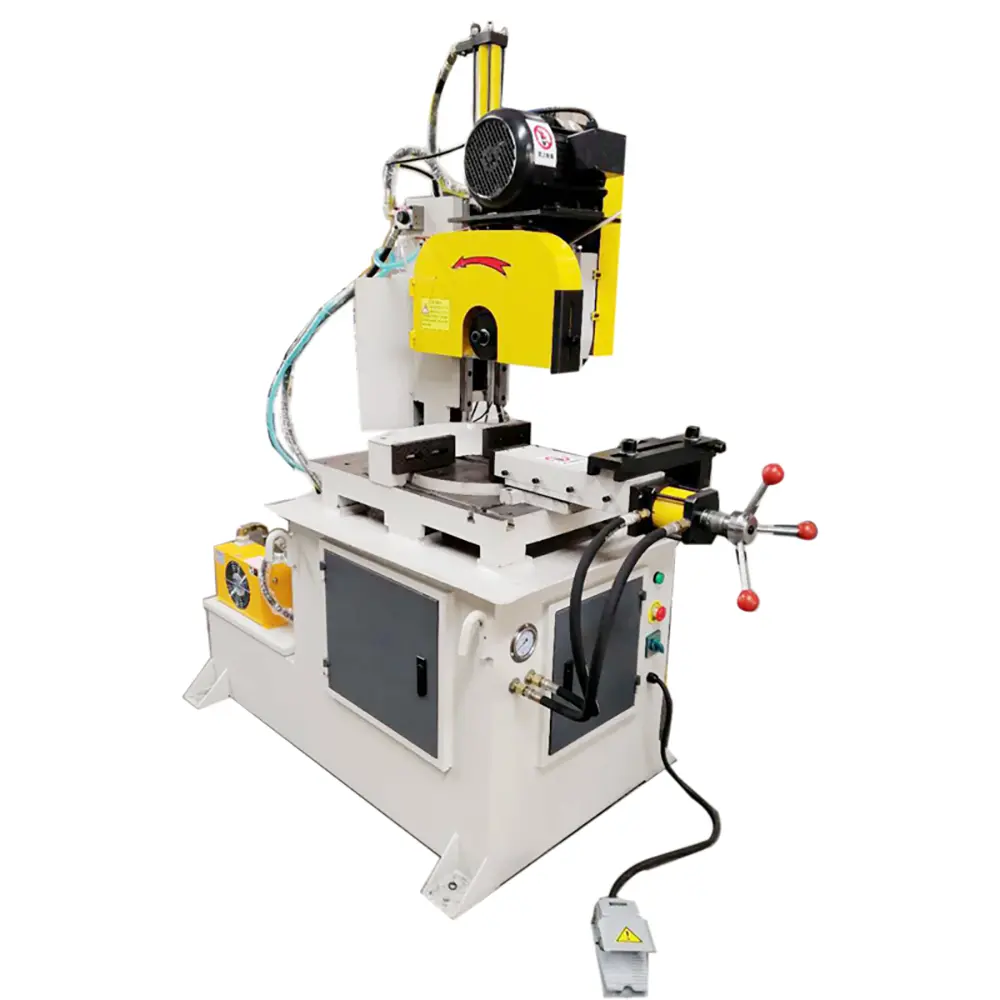

425 Semi Automatic Pipe Cutting Machine
