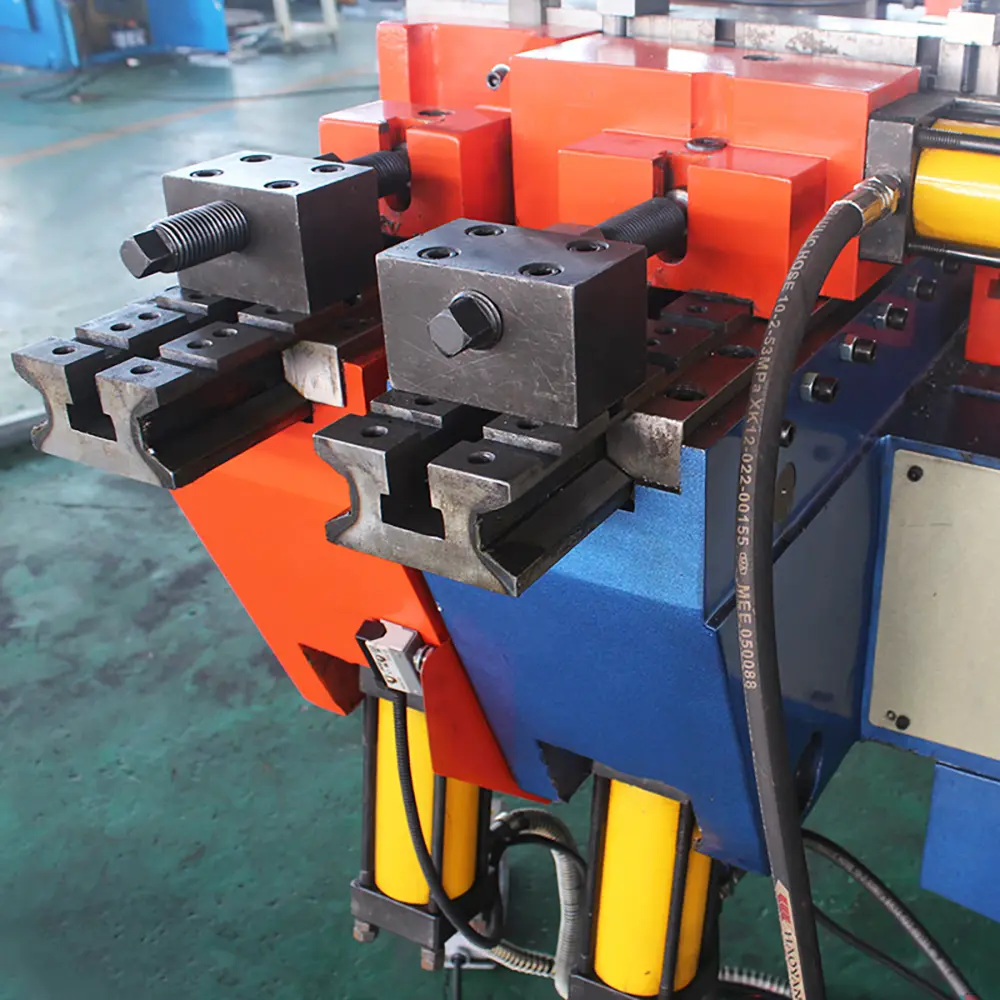

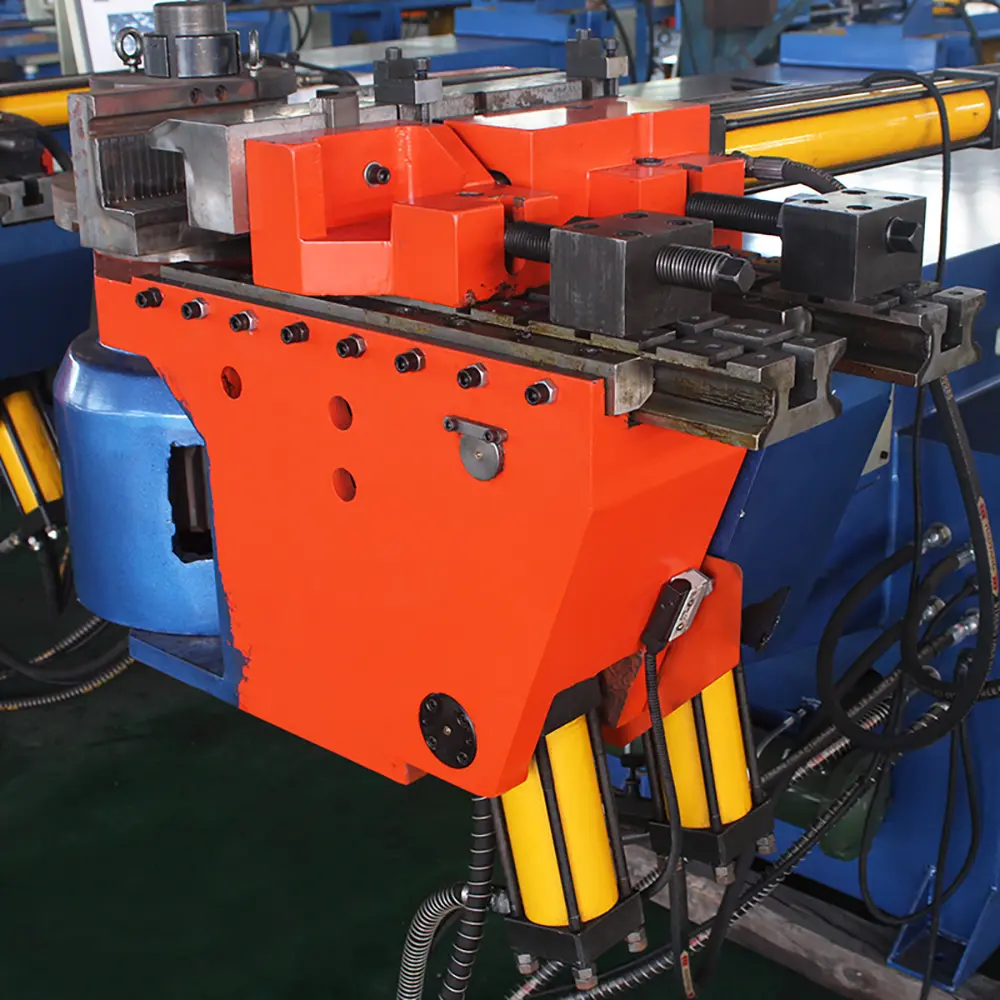

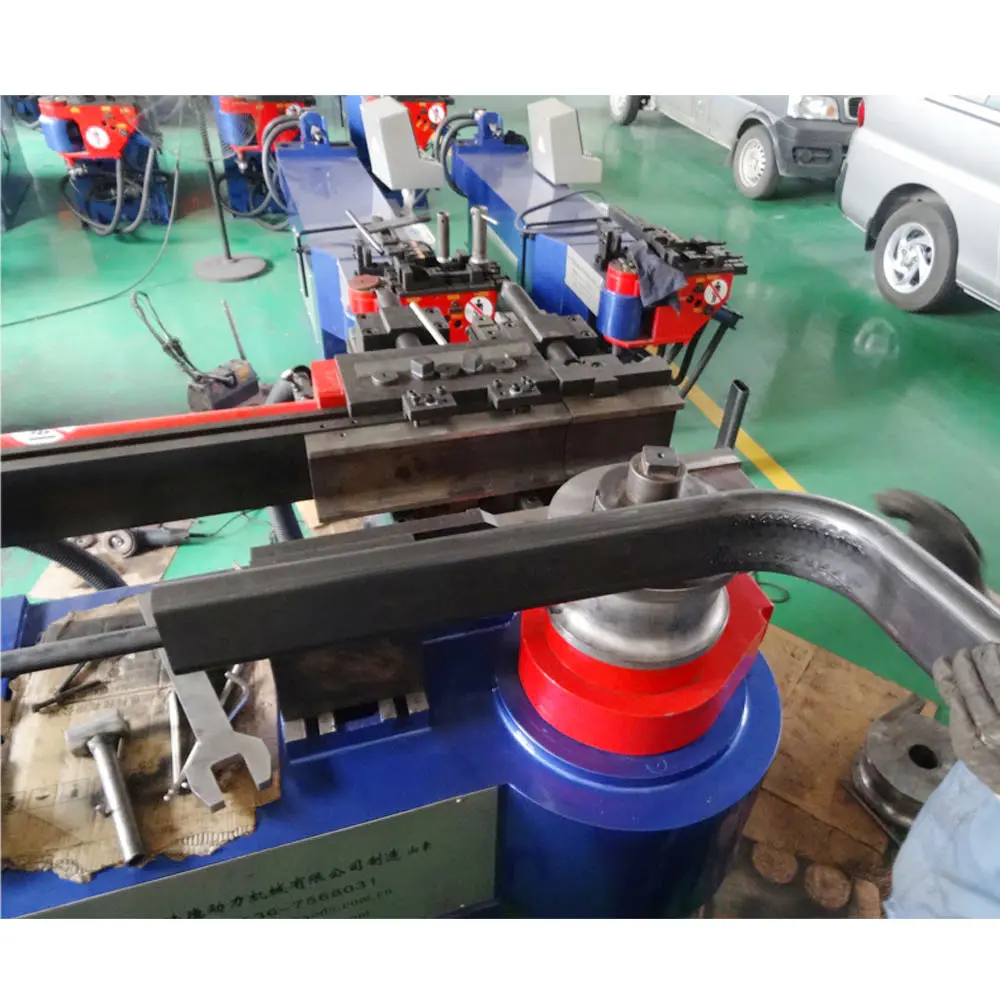

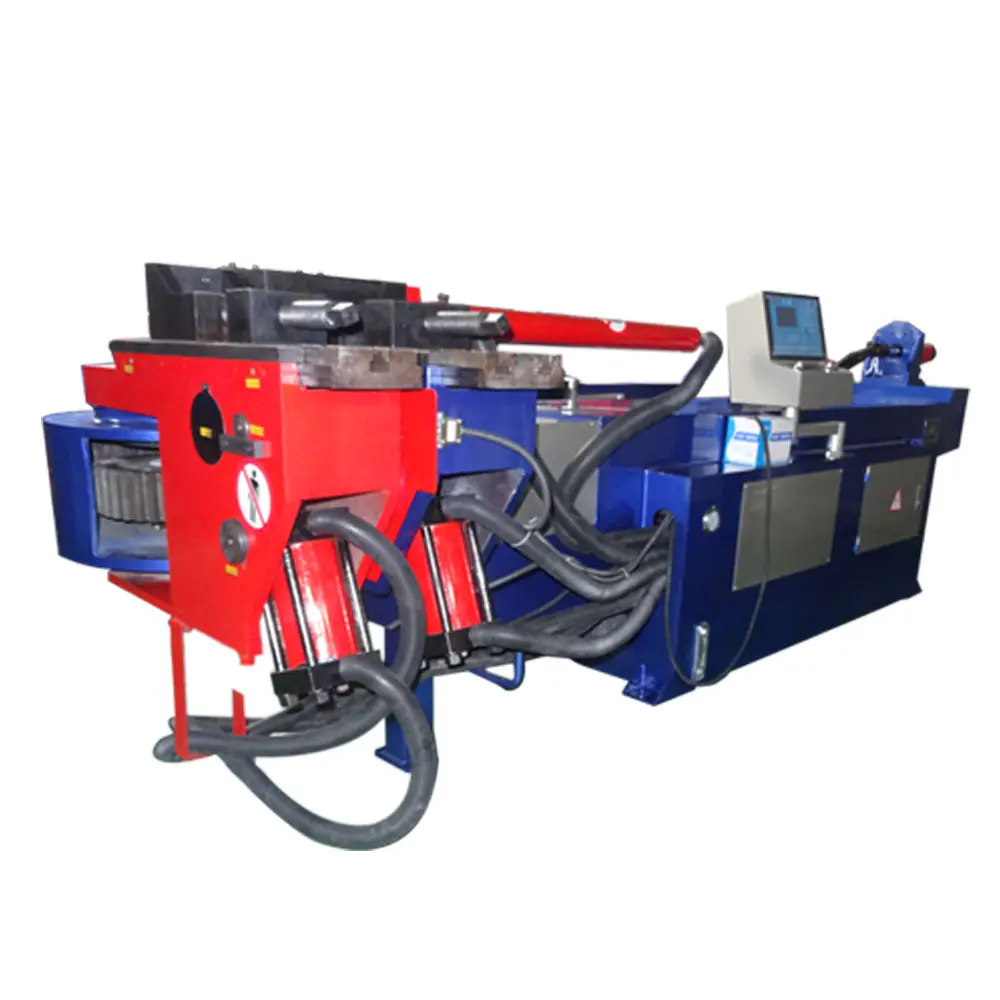

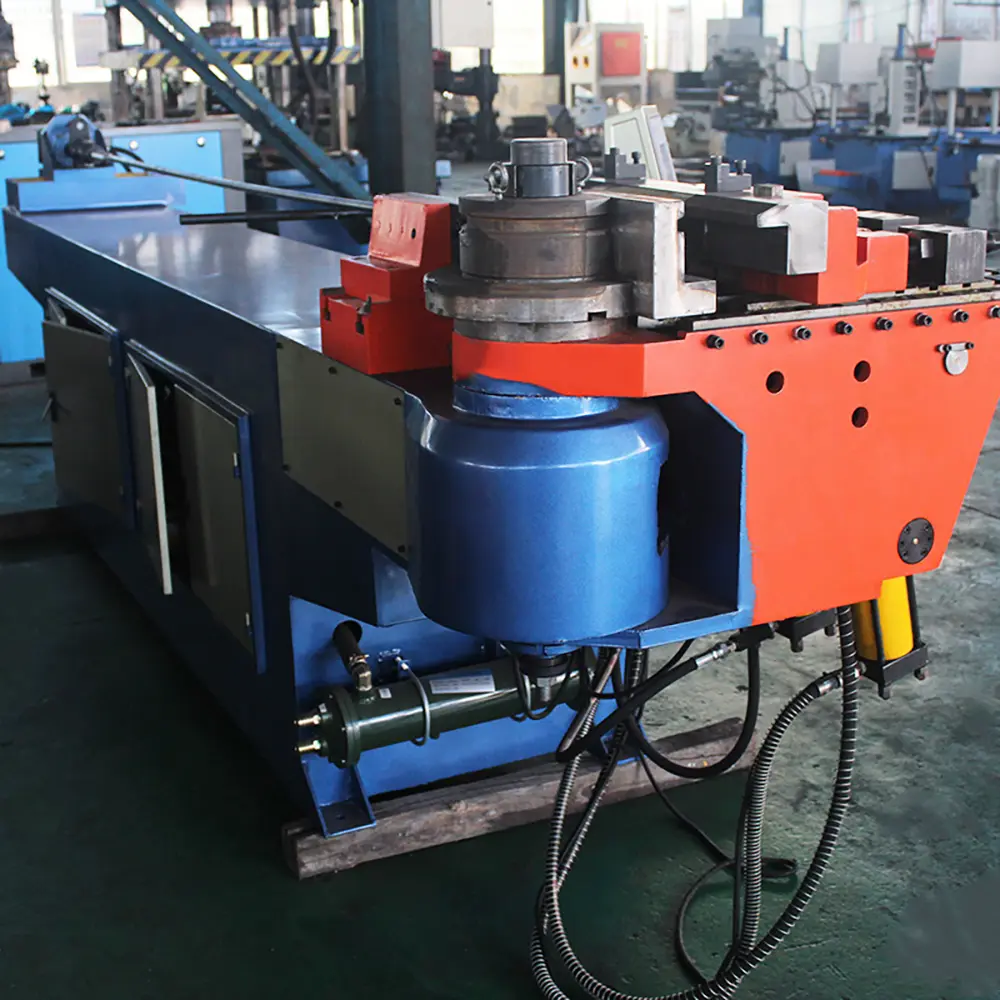

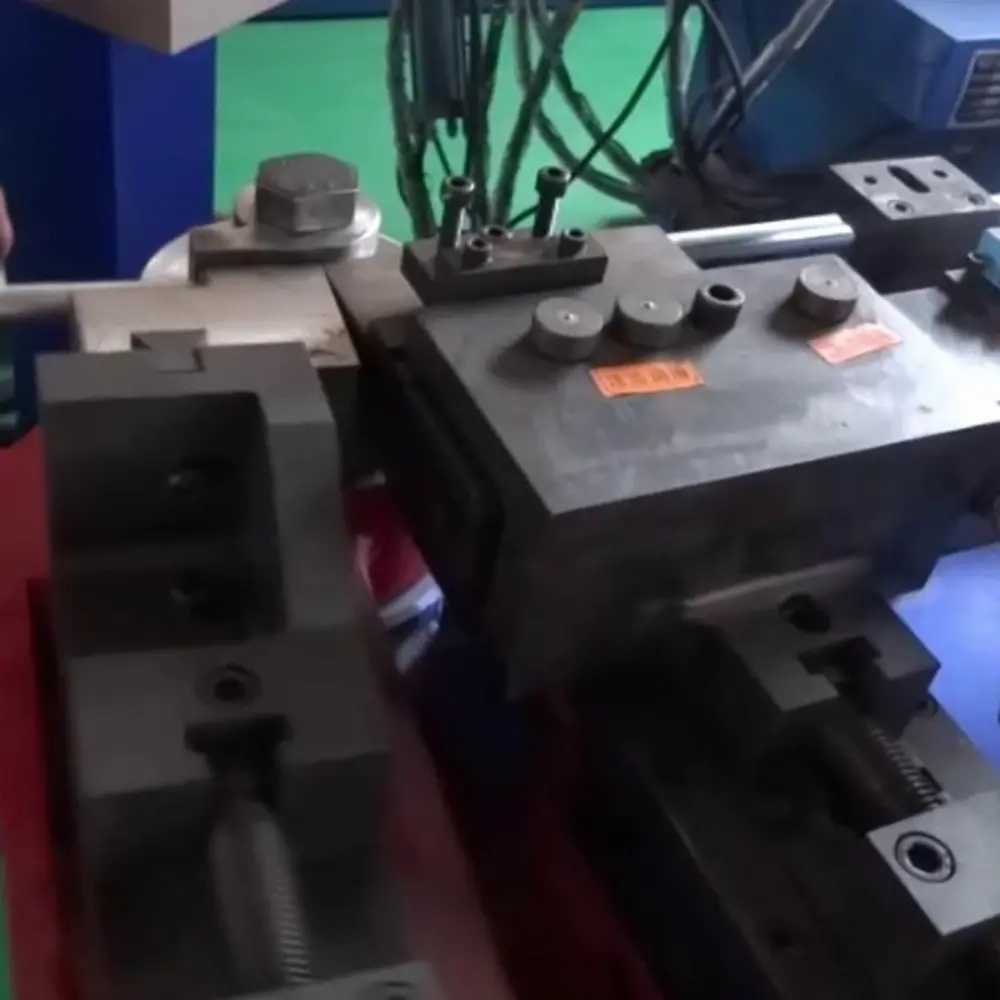

DW89CNC Hydraulic Pipe Bending Machine Technical Parameters

Model (DW) DW 89 CNC Max. Bending Capacity(mm)(diameter)(thickness) o round (MS) 8986 o round (SS) 7685 square 707084 angle steel 7084 rectangle 508084 ●rod 060 square rod 5050 max length of through mandrel(m) 1.7 Max R for bending(mm) R25-R200 Max.

Model (DW) DW 89 CNC
Max. Bending Capacity(mm)(diameter)(thickness) o round (MS) 89×86
o round (SS) 76×85
square 70×70×84
angle steel 70×84
rectangle 50×80×84
●rod 060
square rod 50×50
max length of through mandrel(m) 1.7
Max R for bending(mm) R25-R200
Max bending angle 220°
Bending precession ±0.1°
Bending speed 70°/sec
Total power (Kw) 4.0
lowest operating oil-level (L) 140
Overall size (LxWxH) (m³) 2.6×0.7×1
Weight(KG) 1000
Bending method hydraulic
Operating mode manual, semi auto (button, touch screen, footswitch)
Feeding, rotate , adjust angle manual
cooling method air or water cold
Maximum number of storedbending programs 200
Max number of elbow pipe eachprogram 20
Standard Oil pressure (KP) 16
Max oil temperatureallowed(℃) 60
Bending shape Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel,angle steel, I-steel and flat steel, etc
Adapted material steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple-unit tube
