DW50CNC Hydraulic Pipe Bending Machine Technical Parameters

DW50CNC Hydraulic Pipe Bending Machine is a high-precision CNC tube bending solution designed for metal pipes,exhaust tubes,and industrial applications. Featuring hydraulic drive and CNC control,it delivers accurate,smooth,and efficient pipe forming p.

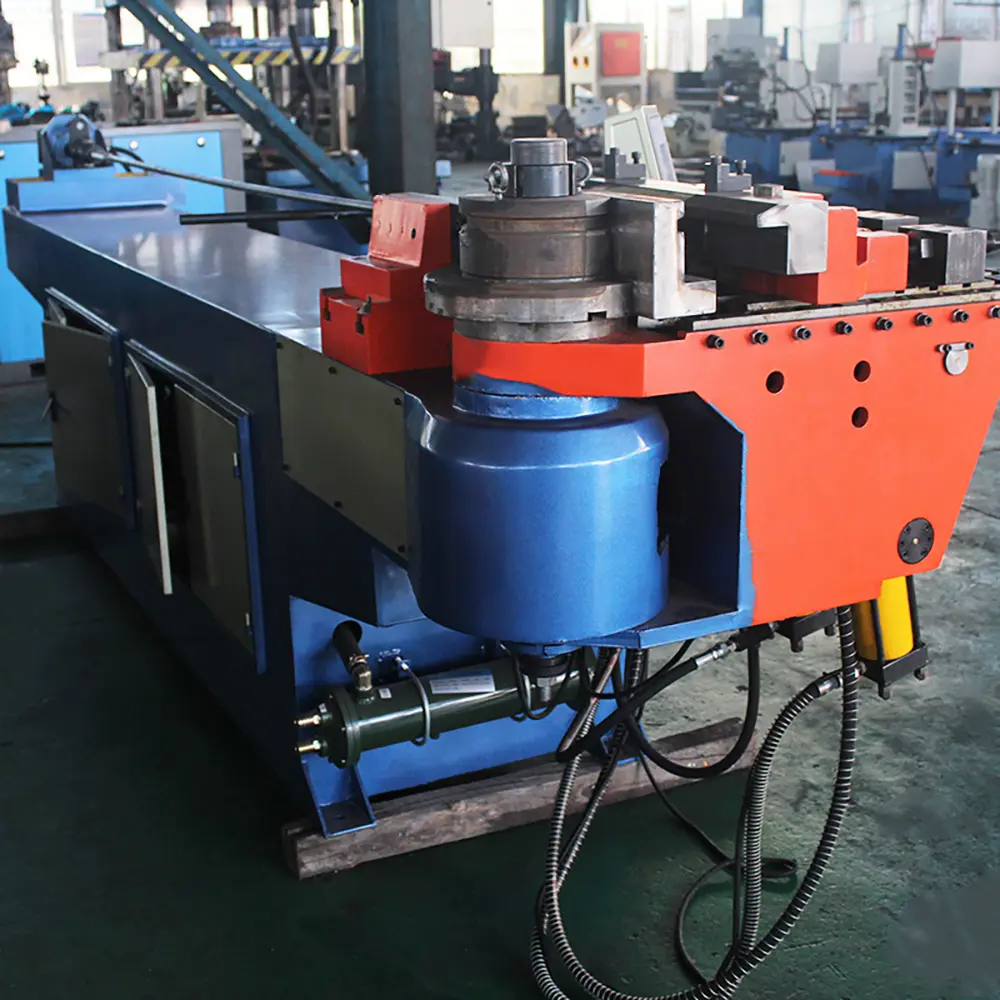

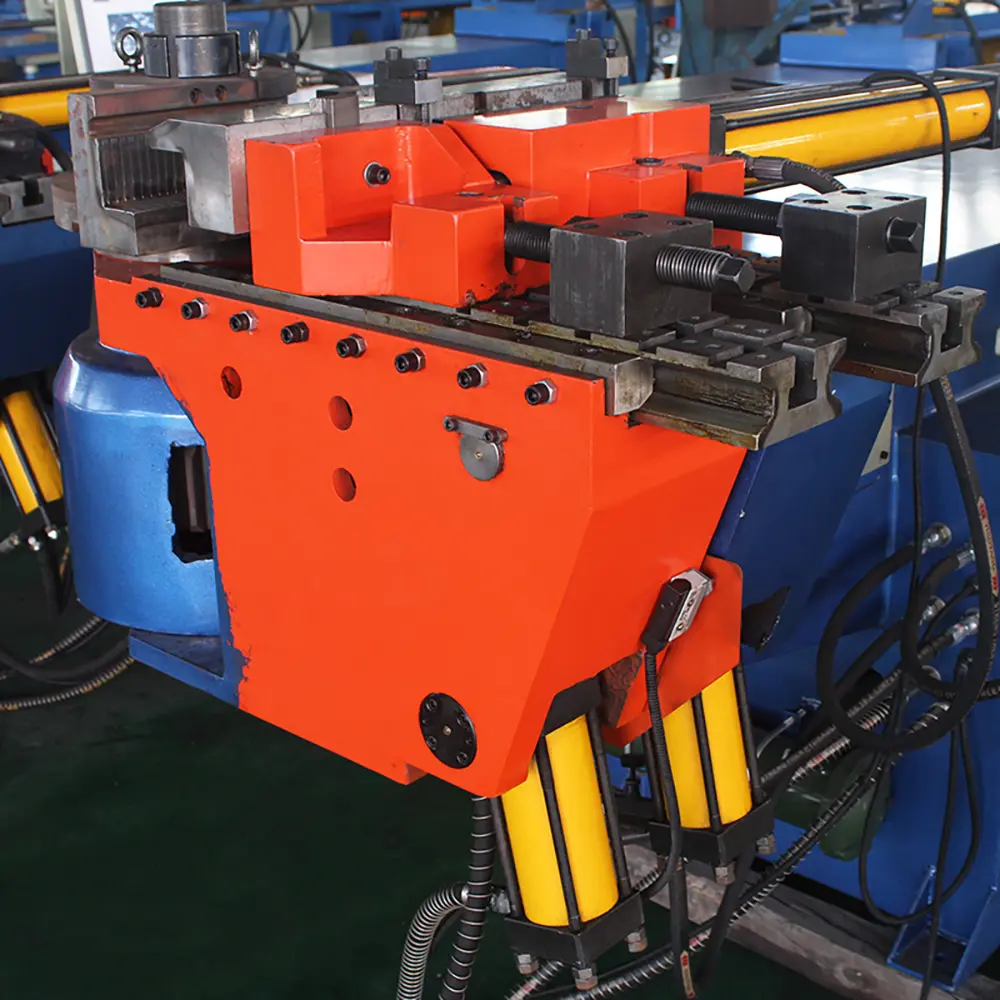

DW50CNC Hydraulic Pipe Bending Machine

The DW50CNC Hydraulic Pipe Bending Machine is an advanced CNC-controlled tube bending system designed for high-precision bending of metal pipes,tubes,and profiles. Combining powerful hydraulic transmission technology with intelligent CNC control,this machine provides excellent bending accuracy,stable operation,and high production efficiency for modern metal fabrication industries.

Designed for manufacturers requiring reliable and automated pipe forming solutions,the DW50CNC hydraulic pipe bender can process various materials including carbon steel,stainless steel,aluminum,and copper tubes. It is widely used in automotive exhaust manufacturing,metal furniture production,fitness equipment,construction components,boiler pipelines,and industrial tube processing.

Compared with traditional manual or semi-automatic pipe bending equipment,the CNC hydraulic pipe bending machine significantly improves production efficiency,reduces labor costs,and ensures consistent bending quality. The advanced control system allows operators to set bending angles,feeding parameters,and processing programs accurately,providing excellent repeatability for mass production.

Advanced CNC Hydraulic Bending Technology

The DW50CNC Hydraulic Pipe Bending Machine adopts a high-performance hydraulic drive system combined with CNC intelligent control technology.

Main processing functions:

Automatic pipe bending
Multi-angle tube forming
Exhaust pipe bending
Metal tube shaping
Precision pipe processing

Hydraulic bending advantages:

Strong bending force
Stable pressure output
Smooth bending operation
Reduced pipe deformation
High bending accuracy

The hydraulic system provides sufficient power for processing different metal tubes while maintaining excellent surface quality and structural strength.

CNC Intelligent Control System

The DW50CNC is equipped with an advanced CNC control system that makes pipe bending operation easier and more efficient.

Main features:

Digital bending parameter setting
Automatic angle control
Multiple program storage
Intelligent operation interface
Real-time processing monitoring

Benefits:

Easy operation
Reduced production errors
Faster product changeover
Improved bending consistency
Higher manufacturing efficiency

The CNC system allows users to quickly adjust bending programs according to different pipe designs and production requirements.

Professional Metal Tube Bending Solution

The DW50CNC Hydraulic Pipe Bending Machine is designed for precision tube forming applications across multiple industries.

Suitable materials:

Carbon Steel Pipe
Stainless Steel Tube
Mild Steel Pipe
Aluminum Tube
Copper Tube
Alloy Metal Pipe

Suitable applications:

Automotive exhaust systems
Motorcycle exhaust pipes
Furniture metal frames
Fitness equipment tubes
Hydraulic pipelines
Industrial structures

The machine provides smooth and accurate bending results while maintaining excellent tube appearance and dimensional accuracy.

High Precision Pipe Bending Performance

The DW50CNC CNC hydraulic pipe bender delivers outstanding performance for demanding production environments.

Accurate Bending Angle

The CNC control system ensures precise angle positioning and repeatable production results.

Smooth Tube Forming

Professional bending technology minimizes wrinkles,cracks,and deformation.

Efficient Production

Automatic operation reduces processing time and improves production capacity.

Flexible Processing

Suitable for different pipe diameters,materials,and bending requirements.

Excellent Product Quality

Provides consistent tube shape and professional finished appearance.

Wide Application Industries
Automotive Industry

Applications:

Exhaust pipes
Muffler tubes
Vehicle structural tubes
Customized automotive parts
Metal Furniture Industry

Used for:

Chair frames
Table structures
Decorative tubes
Metal furniture components
Construction Industry

Applications:

Steel structures
Handrails
Metal frameworks
Machinery Manufacturing

Used for:

Equipment pipelines
Mechanical tube components
Industrial assemblies
Hardware Production

Applications:

Precision metal parts
Custom tube products
Fabricated components
Advantages Compared With Traditional Pipe Bending Machines
Higher Automation Level

CNC control reduces manual operation and improves production efficiency.

Better Bending Accuracy

Digital control provides precise and repeatable bending performance.

Lower Labor Cost

Automatic processing reduces operator workload.

Improved Production Efficiency

Fast programming and automatic operation increase output.

Strong Material Compatibility

Suitable for various metal tubes and industrial applications.

Key Features Of DW50CNC Hydraulic Pipe Bending Machine
1. CNC Automatic Control

Provides accurate and repeatable pipe bending operation.

2. Hydraulic Drive System

Delivers powerful and stable bending performance.

3. Multi-Material Processing

Suitable for steel,stainless steel,aluminum,and copper tubes.

4. Precision Tube Forming

Maintains excellent bending quality and surface finish.

5. Efficient Production Capability

Designed for continuous industrial manufacturing.

6. Customized Configuration Available

Bending capacity,tooling,pipe diameter range,and automation functions can be customized.

Why Choose Our DW50CNC Hydraulic Pipe Bending Machine?
Professional Pipe Bending Machine Manufacturer

We specialize in manufacturing CNC hydraulic tube bending machines and complete metal pipe processing solutions for global customers.

Advanced CNC Technology

High-quality control systems ensure accurate operation and stable production performance.

Reliable Hydraulic System

Durable hydraulic components provide strong bending power and long service life.

Customized Solutions

Machine specifications,bending radius,tooling,pipe size range,and automation level can be customized according to customer requirements.

Factory Direct Supply

Direct manufacturer supply provides competitive prices,reliable quality,and professional technical support.

Complete After-Sales Service

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is the DW50CNC Hydraulic Pipe Bending Machine used for?

It is used for automatic bending of metal pipes,tubes,and profiles in industrial manufacturing applications.

Q2: What materials can the DW50CNC bend?

It can process carbon steel,stainless steel,aluminum,copper,and other metal tubes.

Q3: What are the advantages of CNC hydraulic pipe bending?

CNC hydraulic bending provides higher accuracy,better repeatability,and improved production efficiency.

Q4: Is this machine suitable for exhaust pipe production?

Yes. It is widely used for automotive exhaust pipe bending and tube forming.

Q5: Can different pipe sizes be processed?

Yes. Different tooling and configurations are available for various tube diameters.

Q6: Is the machine difficult to operate?

No. The CNC control system provides a user-friendly interface and simple operation.

Q7: Can the DW50CNC machine be customized?

Yes. Bending capacity,tooling,control system,and machine specifications can be customized.

Model (DW) DW 50 CNC
Max. Bending Capacity(mm)(diameter)(thickness) o round (MS) 50×83
o round (SS) 42×83
square 40×40×82.5
angle steel 40×62.5
rectangle 30×40×82.5
●rod 035
square rod 30×30
max length of through mandrel(m) 1.7
Max R for bending(mm) R25-R200
Max bending angle 220°
Bending precession ±0.1°
Bending speed 70°/sec
Total power (Kw) 4.0
lowest operating oil-level (L) 140
Overall size (LxWxH) (m³) 2.6×0.7×1
Weight(KG) 1000
Bending method hydraulic
Operating mode manual, semi auto (button, touch screen, footswitch)
Feeding, rotate , adjust angle manual
cooling method air or water cold
Maximum number of storedbending programs 200
Max number of elbow pipe eachprogram 20
Standard Oil pressure (KP) 16
Max oil temperatureallowed(℃) 60
Bending shape Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel,angle steel, I-steel and flat steel, etc
Adapted material steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple-unit
tube
