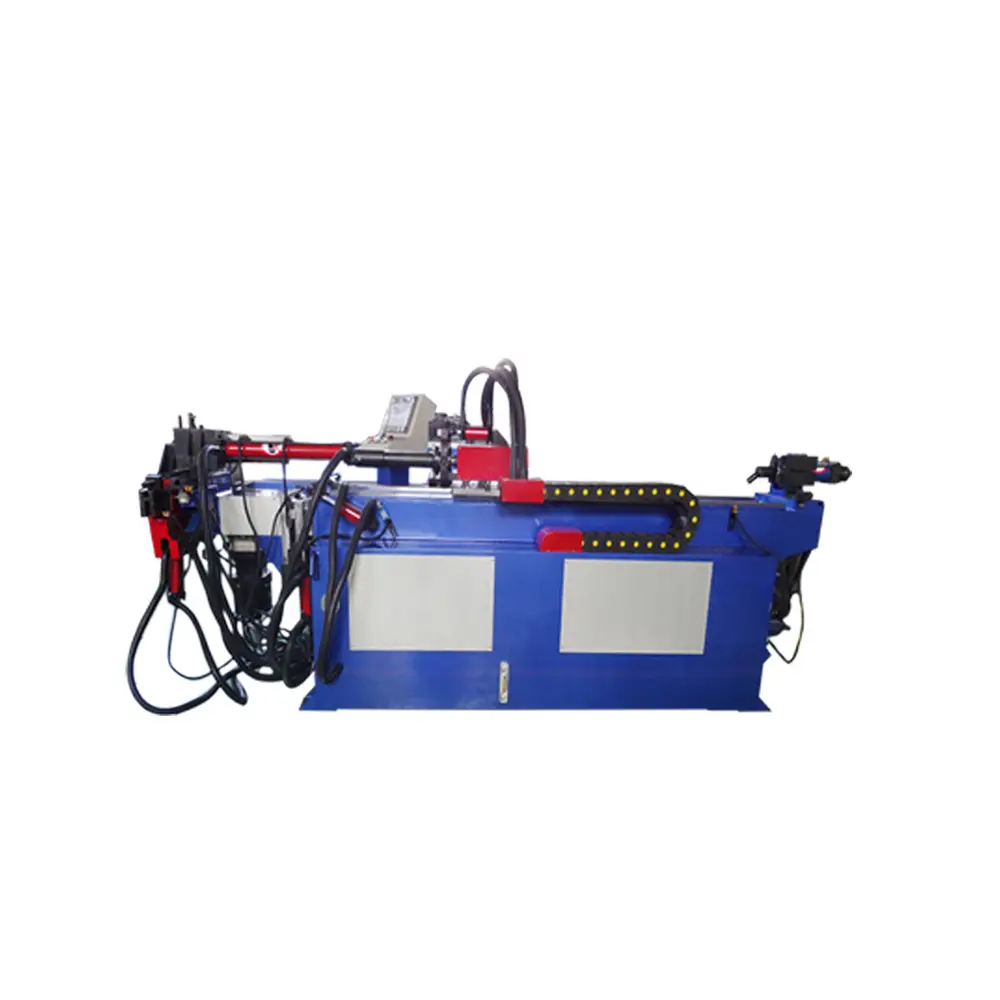

DW38CNC Hydraulic Pipe Bending Machine Technical Parameters

DW38CNC Hydraulic Pipe Bending Machine is an advanced CNC tube bending solution for steel,stainless steel,and aluminum pipes. With hydraulic drive and automatic CNC control,it delivers precise,smooth,and efficient pipe forming performance..

The DW38CNC Hydraulic Pipe Bending Machine is a high-performance CNC automatic tube bending machine designed for precision processing of metal pipes,tubes,and profiles. Combining hydraulic bending technology with advanced CNC control,the machine provides excellent bending accuracy,high repeatability,and efficient production capability for modern industrial applications.

The DW38CNC CNC hydraulic pipe bender is widely used in automotive exhaust manufacturing,metal furniture production,fitness equipment,construction components,shipbuilding,hardware products,and industrial tube fabrication. It is suitable for processing round tubes,square tubes,rectangular tubes,stainless steel pipes,carbon steel pipes,and other metal materials.

With automatic feeding,rotation,and bending control,the DW38CNC significantly improves production efficiency compared with traditional manual and semi-automatic bending equipment. The CNC system allows operators to store multiple bending programs,control bending angles accurately,and achieve consistent results for mass production.

Model
38CNC


Max. Bending Capacity
○ round
MS:38×3mm;SS: 32×3mm
Square
30×30×2.5mm
angle steel
30 mm
▭ rectangle
20×40mm
rod
20mm
Square rod
20×20mm
Shapes
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material
steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple-unit tube
Operate mode
Manual, full auto
System language
Chinese, English, Spanish, Russian, or as requirement
Feeding, rotate and adjust angle
full auto
Bending method
Hydraulic
driving axle
rack
Max Length of bending pipe
Non-mandrel
Unlimited
Max length of through mandrel
3m
Feeding speed
1.1 m/sec
Feeding precession
±0.1
Max R for bending
R25-R200mm
Max angle for bending
220°
Bending precession
±0.1°
Bending speed
70°/sec
Angle precision
±0.1°
Power of Servo motor system
1.4 kw
Power for motor
4 kw
Total power
5.4 kw
Oil Tank Capacity
140 kg
Max oil temperature
60°
cooling method
Air-cooled or Water-cooled
operating mode
button and touch screen
Maximum number of stored bending programs
300 sets
Max number of elbow pipe each program
30 sets
Overall size (L×W×H)m
3.6×0.79×1.25 m
Weight
2000 KG

Advanced CNC Hydraulic Bending Technology

The DW38CNC adopts a powerful hydraulic bending system combined with CNC intelligent control technology to achieve high-quality tube forming.

Main processing functions:

Automatic pipe bending
Multi-angle tube forming
Round tube bending
Square tube bending
Exhaust pipe processing
Precision metal tube shaping

Hydraulic bending advantages:

Strong bending force
Stable hydraulic pressure
Smooth tube forming
Reduced deformation
High bending precision

The hydraulic bending structure ensures stable operation and excellent finished product quality for continuous industrial production.

CNC Automatic Control System

The DW38CNC is equipped with an advanced CNC control system that provides convenient operation and precise production management.

Main features:

Touch screen control interface
Automatic feeding control
Automatic tube rotation
Automatic bending operation
Multiple bending program storage
Digital parameter adjustment

Benefits:

Easy operation
Reduced labor requirements
Faster production changeover
Improved bending consistency
Higher manufacturing efficiency

The CNC system enables operators to quickly set different bending programs according to tube designs and production requirements.

Professional Metal Tube Bending Solution

The DW38CNC Hydraulic Pipe Bending Machine is designed for various industrial tube processing applications.

Suitable materials:

Carbon Steel Pipe
Stainless Steel Tube
Mild Steel Pipe
Aluminum Tube
Copper Tube
Alloy Metal Tube

Suitable tube shapes:

Round Tube
Square Tube
Rectangular Tube
Oval Tube
Special Profile Tube

Applications:

Automotive exhaust systems
Motorcycle exhaust pipes
Steel furniture frames
Fitness equipment
Industrial pipelines
Metal structures
High Precision Pipe Bending Performance

The DW38CNC provides excellent bending quality for precision manufacturing.

Accurate Bending Control

CNC programming ensures precise bending angles and repeatable production results.

Smooth Tube Surface

Professional bending dies reduce scratches,wrinkles,and deformation.

High Production Efficiency

Automatic operation improves output and reduces processing time.

Flexible Processing Capability

Suitable for different pipe materials,sizes,and bending requirements.

Consistent Product Quality

Ideal for manufacturers requiring stable mass production.

Wide Application Industries
Automotive Industry

Applications:

Exhaust pipes
Muffler systems
Vehicle tube components
Custom automotive parts
Metal Furniture Industry

Used for:

Chair frames
Table structures
Decorative tubes
Steel furniture components
Construction Industry

Applications:

Metal frameworks
Handrails
Structural tube products
Machinery Manufacturing

Used for:

Equipment pipelines
Mechanical components
Industrial tube assemblies
Hardware Manufacturing

Applications:

Custom metal products
Precision tube parts
Fabricated components
Advantages Compared With Traditional Pipe Bending Machines
Fully Automatic Processing

Automatic feeding,rotation,and bending reduce manual operation.

Higher Bending Accuracy

CNC control provides precise and repeatable results.

Better Production Efficiency

Multiple programs and automatic operation increase productivity.

Lower Labor Cost

Reduced operator involvement improves production economics.

Wide Material Compatibility

Suitable for different metal tube applications.

Key Features Of DW38CNC Hydraulic Pipe Bending Machine
1. CNC Automatic Control

Provides intelligent and precise bending operation.

2. Hydraulic Bending System

Delivers powerful and stable tube forming force.

3. Multi-Axis Automatic Operation

Supports automatic feeding,rotation,and bending.

4. Precision Tube Processing

Ensures accurate angles and smooth finished tubes.

5. Multiple Program Storage

Suitable for different product models and batch production.

6. Customized Tooling Available

Different dies and configurations can be supplied according to customer requirements.

Why Choose Our DW38CNC Hydraulic Pipe Bending Machine?
Professional CNC Pipe Bending Machine Manufacturer

We specialize in manufacturing CNC hydraulic tube bending machines and complete pipe processing solutions for global customers.

Advanced CNC Technology

Professional control systems provide accurate operation and reliable production performance.

Strong Hydraulic Performance

High-quality hydraulic components ensure powerful bending capability and long service life.

Customized Machine Solutions

Pipe diameter range,bending radius,tooling,automation level,and control system can be customized according to production requirements.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete After-Sales Service

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is the DW38CNC Hydraulic Pipe Bending Machine used for?

It is used for automatic bending of metal pipes,tubes,and profiles in industrial production.

Q2: What materials can the DW38CNC process?

It can bend carbon steel,stainless steel,aluminum,copper,and other metal tubes.

Q3: What is the difference between DW38NC and DW38CNC?

DW38NC is a semi-automatic NC pipe bender,while DW38CNC provides higher automation with CNC control,automatic feeding,and rotation functions.

Q4: Is this machine suitable for exhaust pipe production?

Yes. It is widely used for automotive and motorcycle exhaust pipe manufacturing.

Q5: Can it bend square and rectangular tubes?

Yes. With suitable tooling,the machine can process round,square,and rectangular tubes.

Q6: How accurate is the CNC bending system?

The CNC control system provides high repeatability and stable bending accuracy for mass production.

Q7: Can the DW38CNC be customized?

Yes. Machine configuration,tooling,pipe size range,and automation functions can be customized.
