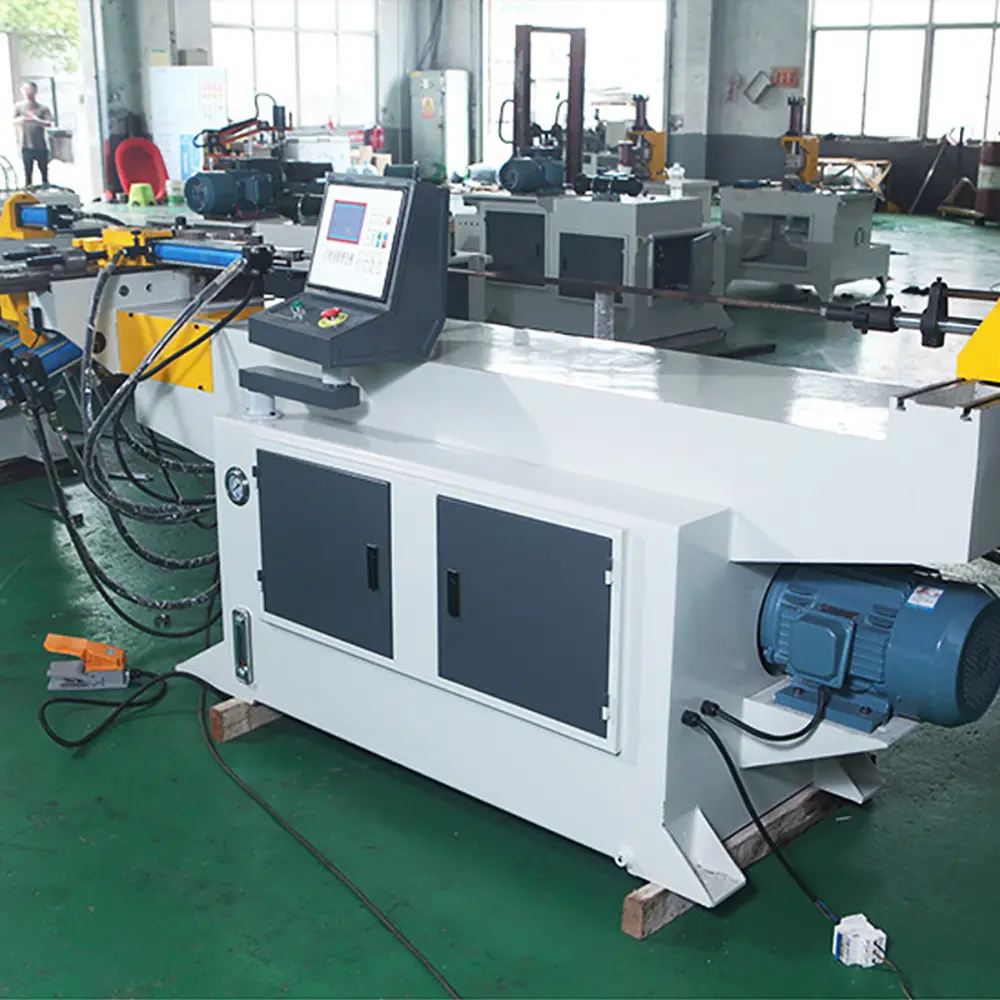

DW38NC Semi-Automatic Hydraulic Pipe Bending Machine Technical Parameters

DW38NC Semi-Automatic Hydraulic Pipe Bending Machine is designed for precise bending of metal tubes,exhaust pipes,and industrial pipes. With hydraulic drive and NC control,it provides smooth bending,high accuracy,and reliable production performance..

The DW38NC Semi-Automatic Hydraulic Pipe Bending Machine is a professional tube bending solution designed for accurate and efficient processing of metal pipes,tubes,and profiles. Featuring a powerful hydraulic bending system and NC control technology,this machine provides stable bending force,precise angle control,and excellent production efficiency for various industrial applications.

The DW38NC hydraulic pipe bender is widely used in automotive exhaust manufacturing,metal furniture production,fitness equipment,construction components,hardware products,and general tube fabrication industries. It is suitable for bending stainless steel pipes,carbon steel tubes,aluminum tubes,and other metal materials.

Compared with traditional manual pipe bending methods,the semi-automatic hydraulic pipe bending machine reduces labor intensity,improves bending consistency,and ensures high-quality finished products. Its compact structure,easy operation,and reliable performance make it an ideal choice for small and medium-sized manufacturers requiring efficient tube forming equipment.

model
DW38NC


Max. Bending Capacity
○ round
MS:38×3mm;SS: 32×3mm
Square
30×30×2.5mm
angle steel
30 mm
▭ rectangle
20×40mm
rod
φ20mm
Square rod
20×20mm
Bending method
Hydraulic
Operate mode
Manual, semi auto,
Feeding, rotate and adjust angle
manual
Fit to Shapes
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material
steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language
Chinese, English, Spanish, Russian, or as requirement
range of bending radius
R25-R200mm
Max bending angle
220°
Bending precession
±0.1°
Bending speed
70°/sec
voltage
380/415 or as requirement
Total power
4 KW
Oil Tank Capacity
100 KG
Hydraulic oil
antiwear hydraulic oil
Standard Oil pressure
16 MPA
Max oil temperature
60°
cooling method
Air-cooled or Water-cooled
operating mode
button , touch screen, footswitch
Maximum number of stored bending programs
20 set
Max number of elbow pipe each program
20 set
Oversize
2.6×0.85×1.2m
weight
950 kg
Advanced Hydraulic Pipe Bending Technology

The DW38NC Semi-Automatic Hydraulic Pipe Bending Machine adopts advanced hydraulic transmission technology to provide powerful and stable bending performance.

Main processing functions:

Metal tube bending
Exhaust pipe forming
Round pipe bending
Multi-angle tube processing
Custom pipe forming

Hydraulic bending advantages:

Strong bending force
Smooth bending operation
Stable pressure control
Reduced pipe deformation
High bending accuracy

The hydraulic system provides consistent power output,ensuring excellent bending quality during continuous production.

NC Semi-Automatic Control System

The DW38NC features an intelligent NC control system that combines easy operation with accurate processing control.

Main features:

Digital bending angle setting
Automatic bending control
Manual material loading and unloading
Adjustable processing parameters
Simple operation panel

Benefits:

Easy operator training
Reduced processing errors
Improved production efficiency
Stable bending repeatability
Flexible production adjustment

The NC control system allows operators to quickly set bending parameters according to different tube sizes and production requirements.

Professional Tube Bending Solution

The DW38NC hydraulic pipe bender is designed for various metal tube forming applications.

Suitable materials:

Carbon Steel Pipe
Stainless Steel Tube
Mild Steel Pipe
Aluminum Tube
Copper Tube
Alloy Metal Tube

Suitable applications:

Automotive exhaust pipes
Motorcycle exhaust systems
Furniture frames
Fitness equipment
Hydraulic pipelines
Industrial tube structures

The machine provides smooth bending results while maintaining excellent tube strength and appearance.

High Precision Bending Performance

The DW38NC Semi-Automatic Hydraulic Pipe Bending Machine delivers reliable performance for industrial tube processing.

Accurate Bending Angle

The NC control system ensures consistent bending dimensions and repeatable production.

Smooth Tube Forming

Professional tooling reduces wrinkles,cracks,and surface damage.

Efficient Production

Semi-automatic operation improves productivity compared with traditional manual bending.

Flexible Application

Suitable for different pipe diameters and customized bending requirements.

Excellent Finished Quality

Produces smooth curves and accurate tube shapes for professional applications.

Wide Application Industries
Automotive Industry

Applications:

Exhaust systems
Muffler pipes
Vehicle tube components
Customized automotive parts
Metal Furniture Manufacturing

Used for:

Chair frames
Table legs
Decorative metal tubes
Furniture structures
Construction Industry

Applications:

Metal handrails
Steel structures
Building tube components
Machinery Manufacturing

Used for:

Equipment pipelines
Mechanical tube parts
Industrial assemblies
Hardware Production

Applications:

Custom metal products
Precision tube components
Fabricated parts
