DW50NC Semi-Automatic Hydraulic Pipe Bending Machine Technical Parameters

DW50NC Semi-Automatic Hydraulic Pipe Bending Machine is designed for precise bending of metal tubes,exhaust pipes,and industrial pipes. With hydraulic drive and NC control,it provides efficient,smooth,and reliable tube forming solutions..

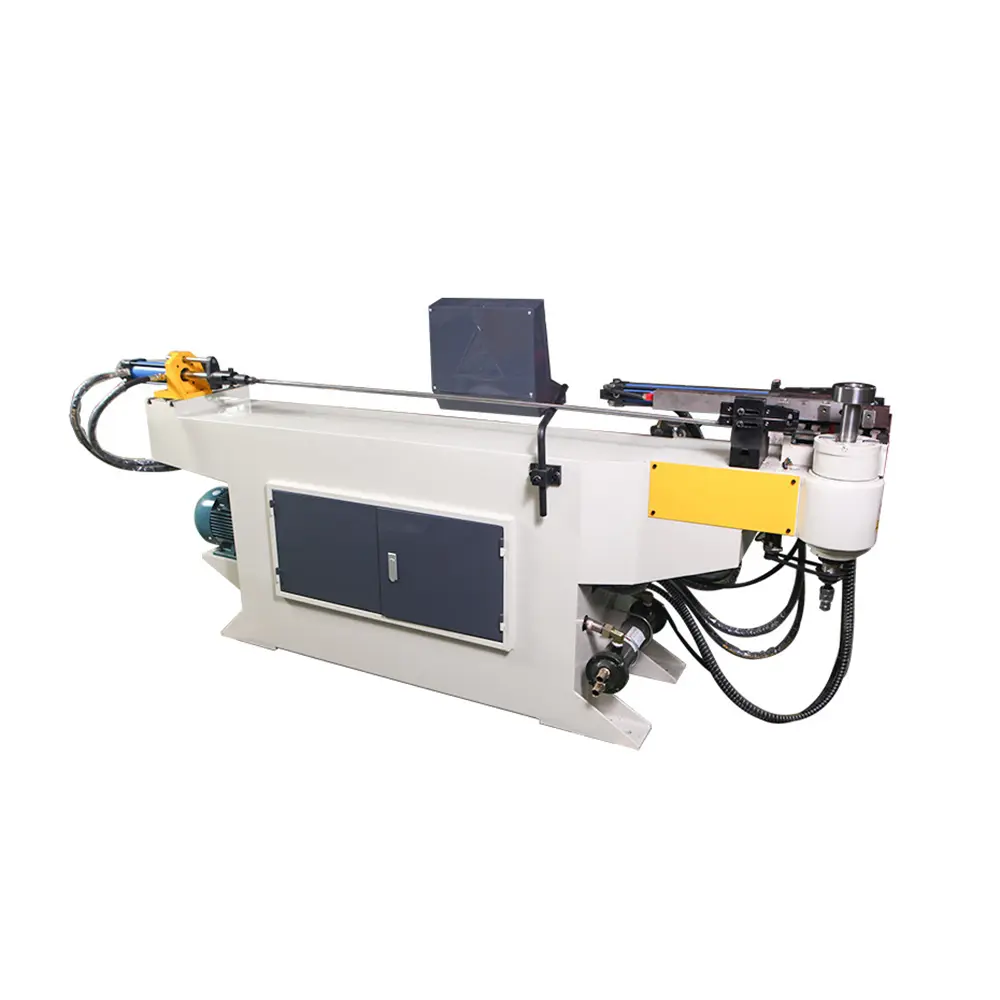

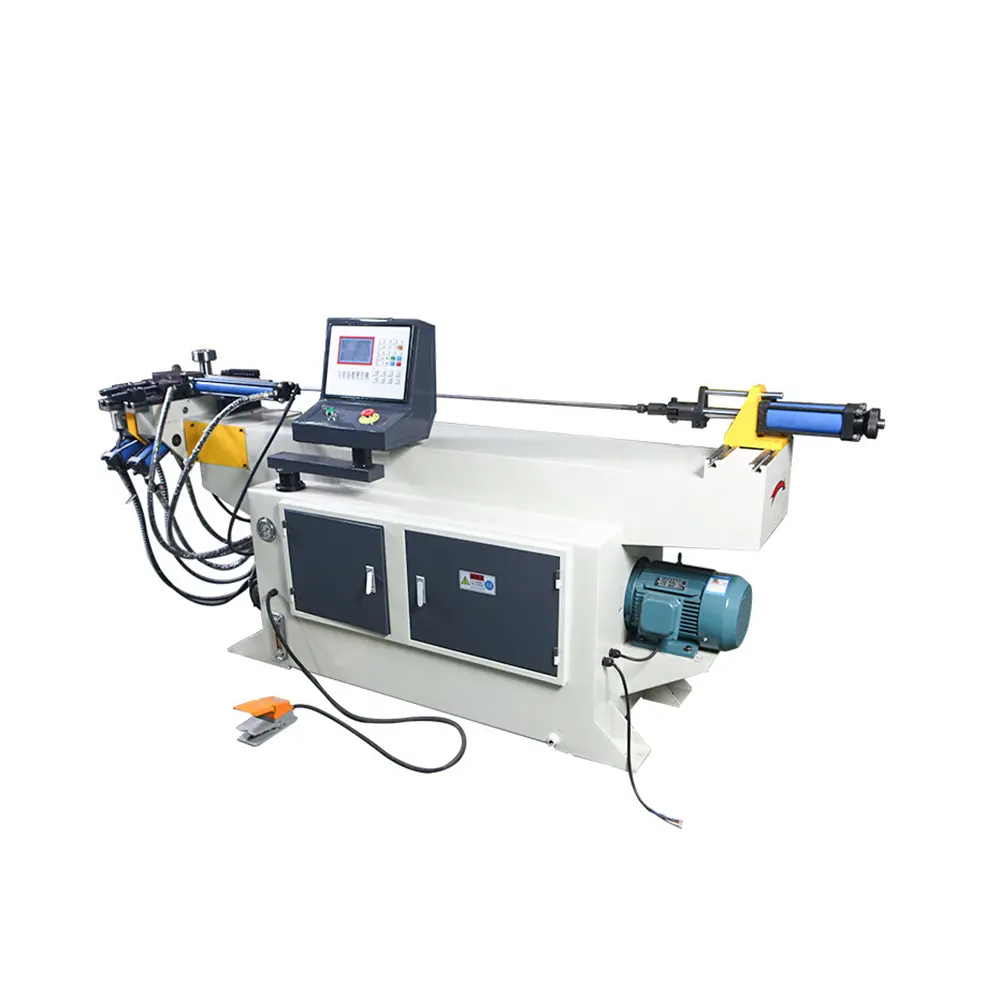

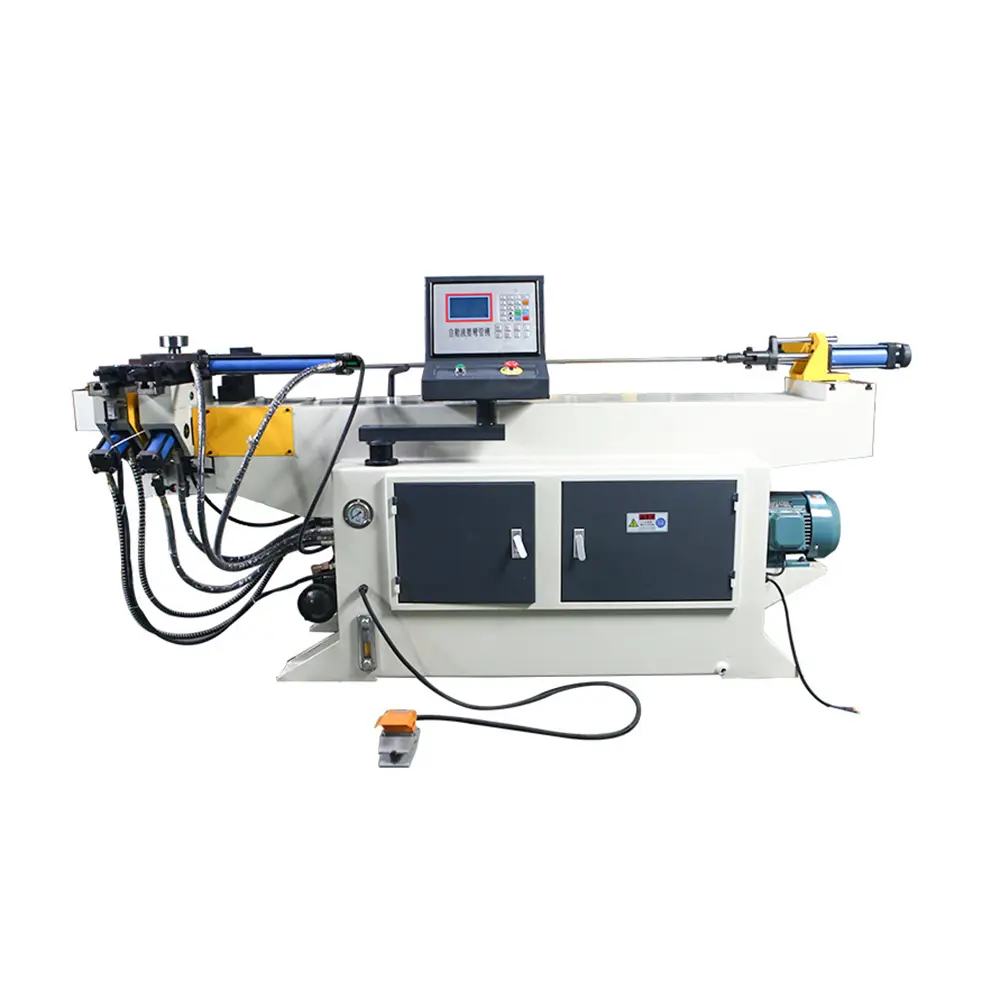

DW50NC Semi-Automatic Hydraulic Pipe Bending Machine

The DW50NC Semi-Automatic Hydraulic Pipe Bending Machine is a professional tube bending solution designed for high-precision bending of metal pipes,exhaust tubes,and various industrial tubing applications. Equipped with a powerful hydraulic drive system and NC control technology,this machine provides stable bending performance,accurate angles,and excellent production efficiency.

The DW50NC hydraulic pipe bender is widely used in automotive exhaust manufacturing,metal furniture production,boiler pipelines,fitness equipment,construction components,and general tube fabrication industries. It is suitable for bending carbon steel,stainless steel,aluminum,and other metal tubes.

Compared with traditional manual bending methods,the semi-automatic hydraulic tube bending machine reduces labor intensity,improves bending consistency,and delivers smoother pipe forming results. It is an ideal choice for factories requiring reliable tube processing equipment with high cost performance.

Advanced Hydraulic Pipe Bending Technology

The DW50NC adopts hydraulic transmission technology to provide strong and stable bending force.

Main functions:

Metal pipe bending
Exhaust pipe forming
Tube arc bending
Multi-angle pipe processing
Customized tube shaping

Hydraulic bending advantages:

Strong bending power
Smooth forming process
Reduced pipe deformation
High bending accuracy
Stable production performance

The hydraulic system ensures consistent bending quality even during continuous production.

NC Semi-Automatic Control System

The machine features an NC control system that combines easy operation with accurate control.

Main features:

Digital angle setting
Automatic bending control
Manual loading and unloading
Adjustable bending parameters
Simple operation interface

Benefits:

Easy operator training
Improved production efficiency
Reduced human error
Stable bending repeatability
Flexible production adjustment

The semi-automatic design provides an excellent balance between automation level and investment cost.

model
DW50NC



Max. Bending Capacity
○ round
MS:50×3mm;SS: 42×3mm
Square
40×40×2.5mm
┗ angle steel
40 mm
▭ rectangle
30×40mm
● rod
φ35mm
Square rod
30×30mm
Bending method
Hydraulic
Operate mode
Manual, semi auto,
Feeding, rotate and adjust angle
manual
Fit to Shapes
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material
steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language
Chinese, English, Spanish, Russian, or as requirement
range of bending radius
R35-R250mm
Max bending angle
220°
Bending precession
±0.1°
Bending speed
70°/sec
voltage
380/415 or as requirement
Total power
5.5 KW
Oil Tank Capacity
100 KG
Hydraulic oil
antiwear hydraulic oil
Standard Oil pressure
21MPA
Max oil temperature
60°
cooling method
Air-cooled or Water-cooled
operating mode
button , touch screen, footswitch
Maximum number of stored bending programs
20 set
Max number of elbow pipe each program
20 set
Oversize
3.05×1.05×1.35
weight
1500 KG

Professional Exhaust Pipe Forming Solution

The DW50NC is especially suitable for exhaust pipe manufacturing and tube forming applications. Exhaust pipe production commonly requires accurate bending,diameter consistency,and smooth curves to ensure proper installation and performance.

Applications:

Automobile exhaust pipes
Motorcycle exhaust systems
Muffler tubes
Engine pipes
Custom exhaust components

The machine helps manufacturers achieve high-quality pipe shapes while reducing processing time.

Wide Material Processing Capability

DW50NC Semi-Automatic Hydraulic Pipe Bending Machine can process:

Carbon Steel Pipe
Stainless Steel Tube
Mild Steel Tube
Aluminum Pipe
Copper Tube
Alloy Metal Tube

Suitable pipe applications:

Round Tubes
Exhaust Pipes
Structural Tubes
Industrial Pipes
Furniture Tubes
High Precision Tube Bending Performance
Smooth Pipe Bending

The hydraulic bending system provides gradual pressure to reduce wrinkles and deformation.

Accurate Bending Angles

NC control ensures consistent bending parameters for repeated production.

Excellent Surface Quality

Professional bending dies protect tube surfaces and maintain product appearance.

Efficient Production

Semi-automatic operation improves output compared with traditional manual tube bending.

Application Industries
Automotive Industry

Used for:

Exhaust systems
Vehicle tubing
Automotive components
Metal Furniture Industry

Applications:

Chair frames
Table structures
Decorative metal tubes
Construction Industry

Used for:

Steel structures
Handrails
Metal frameworks
Machinery Manufacturing

Applications:

Equipment pipelines
Mechanical components
Industrial tubing
Hardware Manufacturing

Used for:

Custom metal products
Precision tube parts
Advantages Compared With Traditional Pipe Bending
Higher Efficiency

Hydraulic power reduces manual effort and increases production speed.

Better Accuracy

NC control improves bending repeatability.

Lower Labor Cost

Semi-automatic operation reduces operator workload.

Flexible Applications

Suitable for different pipe materials and production requirements.

Durable Industrial Design

Strong machine structure supports long-term operation.

Key Features Of DW50NC Semi-Automatic Hydraulic Pipe Bending Machine
1. Hydraulic Drive System

Provides powerful and stable bending force.

2. NC Control Technology

Ensures accurate and repeatable bending operations.

3. Exhaust Pipe Processing Capability

Suitable for automotive exhaust tube manufacturing.

4. Multiple Tube Applications

Supports various metal pipe materials.

5. Easy Operation Design

Suitable for small and medium production factories.

6. Customized Tooling Options

Different bending dies can be supplied according to pipe sizes.

Why Choose Our DW50NC Semi-Automatic Hydraulic Pipe Bending Machine?
Professional Pipe Processing Machine Manufacturer

We specialize in manufacturing hydraulic tube bending machines and complete pipe processing solutions for global customers.

Reliable Hydraulic System

High-quality hydraulic components provide stable performance and long service life.

Cost-Effective Automation

The semi-automatic design improves efficiency while maintaining affordable investment.

Customized Solutions

Pipe diameter,bending radius,tooling configuration,control system,and machine specifications can be customized.

Factory Direct Supply

Direct manufacturing ensures competitive pricing,reliable quality,and technical support.

Complete After-Sales Service

We provide installation guidance,operation training,maintenance support,and spare parts service.

FAQS
Q1: What is the DW50NC Semi-Automatic Hydraulic Pipe Bending Machine used for?

It is used for bending metal tubes,exhaust pipes,and industrial pipes with hydraulic forming technology.

Q2: What materials can this machine bend?

It can bend carbon steel,stainless steel,aluminum,copper,and other metal tubes.

Q3: What is the advantage of NC control?

NC control improves bending accuracy,reduces operation errors,and provides repeatable production results.

Q4: Is this machine suitable for exhaust pipe production?

Yes. It is widely used for automotive exhaust pipe bending and tube forming applications.

Q5: What is the maximum bending capability?

The bending capacity depends on the machine configuration,pipe diameter,and material thickness.

Q6: Does the machine require skilled operators?

The semi-automatic NC design makes operation simple and reduces training requirements.

Q7: Can the machine be customized?

Yes. Bending capacity,tooling,pipe size range,and automation functions can be customized.
