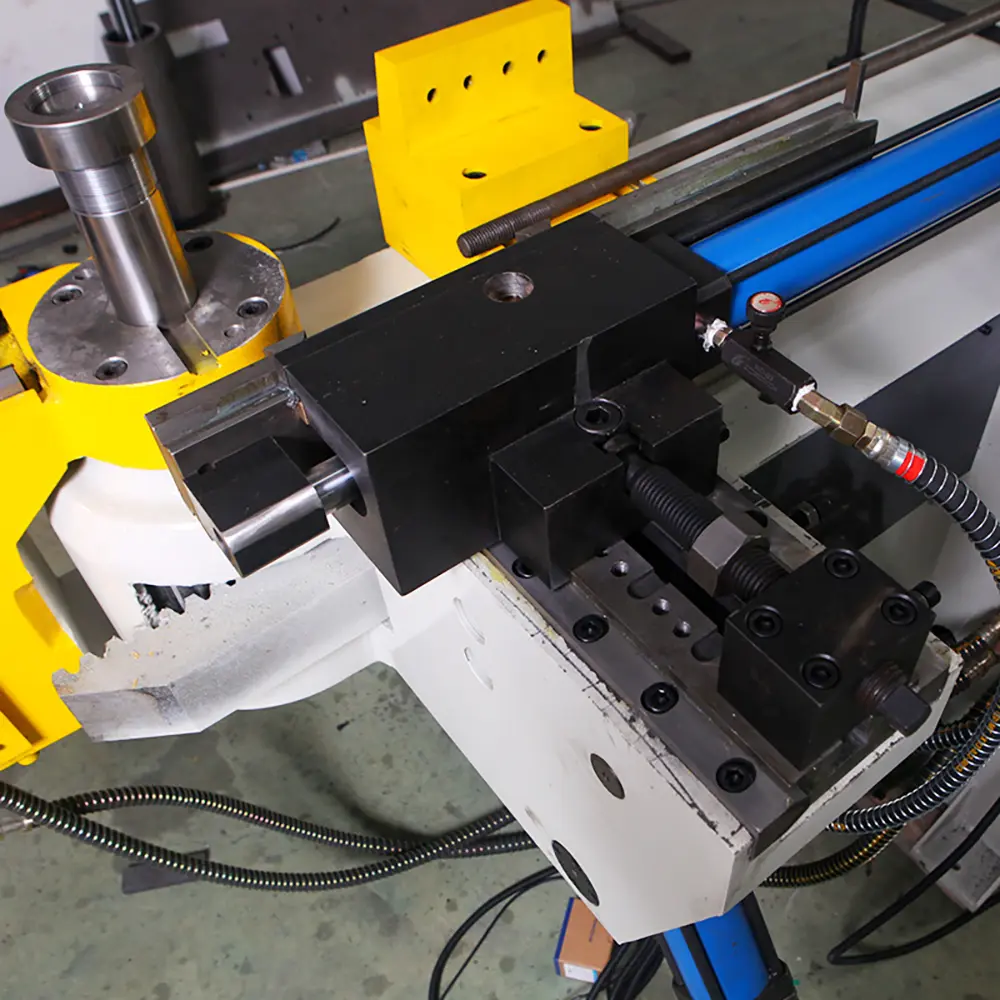

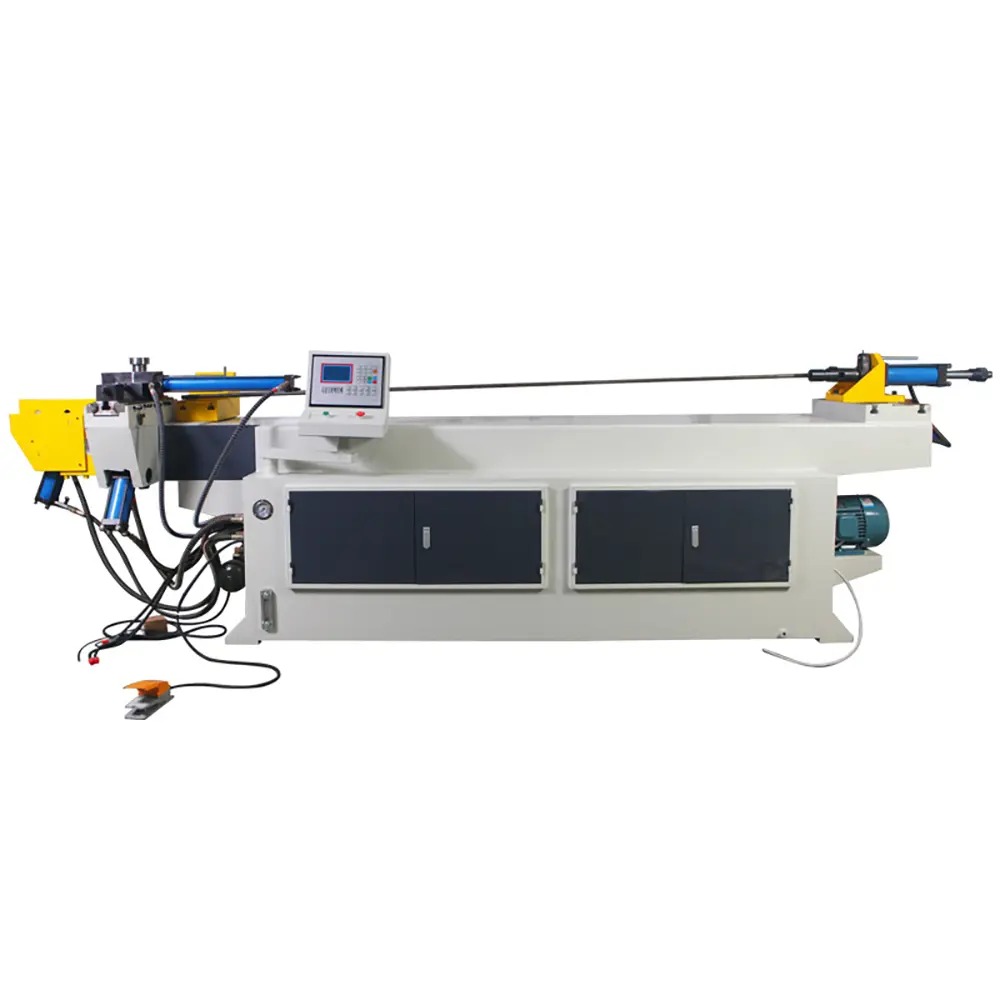

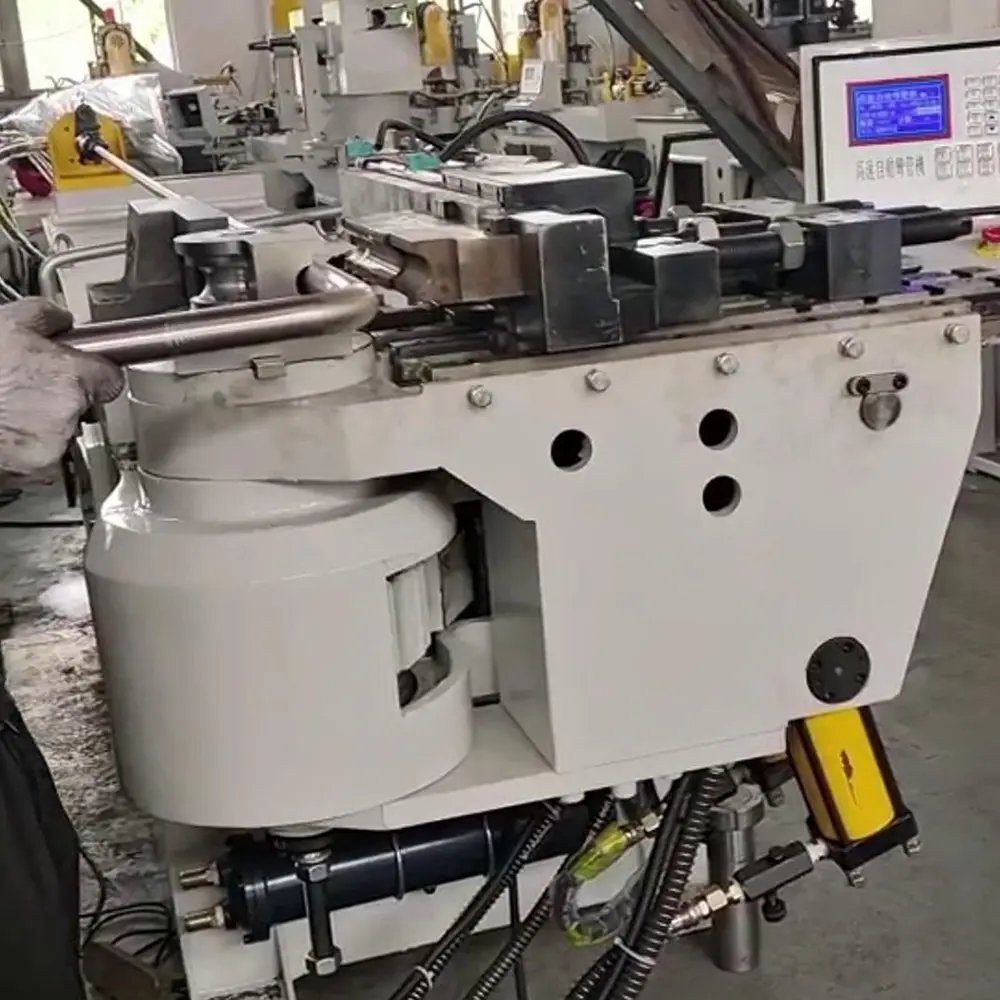

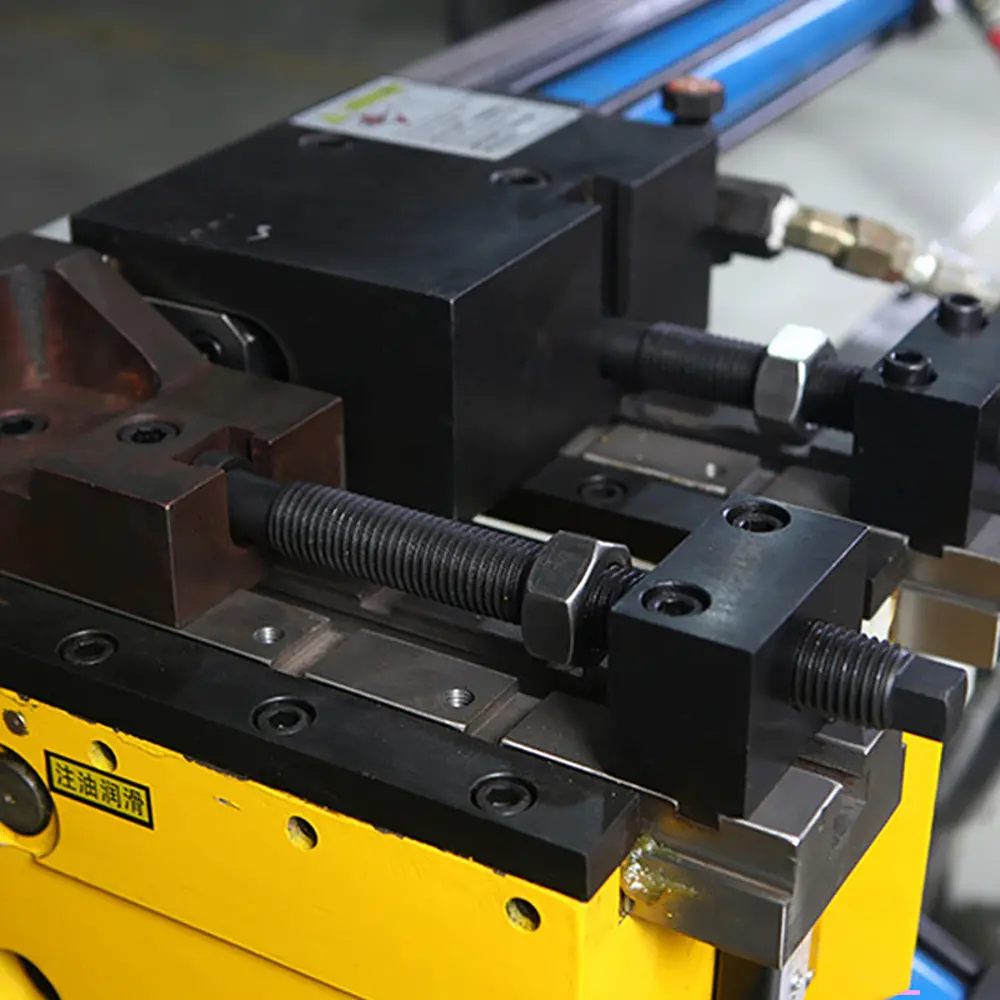

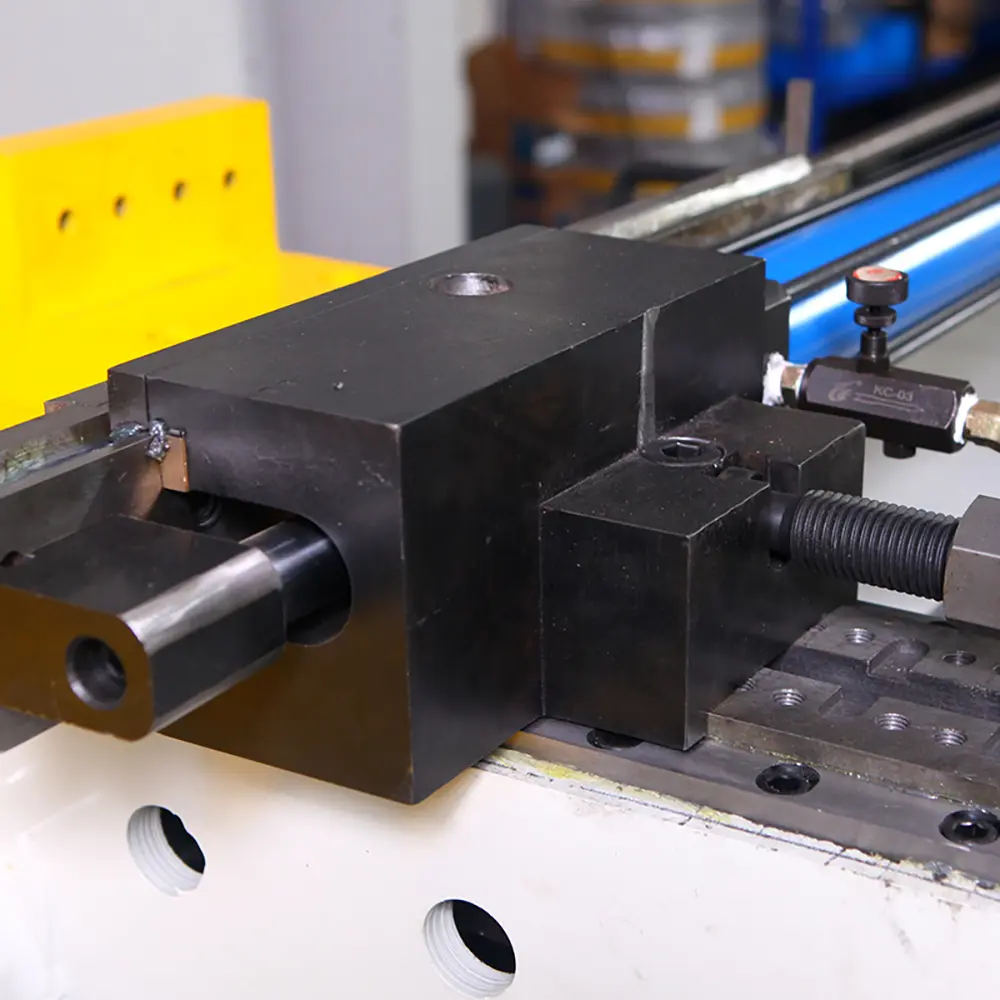

DW75NC Semi-Automatic Hydraulic Pipe Bending Machine Technical Parameters

model DW75NC Max. Bending Capacity ○ round MS: 756mm;SS: 634mm Square 60604mm ┗ angle steel 60 mm ▭ rectangle 6040mm ● rod 50mm Square rod 4040mm Bending method Hydraulic Operate mode Manual, semi auto, Feeding, rotate and adjust angle manual.

model
DW75NC



Max. Bending Capacity
○ round
MS: 75×6mm;SS: 63×4mm
Square
60×60×4mm
┗ angle steel
60 mm
▭ rectangle
60×40mm
● rod
φ50mm
Square rod
40×40mm
Bending method
Hydraulic
Operate mode
Manual, semi auto,
Feeding, rotate and adjust angle
manual
Fit to Shapes
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material
steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language
Chinese, English, Spanish, Russian, or as requirement
range of bending radius
R50-R400mm
Max bending angle
180°
Bending precession
±0.1°
Bending speed
45°/sec
voltage
380/415 or as requirement
Total power
10.5 KW
Oil Tank Capacity
220 KG
Hydraulic oil
antiwear hydraulic oil
Standard Oil pressure
20 MPA
Max oil temperature
60°
cooling method
Air-cooled or Water-cooled
operating mode
button , touch screen, footswitch
Maximum number of stored bending programs
300
Max number of elbow pipe each program
30
Oversize
5.65×1.015×1.26m
weight
3.5 T
