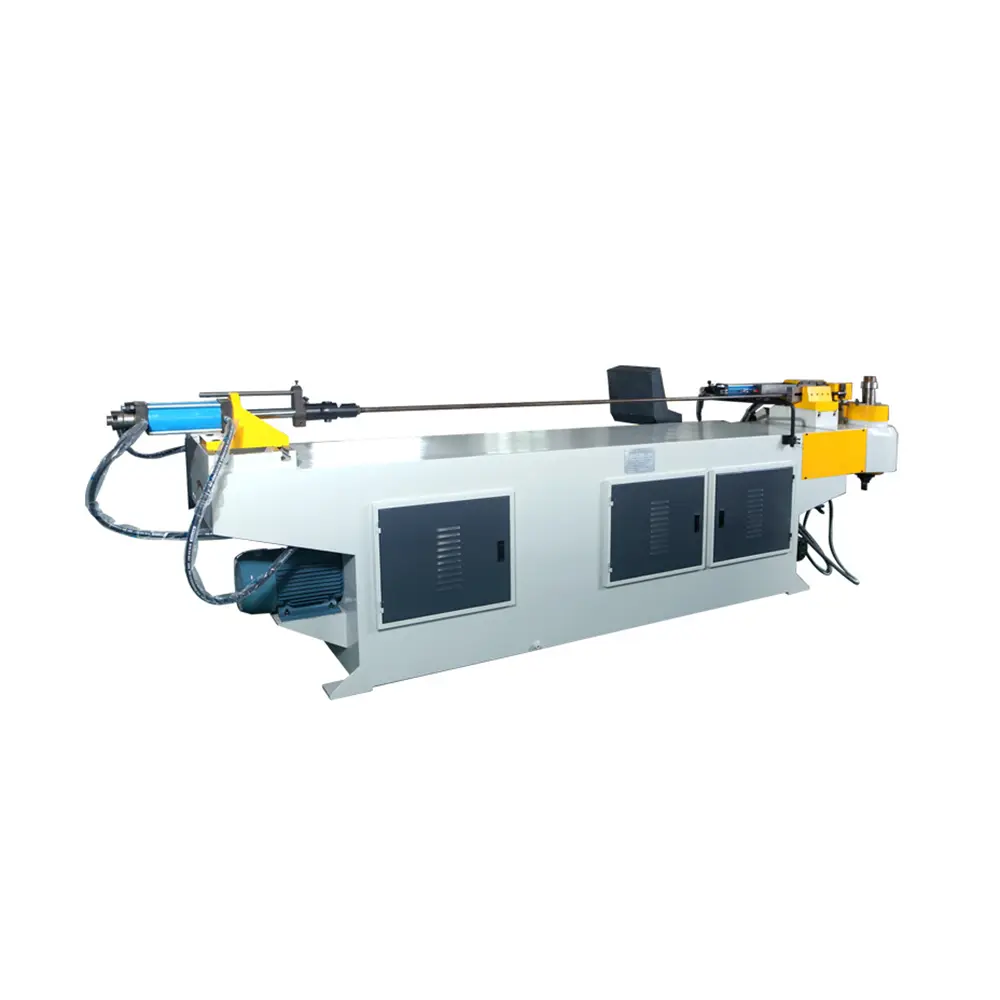

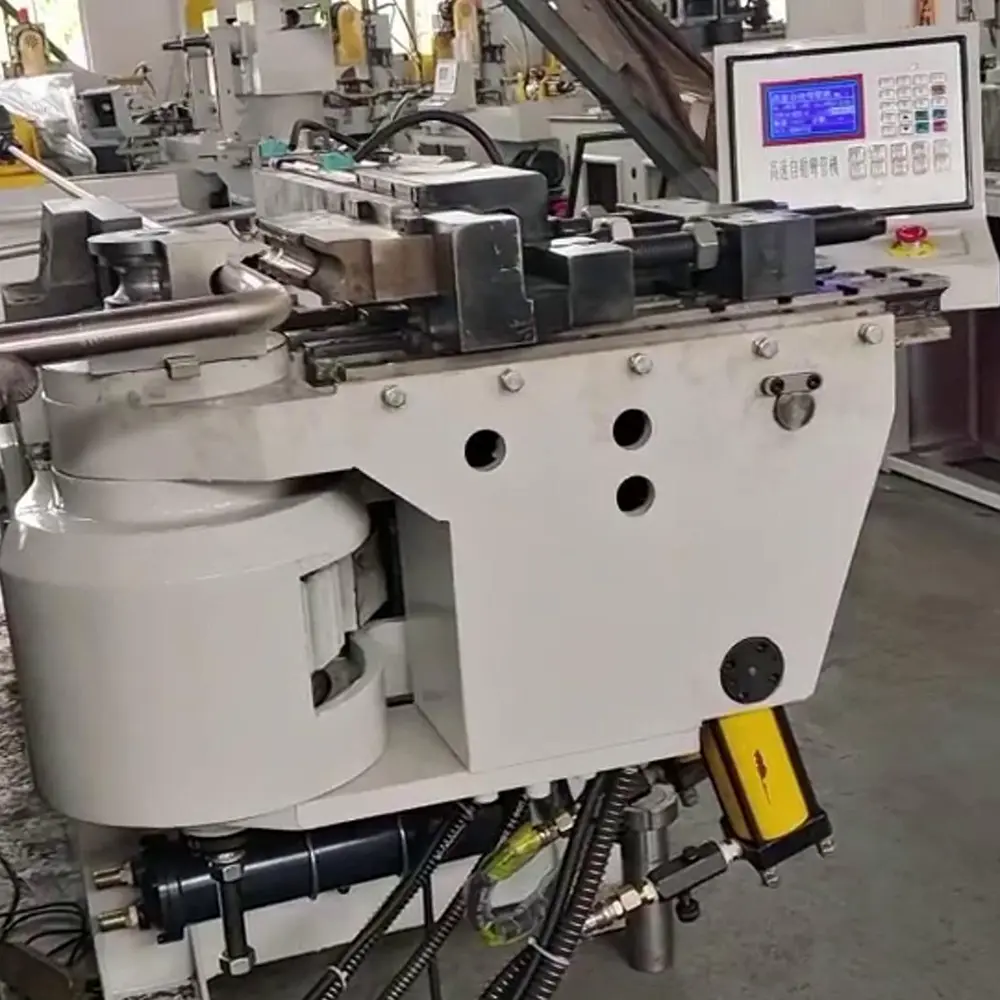

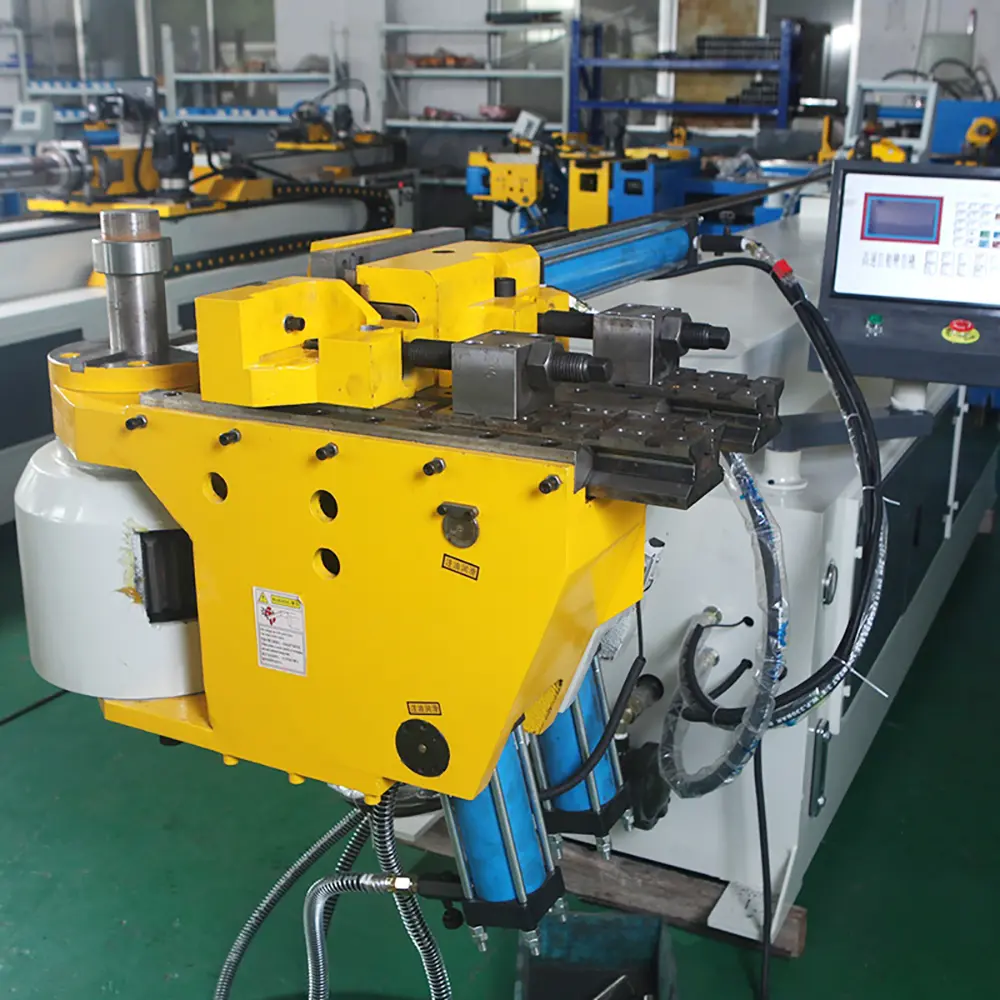

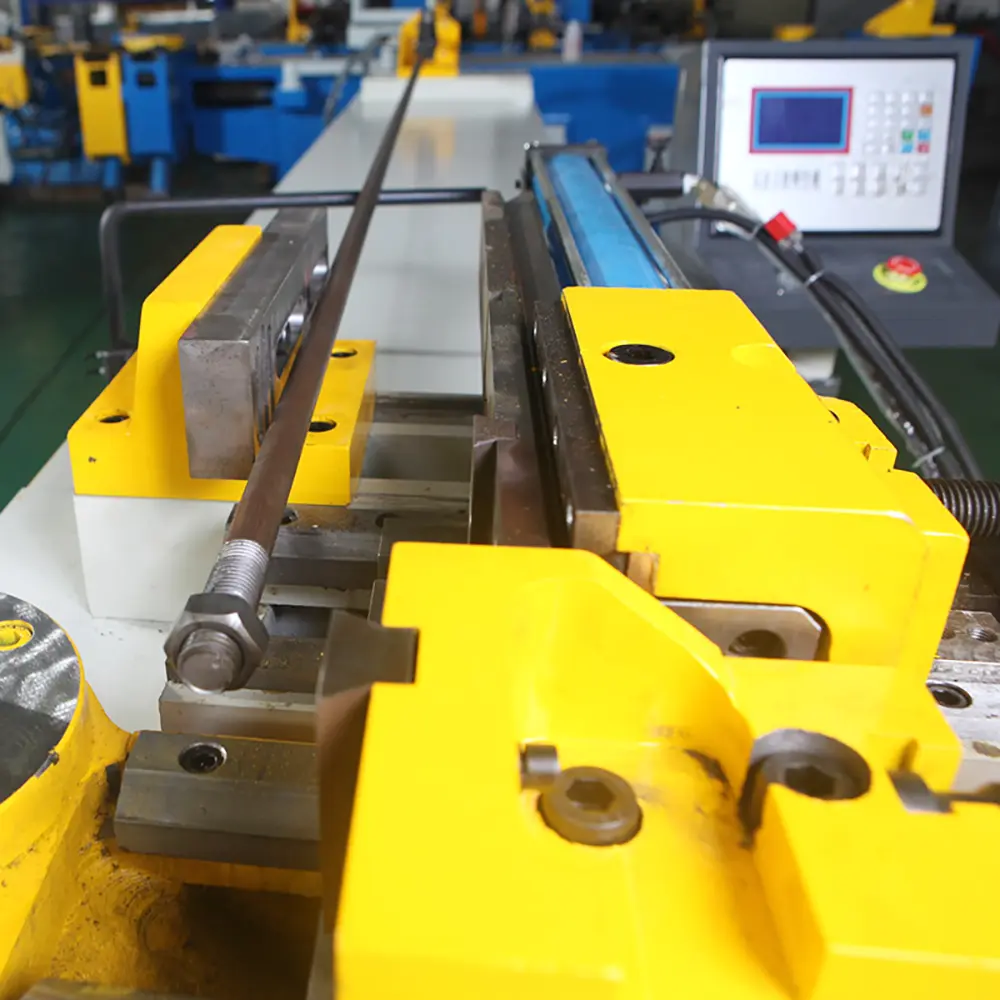

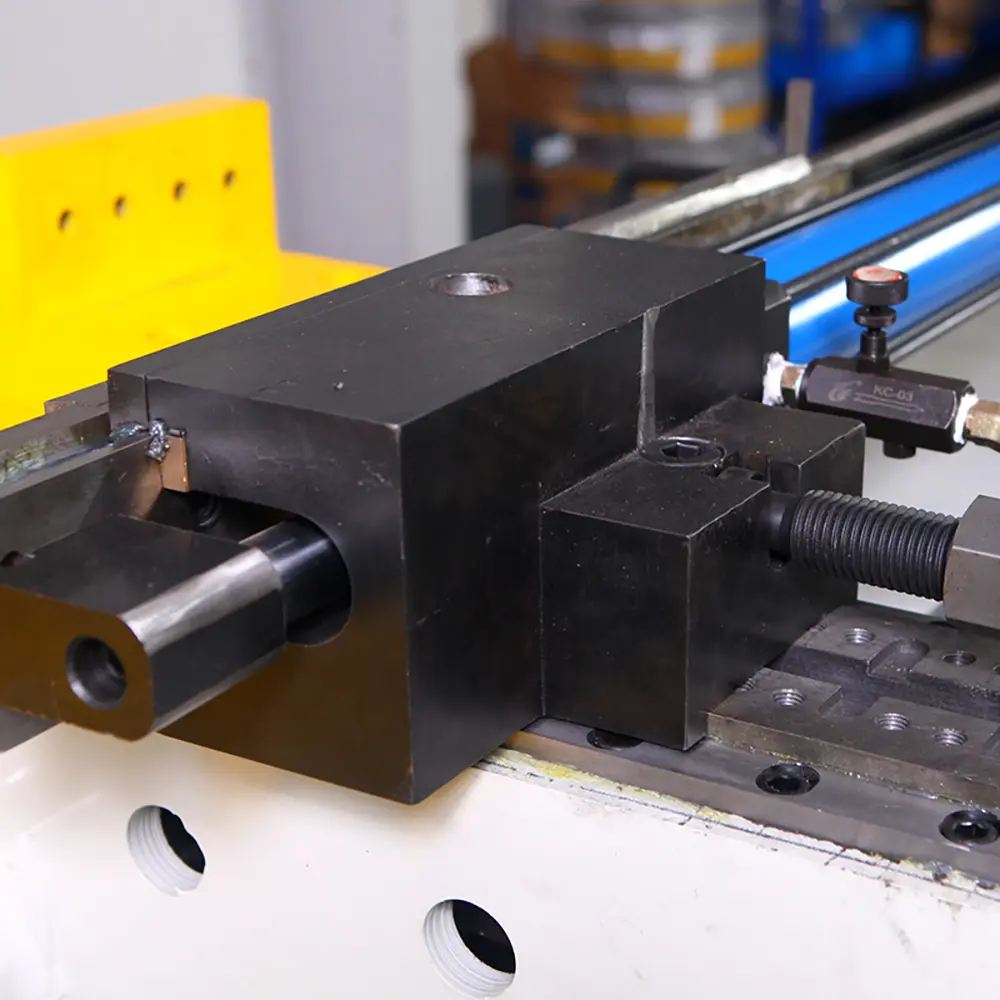

DW114NC Semi-Automatic Hydraulic Pipe Bending Machine Technical Parameters

Model DW114NC Max. Bending Capacity ○ round MS:1158mm;SS: 897mm □ Square 80805mm ┗ angle steel 85mm ▭ rectangle 60110mm ● rod 75mm ■ Square rod 6060mm Operate mode Manual, semi auto, Feeding, rotate and adjust angle manual Fit to Shapes R.

Model DW114NC



Max. Bending Capacity
○ round MS:φ115×8mm;SS: φ89×7mm
□ Square 80×80×5mm
┗ angle steel 85mm
▭   rectangle 60×110mm
● rod Φ75mm
■ Square rod 60×60mm
Operate mode Manual, semi auto,
Feeding, rotate and adjust angle manual
Fit to Shapes Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language Chinese, English, Spanish, Russian, or as requirement
range of bending radius R50-R550mm
Max bending angle 190°
Bending precession ±0.1°
Bending speed    30°/sec
voltage 380/415 or as requirement
Total power 12 KW
Oil Tank Capacity 300L
Hydraulic oil antiwear hydraulic oil
Standard Oil pressure 21 MPA
Max oil temperature 50°
cooling method Air-cooled or Water-cooled
operating mode button , touch screen, footswitch
Maximum number of stored bending programs 20
Max number of elbow pipe each program    20
Oversize 5.6×1.35×1.55M
weight 5.3 T
