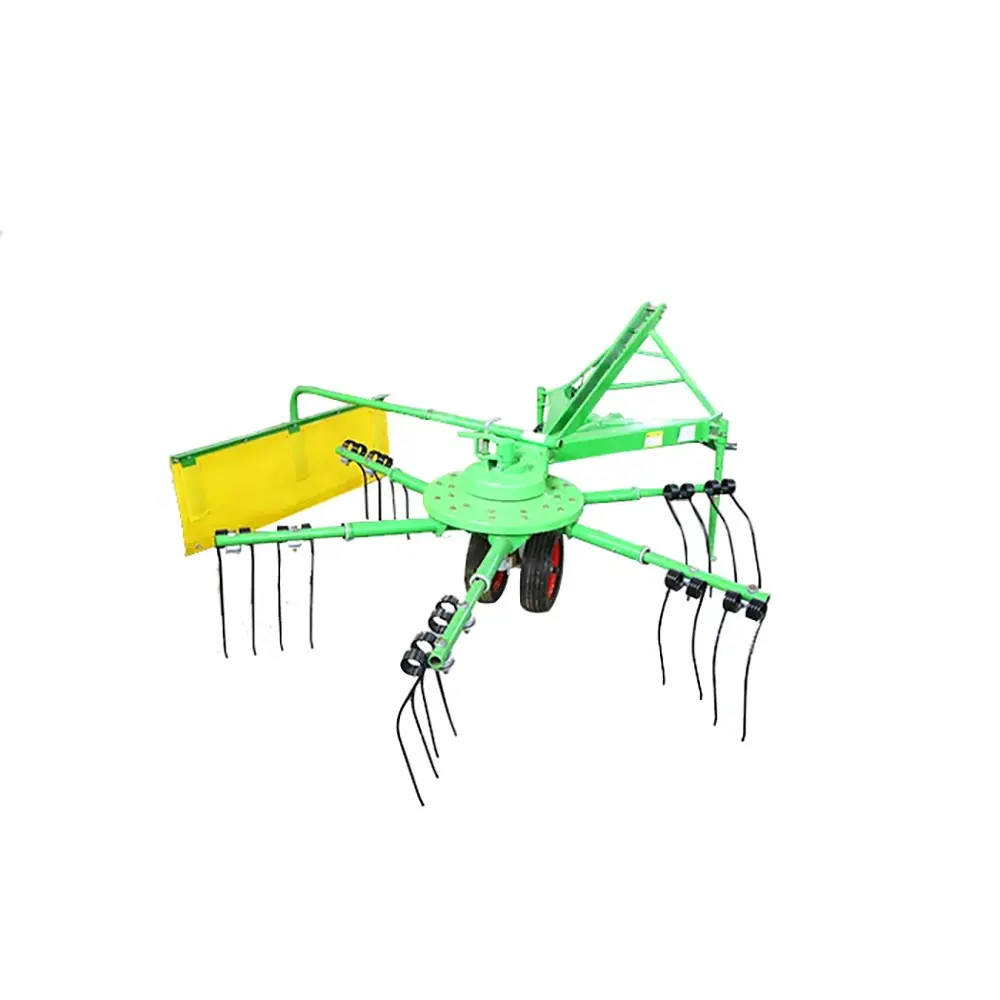

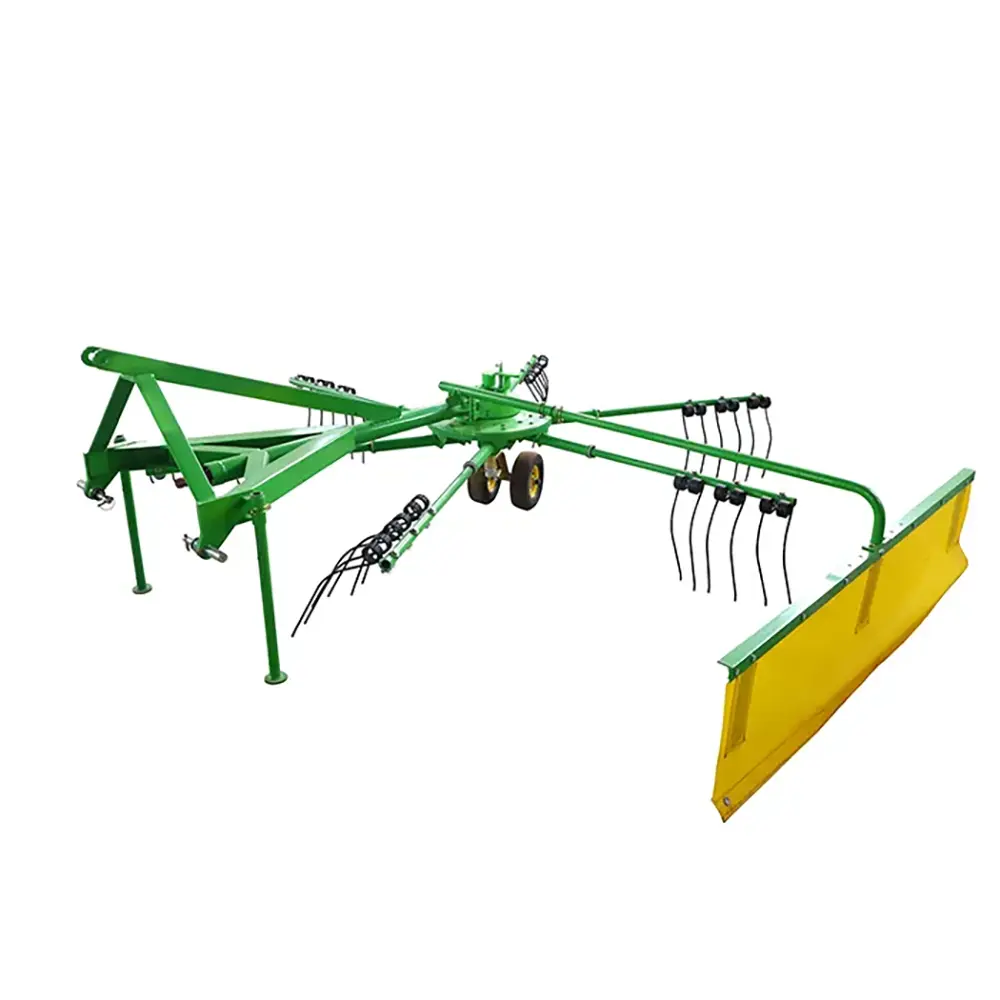

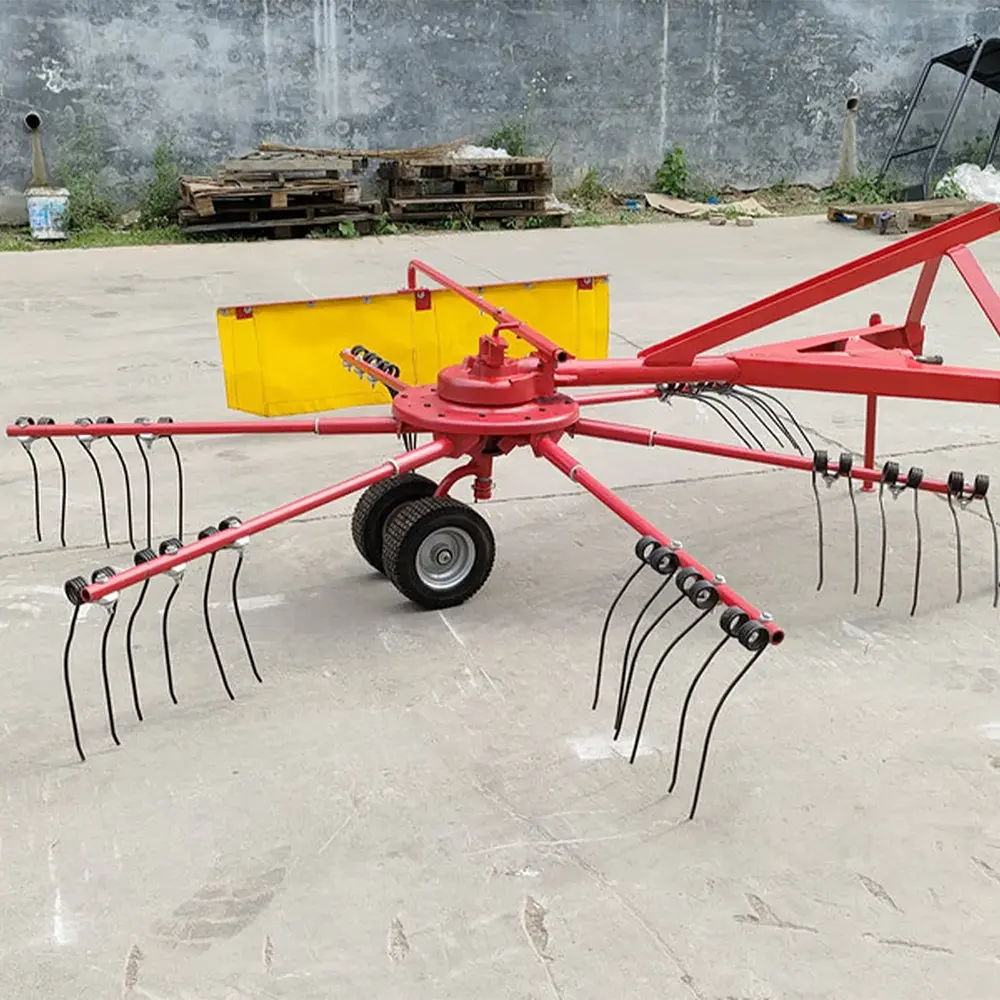

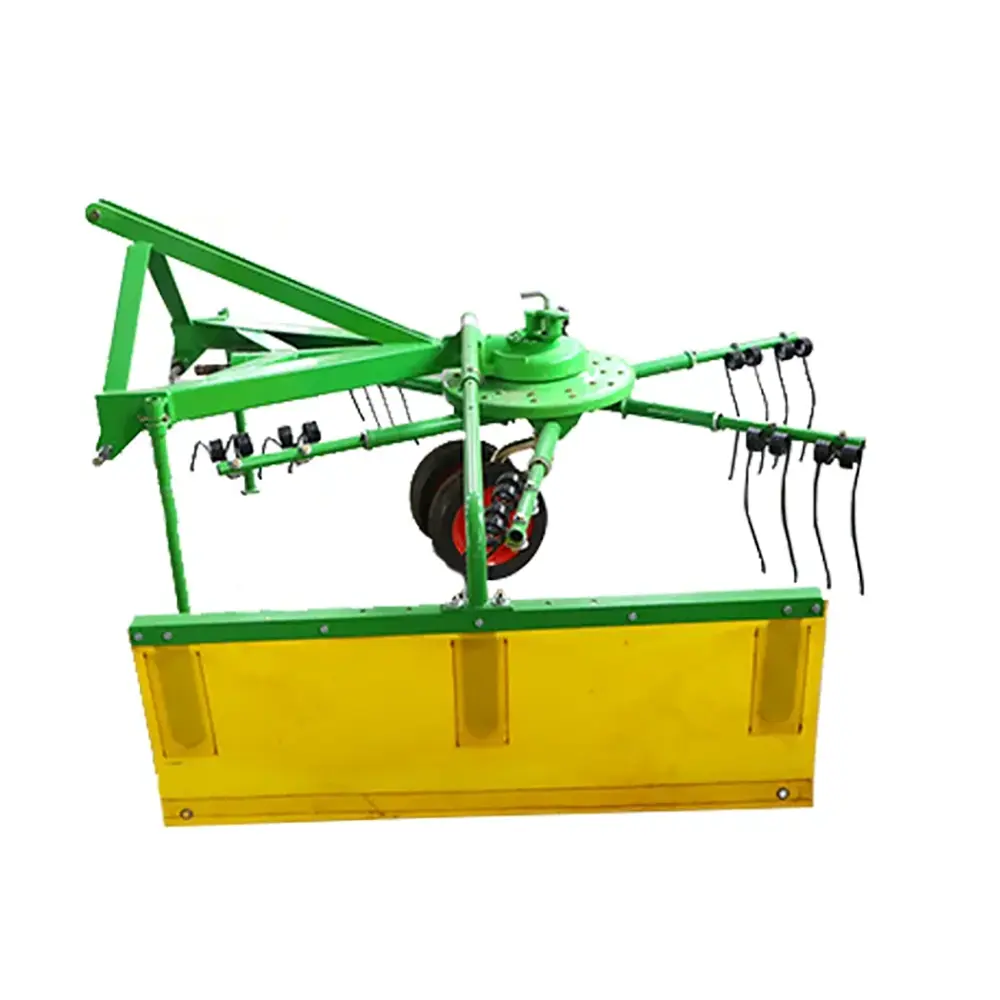

Durable Tractor PTO Driven Hay Rake Technical Parameters

PTO driven hay rakes designed for efficient hay, straw, and forage collection. Heavy-duty construction, high productivity, low maintenance, and OEM customization available..

Hay rake description
As a tedder: it can spread and flip the green-cut materials and withdraws, for drying evenly.
1). Spread, swath or windrow so crops dry down faster,
2). Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine position,
3). Fixed-tine position provides aggressive tedding and is ideal for use in fresh-cut material or crops where leaf and shatter losses are not a concern
4).Cam-operated tine position allows the tine bar rollers to follow the cam track to lift and release crop gently and save valuable leaves

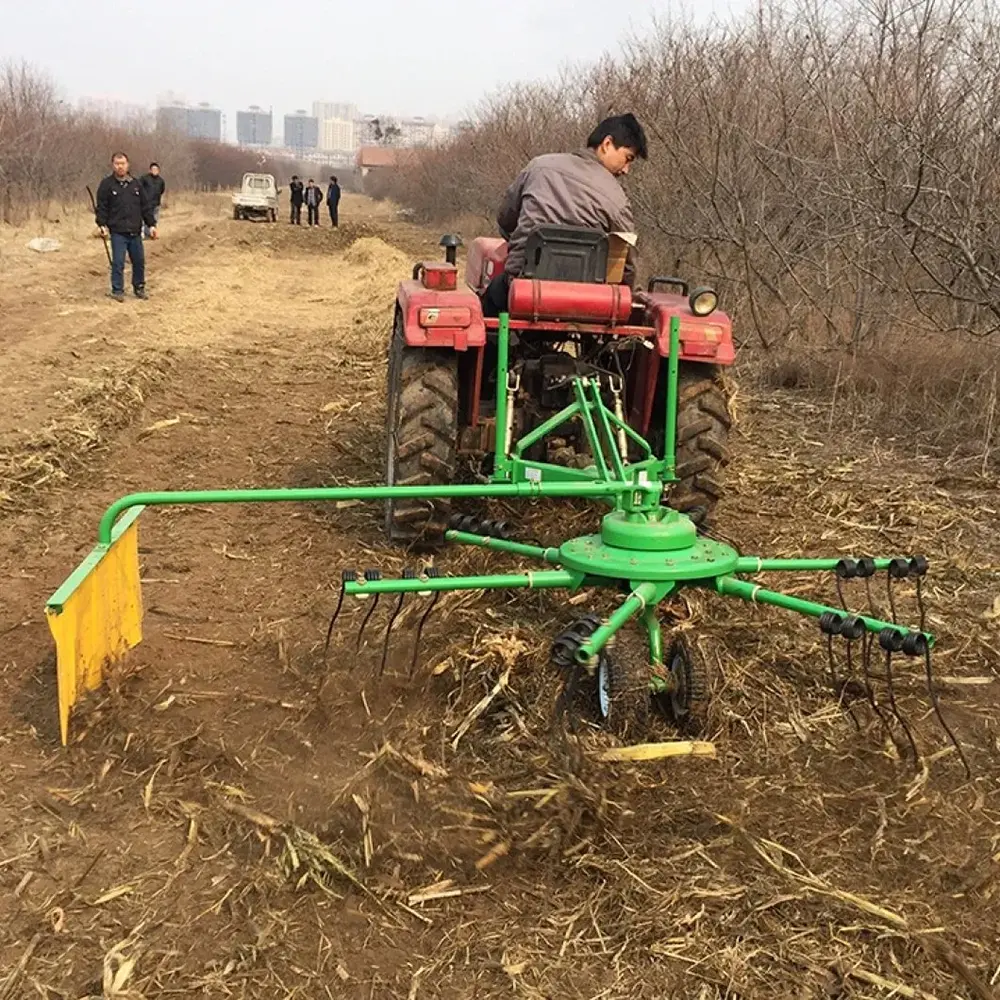

As a rake: it can collect teh dried materials into lines fro balers to pick up and pack them.
1). Precise raking action produces fluffy, uniform windrows that dry evenly
2). Self-centering wheels provide extral maneuverability by allowing you to make sharp turns and back up easily without lifting the machine.

Hay rake feature

1.Strong, rugged frame provides years of dependable performance.

2.Rotor tilt can be adjusted easily with a convenient crank for maximum crop handling.

3.Torque limiting clutch on the heavy-duty PTO provides overload protection. PTO speed is variable, so you can match ground   speed  to crop and field conditions.

4.Three wheel-height position let you adjust for different crops, conditions and operations.

5.Vertical tines pick up fewer stones and less debris than horizontal tines for cleaner tedding and raking.

6.Cam track adjustment allows you to quickly tailor tedding/raking action to varying crops and conditions without tools.

7.Convenient jack simplifies three-point hitch arrangements.

8.one machine, three functions, tedding, raking, and reversing multi-functionsHay rake specification

Model   HT2500 HT3500 HT400
Tedding   width 250cm   350cm 400cm
Dimension   2100x2500x950mm 3100*3500*1000mm 4010x3539x1196mm
Weight   160kg 200kg 290kg
Tines   of per rotors 4 6 6
No   of rotors 6 8 8
Working   speed 4-8km/h 4-8km/h 4-8km/h
Matched   power 18-50hp   20-80hp 35-80hp
PTO   RPM 540r/m 540r/m 540r/m


The Durable Tractor PTO Driven Hay Rake is a high-performance agricultural implement designed to simplify hay and forage collection while improving harvesting efficiency. Powered directly by the tractor PTO system, this machine delivers reliable operation, excellent raking performance, and uniform windrow formation for faster drying and easier baling.

Manufactured with a reinforced steel frame, premium spring steel tines, and a heavy-duty transmission system, the hay rake is built to withstand intensive agricultural use. It is suitable for small family farms, large commercial operations, and professional agricultural contractors.
