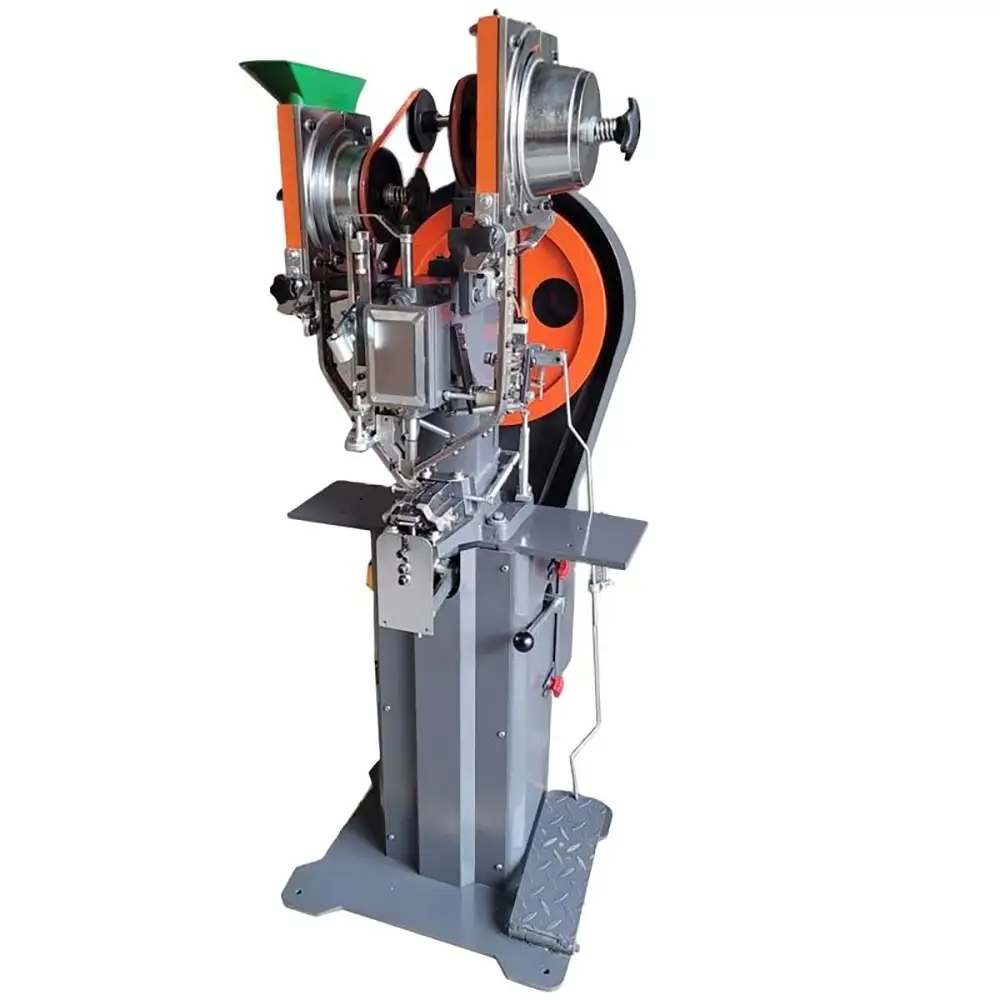

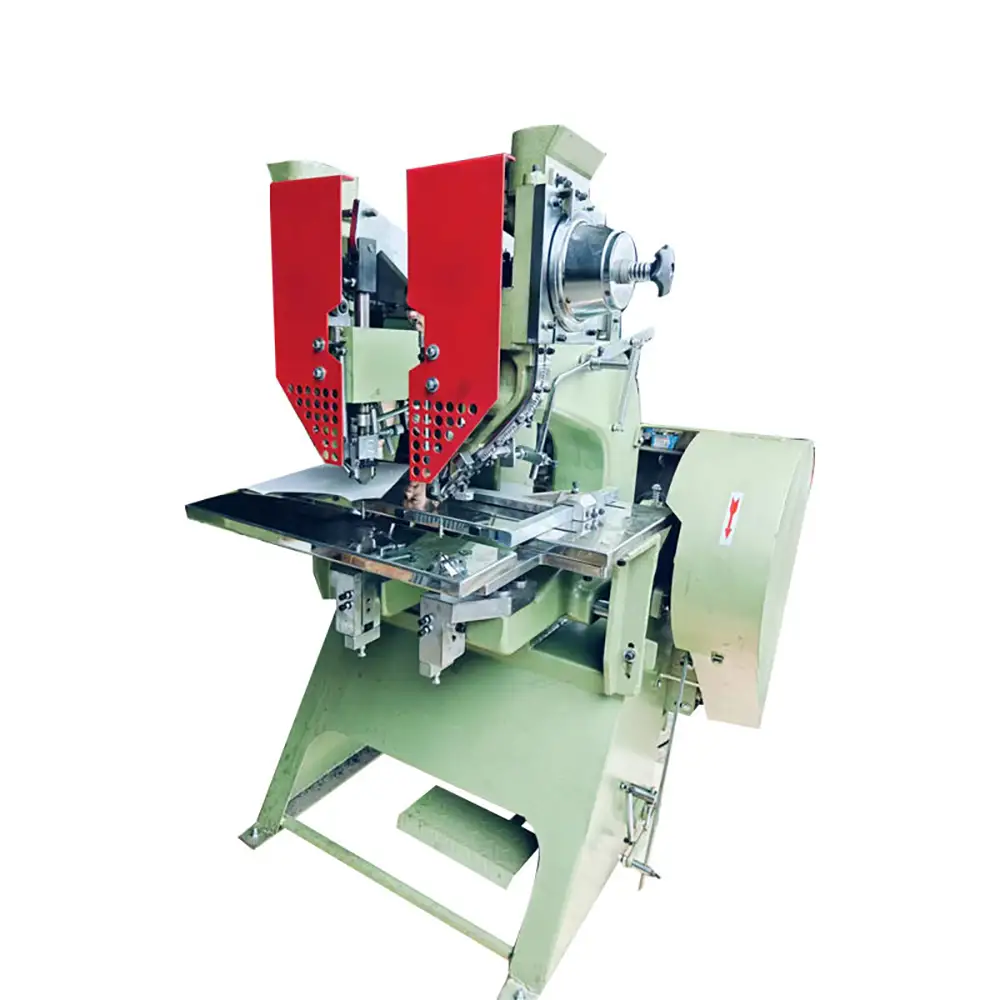

Double Heads Riveting Machine

Function of riveting machine for  down light ring, light ring, lamp bottom,
1 Fit for riveting the spherical head, half-hollow rivets
2 With automatic feeding device, which can rivet continuously
3 The clamp and punch of high-performance is of a high riveting capability
4 Can rivet clinch of various specifications if the die is changed
 Usage: rivet tow rivets one time, distance between two holes can be adjuested

Model	HSR-M60
Rivet nail top diameter	Φ5-12mm
Rivet nail diameter	Φ3-6mm
Rivet nail  length	3-20mm
Throat depth	250mm
Riveting height	600mm
Distance can be adjusted	14-60mm
Power	3/4, HP
Machine dimensions(L×W×H)	600×900×1650mm3
Net weight	325kg
Gross weight	350kg
Packing	Wooden cases

The Double Heads Riveting Machine is an efficient industrial fastening solution designed for manufacturers that need consistent, repeatable, and productive riveting operations. Equipped with two riveting heads, the machine can be configured to perform two riveting operations within the same working cycle or support specialized fastening processes that require dual riveting positions.

Compared with conventional single-head riveting equipment, a double-head configuration can provide greater production flexibility and help reduce repetitive positioning operations. It is particularly useful for products that require two rivets, two fastening points, symmetrical riveting, or repeated riveting operations on the same workpiece.

The machine can be used across a wide range of industries, including clothing, footwear, leather goods, luggage, bags, hardware, metal components, furniture accessories, and general industrial manufacturing. Depending on the application, different riveting heads, dies, fixtures, feeding systems, and control configurations can be selected.

Efficient Double-Head Riveting

The main feature of the machine is its two-head riveting configuration. Instead of completing every fastening point with a single riveting head, the dual-head structure can support two riveting positions within one production setup.

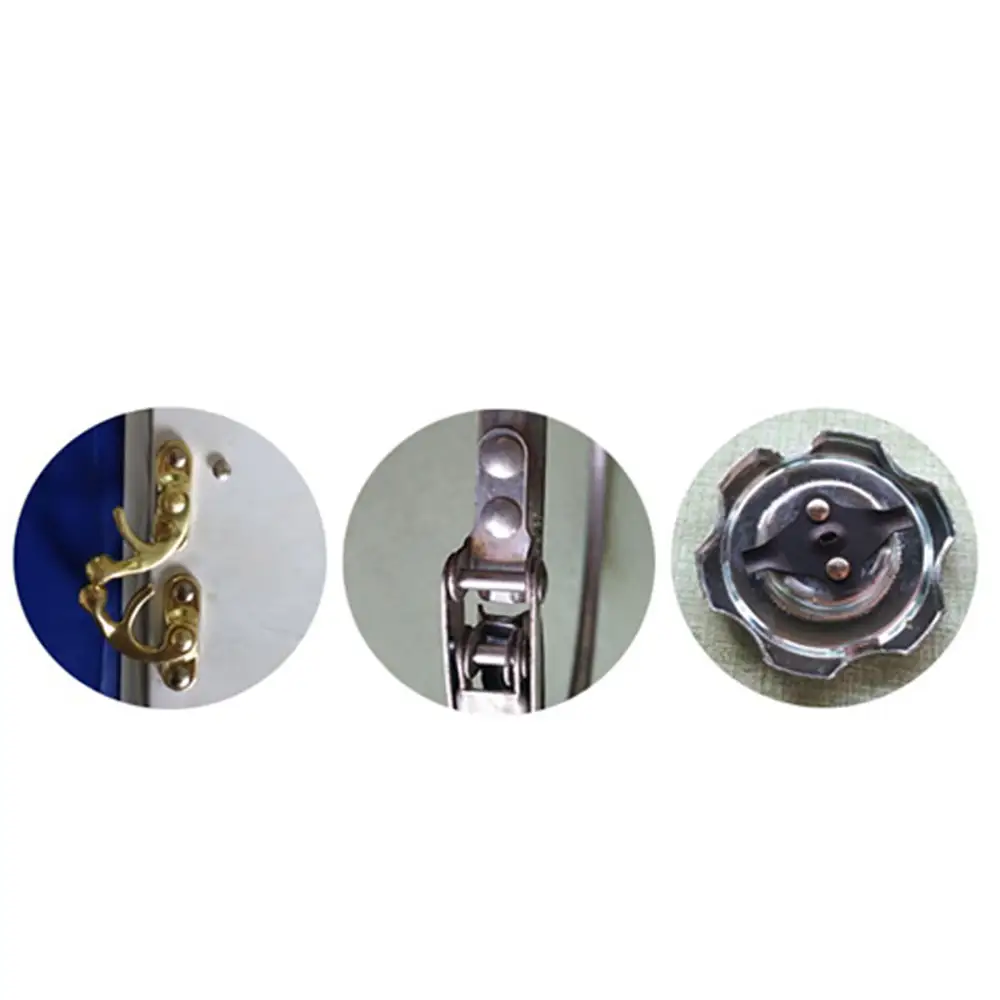

This design can be especially useful for products where two rivets need to be installed at fixed positions. With suitable tooling and workholding fixtures, the machine can help maintain consistent spacing and positioning between the two fastening points.

Typical applications include:

Two-point hardware fastening
Double rivet installation
Symmetrical rivet fastening
Bag and leather hardware
Shoe hardware
Clothing rivets
Metal components
Furniture hardware
Industrial fastening
Repetitive assembly operations

The actual working method depends on the machine configuration and the specific product requirements.

Double Head Riveting for Clothing

Clothing and garment manufacturers frequently use rivets and metal hardware for functional and decorative purposes. Jeans, jackets, workwear, bags, and other textile products may require multiple rivets at predetermined positions.

The Double Heads Riveting Machine can be configured with suitable dies and positioning fixtures for compatible garment applications.

Potential clothing applications include:

Jeans and denim
Jackets
Workwear
Uniforms
Fashion garments
Garment accessories
Clothing labels
Textile hardware
Decorative rivets
Reinforcement rivets

For garment production, accurate positioning is important because incorrect riveting can affect both product appearance and fastening quality. A dedicated fixture can help maintain consistent positioning during repeated operations.

Double Head Riveting for Leather Goods and Bags

Leather goods often require multiple rivets to secure straps, handles, buckles, reinforcement areas, and decorative hardware. The flexible nature of leather makes stable positioning particularly important during riveting.

The machine can be equipped with suitable tooling for compatible leather products such as:

Handbags
Backpacks
Wallets
Belts
Luggage
Leather accessories
Tool bags
Travel bags
Straps
Leather cases

For different leather thicknesses and hardware designs, tooling should be selected according to the actual product.

Hardware Riveting Applications

The Double Heads Riveting Machine is also suitable for various hardware fastening operations. Manufacturers producing metal components can use customized dies and fixtures to install compatible rivets or fasteners.

Potential hardware applications include:

Metal brackets
Hardware accessories
Furniture hardware
Construction hardware
Mechanical components
Metal fittings
Industrial assemblies
Small metal parts
Decorative hardware
General fastening components

The suitability of the machine depends on the rivet material, rivet diameter, workpiece thickness, required forming force, and product geometry.

How a Double Heads Riveting Machine Works

A typical riveting process begins with positioning the workpiece inside a dedicated fixture. Compatible rivets or fasteners are then placed in the required positions.

The two riveting heads are aligned with the corresponding fastening points. Once the machine is activated, the riveting heads apply controlled force to form or secure the rivets.

A typical process includes:

Prepare the workpiece.
Position the product in the fixture.
Load the required rivets or fasteners.
Align the two riveting positions.
Activate the riveting cycle.
The two heads perform the riveting operation.
Remove the finished workpiece.
Inspect the riveted areas.

Depending on the machine design, the two heads may operate simultaneously or according to a specific programmed sequence.

Production Efficiency

One of the key advantages of a double-head configuration is the potential to reduce repetitive handling and positioning operations.

When two fastening points can be processed during the same cycle, the operator may spend less time repositioning the workpiece between riveting operations. This can contribute to a more efficient production workflow for suitable products.

The actual production rate depends on:

Rivet type
Product size
Product geometry
Loading method
Operator workflow
Tooling design
Riveting force
Machine configuration
Feeding system

For high-volume production, automated or semi-automatic feeding systems can be considered where compatible with the selected rivets.

Consistent Riveting Quality

Consistent positioning and controlled riveting force are important for industrial production. The machine can use dedicated tooling to maintain repeatable riveting positions across multiple workpieces.

A properly designed fixture can help prevent unwanted product movement during the riveting cycle. This is especially useful for small components, flexible materials, and products requiring accurate rivet spacing.

Quality checks may include:

Rivet head formation
Rivet position
Rivet spacing
Fastening strength
Surface appearance
Material deformation
Product alignment
Overall assembly quality

Sample testing is recommended when introducing a new rivet, material, or product design.

Customized Riveting Heads and Tooling

Different products require different riveting configurations. The machine can be equipped with customized upper and lower dies, riveting heads, positioning fixtures, and other tooling according to the application.

Customization may include:

Rivet diameter
Rivet head shape
Rivet length
Distance between two riveting heads
Product positioning
Special-shaped fixtures
Different material thicknesses
Multiple product models

The distance and configuration of the two heads should be determined according to the actual product dimensions and fastening requirements.

Double Station and Two-Point Riveting

For products that require two separate fastening positions, a double-head design can provide an efficient production solution.

Depending on the machine structure, the two heads can be configured for two-point riveting, symmetrical fastening, or other specialized operations. This makes the equipment useful for products where maintaining a fixed relationship between two rivets is important.

For example, two rivets can be positioned on opposite sides of a component, along a strap, or at two predefined fastening points.

Suitable for OEM Production

The Double Heads Riveting Machine is suitable for OEM manufacturers and factories producing customized hardware or finished products.

Manufacturers can provide product samples, drawings, rivet specifications, material information, and production requirements for evaluation.

Based on these details, the machine can be configured with suitable:

Riveting heads
Dies
Fixtures
Feeding systems
Pneumatic or hydraulic systems
Control systems
Safety protection
Automation options

This makes the machine suitable for both standard and customized B2B manufacturing applications.

Why Choose Our Double Heads Riveting Machine?
1. Double Riveting Heads

The dual-head configuration supports two fastening positions and can improve production efficiency for suitable products.

2. Improved Production Workflow

Two riveting operations can potentially be completed within the same production cycle, reducing repetitive repositioning.

3. Wide Application Range

The machine can be used for clothing, shoes, bags, leather goods, hardware, metal components, and industrial products.

4. Customized Tooling

Different dies, fixtures, riveting heads, and positioning systems can be developed according to product requirements.

5. Consistent Riveting Quality

Dedicated tooling and controlled riveting operations support repeatable fastening results.

6. Flexible Product Configuration

The distance and arrangement of the two riveting heads can be evaluated according to the workpiece and fastening points.

7. B2B Production Ready

The machine is suitable for factories, workshops, OEM manufacturers, hardware producers, garment manufacturers, and assembly operations.

8. OEM and Custom Support

Customized riveting solutions can be developed based on product samples, drawings, rivet specifications, and production requirements.

FAQ
1. What is a Double Heads Riveting Machine?

A Double Heads Riveting Machine is an industrial riveting machine equipped with two riveting heads for processing two fastening positions or specialized dual-riveting applications.

2. What is the advantage of two riveting heads?

Two heads can allow suitable products to be riveted at two positions during the same setup, potentially reducing repositioning and improving production efficiency.

3. Can the two heads work simultaneously?

Depending on the machine configuration, the two riveting heads may be designed to work simultaneously or according to a specific operating sequence.

4. What products can this machine rivet?

It can be configured for suitable clothing, shoes, bags, leather goods, luggage, hardware, metal components, furniture accessories, and industrial products.

5. Can it be used for jeans?

Yes. With suitable tooling, the machine can be used for compatible denim and garment riveting applications.

6. Can it be used for leather products?

Yes. It can be configured for suitable leather bags, belts, wallets, luggage, straps, and other leather goods requiring rivet installation.

7. Can the distance between the two heads be customized?

Depending on the machine design, the head spacing can be configured or customized according to the required riveting positions.

8. Can the riveting dies be customized?

Yes. Customized upper and lower dies can be developed for different rivet sizes, shapes, materials, and products.

9. Can automatic rivet feeding be added?

Depending on the rivet design and machine configuration, automatic or semi-automatic feeding can be considered.

10. Is this machine suitable for mass production?

Yes. It is suitable for repetitive production applications, especially where products require two fixed or repeated riveting positions.

11. How do I select the correct double-head riveting machine?

Selection should consider the rivet type, diameter, material, product dimensions, fastening positions, required riveting force, production volume, and desired automation level.

12. Can you provide a customized double-head riveting solution?

Yes. Customized machines and tooling can be evaluated based on product samples, technical drawings, rivet specifications, and production requirements.
