Customized Manual Roller Feeding Rack with Digital Display Locator for Cutting Machines

Introducing our Customized Manual Roller Feeding Rack, designed to enhance the efficiency and precision of your cutting machines. This innovative feeding rack is equipped with a Digital Display Locator, ensuring accurate measurements and adjustments for various material lengths.

Key Features:

    Customizable Lengths: Available in 3m, 4m, 5m, and 6m options to suit your specific needs.
    High Precision: The digital display locator provides precise control and easy readability, enhancing cutting accuracy.
    Stainless Steel Frame: Constructed with high-quality stainless steel, this feeding rack is durable, corrosion-resistant, and built to last.
    Manual Operation: User-friendly manual roller system allows for smooth and controlled feeding of materials.
    Versatile Application: Ideal for various cutting materials, this feeding rack is perfect for industries requiring high precision and efficiency.

The Customized Manual Roller Feeding Rack with Digital Display Locator is a practical material feeding and positioning solution designed for cutting machines and sheet metal fabrication applications. Combining a manual roller support structure with a digital display locator, the system helps operators feed, support, measure, and position materials before cutting.

In metal fabrication and industrial processing, accurate material positioning is essential for achieving consistent cutting dimensions and reducing material waste. When long sheets, plates, profiles, or other workpieces need to be manually positioned on a cutting machine, a suitable feeding rack can provide additional support while making the preparation process more organized.

This customized roller feeding rack is designed for integration with different cutting machine layouts. Its dimensions, roller arrangement, working height, positioning structure, and digital display configuration can be adjusted according to the customer's machine and production requirements.

Manual Roller Feeding for Cutting Operations

The main function of the feeding rack is to provide a stable roller-supported surface for moving material toward the cutting machine. Instead of sliding a workpiece directly across a fixed surface, the rollers can reduce resistance during manual material movement.

This can be particularly useful when handling relatively long or large workpieces. The operator can place the material on the roller rack and move it toward the cutting area while maintaining better control over the feeding process.

The manual design does not necessarily require a powered conveyor motor. This can make the system a cost-effective solution for workshops where operators prefer direct control over material feeding.

Depending on the application, the rack can be positioned before the cutting machine, after another processing station, or as part of a customized material handling arrangement.

Digital Display Locator for Positioning

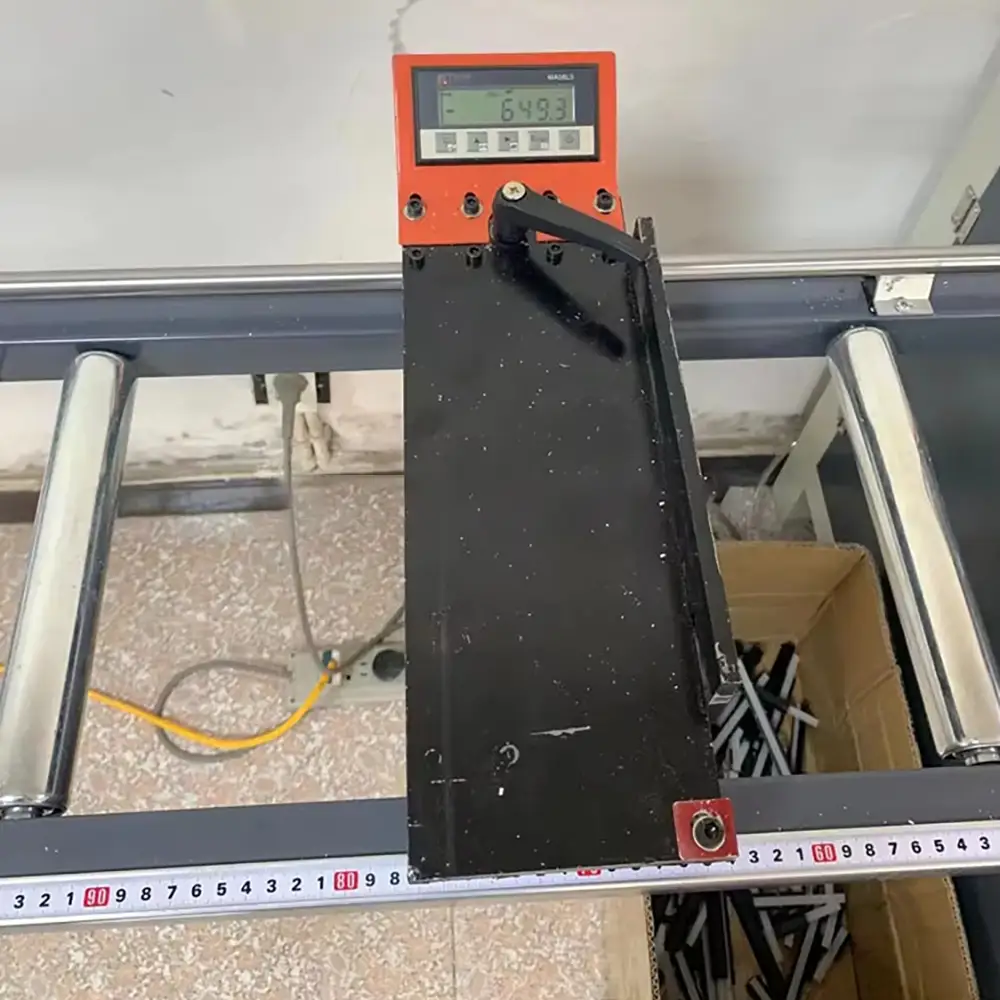

A key feature of this system is the digital display locator. The positioning device provides a visual reference that helps operators establish the required material position before cutting.

For repetitive fabrication work, a digital measurement or positioning reference can make it easier to reproduce cutting dimensions from one workpiece to another. Instead of relying solely on a manual ruler or visual measurement, the operator can use the displayed position as a reference during material setup.

The exact measurement range, display resolution, positioning method, and control arrangement depend on the selected configuration. Customers should provide their required cutting dimensions and machine layout when requesting a customized solution.

Designed for Cutting Machine Integration

The roller feeding rack can be customized to work with different types of cutting equipment. Possible applications include sheet metal cutting machines, metal plate cutting equipment, profile cutting systems, saws, shearing machines, and other fabrication machinery.

Integration is important because the feeding rack needs to match the working height and material flow of the main machine. An incorrectly positioned support rack can create material alignment problems or make loading more difficult.

For this reason, customization can include the overall rack dimensions, roller spacing, support height, positioning scale, digital display location, and connection or alignment features.

Suitable for Sheet Metal and Long Workpieces

A roller feeding rack can be useful for processing workpieces that are difficult to handle on a compact cutting machine table.

Typical materials and workpieces may include:

Metal sheets and plates
Steel sheet
Stainless steel sheet
Aluminum profiles
Metal bars
Long rectangular profiles
Tubes and structural sections
Fabrication blanks
Other compatible industrial materials

Material weight and dimensions should be considered when selecting the rack structure and roller configuration. The actual load capacity depends on the design, roller specifications, frame construction, and number of support points.

Improved Material Handling

Material handling is an important part of the cutting process. Even when the cutting machine itself is highly precise, poor manual feeding can result in incorrect positioning or unnecessary material movement.

The roller rack creates a dedicated support area where the workpiece can be moved toward the cutting machine. This can reduce manual lifting and make horizontal movement more convenient.

For workshops that frequently process long materials, additional roller support can also help reduce the risk of the workpiece tilting or becoming difficult to control during positioning.

The rack is intended as a material support and positioning accessory. It does not replace the main cutting machine's clamping, feeding, or automatic positioning functions unless specifically configured to do so.

Customized Working Height

One of the most important considerations for a feeding rack is its working height. The rack should be aligned appropriately with the material entry point or working table of the cutting machine.

A customized design can take into account:

Cutting machine table height
Material thickness
Operator working position
Roller diameter
Required feeding direction
Available workshop space
Material length
Required positioning range

This allows the rack to be developed around the customer's actual machine rather than using a one-size-fits-all structure.

Flexible Roller Configuration

The rollers provide the supporting surface for material movement. Roller diameter, spacing, quantity, material, and surface design can be selected according to the workpiece.

For heavier steel plates or profiles, a more robust support structure may be required. For lighter sheet materials, a different roller arrangement may be sufficient.

The roller system should be selected according to the workpiece dimensions and weight. Customers can provide material specifications and photographs of their existing cutting machine so that the appropriate configuration can be evaluated.

Digital Positioning for Repeat Production

Repeatability is particularly important for batch fabrication. If the same or similar workpieces need to be cut repeatedly, a consistent positioning reference can reduce setup variation.

The digital display locator allows the operator to monitor the position and use the selected dimension as a reference. This can help standardize manual material setup across repeated cutting operations.

However, the final cutting accuracy depends on the entire production system, including the cutting machine, material straightness, operator positioning, measurement system, machine calibration, and cutting process.

Applications in Metal Fabrication

This customized feeding rack can be used in a variety of fabrication environments, including:

Sheet Metal Workshops:
Supports manual loading and positioning of sheet metal before cutting.

Steel Fabrication:
Provides roller support for plates, profiles, and other steel components.

Machinery Manufacturing:
Helps operators prepare material blanks for subsequent fabrication operations.

Custom Metalworking:
Useful for workshops producing different workpiece sizes and small production batches.

Industrial Cutting Lines:
Can be incorporated into a broader material preparation workflow.

Maintenance Workshops:
Provides additional support when processing replacement plates and fabricated components.

Practical Workshop Design

The feeding rack is designed with practical workshop use in mind. A simple manual roller structure can be easier to operate and maintain than a powered material handling system when automatic feeding is not required.

The digital display locator adds a measurement reference without necessarily requiring a fully automated positioning system. This combination can provide a balance between manual control, positioning convenience, and equipment cost.

For workshops with changing product requirements, the customized design can also provide flexibility in terms of dimensions and machine compatibility.

Installation and Maintenance

Before installation, the rack should be positioned on a stable and level workshop floor. The working height should be aligned with the connected cutting machine, and the rollers should be checked to ensure smooth rotation.

Routine maintenance should include inspection of roller bearings, shafts, frame fasteners, positioning components, display or measurement components, and other moving parts.

Rollers should be kept clean and free from metal chips or debris that could interfere with smooth material movement. Periodic inspection can help maintain stable feeding and positioning performance.

OEM, ODM, and Custom Manufacturing

Customization is one of the major advantages of this manual roller feeding rack. Different cutting machines have different table heights, material flow directions, available space, and workpiece requirements.

As an experienced Manufacturer, Factory, Supplier, and Material Handling Equipment Vendor, we can develop the rack according to customer drawings, machine dimensions, material specifications, and application requirements.

OEM and ODM customization can cover rack dimensions, roller quantity, roller spacing, working height, digital display locator, measurement range, positioning arrangement, frame design, surface treatment, labeling, and packaging.

For an accurate quotation, customers are encouraged to provide the cutting machine model, working table dimensions, material type, maximum workpiece length and weight, required positioning accuracy, and photographs or drawings of the existing production area.

FAQs
1. What is a manual roller feeding rack?

It is a material support and feeding accessory that uses rollers to help operators manually move workpieces toward a cutting machine.

2. What is the purpose of the digital display locator?

The digital display locator provides a visible positioning or measurement reference to help operators position material before cutting.

3. Can the rack be customized?

Yes. Dimensions, working height, roller arrangement, positioning system, and other features can be customized according to the cutting machine and workpiece requirements.

4. What cutting machines can use this feeding rack?

It can potentially be integrated with sheet metal cutters, plate cutting machines, shearing equipment, saws, profile cutting machines, and other compatible fabrication equipment.

5. Can it support heavy steel plates?

The rack can be designed for different material weights, but the required load capacity must be confirmed according to plate dimensions, weight, roller configuration, and frame structure.

6. Does the rack automatically feed material?

The standard concept is manual roller feeding. Powered or automated feeding can be discussed if required by the customer's production process.

7. Can the digital locator improve cutting accuracy?

It can provide a more consistent positioning reference, but final cutting accuracy also depends on the cutting machine, material condition, calibration, tooling, and operator procedure.

8. Can it be used for long metal profiles?

Yes, provided the roller rack is configured with appropriate dimensions and load capacity for the length, weight, and shape of the profile.

9. What information is needed for customization?

Customers should provide the cutting machine dimensions, working height, material type, maximum workpiece dimensions, weight, required positioning range, and preferred layout.

10. Is OEM service available?

Yes. OEM and ODM services can be provided for customized dimensions, roller arrangements, digital positioning systems, branding, packaging, and other agreed requirements.

Why Choose Us

Customized Machine Integration
The roller feeding rack can be designed around the dimensions and working height of the customer's cutting machine.
Digital Positioning Reference
The digital display locator provides a convenient reference for manual material positioning and repetitive cutting work.
Flexible Roller Design
Roller diameter, spacing, quantity, and support structure can be selected according to the workpiece requirements.
Practical Manual Operation
Manual feeding provides direct operator control without requiring a powered conveyor system for applications where it is unnecessary.
Improved Material Handling
Roller support makes it easier to move long or large workpieces toward the cutting machine.
B2B Custom Manufacturing
We support distributors, metal fabrication companies, machinery dealers, and industrial end users with customized equipment solutions.
OEM & ODM Support
Custom dimensions, positioning systems, frame structures, rollers, labeling, and packaging can be developed according to project requirements.
Application-Based Technical Support
Customers can provide machine drawings, material information, photographs, and workpiece dimensions for technical evaluation and configuration recommendations.
