Concrete Cement Mixer Truck with 270 Degree Rotation Self-Loading 3.5 4.0 5.5 Cubic

Concrete Cement Mixer Truck with 270 Degree Rotation Self-Loading 3.5 4.0 5.5 Cubic Tank Engine as Core Component

Technical Parameters
Drum capacity	5.5m³
Concrete output	4 m³
Loading ratio	76%
Rotary drum	Discharge mouth height 1.8 meters.Level turn 300 ° (options)
Production capacity	4 batches in an hour.16 cubic meters per hour
Climbing ability	30%
Speed	Low speed 0-25 km/h, high speed 0-45 km/h.
CAB	Ultra wide deluxe cab . ROPS type.
Hydraulic system	Open feed, two gear pump participate in action.
Ioystick	A four-way hydraulic pilot with an electric control button controls the bucket.
Bucket	650L, hydraulic gate.
Chute	Equipped with two removable shaft pins to increase the discharge length.
Water supply system	Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer (optional).
Brake	Inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub.
Turn	Hydraulic steering, rear wheel steering.
Tyre	16/70-20 wire tires
Power system	24V
OIL TANK/water tank	2 x210L water tank. Diesel tank: 125L.Hydraulic tank: 130L
Weight	7600kg
Dimension(L*W*H)	7500*2700*3380mm
Wheelbase	2350mm
Metering	Electronic weighing system

Advanced Self Loading Concrete Mixer For Efficient On-Site Concrete Production

The Concrete Cement Mixer Truck with 270 Degree Rotation is a highly efficient machine designed to simplify concrete production and transportation. Unlike traditional concrete mixing systems that require separate loaders, batching plants, mixers, and transport vehicles, this self-loading concrete mixer combines all essential functions into one compact machine.

Available in 3.5 Cubic Meter, 4.0 Cubic Meter, and 5.5 Cubic Meter capacities, these machines are widely used in construction sites, road projects, rural developments, mining operations, and infrastructure construction. The 270-degree rotating drum provides exceptional flexibility during discharge, allowing operators to place concrete precisely where needed while reducing material waste and labor requirements.

The machine offers a complete mobile concrete production solution, helping contractors improve efficiency, lower operational costs, and increase project productivity.

All-In-One Concrete Production System

The self-loading concrete mixer truck integrates multiple functions into a single machine.

Main Functions
Aggregate loading
Automatic weighing
Water dosing
Concrete mixing
Material transportation
Hydraulic discharge

This integrated design eliminates the need for multiple machines and reduces overall project costs.

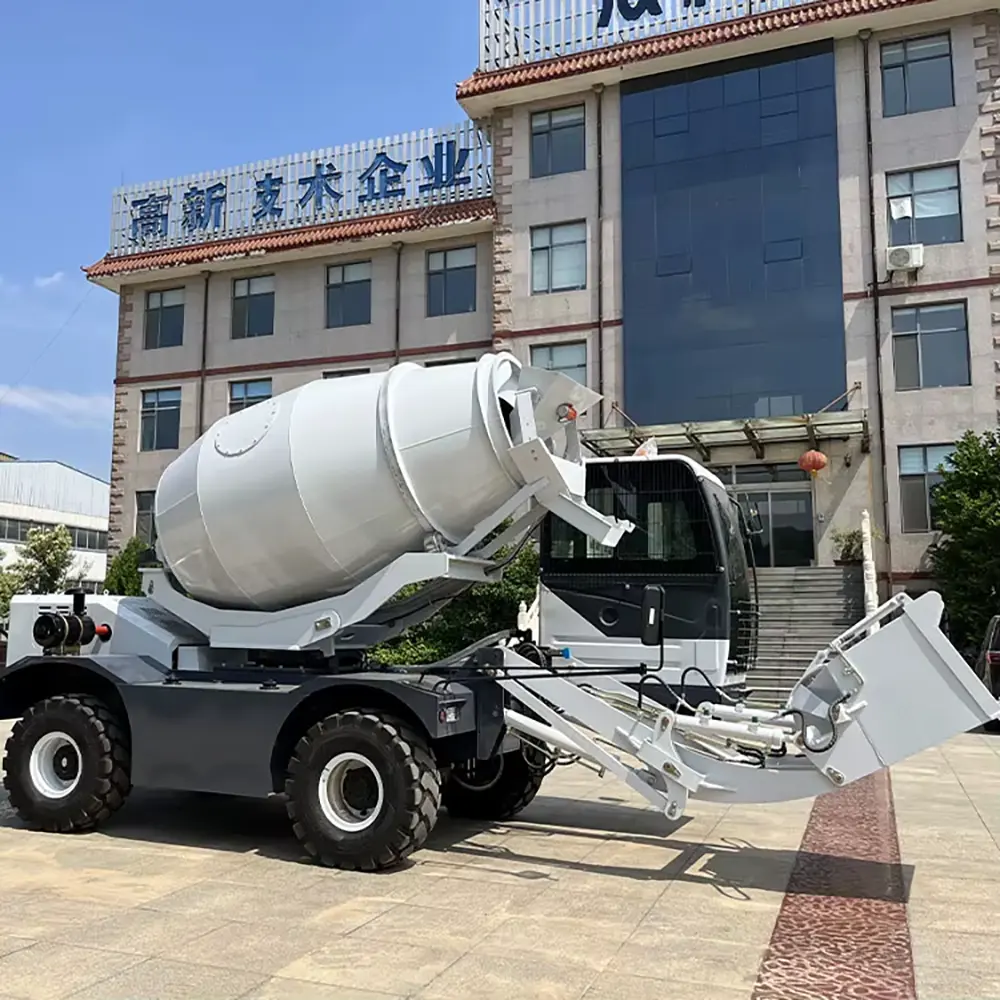

270 Degree Rotating Drum Advantage

One of the most important features is the hydraulic 270-degree rotating mixing drum.

Benefits Of 270 Degree Rotation
Flexible concrete placement
Faster discharge operations
Reduced machine repositioning
Improved job site efficiency
Better access to confined areas
Lower labor requirements

The rotating drum allows concrete to be delivered directly to forms, foundations, trenches, or construction areas with greater accuracy.

Available Capacity Options

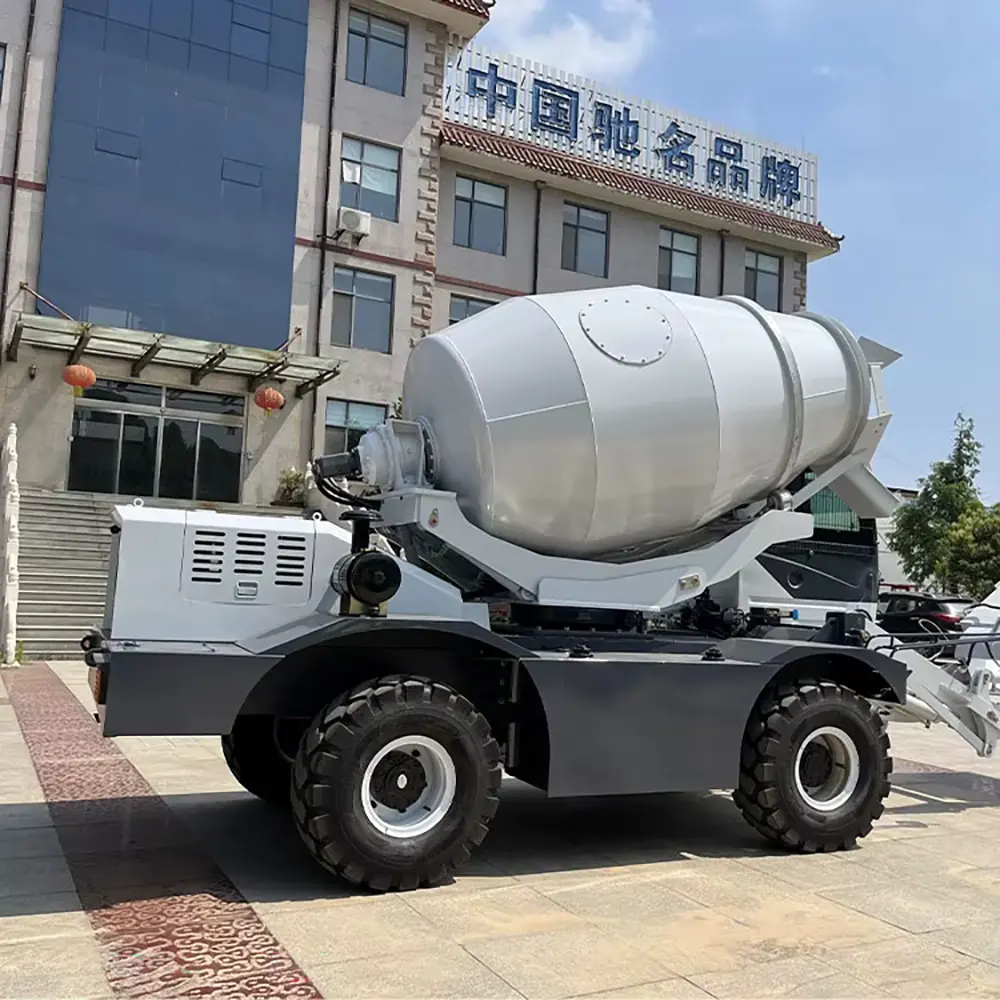

3.5 Cubic Meter Self Loading Mixer

Ideal for:

Small construction projects
Residential developments
Farm buildings
Rural infrastructure
Advantages
Compact design
Easy transportation
Excellent maneuverability
Lower operating costs

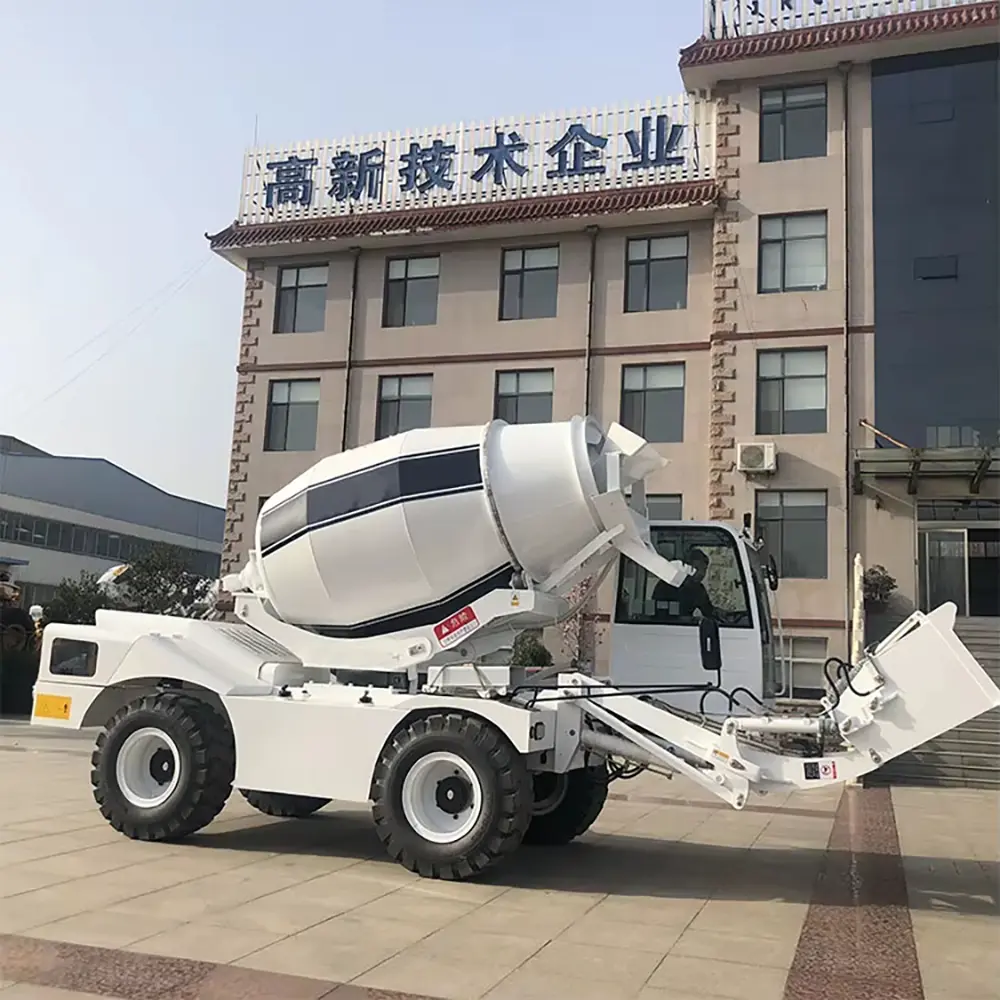

4.0 Cubic Meter Self Loading Mixer

Suitable for:

Medium-sized construction projects
Commercial buildings
Municipal works
Road maintenance
Advantages
Balanced capacity
High productivity
Flexible operation
Efficient concrete supply

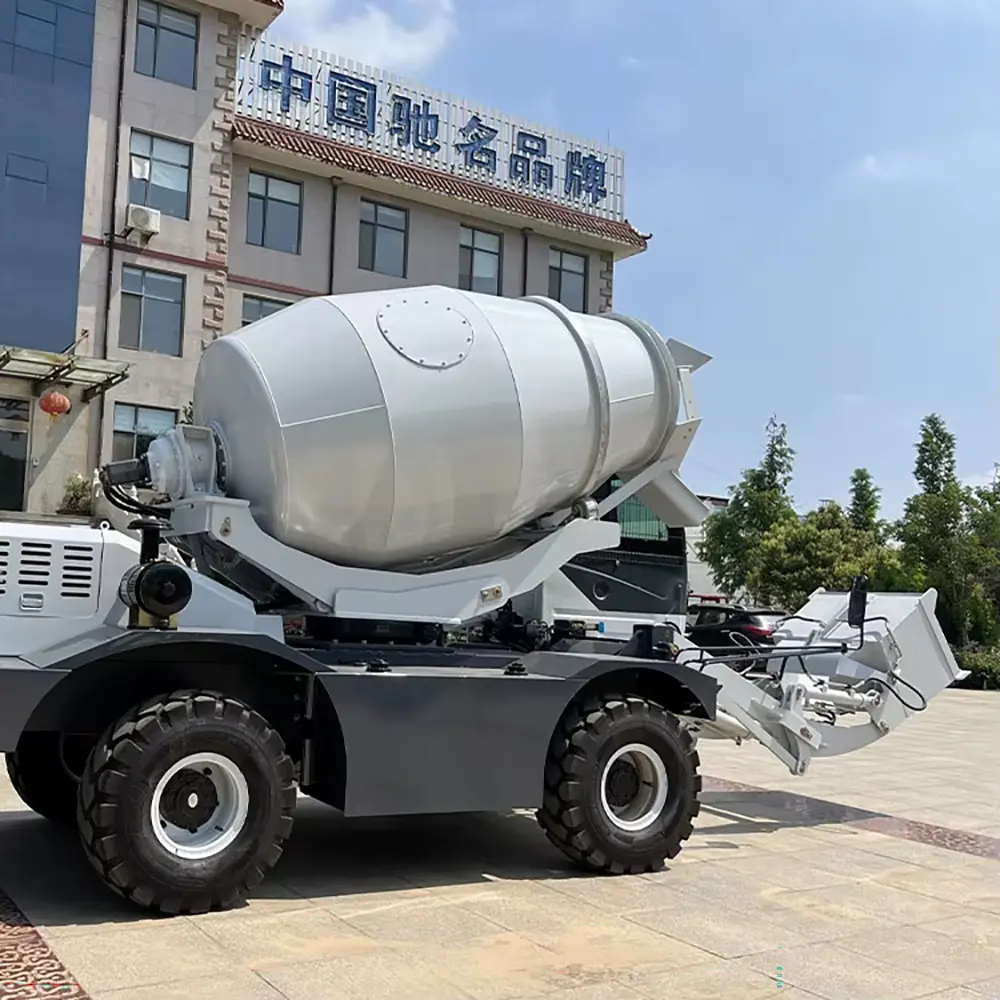

5.5 Cubic Meter Self Loading Mixer

Designed for:

Large construction projects
Infrastructure development
Industrial facilities
Large-scale concrete applications
Advantages
Higher output
Increased productivity
Reduced mixing cycles
Lower project costs
High Efficiency Mixing Performance

The mixing drum is engineered to produce consistent and high-quality concrete.

Mixing Advantages
Uniform concrete consistency
Fast mixing cycles
Stable mixing performance
Reduced segregation
Accurate batching

The optimized drum design ensures reliable concrete quality throughout the project.

Powerful Hydraulic System

The advanced hydraulic system provides smooth and reliable operation.

Hydraulic Features
Drum rotation control
Loading bucket operation
Steering assistance
Discharge control
Stable performance

The system ensures efficient machine operation under demanding conditions.

Excellent Mobility For Remote Projects

The self-loading concrete mixer truck is designed to operate in locations where traditional batching plants may not be practical.

Suitable Locations
Remote villages
Mountain projects
Mining areas
Agricultural developments
Rural road construction

Its mobility allows contractors to produce concrete directly on-site, reducing transportation costs and delays.

Wide Range Of Applications
Construction Industry
Residential buildings
Commercial projects
Industrial facilities
Infrastructure construction
Road Construction
Highway projects
Rural roads
Bridges
Pavement construction
Agricultural Projects
Farm buildings
Irrigation systems
Agricultural infrastructure
Mining Operations
Site development
Foundation work
Facility construction
Durable And Reliable Construction

The machine is manufactured using high-quality components to ensure long service life.

Structural Features
Reinforced chassis
Wear-resistant drum
Heavy-duty loading bucket
Durable hydraulic components
Reliable powertrain

These features provide dependable operation in demanding working environments.

Operator-Friendly Design

The mixer truck is designed for productivity and ease of operation.

Operator Benefits
Comfortable cabin
Easy-to-use controls
Excellent visibility
Reduced fatigue
Improved safety

Even in long working hours, operators can maintain high productivity.

Lower Operating Costs

Compared with traditional concrete production systems, the self-loading mixer offers significant cost savings.

Economic Benefits
Fewer machines required
Reduced labor costs
Lower fuel consumption
Faster project completion
Reduced concrete transportation expenses

The result is a higher return on investment for contractors and equipment owners.

Why Choose Us
Professional Construction Machinery Manufacturer

We specialize in concrete equipment, construction machinery, and earthmoving solutions.

Strict Quality Control

Every machine undergoes comprehensive testing before shipment.

Factory Direct Supply

Competitive pricing with reliable manufacturing quality.

OEM And Custom Solutions

Customized specifications are available according to project requirements.

Global Export Experience

Machines are exported to customers worldwide.

Fast Delivery

Efficient production and logistics support timely delivery.

Professional Technical Support

Complete operation guidance and after-sales service are provided.

Reliable Product Quality

Durable machines designed for long-term operation.

FAQs
Q1: What is a self-loading concrete mixer truck?

A: It is a machine that can load materials, batch, mix, transport, and discharge concrete independently.

Q2: What capacities are available?

A: Common capacities include 3.5 Cubic Meter, 4.0 Cubic Meter, and 5.5 Cubic Meter models.

Q3: What is the advantage of 270-degree rotation?

A: It allows flexible concrete discharge with minimal machine repositioning.

Q4: Can the mixer produce concrete on-site?

A: Yes. It enables complete concrete production directly at the job site.

Q5: Is it suitable for remote projects?

A: Yes. It is ideal for locations without access to batching plants.

Q6: What industries use self-loading mixers?

A: Construction, mining, agriculture, road building, and infrastructure development.

Q7: Does the machine reduce labor requirements?

A: Yes. One machine performs the work of several separate pieces of equipment.

Q8: Is maintenance easy?

A: Yes. The machine is designed for convenient service and maintenance.

Q9: Can it operate on rough terrain?

A: Yes. It is designed for challenging job site conditions.

Q10: Why choose our self-loading concrete mixer truck?

A: It offers high productivity, flexible operation, reliable quality, and excellent cost efficiency.
